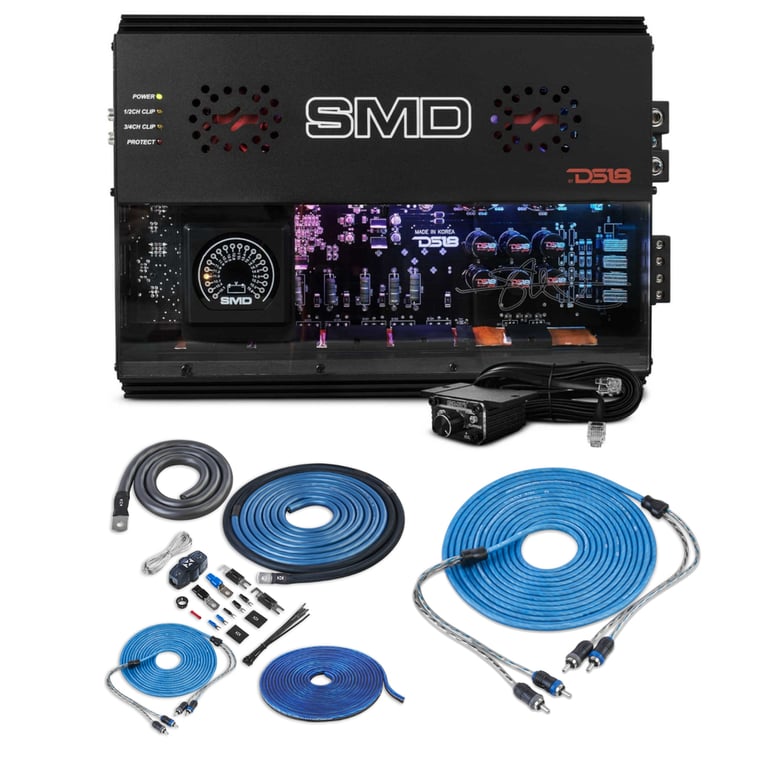

DS18 SMD-300.4AB with NVX 1/0 Gauge Amp Kit

Product Details:

• SMD Series Class A/B 2 ohm Stable 4-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 200 watts x 4 channel
• 2 ohm: 300 watts x 4 channel

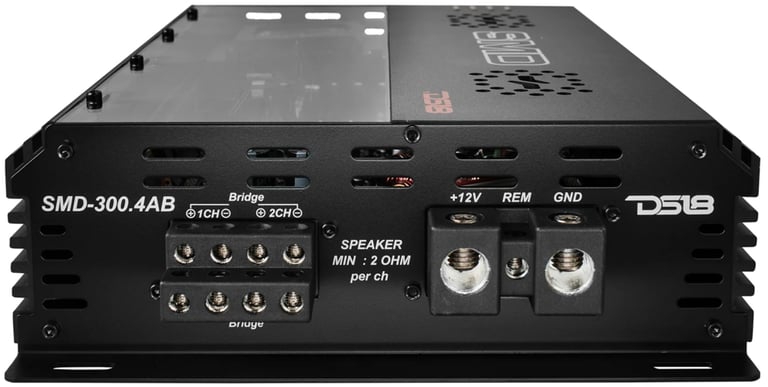

• Bridged: 600 watts x 2 channel @ 4 ohm
• Total power output: 1200 watts
• Power / Protection / Clip Led Indicator
• Wired bass level remote control included

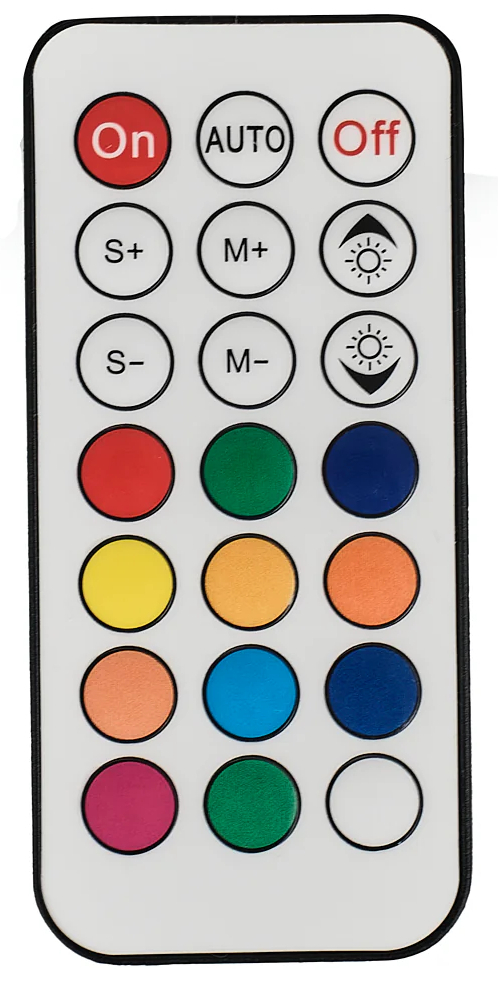

• IR Remote Control for LED patterns and colors included
• Signal sensing remote turn-on
• Thermal, overload, DC, short circuit, voltage, and clipping protection
• Exclusive SMD design with VM-1 voltmeter

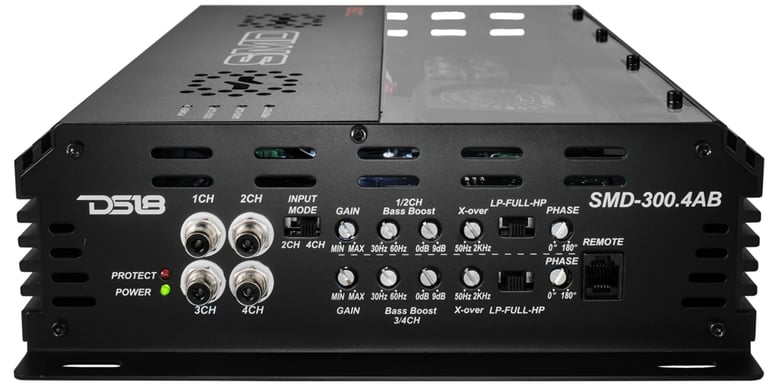

• Input Mode Selectable to 2/4 Channel
• Metal Adjustment Knobs with Click Position
• Professional Tiffany RCA Connectors

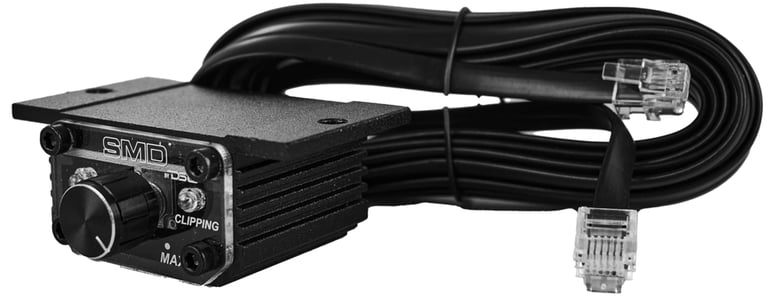

• Remote Level Knob with Clip indicator
• Reliable Heavy Duty Korean Board Design

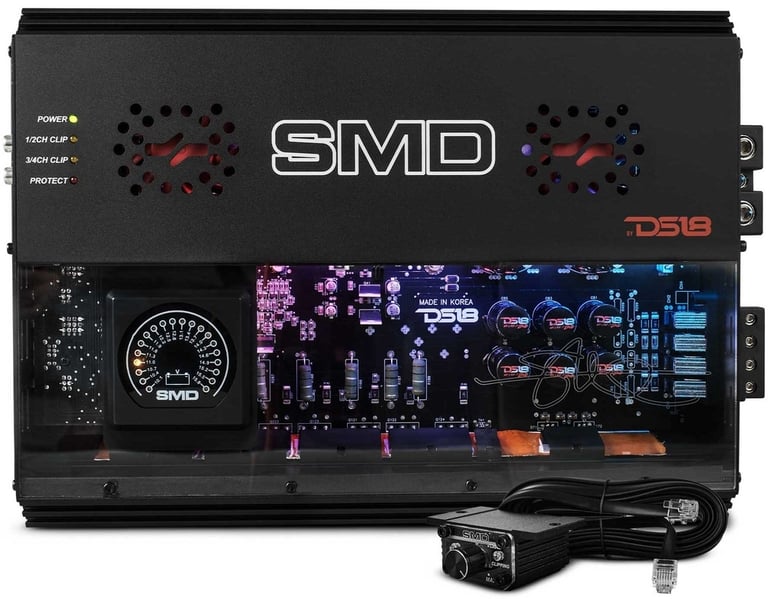

• Front Acrylic Window and Digital RGB Lighting
• Input sensitivity: 200 mV - 6 volts
• Frequency Response: 10 - 24 Hz
• Total Harmonic Distortion (THD): 0.10%
• Signal to Noise Ratio: 98 dB
• Variable high-pass filter: 50 - 2000 Hz
• Variable low-pass filter: 50 - 2000 Hz
• Variable Bass Boost: 0 - 9 dB
• Fuse Rating: 150A (not included)
• 1/0 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 14.2" L x 9.15" W x 3" H
• Authorized Internet Dealer
• 2 Year Manufacturer's Warranty
• MFR #: SMD-300.4AB

Product Details:

• 1/0 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 3000 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant
• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal

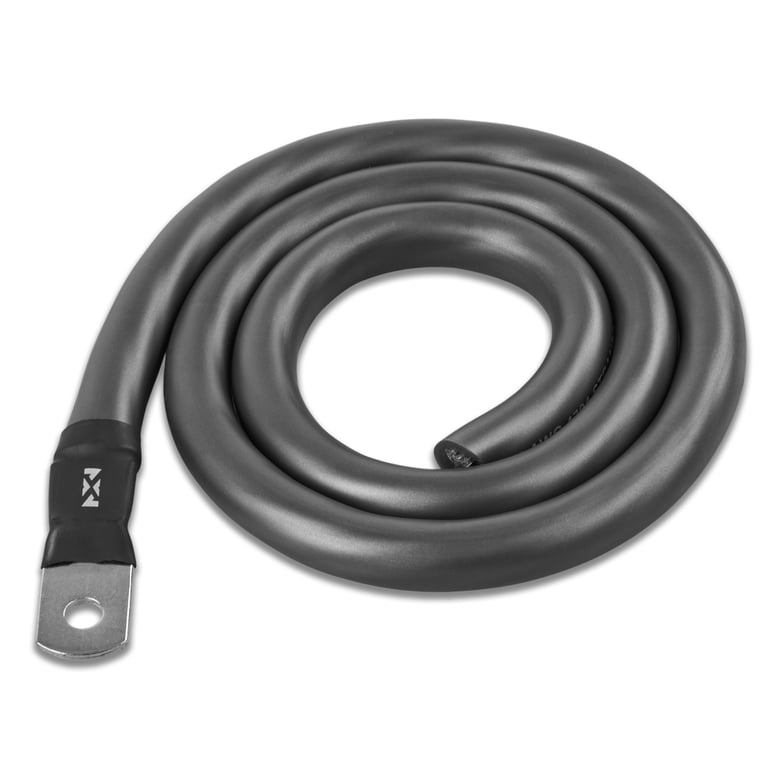

2. 3 ft. Frosted Black 1/0 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire
4. 20 ft. Frosted Black/Blue 12 gauge speaker wire
5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

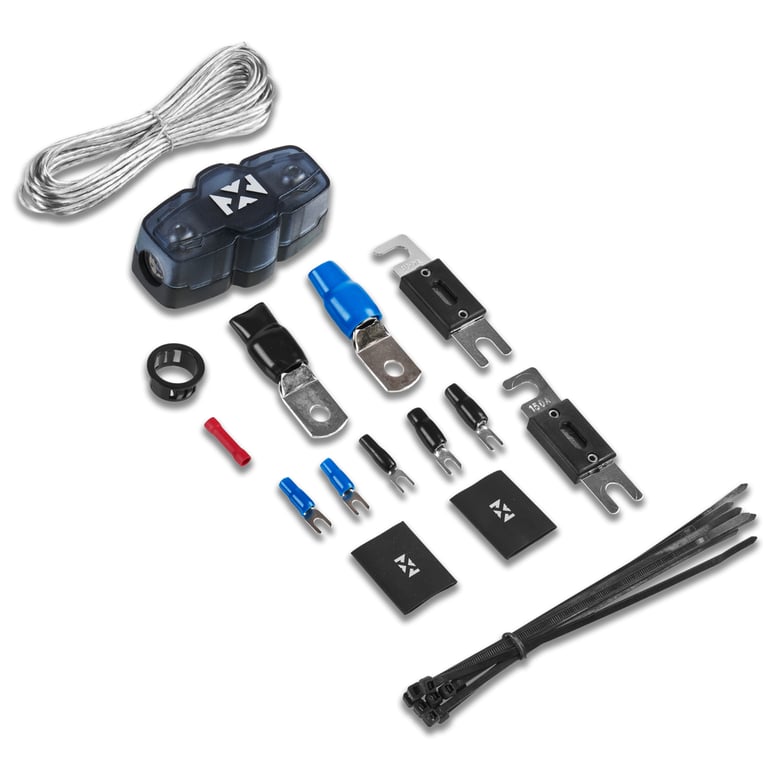

6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 300 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 1/0 Gauge Nickel Plated ring terminals
9. Four 12 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Two Heat Shrink tubes with the NVX logo
12. Ten 6" Black zip ties

Product Features:

• 16.4 feet (5 meters) 2-Channel V-Series Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Heavy gauge OFC conductors ensure superior sound quality and unmatched signal transfer
• Split-tip Silver-Plated ends offer high-quality performance, best in class signal transfer and resist corrosion
• High-strength molded strain reliefs enhance durability
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Authorized Internet Dealer
• 1-year Manufacturer's warranty
