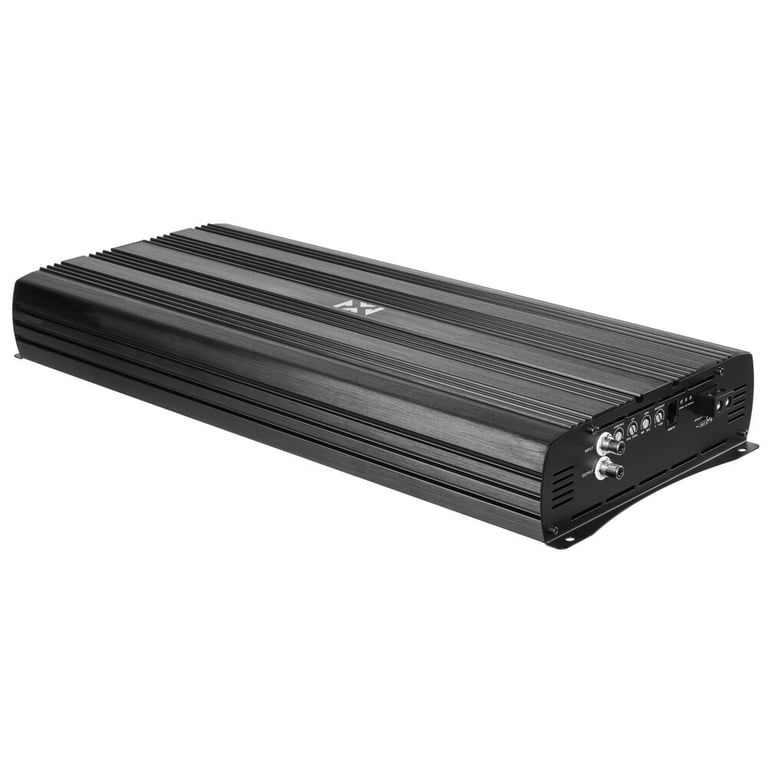

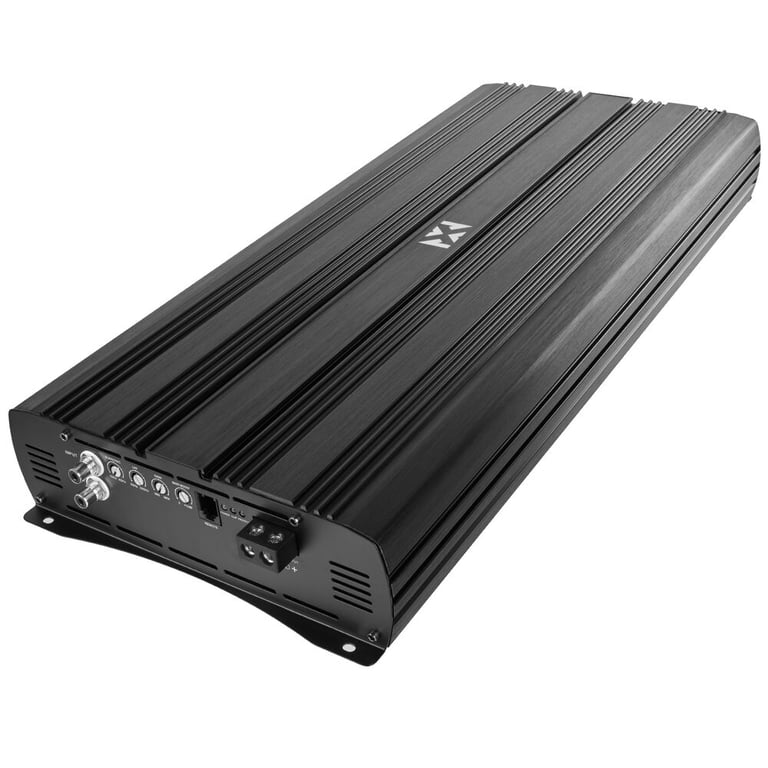

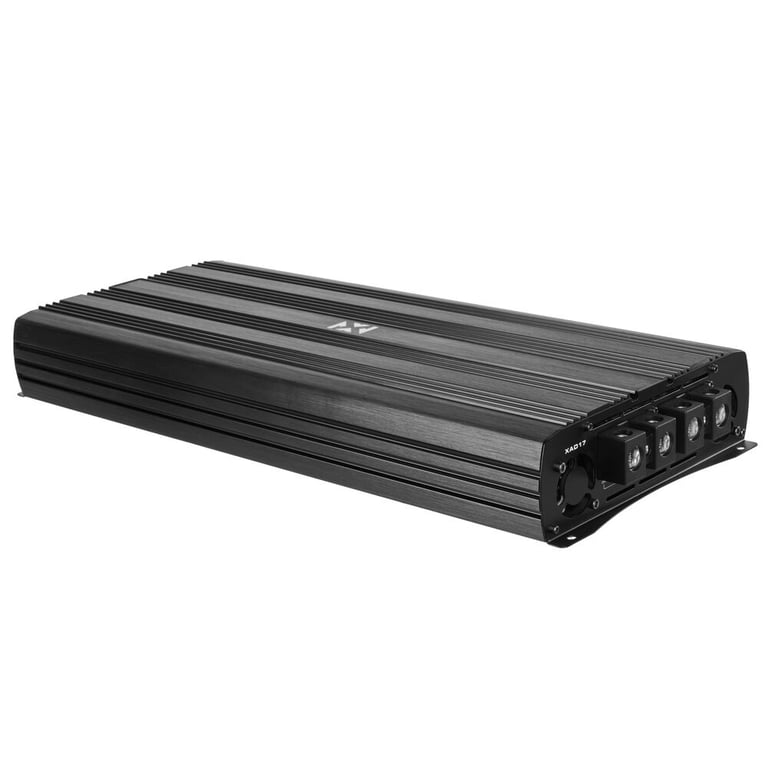

NVX XAD17 (Open Box, Good)

13500W RMS X-Series Full-Bridge Class D 1-Ohm Stable Monoblock Amplifier

NVX
Shop all NVX
highlight-star-icon

• 5200 watts x 1 channel @ 4 ohm
• 8100 watts x 1 channel @ 2 ohm
• 13500 watts x 1 channel @ 1 ohm
• Total RMS Power: 13500 watts
• Frequency Response: 10 - 300 Hz
• CEA-2006 Compliant Amplifier

Learn more about the ls-xad17-u7

We apologize

This item has been discontinued

Description


NVX brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.

13500 W Class D Amplifier
13500 RMS Bass Level Control Included Small Chassis
Mosfet Power Supply

Product Details:

  • NVX X-Series XAD17
  • Class D 1 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 5200 watts x 1 channel
    • 2 ohm: 8100 watts x 1 channel
    • 1 ohm: 13500 watts x 1 channel
  • Total power output: 13500 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply

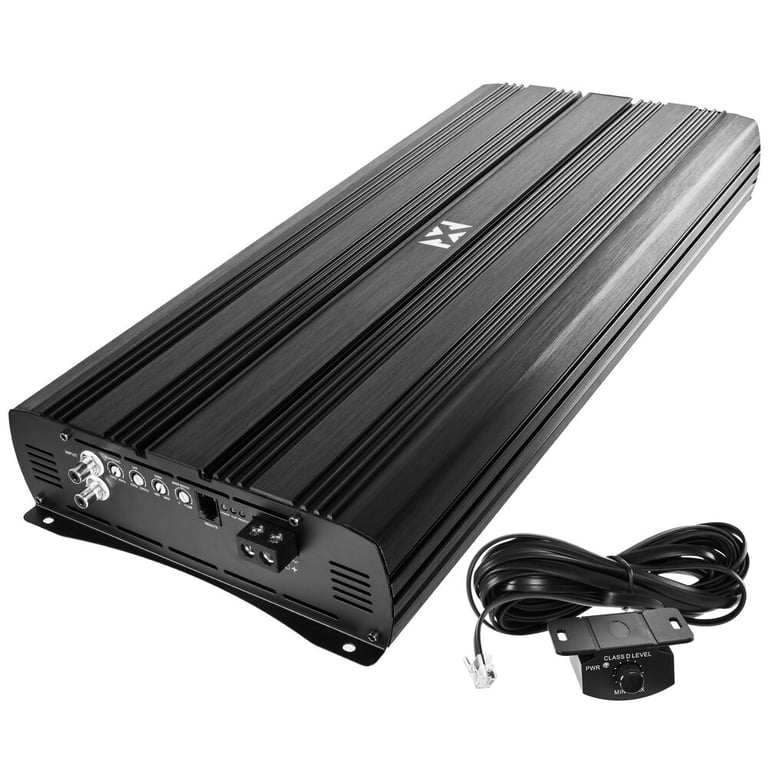

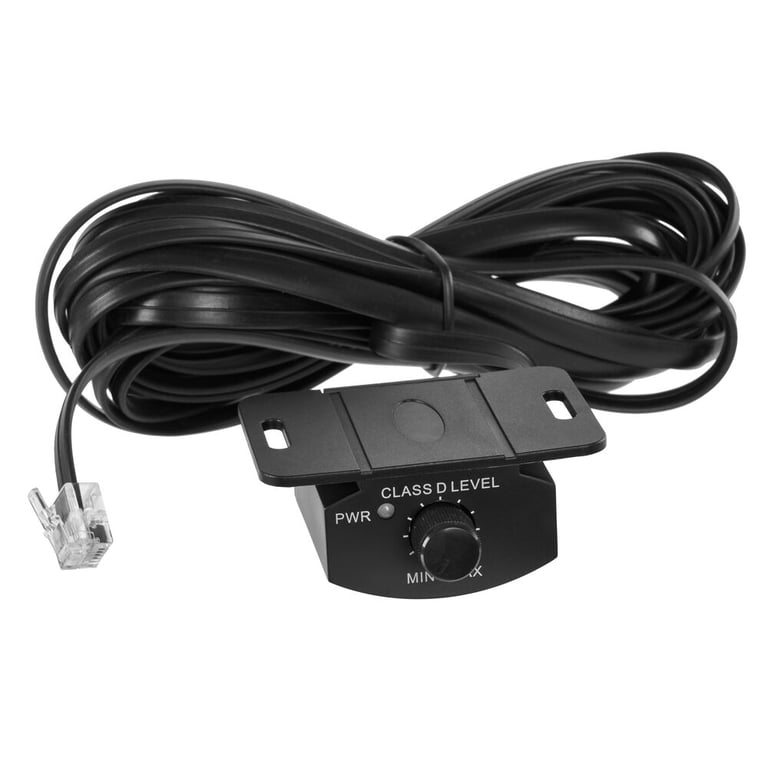

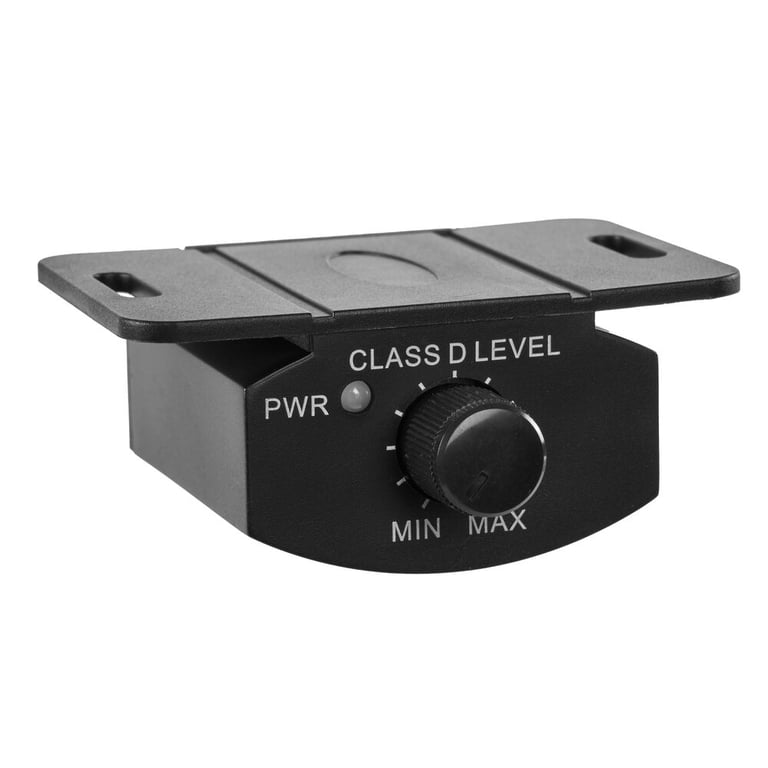

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 200mV
  • Frequency Response: 10 - 300 Hz
  • Total Harmonic Distortion (THD): 0.05%
  • Signal to Noise Ratio: 100 dB

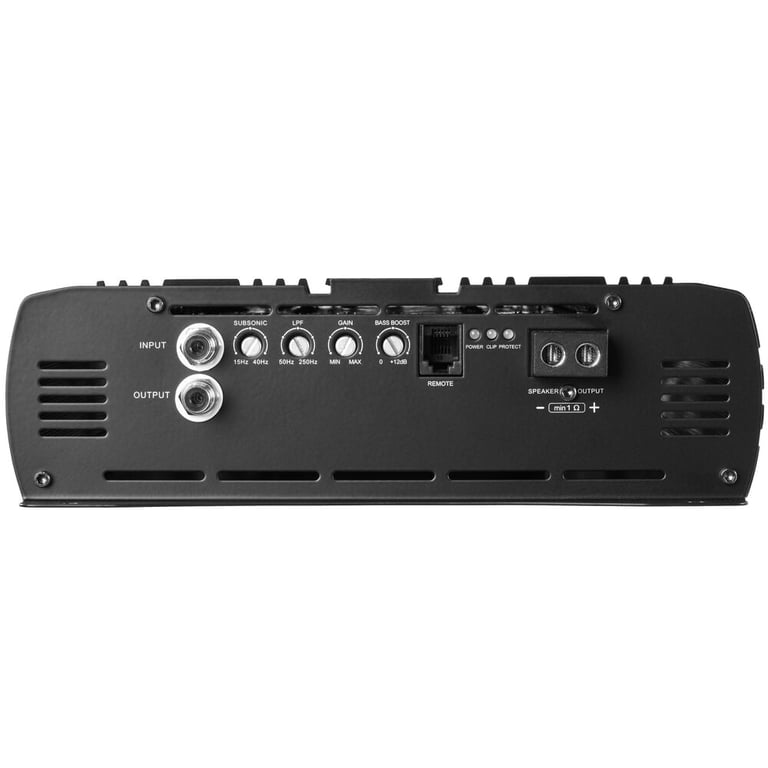

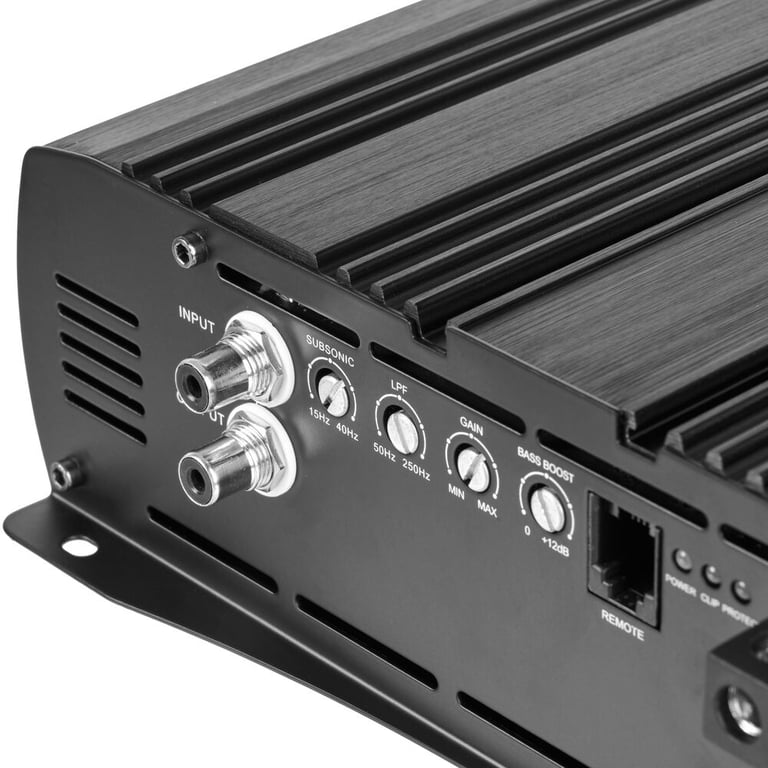

  • Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
  • Variable subsonic filter: 15 - 40 Hz, 24 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz

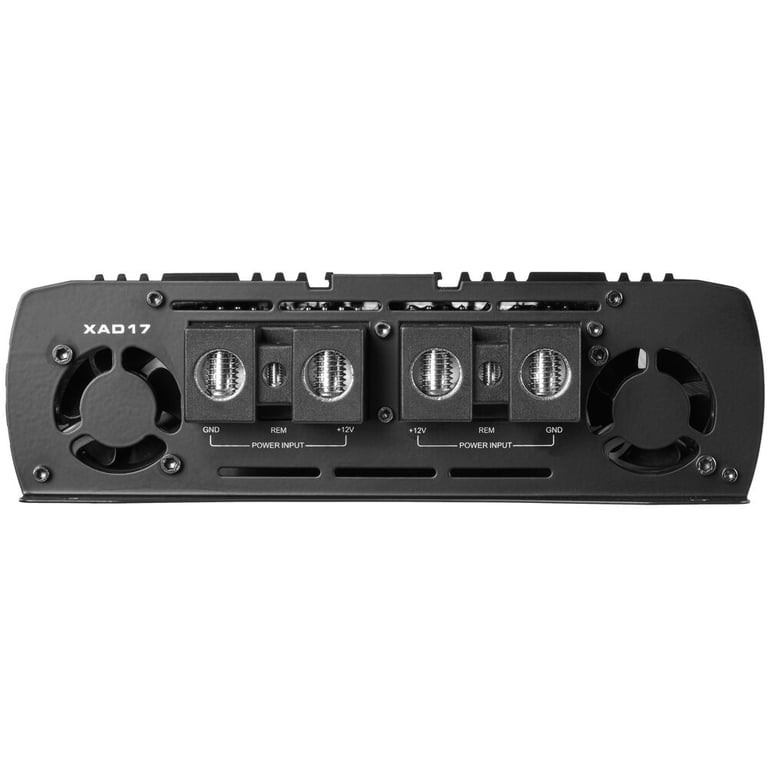

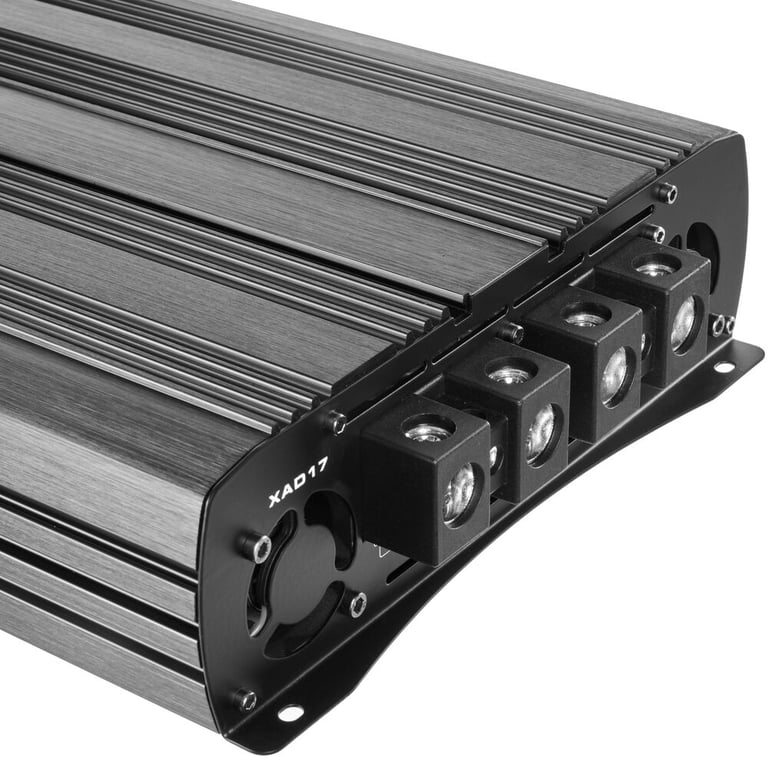

  • 1/0 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 8.75"W x 20.5"L x 2.75"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
pdf icon Check out the X-Series Monoblock Amplifiers Owner's Manual

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Fan Cooled
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
5200 watts x 1 channel
RMS Power @ 2 ohms
8100 watts x 1 channel
RMS Power @ 1 ohm
13500 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
10400 watts x 1 channel
Peak Power @ 2 ohms
16200 watts x 1 channel
Peak Power @ 1 ohm
27000 watts x 1 channel
Amplifier Specifications
Series
X Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
27000 watts
Total RMS Power Output
13500 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
THD at Rated RMS Power
0.05%
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Amp Bluetooth Connectivity
No
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Wired gain knob (wire separate)
Gain knob wire
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

XAD17-3

Weight:

12.00lbs

Internal SKU:

ls-xad17-u7

Internal Product ID:

208324
