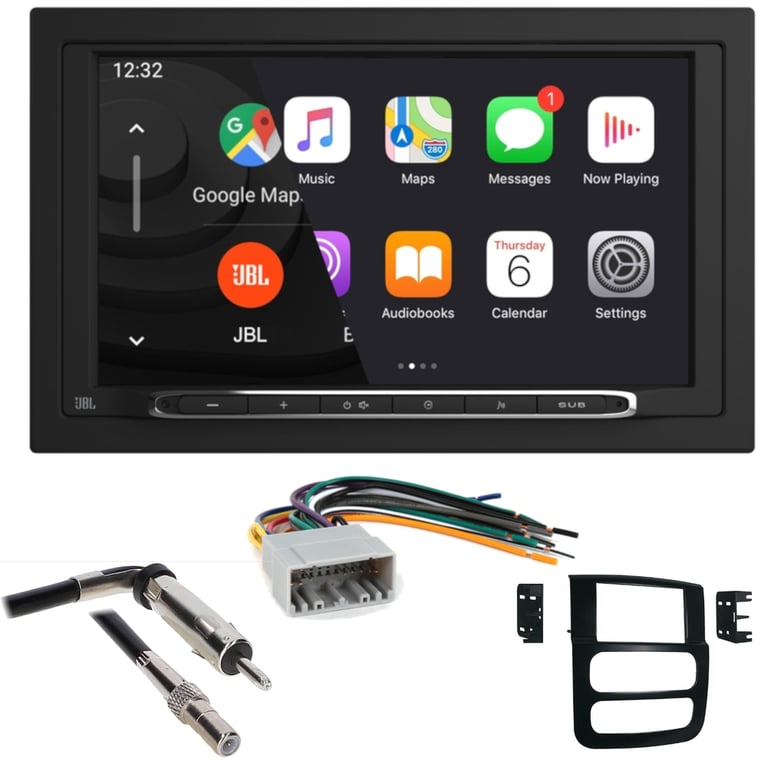

2002-2008 Dodge Ram 1500 JBL Double DIN Wireless Car Stereo Upgrade

Product Details

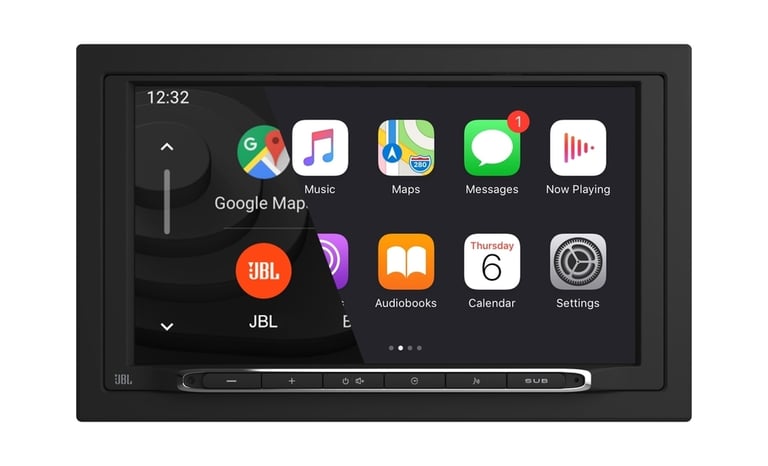

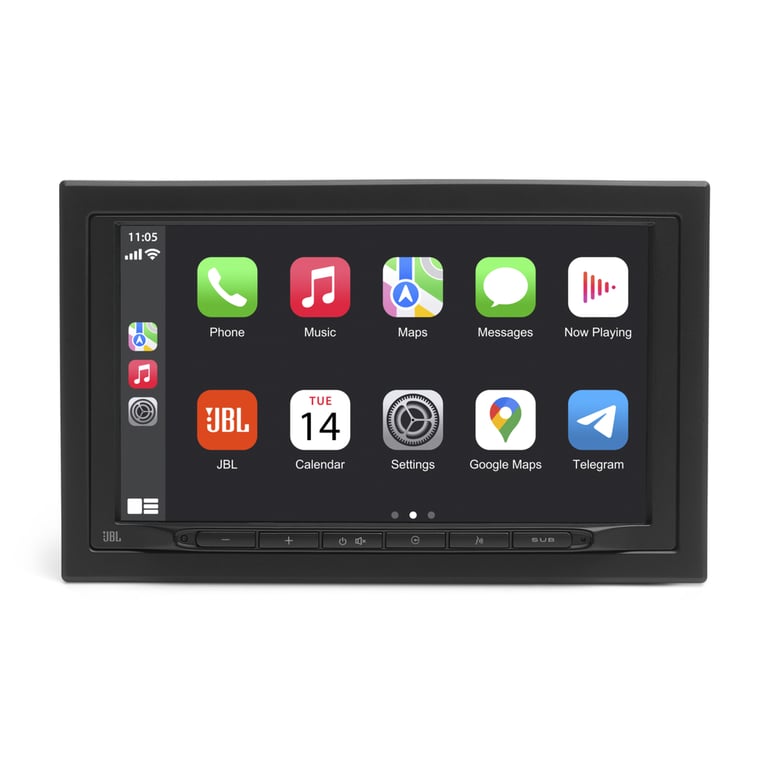

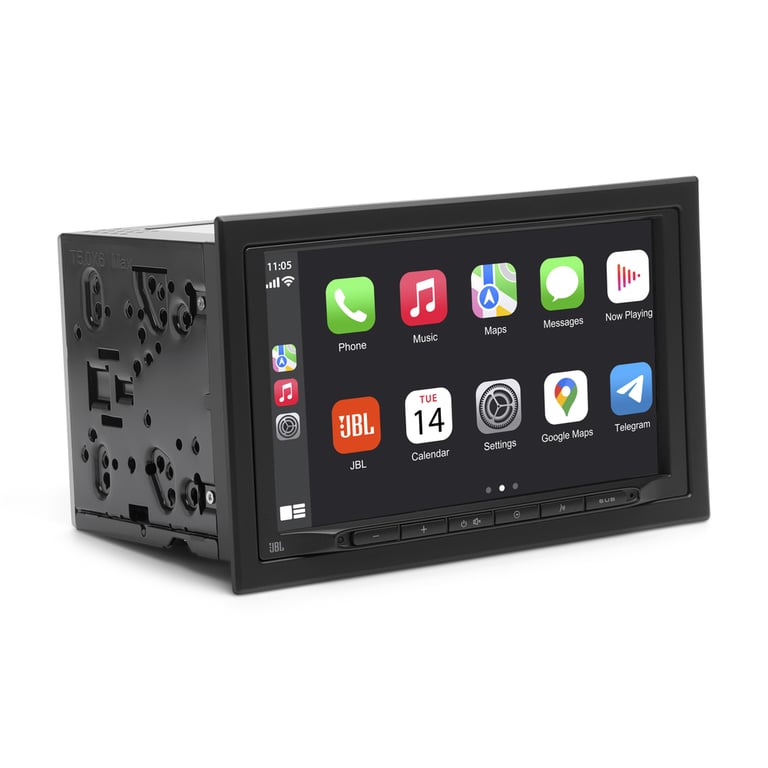

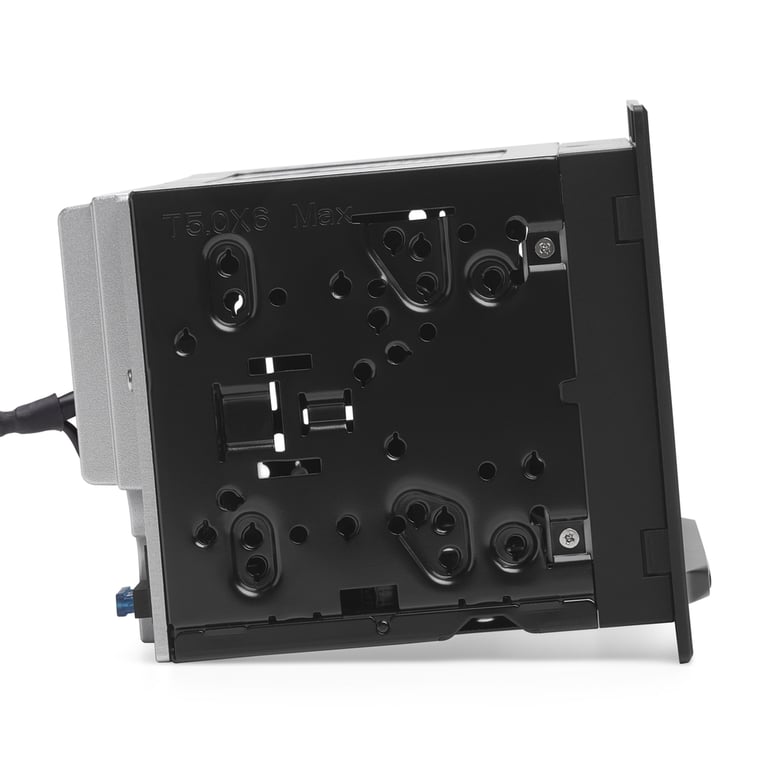

• Double DIN In-Dash Bluetooth Digital Multimedia Receiver
• 7" Capacitive Touchscreen Display
• Power Output:
• Peak: 50 watts x 4 channel
• Bluetooth hands-free calling and audio streaming
• Adjust the subwoofer preout’s volume level directly from the front panel buttons
• Compatible for adding additional amplifier for higher volume levels
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

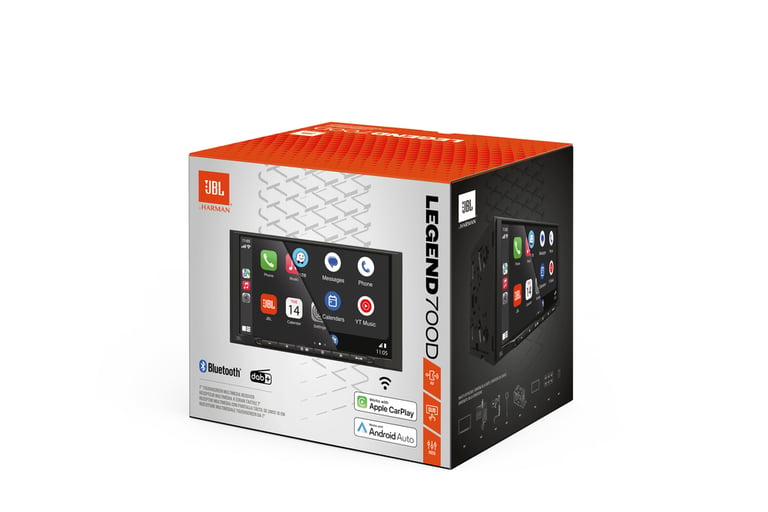

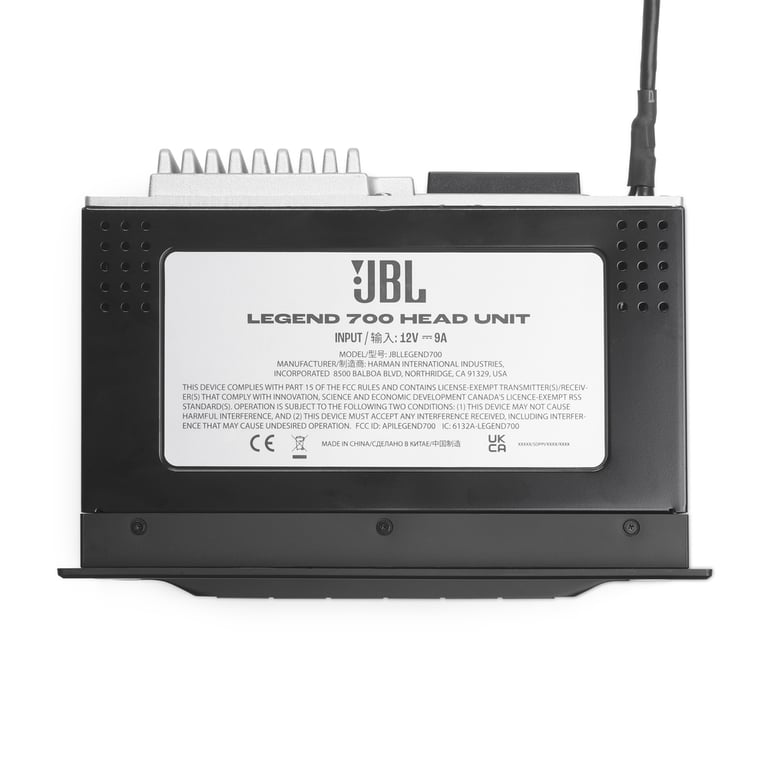

• MFR #: JBL LEGEND 700

Smartphone Features

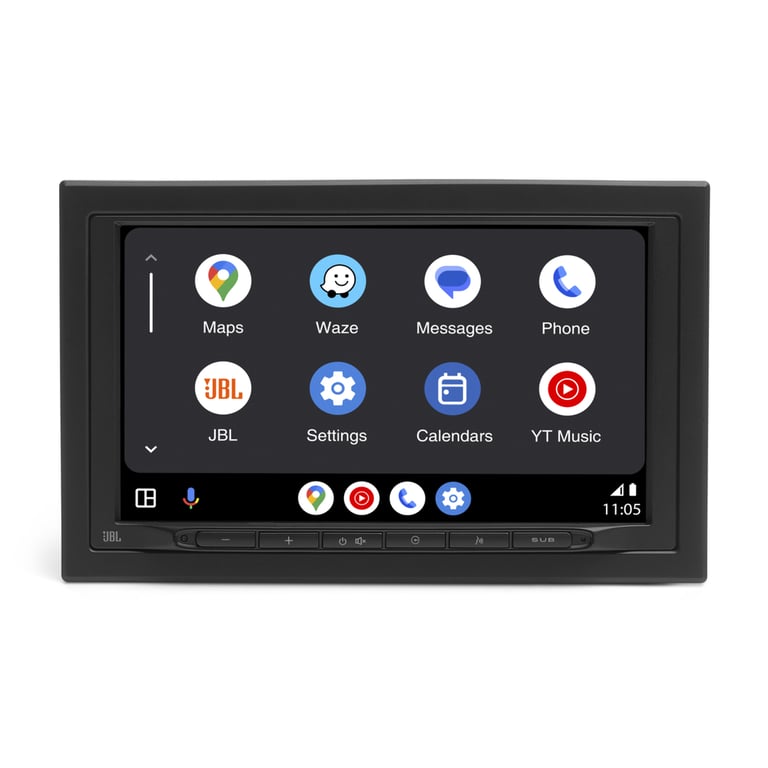

• Wireless Apple CarPlay and Android Auto compatible
• Display and control music, and other apps with iPhone and Android
• Offer seamless smartphone experience during driving

Playback and Audio Features

• MP3 Audio Playback
• AM/FM tuner with 18FM/12AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 16-Band Equalizer with time alignment

Expandability Options

• Steering Wheel Control Ready: Axxess AXSWC-2 required and sold separately

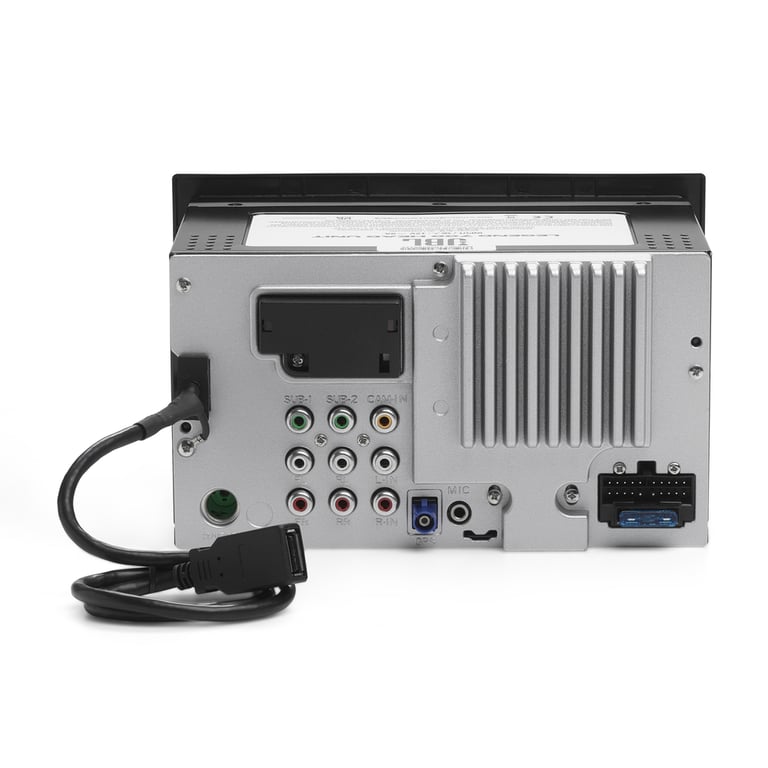

Audio/Video Inputs and Outputs

• Three sets of 4 volts preamp outputs (front, rear, and subwoofer)
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.

Navigation Features

• GPS mapping using smartphone features (Apple CarPlay and Android Auto)

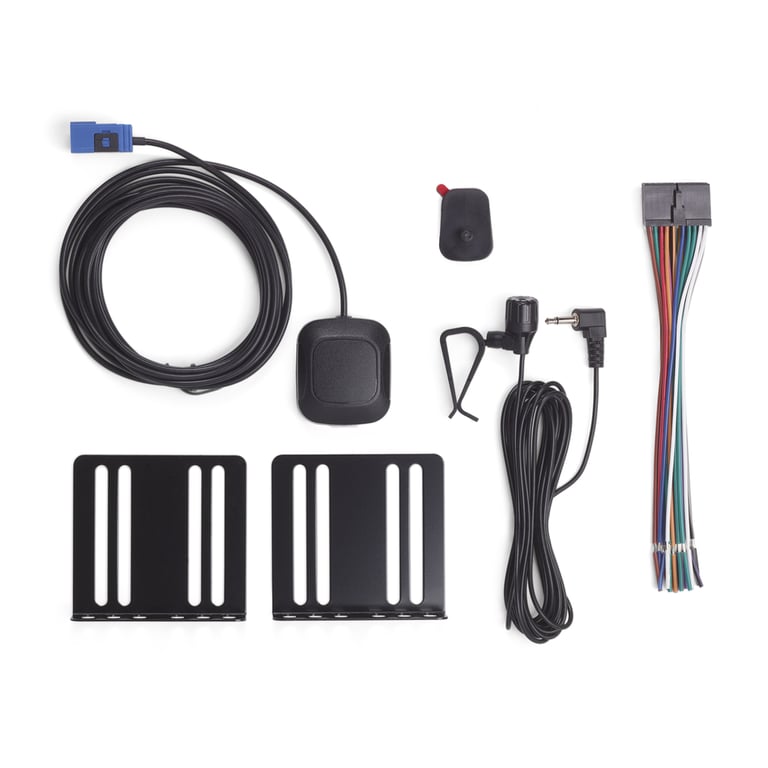

• Includes External GPS antenna

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes an external wired microphone for clear, convenient, distortion-free talking
• Supports music streaming with ID3 tags, and phonebook support (HFP, A2DP, AVRCP, PBAP)

Product Features:

• Allows for installation of an aftermarket Double-Din car stereo
• Compatible with select 2002-2005 Ram 1500 / 3500 / 2500 truck
• Made from the highest quality ABS plastic for an original factory-like fit and finish
• Includes brackets and hardware parts needed with detailed installation instructions
• Painted scratch-resistant matte black
• *Sub-dash modifications required*
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

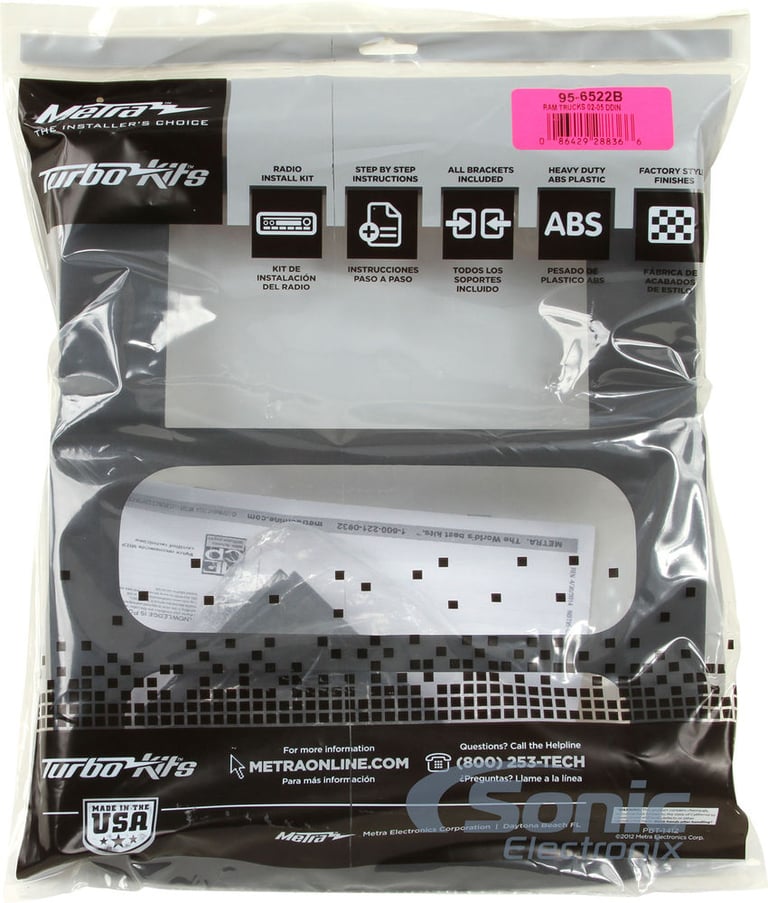

Kit Includes:

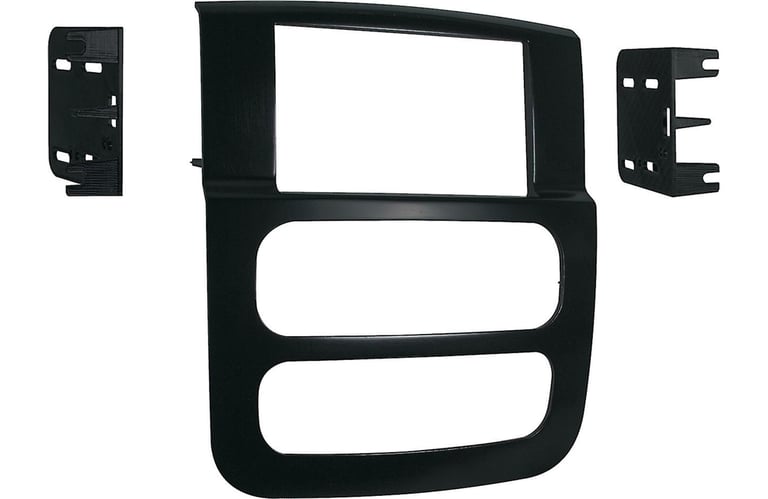

1. Radio Trim Panel
2. Brackets
3. Retaining caps (5 large, 2 small)
4. (5) #8 x 1/2” screws
5. (2) #8 x 3/8” screws

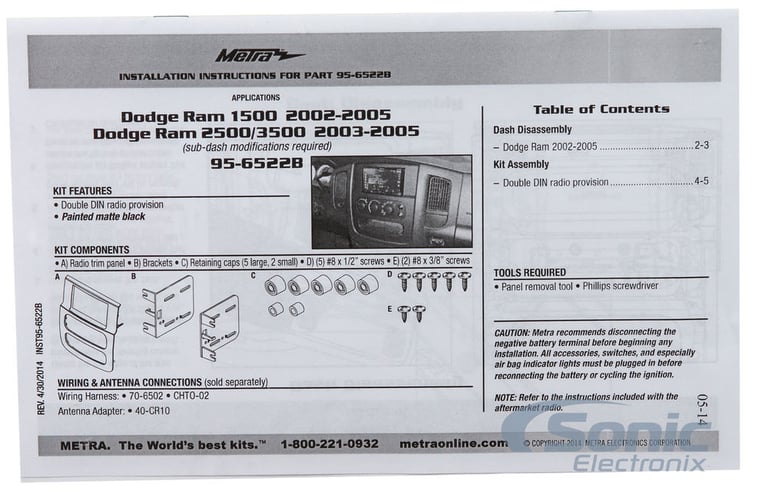

6. Step by step instructions

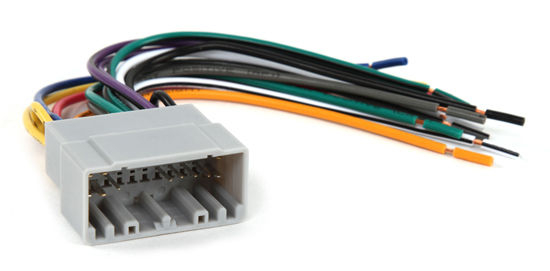

Product Features:

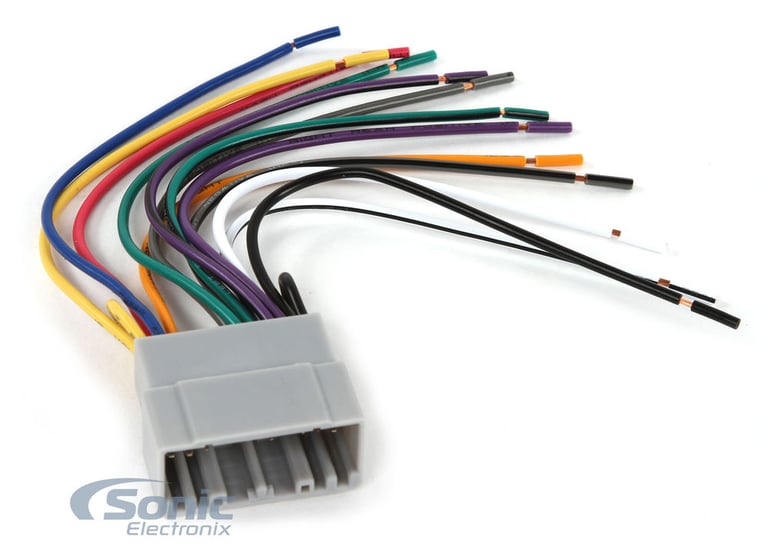

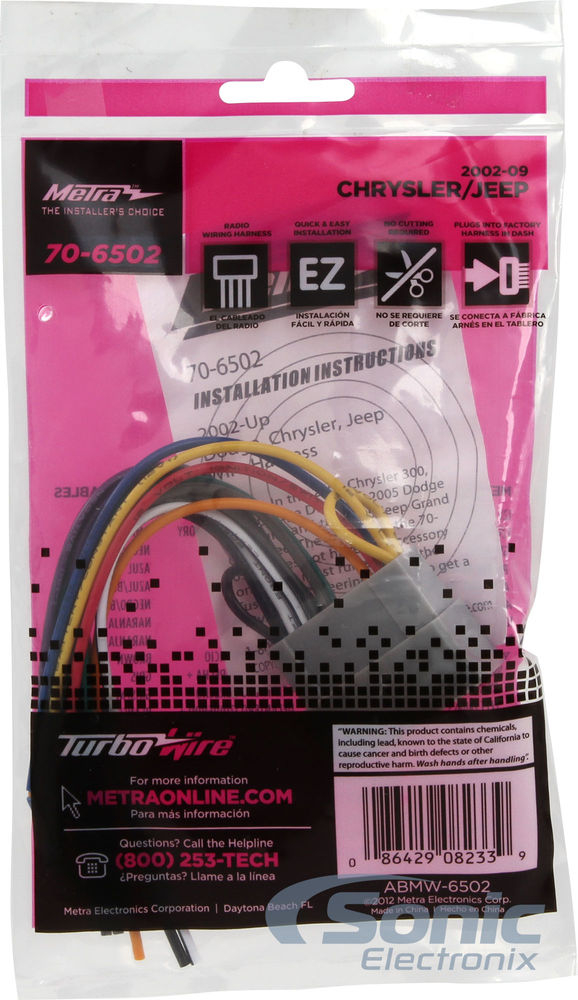

• Wire harness to Install a new car stereo in Compatible with select 2002-2010 vehicles from Dodge, Chrysler, Jeep
• Plugs into the cars original factory radio connectors
• Color-coded wires for easy installation to the aftermarket radio
• No wire cutting needed for factory radio connectors
• 1-year Manufacturer's Warranty

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)

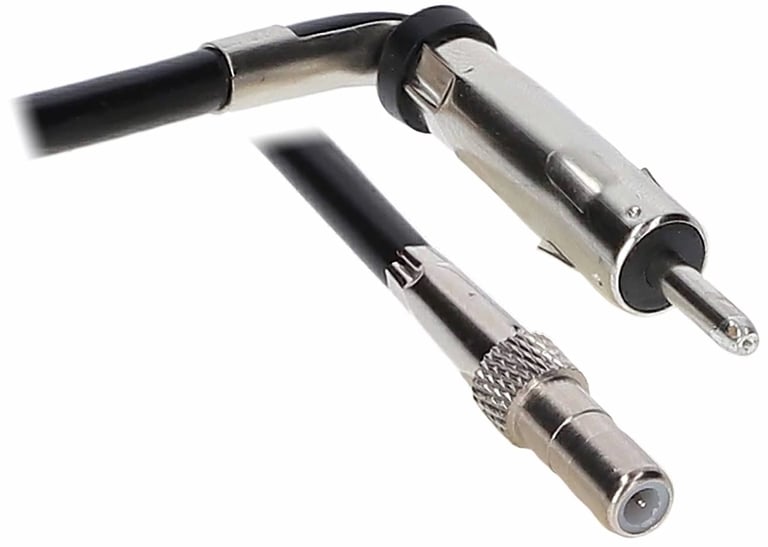

• Antenna to Radio Adapter Cable
• Compatible with select 2002-2025 vehicles from Ford, Chevrolet, GMC Vehicles with snap-lock factory antenna
• Adapter to aftermarket radio
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Equivalent to: Scosche CRAB
