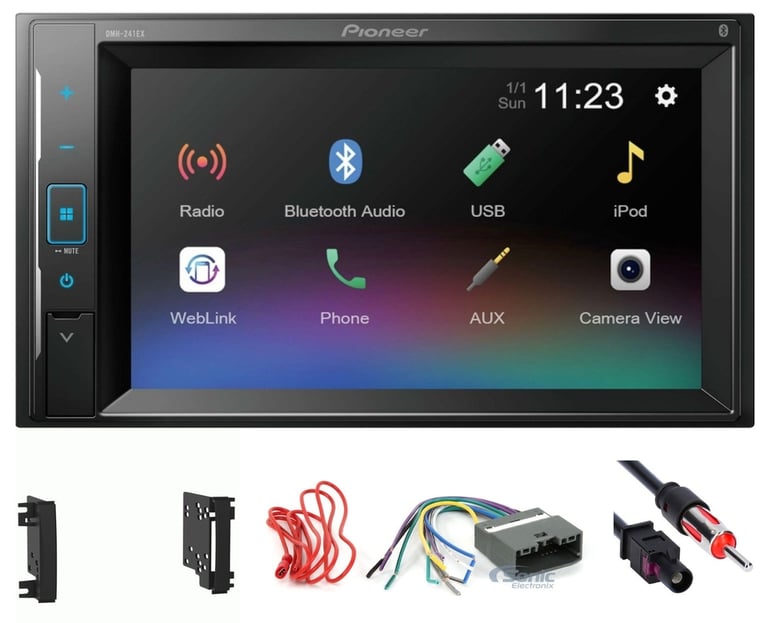

2009-2012 Dodge Ram 1500 Pioneer Double DIN Bluetooth Car Stereo Upgrade

Product Details

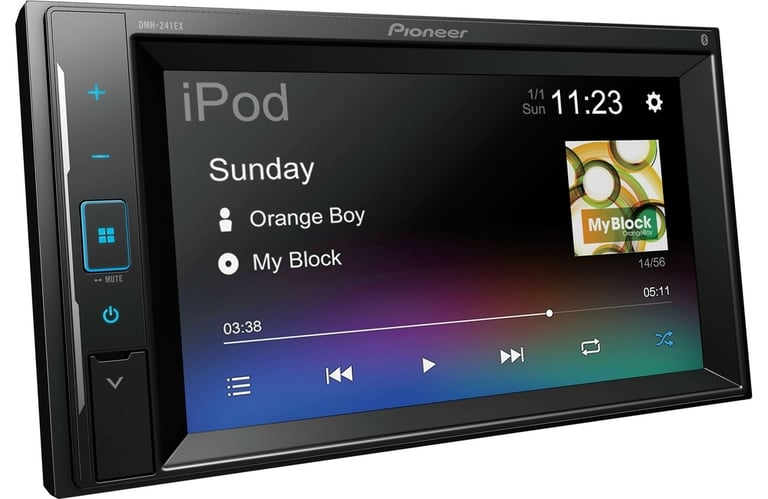

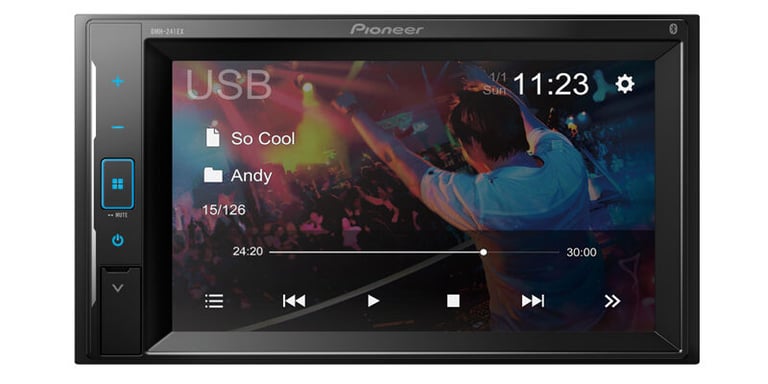

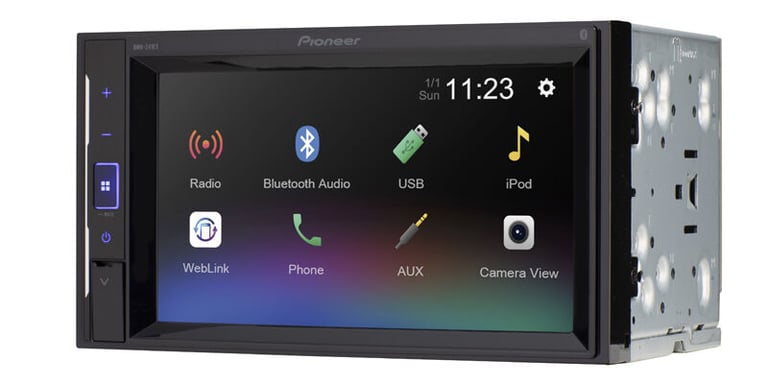

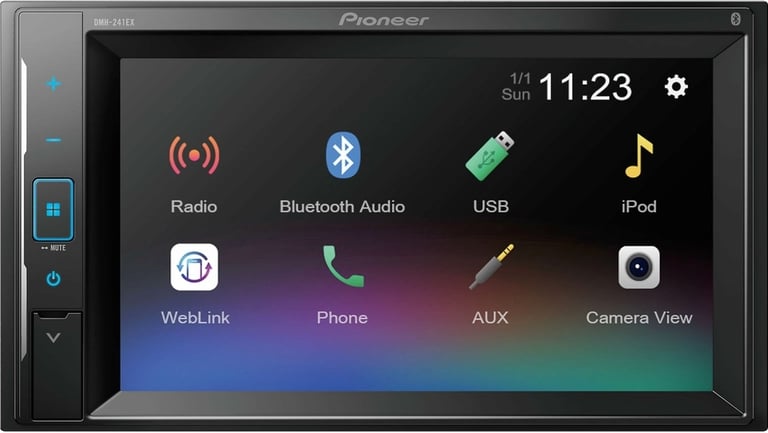

• Double DIN In-Dash Bluetooth Digital Multimedia Receiver
• 6.2" Resistive Touchscreen Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 22 watts x 4 channel
• Bluetooth hands-free calling and audio streaming

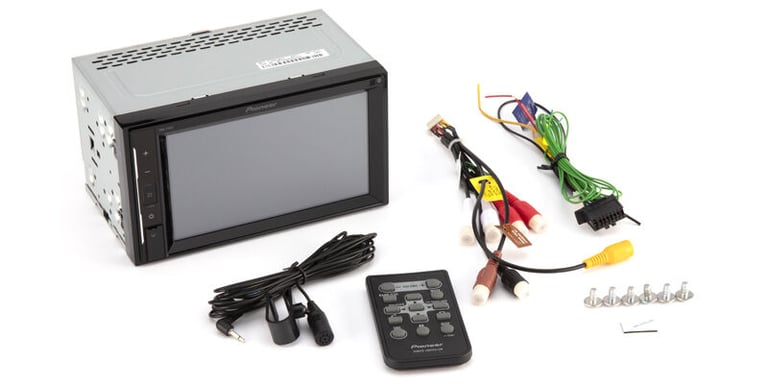

• Wireless remote control included
• Variable color button illumination
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: DMH-241EX

Smartphone Features

• Apple and Android compatible (control via USB)
• Display and control music, navigation and other apps with iPhone and Android
• Pandora and Spotify capable via Bluetooth
• Built-in Amazon Alexa (with Wi-Fi connection), supports Vozsis smartphone app
• Siri Eyes Free control for select iPhones
• Voice assistant button for Siri in select devices
• Compatible with WebLink 2.0
• Wired phone-mirroring for select devices via USB

Playback and Audio Features

• MP3 | WMA | WAV (Hi-Res) | AAC | FLAC (Hi-Res) Audio Playback
• AVI | MPG/MPEG | MP4 | MKV | MOV | FLV | M4V | TS | M2TS | MTS | H.263 | H.264 Video Playback
• AM/FM tuner with 18 FM / 6 AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 13-Band Graphic Equalizer

Expandability Options

• Steering Wheel Control Ready: Axxess ASWC-1 required and sold separately

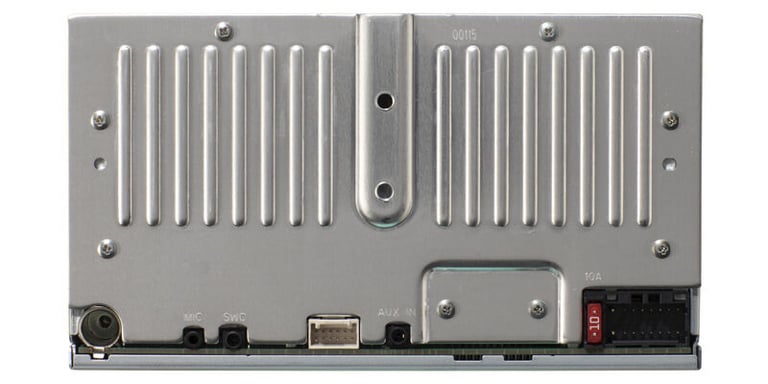

Audio/Video Inputs and Outputs

• 3 sets of 2 volts preamp outputs (front, rear, and subwoofer)
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Front Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input
• Rear RCA Video Output: Used for connection to separate monitors and other devices
• Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes external 10" wired microphone for clear, convenient, distortion-free talking

Product Details:

• Allows for installation of an aftermarket Double-Din car stereo
• Compatible with select 2007-2020 vehicles from Dodge, Jeep, Chrysler
• Stereo installation kit designed to fit any standard 4" tall aftermarket radio with an ISO-mount provision
• Textured to match factory dash
• Made from the highest quality ABS plastic for an original factory-like fit and finish
• Includes mounting brackets with detailed installation instructions
• Includes a storage pocket below the radio for single DIN mounting
• Designed and manufactured with precision tolerances
• Gapless fit between the dash and the kit
• Factory matched texture style
• High-grade ABS plastic construction
• Color: Black
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit Includes:

1. Radio trim panel

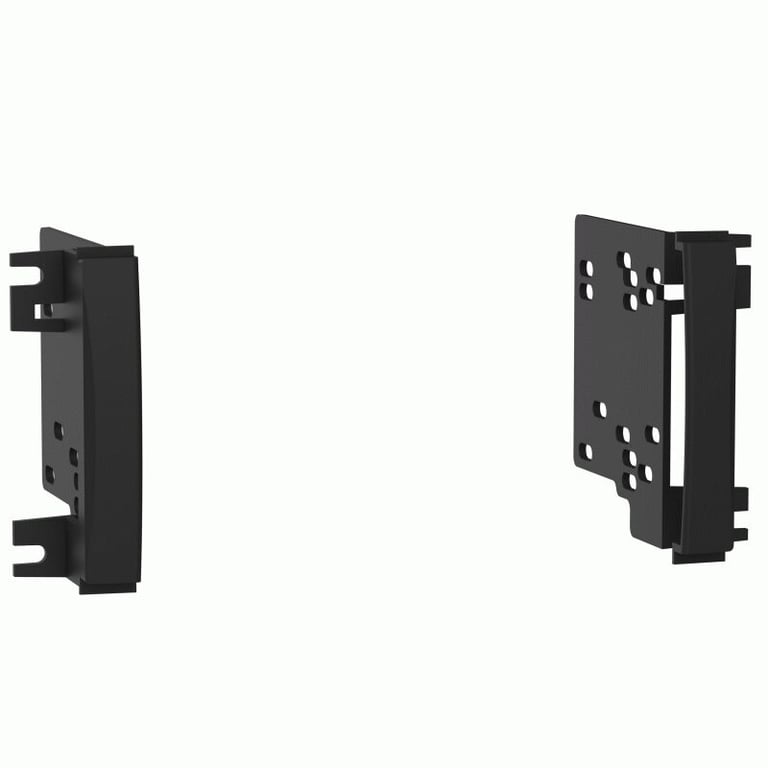

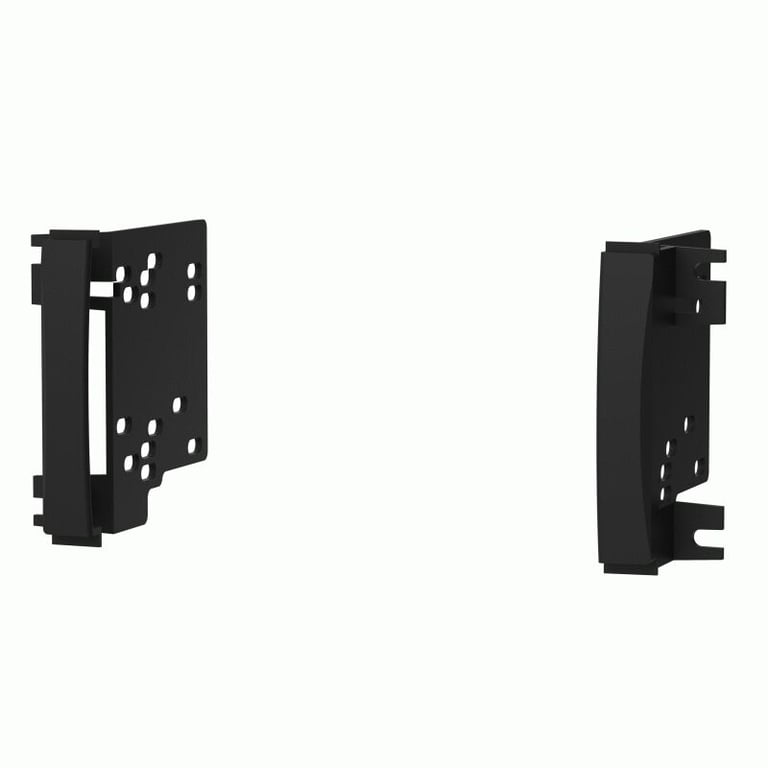

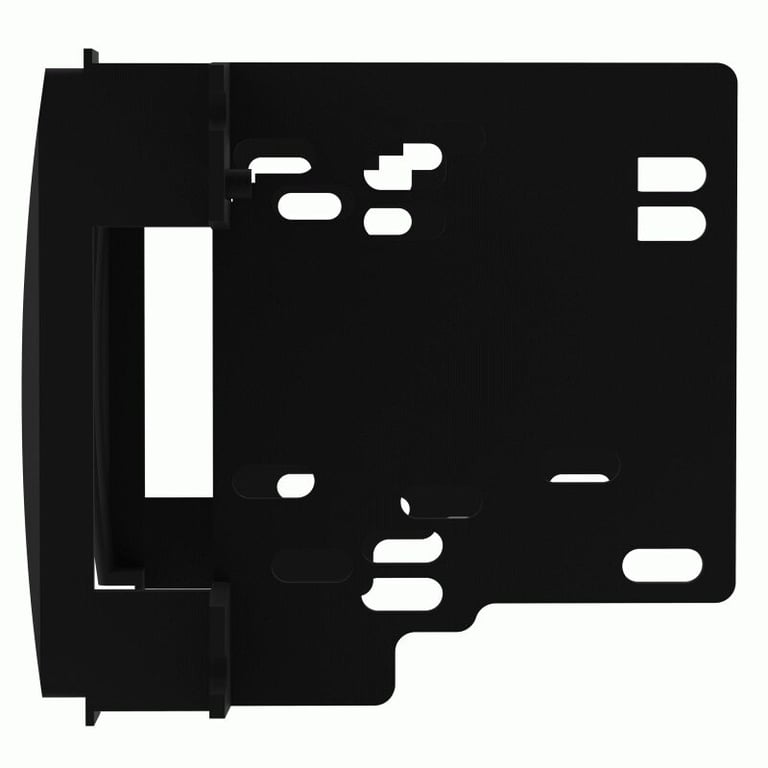

2. Radio brackets

Metra 95-6511-17 Dash Kit Manual

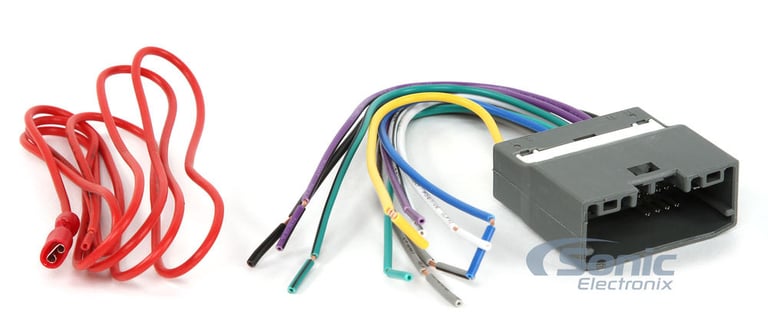

Product Features:

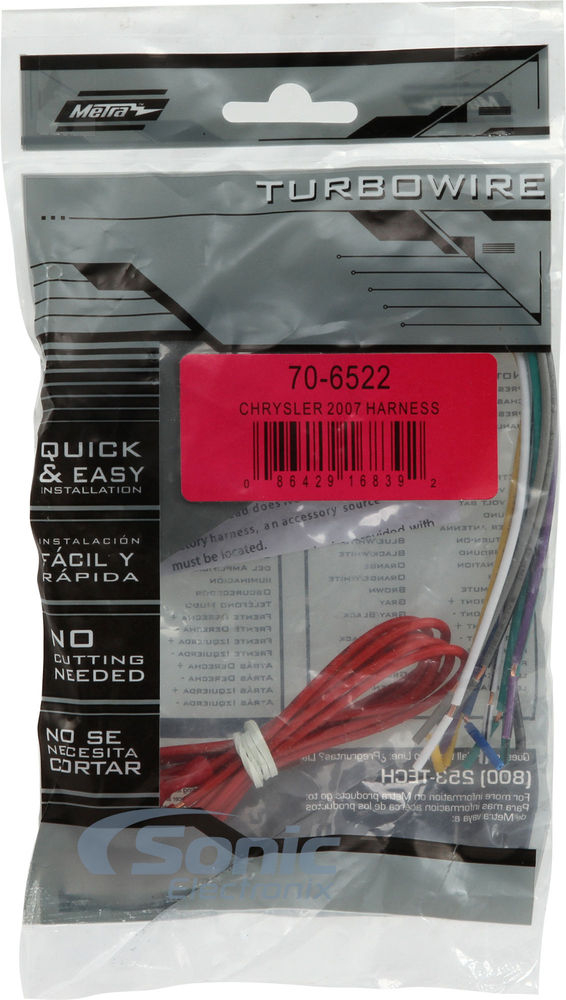

• Compatible with select 2007-2018 vehicles from Dodge, Jeep, Chrysler
• Plugs into the cars original factory radio connectors
• Color-coded wires for easy installation to the aftermarket radio
• No wire cutting needed for factory radio connectors
• 1-year Manufacturer's Warranty

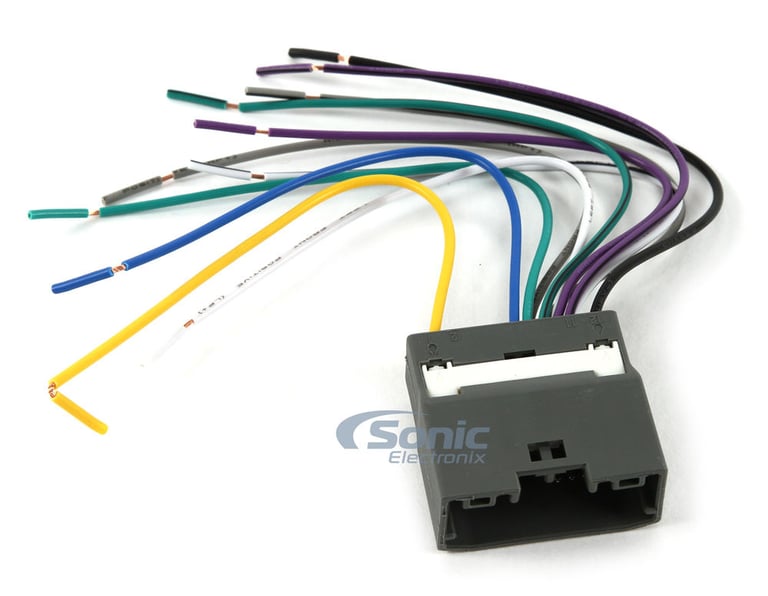

Power Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Blue - Power Antenna / Amp Turn-On
• Orange – Dash Light Dimmer/Illumination
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
• Green – Left Rear Speaker (+)
• Green with Black Stripe - Left Rear Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)

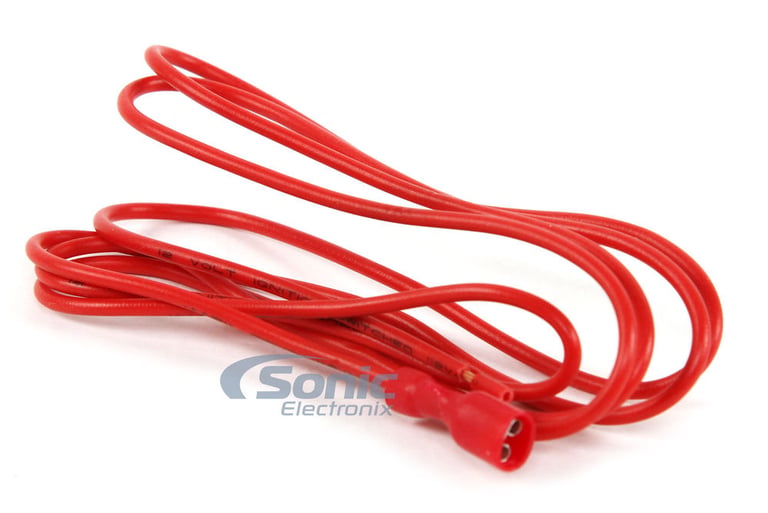

This harness does not provide accessory power. The included Red wire will need to be run to the fuse box to supply accessory power to the aftermarket radio. A brass fuse tap is provided to assist you in tapping into the fuse box. If you prefer a wiring harness that will provide this function for you please visit metraonline.com for a harness that has accessory power support.

Product Features:

• Compatible with select 2000-2017 vehicles from BMW, Mercedes-Benz, Ford

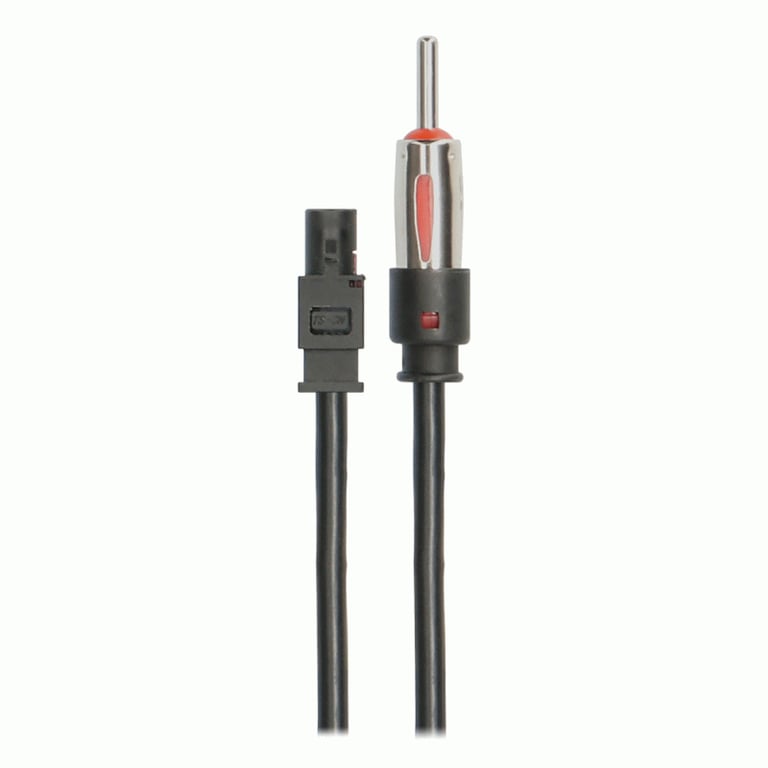

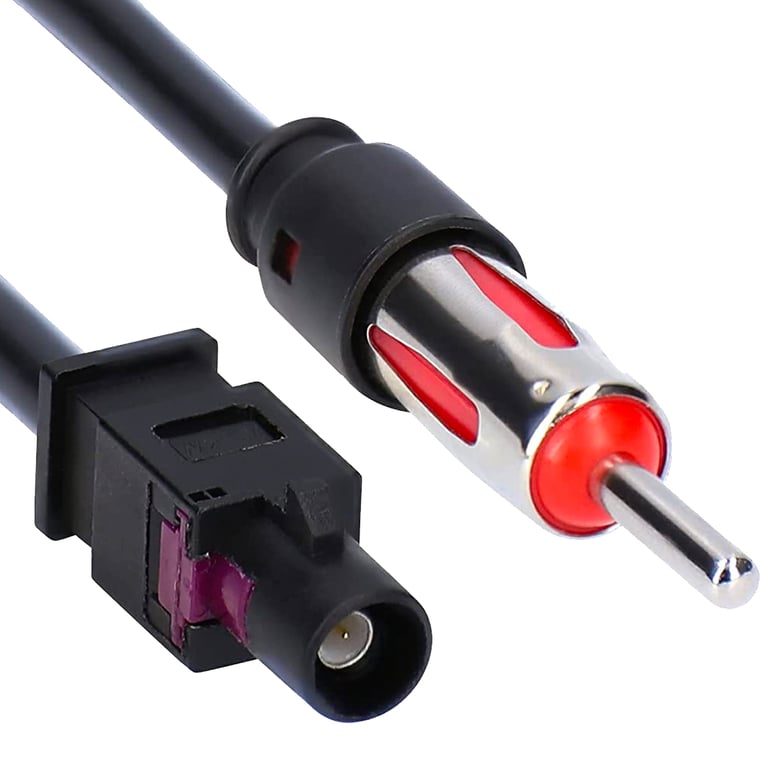

• Antenna adapter cable
• Used to adapt the vehicle’s antenna cable to use with an aftermarket radio
• Male Motorola connector on one end
• Male European-style FAKRA connector on the other end
• Easy installation, plug and play
• No cutting or splicing required
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Equivalent to: Scosche VWA3B
