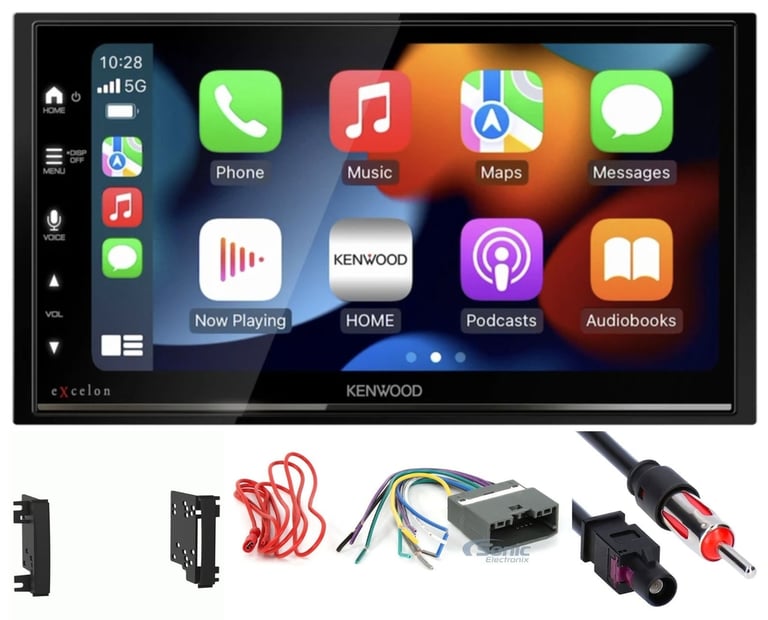

2009-2012 Dodge Ram 1500 Kenwood Double DIN Bluetooth Car Stereo Upgrade

Product Details

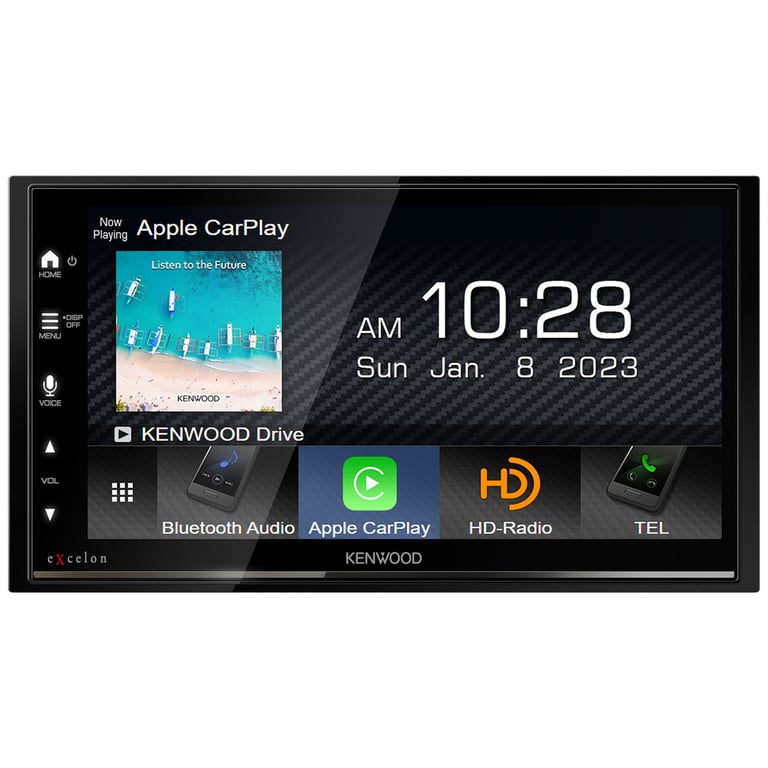

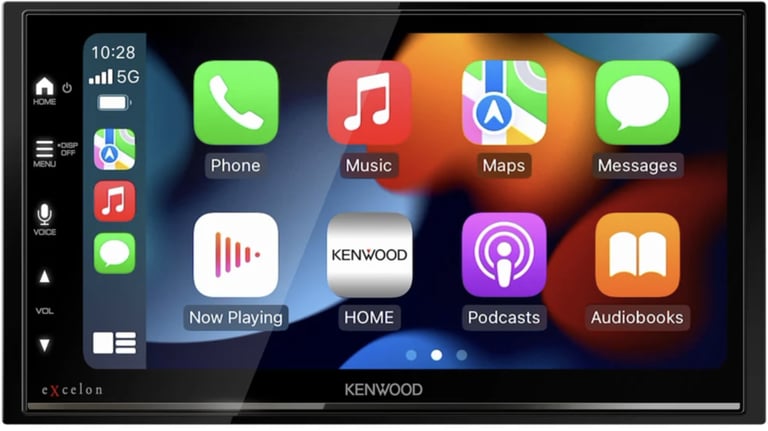

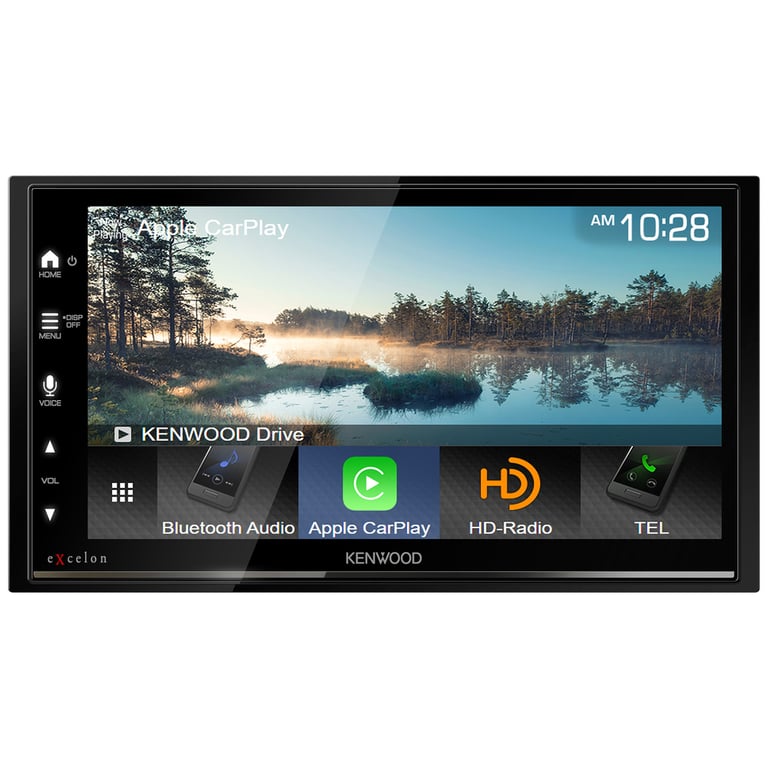

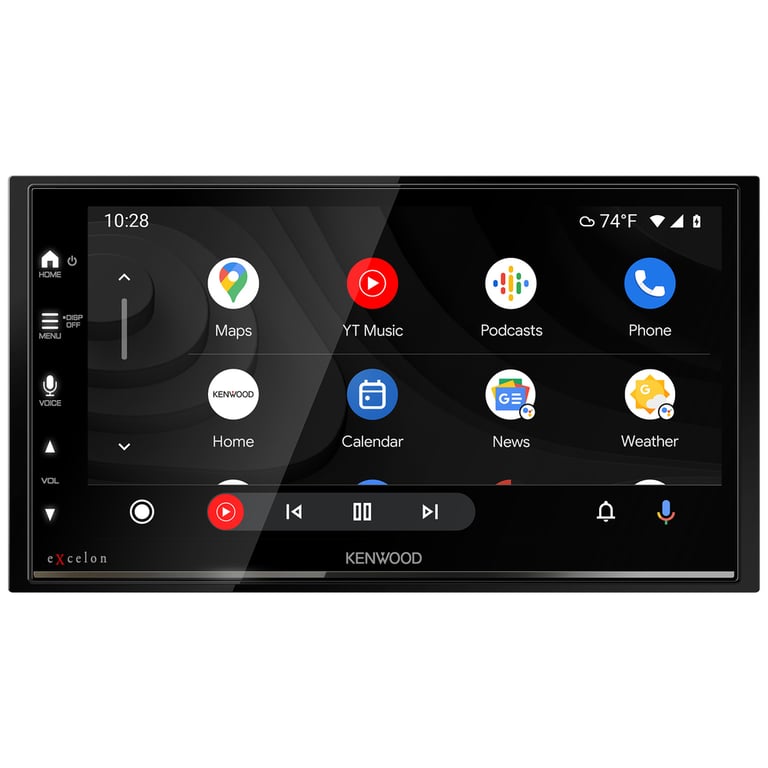

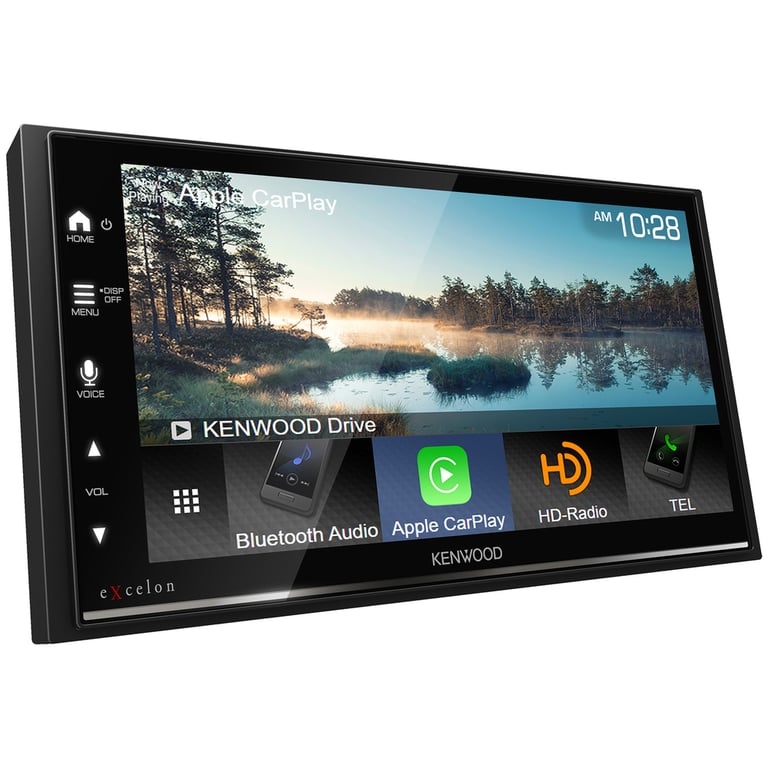

• Double DIN In-Dash Bluetooth Digital Multimedia Receiver
• 6.8" WVGA Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 22 watts x 4 channel
• Short chassis for flexible installation
• Variable color illumination to match stereo unit with any color dash lighting
• 13-Band Graphic Equalizer with Digital Time Alignment
• Drive EQ boosts specific frequencies in the audio signal to overcome negative impact of road noise
• Kenwood KCA-RCDV340 remote control sold separately
• Built-in HD Radio Tuner
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: DMX709S

Smartphone Features

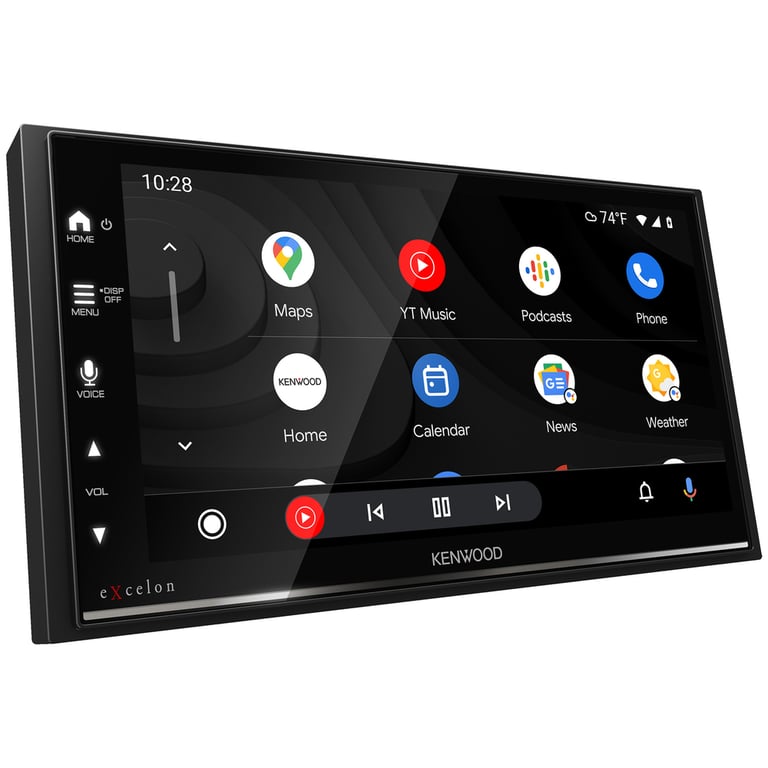

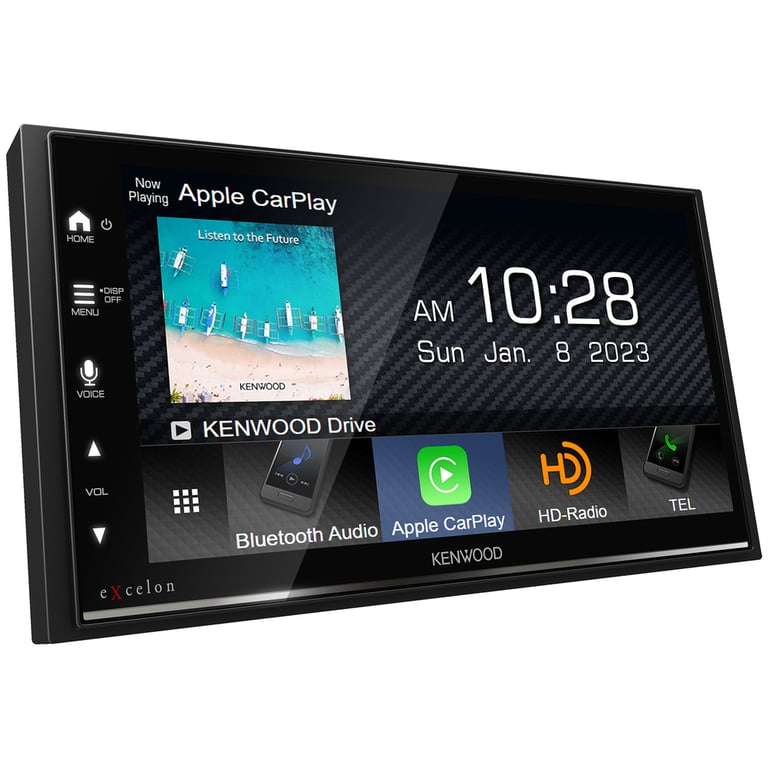

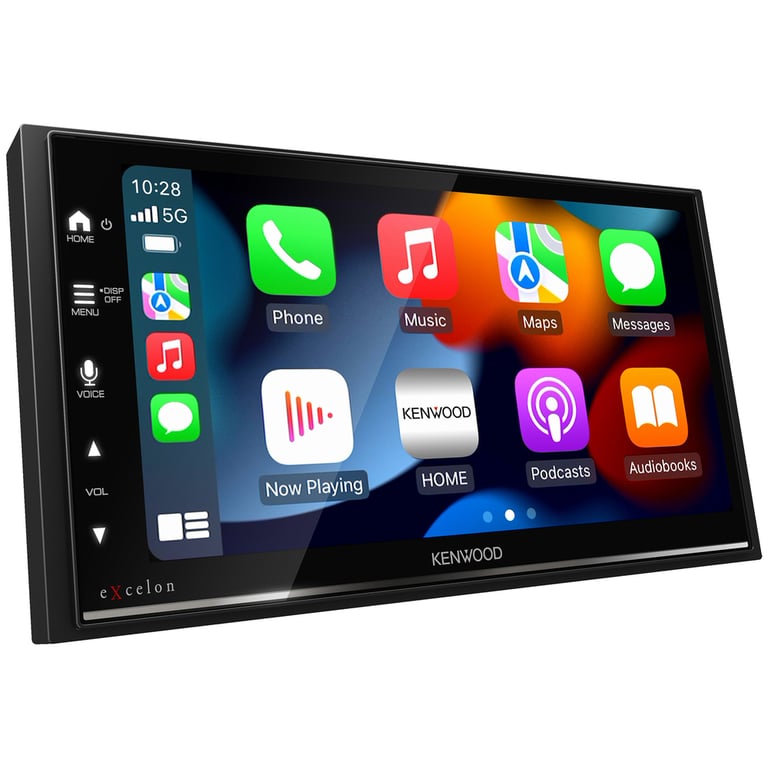

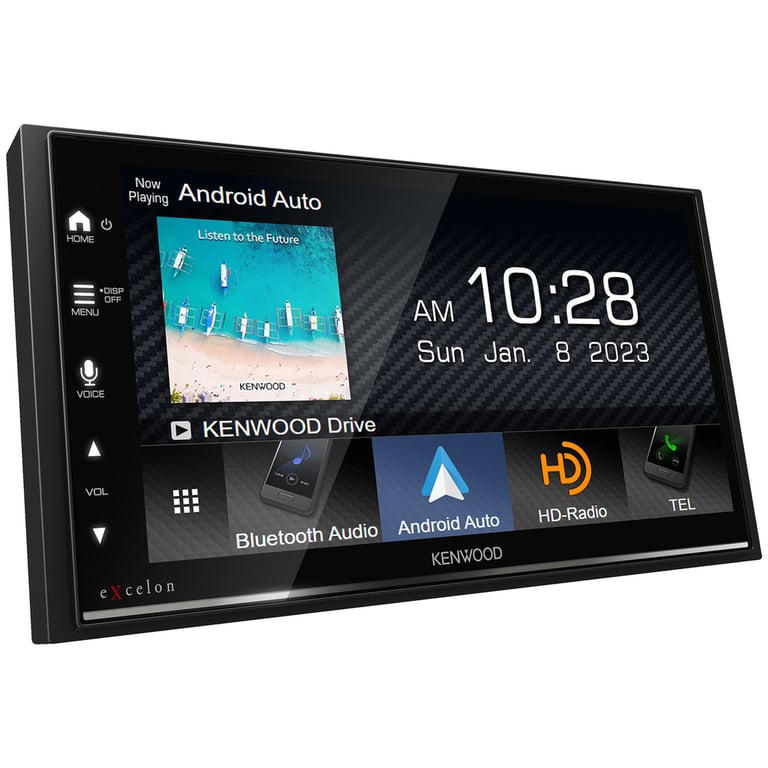

• Apple CarPlay and Android Auto compatible
• Display and control music, navigation, and other apps with iPhone and Android
• Dual phone connection via Bluetooth
• Kenwood Music Mix allows connection and switching of up to 5 Bluetooth devices
• Voice assistant button for Siri or Google Assistant
• Wired phone-mirroring for select Android devices via USB

Playback and Audio Features

• MP3 | WMA | WAV | AAC | FLAC Audio Playback
• MPEG1 | MPEG2 | MPEG4 | H.264 | MWV | MKV Video Playback
• JPEG | PNG | 24-bit BMP Picture Files
• AM/FM tuner with 15FM / 5 AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 13-Band Graphic Equalizer with Digital Time Alignment

Expandability Options

• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
• Steering Wheel Control Ready: Axxess AXSWC-2 required and sold separately
• iDataLink ADS-MRR module (Sold separately). In a wide selection of vehicles, this module lets you keep factory features you'd otherwise lose when installing a new radio.

Audio/Video Inputs and Outputs

• 3 sets of 5 volts preamp outputs (front, rear, and subwoofer)
• Allows for a 3-way connection (tweeter, midrange and woofer)
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input
• Front-view Camera Input: Used for universal cameras with an RCA composite input
• Rear HDMI input

Navigation Features

• Parking guidelines using optional rear view camera (sold separately)
• Includes External GPS antenna

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking, audio streaming, and phonebook access profile
• Includes an external wired microphone for clear, convenient, distortion-free talking

Product Details:

• Allows for installation of an aftermarket Double-Din car stereo
• Compatible with select 2007-2020 vehicles from Dodge, Jeep, Chrysler
• Stereo installation kit designed to fit any standard 4" tall aftermarket radio with an ISO-mount provision
• Textured to match factory dash
• Made from the highest quality ABS plastic for an original factory-like fit and finish
• Includes mounting brackets with detailed installation instructions
• Includes a storage pocket below the radio for single DIN mounting
• Designed and manufactured with precision tolerances
• Gapless fit between the dash and the kit
• Factory matched texture style
• High-grade ABS plastic construction
• Color: Black
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit Includes:

1. Radio trim panel

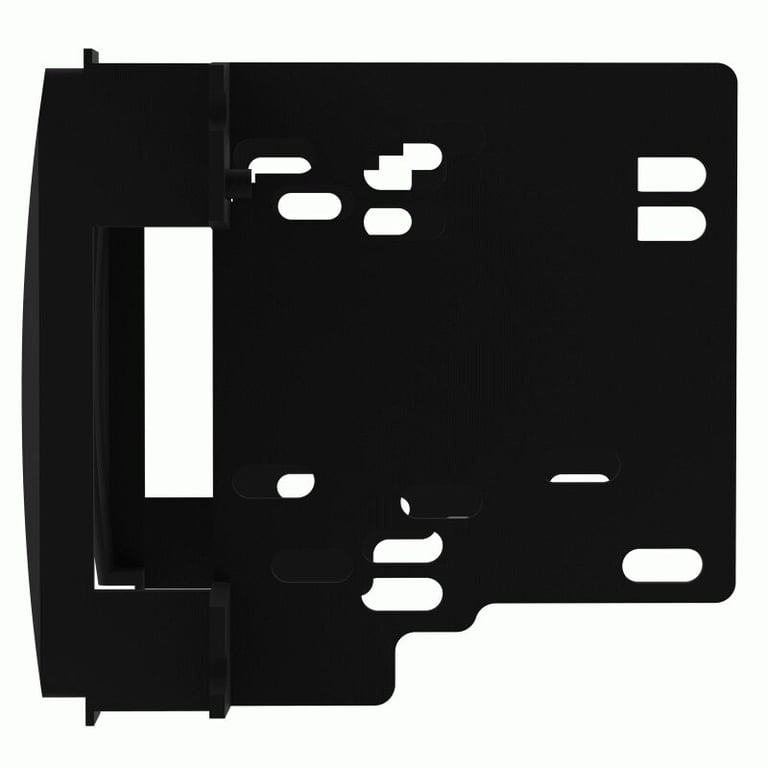

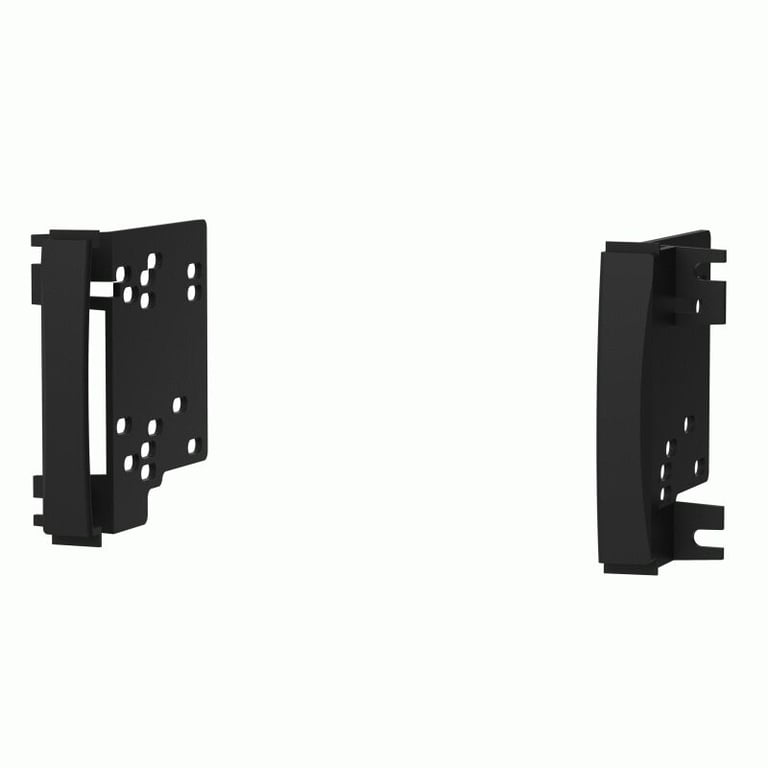

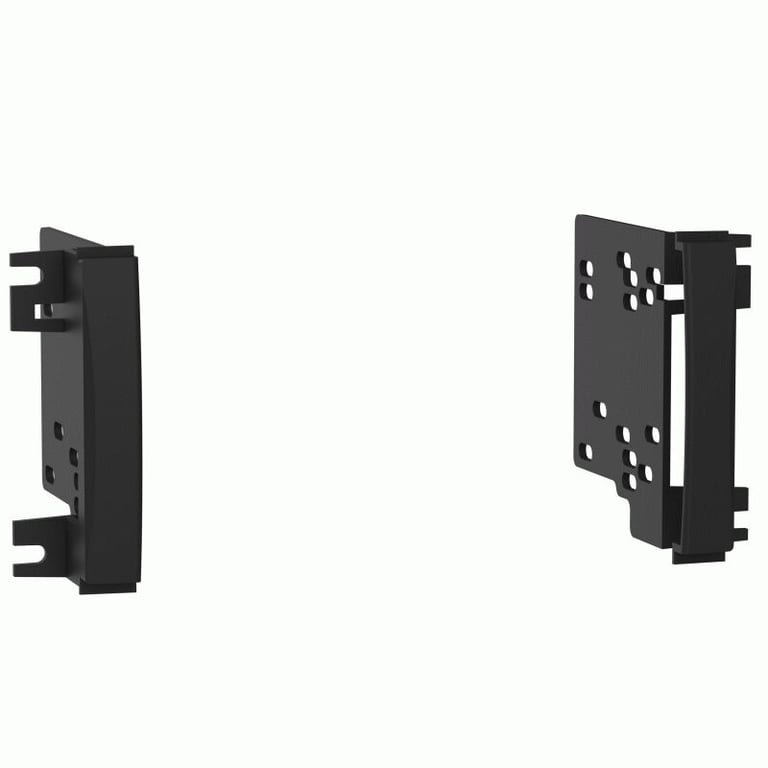

2. Radio brackets

Metra 95-6511-17 Dash Kit Manual

Product Features:

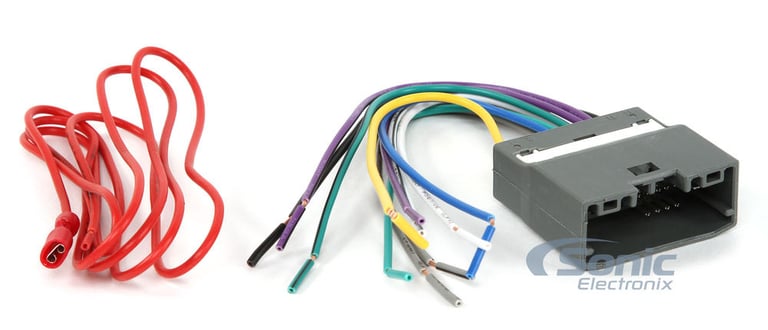

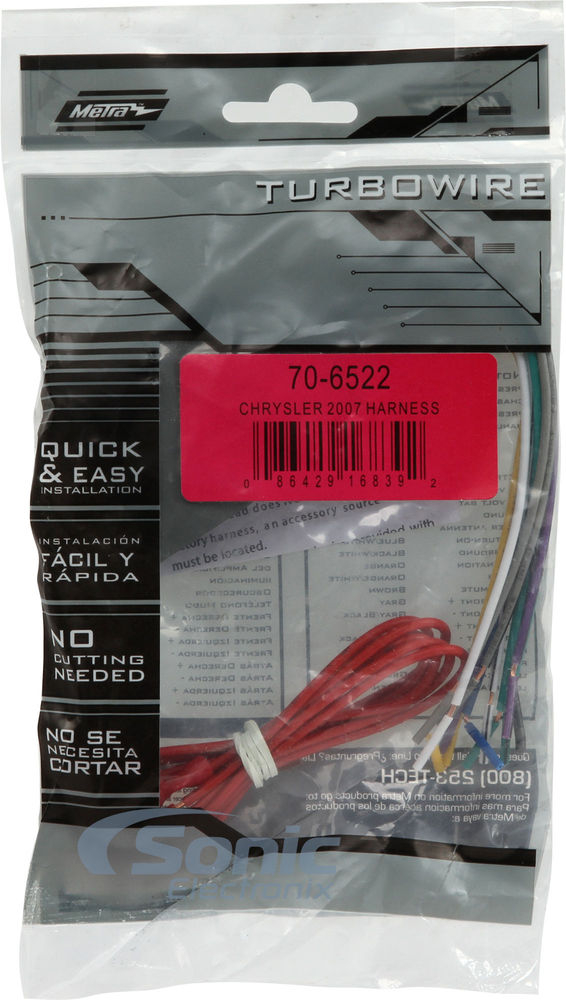

• Compatible with select 2007-2018 vehicles from Dodge, Jeep, Chrysler
• Plugs into the cars original factory radio connectors
• Color-coded wires for easy installation to the aftermarket radio
• No wire cutting needed for factory radio connectors
• 1-year Manufacturer's Warranty

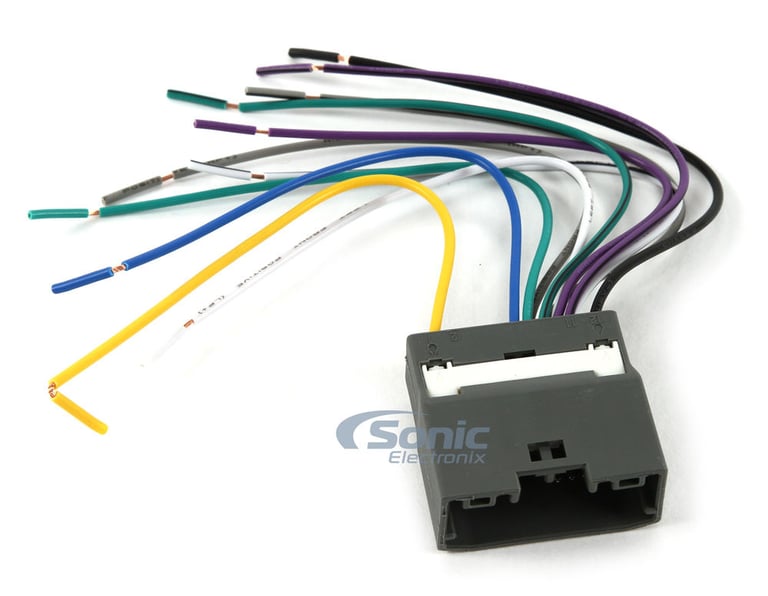

Power Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Blue - Power Antenna / Amp Turn-On
• Orange – Dash Light Dimmer/Illumination
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
• Green – Left Rear Speaker (+)
• Green with Black Stripe - Left Rear Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)

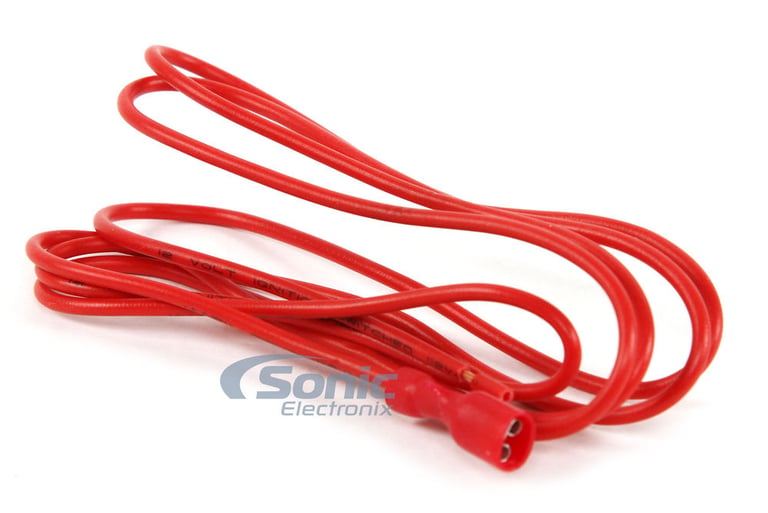

This harness does not provide accessory power. The included Red wire will need to be run to the fuse box to supply accessory power to the aftermarket radio. A brass fuse tap is provided to assist you in tapping into the fuse box. If you prefer a wiring harness that will provide this function for you please visit metraonline.com for a harness that has accessory power support.

Product Features:

• Compatible with select 2000-2017 vehicles from BMW, Mercedes-Benz, Ford

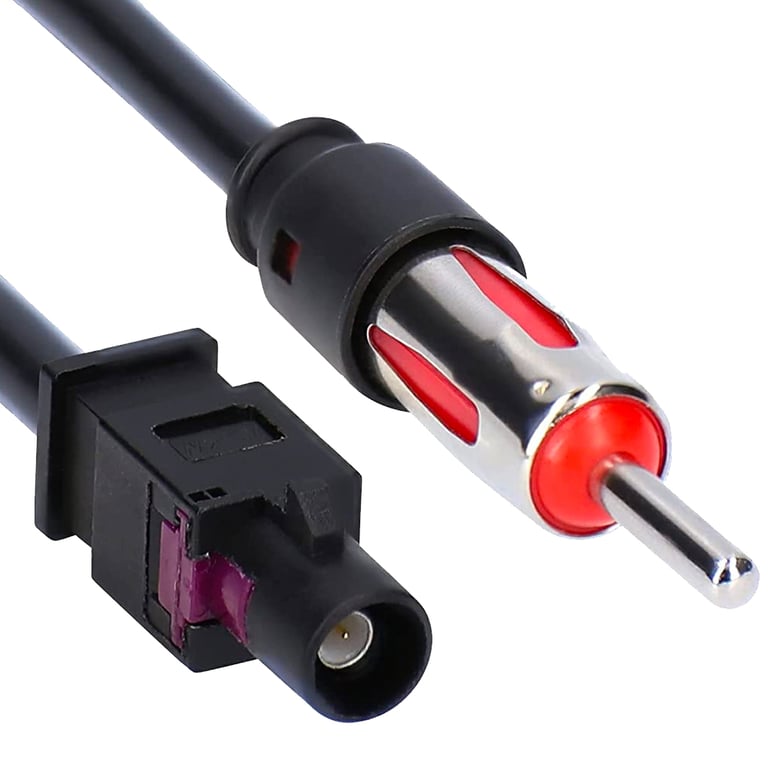

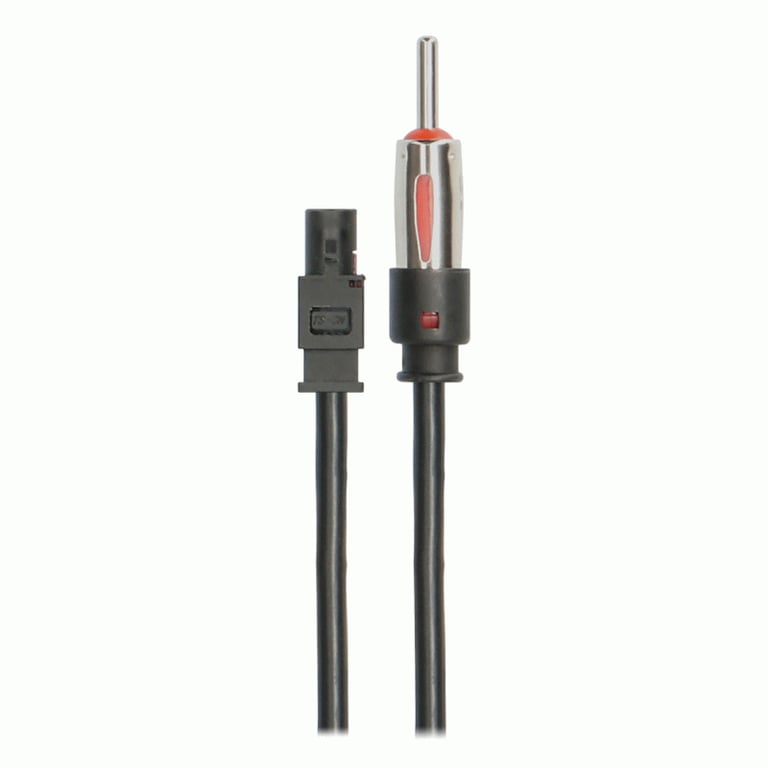

• Antenna adapter cable
• Used to adapt the vehicle’s antenna cable to use with an aftermarket radio
• Male Motorola connector on one end
• Male European-style FAKRA connector on the other end
• Easy installation, plug and play
• No cutting or splicing required
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Equivalent to: Scosche VWA3B
