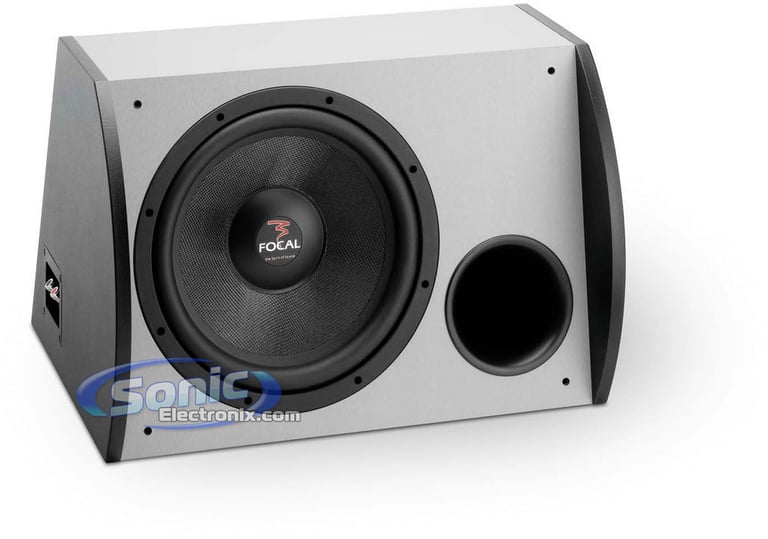

Focal SB 30 A1

12" Single 4 ohms Access Subwoofer Loaded In a Vented Enclosure

Focal
Shop all Focal
highlight-star-icon

Loaded Single 12" 4 Ohm Vented Subwoofer Enclosure • Peak: 500W • RMS: 250W • Braided Glass Fiber Woofer Cone • Butyl Rubber Surround • 5/8" MDF • Flared Port Design • Internal Damping • 4 Layer 2" Voice Coil

Learn more about the sb30a1

We apologize

This item has been discontinued


Loading...
R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154

Description


Focal brand icon

Authorized dealer

Subwoofer Features:
  • Single 12" Access Series 4 Ohm Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Impedance: 4 ohm
  • Braided glass fiber woofer cone
  • Butyl rubber surround
  • Equipped with copper wiring
  • Black Kapton former
  • Chrome-Plated spring posts
  • 4 Layer 2" voice coil
  • Voice coil cooling system
  • Perfect for serious competitors and passionate audiophiles
  • Durable rubber shielding protects the subwoofer's magnet from shocks and corrosion
  • Integrated gasket provides no air leak and better chassis damping for tight, defined bass
  • Magnet Size: 2.45 lbs (39.2 oz)
  • Frequency response: 27-500 Hz
  • Sensitivity: 94 dB
  • Xmax: 3/16"
  • 1-year Sonic Electronix warranty
General Enclosure Features:
  • Loaded Single 12" 4 Ohm Vented Subwoofer Enclosure
  • Enclosure is perfectly matched to the sub
  • 5/8" MDF (medium-density fiberboard) construction
  • Internal damping for dynamic bass without shakes and rattle
  • Advanced flared port design delivers deep, accurate bass
  • Dynamic and high power handling
  • Dimensions: 10-3/8"TD x 16-1/16"BD x 20-7/8"W x 14-7/16"H
