See all parts that fit your 2005 Durango

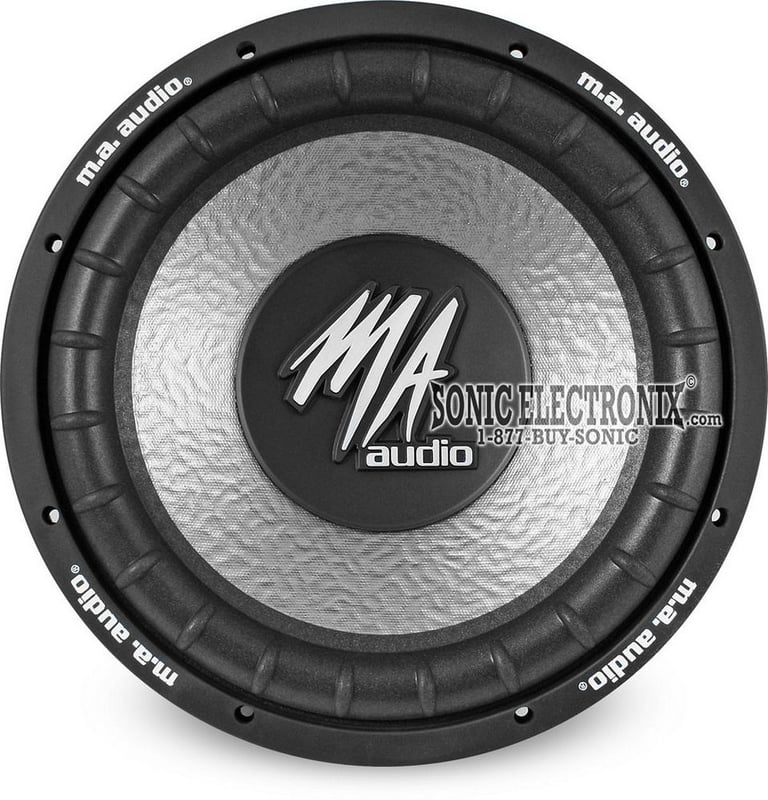

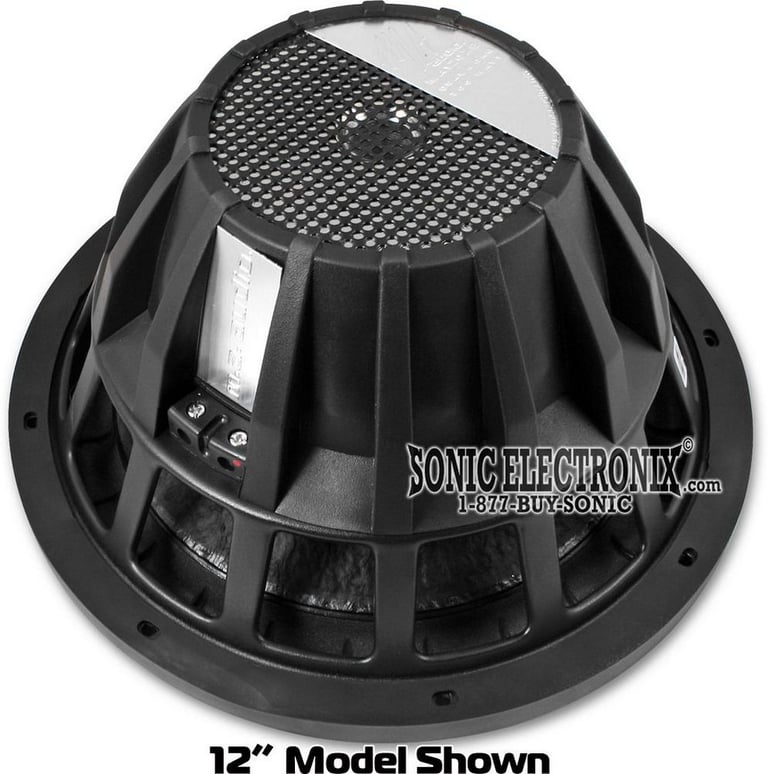

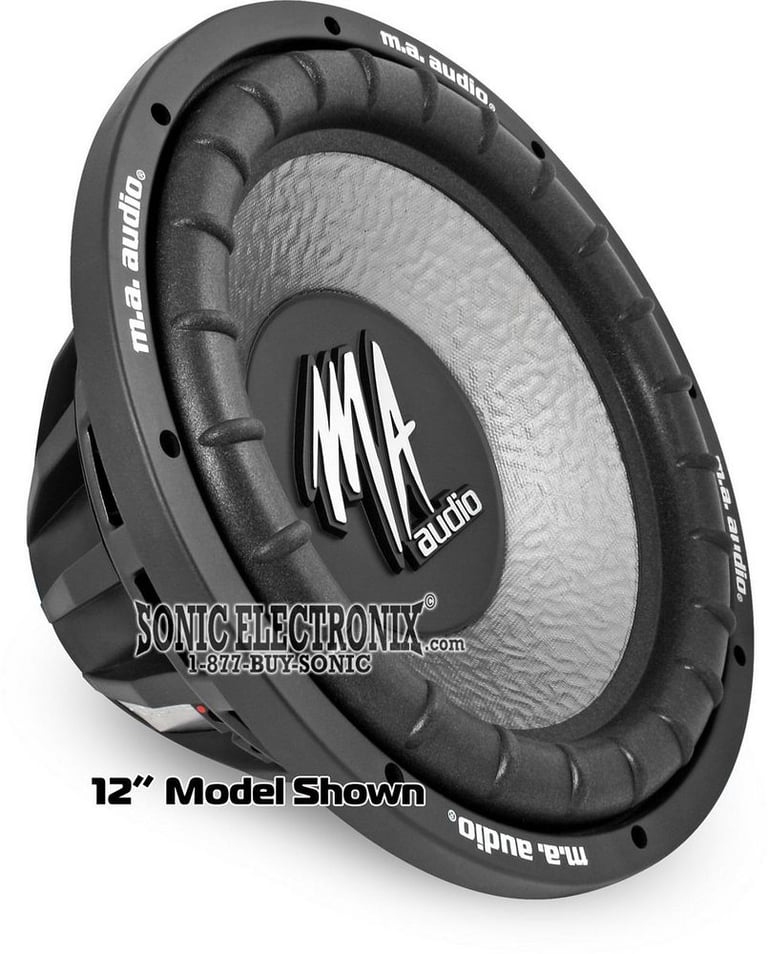

MA Audio MA100XE

10" Dual 4 ohms Subwoofer

MA Audio
Shop all MA Audio
Product videos
highlight-star-icon

10" Competition Subwoofer • 300W RMS • 600W Max • Dual 4-ohm Voice Coils • 110oz. Double Stacked Strontium Magnets • Reinforced Ribbed High Foam Surround • Black Powder Coated Stamped Steel Basket • Copper Wound Voice Coils

Learn more about the ma100xe

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

ma103xe thumbnail

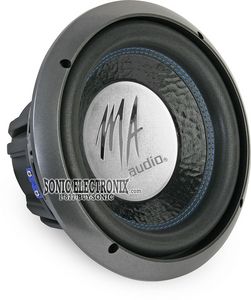

MA Audio MA103XE

OUR PRICE: $79.99

View item

Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

82-6600 main

Metra 82-6600

5-1/4" or 6-1/2" Front Door Speaker Adapter for select 1995-2024 vehicles from Dodge, Ram, Jeep

14
-40.02%

$14.99

List price $24.99

SOOCR-26 main

CRUX SOOCR-26 Wiring Interface

Install a New Car Stereo and Retain Factory Features in select 2004-2018 vehicles from Dodge, Jeep, Chrysler

12
-35.71%

$75.60

List price $117.60

82-CH2 main

Metra 82-CH2

Chrysler 2002-2020 Speaker Adapter Kit - Front and Rear

-53.14%

$14.99

List price $31.99

CDK649 main

American International CDK649

Single DIN or Double DIN Stereo Dash Kit for select 2005-2008 vehicles from Dodge, Jeep, Chrysler with Navigation

6
-64.74%

$11.99

List price $34.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

206
MPR2110 main

Jensen MPR2110

Single DIN Digital Media Receiver with Bluetooth

13
Kappa 63XF main

Infinity Kappa 63XF (INFSPKKA63XFAM)

510W Peak (170W RMS) 6.5" Kappa Series 2 Way Coaxial 3-ohm Speakers

10
-16.67%

$249.95

List price $299.95

Product Highlights


10" Competition Subwoofer • 300W RMS • 600W Max • Dual 4-ohm Voice Coils • 110oz. Double Stacked Strontium Magnets • Reinforced Ribbed High Foam Surround • Black Powder Coated Stamped Steel Basket • Copper Wound Voice Coils

Description


MA Audio brand icon

Authorized dealer

  • 10" Competition Subwoofer
  • Dual 4-Ohm Voice Coils
  • 110oz. Double Stacked Strontium Magnets
  • Reinforced Ribbed High Foam Surround Technology
  • Black Powder Coated Stamped Steel Basket
  • Ultra Strong Polypropylene Dust Cap
  • Platinum Plated Block Terminals
  • Copper Wound Voice Coils
  • Non-Pressed Paper Cone
  • Rubber Sealant Gasket
  • Mounting Depth: 5.6”
  • Mounting Diameter: 9.2”
  • Optimum Vented Box: 1.75 Cu/Ft
  • Round Port Diameter: (2) 3”
  • Square Port Area: 14 Sq/In
  • Port Length: 12.5”
  • Optimum Sealed Box: 0.5 – 1 Cu/Ft
  • 2-year Manufacturer's warranty

Product history:

MA Audio MA103XE thumbnail
(newest, current model)
MA Audio MA100XE thumbnail
(previous model, replaced by MA Audio MA103XE)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MA Audio MA100XE Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 MA Audio MA100XE Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 MA Audio MA100XE Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 MA Audio MA100XE Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(15)

$189.95

List price $159.95

SW-SACL10D4 small

Sundown Audio SA-10 Classic D4 10" (SA10CLD4)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Competition Grade Paper Cone
• Treated Foam Surround
• Mount depth: 6"
• Sensitivity: 81.6 dB

(1)

$319.99

List price $383.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
87.86 dB
Woofer Surround
Reinforced Ribbed High Foam
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
5.6"
Cutout Diameter
9.2"

Item Details


Manufacturer:

Model Number:

MA100XE

Weight:

13.00lbs

Internal SKU:

ma100xe

Internal Product ID:

2672

Product and How-to Videos


Customer Ratings & Reviews


MA Audio MA100XE thumbnail image

5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%



Durability
4.4
Value
4.7
Features
4.7
Design
4.4
Usability
4.4

Customer Reviews

Sort by:

Loading...

LOUD

I have 3 of these in a sinlge cab truck, with a ma audio hk1997 ,i hit 131.7 db at AUSTIN TX HEATWAVE LAST YEAR.

By David on July 22, 2005

4 found this helpful


Excellent Subwoofer for the price.

Very good choice for a 10" Dual 4 ohms Subwoofer.
Not only was I very happy with how quickly it was shipped from Sonic I was also very pleased with the help I got when I called MA Audio.
Before I purchased this subwoofer, I called MA Audio to get technical information on their speakers.
The tech that took my call was friendly and very helpful. (West Coast people are so much nicer)
For this price range, I don’t think you can find a better value for a 10-inch subwoofer.

By mark on February 22, 2008

3 found this helpful


good

Sounds good, hits hard, very little distortion!

By austin on January 17, 2006

3 found this helpful
