Raptor P-1700 by Metra

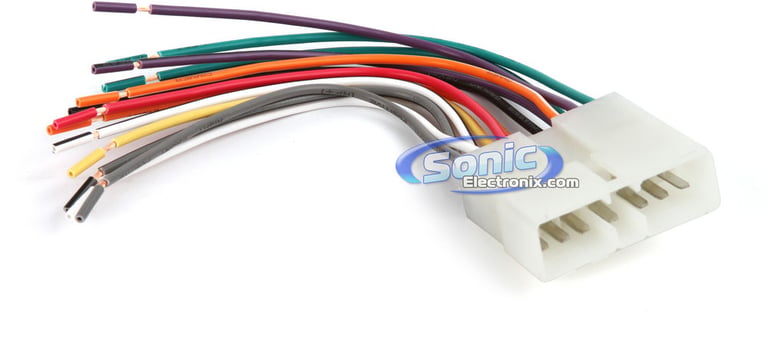

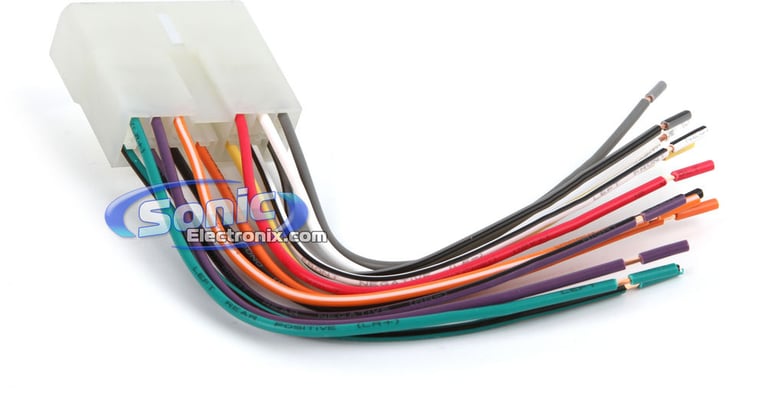

Wiring Harness for Select 1985-1999 Geo/Chevrolet/Honda/Isuzu Vehicles

Raptor
Shop all Raptor
highlight-star-icon

Car Harness for Select 1985-1999 Geo/Chevrolet/Honda/Isuzu Vehicles • Plugs into car harness • Original high quality factory plug • High impact ABS OEM plastic molded connectors provide a perfect fit • OEM Quality terminals

Learn more about the ip1700

We apologize

This item has been discontinued


Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

70-5520 main

Metra 70-5520 Wiring Harness

Install a new car stereo in select 2003-2016 vehicles from Ford, Mercury, Lincoln

56
FMK540 main

American International FMK540

Single DIN or Double DIN Stereo Dash Kit for select 2004-2016 vehicles from Ford, Lincoln, Mercury

14
-71.82%

$10.99

List price $39.00

AXLOC-FD1 main

Axxess AXLOC-FD1

2-Channel 110W Line Output Converter with Gain Controller for select 2003-2016 vehicles from Ford, Mercury, Lincoln with Non-Amplified Systems

1
-10.48%

$93.99

List price $104.99

SWRFD-60 main

Crux SWRFD-60 Wiring Interface

Install new car stereo and retains steering wheel audio controls and other factory features in select 2005-2014 vehicles from Ford, Lincoln, Mercury

2
-35.71%

$132.30

List price $205.80

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

DPX505BT main

Kenwood DPX505BT

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

18
-22.17%

$179.00

List price $230.00

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

14
-25.50%

$298.00

List price $399.99

DPX305MBT main

Kenwood DPX305MBT

Double DIN Digital Media Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

15
-20.50%

$159.00

List price $200.00

Description


Product Features:
  • Plugs into car harness at radio
  • 13-Pin connector
  • Plugs into car harness
  • Original high quality factory plug
  • High impact ABS OEM plastic molded connectors provide a perfect fit
  • OEM Quality terminals
  • Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
  • No cutting of factory wiring is needed
  • Compatible with 1994-1994 Honda Passport, 1985-up Isuzu vehicles and 1995-1999 Chevrolet Metro
  • Authorized Internet Dealer
  • 1-year Manufacturer’s warranty
Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange – Dash Light Dimmer/Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)
