Soundstream USB-10DL

800W Peak (400W RMS) Loaded Single 10" Amplified Under Seat Enclosure with Bass Remote and RGB Lighting

Soundstream
Shop all Soundstream
highlight-star-icon

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

Learn more about the usb10dl

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5601 main

Metra 72-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Lincoln, Mercury

7
-10.01%

$8.99

List price $9.99

REF687F main

Infinity REF687F (INFSPKRF687FUS)

360W Peak (120W RMS) 6x8" Reference Series 2-Way Coaxial 3-ohm Speakers

1
-18.76%

$129.95

List price $159.95

FRING68 main

NVX FRING68

Universal 6x8" or 5x7" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

12
-46.68%

$15.99

List price $29.99

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

Limited time!
C2-350X main

JL Audio C2-350x

50W RMS 3.5” C2 Series 2 Way Coaxial 4-ohm Car Speakers

15
-15.63%

$134.99

List price $159.99

Limited time!
CST20 main

Kicker CST204 (46CST204)

200W Peak (100W RMS) 3/4” CS Series 4-ohm Titanium Dome Tweeters

3
-30.04%

$55.96

List price $79.99

UNIFRING main

NVX UNIFRING

Universal Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 6)

5
-16.65%

$29.99

List price $35.98

Description


Soundstream brand icon

Authorized dealer

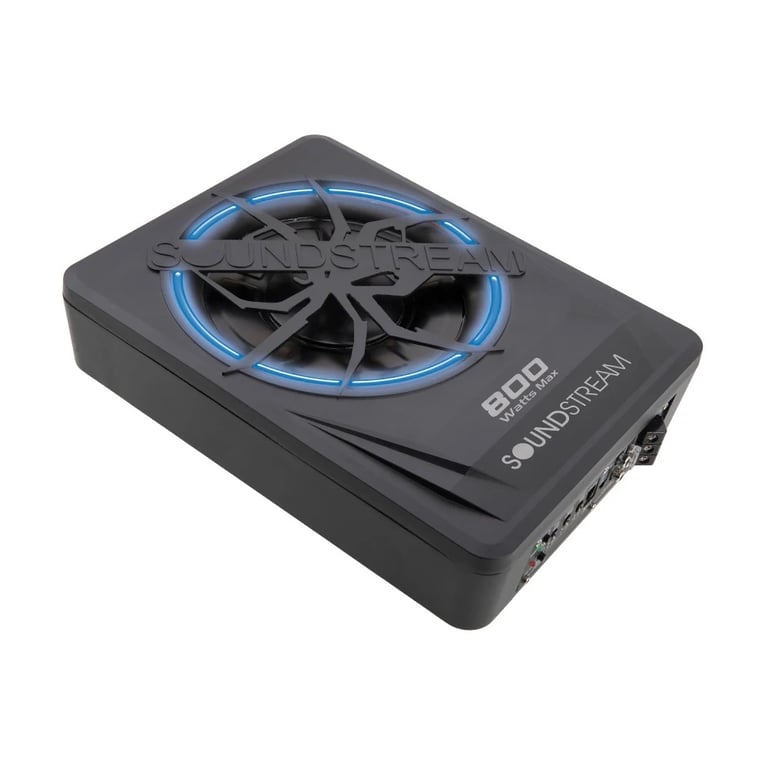

Soundstream USB-10DL

Today's active powered subwoofers bring big bass to small spaces that a typical subwoofer wouldn't fit. USB active subwoofers are made from a die-cast powder coated aluminum enclosure w/ an integrated grill, protecting the subwoofer & amplifier from unintentional damage. Traditional pre-amp features like low-pass crossover, 45Hz bass boost, and a signal phase switch bring dynamic sound to life. RCA Line-in & speaker-level inputs with signal sensing turn-on provide various options to integrate USB into your vehicle's audio system. A wired remote control is included, allowing volume adjustment from the driver's seat.


Product Features:

  • Single 10" Sealed Loaded Subwoofer Enclosure with Built-In Amplifier
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Final Impedance: 4-ohm
  • Built-in Class D amplifier

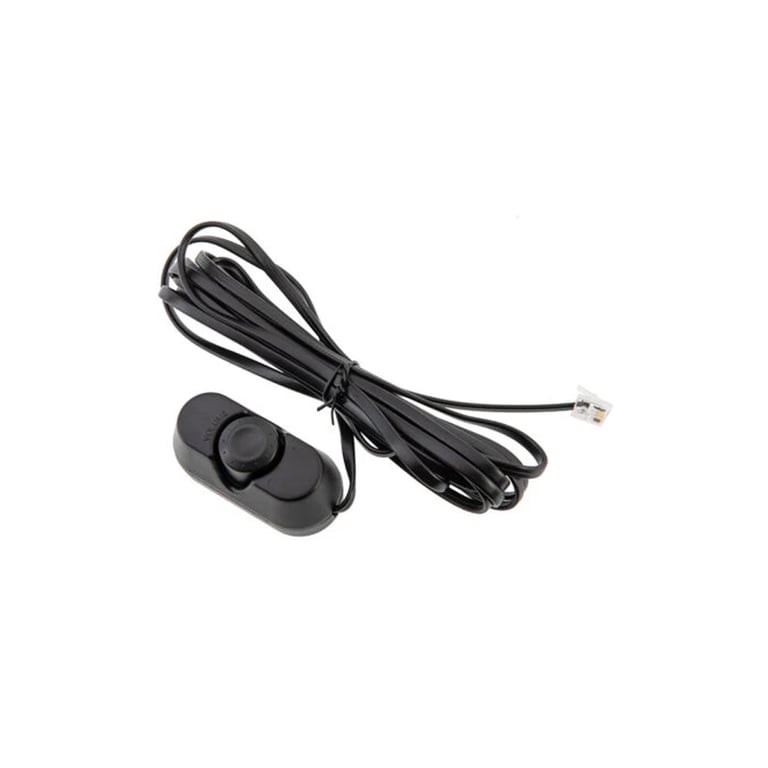

  • Includes Remote Bass Level Controller
  • Sealed Underseat enclosure
  • Active 12dB/octave crossovers and phase shift
  • Low level RCA input and pre-amp output
  • Military grade FR-4 PCB with MOSFET power supply
  • Direct, short, thermal, and overload protection circuitry
  • 8 AWG gauge power and ground wiring is recommended for installation
  • Enclosure Dimensions: 10.25" TD x 10.25" W x 3.375" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Features:

  • 10" Subwoofer
  • Polypropylene Subwoofer Cone
  • Rubber Subwoofer Surround

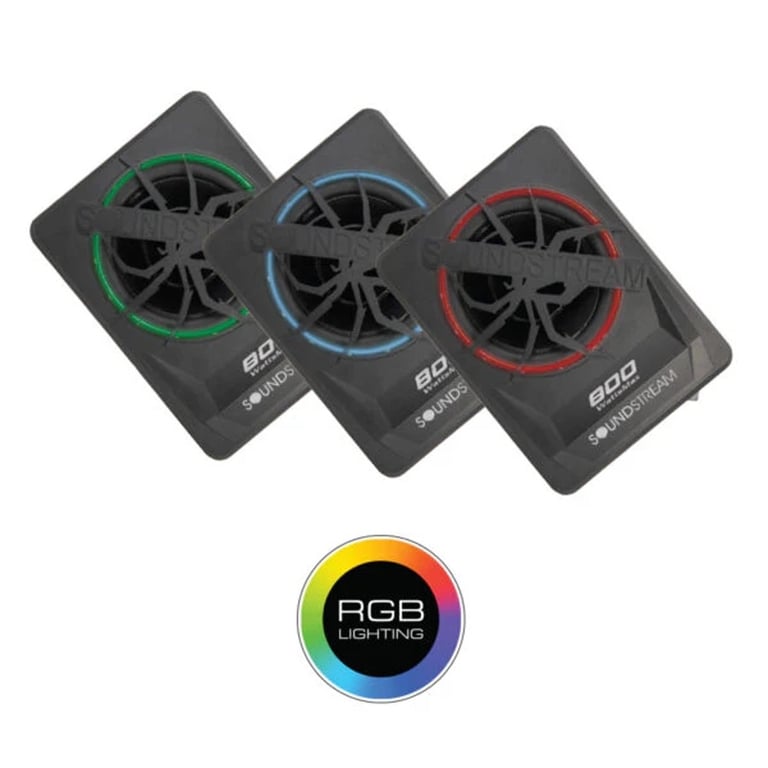

  • Built-in RGB LED lighting surround
  • Frequency Response: 20 - 150 Hz
  • Sensitivity:

Amplifier Features:

  • Class D Monoblock Amplifier
  • Low-Pass Crossover Frequency: 50 - 150 Hz
  • Bass Boost: 0 - 12 dB
  • Subsonic Filter: 0 - 20 Hz
  • RCA Preamp Output: No

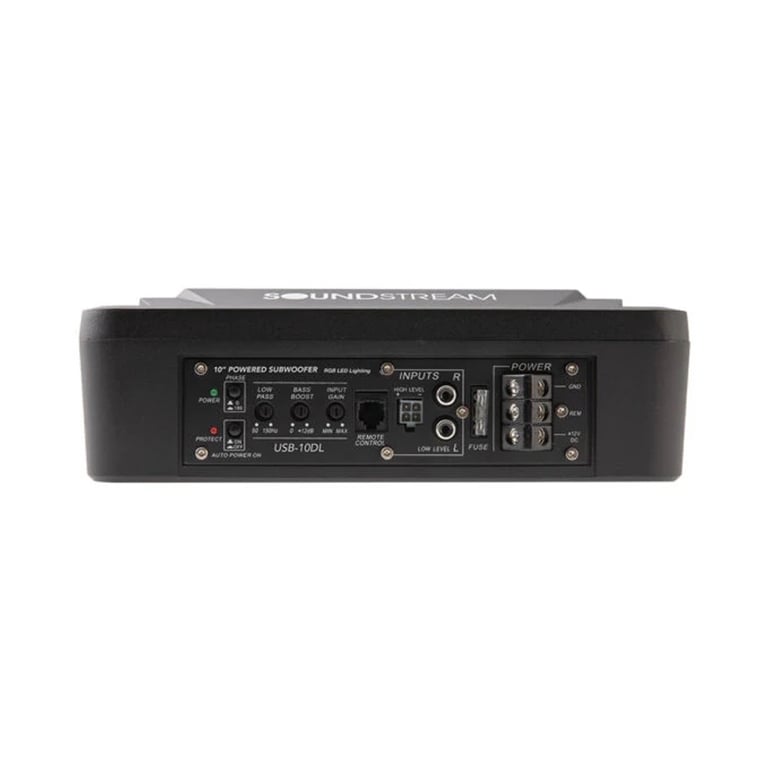

  • Speaker-level (high-level) inputs
  • 0-180-degree signal phase switch
  • High level input on quick disconnect harness
  • Optional high-level signal sense auto turn-on
  • Input sensitivity: 0.3 - 0.9 volts
  • Fuse Rating: 25A x 1

Enclosure Features:

  • 10" Sealed Enclosure
  • Powder coated diecast aluminum enclosure

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95


Best selling similar products

QBUS10P small

NVX QBUS10P

• Low Profile Ported Subwoofer System
• 200 Watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(38)

$199.99

List price $219.99

VPAS12 small

Cerwin Vega VPAS12

• 12" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(15)

$329.99

List price $395.99

Specifications & Details


Subwoofer Amplifier Power Specifications
RMS Power @ 2 ohms
400 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
THD at Rated RMS Power
0.4%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
0 - 20 Hz
Signal-to-Noise Ratio
90 dB
Low-Level Input Sensitivity
0.3 - 0.9 volts
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 1
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
400 watts
Total RMS Power Handling
400 watts
Peak Power Handling
800 watts
Total Peak Power Handling
800 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Material
Copper
Frequency Response
20 - 150 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Underseat
Height
3.375"
Width
10.25"
Depth
10.25"
Box Exterior Color
Black
Box Finish
Aluminum
Final Wired Impedance
4-ohm
Amplifier Wiring Kit
Is Amplifier Wiring Kit included?
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

USB-10DL

Weight:

12.90lbs
