See all parts that fit your 2013 Explorer

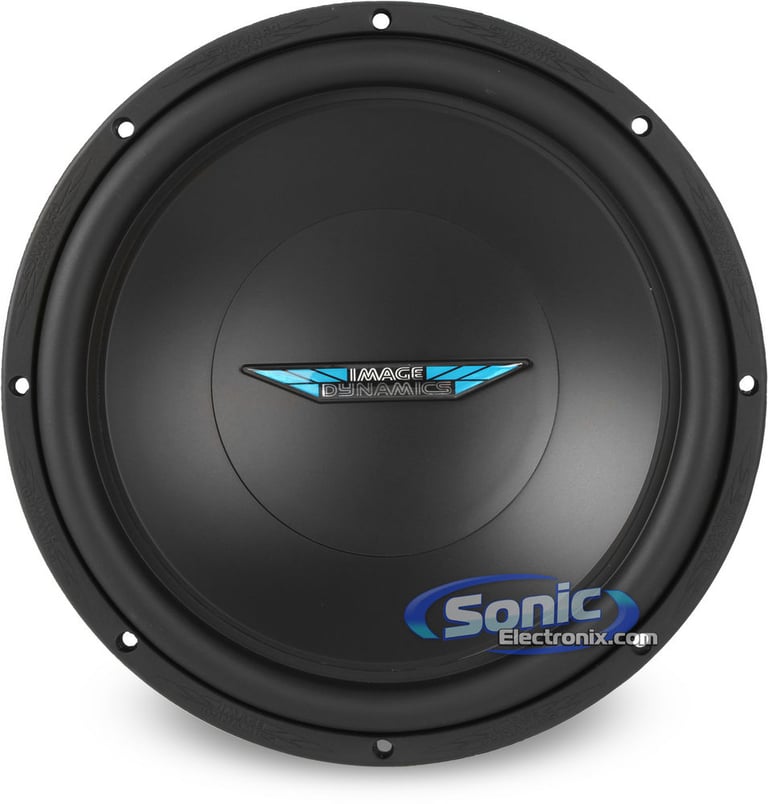

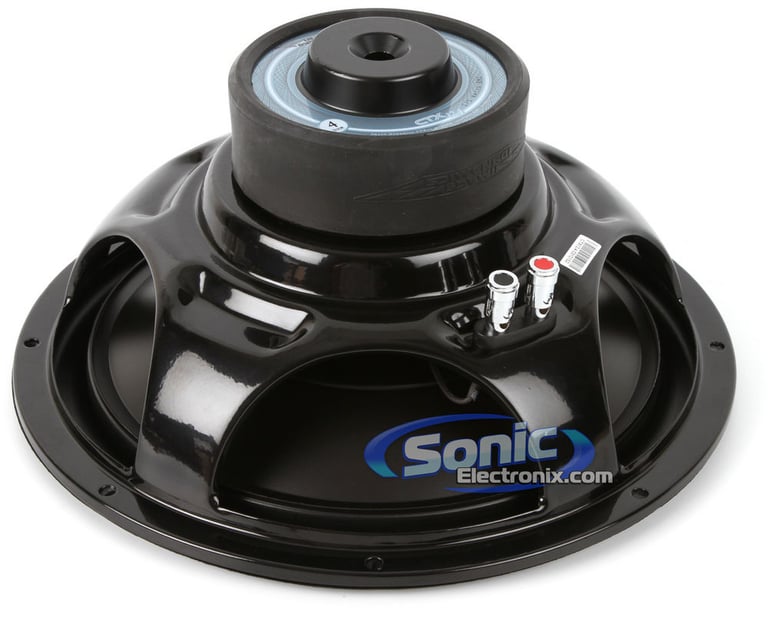

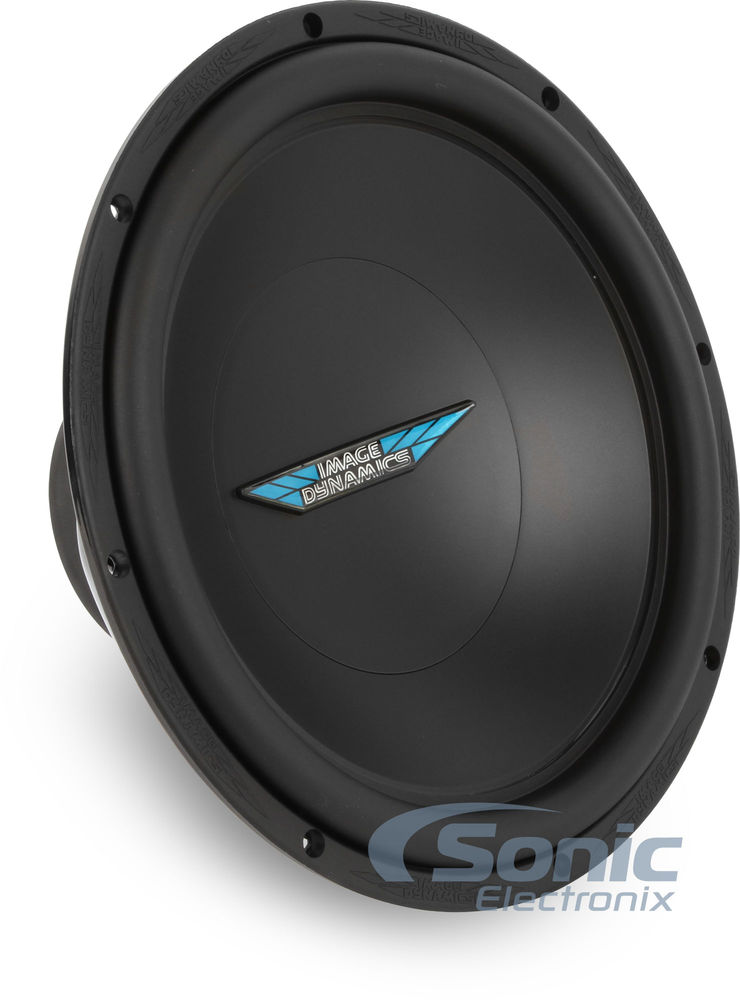

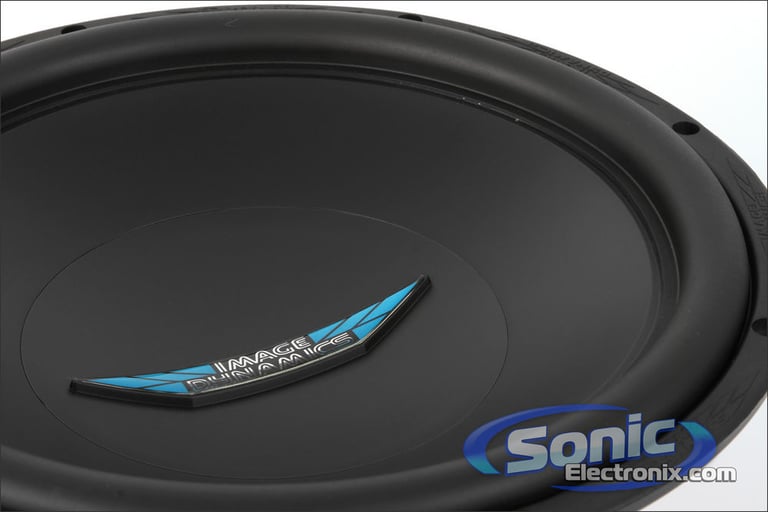

Image Dynamics CTX124

175W 12" CTX Series Single 4 ohm Subwoofer

Product videos
highlight-star-icon

• 300W Peak
• 175W RMS
• Poly-Mica Cone Woofer
• Butyl Rubber Surround
• Conex Spider with Integrated Tinsel Leads
• Black Anodized Aluminum Voice Coil Former

Learn more about the ctx124

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Lowest price in 30 days
KIT-MFT1 main

iDataLink Maestro KIT-MFT1 Dash Kit

Double DIN Stereo Dash Kit and Harness for select 2012-2025 vehicles from Ford, Lincoln (Requires MRR or MRR2 module)

4
-24.14%

$219.99

List price $289.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

29
-28.13%

$22.99

List price $31.99

72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

AXABH-FD1 main

Axxess AXABH-FD1

Amplifier Bypass Harness for select 2011-2017 vehicles from Ford with Sony Amplified

1
-11.77%

$29.99

List price $33.99

AXLOC-FD2 main

Axxess AXLOC-FD2

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ford with Non-Amplified Systems

3
-10.48%

$93.99

List price $104.99

82-5602 main

Metra 82-5602

6X9" Speaker Adapter for select 2011-2020 Explorer and F-Pace

2
-47.51%

$20.99

List price $39.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Product Highlights


• 300W Peak
• 175W RMS
• Poly-Mica Cone Woofer
• Butyl Rubber Surround
• Conex Spider with Integrated Tinsel Leads
• Black Anodized Aluminum Voice Coil Former

Description


Image Dynamics brand icon

Authorized dealer

Getting Started with Image Dynamics

Looking to add some bass with out wanting to spend a bundle? The CTX Series subwoofers from Image Dynamics will allow you to accomplish just that. Available in 10" and 12" single 4 ohm and 8 ohm versions, makes these subwoofers perfect for those looking to step into the car audio pool. Rated at 175 watts RMS of continuous power, these subwoofers will provide more than enough power and bass without having to drastically upgrade your car's battery or alternator. Equipped with a poly-mica cone woofer and butyl rubber surround for durability and optimum performance. The CTX series also features a conex spider with integrated tinsel leads for enhanced long linear excursion. So if you are looking to add quality bass with out braking the bank, then Image Dynamics' CTX subwoofer series are the ones for you.

  • 12" Single 4 ohm CTX Series Subwoofer
  • Power Handling:
    • Peak: 350 watts
    • RMS: 175 watts
    • Recommended Power Range: 50-350 watts
  • Poly-mica cone woofer
  • Butyl rubber surround
  • Spring loaded push terminals for easy installation
  • Conex spider with integrated tinsel leads
  • Black anodized aluminum voice coil former
  • Frequency response: 16-180 Hz
  • Sensitivity: 86 dB
  • Mounting Depth: 5-3/4"
  • Cutout Dimensions: 11"
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Image Dynamics CTX124 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Image Dynamics CTX124 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Image Dynamics CTX124 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Image Dynamics CTX124 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
CTX Series
Subwoofer Size
12"
Peak Power Handling
350 watts
RMS Power Handling
175 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
16 - 180 Hz
Sensitivity
86 dB
Xmax (millimeters)
16 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene-Mica
Woofer Surround
Butyl Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.2 cubic feet
Maximum Sealed Box Volume
1.5 cubic feet
Minimum Ported Box Volume
2.2 cubic feet
Maximum Ported Box Volume
2.8 cubic feet
Top-Mount Depth (Mounting Depth)
5-3/4"
Cutout Diameter
11"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CTX124

Weight:

9.50lbs

Internal SKU:

ctx124

Internal Product ID:

22191

Product and How-to Videos


  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Image Dynamics CTX124 thumbnail image

5 star
67%
4 star
0%
3 star
0%
2 star
0%
1 star
33%



Durability
3.7
Value
3.7
Features
3.7
Design
4.4
Usability
3.7

Customer Reviews

Sort by:

Loading...

Extremely disappointed...

Image Dynamics has always had a terrific reputation, so I didn't hesitate to buy these woofers based on that. To my dismay, these things are cheap garbage.

I purchased two CTX124's. On the first one, the cone and basket were misaligned so that the mounting holes in the rubber gasket didn't line up with the holes in the steel basket. On top of that, there was no glue between the basket and the surround.

Unforgivable quality control.

The second seemed to be assembled correctly, but the plastic logo 'cover' was broken off into pieces and the sticker underneath was peeling off.

I can't comment on how they sound since as soon as I opened up the boxes and inspected the subs, they got boxed back up again and are awaiting an RMA from Sonicelectronix.

Come on ID, Eric Stevens has gone, has your commitment to excellence gone too???

By Dan on November 11, 2011

28 found this helpful


Great Subwoofer

Installed these a few days ago and was SEVERELY disappointed. They really didn't get deep like i wanted them to, but after doing a little tuning and realizing that the crossover on my Amp was a lot more "sub" friendly than the head unit, these things sing! I am very happy. Running 2 in a ported box off of 400 watts from a Powerbass 5 channel amp. I definetly would recommend them.

By Lexus on June 22, 2012

23 found this helpful


awesome

just installed this sub and it sounds great. still tuning my system, no clue what im doing really, but so far it sounds really awesome. it can hit some very deep bass, on faster beats it keeps up very well. only pushing 150 watts and the tuning isnt right, but inside the car the sub fills it with deep rich clean sounding bass. Cant really hear outside of the car that much, which i like, inside though it awesome.

no cons at this point, just installed. but i heard great things about this company. also heard these subs and being lable as musical subs. more sq than spl.

got this sub with a box packaged by sonic, shipping is awesome. 3 days total, for free. box had a mark on it showing bare wood, no problem really.

By john on August 18, 2011

24 found this helpful
