See all parts that fit your 1987 Electra

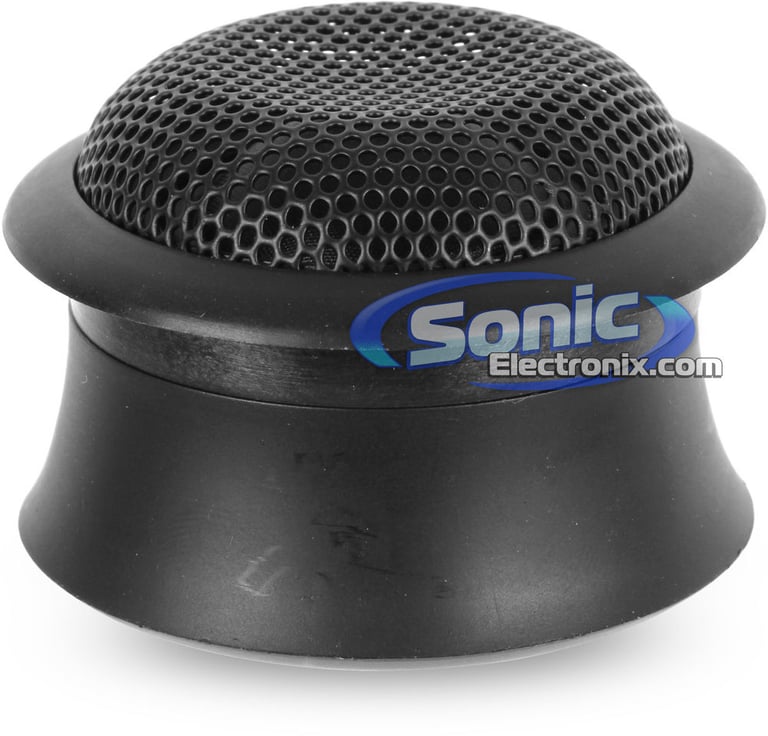

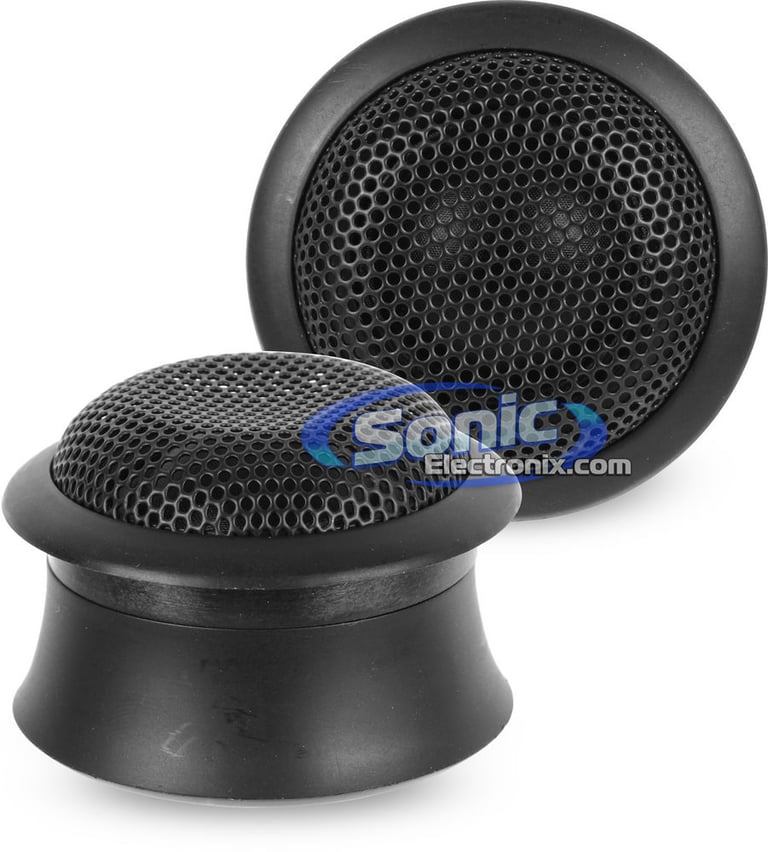

Image Dynamics XS28

1" XS Series Silk Dome Tweeter

highlight-star-icon

• Rohacell/Nomex Composite Cone Woofer
• Nitrile-Butadiene Rubber Surround
• Fiberglass Composite Basket
• Selectable Crossover Alignments

Learn more about the xs28

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

Description


Image Dynamics brand icon

Authorized dealer

General Features:

  • 1" XS Series Silk Dome Tweeter
  • Power Handling:
    • Peak: 400 watts per pair / 200 watts each
    • RMS: 200 watts per pair / 100 watts each
  • Recommended power range: 15 - 125 watts RMS per channel
  • Multi-layer Rohacell/Nomex composite cone woofer
  • Nitrile-butadiene rubber surround with parabolic surround roll
  • Fiberglass composite basket
  • Crossover design uses selectable crossover alignments to optimize the tweeter response

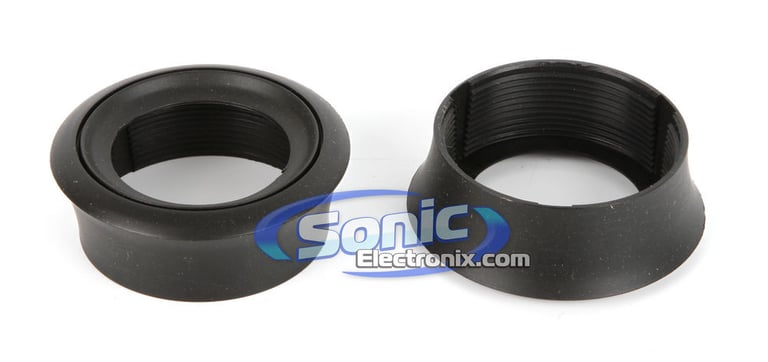

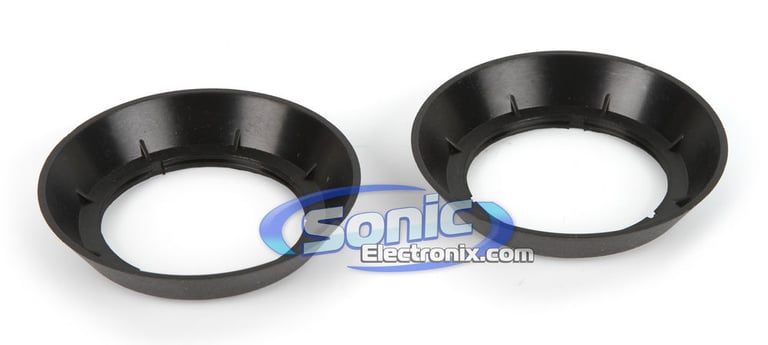

  • Surface and coaxial mounting options
  • Neodymium magnet structure
  • 4 ohm impedance
  • 1" High-temperature voice coil
  • Top-mount depth: 7/8"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Priced Per Pair


Best selling similar products

46CSC654 small

Kicker CSC65 (46CSC654)

• 300 watts Peak Each, 100 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(254)

$79.96

List price $119.99

VSPTW small

NVX VSPTW

• 1" V Series Dome Tweeters
• 225 watts Peak Each
• 75 watts RMS Each
• 4 ohm Impedance

(29)

$49.99

List price $59.99

46CSC6934 small

Kicker CSC693 (46CSC6934)

• 450 watts Peak Each, 150 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(40)

$111.96

List price $159.99

Specifications & Details


Tweeter Specifications
Priced Per
Pair
Tweeter Size
1"
Tweeter Design
Dome
Tweeter Composition
Silk
Flush Mount
Yes
Surface Mount
Yes
Angled Mount
No
Peak Power Handling
200 watts
RMS Power Handling
100 watts
Sensitivity
92 dB
Frequency Response
900 - 25000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
7/8"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XS28

Weight:

0.90lbs

Internal SKU:

xs28

Internal Product ID:

22204

Customer Ratings & Reviews


Image Dynamics XS28 thumbnail image

5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
4.8
Features
4
Design
5
Usability
4.5

Customer Reviews

Sort by:

Loading...

Box opening -Image Dynamics XS28

There the only 100 watt RMS per tweeter I could find, so I bought a pair. There soft dome tweets which is my experience are the best at producing the best great sound. They are edge driven tweets are the maximum size voice coils which is a big plus!
They do lack something when it comes to mounting, but they seem so good I'll go to great lengths to find a way to make the install neat.

By Fax on June 18, 2014

26 found this helpful


Nice Tweeters

Very nice tweeters for the price. Never harsh. Although they will play fairly low I'm having the best results crossing them over around 3k (24db) to my ID CX62 V2s. Even though they're only a 1" tweeter they do require some space to mount. I had to modify them (the backs) significantly to mount them in my sail panels. They look almost stock now though. I would definitely recommend these to anyone looking for an inexpensive high end tweeter.

By Shamie on October 26, 2012

26 found this helpful


Eric Stevens rules!

Image has always been a excellent choice for drivers. That's all I run .

By Bass mechanic on October 15, 2015

12 found this helpful


great tweeters!!!!!

I have these with a 2.2 capacitor on 2003 Durango back doors with American bass 6.5 (200w) they sound better then my JL audio I have in the front, the C5's, I have a kenwood 125w a channel on them they r handling then with ease ,I can easily put a bigger amp but they sound amazing!!!!

By Richie from ny on October 11, 2015

12 found this helpful
