PowerBass ASA 700.5X

1600W Max, Auto Sound Series 5-Channel Amplifier (ASA700.5X)

Product videos
highlight-star-icon

• RMS Power: 50W x 4 + 200W x 1 @ 4 ohms , 100W x 4 + 400W x 1 @ 2 ohms
• Total Peak Power: 1400W
• Variable Low Pass Filter
• Dimensions: 9.3" D x 14.9" W x 1.9" H

Learn more about the asa7005x

We apologize

This item has been discontinued

Product Highlights


• RMS Power: 50W x 4 + 200W x 1 @ 4 ohms , 100W x 4 + 400W x 1 @ 2 ohms
• Total Peak Power: 1400W
• Variable Low Pass Filter
• Dimensions: 9.3" D x 14.9" W x 1.9" H

Description


PowerBass brand icon

Authorized dealer

PowerBass Delivers

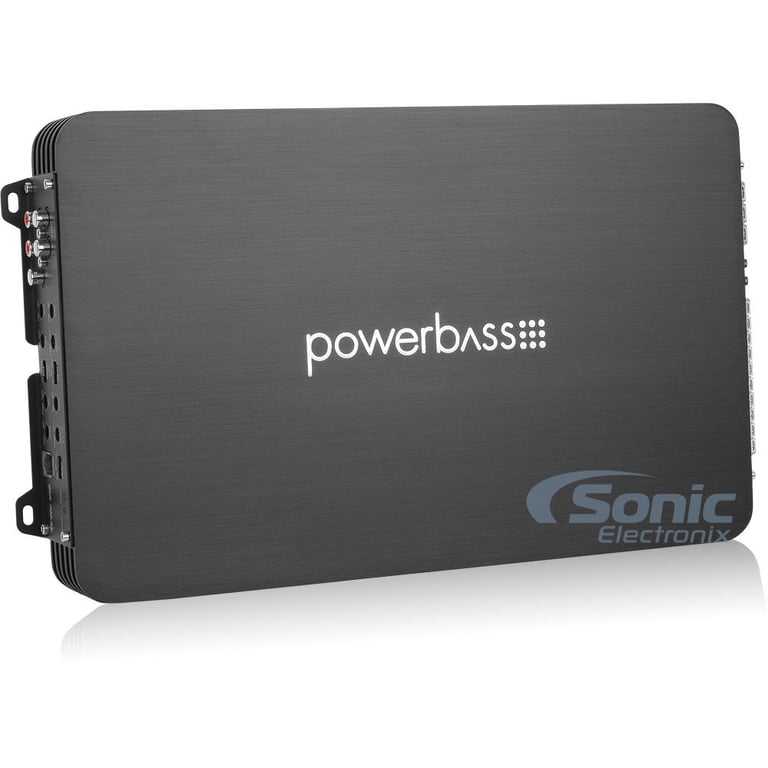

The PowerBass ASA 700.5X Auto Sound class A/B 5-channel amplifier is a powerful, compact and affordable option for driving your entire sound system. This bridgeable 5-channel amplifier will put out up to 800 watts of clean RMS power and is built not only for great performance, but also outstanding lifespan.

PowerBass ASA 700.5X Cooling Fins

Built to Last

The stylish ASA 700.5X is built to last. PowerBass carefully engineered this amplifier with a heavy duty aluminum alloy ribbed heatsink with extra wide fins that will really keep the amp running cool no matter the playlist you have blasting. The heavy duty brass CNC machined terminal blocks and silver plated RCA level inputs and screw terminals ensure high quality and stable connections.

ASA 700.5X Quality Construction

Quality Components

PowerBass designed this 5-channel amp with internal 4-way system protection circuitry to keep it safe from any potential thermal, overload, DC output and speaker short damage. Built-in LED power and status indicators warn you of any issues with the amplifier. The soft delay remote turn on eliminates unwanted pops and clicks from your sound. The Auto Sound 800 watt 5-channel amp was engineered to push clean, powerful sound through your entire system.

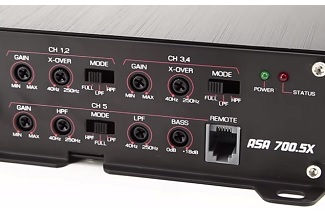

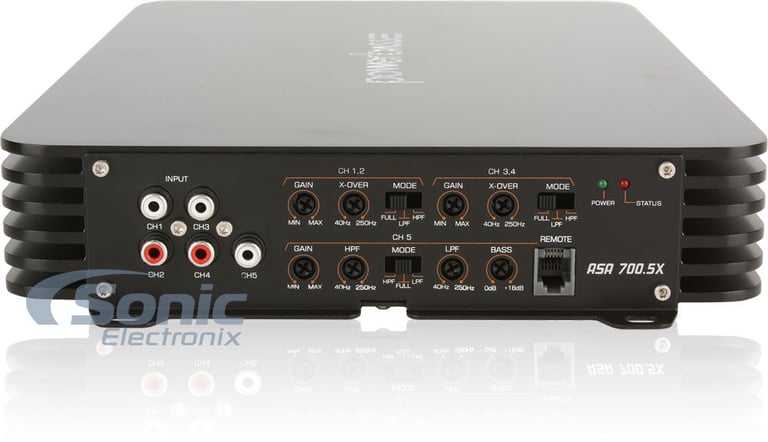

PowerBass ASA 700.5X Control Your Sound

Power Your System

The compact ASA 700.5X Auto Sound amplifier features a built-in Bass Boost EQ as well as variable high and low pass filters to give you incredibly precise control of your sound. With all of its features, high quality construction and components, this 5-channel amplifier will drive the speakers and subwoofer that make up the system in your car!



General Features

  • Auto Sound Series 5-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 50 watts x 4 chan. + 200 watts x 1 chan.
    • 2 ohms: 100 watts x 4 chan. + 400 watts x 1 chan.
    • 4 ohm Mono: 200 watts x 2 chan. + 400 watts x 1 chan.
  • Max power output: 1400 watts
  • MOSFET Power supply
  • Power and status LED Indicators
  • Remote bass level input (remote level control sold separately)
  • Total harmonic distortion: <0.05%
  • High-pass crossover (40-250 Hz, 12dB)
  • Low-pass crossover (40-250 Hz, 12dB)
  • Variable subwoofer EQ (0 + 18dB)
  • Subwoofer EQ Frequency: 40 Hz
  • Frequency response: 20-22,000 Hz

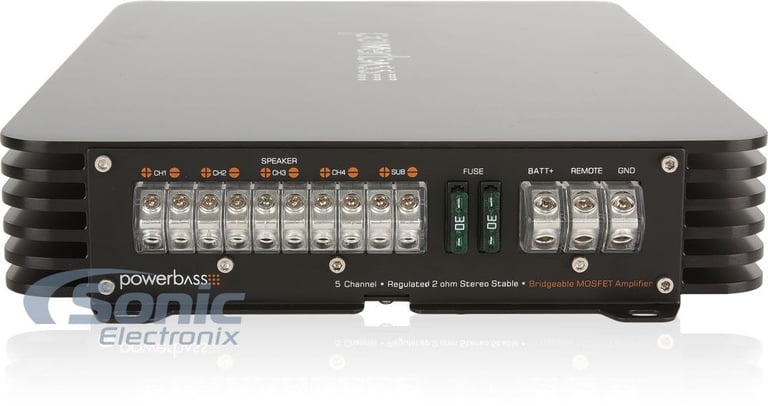

  • 4-Way System Protection circuitry (thermal, overload, DC output and speaker short protection)
  • Heavy duty aluminum alloy ribbed heatsink
  • Heavy-duty brass CNC machines terminal blocks
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Dimensions: 9.3"D x 14.9"W x 1.9"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

PowerBass ASA700.5X thumbnail
(newest, current model)
PowerBass ASA700.5 thumbnail
(previous model, replaced by PowerBass ASA 700.5X)

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
400 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
5-Channel
Total Peak Power Output
1400 watts
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.05%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 250 Hz
Low-Pass Crossover Frequency
40 - 250 Hz
Signal-to-Noise Ratio
94 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
30A x 2
Amp Bluetooth Connectivity
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ASA700.5X

Weight:

11.50lbs

Internal SKU:

asa7005x

Internal Product ID:

20764

Product and How-to Videos


  • Powerbass AutoSound Series Car Amplifiers
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews



5 star
85%
4 star
8%
3 star
0%
2 star
0%
1 star
8%



Durability
4.6
Value
4.9
Features
4.8
Design
4.8
Usability
4.6

Customer Reviews

Sort by:

Loading...

perfect amp

This amp is worth every dollar. Didn't think i would get much bass or even highs but it picks up every bass drop and highs sound amazing

By David on June 22, 2015 Checkmark Icon Verified purchase

29

found this helpful.

right amp, right price

this amp really gets the job done sure you can pay for a top of the line focal or JL amp but if you're on a budget this to me beats out a lot of the low end crap around there nowadays. i run a CVT122 kicker sub with this and i get plenty of boom out of it

By Brad on April 10, 2015

29

found this helpful.

AWESOME!!

Just had my amp installed last week and LOVE it so far!! Has enough power to amplify my whole system. 5 Stars!!!

AWESOME VALUE!!

By Brendan on July 28, 2015

22

found this helpful.

Great Value

We researched several amps to find ones comparable and found this to be the best value for its price. It is more than capable of pushing out the necessary wattage to all of the speakers and giving the desired sound.

By Kat on August 15, 2015

17

found this helpful.

great buy

This is a great amp, worth every penny, you don't need to spend thousands of dollars to get a good quality sound, just the right equipment in the right application is all you need

By Tyman on August 29, 2015

10

found this helpful.

Excellent value for the buck!

If you're considering a 5-channel amplifier and you're on a budget, this is an amplifier to consider. Like most amplifiers available on the market, it has full variable crossover adjustments and gain adjustments, plus a wired remote control for subwoofer level adjustment.

This amplifier has a class A/B MOS-FET power supply, so it's very efficient and really packs a punch when necessary. But like anything, it's only as good as the installation. Be sure to purchase a quality amplifier installation kit and use quality RCA cables from the head unit to the amplifier. One thing to note, this amplifier uses a single RCA for the subwoofer input. You can either use a y-cable or just use single RCA from your head unit to the amplifier.

I'm currently using this amplifier to run a pair of Focal Axxess series components and coaxials, plus 2 Kicker CVX series subwoofers. I allowed the speakers and amplifier to break in for roughly a week before tweaking the amplifier with an Audio Control RTA. Boy, does it sound amazing. Best investment in an amplifier without breaking the bank.

By neal on October 26, 2015

2

found this helpful.

2 weeks in

Been running this amp for 2 weeks and so far it's working great!
I have it paired with a Pioneer 10in sub in a closed box, Polk Audio 6.5 door speakers and Pioneer 6x8 in the back. The amp pushes plenty of power to the speakers with very good sound quality and the sub is pretty loud. As far as I can tell the amp is a solid build. It's not the best 5 channel amp out there but for the price I think you would be hard pressed to find a better deal.
Works good, easy to install/tune, good power for the price.

By Dominatorxvii on November 15, 2015

1

found this helpful.

Powerbass 700.5

Great product... fast shipping... amazing seller.... will recomend to anyone

By Rondell on November 9, 2015

1

found this helpful.

Impressed

I purchased this amp because I was putting new srereo in my small coupe. Always ran 3 amps in systems before. Thought I would give this a try. Installed with crossover between head unit and amp and installed remote gain adjust for amp. Am able to run 2 10 inch subs and 6 inch midrange and high range component speakers with no problem. Gives good sound and more than enough volume for what I want. More than happy with purchase.

By Rcknut on November 8, 2015

1

found this helpful.

Still Rocking

I have had this amp for over 3 yrs it's still rocking hate that it has been discontinued.

By Anonymous on September 28, 2019 Checkmark Icon Verified purchase
