Rockford Fosgate Stage 6 RZR24RCXP-STG6

Product Details:

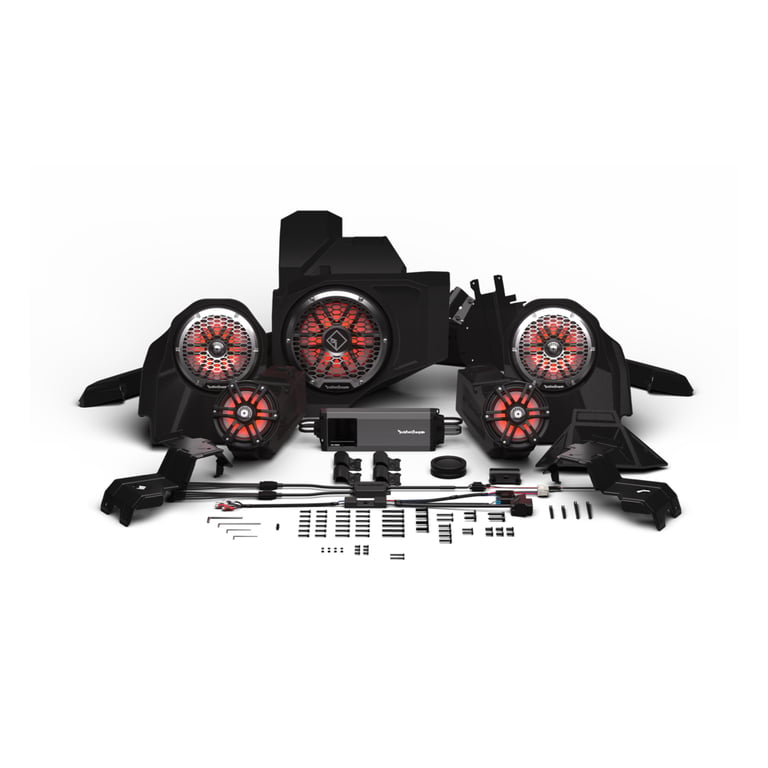

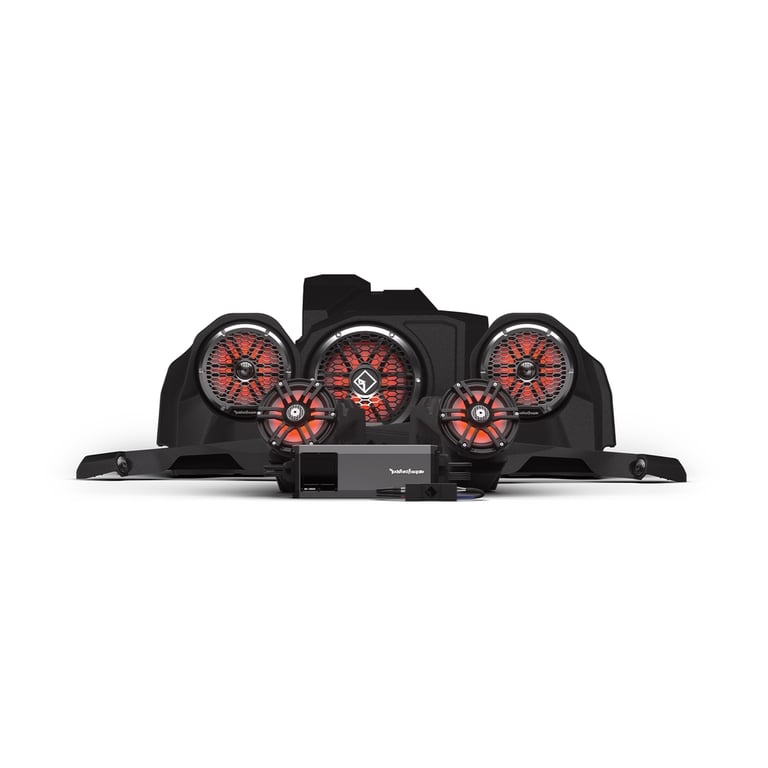

• System includes one digital media receiver, one pair of 6.5" marine speakers in custom-fit enclosures, one pair of 6x9" marine speakers in custom-fit enclosures, one loaded 10" enclosure, one 5-channel marine amplifier, and a Color Optix LED lighting controller
• Designed and engineered to match and compliment the factory fit and finish of your vehicle

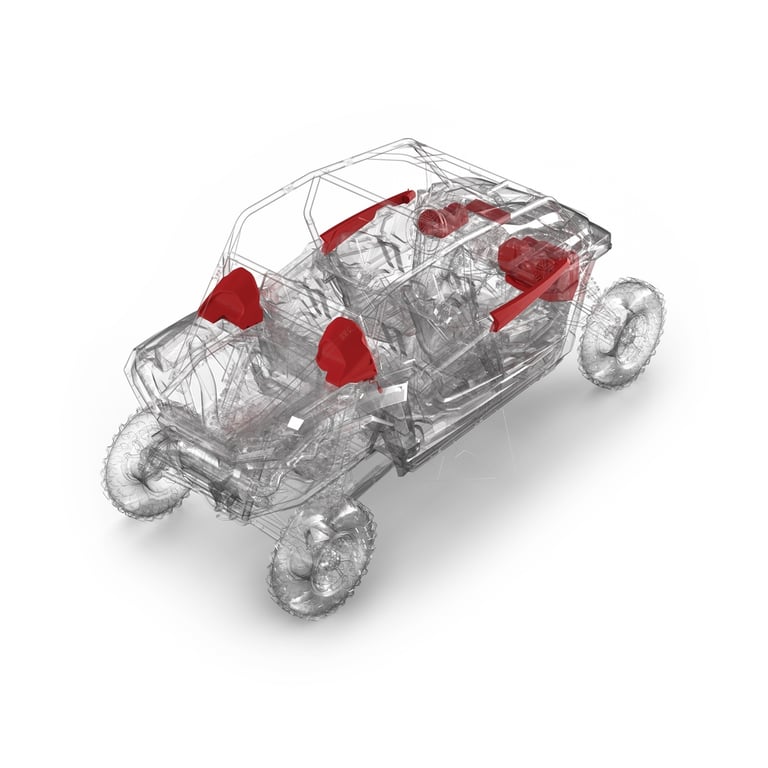

• Enclosures for speakers and/or subwoofer integrate with no loss of passenger space
• Plug and Play design for easy installation
• Radio kit replaces factory lower (2014+) or factory upper (2019+) pocket
• Includes a dash kit for each model
• Includes Rockford Fosgate PMX-RGB Color Optix controller
• Includes REPOL-RCA interface for Ride Command
• IPX-6 water resistant
• Estimated Install Time: 6-hours
• Rockford Fosgate RZR24XP-STG6 kit is also available for models equipped without Ride Command
• Authorized Internet Dealer
• 2 Year Manufacturer's Warranty
• Compatible with select 2024-2025 RZR XP 1000 Sport / 4 1000 Ultimate / 1000 Ultimate / 4 1000 Sport / 1000 Premium with Ride Command

Rockford Fosgate PMX-3 Bluetooth Marine Digital Media Receiver Details:

• 2.7" TFT-LCD Display
• IPX6 marine-grade rating
• ASTM: B117 Salt Fog & D4329 UV exposure tested
• Epoxy coated circuit board
• Two-piece mounting system to secure panel to mounting surface
• Internal amplifier ratings:
• Peak: 50 watts x 4-channel
• RMS: 25 watts x 4-channel
• AM/FM/WB tuner with 12 AM / 18 FM presets
• MP3 | WMA | FLAC audio playback via USB
• 7-band equalizer
• Rear auxiliary and USB inputs
• Two pairs of 4-volts RCA preamp outputs
• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
• Colored SiriusXM channel logos (18 channel presets)
• Pandora Internet radio support
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input
• Selectable high pass and low pass crossover points for each independent zone
• MFR #: PMX-3

Rockford Fosgate M2-65B 6.5" 2 Way Coaxial Marine Speaker Details:

• Power Handling:
• Peak: 1200 watts per pair / 600 watts each
• RMS: 300 watts per pair / 150 watts each
• Mineral-filled Polypropylene cone material
• Thermoplastic Elastomer speaker surround
• 1" Laminated PXNX dome tweeters
• Impedance: 4-ohm
• Marine Certified
• Multi-color Illumination
• Proprietary Dual Function Input Terminals
• Ultra-high temperature PA66 with 30% glass-fill injection-molded frame with UV inhibitors
• Integrated Deutsch RGB and Speaker receptacles
• Gold-plated marine-grade brass terminals provide a corrosion-resistant connection
• Fully insulated silicone tinsel leads
• Linear Aramid-Polyester Composite Spider
• 12dB/Octave Crossover network
• Vented motor design with water-repelling nano-coated mesh screen
• VAST vertical attach surround technique increases radiating cone area to 25%
• Metallized Polyester Film Capacitors
• Fully sealed integrated concealed crossover (ICC) network
• Optically clear UV stable Encapsulated LED PCB
• Ultra-Bright, Wide Angle Tri-Color Surface Mount LEDs with Flat Mold Lenses
• Optically clear UV stable RGB Lighting Encapsulation
• Color optix requires RF Connect App and Rockford Fosgate PMX-RGB controller (sold separately)
• Top-mount Depth: 2.49"
• Cutout Dimensions: 5.36"
• Frequency Response: 40 - 24000 Hz
• Sensitivity: 91.8 dB
• Black grilles included
• MFR #: M2-65B

Rockford Fosgate M2-8B 8" 2 Way Coaxial Marine Speaker Details:

• Power Handling:
• Peak: 2000 watts per pair / 1000 watts each
• RMS: 500 watts per pair / 250 watts each
• Mineral-filled Polypropylene cone material
• Thermoplastic Elastomer speaker surround
• 1" Laminated PXNX dome tweeters
• Impedance: 4-ohm
• Marine Certified
• Multi-color Illumination
• Proprietary Dual Function Input Terminals
• Ultra-high temperature PA66 with 30% glass-fill injection-molded frame with UV inhibitors
• Integrated Deutsch RGB and Speaker receptacles
• Gold-plated marine-grade brass terminals provide a corrosion-resistant connection
• Fully insulated silicone tinsel leads
• Linear Aramid-Polyester Composite Spider
• 12dB/Octave Crossover network
• Vented motor design with water-repelling nano-coated mesh screen
• VAST vertical attach surround technique increases radiating cone area to 25%
• Metallized Polyester Film Capacitors
• Fully sealed integrated concealed crossover (ICC) network
• Optically clear UV stable Encapsulated LED PCB
• Ultra-Bright, Wide Angle Tri-Color Surface Mount LEDs with Flat Mold Lenses
• Optically clear UV stable RGB Lighting Encapsulation
• Color optix requires RF Connect App and Rockford Fosgate PMX-RGB controller (sold separately)
• Top-mount Depth: 3-3/8"
• Cutout Dimensions: 7-1/16"
• Frequency Response: 35 - 24000 Hz
• Sensitivity: 93.1 dB
• Black grilles included
• MFR #: M2-8B

Rockford Fosgate M2-TS 1" Pro-Audio Marine Add-on Tweeter Kit Details:

• Power Handling:
• Peak: 1600 watts per pair / 800 watts each
• RMS: 400 watts per pair / 200 watts each
• IPX6 rated front and grille with IPX5 frame
• UV-stable ASA plastic frame and grille design
• Aluminum diaphragm material
• Customizable flush or horn-mount options
• Marine grade PEI rubber surround
• Dual clamp tweeter mounting system
• ASTM B117 Salt/Fog testing standards
• ASTM G154 Accelerated UV testing
• External 18dB/Octave audiophile grade high pass crossover
• High-temperature Kapton voice coil former
• Neodymium magnet motor structure
• Impedance: 4-ohm
• Sensitivity: 97 dB
• Frequency Response: 1425 - 25000 Hz
• MFR #: M2-TS

Rockford Fosgate M2D4-10IB-G2 10" Dual 4-ohm Infinite Baffle Marine Subwoofer Details:

• Power Handling:
• Peak: 1600 watts
• RMS: 400 watts
• Mineral-filled Polypropylene cone
• Chemically bonded co-molded Polymer VAST surround
• Ultra-high temperature PA66 with 30% glass fill injection-molded frame with UV inhibitors
• Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
• Ultra-bright wide-angle Color Optix RGB LEDs (Rockford Fosgate PMX-RGB controller sold separately)
• RF Connect App is available to download on iPhone and Android
• Gold plated Marine grade brass terminals provide a corrosion resistant connection
• Vented motor design with water-repelling nano coated mesh screen
• Integrated Deutsch/Amphenol connectors make wiring connections simple and error proof
• VAST vertical attach surround technique increases effective radiating cone area up to 25%
• Optimized for Infinite Baffle installations, where an enclosure is not required
• 100% UV Stable Centrex plastic grill
• Fully insulated silicone tinsel leads
• Injection molded UV stable foam surround
• Linear Aramid-Polyester Composite spider
• FlexFit basket allows for fine-tuning the position of your marine subwoofer
• 2" high temperature Polyimide-Epoxy Resin Glass Fiber Composite voice coil
• 13mm Xmax
• 55.04 oz. magnet motor structure
• VERSA switch allows voice coil switch into series and parallel configurations
• Frequency Response: 32 - 250 Hz
• Resonance Frequency (Fs): 6.6 ohms
• Sensitivity: 87 dB
• Top-mount depth: 4.7"
• Cutout diameter: 8.98"
• IPX6 marine certified

Rockford Fosgate M5-1500X5 Class AD/BD 5-Channel Amplifier Details:

• RMS Power Rating:
• 4 ohm: 100 watts x 4 channel + 400 watts x 1 channel
• 2 ohm: 100 watts x 4 channel + 600 watts x 1 channel
• Bridged: 200 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS power output: 1000 watts
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
• C.L.E.A.N. gain setup system includes clip lights
• Auto remote turn-on
• Element Ready chassis and conformal-coated PC boards
• IPX6 water intrusion rating
• Heavy-duty molded connectors protect wiring from water and dirt
• Preset button for instant tuning in Rockford Fosgate UTV audio packages
• Input sensitivity:
• Low level: 0.15 - 12 volts
• High level: 0.15 - 12 volts
• Frequency Response: 10 - 50000 Hz
• Total Harmonic Distortion (THD): 0.2%
• Signal to Noise Ratio: 105 dB
• Variable high-pass filter: 50 - 250 Hz
• Variable low-pass filter: 50 - 250 Hz
• Variable Bass Boost: 0 - 18 dB
• Fuse Rating: 200A
• 4-gauge amplifier wiring kit is recommended for installation
• Dimensions: 17" L x 4-1/4" W x 1-13/16" H
• MFR #: M5-1500X5

Rockford Fosgate PMX-RGB Color Optix LED Lighting Controller Details:

• Provides LED lighting control over Rockford Fosgate M1 and M2 speakers and subwoofers (All sold separately)
• Supports up to 16 compatible speakers and subwoofers (Slight dimming may occur near maximum capacity)
• Pair with RF Connect App via iPhone and Android
• Unlimited number of PMX-RGBs allowed via RF Connect app
• Includes 100 ft cable and Y-adaptors, and 16" power and ground cable
• Compatible with Rockford Fosgate RGB-25 cable
• IPX7 marine-grade rating
• MFR #: M5-1500X5
