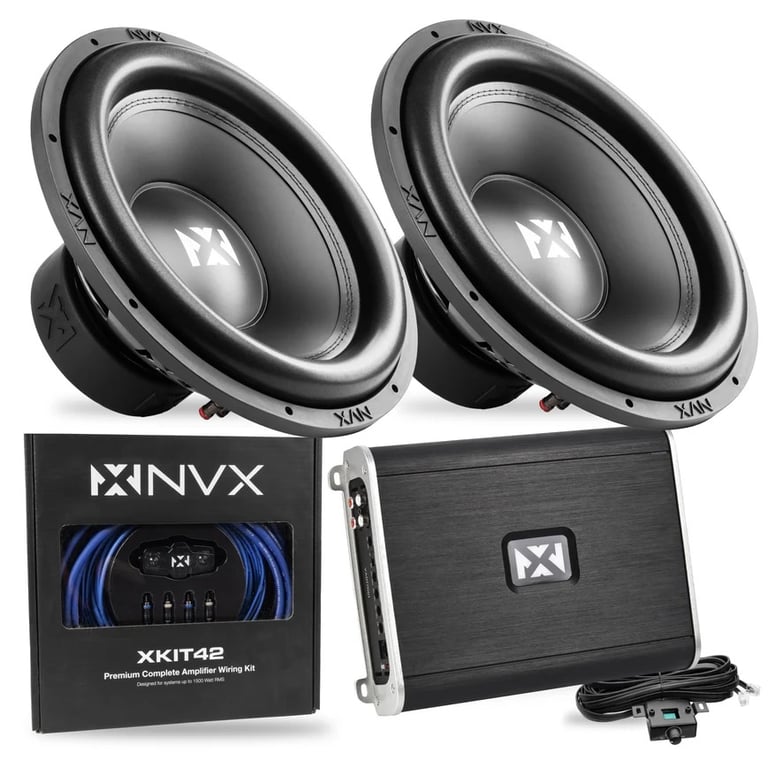

NVX YSW154 + VAD17001 + XKIT42

Product Details:

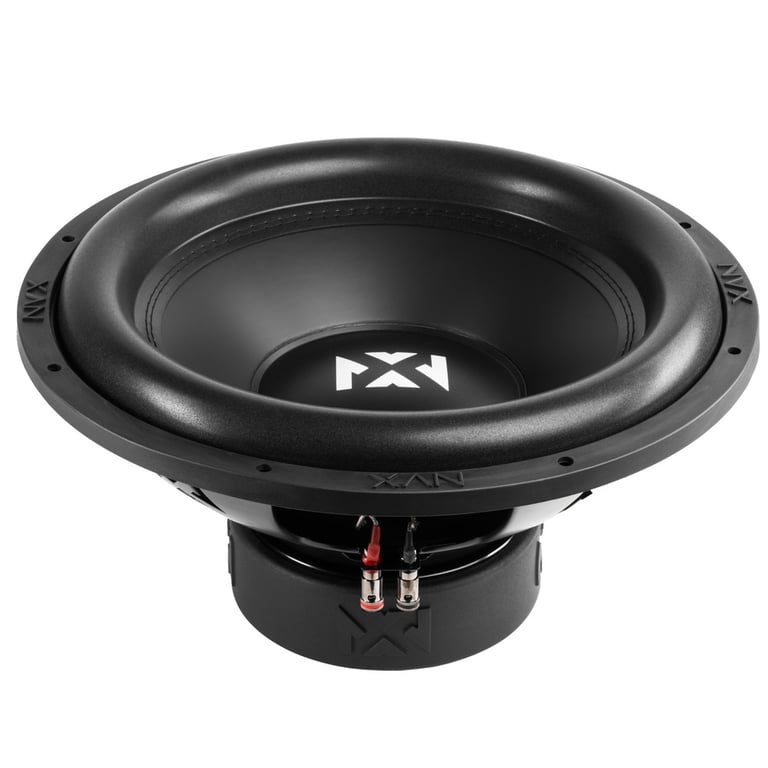

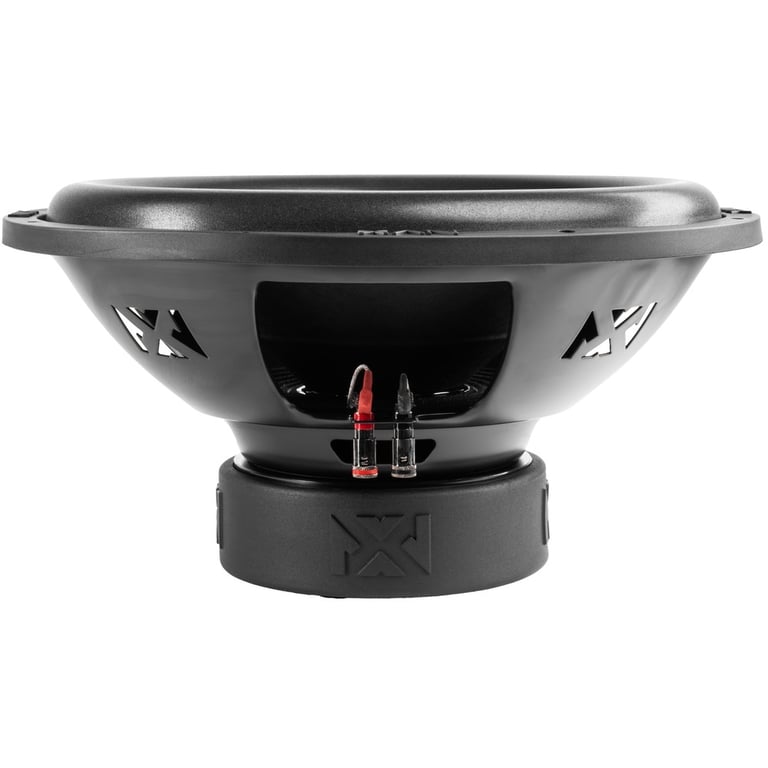

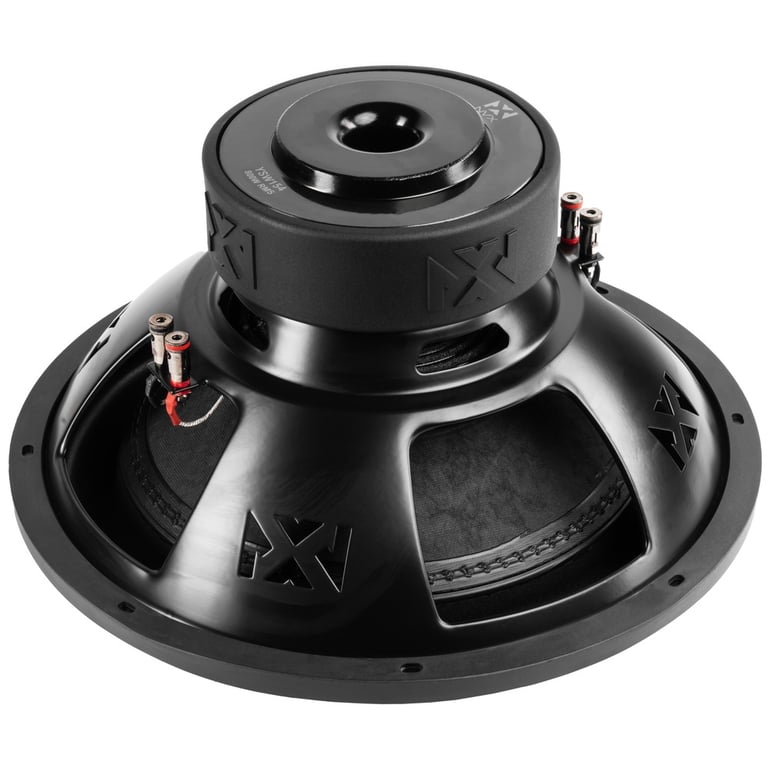

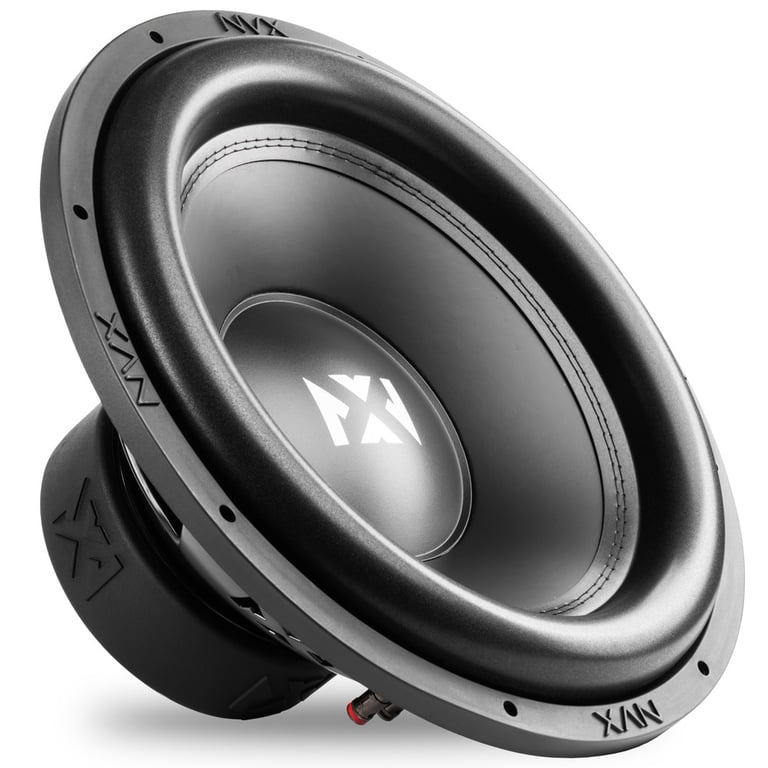

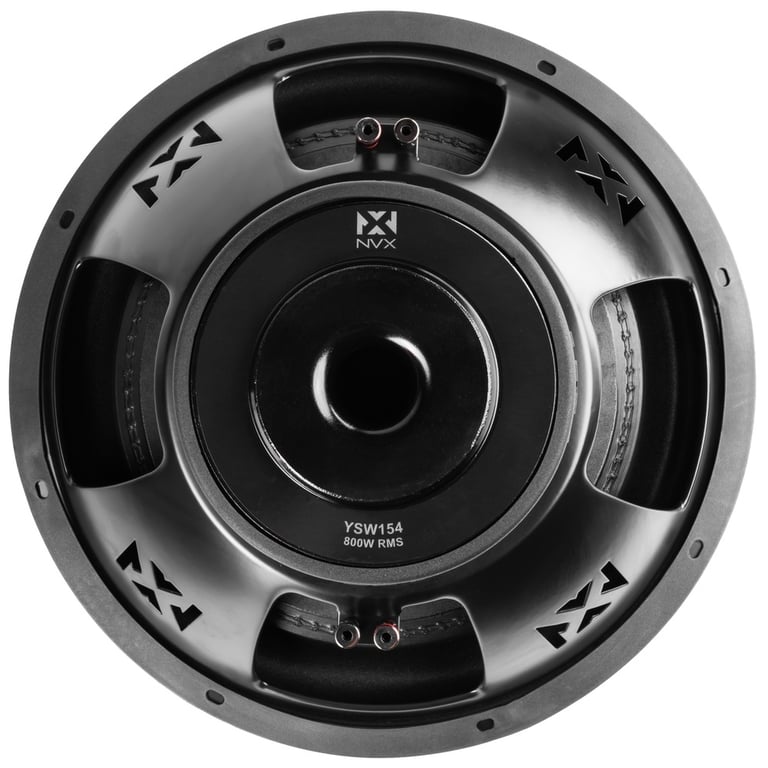

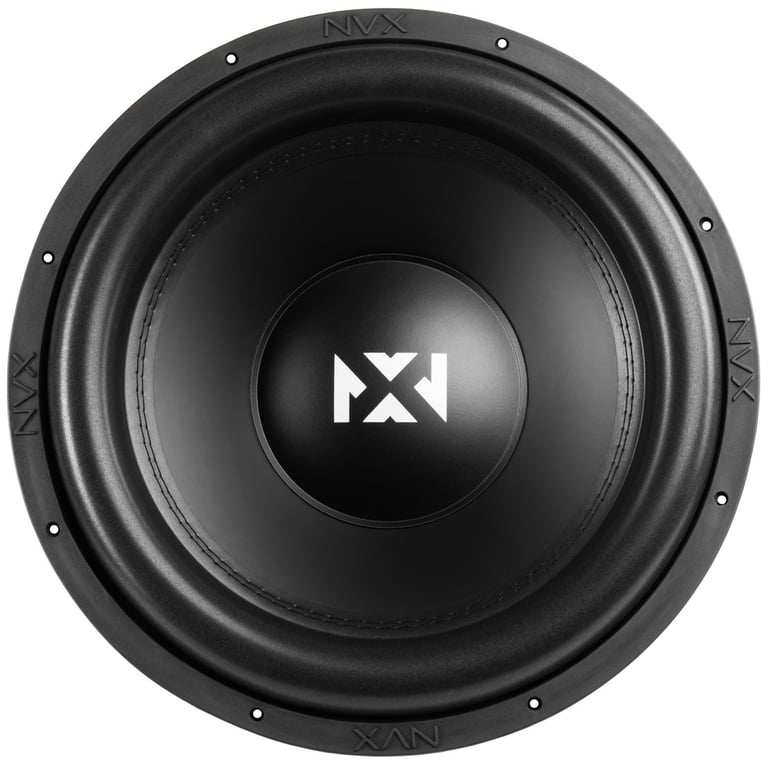

• 15" Dual 4 ohm Y-Series Subwoofer
• Power Handling:
• Peak: 1600 watts
• RMS: 800 watts
• 15 mm Xmax
• Enhanced Pressed Paper Cone
• Custom High-Roll Foam Surround with Black Nylon Stitching
• Stamped Steel Vented Basket with NVX Punched Logo
• 3.0" High Temperature Copper Voice coil with Aluminum Former
• Progressive Roll Dual-layer Spider with Integrated Tinsel Leads
• Optimized High-Velocity Pole Vent
• 116 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
• Frequency Response: 20 - 200 Hz
• Resonance Frequency (Fs): 27.7 Hz
• Sensitivity: 85 dB
• Recommended sealed box volume: 2.0 cubic feet
• Recommended ported box volume: 3.5 cubic feet
• Top-mount depth: 7.47"
• Cutout diameter: 13.97"
• CTA-2031 Compliant
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty



Priced Individually

Product Details:

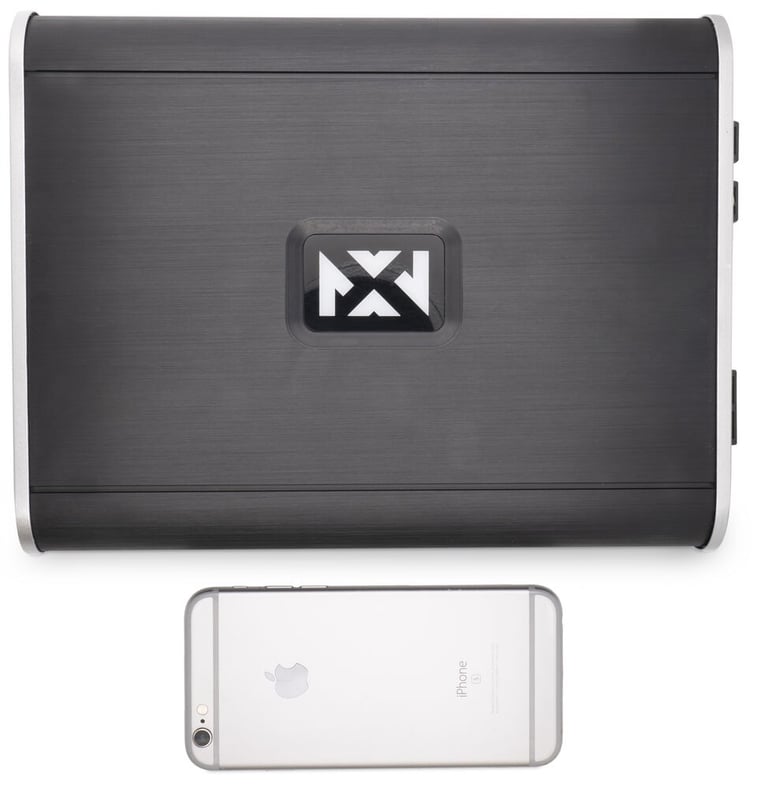

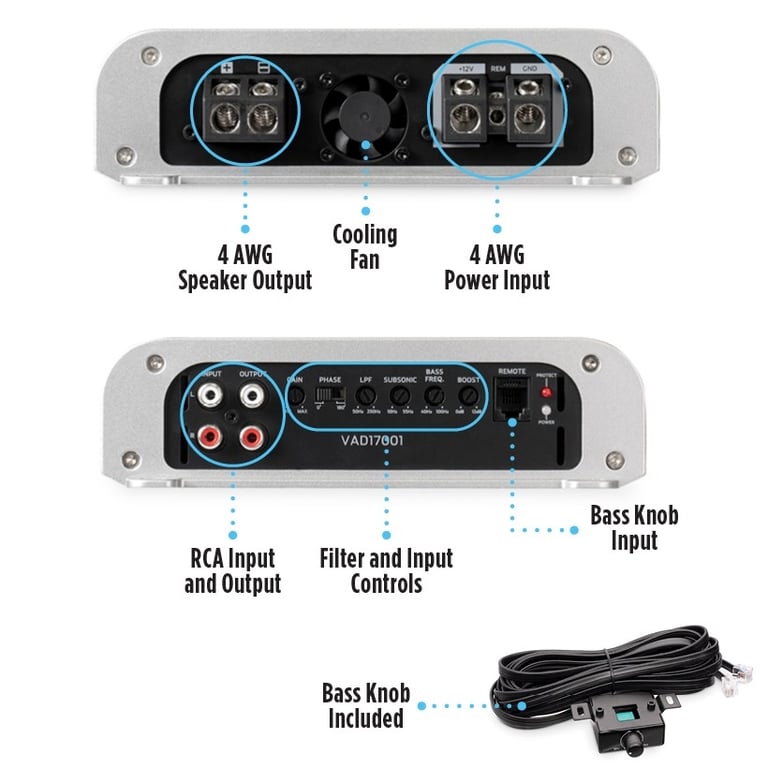

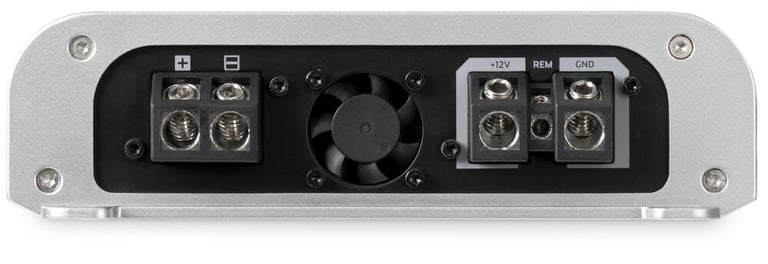

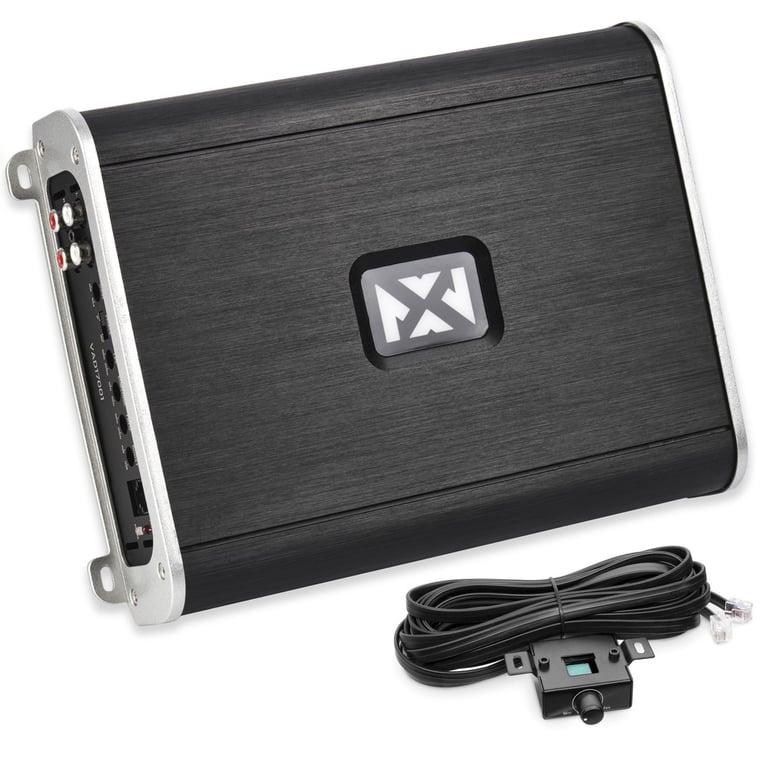

• V Series Class D 1 ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohm: 800 watts x 1 channel
• 2 ohm: 1350 watts x 1 channel
• 1 ohm: 1700 watts x 1 channel
• Total RMS power output: 1700 watts
• CEA-2006 compliant amplifier
• Power and protection LED light status indicator

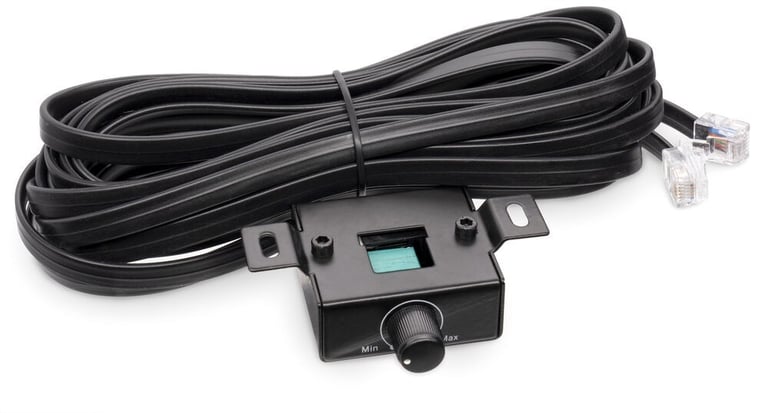

• Wired bass level remote control included
• 1 pair of pre-amp outputs
• Signal sensing remote turn-on
• 3-way protection circuitry (thermal, voltage, and speaker short protection)
• IRS full range capable class-D topology
• Compact size footprint for easy installation in car and marine applications
• Surface mount component technology
• Audio precision quality control verification
• Stable and reliable four layer PCB trace layout
• Conformal coating PCB finish for water resistance
• Input sensitivity: 0.2 - 6 volts
• Frequency Response: 50 - 250 Hz
• Total Harmonic Distortion (THD): 0.3%
• Signal to Noise Ratio: 105 dB
• Variable low-pass filter: 50 - 250 Hz
• Subsonic filter: 10 - 55 Hz
• Variable Bass Boost: 0 - 12 dB
• Fuse Rating: 120A
• 4 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 9.2" L x 7.2" W x 2" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Details:

• 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 1500 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant
• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire
4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 4 Gauge Nickel Plated spade terminals
9. Four 18 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Four 16 Gauge quick disconnect
12. Five 16 Gauge Nickel Plated spade terminals
13. Two Heat Shrink tubes with the NVX logo
14. Ten 6" Black zip ties
