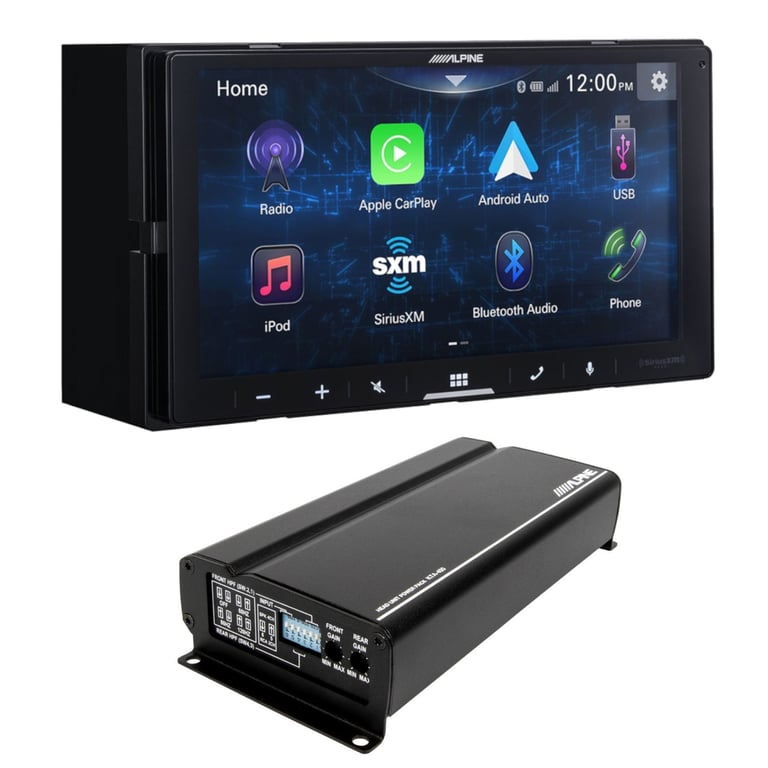

Alpine iLX-W670-S with KTA-450 Amplifier

Product Details

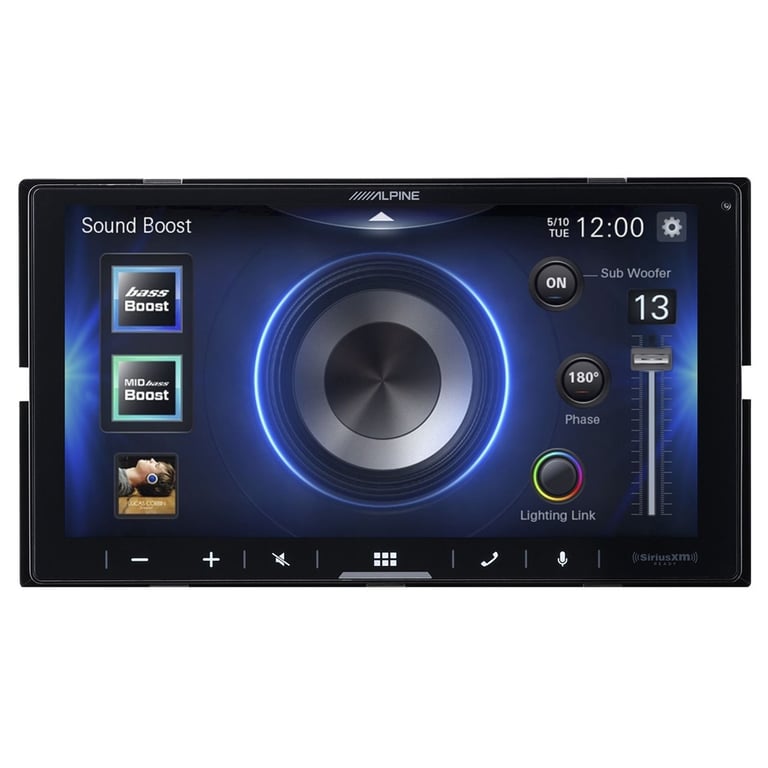

• Double DIN In-Dash Bluetooth Digital Multimedia Receiver

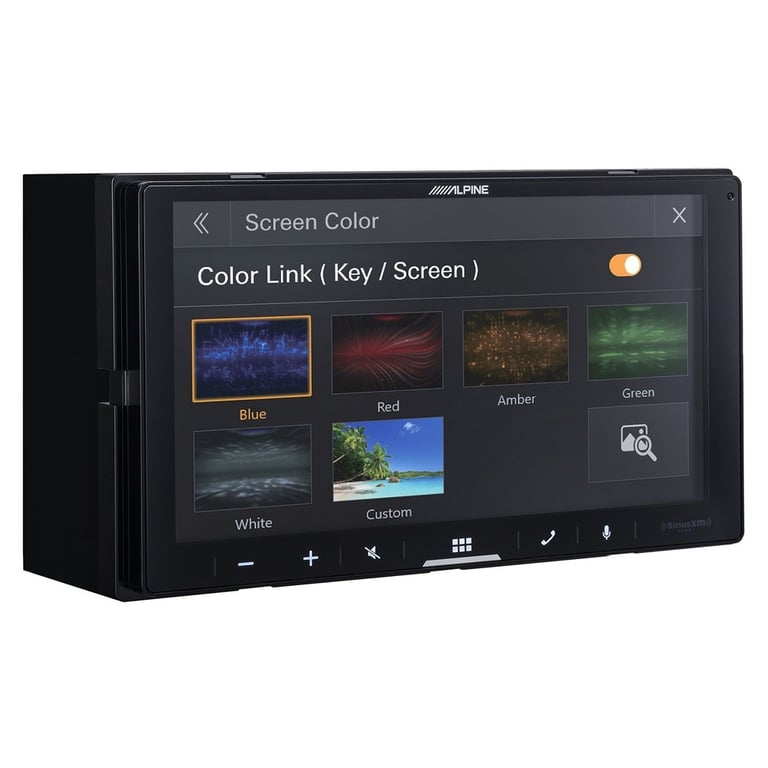

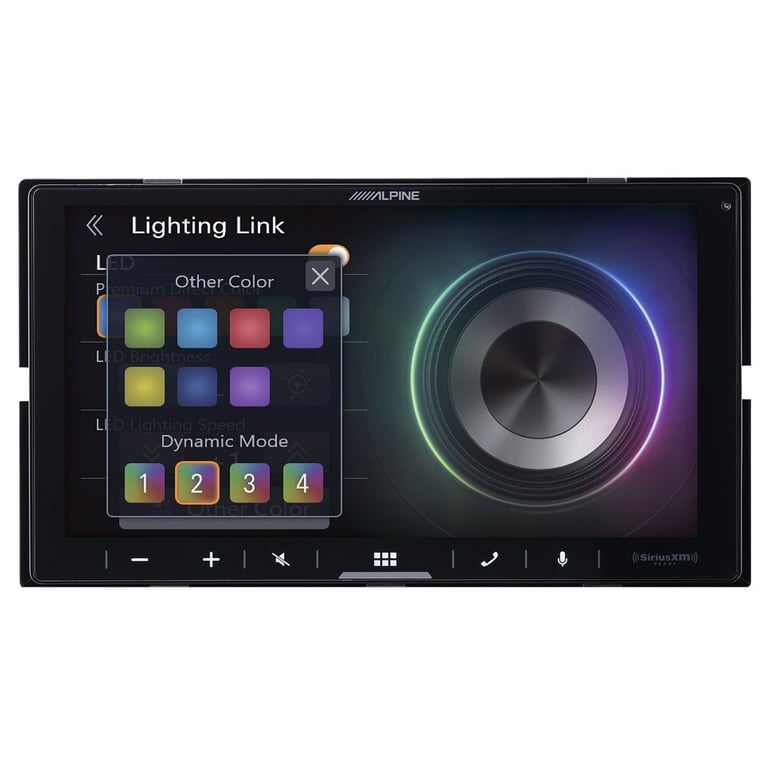

• 6.75" Capacitive Touchscreen Display Display with Swipe Control
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 16 watts x 4 channel
• Bluetooth hands-free calling and audio streaming
• Shallow-chassis depth (2.4") allows fitment in vehicles with not much space behind dashboard
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: iLX-W670-S

Smartphone Features

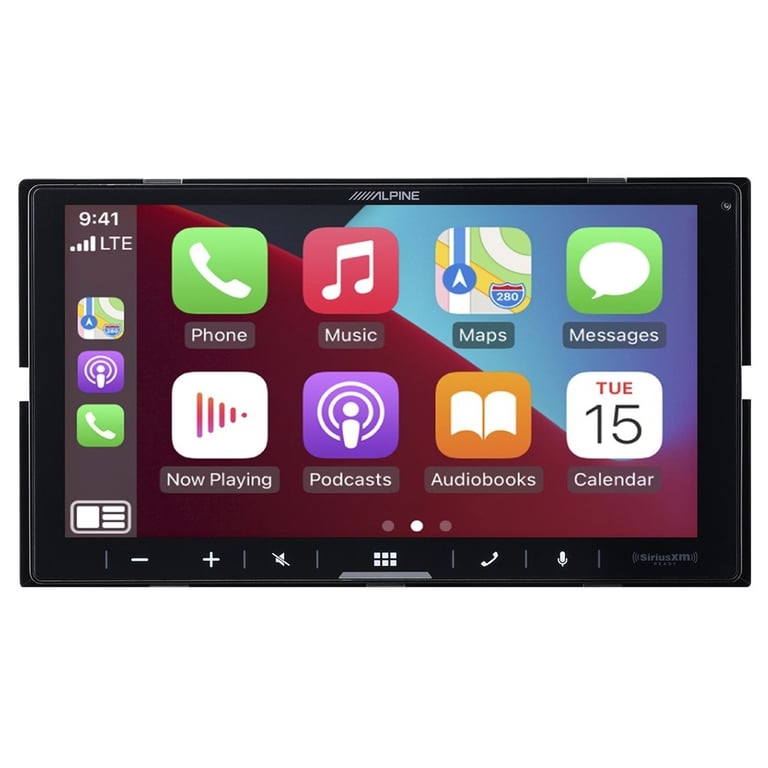

• Wired Apple CarPlay and Android Auto compatible
• Display and control music, navigation, and other apps with iPhone and Android
• Siri Eyes Free control for select iPhones

Playback and Audio Features

• MP3 | WMA | WAV | AAC | FLAC Playback
• AVI | MPEG 1/2 | MPEG4 | WMV | Flash | QuickTime | ASF | Matroska Video | TS Stream | 3GP Video Playback
• JPG | PNG | BMP Photo Files
• AM/FM tuner with 18 FM / 12 AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)

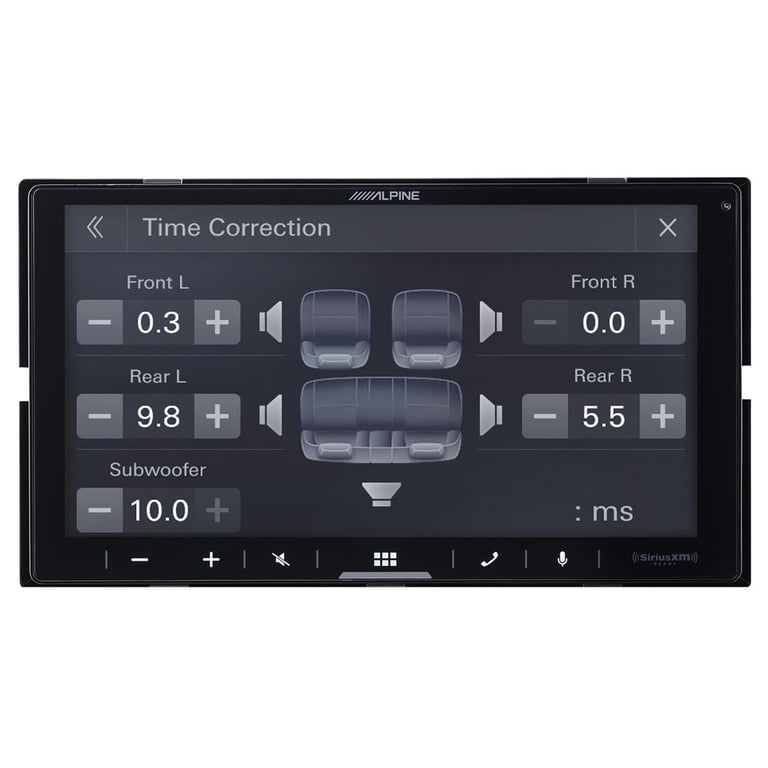

• 13-Band Graphic Equalizer with Digital Time Correction

Expandability Options

• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
• Steering Wheel Control Ready: Adapter included
• Works with PowerStack Alpine KTA-450 and Alpine KTA-200M amplifiers in most dash openings

Audio/Video Inputs and Outputs

• 3 sets of 4 volts preamp outputs (front, rear, and subwoofer)
• Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input

Bluetooth Features

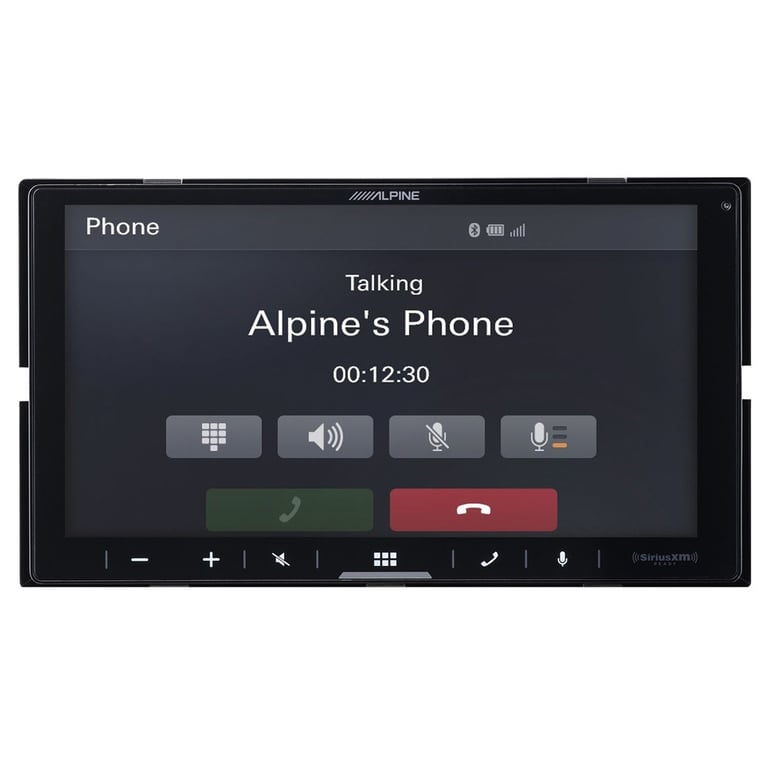

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes an external wired microphone for clear, convenient, distortion-free talking

Product Details:

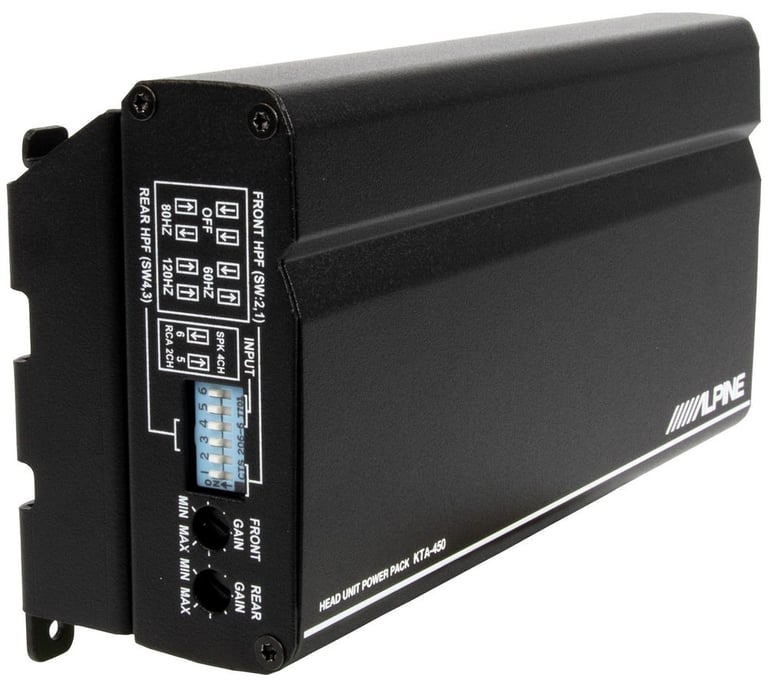

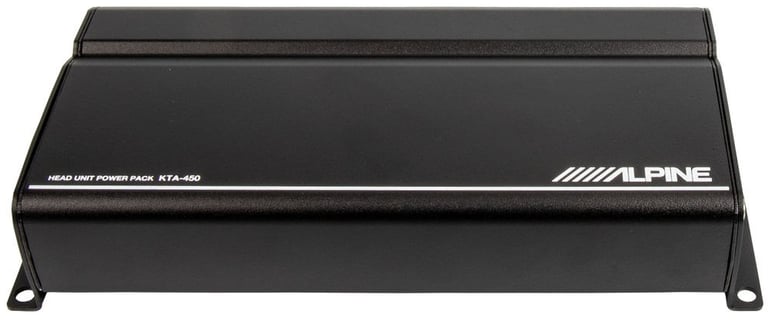

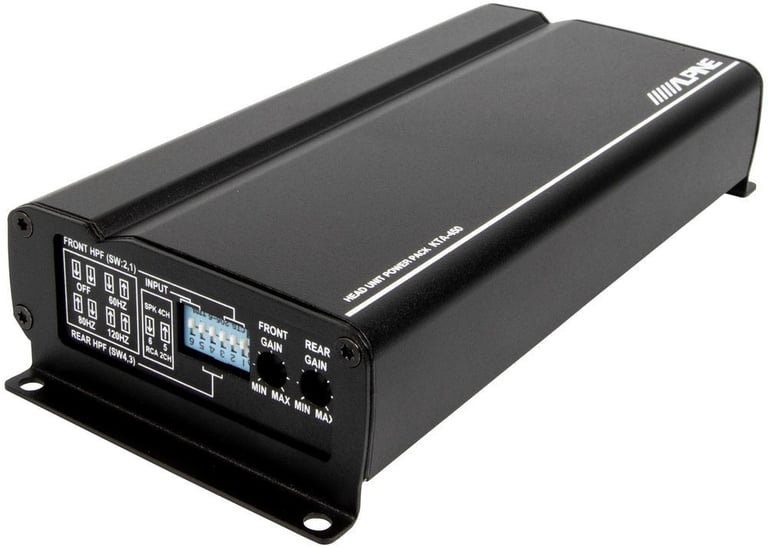

• Power Pack Series Class D 2 ohm Stable 4-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 50 watts x 4 channel
• 2 ohm: 45 watts x 4 channel
• Total power output: 200 watts
• Speaker-level (high-level) inputs
• Signal sensing remote turn-on
• Thermal and current protection
• Features Dynamic Peak Power (DPP)
• Low level input sensitivity: 0.152 - 2.80 volts
• High level input sensitivity: 0.33 - 6.05 volts
• Frequency Response: 15 - 50000 Hz
• Selectable high-pass filters (60, 80, 120 Hz at 12 dB/octave)
• Total Harmonic Distortion (THD): 1%
• Signal to Noise Ratio: 82 dB
• Fuse Rating: 20A
• 12 AWG gauge amplifier wiring kit is recommended for installation

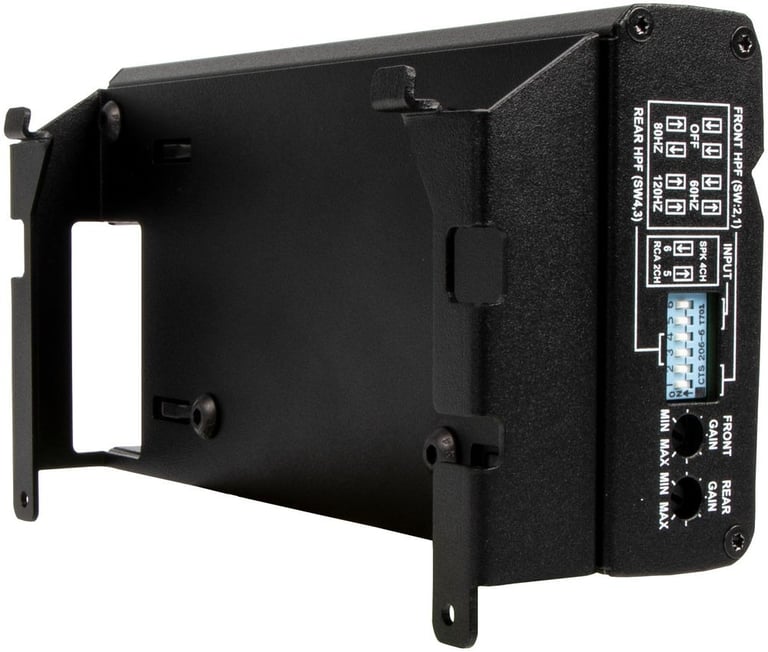

• Includes PowerStack bracket for mounting behind Alpine iLX receivers:
• Alpine iLX-407
• Alpine iLX-W650
• Alpine iLX-W670-M
• Alpine ILX-W770-M
• Alpine iLX receivers are not included and are sold separately
• Dimensions: 7-1/8" L x 3-1/2" W x 1-7/16" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: KTA-450
