NVX VCW104 10" Dual 4-ohm VC-Series Car Subwoofer (VCW 104) + Sealed Enclosure

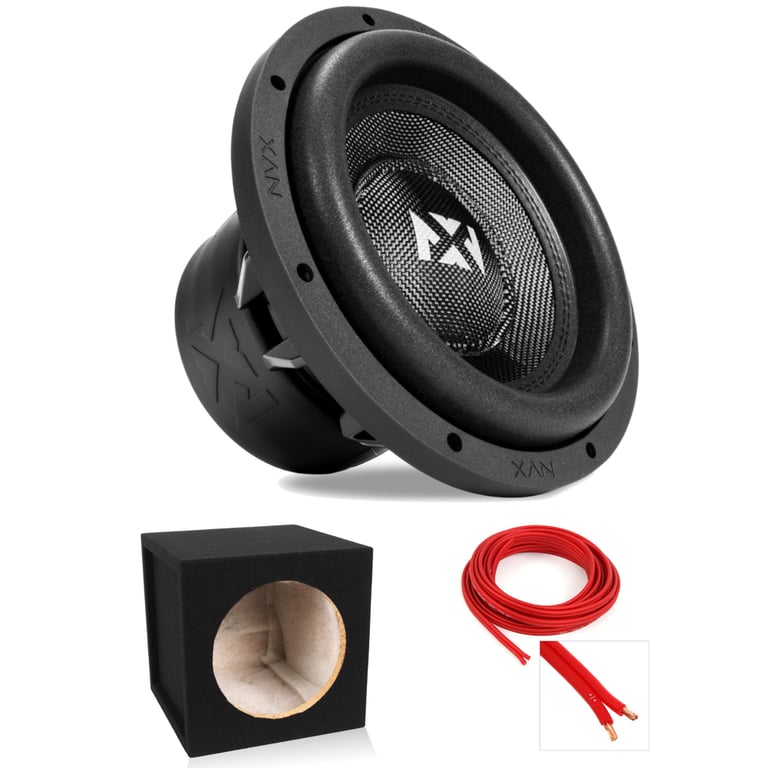

10" NVX VCW104 Subwoofer + Sealed Enclosure + Speaker Wire

750W 10" VC-Series Dual 4-ohm Car Subwoofer + Sealed Enclosure

750W 10" VC-Series Dual 4-ohm Car Subwoofer + Sealed Enclosure

• RMS Power Range: 600-750 watts
• Pressed Paper Cone With Woven Fiber Top
• Dual 4-ohm Voice Coil
• High Excursion Foam Surround
• Single 10" Sealed MDF Enclosure

4.8

(183)
List price $359.97
Save: $45.00

$314.97

Out of Stock - Backorder with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

Shipping
Fast, Free Shipping

Within the US 48

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
NVX

Authorized dealer

NVX VCW104

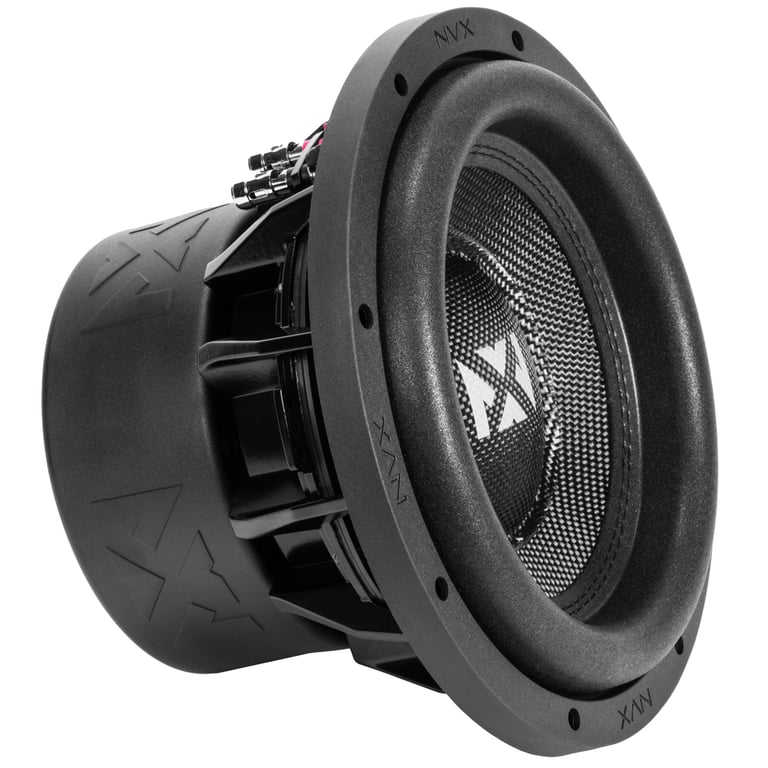

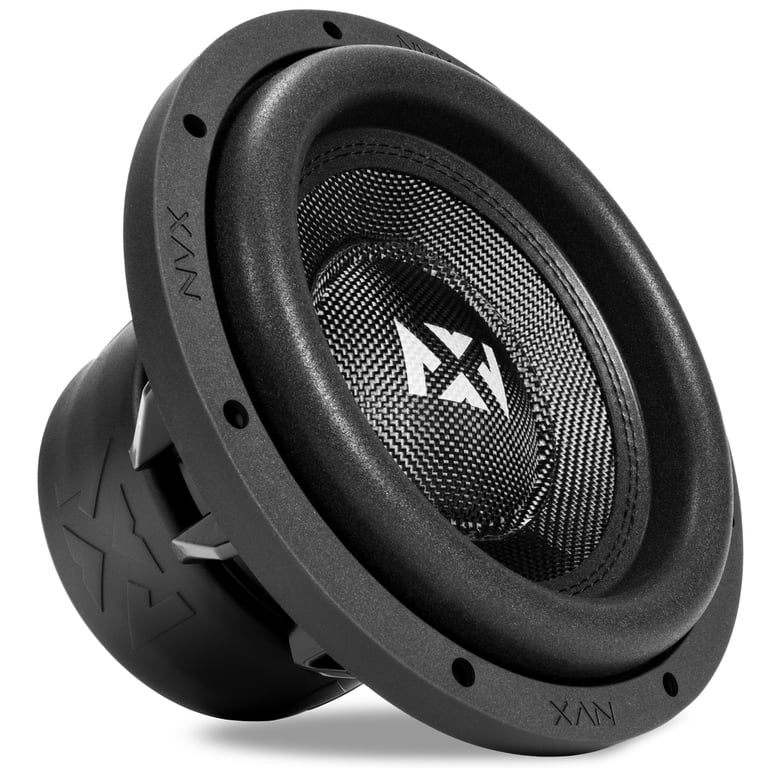

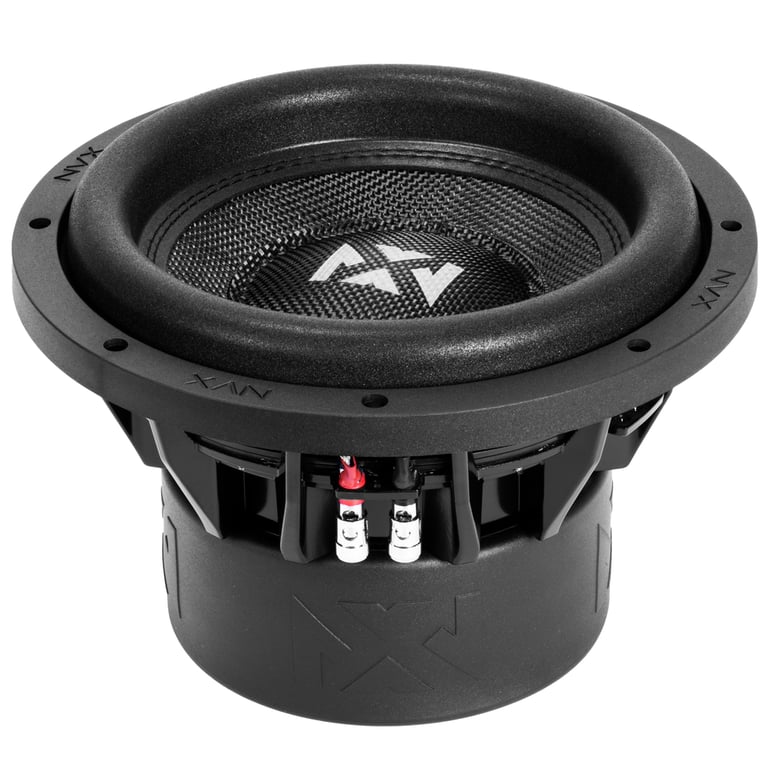

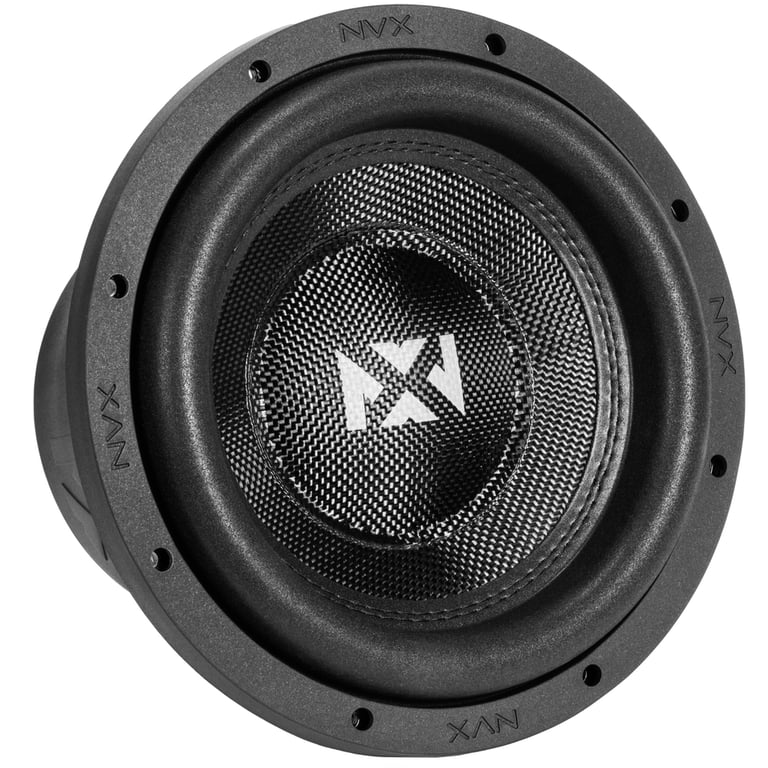

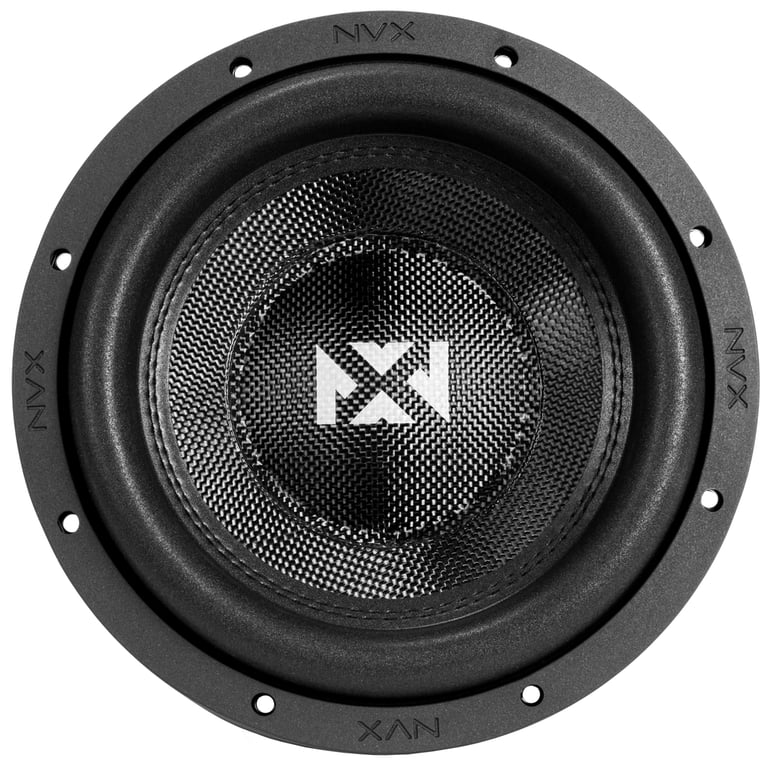

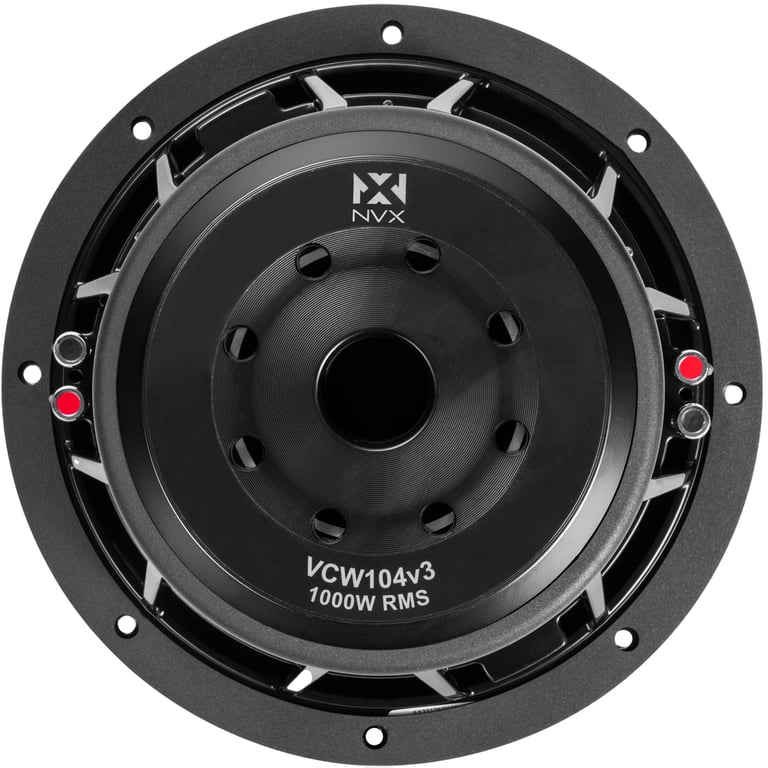

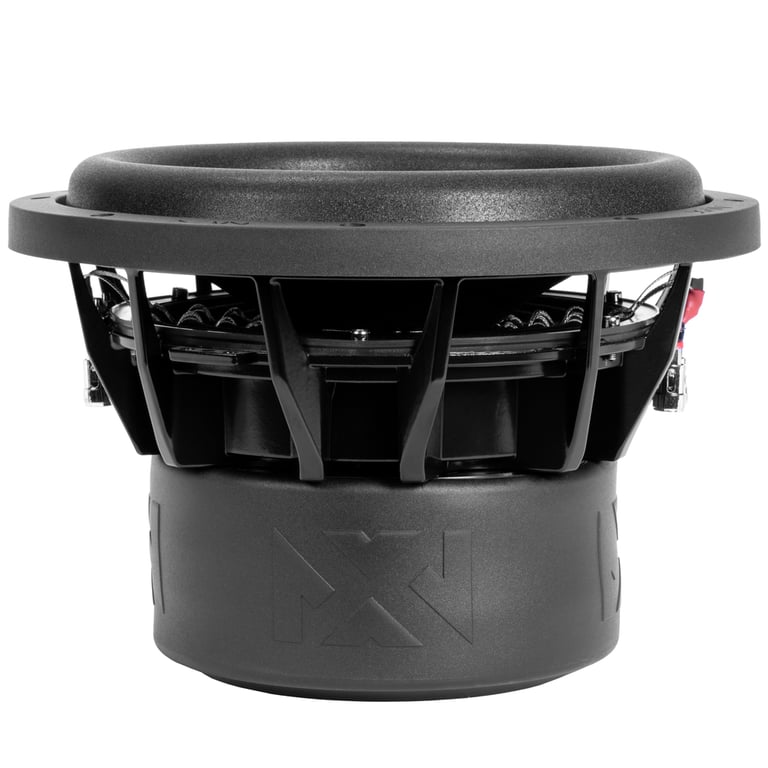

1500 Watt (750W RMS) 10" VC-Series Dual 4-ohm Car Subwoofer
Quantity: 1

General Features:

  • 10" Dual 4-ohm VC-Series Car Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 750 watts
  • Recommended Power Range: 600 - 750 Watts RMS
  • Impedance: Dual 4 ohms

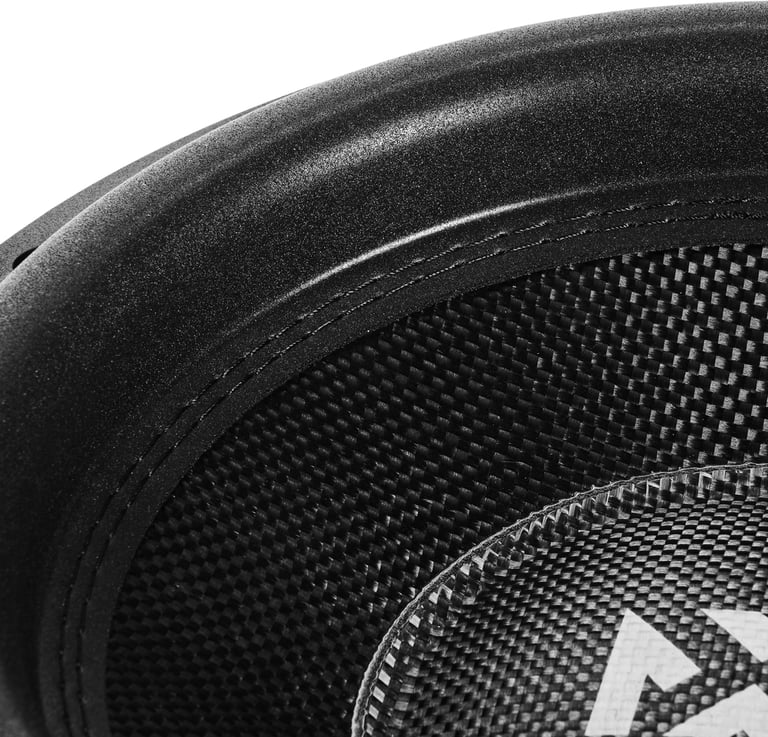

  • Pressed paper cone with woven fiber top

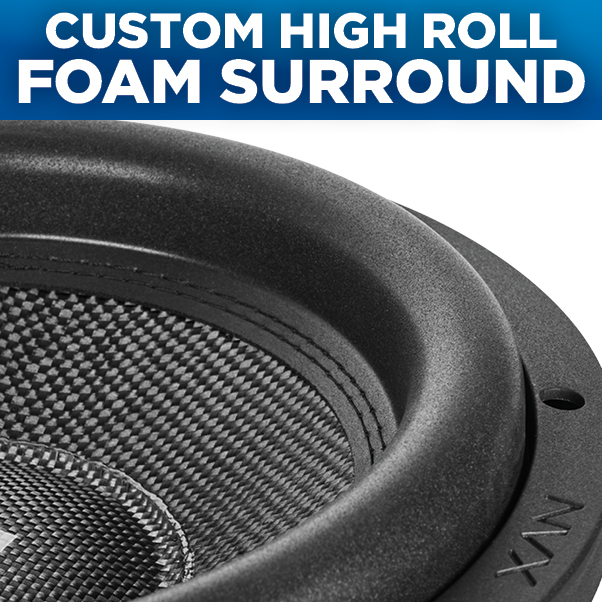

  • Custom High Roll Foam Surround with Nylon Stitching
  • Heavy Duty Die Cast aluminum basket for maximum rigidity

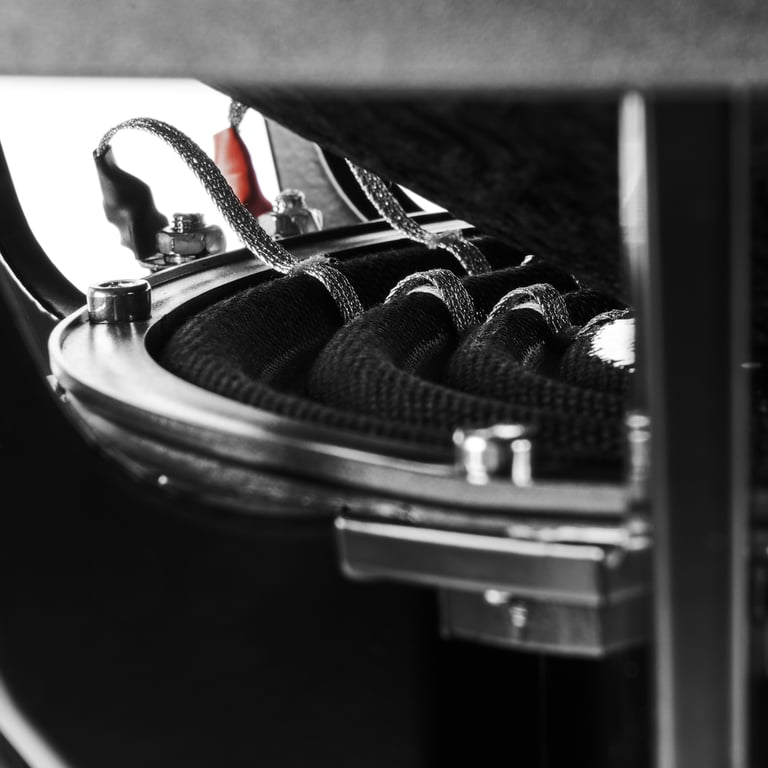

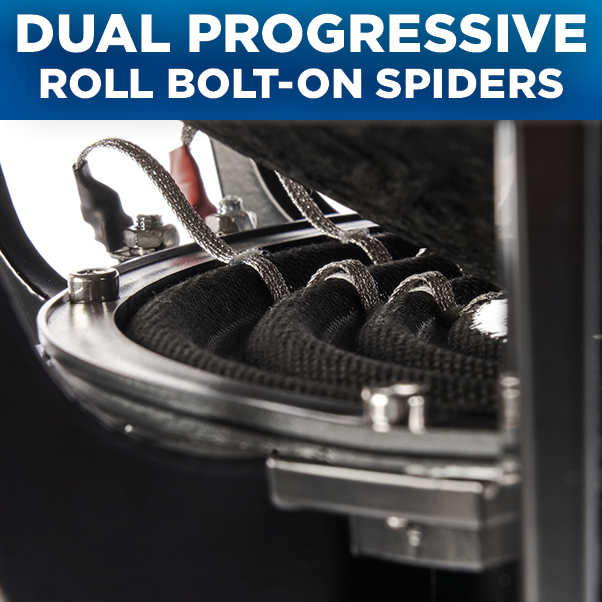

  • Dual Poly-Cotton Spiders
  • 2.5" High Temperature Aluminum Voice coil

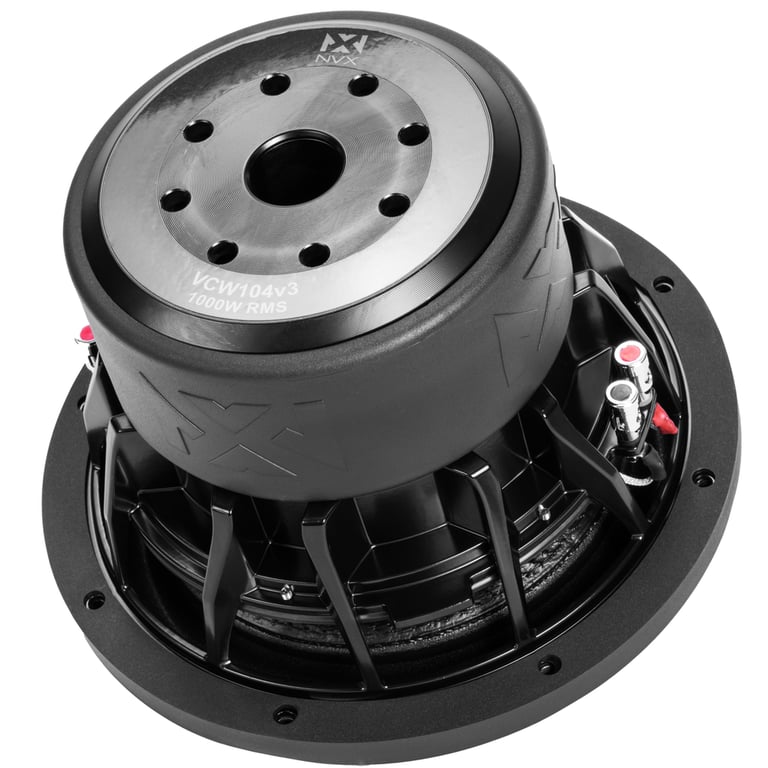

  • 127oz. Triple stacked Ferite magnet motor structure with protective rubber boot
  • Frequency response: 20-200 Hz
  • Resonance Frequency (Fs): 29 Hz
  • Optimal sealed box volume .70 cubic feet
  • Optimal ported box volume: 1.50 cubic feet
  • Top-mount depth: 6"
  • Sensitivity: 83dB
  • VCW10GR protective subwoofer grill available (Sold Separately)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the VC-Series Owner's Manual

Tips for Installing the your NVX VCW104 subwoofer

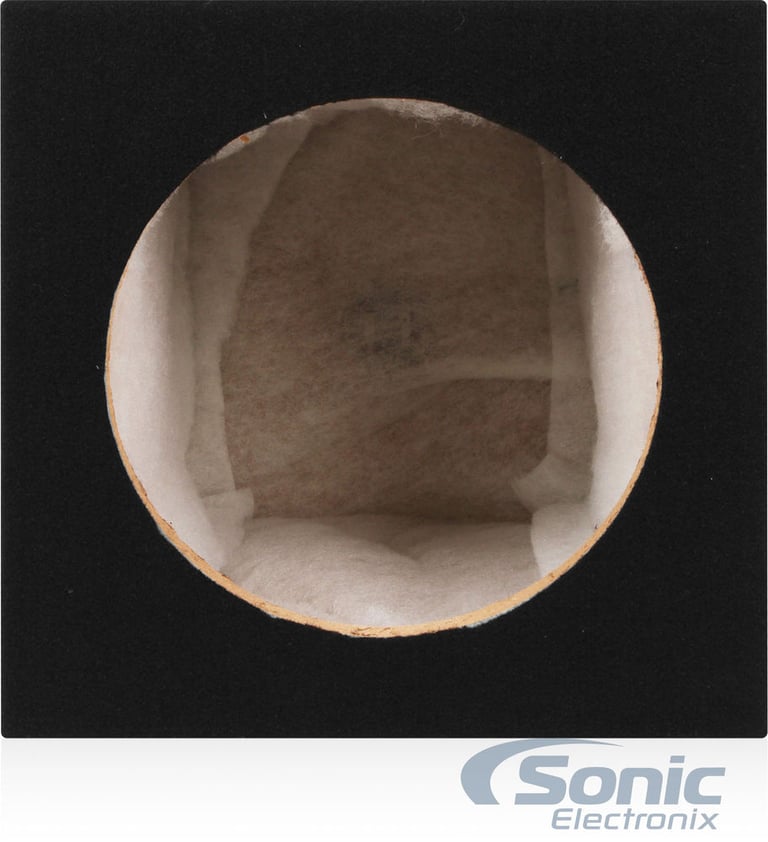

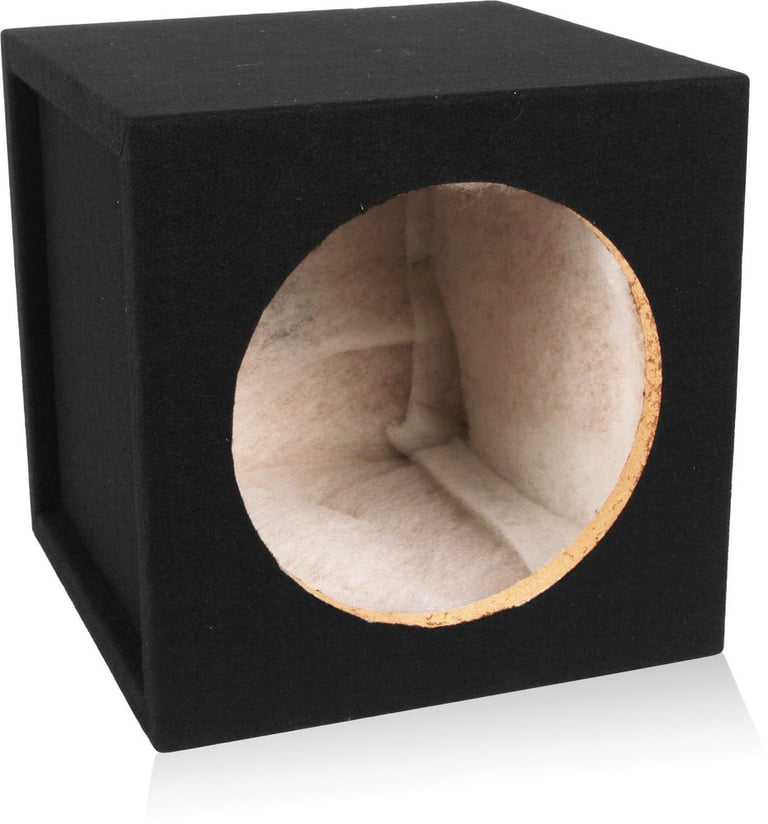

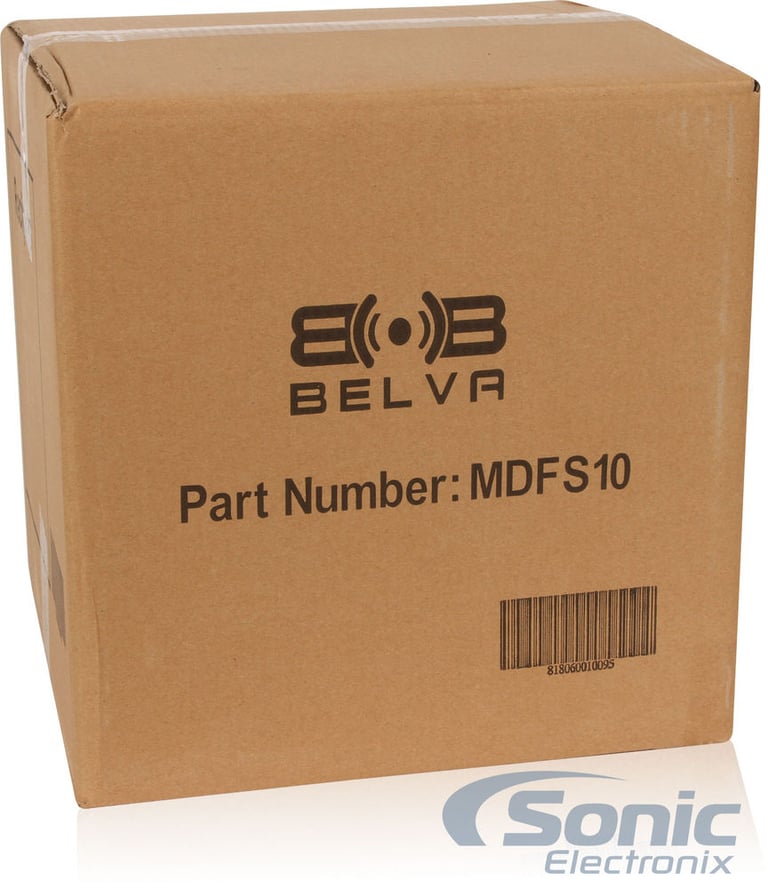

Single 10" Sealed MDF Subwoofer Enclosure (Belva MDFS10)

10-inch Sealed Car Sub Box Made with 3/4" MDF and lined w/ Polyfil (0.77 cu ft airspace 10SQTC)
Quantity: 1

Belva Subwoofer Boxes with Polyfill and 3/4-inch MDF

Built for Bass

You've got an awesome subwoofer there, pal. But where's it gonna go? You can't just throw that thing in the trunk and call it a day. Don't worry, Belva's got your back. With superior construction, great features and everything you need for bass, you'll be ready to pass up that entry-level box you've been eyeballing.

Belva Subwoofer Boxes are CARB Phase 2 Compliant

You get quality boxes with solid 3/4" MDF because nothing else will do the job right. You want to flex your windshield, not your box's innards. You get polyfill built into the box, making sure your subs perform perfectly. On top of that, you get a box that's CARB Phase 2 Compliant, meaning your box won't emit as much nasty formaldehyde as the competition. Better for your bass and better for you.

Belva MDF 3/4-inch Thickness

Look, nobody buys a subwoofer and says, 'Aw man, I just want a teeny bit of thump.' Naw man, you want something that kicks you in the chest, but you need a box that's gonna put up with it. That's where Belva comes in. While other brands use less-than-optimal 1/2-inch MDF, we've got 3/4-inch MDF to make sure you get all the bass you can handle. Why risk a busted box? Belva's the obvious choice when it comes to giving your sub a good home and giving you the low end you're looking for.

Belva MDF 3/4-inch Thickness

General Features:

  • Single Sealed 10" Enclosure
  • Internal box volume: 0.77 cubic ft
  • High Quality 3/4" MDF Construction
  • Durable black carpeting
  • Pre-lined with Poly-Fil
  • Seams are fully caulked for better efficiency

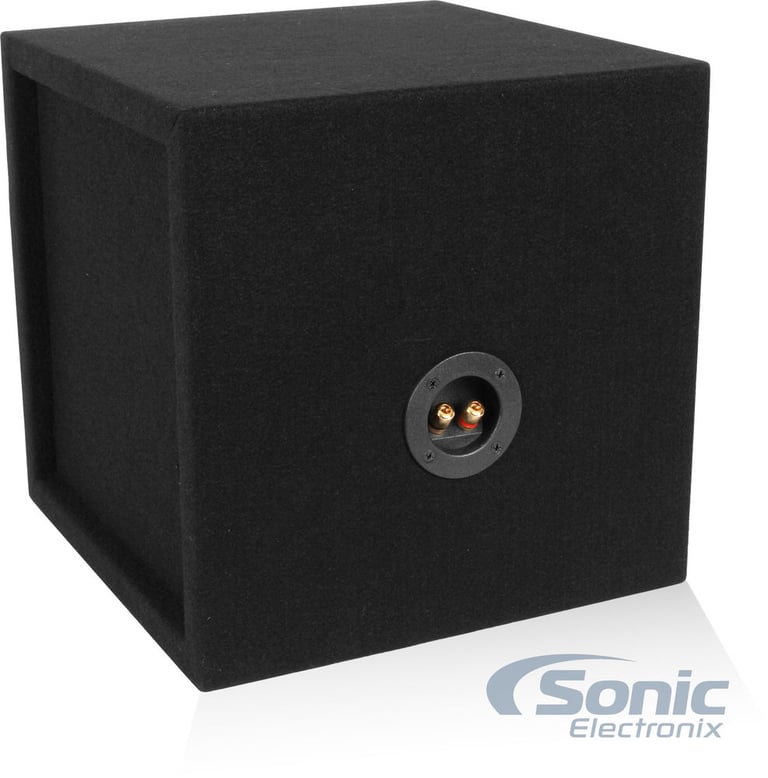

  • Gold post terminals for clean and easy wiring access
  • Box Dimensions: 12-1/2"L x 12-1/2"D x 12-1/2"H
  • 30 Day return policy


Belva BBSW127

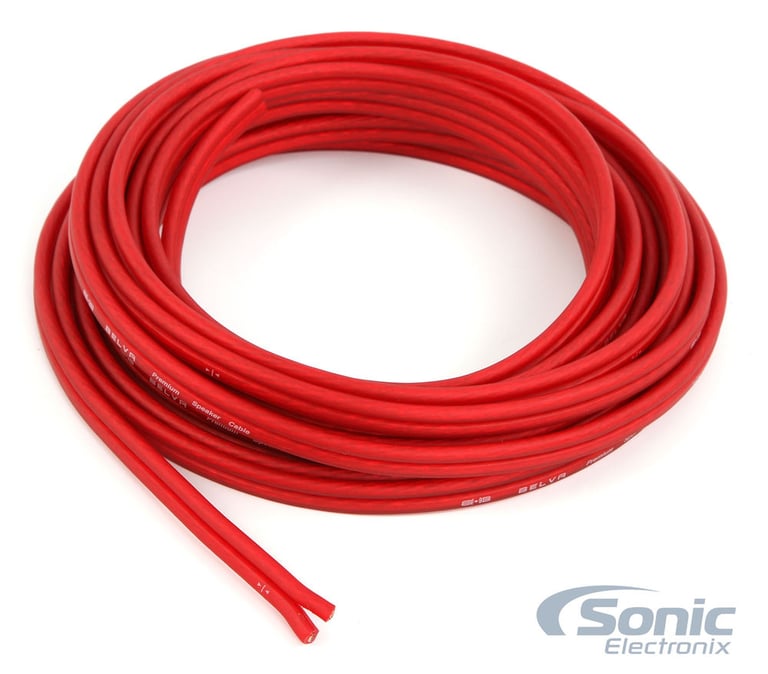

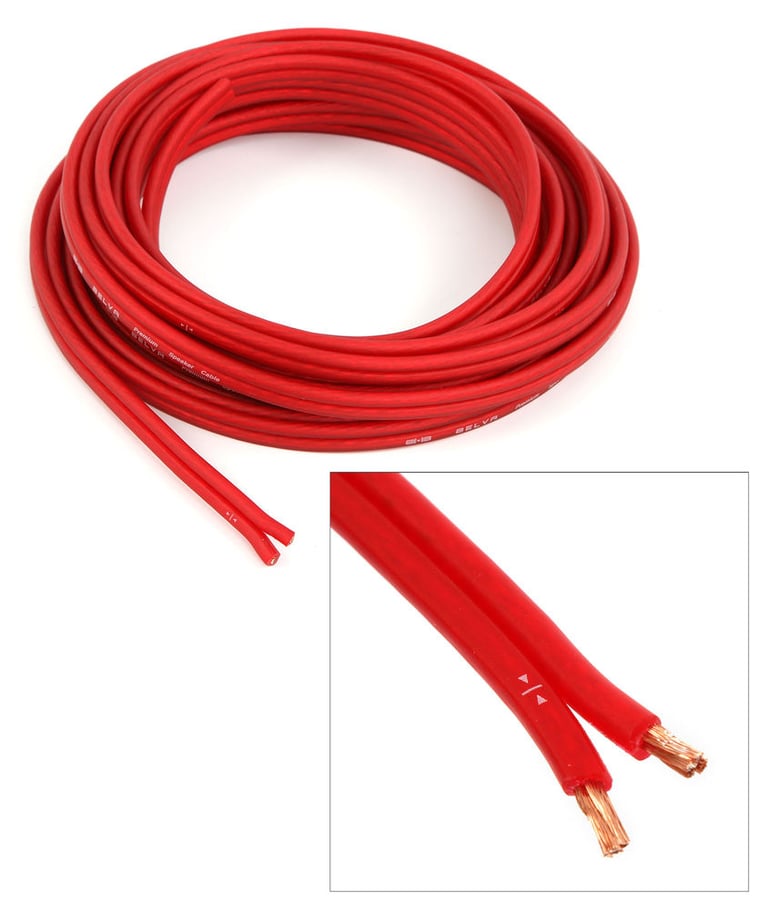

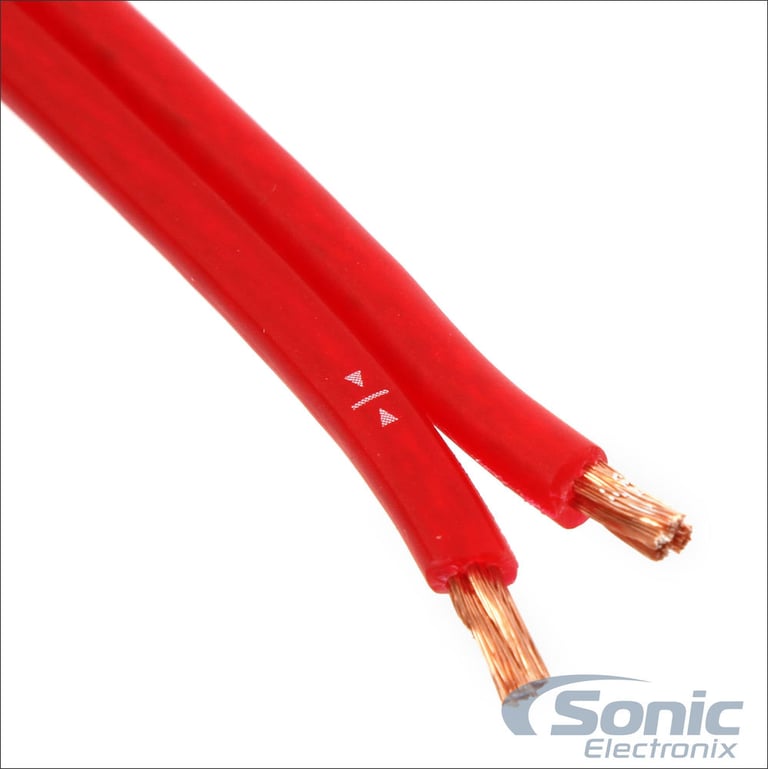

12 Gauge 7 Meter (23 Ft) Speaker Wire (CCA)
Quantity: 1

General Features:

  • 12 Gauge Speaker Wire
  • High strand count for maximum flexibility
  • Ultra-flexible PVC blended jacket for easy installation
  • Packed in resealable bag
  • Length: 7m (23 Ft)
  • Also available in 16 Gauge
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
FEATURES & SPECS
Subwoofer Specifications
Subwoofer Series
VC (NVX)
Subwoofer Size
10"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
RMS Power Handling
750 watts
Peak Power Handling
1500 watts
Woofer Composition
Woven Fiber Pressed Paper
Woofer Surround
Foam
Sensitivity
83 dB
Frequency Response
20 - 200 Hz
Xmax (millimeters)
20 mm
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Sealed
Number of Subs/Speakers
1
Box Style/Shape
Square/Rectangle
Height
12-1/2"
Width
12-1/2"
Depth
12-1/2"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Specials with this Item
Deals
Exclusive Deal
FREE Enclosure
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
