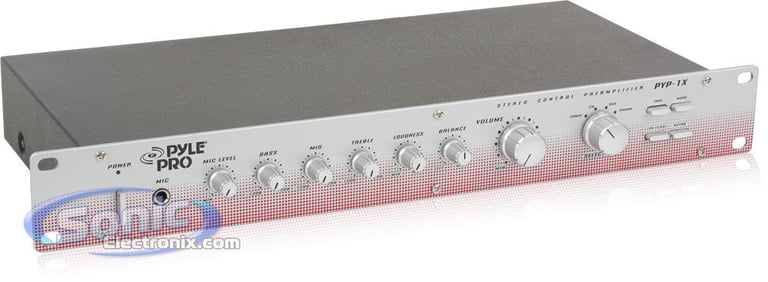

Pyle PYP-1X

Product Features

• Professional Studio Stereo Control Preamplifier is a Perfect Fit for the Home Stereo Audiophile
• Microphone input jack and level control
• Treble, mid, and bass individual tone controls (-12/+12 dB)
• Power on and off indicating LED
• Loudness control compensates for loss of loss of low frequencies at low volumes
• Balance control for the relative volume of the left and right speakers
• Master volume conrol adjusts output level of speakers
• Input selector signals tape, tuner, cd, aux, or phono jacks
• Low frequency filter helps assist in the elimination of turntable rumble and other low frequency noise/li>
• Muting switch helps to reduce the volume level by 20 dB
• Stereo/Mono switch selects between the two

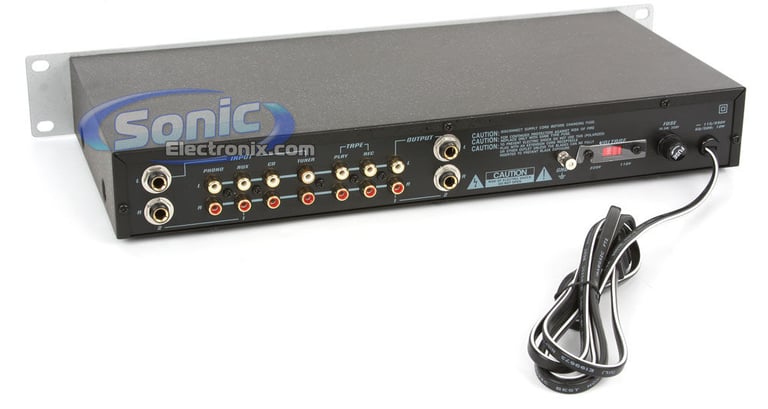

• Left and right output connectors allow the choice of 1/4" jack or RCA to your graphic equalizer or power amplifier
• Tape recorder input/output
• Signal to noise ratio:
  • Microphone: 50 dB
  • Phono: 70 dB
  • Tape/tuner/cd/aux: 80 dB
• Tone control:
  • Bass: +/-12 dB at 100 Hz
  • Mid: +/-6 dB at 1,000 Hz
  • Treble: +/-12 dB at 10,000 Hz
• Detailed guide with connection diagram
• Dimensions: 7-7/8"L x 18-7/8"W x 2-3/8"H
• 2-year Manufacturer's warranty
