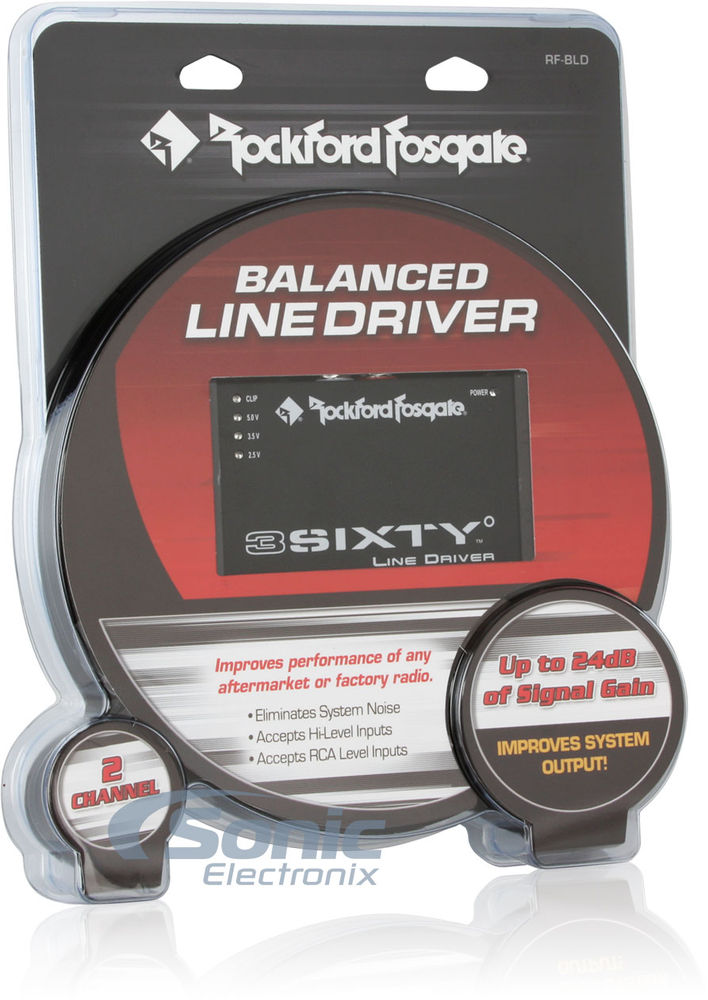

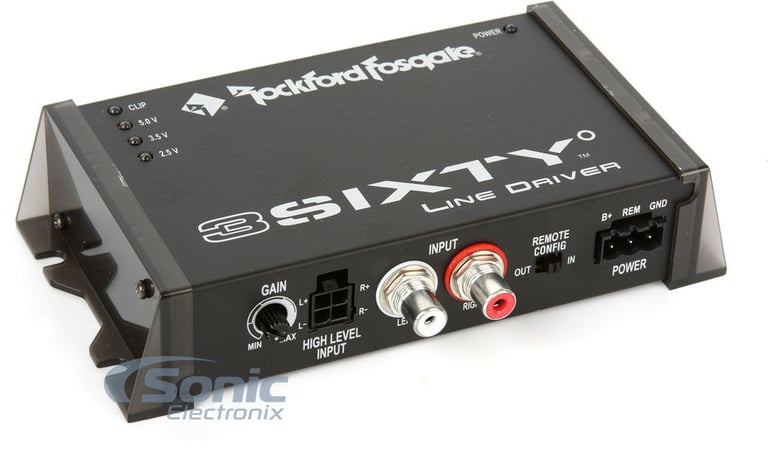

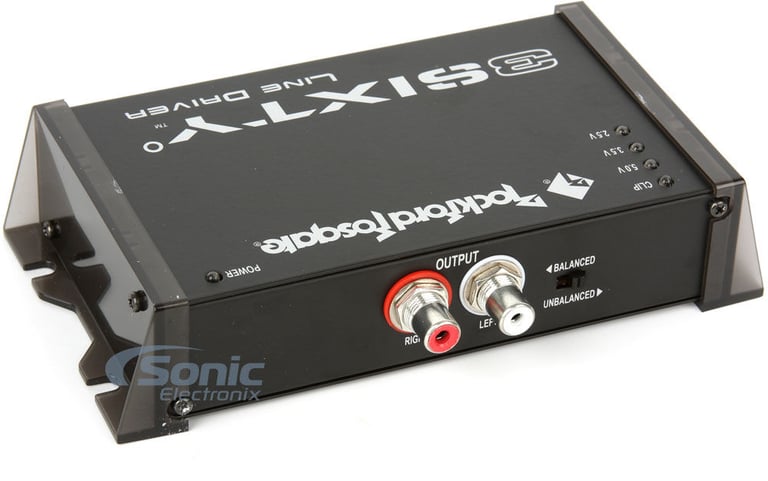

Rockford Fosgate RF-BLD

2-Channel Balanced Line Driver

Product videos
highlight-star-icon

• 2-Channel Balanced Line Driver
• Differential Inputs Eliminate Noise Picked Up By Signal Cables
• Low Output Impedance Drives A Noise Free Signal To An Amplifier(s)
• Speaker Level To RCA Line Level Converter

Learn more about the rfbld

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

Product Highlights


• 2-Channel Balanced Line Driver
• Differential Inputs Eliminate Noise Picked Up By Signal Cables
• Low Output Impedance Drives A Noise Free Signal To An Amplifier(s)
• Speaker Level To RCA Line Level Converter

Description


Rockford Fosgate brand icon

Authorized dealer

General Features:
  • 2-Channel Balanced Line Driver
  • Balanced/Unbalanced mode allows the output signal to properly match amplifier input
  • Differential inputs eliminate noise picked up by signal cables
  • Low output impedance drives a noise free signal to an amplifier(s)
  • High voltage line driver
  • Output level indicators
  • Speaker level to RCA line level converter
  • Low distortion, low noise operation
  • Dimensions: 4-1/8"D x 5-15/16"W x 1-5/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Specifications:
  • Operating Voltage: 9-16 VDC
  • Frequency Response: 20-50,000Hz ±1dB
  • Impedance:
    • Input: 20k Ohm
    • Output: 55 Ohm
  • Input Voltage: 650mV to 10.5V RMS
  • Signal Input:
    • High-level: 2-channel (left/right)
    • Low-level: 2 RCA (left/right)
  • Signal Output: Low Level 2 RCA (left/right)
  • Output Voltage:
    • Unbalanced: 11 Vrms
    • Balanced: 22 Vrms
  • Gain: +0.8dB to +24dB
  • Signal-to-Noise:
    • ≥ 90dB @ 2V ("A" Weighted)
    • ≥ 110dB @ 10V ("A" Weighted)
  • Mounting: install as close to source unit as possible

Best selling similar products

LD-10 small

PAC LD-10

• PAC LD-10 Line Driver with Signal Booster
• Boost Your Signal and Gain the Most Power Out of Your System
• 10X RCA Signal Booster
• Solid State Ground Loop Isolation
• Left and Right Gain Level Adjustment

(23)

$44.99

List price $89.00

CL-RLC small

JL Audio CL-RLC

• Fully Active, 2-Channel Remote Level Control and Line Driver with Pass-Through Outputs
• Minimizes Unwanted Noise
• Active Circuitry
• Control Knob
• Pass-Through Connection

(12)

$89.99

List price $89.99

WW-8CH-LD small

Wet Sounds WW-8CH-LD

• 8-Channel line driver with remote controller
• 4 pairs of adjustable outputs
• Remote level adjustments of Ch 5/6 and Ch 7/8
• Dual color LEDs for signal level monitoring and setup
• Sealed construction designed for marine applications

$199.99

List price $199.99

ASB-1 small

Crux ASB-1

• Audio Signal Booster
• 2 channels, separately adjustable
• 2 male RCA input, 2 female RCA output
• Plug and play connection

$60.75

List price $94.50

MATRIX PLUS small

AudioControl MATRIX PLUS


• Active 6-Channel Line Driver
• Increase pre-amp signal levels up to 9.5 volts RMS
• Matches the volume levels between different sources
• Two channels of input can drive all six outputs
• Each output can drive up to seven amplifiers

(1)

$249.00

List price $339.00

Specifications & Details


Line Driver Specifications
Max Output Level
22 volts
Frequency Response
20 - 50,000 Hz
THD (Total Harmonic Distortion)
0.01%
Signal-to-Noise Ratio
110 dB
Width
5-15/16"
Height
1-5/16"
Depth
4-1/8"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RF-BLD

Weight:

0.90lbs

Internal SKU:

rfbld

Internal Product ID:

22635

Product and How-to Videos


Customer Ratings & Reviews


Rockford Fosgate RF-BLD thumbnail image

5 star
73%
4 star
27%
3 star
0%
2 star
0%
1 star
0%



Durability
4.6
Value
4.7
Features
4.7
Design
4.7
Usability
5

Customer Reviews

Sort by:

Loading...

Works great as a line converter

Im using this for a hi/low line converter for a factory stereo. Wayyy better than a cheap one with a step down process. One of my best recommended products for a factory system add on.

By brian on January 2, 2013

45 found this helpful


this is what ive been missing

if your running couple amps then this is the product for you!
Before I installed my line driver i was having to crank gains up pretty high and then that was causing some unwanted noise in my system. Not a lot of people believe we need line drivers but i wont own another system without it!
I'm running 4 amps off pioneer 4300dvd player an when I tune with dd1 and the line driver it gave me a louder cleaner sound to my subs then ever before!

By twisted1 on September 27, 2013

43 found this helpful


AWESOME a must have for high level inputs

I added this because I was getting some whine in my car stereo. I had hooked up my premium audio system to my amp using high level inputs. when I added this line driver, it completely and I am not joking completely killed all the interference noise. Now it sounds very close to an aftermarket HU in terms of quality and hits like a champion which it did before.

By wes on August 21, 2012

41 found this helpful


Great product

If you want to get the most out of your amp. The signal going in is important to help your amp seem to produce more power out. This product well help you produce and maintain proper input voltage. You will see a crazy increase in sound because of this. Your amp isn't producing more power but it seems so because of proper input voltage. Couple that with extremely easy installation and I highly recommend this product. It is as advertised!!!

By Travis McClellan on April 1, 2012

39 found this helpful


Great product

Good product only downside is the price other than that it does what it says at 5volts preout.

By George on February 27, 2014

35 found this helpful


solid unit

extremely quiet and very powerful. I wouldn't expect anything less from RF!

By Stick on August 9, 2013

34 found this helpful


Another great product from Rockford Fosgate!

This product says what it does and then some. System sounded a lot cleaner. It was simple to install, real self explanatory. I would purchase RF-BLD again.

By DJ on March 12, 2012

34 found this helpful


Mid Grade Line Driver

The RF-BLD falls in the middle of the price/function range. I found it to be low noise and easy to install. It is not the same league as the Tru unit. The case mounts/endcaps could be of better quality. The leds are very bright and the layout is ok. This is not a bad unit for the $$$.

By John on September 17, 2014

35 found this helpful


great unit

this is the unit if you want to keep your head unit. I hooked it up in my Tacoma made the necessary gain adjustments and my systems sounds great

By Eddison on December 10, 2010

31 found this helpful


Works great

This product work awesomely. I love it. It made a completely bigger difference.

By Valdez on June 7, 2015
