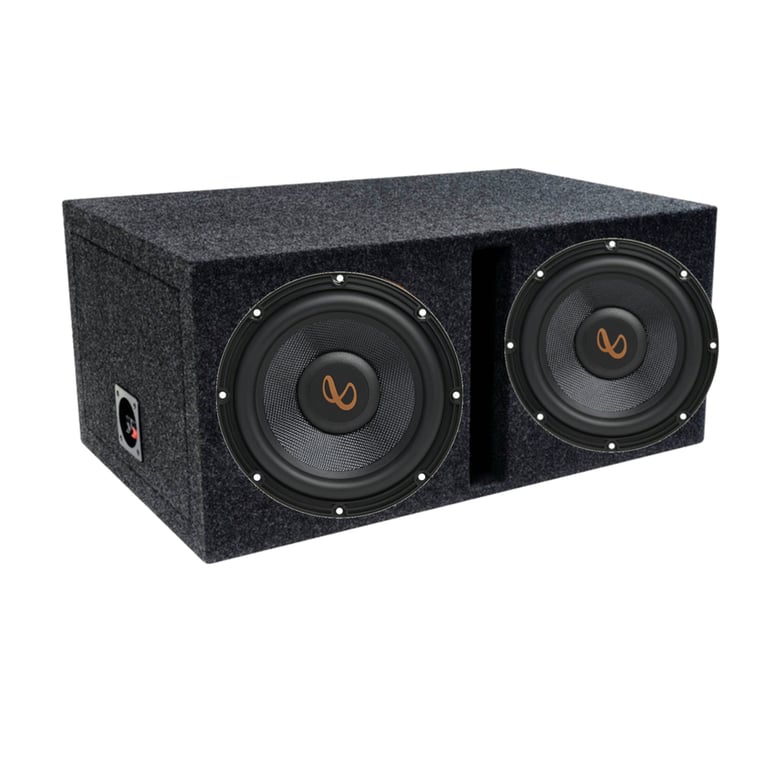

Infinity Kappa 103WDSSI + Atrend E10DV

1350W Peak (450W RMS) 10” Kappa Series Single 2-or 4-ohm Car Subwoofer with Empty Dual 10" Pro Series Ported Subwoofer Enclosure

Infinity
Shop all Infinity
highlight-star-icon

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB
• Subwoofer & Box Combo - Not Pre-Assembled

Learn more about the kappa103wdssi_e10dv

We apologize

This item has been discontinued


Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

17
-11.77%

$74.99

List price $84.99

VSP525KIT main

NVX VSP525KIT

750W Peak (250W RMS) 5.25" V-Series 2 Way Component Car Speakers

27
-16.67%

$99.99

List price $119.99

VSP525 main

NVX VSP525

480W Peak (160W RMS) 5.25" V-Series 2 Way Coaxial Car Speakers

23
-16.67%

$79.99

List price $95.99

Limited time!
TS-G1320S main

Pioneer TS-G1320S

500W Peak (70W RMS) 5.25" G-Series 2-way 4-ohm Coaxial Car Speakers

7
-30.78%

$44.99

List price $65.00

DB522 main

Polk Audio DB522 (DB 522)

600W Peak (200W RMS) 5.25" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

13
-9.08%

$100.00

List price $109.99

Description


Infinity brand icon

Authorized dealer

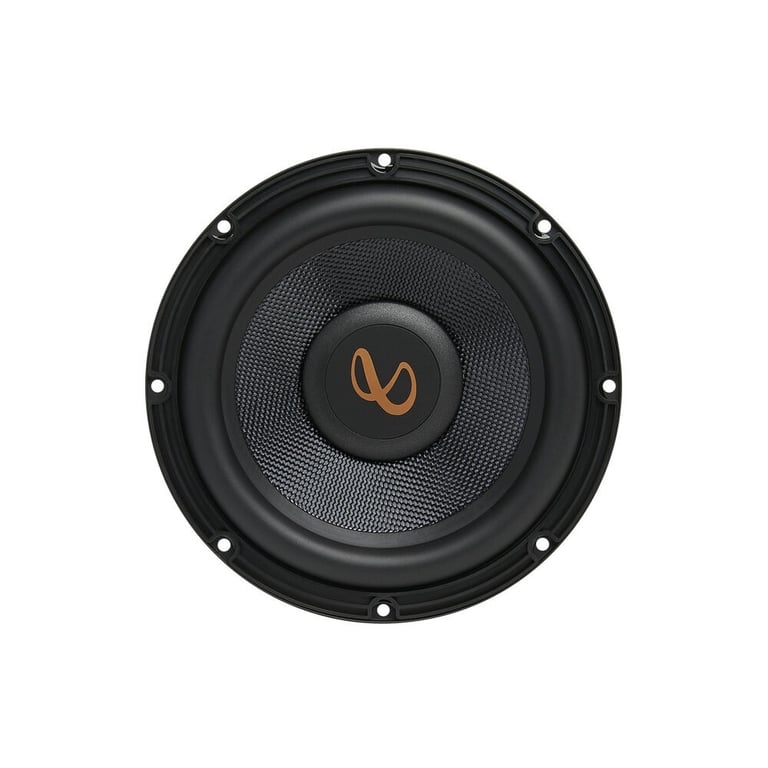

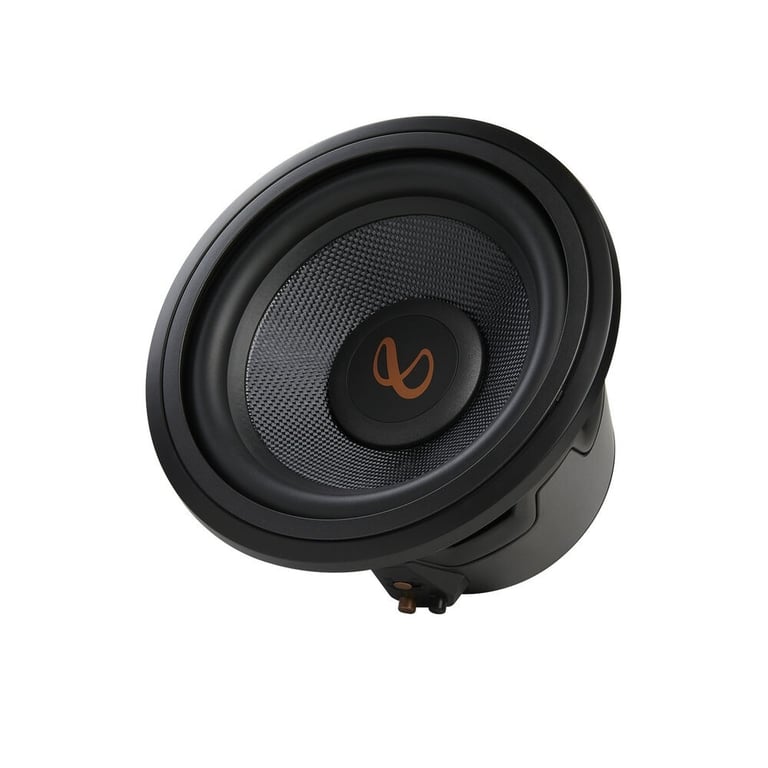

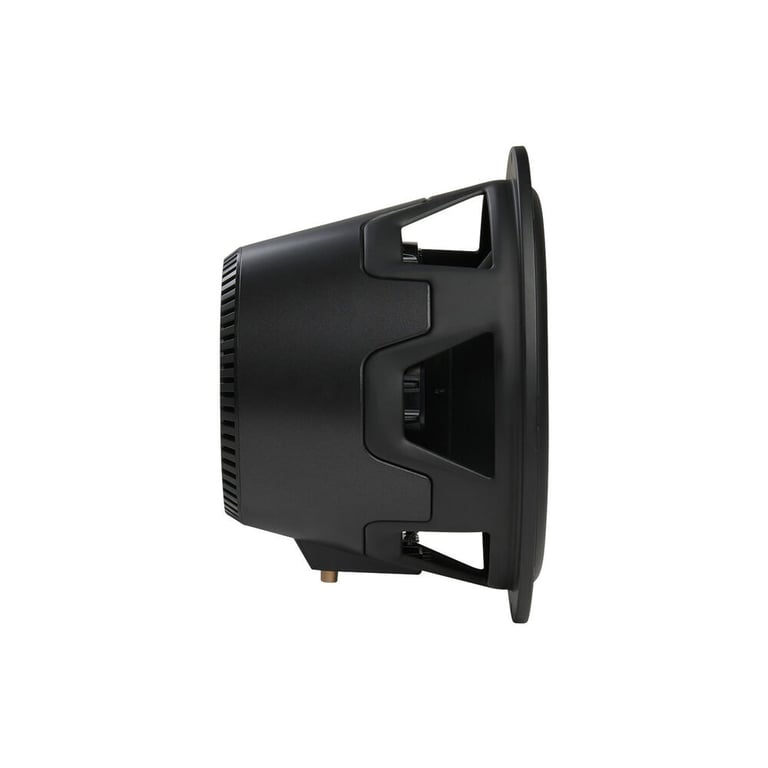

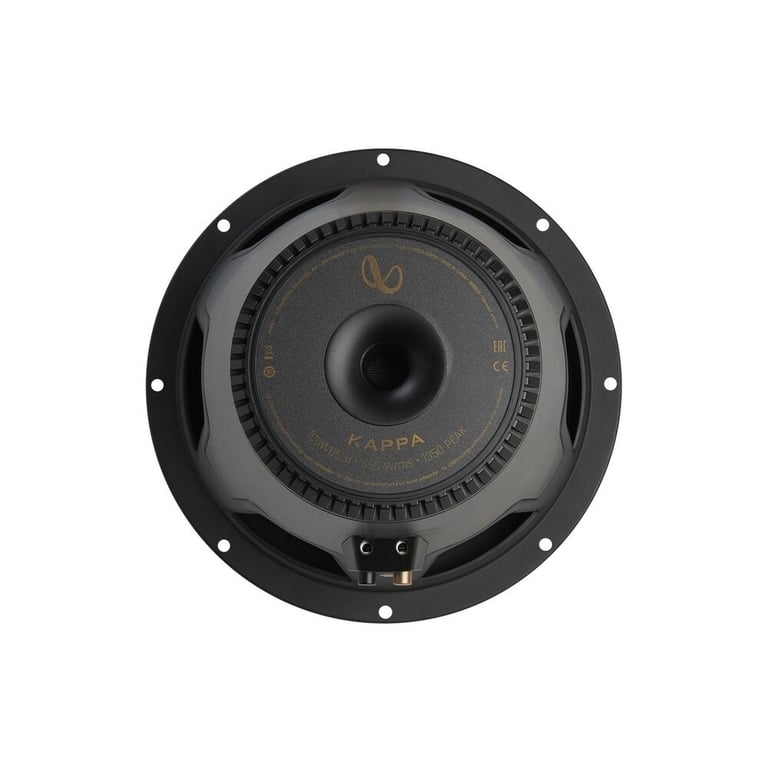

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

1350W Peak (450W RMS) 10” Kappa Series Single 2-or 4-ohm Car Subwoofer
Quantity: 2

Product Details:

  • 10" Single 2 or 4 ohm Kappa Series Subwoofer
  • Power Handling:
    • Peak: 1350 watts
    • RMS: 450 watts
  • Glass Fiber Cone
  • Rubber Surround
  • Aero-cooling oversized voice coil design
  • Premium integrated push terminals
  • Terminals accept up to 8-gauge speaker wire
  • 2" High Temperature Voice coil
  • 10.25 mm Xmax
  • Frequency Response: 30 - 175 Hz
  • Smart Selectable Impedance: 2 or 4 ohm
  • Resonance Frequency (Fs): 45.4 Hz
  • Sensitivity: 91 dB
  • Recommended sealed box volume: 0.8 cubic feet
  • Recommended ported box volume: 1.5 cubic feet
  • Top-mount depth: 6-1/4"
  • Cutout diameter: 8-15/16"
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty

  • Priced Individually

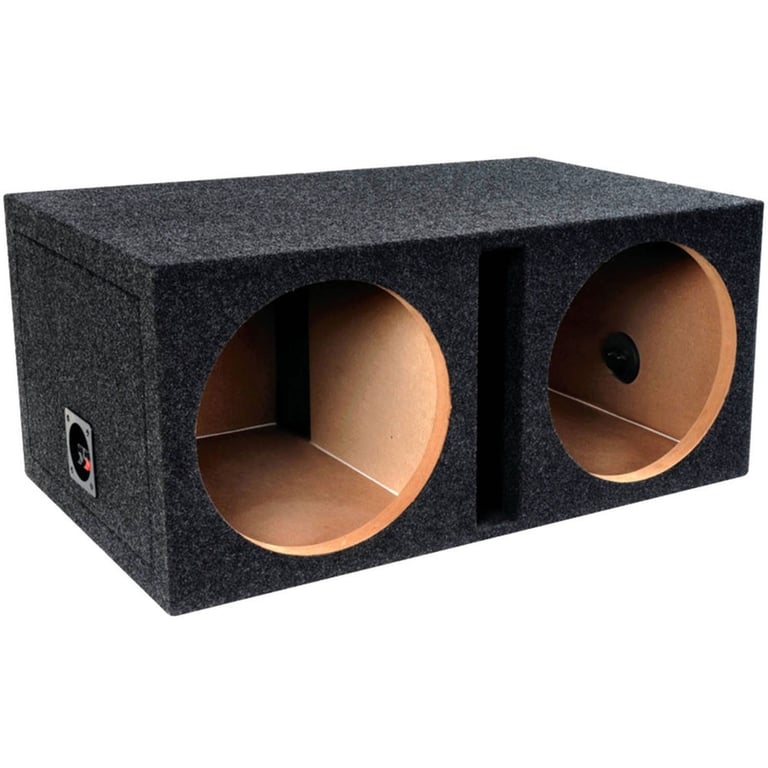

Atrend E10DV

Empty Dual 10" Pro Series Ported Subwoofer Enclosure
Quantity: 1

Product Details:

  • 10" Dual Ported Subwoofer Enclosure
  • Maximum subwoofer mounting depth: 14"
  • Subwoofer cutout diameter: 9.13"
  • Durable 1" Baffle Medium Density Fiberboard (MDF) construction
  • Box volume: 1.40 cubic feet (per chamber)
  • Total box volume: 2.80 cubic feet
  • Mitered edge construction provides cleaner finish
  • Miter joints feature over 41% more surface area
  • More surface area translates into a stronger bond
  • Dado joints offer an 80% increase in surface area
  • Built using trick glue for up to 3600 PSI holding ability
  • Premium carpeted finish
  • Black and red push loaded terminal cups
  • Dimensions: 30.00" L x 12.00" H x 17.00" W
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Port Specifications:

  • Rectangle shaped port
  • Number of ports: 1
  • Estimated port tuned frequency (fb): 41 Hz
  • Port Dimensions: 3.50" L x 11.50" H x 12.00" W

Best selling similar products

MBQJL-302 small

MB Quart MBQJL-302

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
• Includes one MB Quart NA2-400.1 amplifier
• Variable bass boost
• Speaker-level inputs
• Wired remote bass level control

$679.15

List price $829.99

51KGMDL7T122 small

Kicker KGMDL7T12 (51KGMDL7T122)

• Sealed enclosure with 2 12" Solo-Baric L7T Series Subwoofer
• Compatible with select 2008-2021 Silverado 1500 / 2500 HD / 3500 HD / 1500 LD and Sierra 2500 HD / 3500 HD / 1500 / 1500 Denali and Sierra Denali
• 1200 watts RMS
• Final Impedance: 2-ohm
• Dimensions: 15-1/2" L x 7-7/16" H x 52" W

$949.99

List price $1049.99

A152-10 small

Atrend A152-10

• 10" Dual Sealed Subwoofer Enclosure
• Built for select 1997-2007 vehicles from GMC, Chevrolet
• 3/4" Medium Density Fiberboard (MDF) construction
• Custom down-firing fit under rear driver side seat
• Premium, ultra-tough coat spray-liner finish
• Constructed using specially formulated aliphatic wood glue
• Total box volume: 2.44 cubic feet

(2)

$225.99

List price $319.99

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

F250X00C20A-TN small

MTX Audio Thunderform F250X00C20A-TN

• 10" Amplified Loaded Subwoofer System
• 200 watts RMS
• Built-In Class Amplifier
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Compatible with select 2000-2014 F-250 Super Duty

$929.95

List price $747.95

UBE-GM-VETC6 small

NVX Empty BOOST Box - 2006-2013 Chevrolet Corvette - UBE-GM-VETC6

• Custom Fit Empty Single 10" BOOST Sealed Enclosure
• Compatible with select 2006-2013 Corvette
• Made with hand-laid fiberglass shell covered in Carpet
• Total box volume: .60 cubic feet

$249.99

List price $275.99

51KRDL7T102 small

Kicker KRDL7T10 (51KRDL7T102)

• Ported enclosure with 2 10" Solo-Baric L7T Series Subwoofer
• select 2002-2024 vehicles from Ram, Dodge
• 1000 watts RMS
• Final Impedance: 2-ohm
• Dimensions: 16-7/16" L x 7-9/16" H x 58-7/16" W

(1)

$849.99

List price $949.99

A151-12CP small

Atrend A151-12CP

• 12" Single Sealed Subwoofer Enclosure
• 3/4" Medium Density Fiberboard (MDF) construction
• Total box volume: 0.93 cubic feet
• Compatible with select 1999-2007 vehicles from GMC, Chevrolet

(8)

$94.99

List price $104.95

A341-10CP small

Atrend A341-10CP

• 10" Single Sealed Subwoofer Enclosure
• 5/8" Medium Density Fiberboard (MDF) construction
• Total box volume: 0.8 cubic feet
• Compatible with select 2009-2020 vehicles from Ford

(2)

$99.95

List price $119.99

U-8DV small

Atrend U-8DV

• 8" Dual Ported Subwoofer Enclosure
• 1" Medium Density Fiberboard (MDF) construction
• Total box volume: 2.40 cubic feet
• Compatible with select 2008-2023 Sierra and Silverado 1500 / 2500 HD / 3500 HD

$309.40

List price $309.40

Item Details


Manufacturer:

Model Number:

KAPPA103WDSSI_E10DV

Weight:

68.20lbs

Internal SKU:

kappa103wdssi_e10dv

Internal Product ID:

226999

Customer Ratings & Reviews


Infinity Kappa 103WDSSI + Atrend E10DV thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Atrend E10DV

The following review is for E10DV, which is a part of the bundle you are viewing.

The box looked good, but I couldn't wait to hear it. I have 10" Fosgate P3 with a Power 500.2 amp. My previous box rattled too much. I have had this box for over a month, an no rattles. The box sounds really good.

My only issue was the terminals. I replaced them already. I have had that type of terminal melt on me in the past.

I hope this helps you making a decision .

By Anonymous on May 11, 2018 Checkmark Icon Verified purchase

28 found this helpful


The following review is for E10DV, which is a part of the bundle you are viewing.
By William on April 14, 2025 Checkmark Icon Verified purchase
