Cerwin-Vega RPMX3KM3

Product Details:

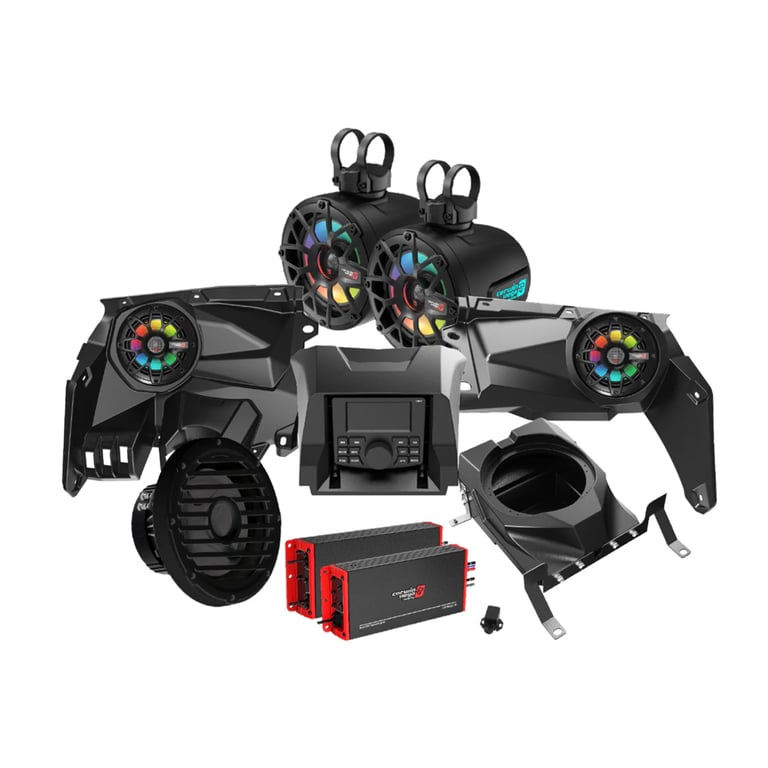

• System includes a marine receiver, two loaded 6.5" dash speaker enclosures, two 6.5" tower speakers, one loaded single 6.5" enclosure, and one marine amplifier
• Designed and engineered to match and compliment the factory fit and finish of your vehicle
• Enclosures for speakers and subwoofer integrate with no loss of passenger space
• Plug and Play design for easy installation
• No drilling or cutting required
• water resistant
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• Compatible with select 2017-2026 Maverick X3

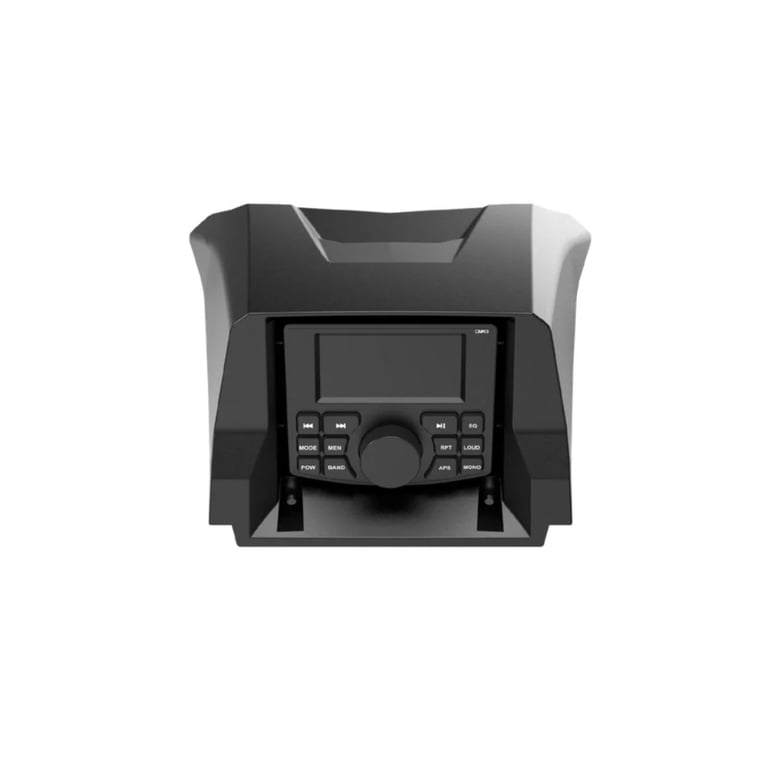

Cerwin-Vega RPMX3DASH Digital Audio Marine Receiver with Dash Bezel:

• Includes Cerwin-Vega CMR3 and dash bezel
• 3" TFT-LCD Display
• Peak: 50 watts x 4 channels
• Bluetooth audio streaming
• Features adjustable brightness control
• Waterproof IP66 rating designed to withstand harsh environments
• Conformal coated PCB provides protection against moisture or dust
• Dash bezel included
• MFR #: RPMRZRDASH
• Compatible on smartphones via Bluetooth connection
• Supports wireless audio streaming from smartphones
• MP3 Audio Playback
• AM/FM tuner with 9 FM / 6 AM presets
• AM/FM tuner supports multi-region radio frequencies
• MP3 ID3 Tag Display (Title/Artist/Album)
• 3-Band Equalizer
• 3 sets of preamp outputs (front, rear, and subwoofer)
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input
• Built-in Bluetooth technology for audio streaming
• MFR #: RPMX3DASH

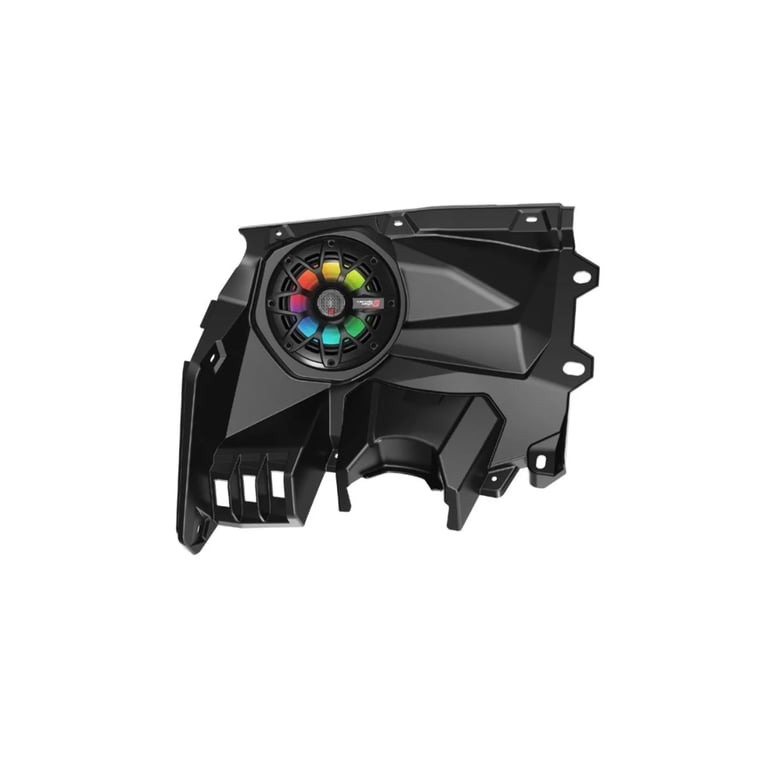

Cerwin-Vega RPMX3FS Loaded 6.5" Coaxial Front Speaker Enclosures:

• Includes two Cerwin-Vega SM65F4 speakers
• Integrated LED lighting option (Cerwin-Vega rpmdled controller sold separately)
• Waterproof composite paper cone
• Rubber speaker surround
• Plug-and-play wire harness with EZ-compatible LED connection
• High impact and high strength HDPE plastic panel
• Proprietary injection-molded brand logo on panel
• Matte black grilles included
• Stainless steel hardware included
• Power Handling:
• Peak: 500 watts per pair / 250 watts each
• RMS: 250 watts per pair / 125 watts each
• Waterproof composite paper cone material
• Rubber speaker surround
• 1" titanium dome tweeters
• 1.75" voice coil
• Flush mount design
• Impedance: 4-ohm
• Frequency Response: 70Hz-18000Hz
• Sensitivity: 95dB
• MFR #: RPMX3FS

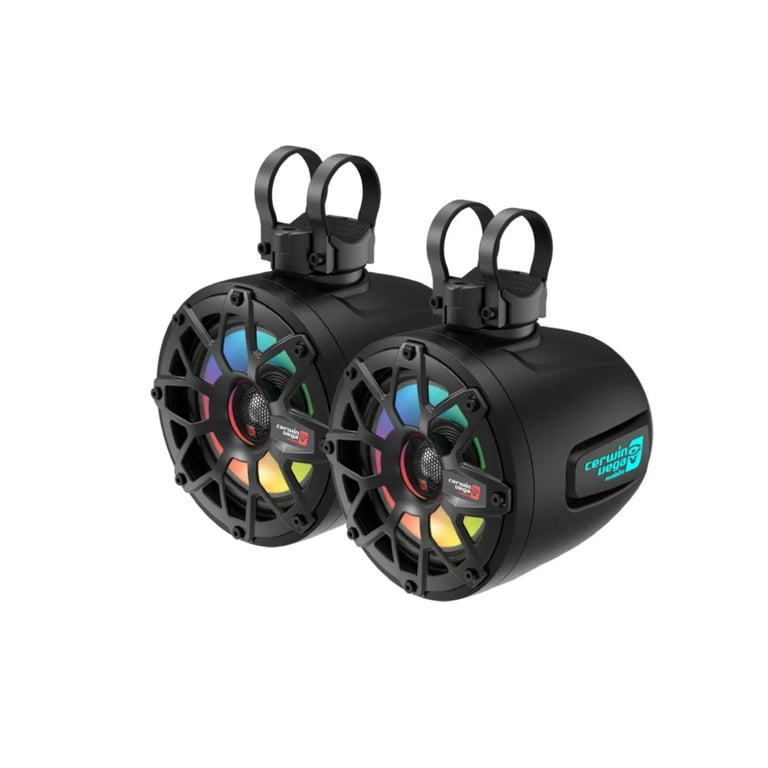

Cerwin-Vega SH65F4B 6.5" 2 Way Coaxial Marine Tower Speakers:

• Power Handling:
• Peak: 600 watts per pair / 300 watts each
• RMS: 300 watts per pair / 150 watts each
• Radial Zip Ring (RZR) cone
• 1" Titanium dome tweeters
• Impedance: 4 ohm
• Frequency Response: 70 - 18000 Hz
• Sensitivity: 92 dB
• 1.75” high temperature coated voice coil
• IP65 marine grade compliant
• Ferrite magnet motor structure
• Injection molded ASA grill and enclosure with UV coating
• 3/16 stainless metal mesh grill
• Integrated RGB LED lighting (Cerwin-Vega rpmdled sold separately)
• 4” passive design for bass boost
• Flat or pipe mounting bracket option
• Mounting Brackets Included
• Minimum pole mounting diameter: 1.75"
• Maximum pole mounting diameter: 2.5"
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

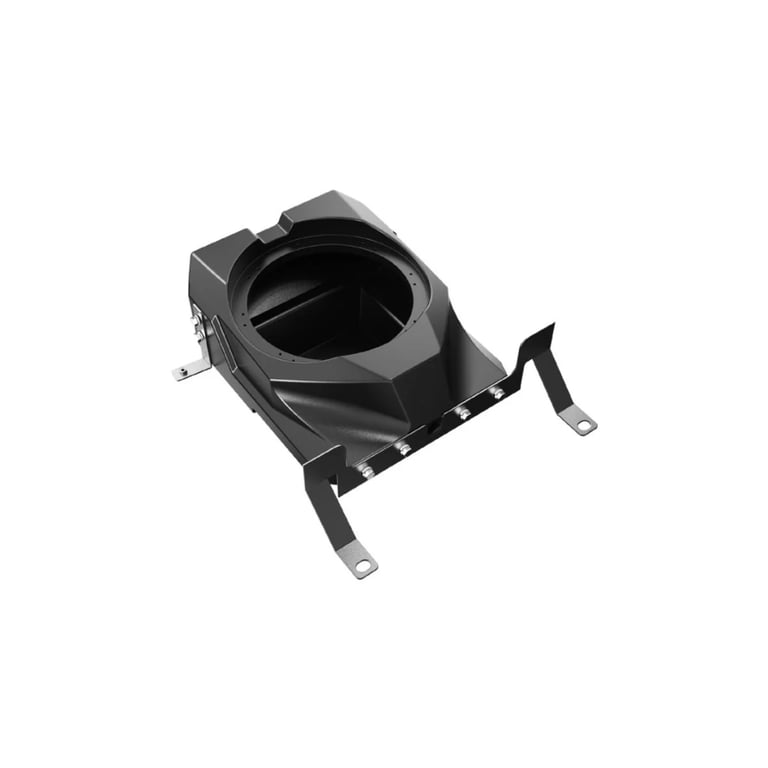

Cerwin-Vega RPMX3SUB Loaded Single 10" Enclosure:

• Includes one Cerwin-Vega RPM104SL subwoofer
• Power Handling:
• Peak: 400 watts
• RMS: 200 watts
• Final Impedance: 4-ohm
• Polypropylene cone
• Treated Cloth surround
• Fiberglass-reinforced Polymer basket material
• Nomic Spider enhances the subwoofer’s suspension
• Extended back plate for improved performance and heat dissipation
• Built-in RGB LED lighting
• Cerwin-Vega RPMRGB8A and Cerwin-Vega RPMRGBLC LED remote (sold separately)
• Available grille in black Cerwin-Vega RPM10GRLB (sold separately)
• Push terminals for easy connection
• 2" high temperature Copper voice coil
• 12.3 mm Xmax
• Resonance Frequency (Fs): 32.94 Hz
• Sensitivity: 87 dB
• MFR #: RPMX3SUB

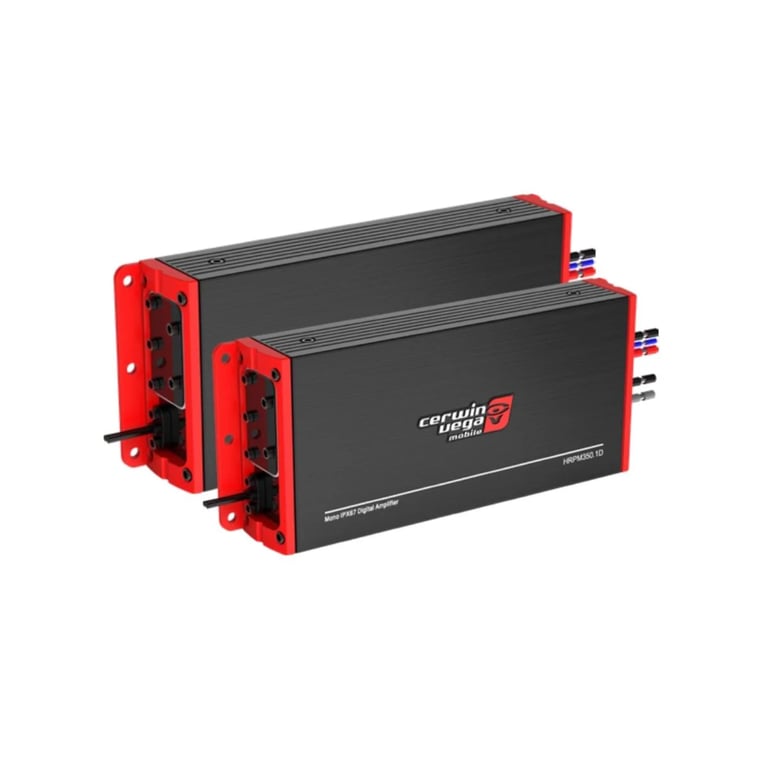

Cerwin-Vega HRPM350.1D Class D Monoblock Amplifier:

• RMS Power Rating:
• 4 ohm: 120 watts x 1 channel
• 2 ohm: 220 watts x 1 channel
• 1 ohm: 350 watts x 1 channel
• Total power output: 350 watts
• LED power and protect light
• Wired bass level remote control included
• Balanced differential inputs for noise-free operation regardless of source
• IPX67 rated waterproof design
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Surface mount component technology
• Audio precision quality control verification
• Stable & reliable 4-layers PCB trace layout
• Signal sensing remote turn-on
• Input sensitivity: 0.2 - 10 volts
• Frequency Response: 50 - 250 Hz
• Total Harmonic Distortion (THD): 0.3%
• Signal to Noise Ratio: 85 dB
• Selectable Low-pass filter: 50 - 250 Hz
• Adjustable Subsonic filter: 10 - 50 Hz
• Adjustable Bass Boost: 0 - 18 dB
• 8-gauge amplifier wiring kit is recommended for installation
• Dimensions: 7.9" L x 3.2" W x 1.4" H
• MFR #: HRPM350.1D

Cerwin-Vega HRPM360.4D Class D 4-Channel Amplifier:

• RMS Power Rating:
• 4 ohm: 60 watts x 4 channel
• 2 ohm: 90 watts x 4 channel
• Bridged: 180 watts x 2 channel @ 4 ohm
• Total power output: 360 watts
• LED power and protect light
• Balanced differential inputs for noise-free operation regardless of source
• IPX67 rated waterproof design
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Surface mount component technology
• Audio precision quality control verification
• Stable & reliable 4-layers PCB trace layout
• Signal sensing remote turn-on
• Input sensitivity: 0.2 - 10 volts
• Frequency Response: 20 - 20000 Hz
• Total Harmonic Distortion (THD): 0.3%
• Signal to Noise Ratio: 85 dB
• Selectable high-pass filter: 40 - 500 Hz
• Selectable low-pass filter: 40 - 500 Hz
• 8 gauge amplifier wiring kit is recommended for installation
• Dimensions: 7.9" L x 3.2" W x 1.4" H
• MFR #: HRPM360.4D
