Metra FD-PPKT-1

Product Details:

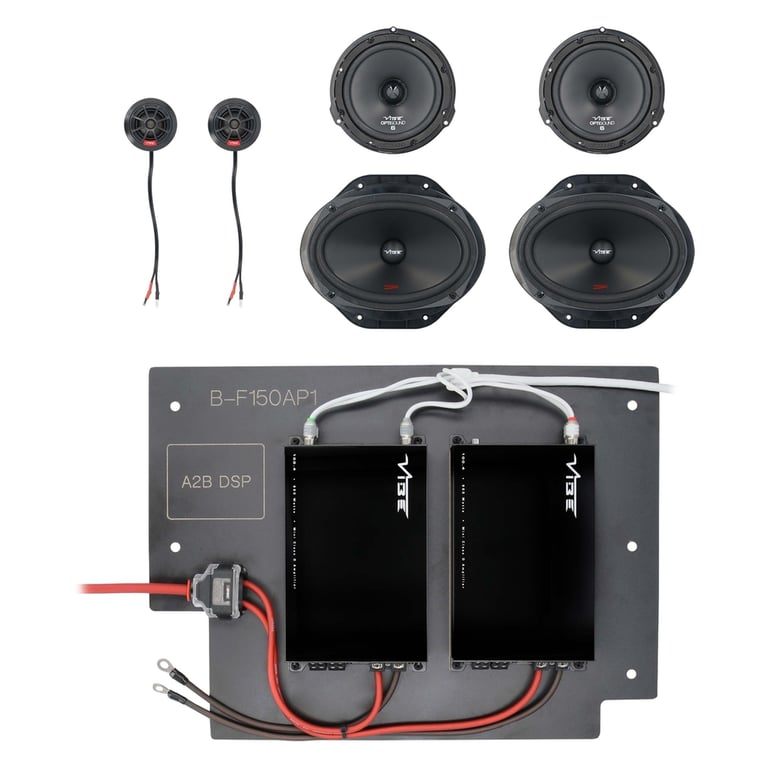

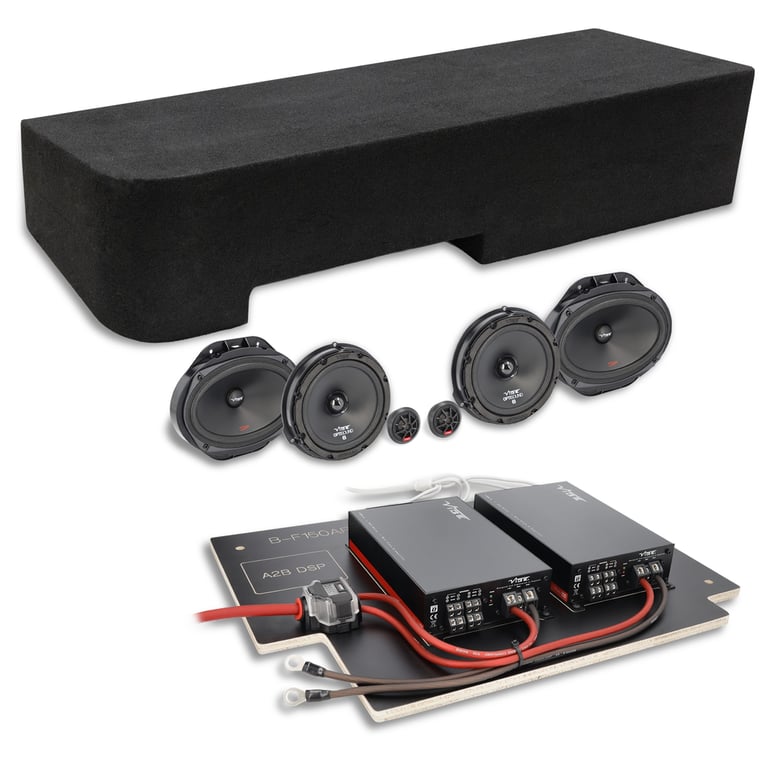

• System includes one pair of 6x9" speakers, one pair of 6.5" speakers, one pair of 1" tweeters, one loaded single 10" vented enclosure, two 4-channel amplifiers, and various Metra harnesses and mounting hardware
• Designed and engineered to match and compliment the factory fit and finish of your vehicle
• Enclosures for subwoofer integrate with no loss of passenger space
• Plug and Play design for easy installation
• No drilling or cutting required

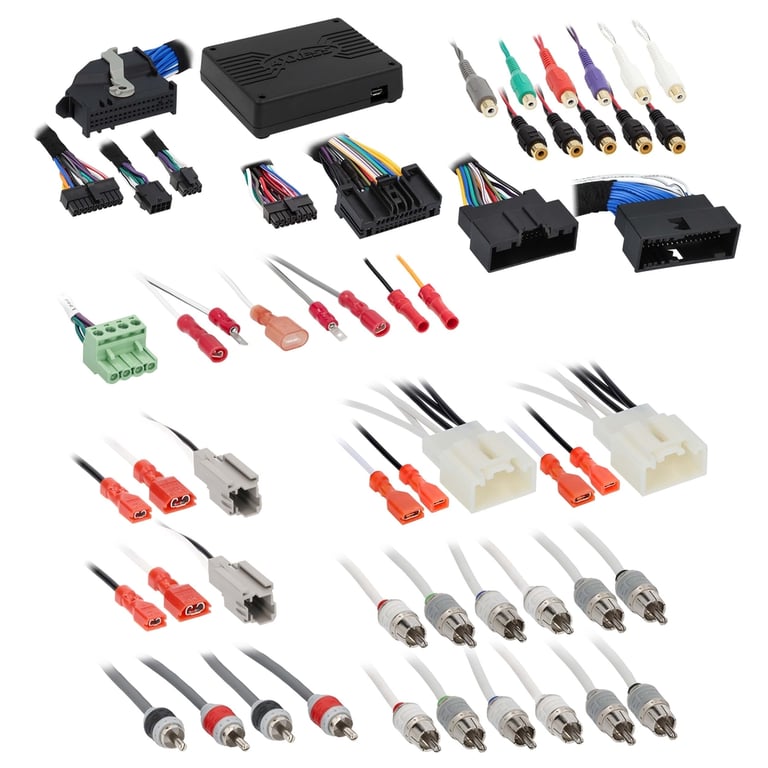

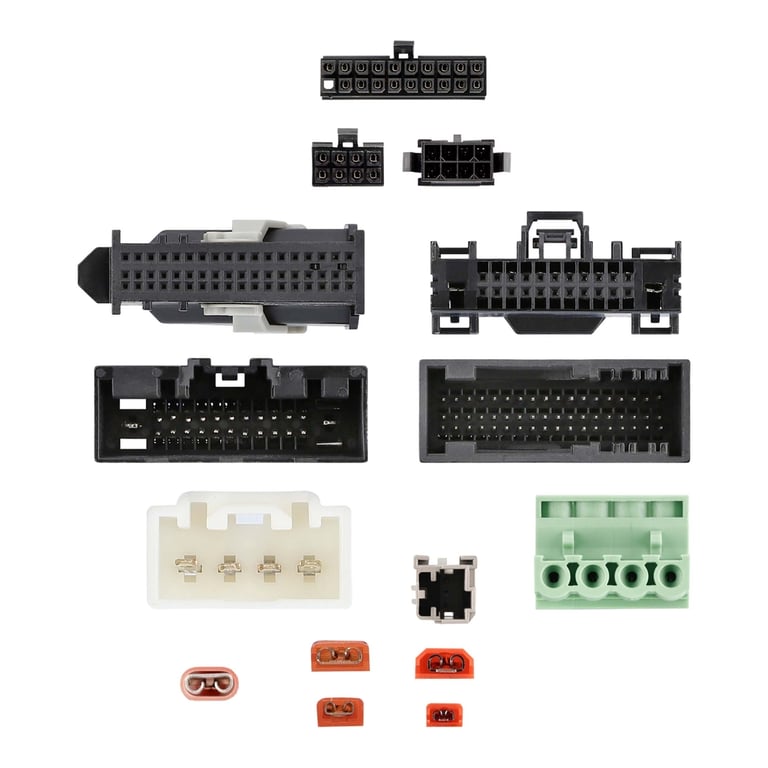

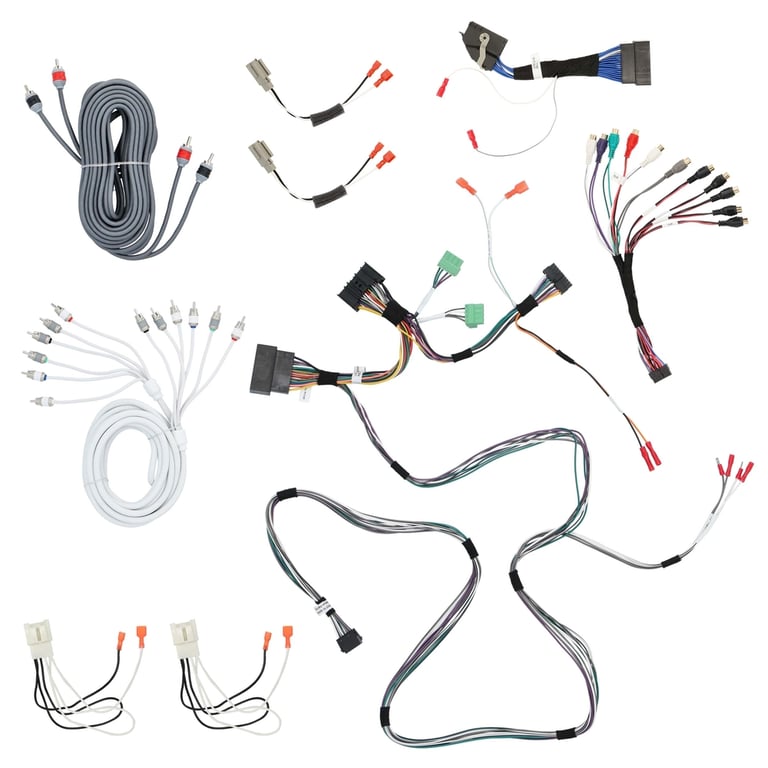

• Speaker harnesses and connectors included
• Vehicle-specific amplifier interface, amplifier installation kit and mounting racks included
• Axxess DSP interface included
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Vibe Audio CVEN69MW-V4 6x9" Front Door Speakers

• Power Handling:
• Peak: 160 watts per pair / 260 watts each
• RMS: 80 watts per pair / 40 watts each
• Top-mount Depth: 3.37"
• Cutout Dimensions: 5.63" x 8.39"
• Impedance: 4-ohms
• Frequency Response: 45 - 25000 Hz
• Sensitivity: 91 dB
• Metra 82-5606 front door speaker adapter plates included
• Metra 72-5602 front door speaker harnesses included
• Metra IBFSR69 2-piece speaker baffle kit included
• MFR #: CVEN69MW-V4

Vibe Audio OPTI6-V4 6.5" Rear Door Speakers

• Power Handling:
• Peak: 540 watts per pair / 270 watts each
• RMS: 180 watts per pair / 90 watts each
• Lightweight composite paper cone
• Foam surround
• Single layer spider
• 2" voice coil
• Torsion basket and FEMM motor design for maximum efficiency
• Larger motor for greater motorforce that allows a 25% power increase
• Top-mount Depth: 2.4"
• Cutout Dimensions: 5.6"
• Impedance: 4-ohms
• Frequency Response: 55 - 25000 Hz
• Sensitivity: 94 dB
• MFR #: OPTI6-V4

Vibe Audio SLICK1-V4 1" Component Tweeters:

• Power Handling:
• Peak: 150 watts each
• RMS: 50 watts each
• Lightweight paper cone
• High-density heat pressed foam surround
• Silk dome tweeter construction
• 4-ohm impedance
• Higher motor force for huge power gains
• Flush and surface mountable
• Sensitivity: 94 dB
• Frequency response: 1500 - 25000
• Top-mount depth: 0.5"
• Cutout Diameter: 1.5"
• MFR #: SLICK1-V4

Vibe Audio FD-150-10 Loaded Single 10" Vented Enclosure

• Medium-density fiberboard construction covered with carpet finish
• Power Handling:
• Peak: 900 watts
• RMS: 300 watts
• Final Impedance: Dual 2-ohm
• Sensitivity: 85 dB
• MFR #: FD-150-10

(2) Vibe Audio PB100.4M-V0 Class D 4-Channel Amplifier:

• RMS Power Rating:
• 4 ohm: 100 watts x 4 channels
• 2 ohm: 120 watts x 4 channels
• Bridged: 240 watts x 2 channels @ 4 ohm
• Total peak power output: 1920 watts
• Total RMS power output: 960 watts
• LED power and protect light
• Speaker-level (high-level) inputs
• 1 pair of pre-amp outputs
• AutoSense remote turn-on
• MOSFET power circuitry
• DeltaBox high level input circuit
• Frequency Response: 10 - 30000 Hz
• Variable high-pass filter: 40 - 4000 Hz
• Variable low-pass filter: 10 - 500 Hz
• 8 gauge amplifier wiring kit is recommended for installation
• Dimensions: 9.1" L x 5.3" W x 1.9" H
• MFR #: PB100.4M-V0

Metra Amplifier Installation Kit

• Premium power and ground wire provides optimal power transfer
• Made from Oxygen Free Copper material
• True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
• 18.5 ft of 4-gauge power cable
• 21 ft of 8-gauge ground cable
• 12 ft of 12-gauge speaker wire
• T-Spec MANL water-tight fuse holder with 100A MANL fuse
• Distribution block
• Mounting hardware
