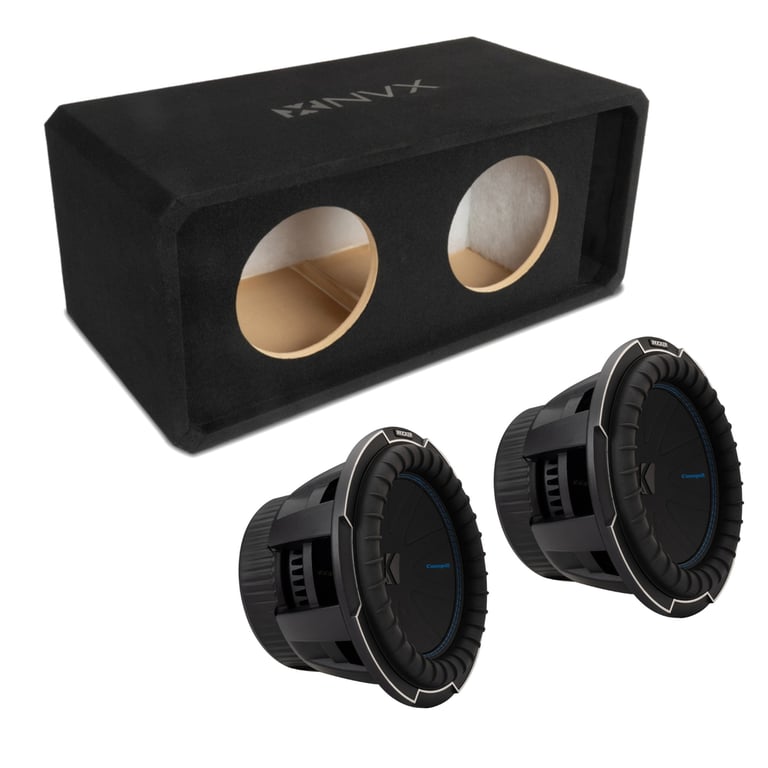

NVX NE102P w/ Kicker 51CWQ102 (Sold Individually)

Product Details:

• Not compatible with NVX VC-Series Subwoofers

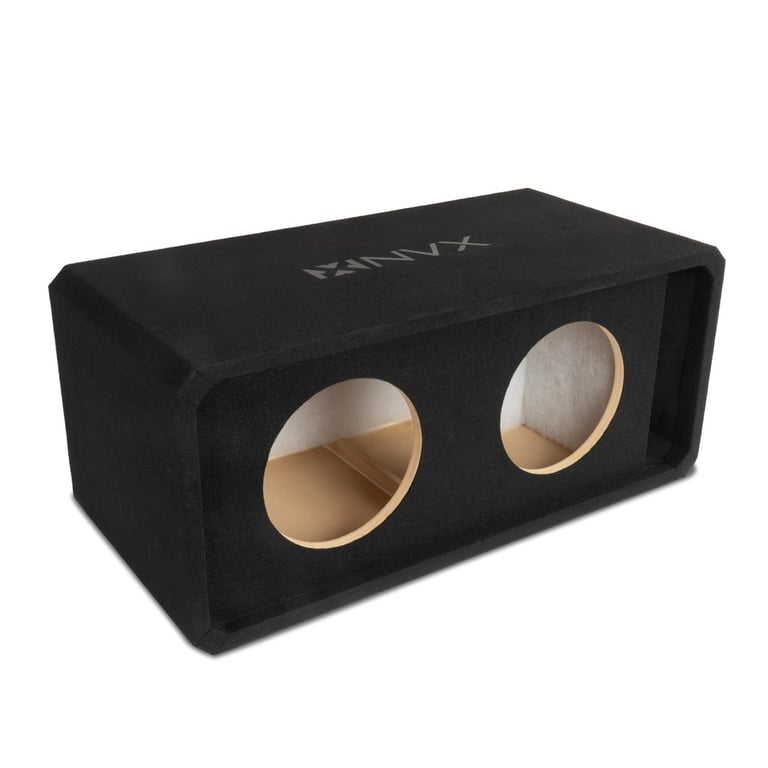

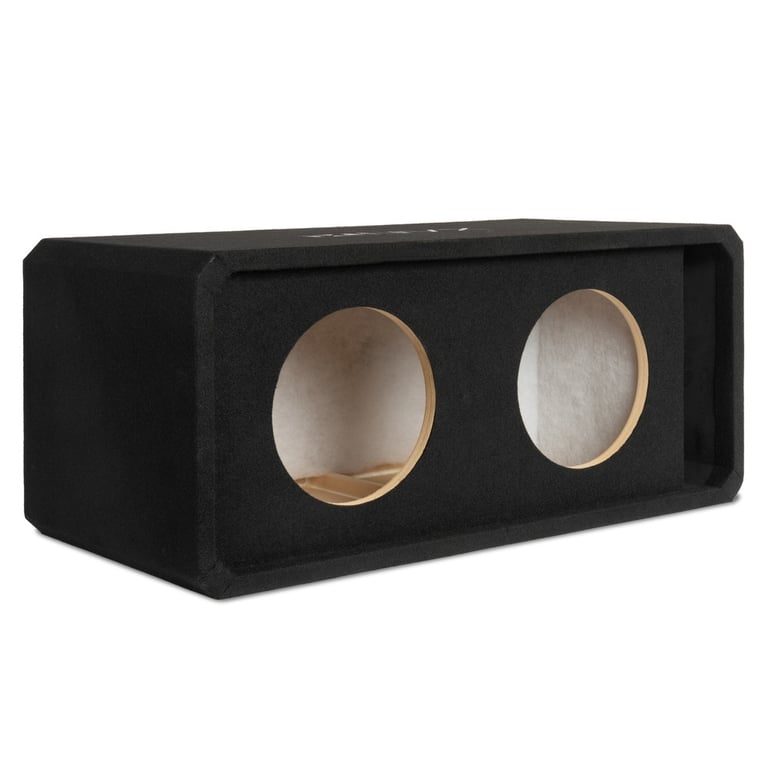

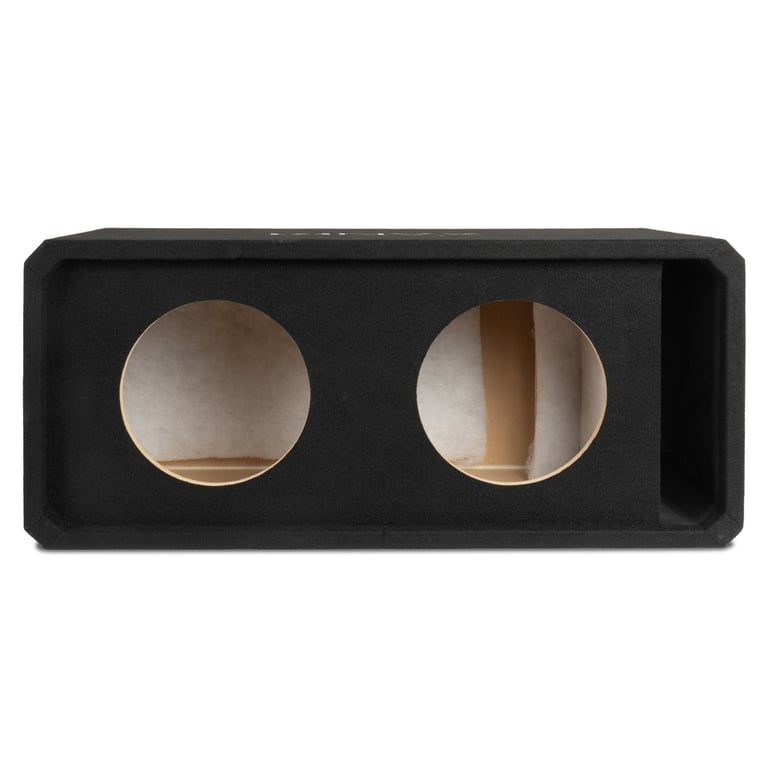

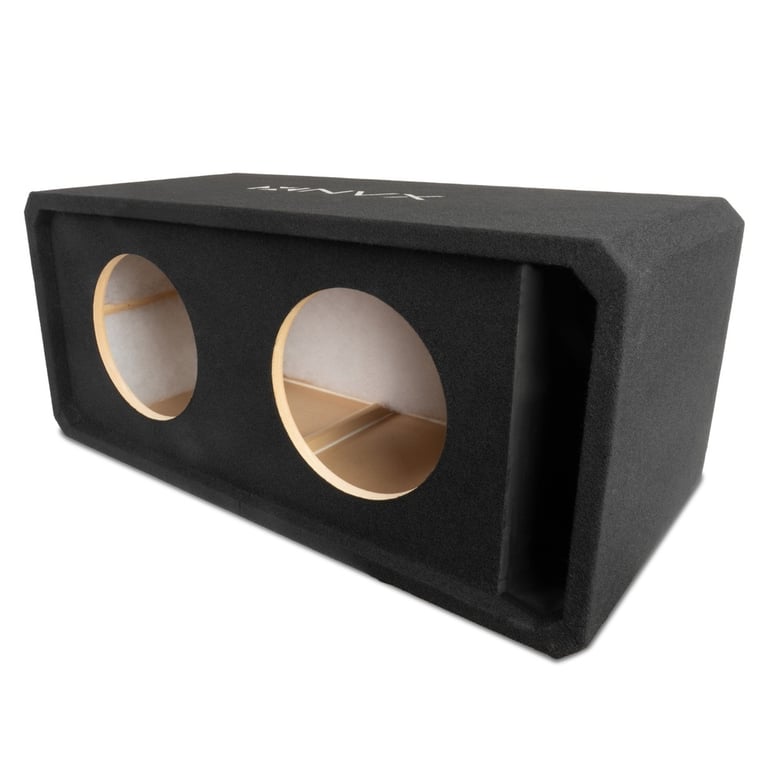

• 10" Dual Ported Subwoofer Enclosure
• Made from 3/4" Medium Density Fiberboard (MDF) construction
• Built with precision CNC technology for exceptional accuracy
• Pre-lined with Poly-Fil for improved acoustic response
• Premium Black Carpet with Black NVX Logo

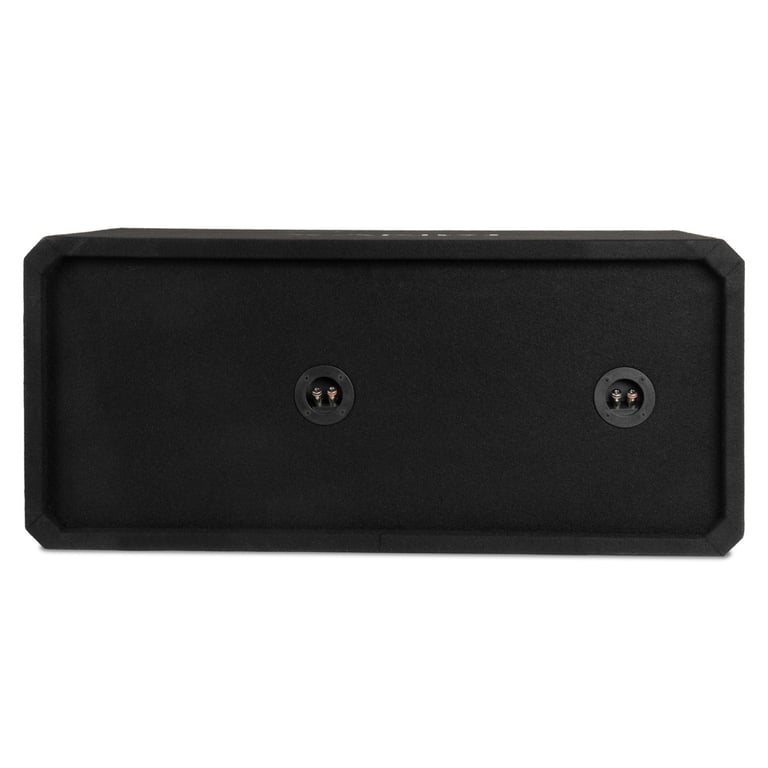

• Spring Loaded Push Terminals
• Maximum subwoofer mounting depth: 13-7/8"
• Subwoofer cutout diameter: 9-1/4"
• Internal box volume: 2.90 cubic feet
• Port Tuning Frequency (Fb): 38 Hz
• Dimensions: 16.50" D x 34.50" W x 15.00" H
• Authorized Internet Dealer
• 1-year Sonic Electronix Warranty

Port Specifications:

• Tuning Frequency: 38 Hz
• Port Width: 3"
• Port Height: 13.50"
• Port Length: 18.29"

Product Details:

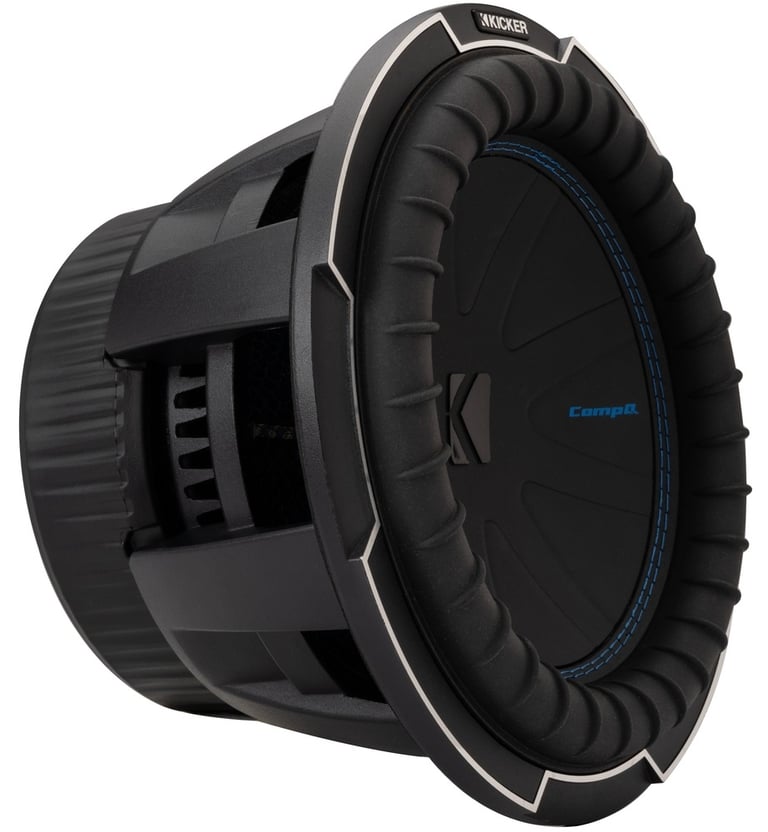

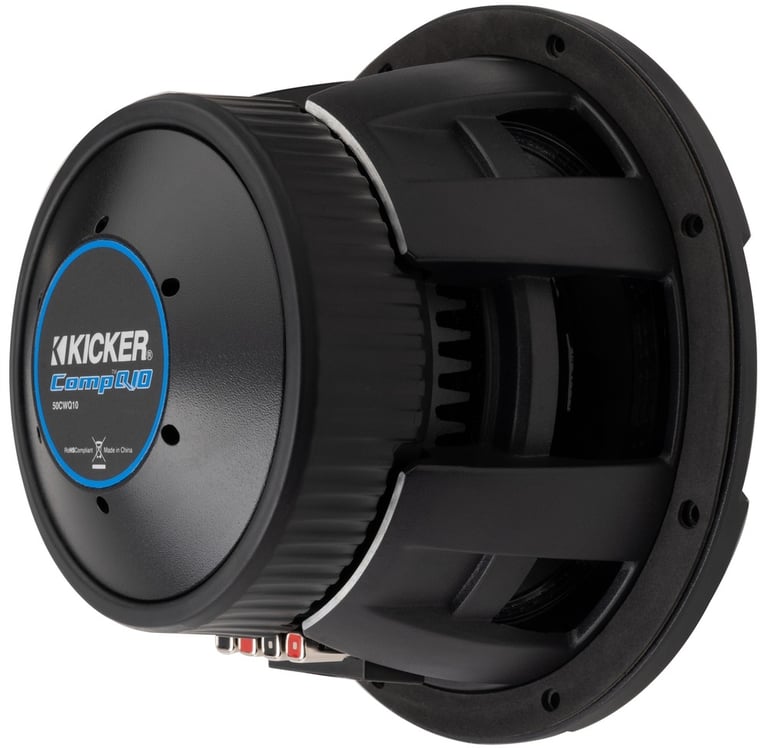

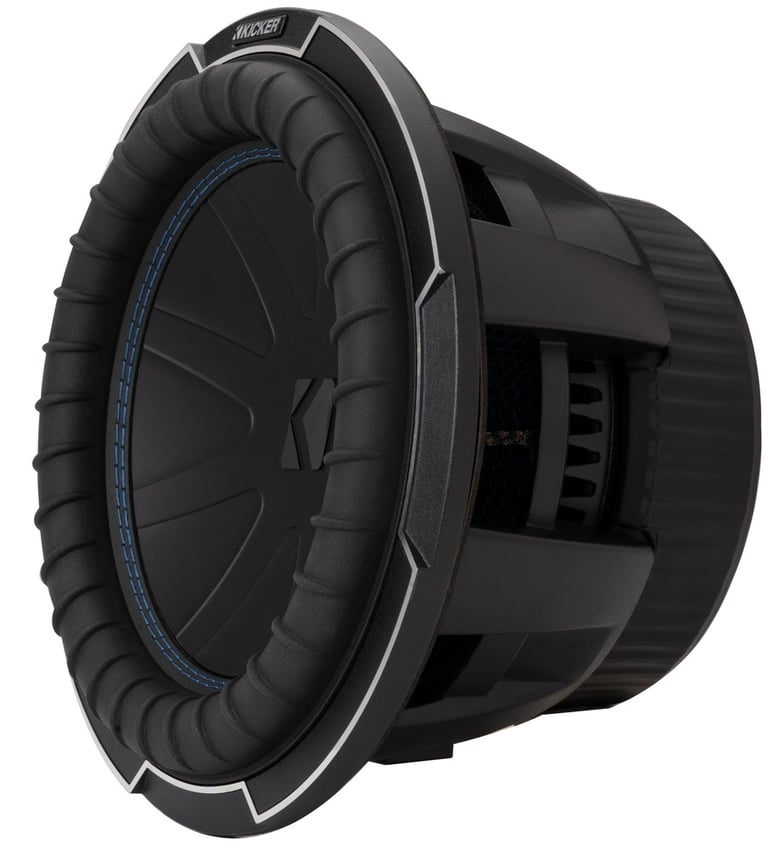

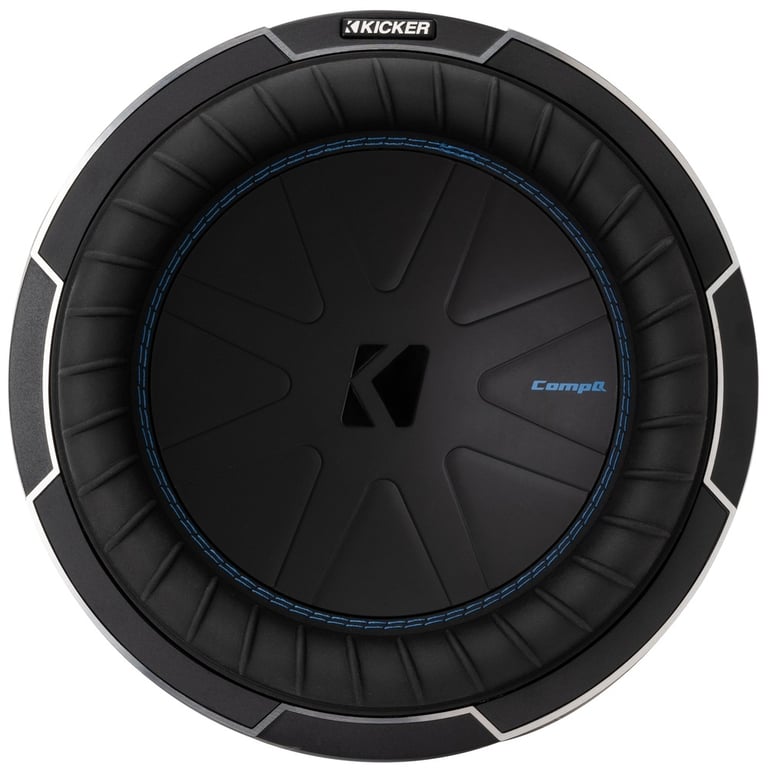

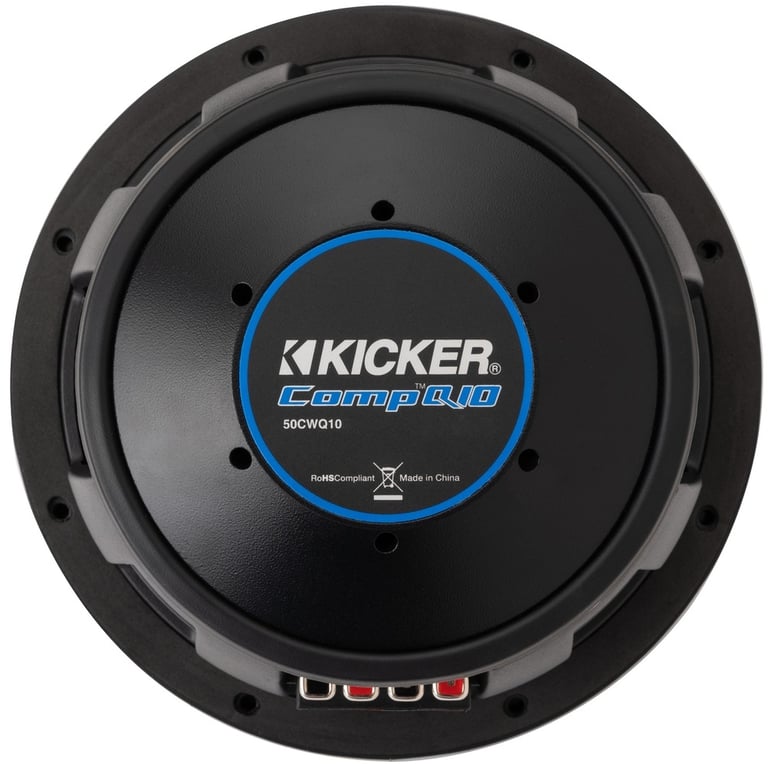

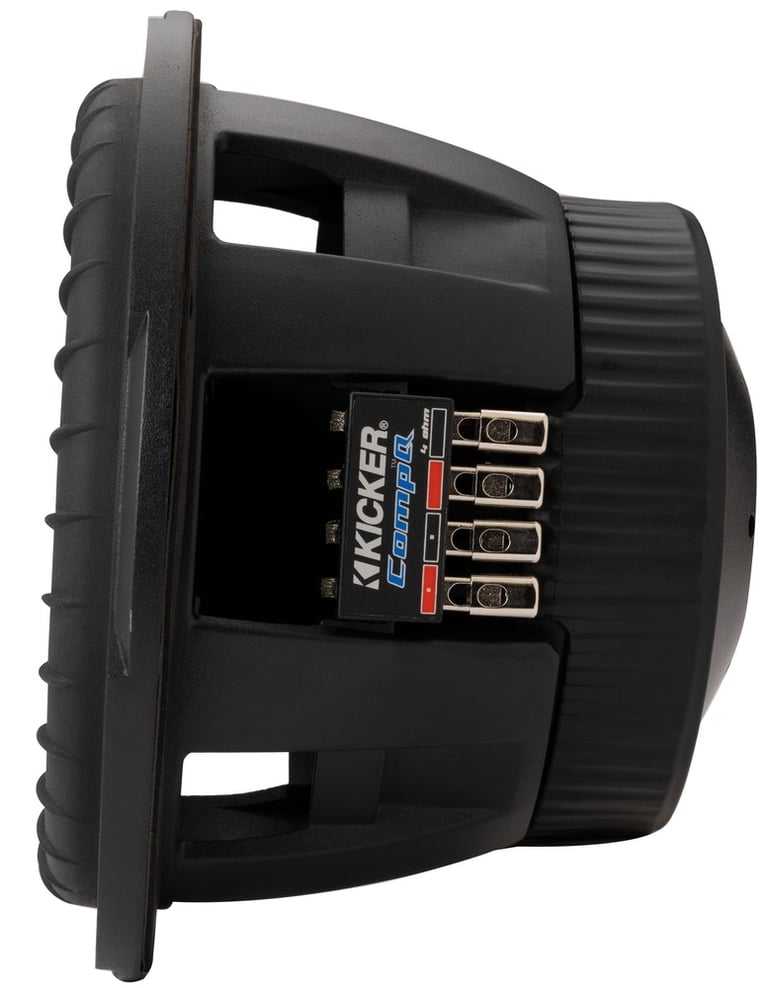

• 10" Dual 2 ohm CompQ Series Subwoofer
• Power Handling:
• Peak: 1600 watts
• RMS: 800 watts
• SoloKon Polypropylene Cone

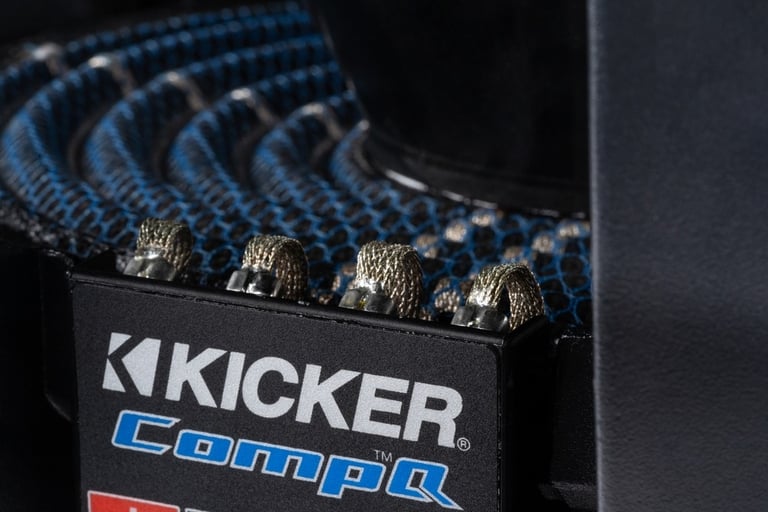

• Blue-stitched Santoprene Rubber Surround
• 19.7 mm Xmax
• Ceramic magnet motor structure
• With advanced suspension and heat management system
• Solid, non-vented pole piece construction
• Die-cast aluminum basket for motor alignment
• Frequency Response: 24 - 100 Hz
• Resonance Frequency (Fs): 41.3 Hz
• Sensitivity: 84.5 dB
• Recommended sealed box volume: 0.66 cubic feet - 1.25 cubic feet
• Recommended ported box volume: 1.25 cubic feet - 2.25 cubic feet
• Top-mount depth: 6-3/8"
• Cutout diameter: 9-3/16"
• CTA-2031 Compliant
• Authorized Internet Dealer
• 3 Year Manufacturer's Warranty



Sold Individually

Kicker 51CWQ102 owner’s manual
