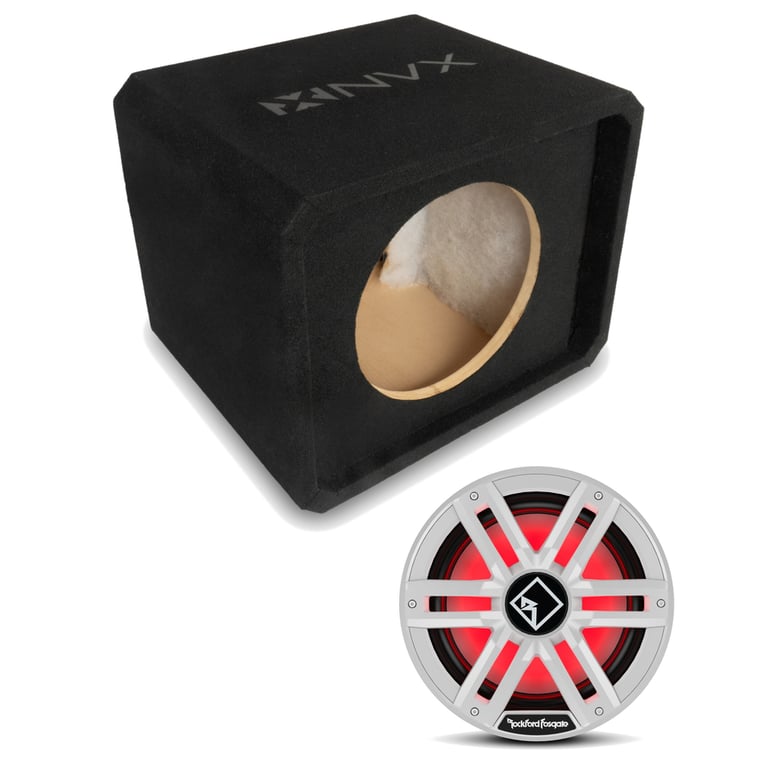

NVX NE121P w/ Rockford Fosgate M2D2-12I

Product Details:

• Not compatible with NVX VC-Series Subwoofers

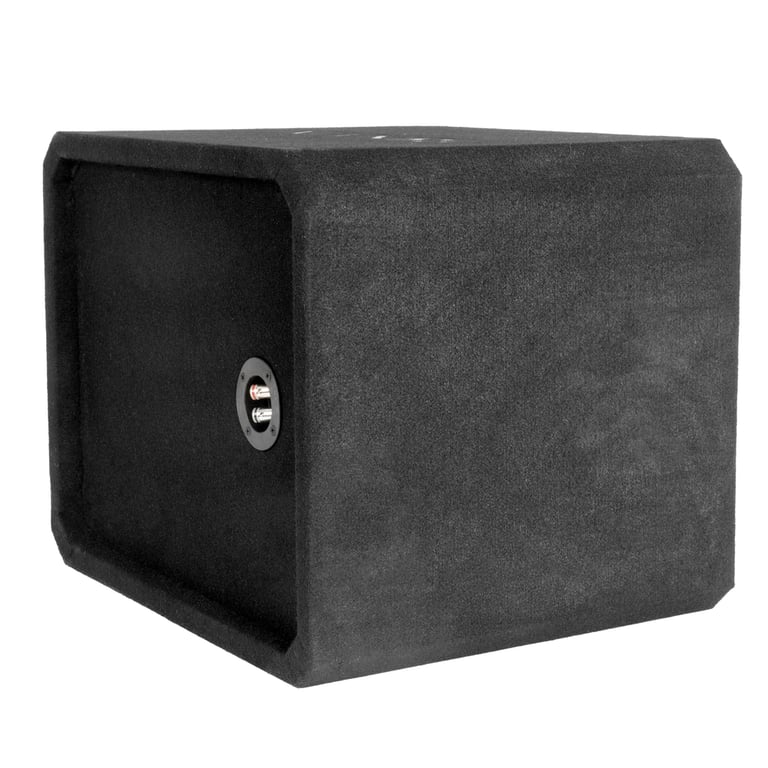

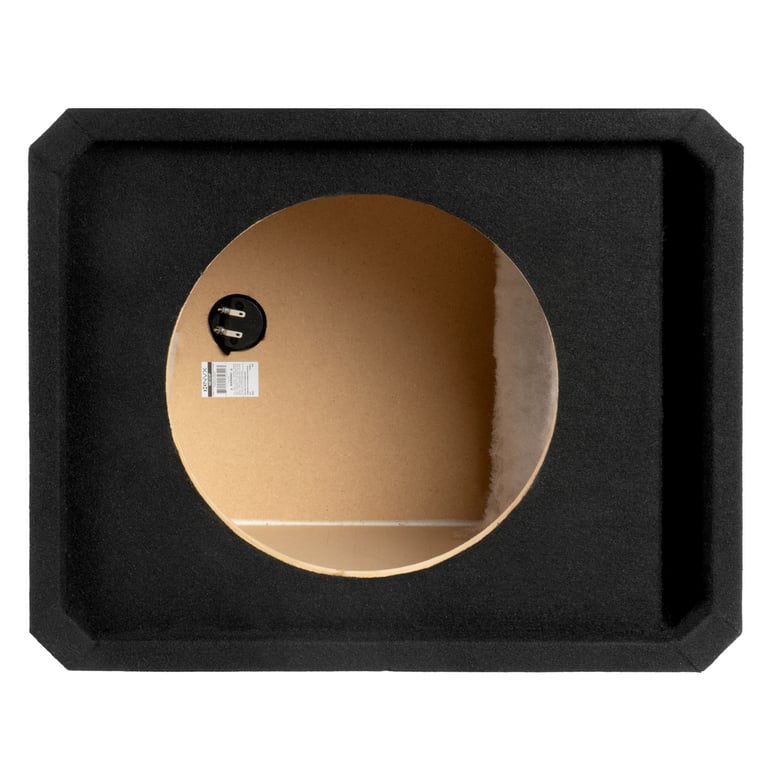

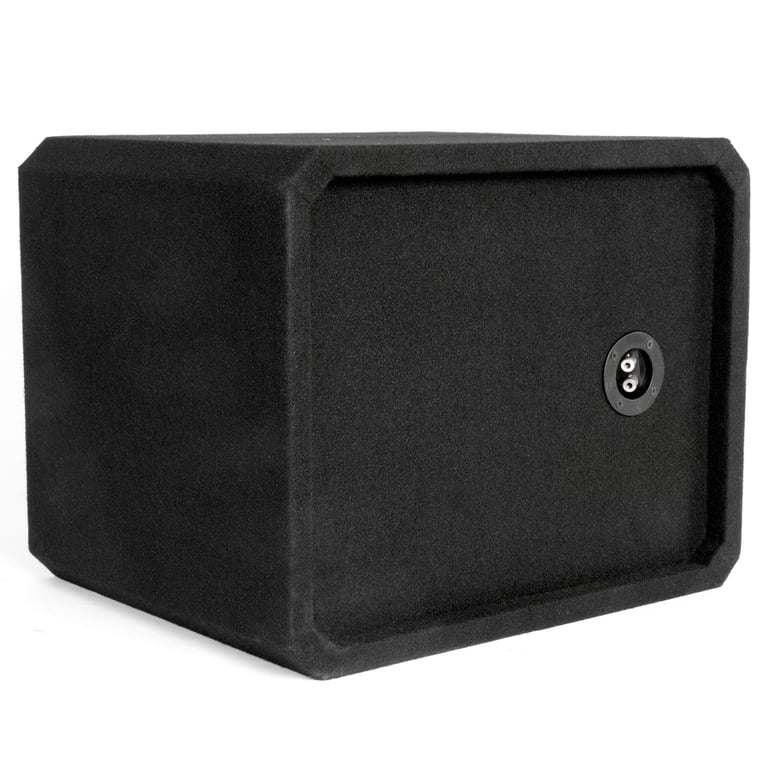

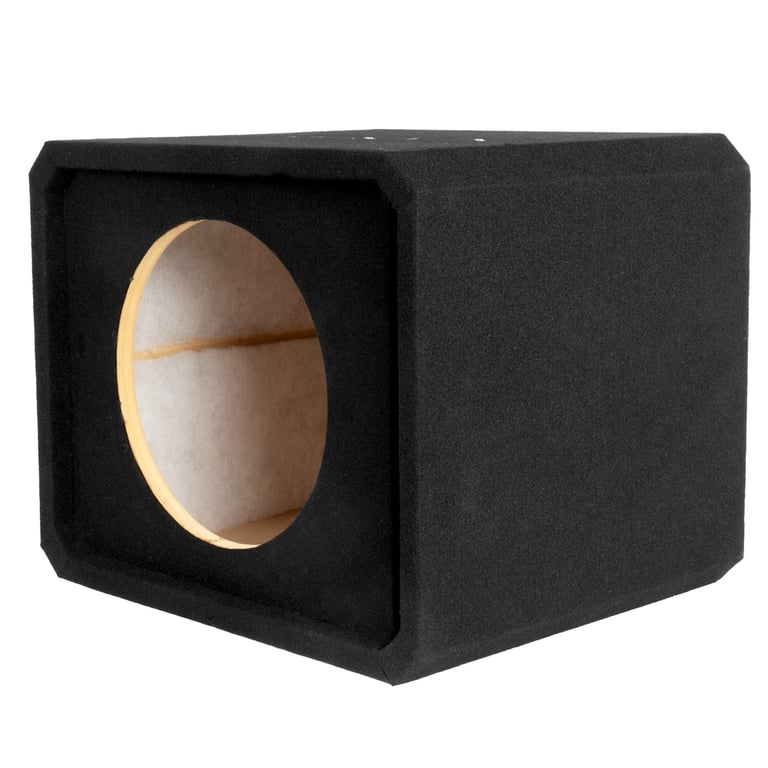

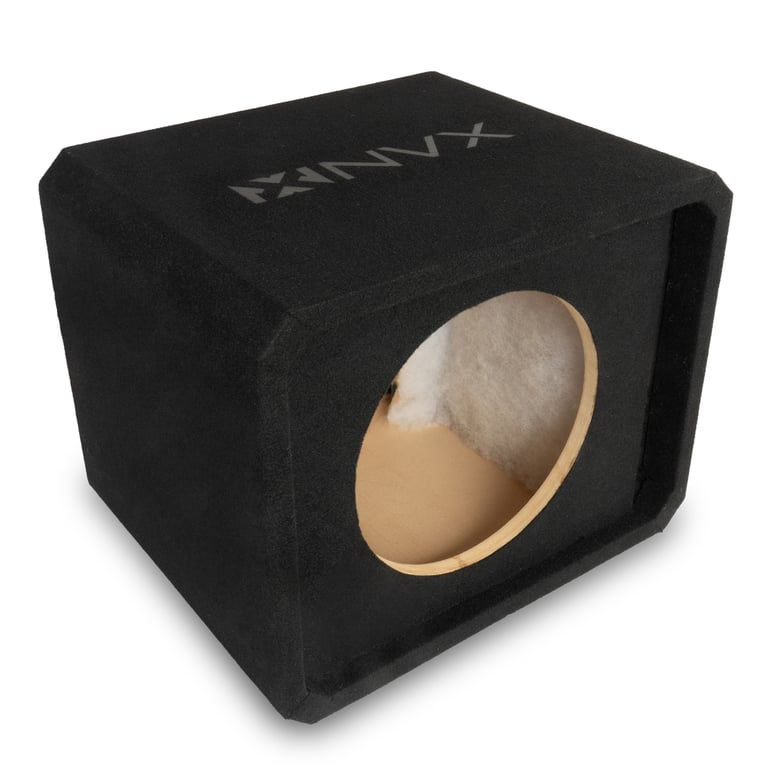

• 12" Single Ported Subwoofer Enclosure
• Made from 3/4" Medium Density Fiberboard (MDF) construction
• Built with precision CNC technology for exceptional accuracy
• Pre-lined with Poly-Fil for improved acoustic response

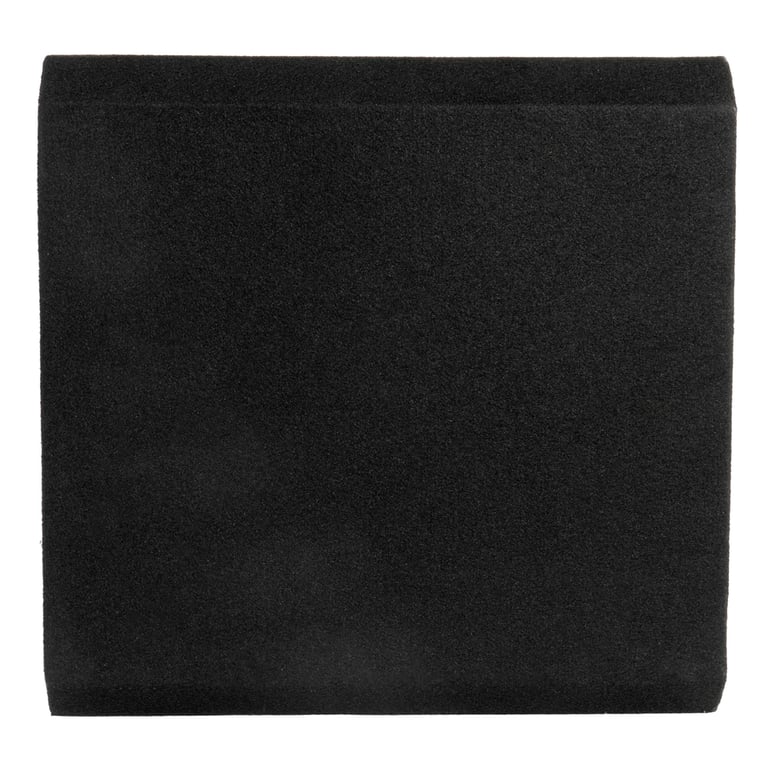

• Premium Black Carpet with Black NVX Logo

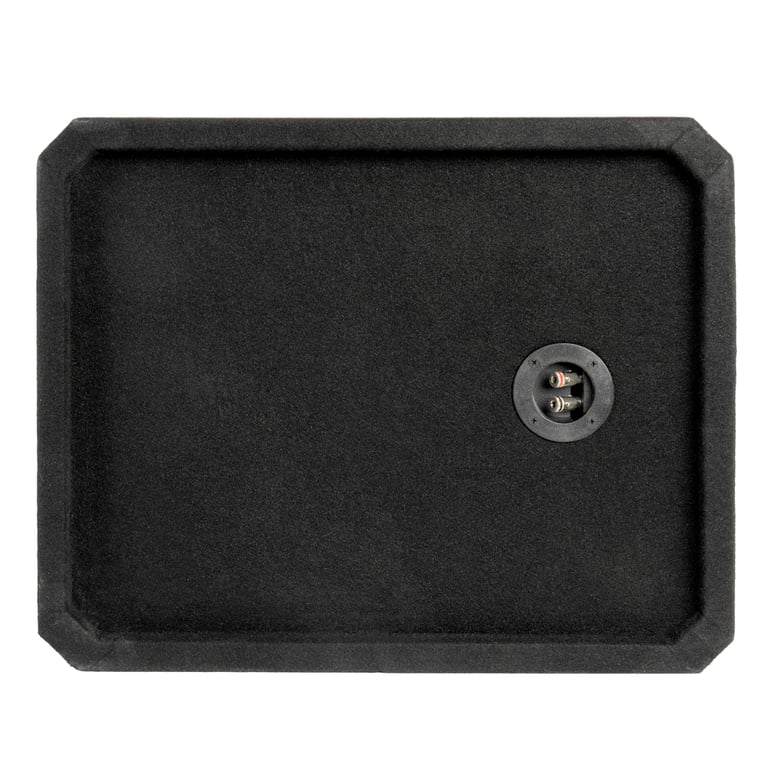

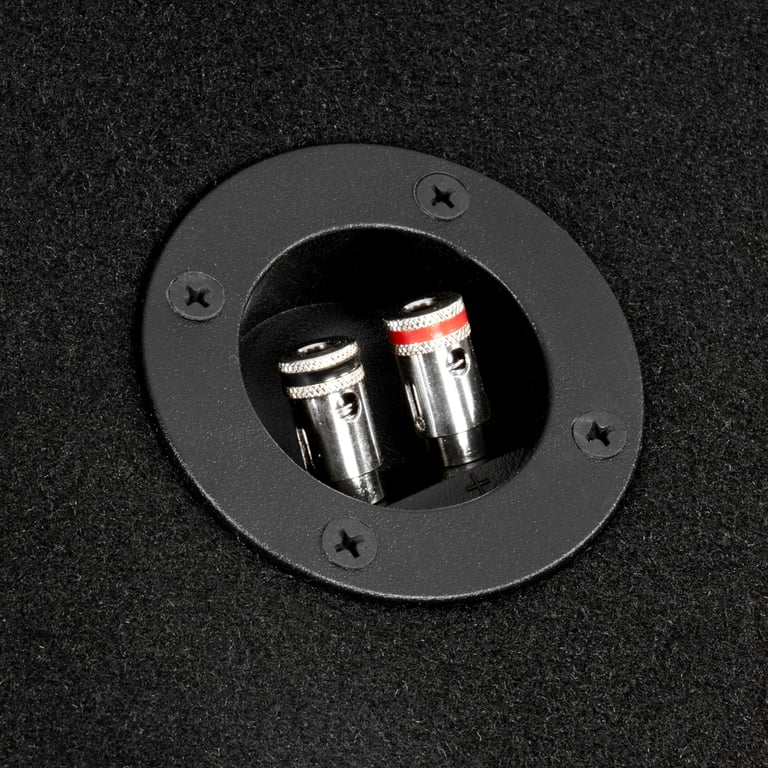

• Spring Loaded Push Terminals
• Maximum subwoofer mounting depth: 13-7/8"
• Subwoofer cutout diameter: 11-7/32"
• Internal box volume: 1.75 cubic feet
• Dimensions: 16.50" D x 20.00" W x 16.00" H
• Authorized Internet Dealer
• 1-year Sonic Electronix Warranty

Port Specifications:

• Tuning Frequency: 38 Hz
• Port Width: 1.5"
• Port Height: 14.50"
• Port Length: 17.52"

Product Details:

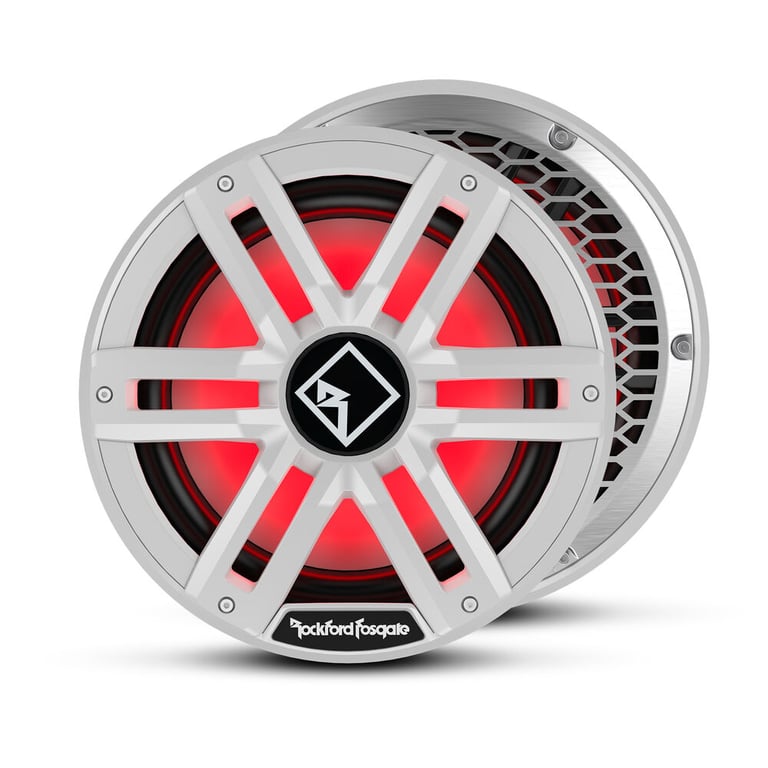

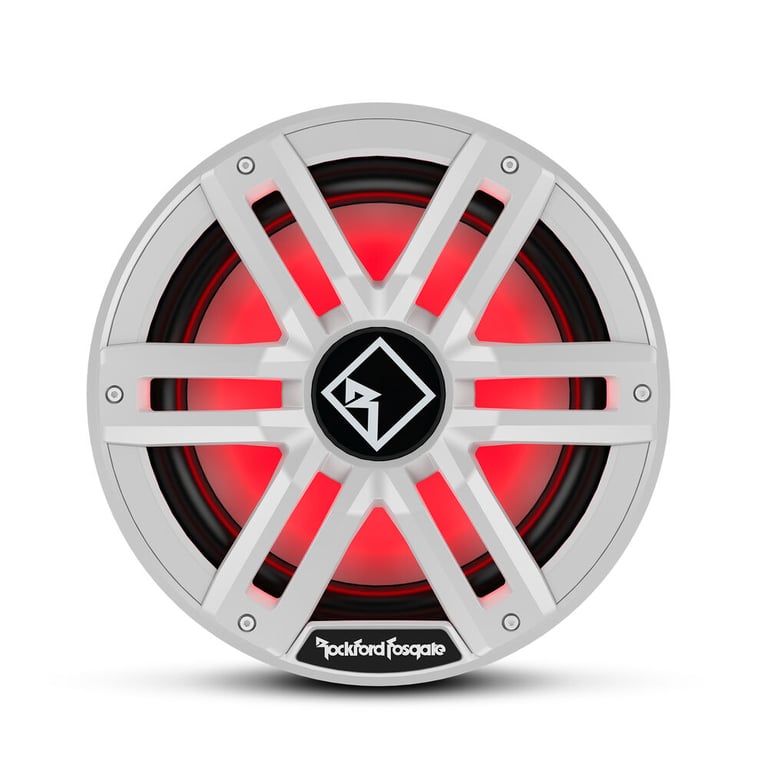

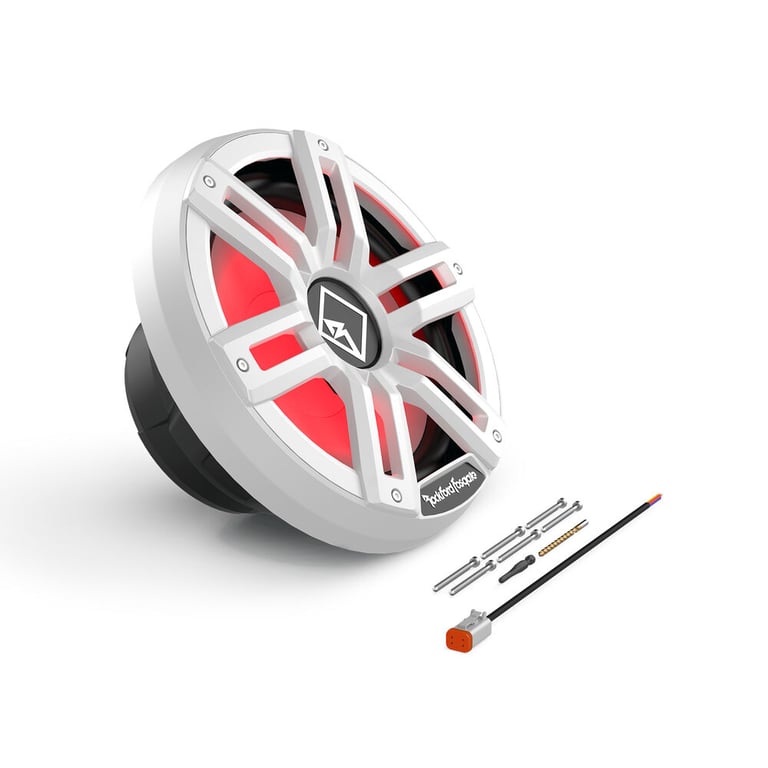

• 12" Dual 2 ohm M2 Series Subwoofer
• Power Handling:
• Peak: 1600 watts
• RMS: 400 watts
• Injection Molded Polypropylene Cone
• VAST vertical attach surround technique
• Integrated Deutsch/Amphenol connectors
• Element Ready to withstand the harsh outdoor environment
• Gold plated marine grade brass terminals

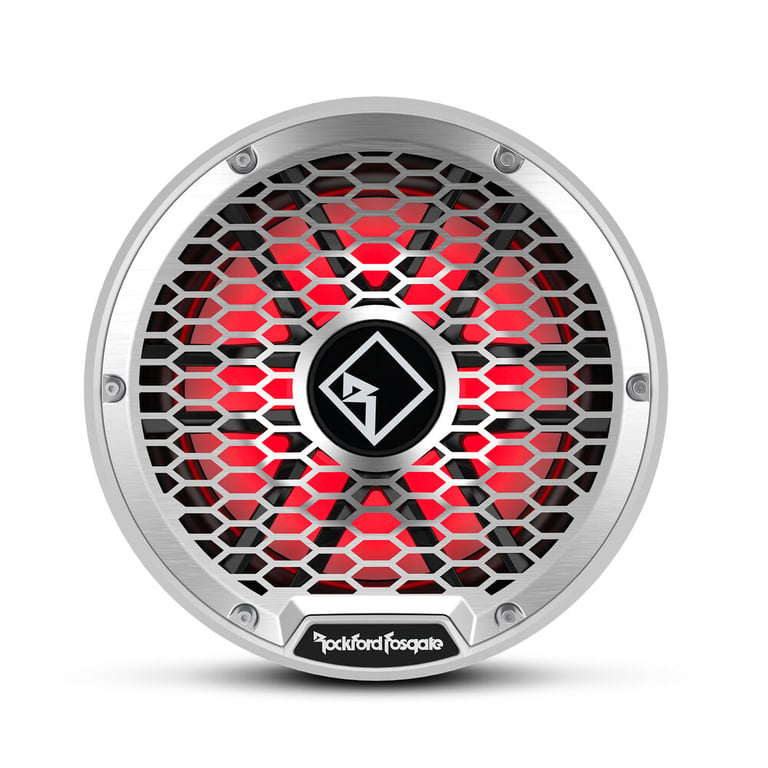

• 2-piece grille allows for interchangeable stainless-steel or "sport" option
• Element Ready design protects lighting from exposure
• Bright, wide-angle LEDs provide rich, reliable illumination
• Adjust color brightness and other options with the Rockford Fosgate Color Optix
• Color optix requires RF Connect App and Rockford Fosgate PMX-RGB remote (sold separately)
• RF Connect App is available to download on iPhone and Android
• IPX6 Water Intrusion Rated
• 100% UV Stable ASA plastic frame & grille design
• Deutsch DT connectors incorporate front/rear silicone seals
• Provides superb low and midrange frequency reproduction
• VERSA impedance switch allows series/parallel configuration w/outadditional wiring
• Optimized for infinite baffle applications when an enclosure is not an option
• Industry’s first molded in-frame connectors
• 1.95" High Temperature Aluminum Voice coil
• 15 mm Xmax
• 61.09 oz. Double Stacked magnet motor structure
• Frequency Response: 70 - 250 Hz
• Resonance Frequency (Fs): 38 Hz
• Sensitivity: 90 dB
• Can be used in sealed, vented/ported, or infinite baffle installations
• Recommended optional ported box volume: 1.79 cubic feet
• Top-mount depth: 5.13"
• Cutout diameter: 11"
• Authorized Internet Dealer
• Includes protective subwoofer grille
• 2 Year Manufacturer's Warranty

Rockford Fosgate M2D212I owner’s manual
