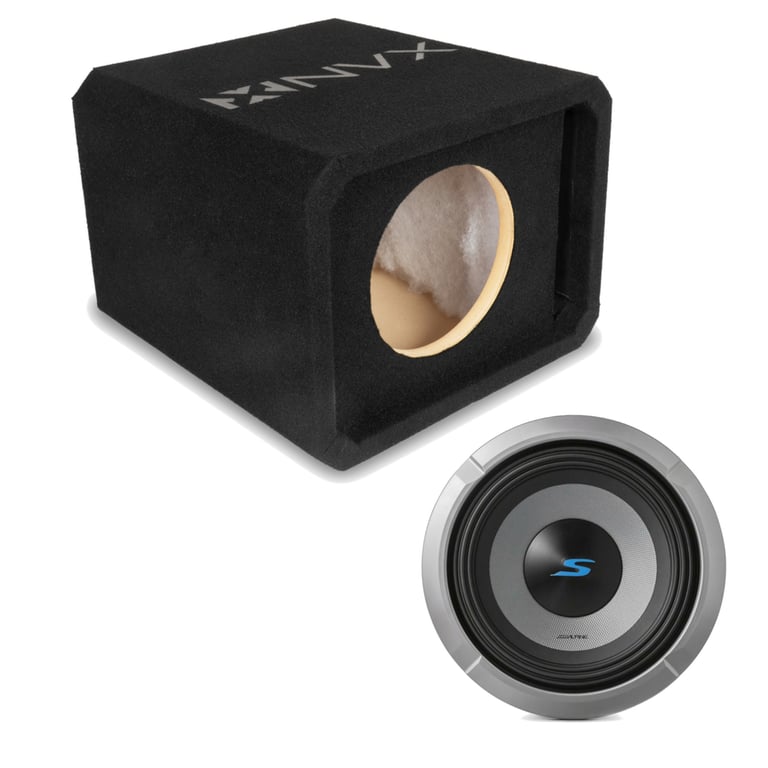

NVX NE81P w/ Alpine S2-W8D4

Product Details:

• Not compatible with NVX VC-Series Subwoofers

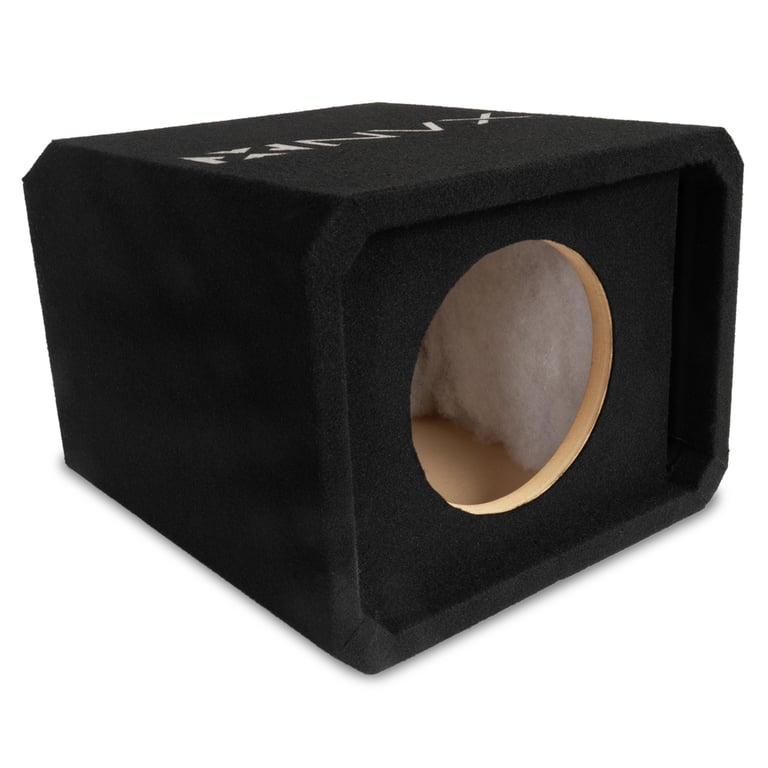

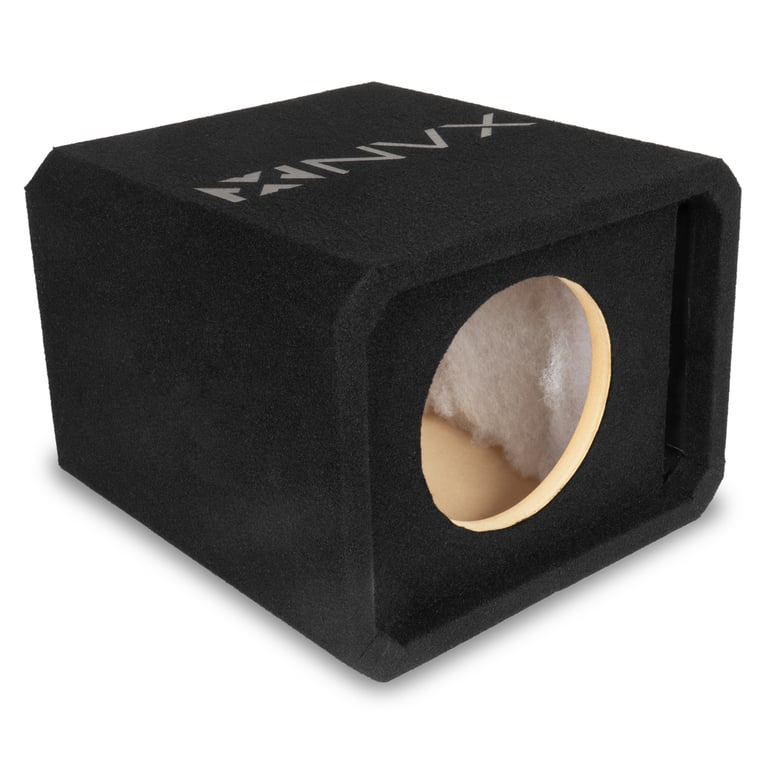

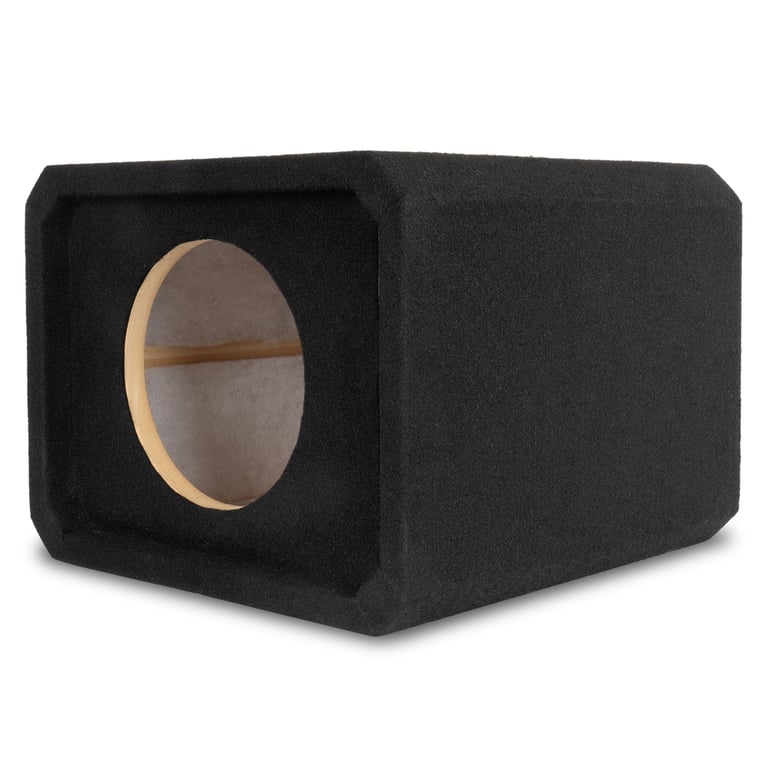

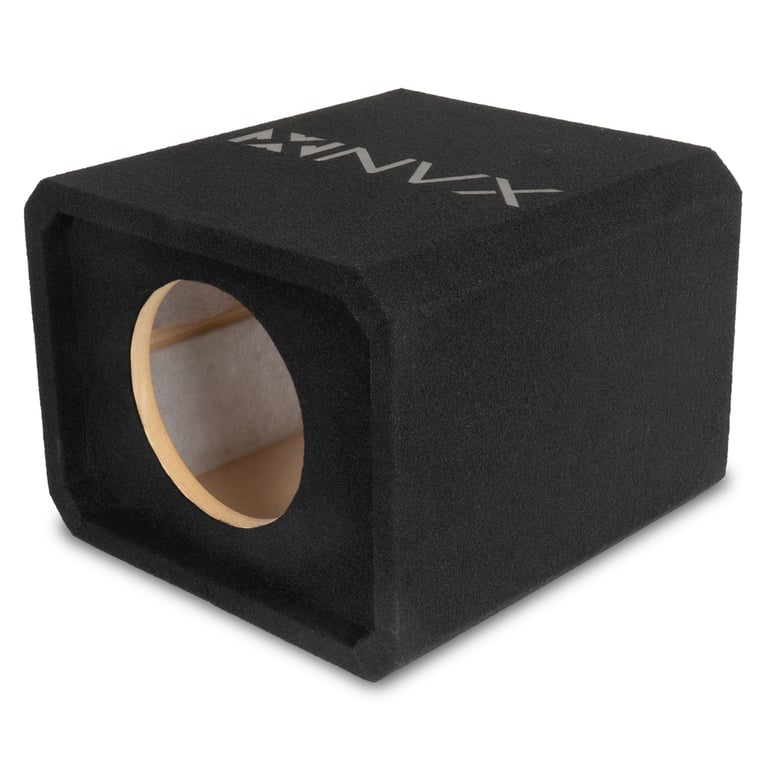

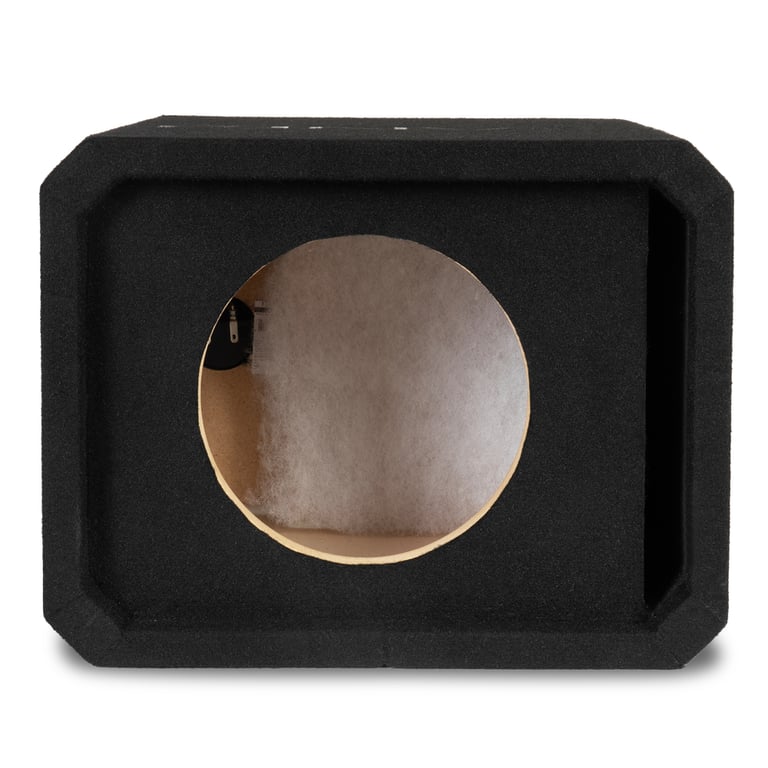

• 8" Single Ported Subwoofer Enclosure
• Made from 3/4" Medium Density Fiberboard (MDF) construction
• Built with precision CNC technology for exceptional accuracy
• Pre-lined with Poly-Fil for improved acoustic response
• Premium Black Carpet with Black NVX Logo

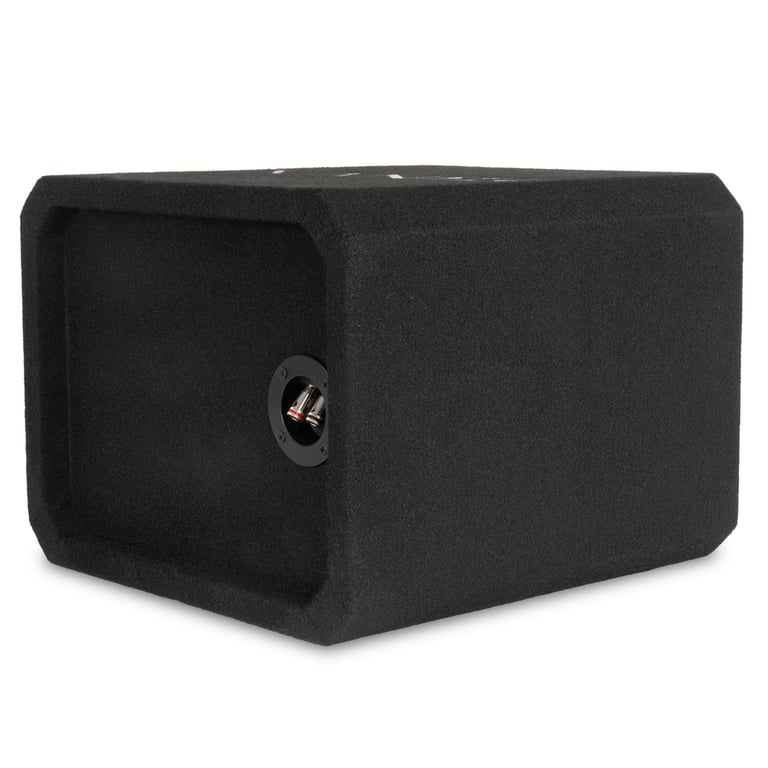

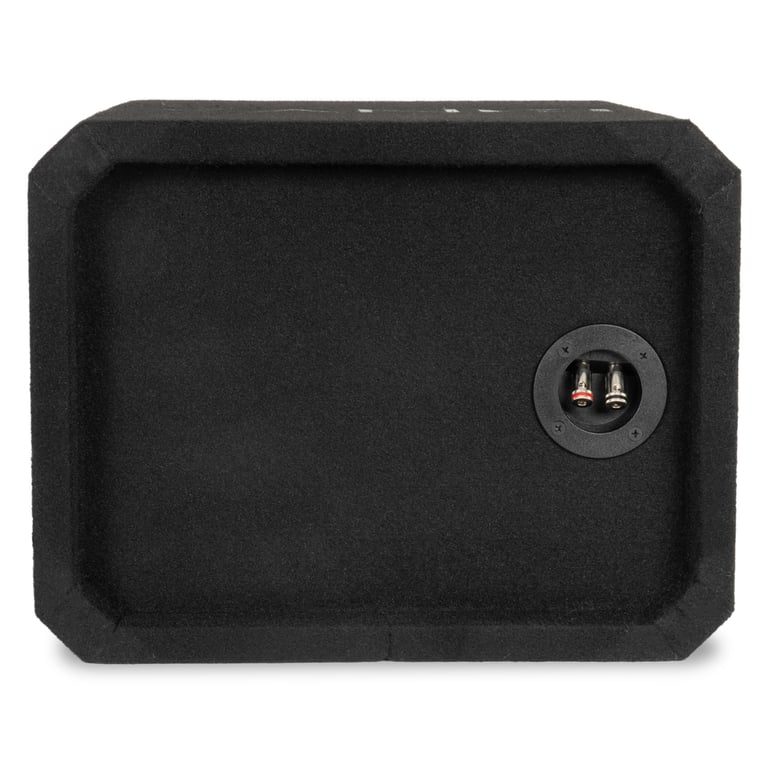

• Spring Loaded Push Terminals
• Maximum subwoofer mounting depth: 8-5/8"
• Subwoofer cutout diameter: 7-3/8"
• Internal box volume: .75 cubic feet
• Port Tuning Frequency (Fb): 38 Hz
• Dimensions: 15.25" D x 15.00" W x 11.50" H
• Authorized Internet Dealer
• 1-year Sonic Electronix Warranty

Port Specifications:

• Tuning Frequency: 38 Hz
• Port Width: 1"
• Port Height: 10"
• Port Length: 21"

Product Details:

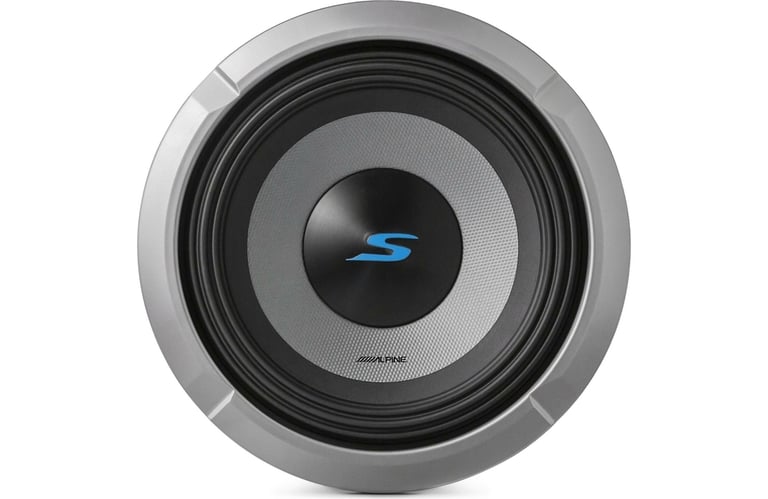

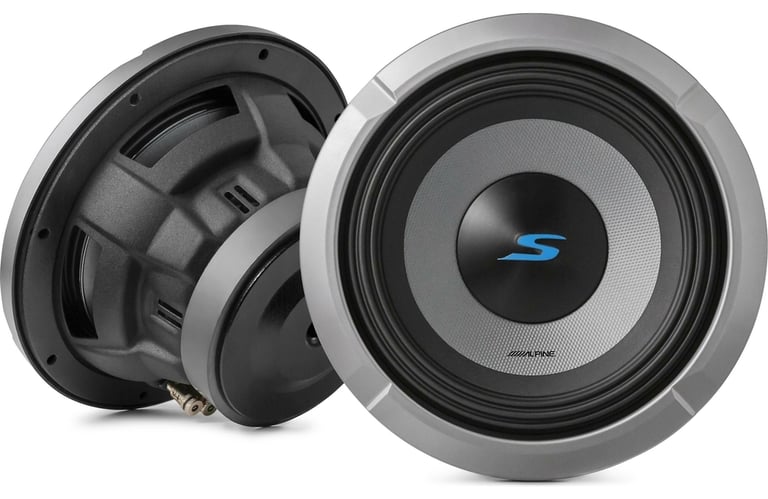

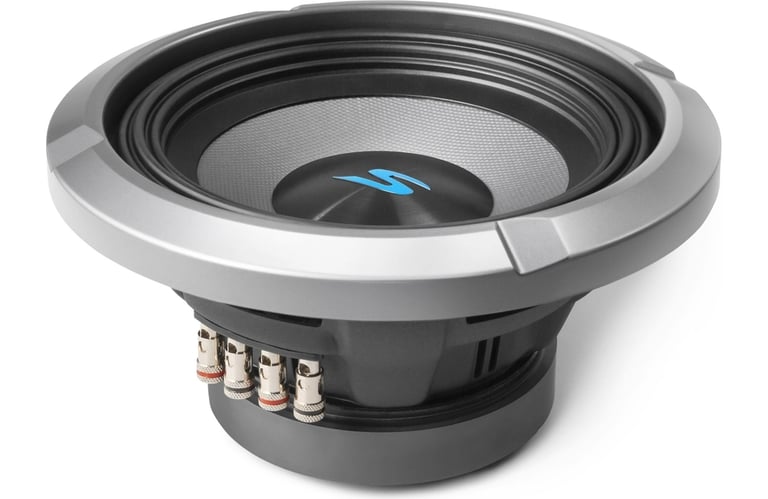

• 8" Dual 4 ohm S Series Subwoofer
• Power Handling:
• Peak: 900 watts
• RMS: 300 watts
• Carbon Fiber Polypropylene Cone
• Parabolic cone structure construction
• High-Amplitude Multi-Roll (HAMR) Surround
• Polypropylene ceramic dust cap
• Twist-lock grille system with no patent
• High strength steel frame for added durability
• Perimeter venting with airflow management system
• Compound radius curve extended pole geometry
• Airflow optimized dual flare pole vent
• Progressive spider with reinforced layer tinsel leads
• 1.4" High Temperature Copper Voice coil
• 5-layer voice coil winding on aluminum former
• High-excursion underhand voice coil configuration

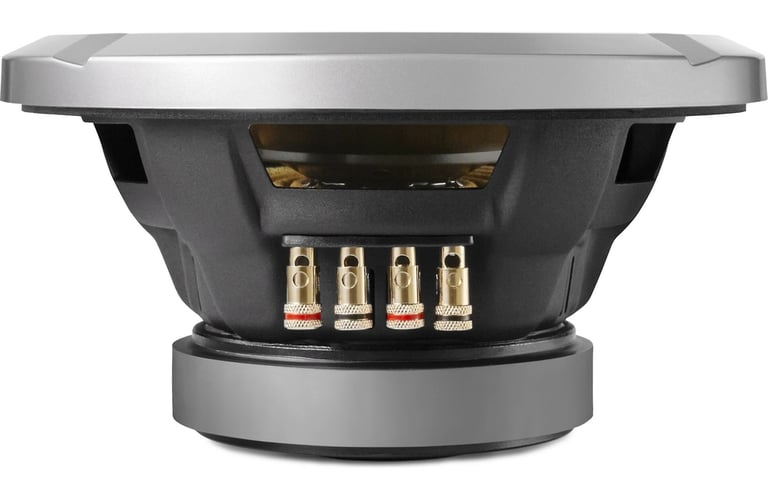

• 8-gauge push terminals with VC configuration jumpers
• 13 mm Xmax

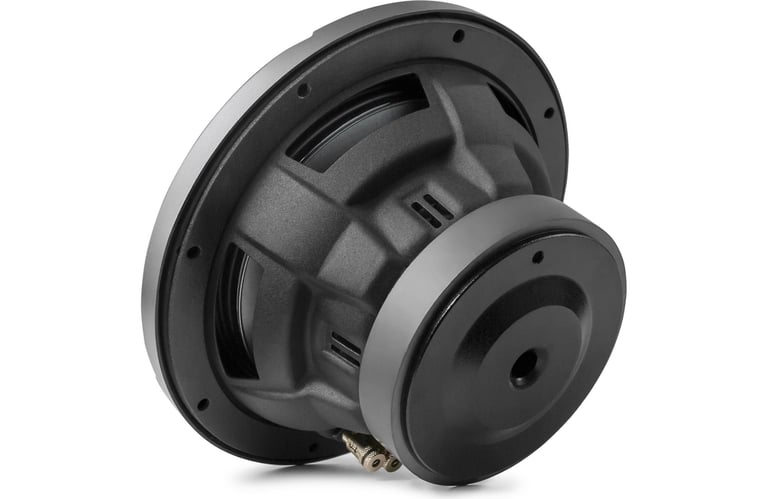

• 34 oz. Double Stacked Ferrite magnet motor structure
• Frequency Response: 23 - 215 Hz
• Resonance Frequency (Fs): 47.9 Hz
• Sensitivity: 82.7 dB
• Recommended sealed box volume: 0.15 cubic feet - 0.50 cubic feet
• Recommended ported box volume: 0.35 cubic feet - 0.70 cubic feet
• Top-mount depth: 3.71"
• Cutout diameter: 6.85"
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty



Priced Individually
