See all parts that fit your 2000 XJR

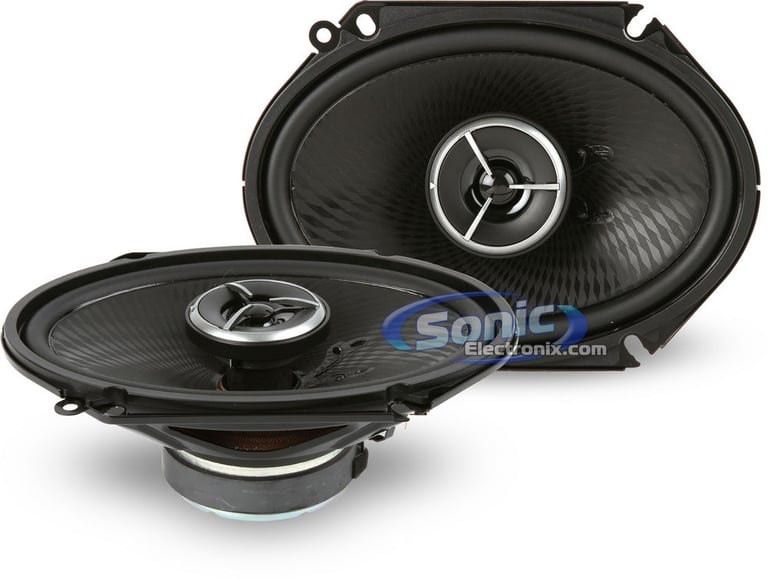

Kenwood eXcelon KFC-X683C

6" x 8" 2-way Speakers (also mounts in most 5" x 7" locations)

Kenwood
Shop all Kenwood
highlight-star-icon

• Peak Power: 180W
• RMS Power: 60W • Carbon-Polypropylene Cone Woofer • Butyl Rubber Surround • 3/4" PEI Dome Tweeter • 4 ohm Impedance • Top-mount depth: 2-9/16"

Learn more about the kfcx683c

We apologize

This item has been discontinued


Loading...
Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

Description


Kenwood brand icon

Authorized dealer


Complete eXcelon Performance
Kenwood eXcelon items are known for their quality construction and great sound. These Kenwood eXcelon KFC-X683C speakers are no different and continue that faithful legacy. Using the diamond array pattern on the carbon-polypropylene woofer diaphragm, the speakers gains more cone strength and improved acoustic response. Butyl rubber was chosen for the surround because of its smooth, linear cone support, as well as its durable composition. PEI Dome tweeters accompany the larger loudspeaker and result in crisp, clear highs that are not ear piercing. Each of these eXcelon speakers are carefully designed and engineered to produce the highest quality of sound so you can enjoy your music as it is meant to be heard.

General Features

  • 6" x 8" / 5" x 7" 2-way Speakers
  • Power Handling:
    • Peak: 360 watts per pair / 180 watts each
    • RMS: 120 watts per pair / 60 watts each
  • Carbon-polypropylene cone woofer
  • Butyl rubber surround
  • 1-3/16" PEI Balanced dome tweeter
  • Low distortion magnetic circuitry
  • 3 ohm impedance
  • Top-mount depth: 2-9/16"
  • CEA-2031 Compliant
  • 2-year Sonic Electronix warranty

Priced Per Pair

Product history:

Kenwood KFC-X683C thumbnail
(newest, current model)
Kenwood KFC-X682C thumbnail
(previous model, replaced by Kenwood eXcelon KFC-X683C)
Kenwood KFC-X680 thumbnail
(previous model, replaced by Kenwood eXcelon KFC-X682C)

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00


Best selling similar products

C1-570x small

JL Audio C1-570x

• 50 watts RMS Each
• 3/4" Silk-Suspended Aluminum Edge Driven Dome tweeters
• Mineral-Filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(4)

$129.99

List price $129.99

REF687F small

Infinity REF687F (INFSPKRF687FUS)

• 180 watts Peak Each, 60 watts RMS Each
• 1" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(1)

$129.95

List price $159.95

51KSC6804 small

Kicker KSC68 (51KSC6804)

• 150 watts Peak Each, 75 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(2)

$129.99

List price $149.99

Specifications & Details


Speaker Specifications
Series
eXcelon Series
Priced Per
Pair
Number of Speakers
2
Speaker Size
6" x 8" (also mounts in most 5" x 7" locations)
Design
2-way Coaxial
Tweeter Design
Dome
Tweeter Composition
PEI (Polyetherimide)
Woofer Composition
Carbon-Polypropylene Hybrid
Woofer Surround
Butyl Rubber
Peak Power Handling
180 watts
RMS Power Handling
60 watts
Sensitivity
88 dB
Frequency Response
80 - 21,000 Hz
Impedance (Per Voice Coil)
3 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-9/16"
Cutout Dimensions
7-3/8" x 5-1/16"
General specifications
Speaker Grilles
No
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

KFC-X683C

Weight:

4.80lbs

Internal SKU:

kfcx683c

Internal Product ID:

22942
