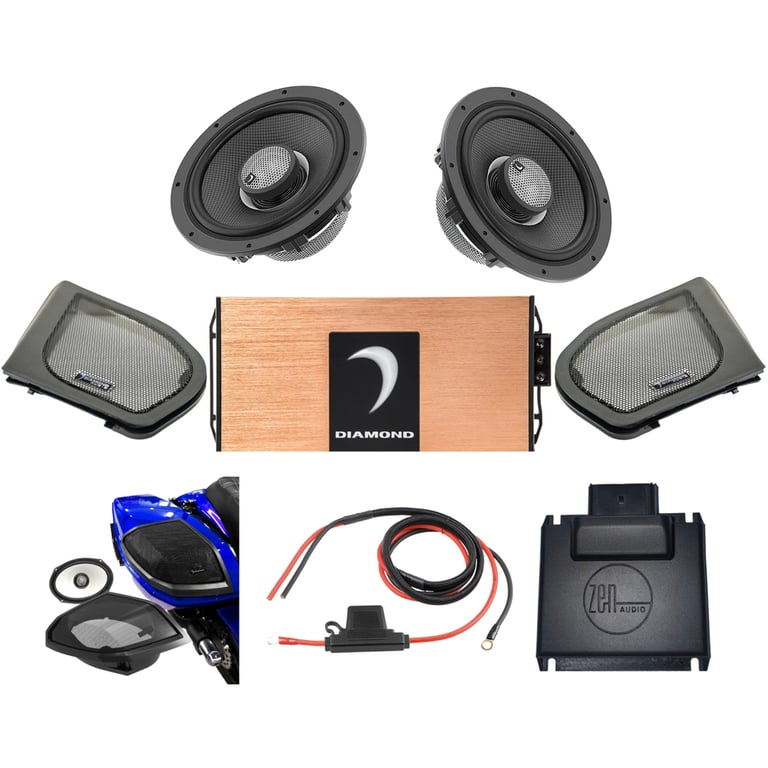

Diamond Audio 4-Speaker Sound Packs for 24+ HD Road Glide

Product Details:

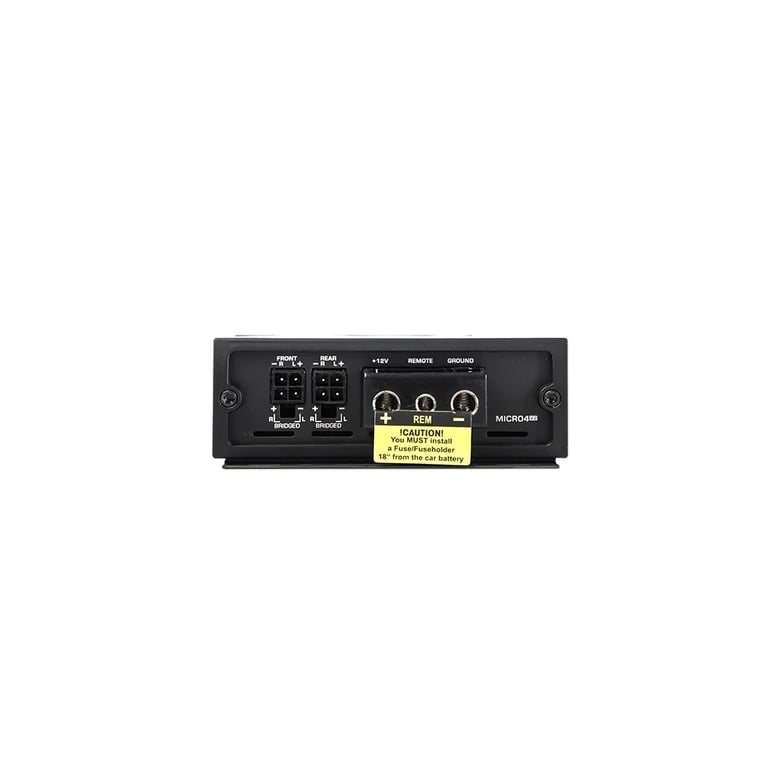

• Micro Series Class D 2 ohm Stable 4-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 80 watts x 4 channel
• 2 ohm: 150 watts x 4 channel
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS power output: 600 watts
• LED Power/Protect Light
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
• Selectable turn-on mode (Remote, DC Offset, Signal Sensing)
• Advanced rollback and thermal protection
• Full range Class D IR chipset
• DirectFET power MOSFET output stage
• SMD technology on 4-layer glass PC board
• ICAD circuit provides superior overload protection
• Variable 12dB crossovers
• Ultra-compact and versatile
• Bluetooth receiver enabled for Diamond Audio Datura/12 Bluetooth receivers only
• Input sensitivity: 200 mV - 10 volts
• Frequency Response: 20 - 30000 Hz
• Total Harmonic Distortion (THD): 0.5%
• Variable high-pass filter: 40 - 400 Hz
• Variable low-pass filter: 40 - 400 Hz
• Variable Bass Boost: 0 - 12 dB
• Fuse Rating: 40A
• 8 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 9.7" L x 4.0" W x 1.46" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: MICRO4V2

Product Details:

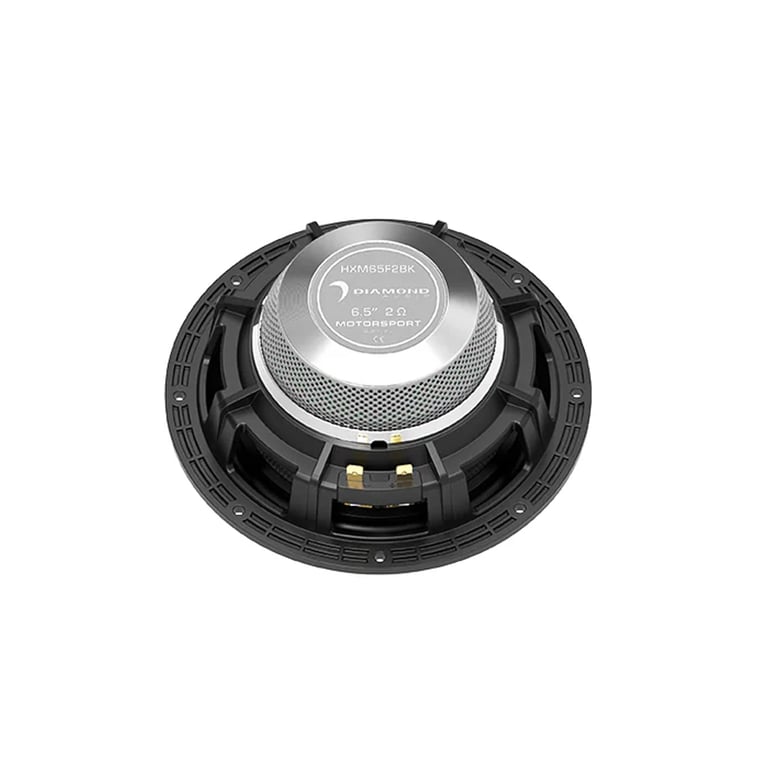

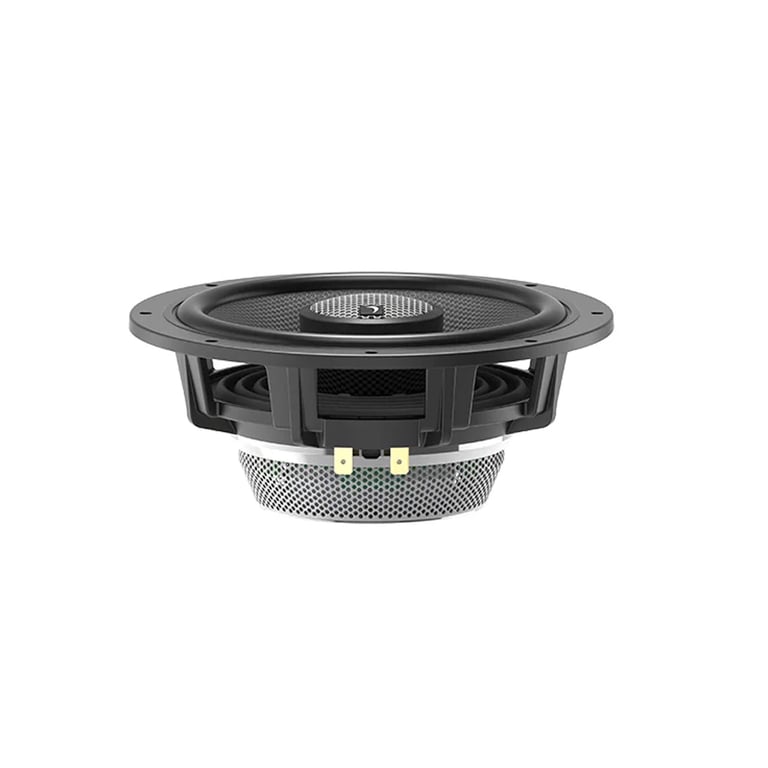

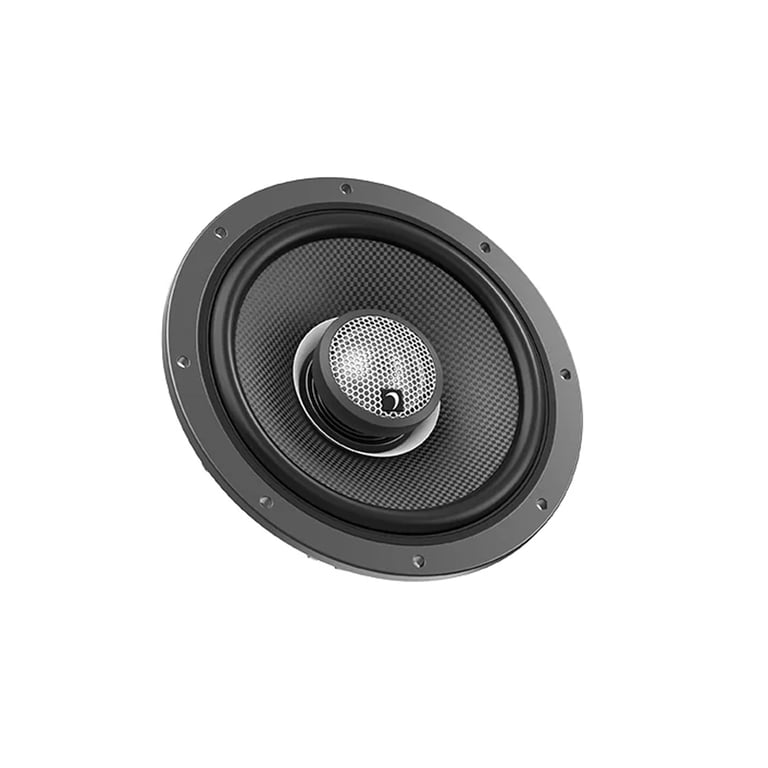

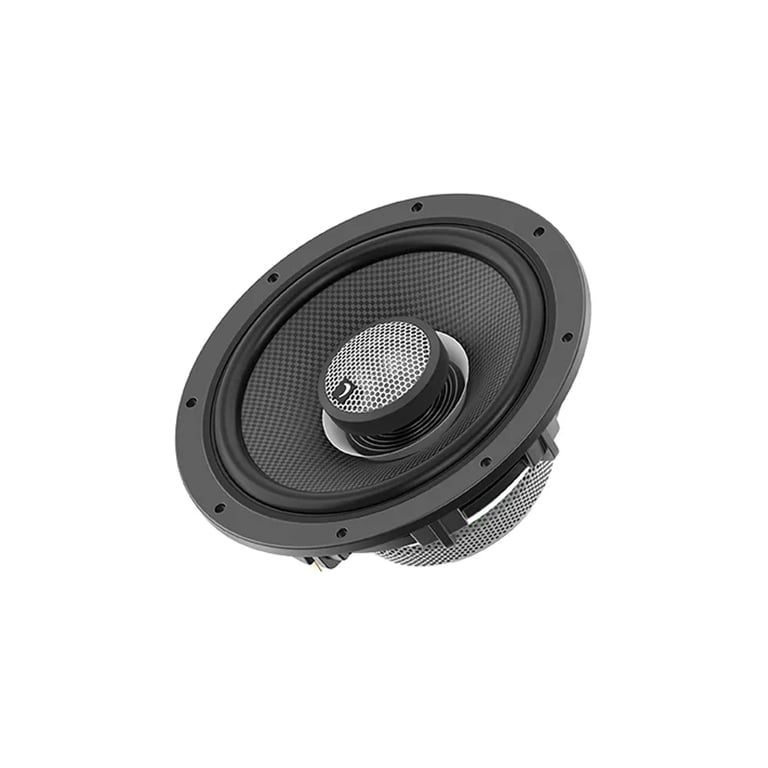

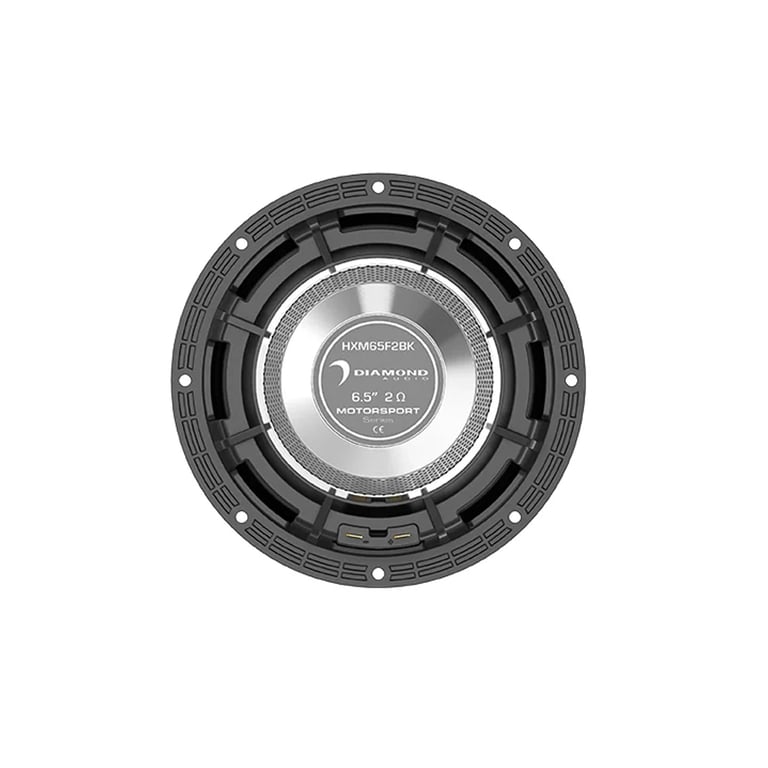

• 6-1/2" HXMF Series 2-way Coaxial Marine Speakers
• Power Handling:
• Peak: 750 watts per pair / 375 watts each
• RMS: 250 watts per pair / 125 watts each
• Carbon Fiber cone material
• Rubber speaker surround
• 1-1/2" Titanium Dome Tweeters
• 1.5" High temperature voice coil
• Ultralight neodymium magnet motor structure
• Motor structure includes max xmax suspension
• Flush or back mount design
• Water spray and salt water resistant, 100% UV stable
• Light weight injection molded composite basket
• Top-mount Depth: 2.51"
• Cutout Dimensions: 5.43"
• Impedance: 2 ohm
• Frequency Response: 110 - 20000 Hz
• Sensitivity: 95 dB
• Authorized Internet Dealer
• MFR #: HXM65F2BK
• 1-year Manufacturer's Warranty



Priced Per Pair

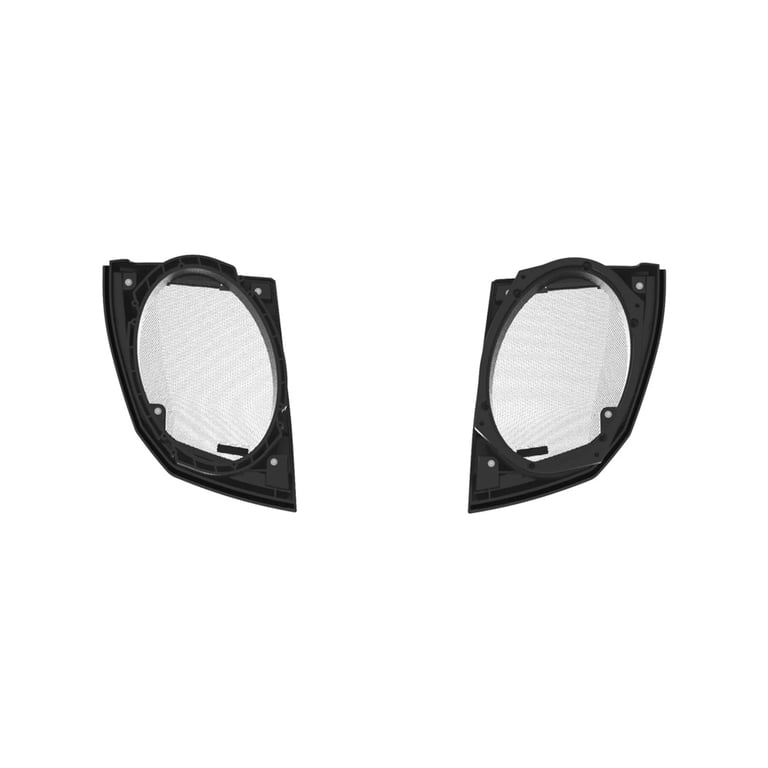

Product Features:

• Compatible with select 2024-2025 vehicles from Harley Davidson

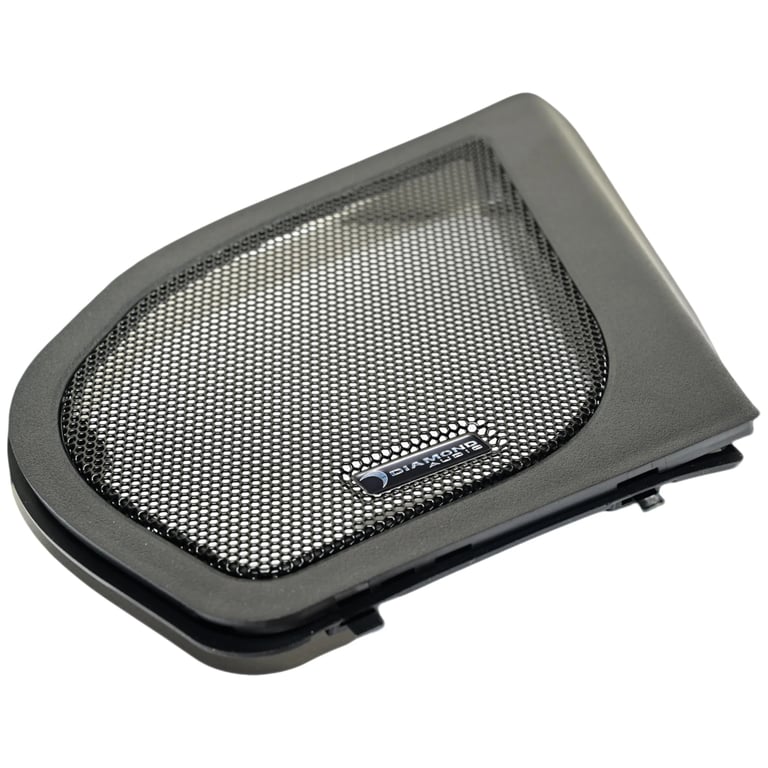

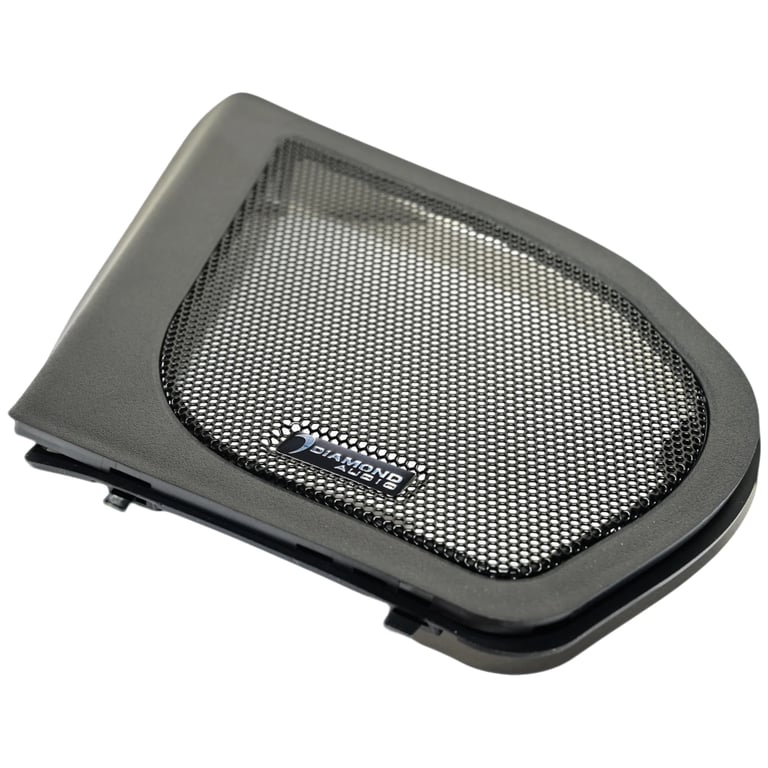

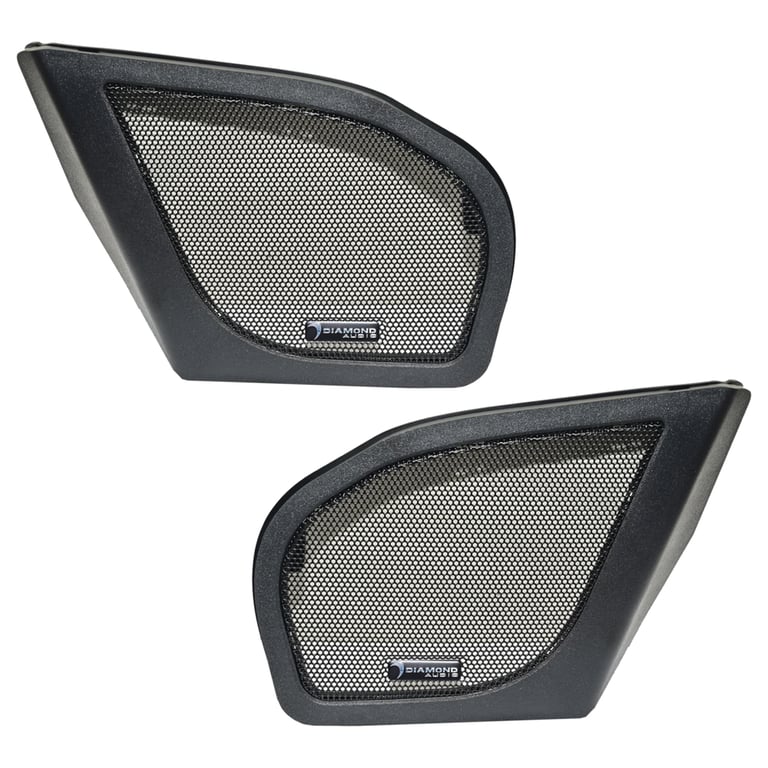

• Fairing speaker grilles
• Direct OEM replacement for stock Road Glide grilles
• Embossed Diamond Audio logo for custom look
• Easy installation, no modifications required
• Made with metal mesh for added durability
• Protects speakers from debris or potential damage
• Sold by pairs (2 grilles included)
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Details:

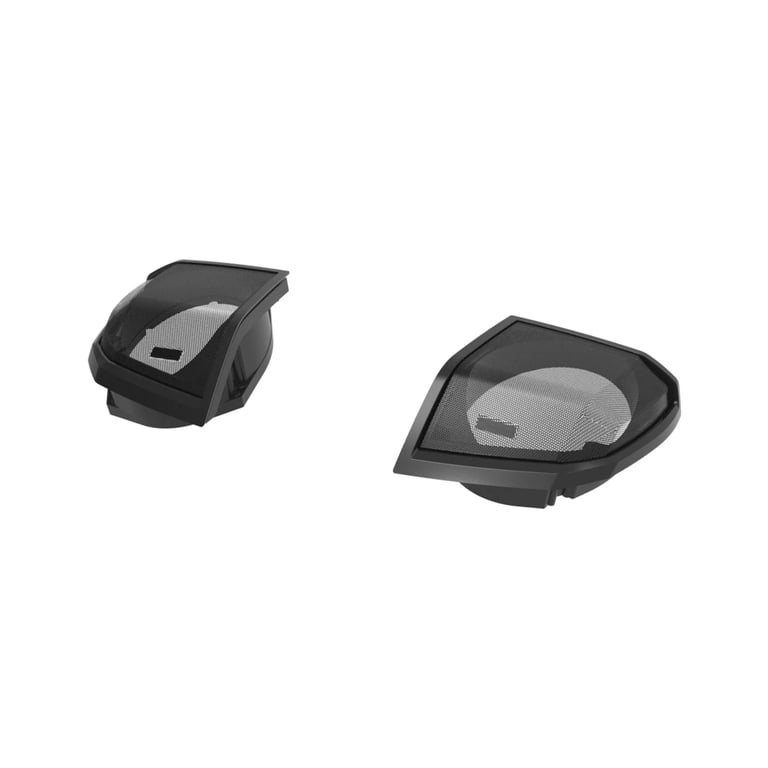

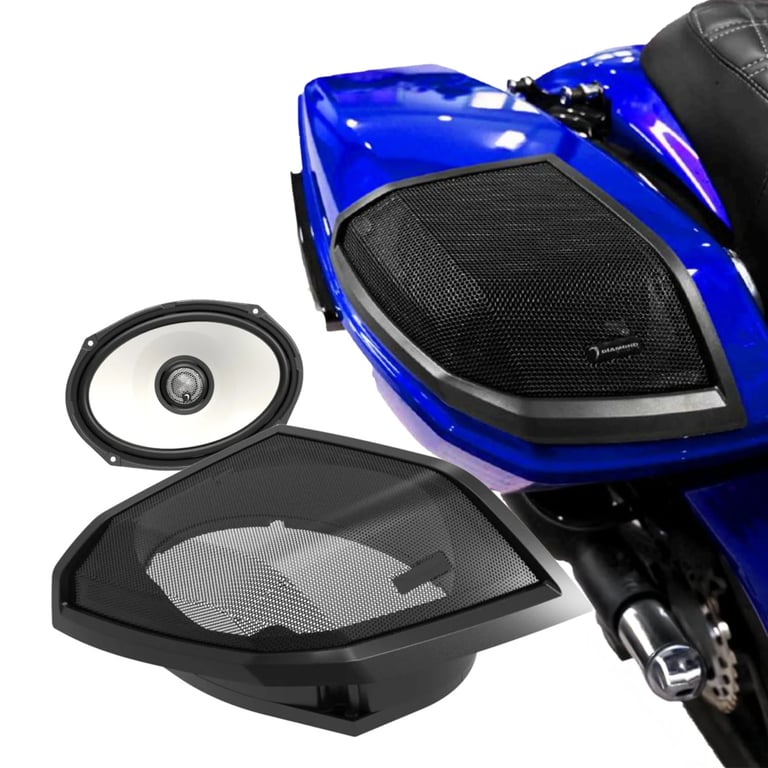

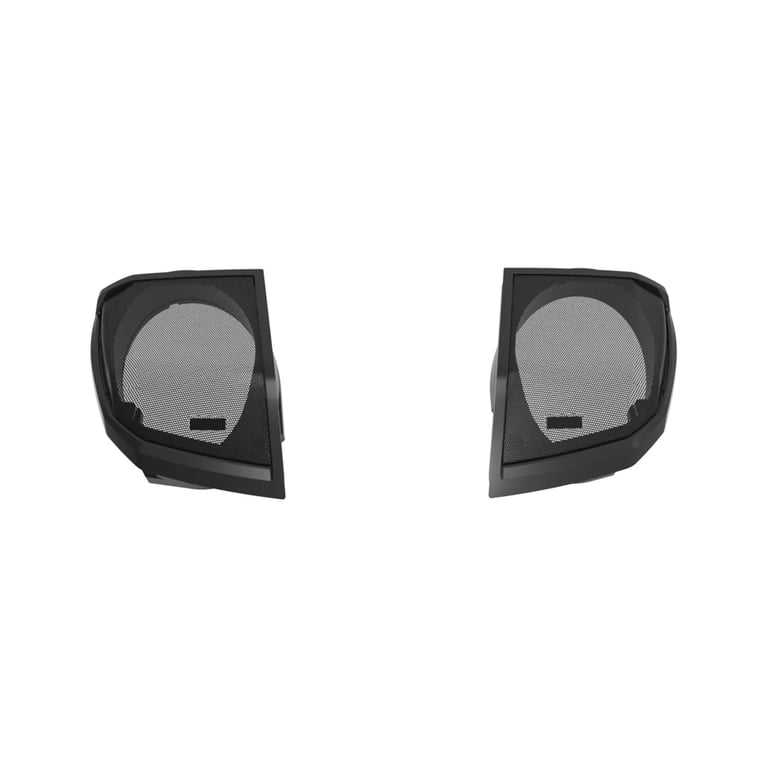

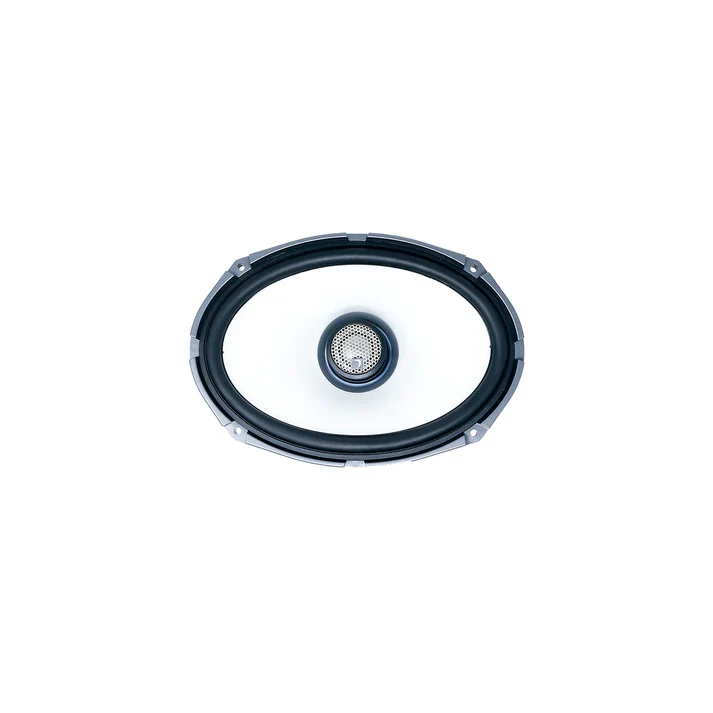

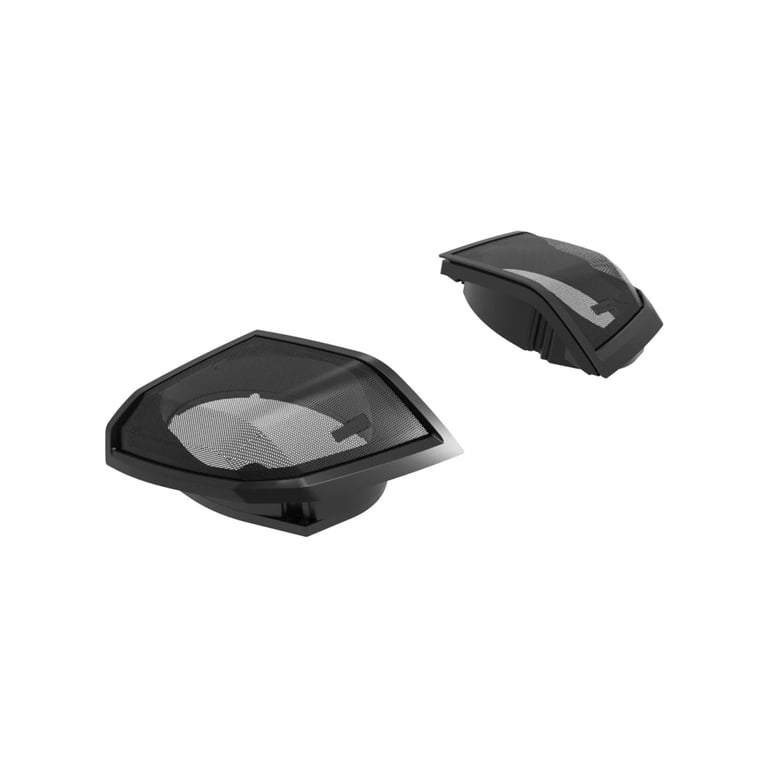

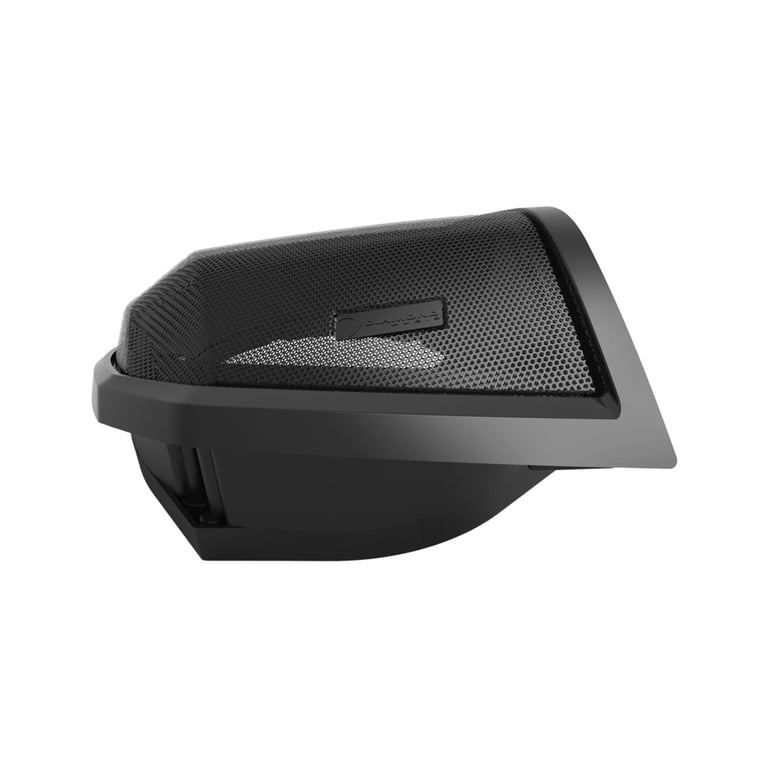

• 6x9" HXMF Series 2 Way Coaxial Harley Davidson Cut-in Speaker Lid Kit
• Loaded with two Diamond Audio HXM69F2 speakers
• Compatible with select 2024-2025 vehicles from Harley Davidson
• Power Handling:
• Peak: 600 watts per pair / 300 watts each
• RMS: 300 watts per pair / 150 watts each
• Injection Molded Polypropylene cone material
• UV Treated Foam speaker surround
• 1" Titanium Dome Tweeters
• Ultra small Neodymium magnet motor structure
• Flush mount design speakers
• Water resistant speakers, 100% UV ray protected
• High temperature injection molded composite basket
• Integrated dream RGB LED lighting
• Lighting customizable via LED remote
• LED remote: Diamond Audio DALEDLC (sold separately)
• Top-mount Depth: 3.15"
• Cutout Dimensions: 8.64" x 6.0"
• Impedance: 2 ohm
• Frequency Response: 60 - 18000 Hz
• Sensitivity: 97 dB
• Speaker grilles (optional, sold separately):
• Regular black: Diamond Audio HXM69FBB
• Regular white: Diamond Audio HXM69FWW
• Brushed aluminum black: Diamond Audio HXM69FGB
• Brushed aluminum white: Diamond Audio HXM69FGW
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Details:

• 8 gauge Complete Power Amplifier Installation Kit
• Designed specifically for motorcycle audio systems up to
• Premium power and ground wire provides optimal power transfer
• Made from OFC (100% Oxygen-Free Copper)
• Complete power kit for fairing mounted amplifier on any Harley Davidson or bikes
• Easy connection of ring terminals to battery
• Terminals are Nickel for excellent signal transfer
• ATC Fuse holder offers ideal protection for powered systems
• True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Package Includes:

1. 6 feet of 8 gauge red power cable
2. 5 feet of 8 gauge black ground cable
3. 1 feet of 18 gauge blue remote turn-on wire
4. 3 feet braided loom to cover wire from battery to fairing
5. (1) 8 gauge in-line ATC fuse holder
6. (1) 60A ATC maxi fuse
7. (1) 8 gauge red ring terminal installed
8. (1) 8 gauge black ring terminal installed

Product Details:

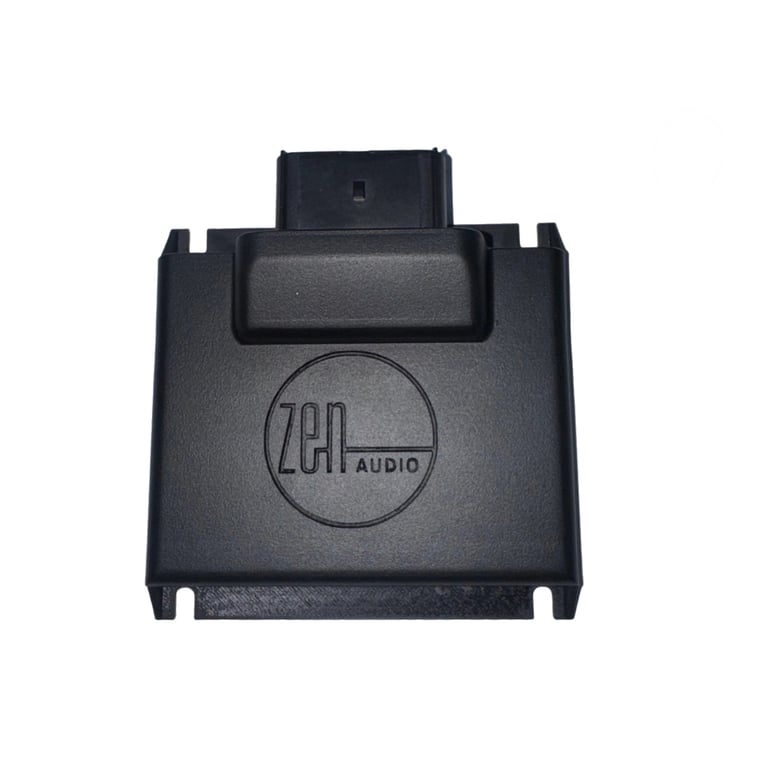

• Amplifier integration interface for Harley-Davidson motorcycles
• Compatible with select 2024-2025 vehicles from Harley Davidson
• Allows for the addition of aftermarket amplifiers to the factory stereo
• Connects via its low-level 8-channel analog RCA outputs
• Retains the factory chimes
• Retains volume control, fader, balance and equalizer presets
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
