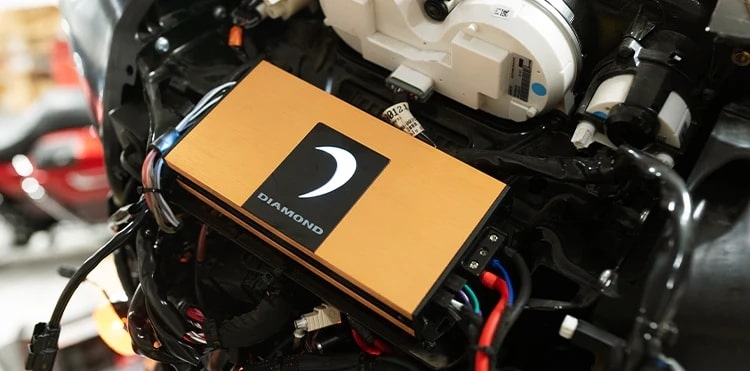

Diamond Audio MICRO4V2

600W Peak Series Class-D 4-Channel Compact Amplifier

Diamond Audio
Shop all Diamond Audio
Only 1 Left!
highlight-star-icon

• 80 watts x 4 channel @ 4 ohms
• 150 watts x 4 channel @ 2 ohms
• Bridged: 300 watts x 2 channel @ 4 ohms
• Total RMS Power: 600 watts
• Class D 2 ohms Stable 4-Channel Amplifier

Learn more about the micro4v2
Was $499.99 Details
Thanks , You Pay:

$399.99

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one micro4v2.

Set your vehicle or Return to product page
shipping truck icon
FREE 3-day shipping to VA. Get it Tue, Oct. 3
Quantity
In Stock. Only 1 Left!
Brand new

Buy it now

×

Buy Now with Credit Card

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7
Offered by Allstate

For over 23 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

AwardWinning
Award-Winning Service
Shipping
FREE Shipping Orders $49+
60Days
60-Day Easy Returns
lowestPrice
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description

Diamond Audio

Product Details:

  • Micro Series Class D 2 ohms Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 80 watts x 4 channel
    • 2 ohms: 150 watts x 4 channel
    • Bridged: 300 watts x 2 channel @ 4 ohms
  • Total power output: 600 watts
  • LED Power/Protect Light
  • Wired bass level remote control included
  • Speaker-level (high-level) inputs
  • Full Range Class D IR Chipset
  • DirectFET Power Mosfet Output Stage
  • SMD Technology on 4 layer Glass PC Board
  • ICAD circuit provides superior overload protection
  • BTR (BlueTooth Receiver enabled)

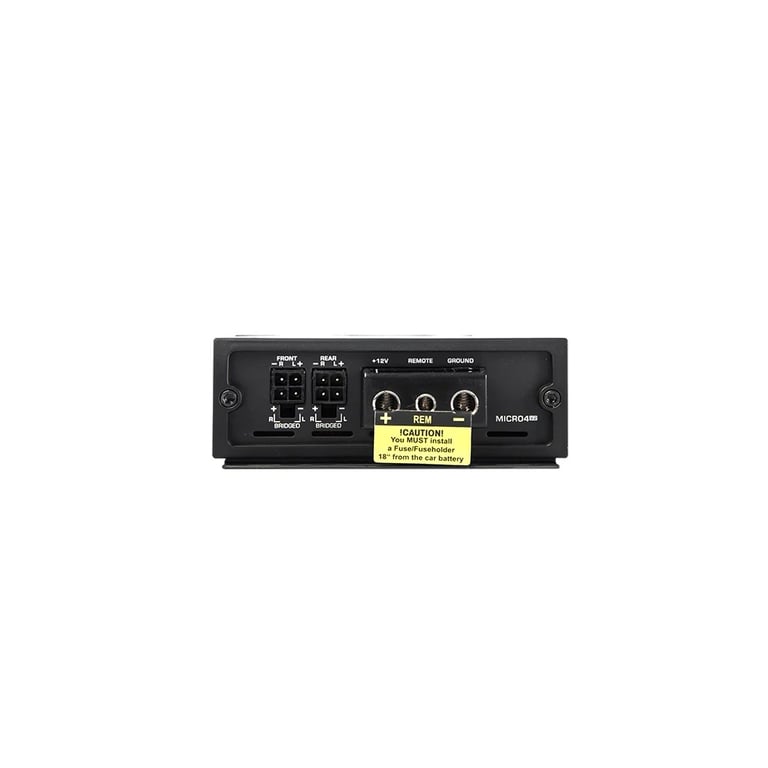

  • Premium 8 and 4 gauge power connections
  • Input sensitivity: 0.20 - 10 volts
  • Frequency Response: 20 - 350 Hz
  • Total Harmonic Distortion (THD): .5%

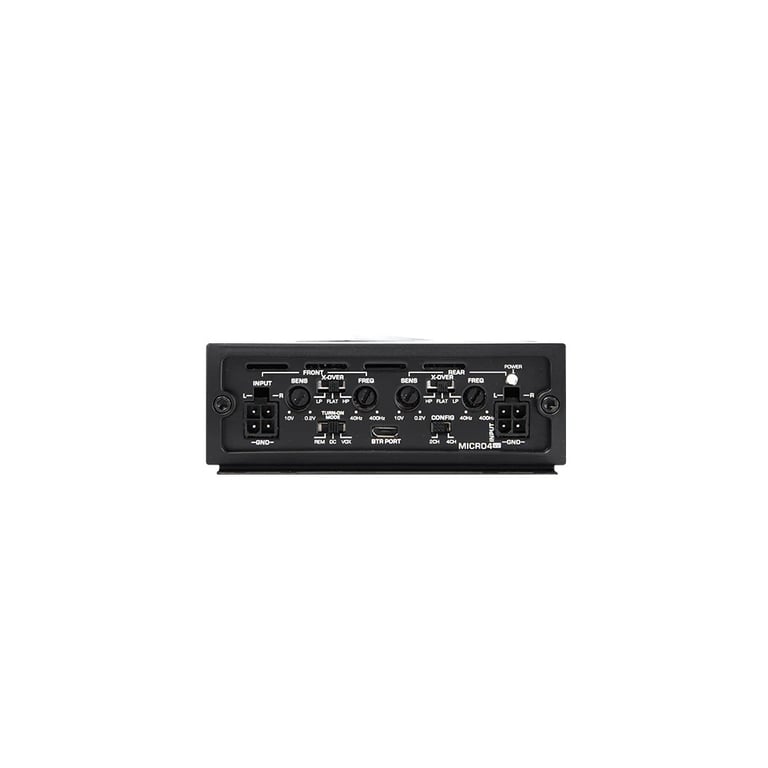

  • Variable high-pass filter: 40 - 400 Hz
  • Variable low-pass filter: 40 - 400 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 40A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 9.7" L x 4.0" W x 1.46" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: MICRO4V2

Specifications & Details

Key Features
Amplifier Key Features
Compact Design
Speaker Level Inputs
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
80 watts x 4 channel
RMS Power @ 2 ohms
150 watts x 4 channel
Bridged RMS Power
300 watts x 2 channel
Amplifier Specifications
Series
Micro Series
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Frequency Response
20 - 350 Hz
THD at Rated RMS Power
.5%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 400 Hz
Low-Pass Crossover Frequency
40 - 400 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Total Fuse Rating
40
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
Yes
Low-Level Input Sensitivity
0.20 - 10 volts
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Diamond Audio

Model Number:

MICRO4V2

Weight:

5.00lbs

Internal SKU:

micro4v2

Internal Product ID:

174447
