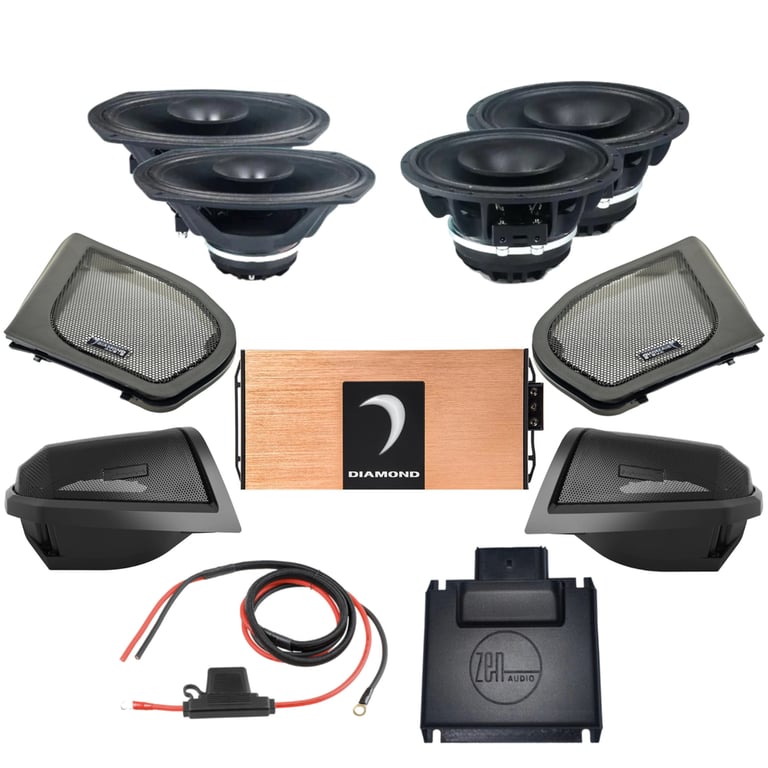

Diamond Audio 4-Speaker Sound Packs For 24+ Hd Road Glide

Product Details:

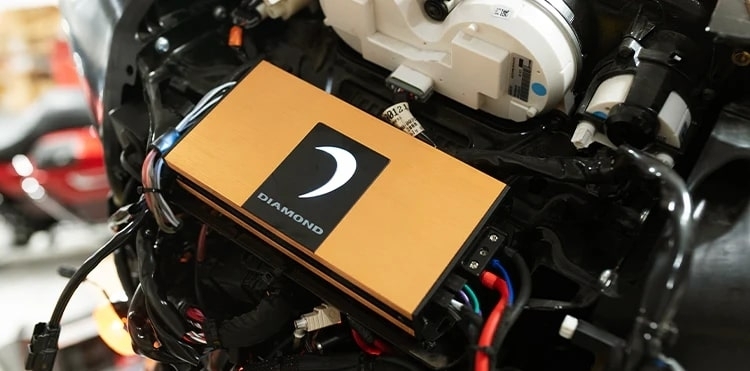

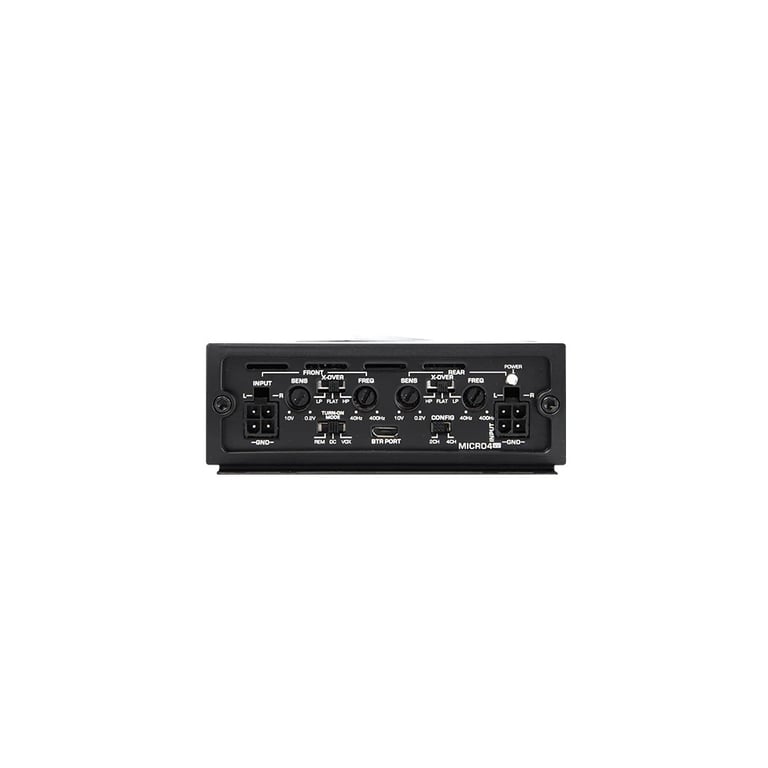

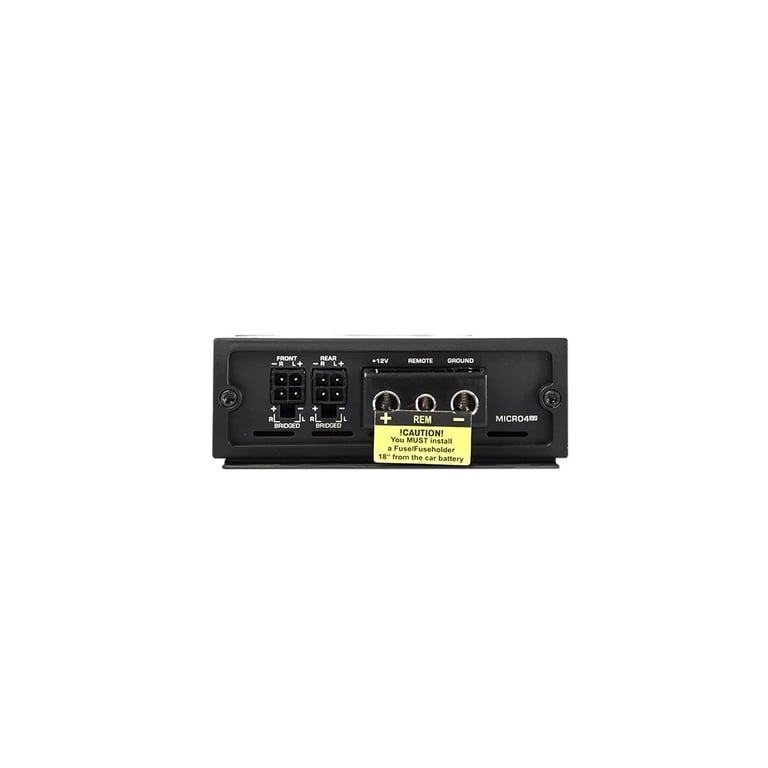

• Micro Series Class D 2 ohm Stable 4-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 80 watts x 4 channel
• 2 ohm: 150 watts x 4 channel
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS power output: 600 watts
• LED Power/Protect Light
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
• Selectable turn-on mode (Remote, DC Offset, Signal Sensing)
• Advanced rollback and thermal protection
• Full range Class D IR chipset
• DirectFET power MOSFET output stage
• SMD technology on 4-layer glass PC board
• ICAD circuit provides superior overload protection
• Variable 12dB crossovers
• Ultra-compact and versatile
• Bluetooth receiver enabled for Diamond Audio Datura/12 Bluetooth receivers only
• Input sensitivity: 200 mV - 10 volts
• Frequency Response: 20 - 30000 Hz
• Total Harmonic Distortion (THD): 0.5%
• Variable high-pass filter: 40 - 400 Hz
• Variable low-pass filter: 40 - 400 Hz
• Variable Bass Boost: 0 - 12 dB
• Fuse Rating: 40A
• 8 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 9.7" L x 4.0" W x 1.46" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: MICRO4V2

Product Details:

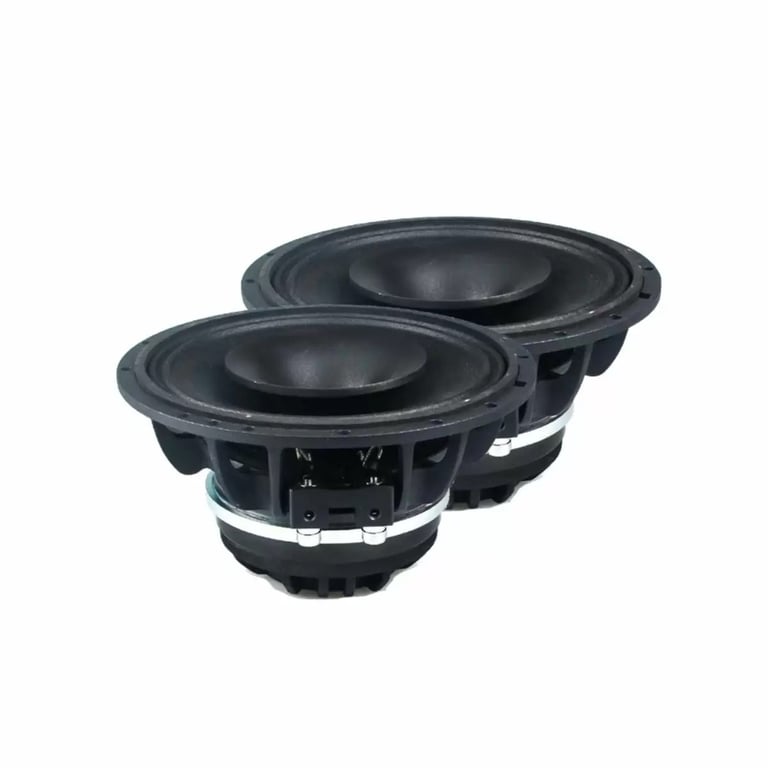

• 6-1/2" MotorSport Series 2-way Coaxial Car and Powersports Speakers
• Power Handling:
• Peak: 1000 watts per pair / 500 watts each
• RMS: 500 watts per pair / 250 watts each
• 1" Horn tweeters
• 1.5" single layer high-temp voice coil former for woofer
• 1" single layer high-temp voice coil former for tweeter
• Advanced voice coil heat sink design
• Ferrite Strontium magnet motor structure
• Heavy duty die-cast aluminum basket
• Top-mount Depth: 3.33"
• Cutout Dimensions: 5.73"
• Frequency Response: 110 - 18000 Hz
• Sensitivity: 101 dB
• Impedance: 2-ohm
• Water-resistant, but not waterproof, and can be damaged by large amounts of water
• Authorized Internet Dealer
• MFR #: MP652
• 1-year Manufacturer's Warranty



Priced Per Pair

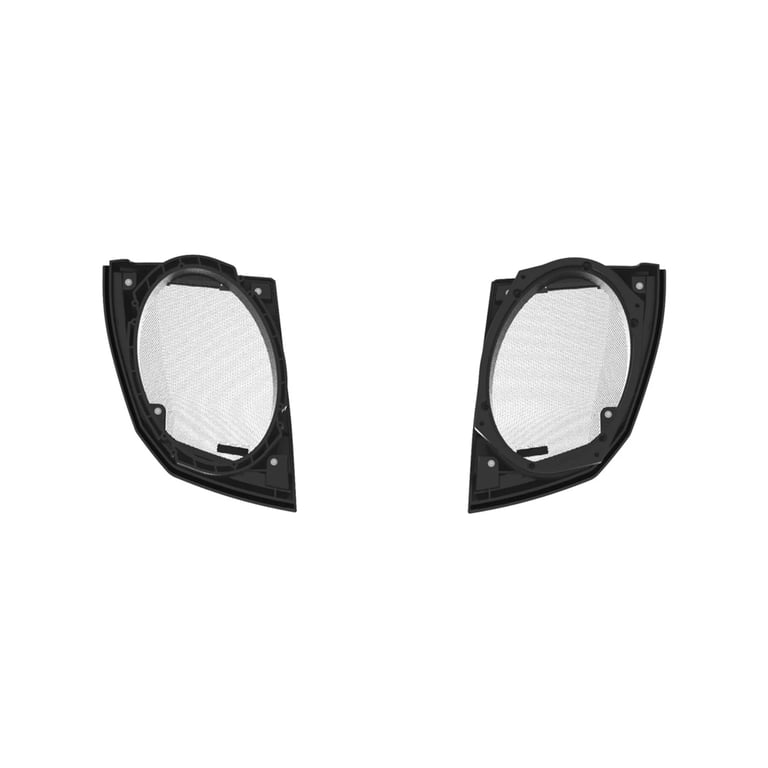

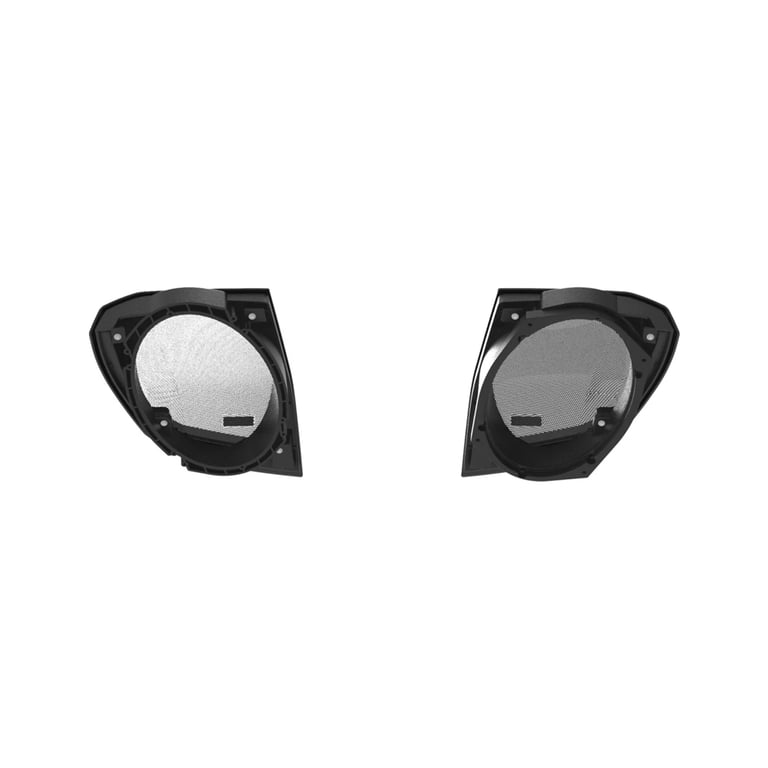

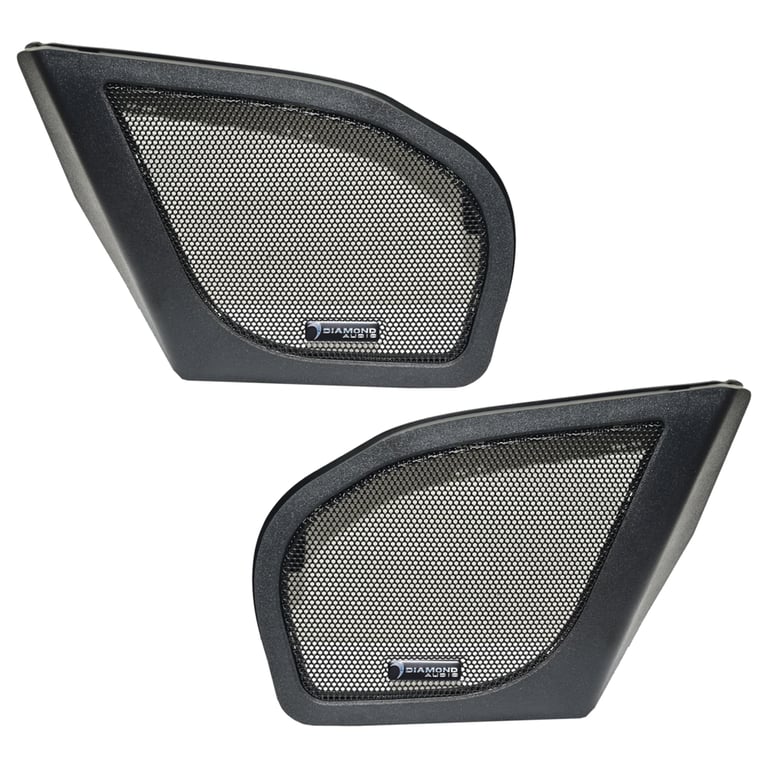

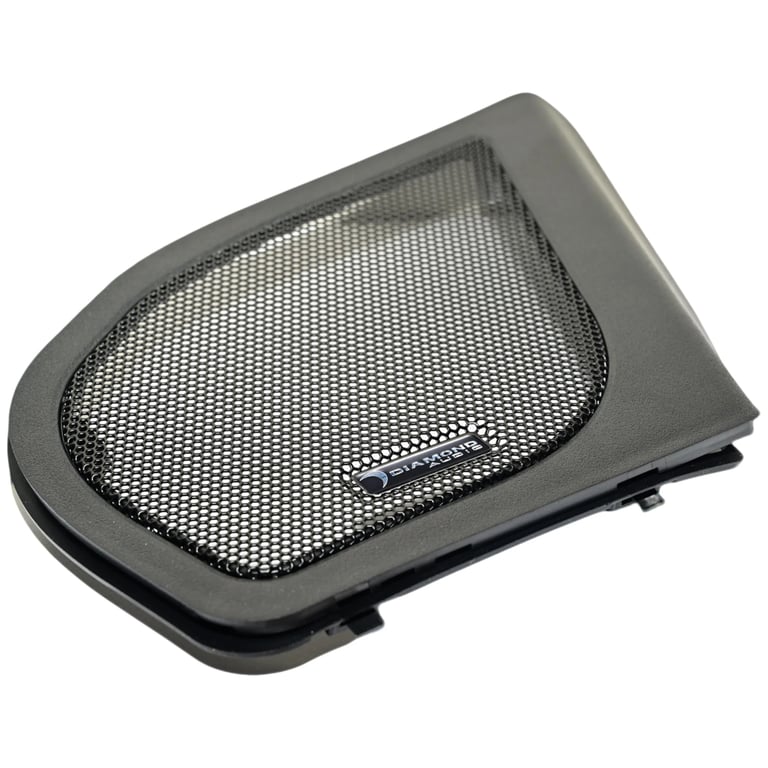

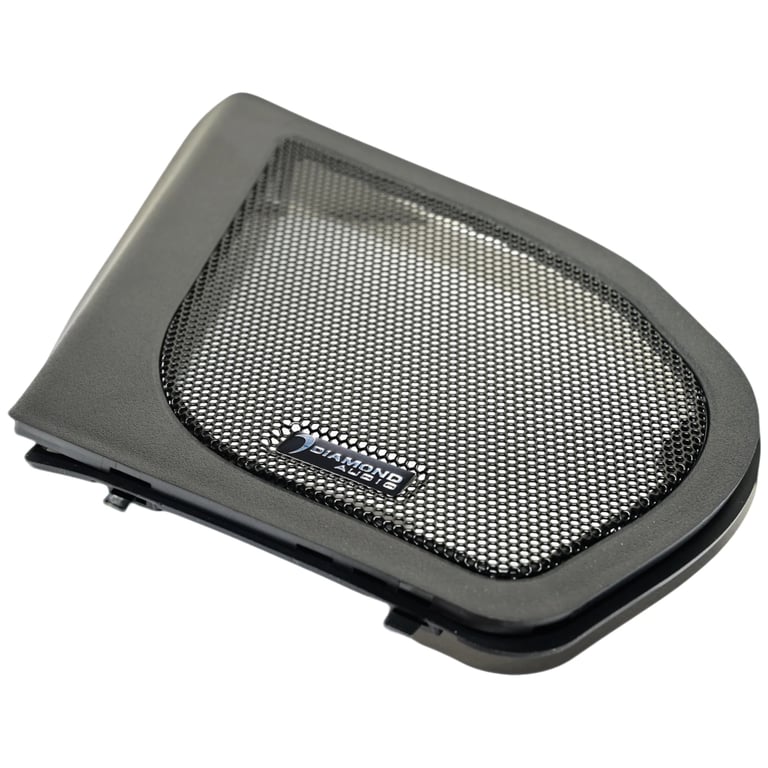

Product Features:

• Compatible with select 2024-2025 vehicles from Harley Davidson
• Fairing speaker grilles
• Direct OEM replacement for stock Road Glide grilles
• Embossed Diamond Audio logo for custom look
• Easy installation, no modifications required
• Made with metal mesh for added durability
• Protects speakers from debris or potential damage
• Sold by pairs (2 grilles included)
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

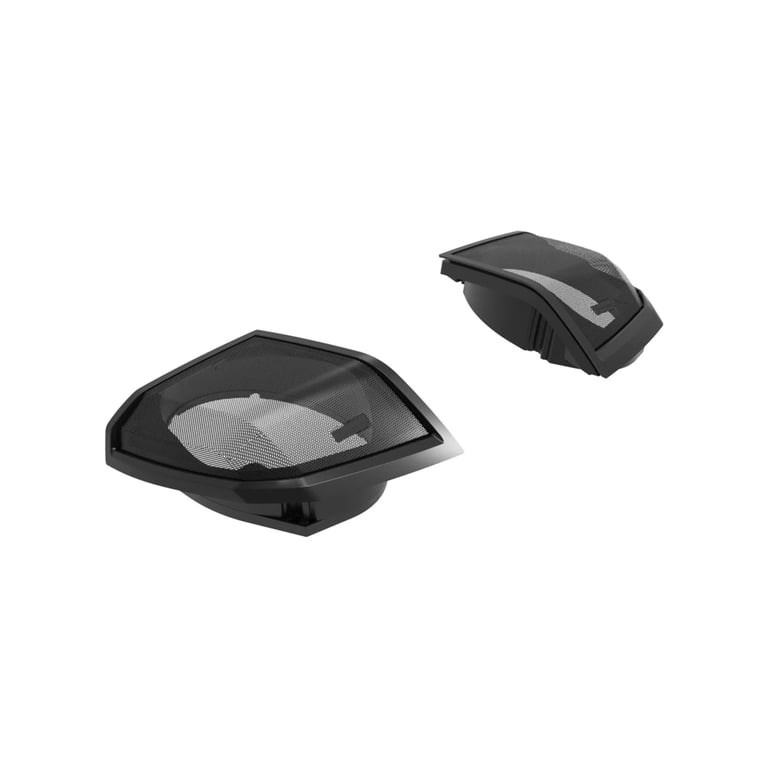

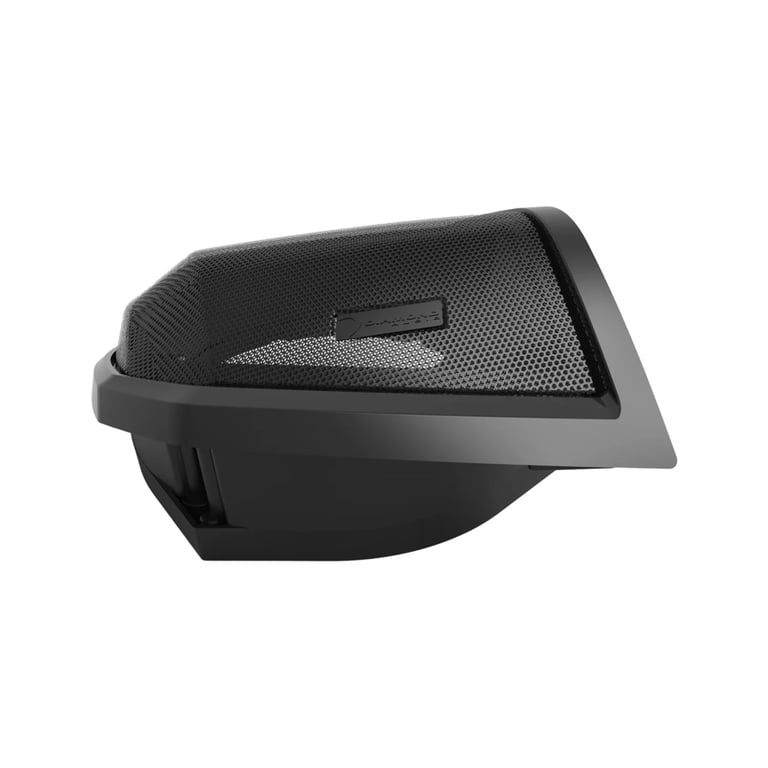

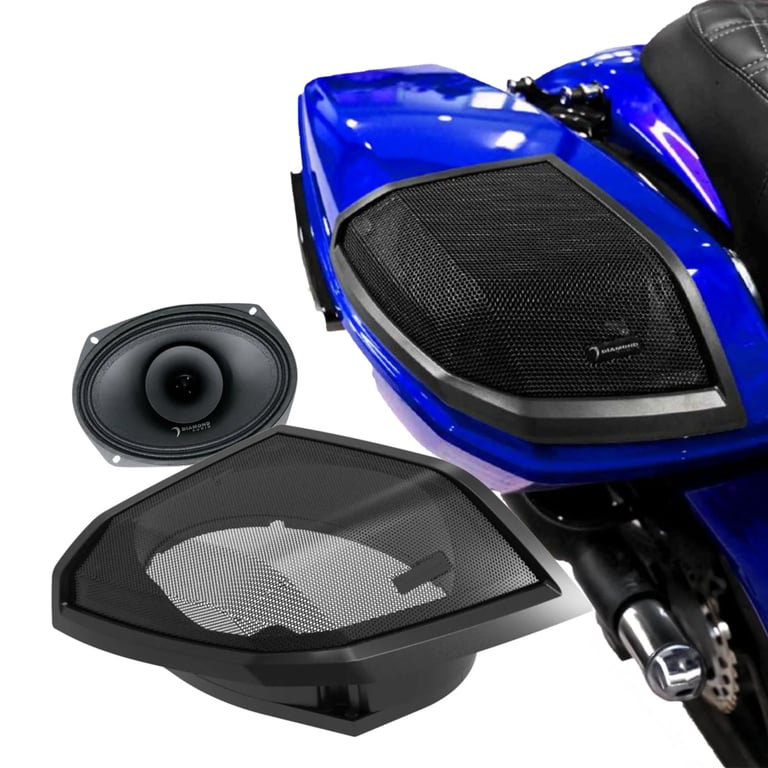

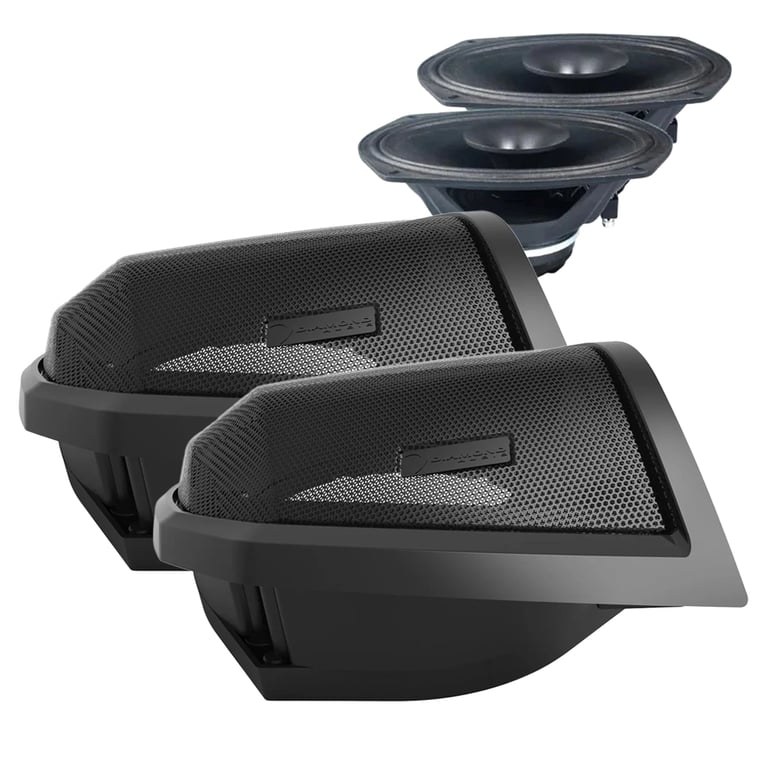

Product Details:

• Includes Diamond Audio MP 692 speakers
• Direct connect wiring harness
• Includes all installation hardware and grilles
• Includes pre-cut mounting templates
• Allows higher power handling for massive sound projection
• Weather and water resistant
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: MSMP692LK24

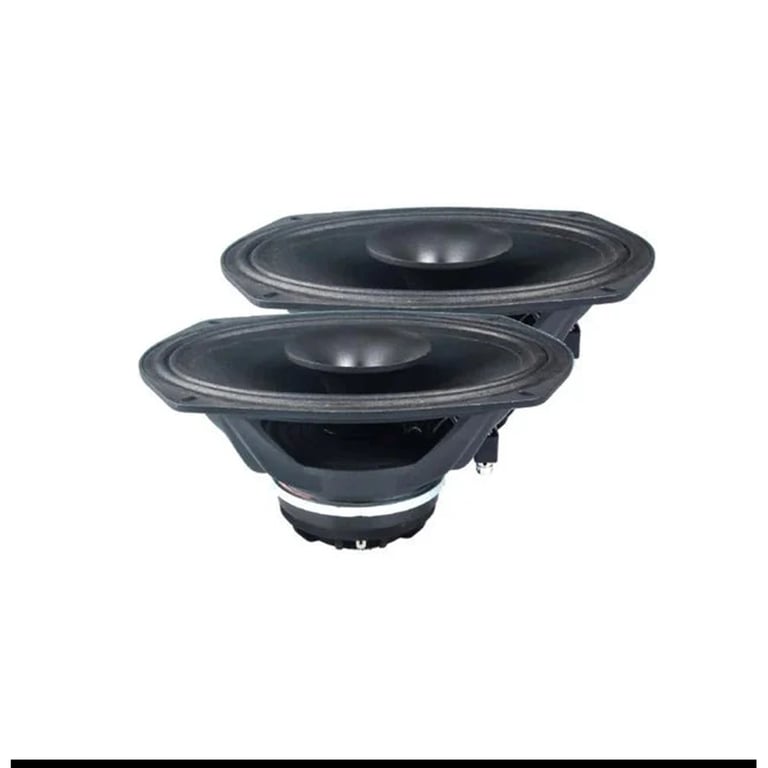

Speaker Details:

• 6" x 9" 2-way Coaxial Weather Resistant Speakers
• Power Handling:
• Peak: 1000 watts per pair / 500 watts each
• RMS: 500 watts per pair / 250 watts each
• Horn Tweeters with replaceable tweeter diaphragm
• Ferrite strontium high temperature magnet motor structure
• Heavy duty die cast aluminum basket
• Advanced voice coil heat sink design
• 1.5" Single layer high temperature woofer voice coil
• 1" Single layer high temperature tweeter voice coil
• Black coated voice coil former for woofer and tweeters
• Impedance: 4 ohm
• Frequency Response: 80 - 18000 Hz
• Sensitivity: 101 dB



Priced Per Pair

Product Details:

• 8 gauge Complete Power Amplifier Installation Kit
• Designed specifically for motorcycle audio systems up to
• Premium power and ground wire provides optimal power transfer
• Made from OFC (100% Oxygen-Free Copper)
• Complete power kit for fairing mounted amplifier on any Harley Davidson or bikes
• Easy connection of ring terminals to battery
• Terminals are Nickel for excellent signal transfer
• ATC Fuse holder offers ideal protection for powered systems
• True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Package Includes:

1. 6 feet of 8 gauge red power cable
2. 5 feet of 8 gauge black ground cable
3. 1 feet of 18 gauge blue remote turn-on wire
4. 3 feet braided loom to cover wire from battery to fairing
5. (1) 8 gauge in-line ATC fuse holder
6. (1) 60A ATC maxi fuse
7. (1) 8 gauge red ring terminal installed
8. (1) 8 gauge black ring terminal installed

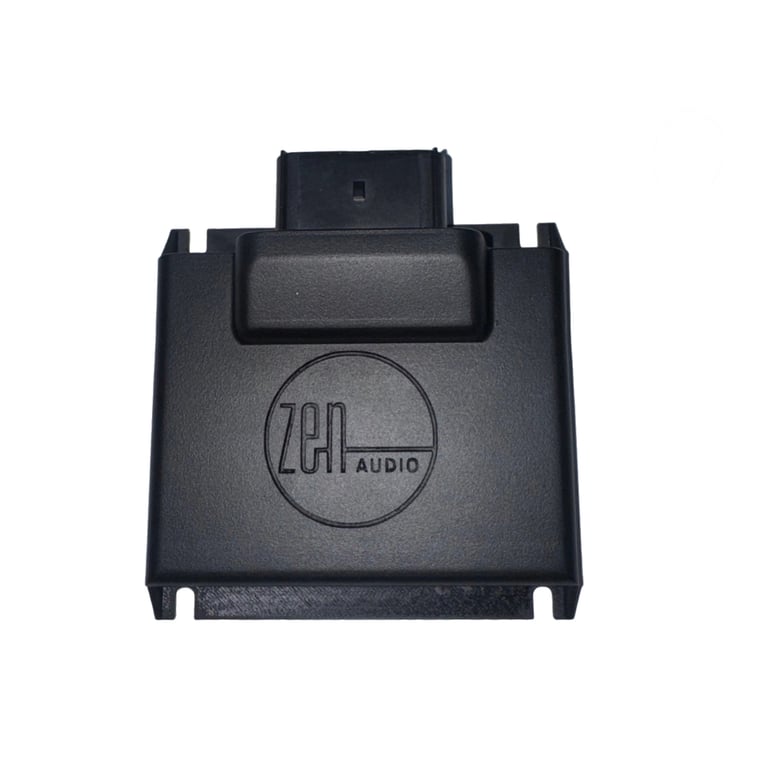

Product Details:

• Amplifier integration interface for Harley-Davidson motorcycles
• Compatible with select 2024-2025 vehicles from Harley Davidson
• Allows for the addition of aftermarket amplifiers to the factory stereo
• Connects via its low-level 8-channel analog RCA outputs
• Retains the factory chimes
• Retains volume control, fader, balance and equalizer presets
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
