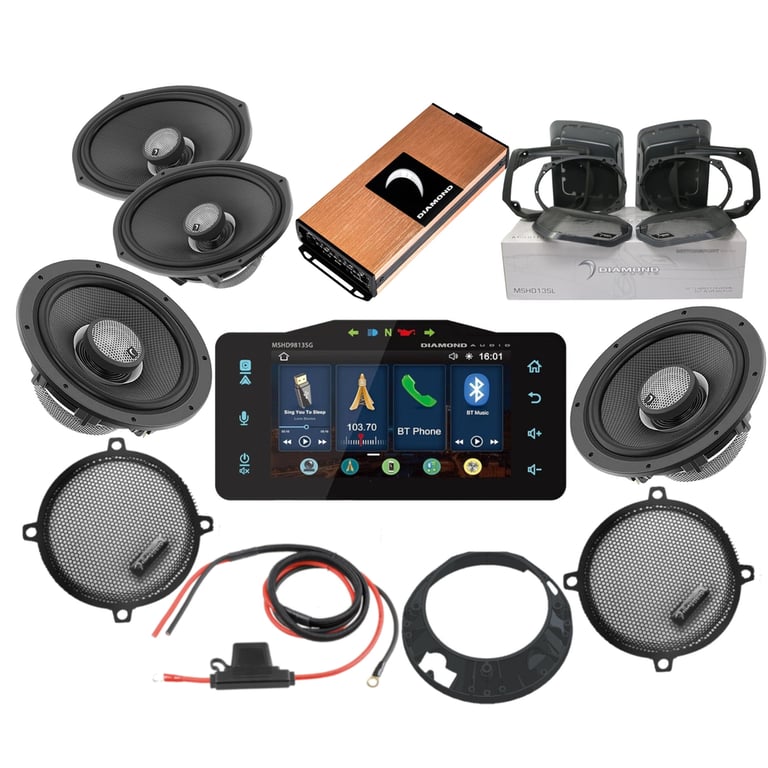

Diamond Audio 4-Speaker Sound Packs For '98-'13 Street Glide

Product Details

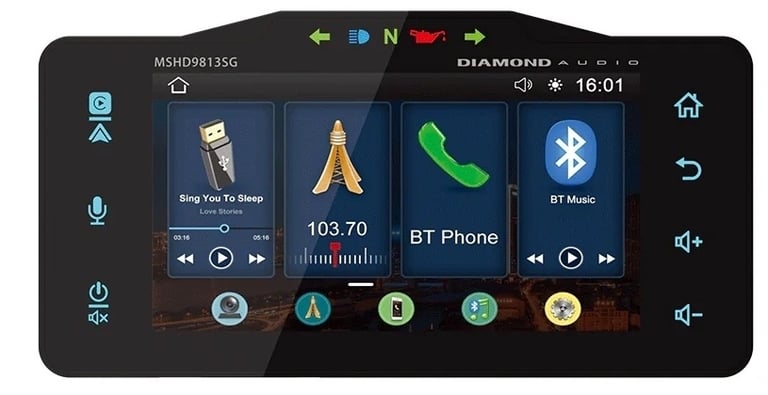

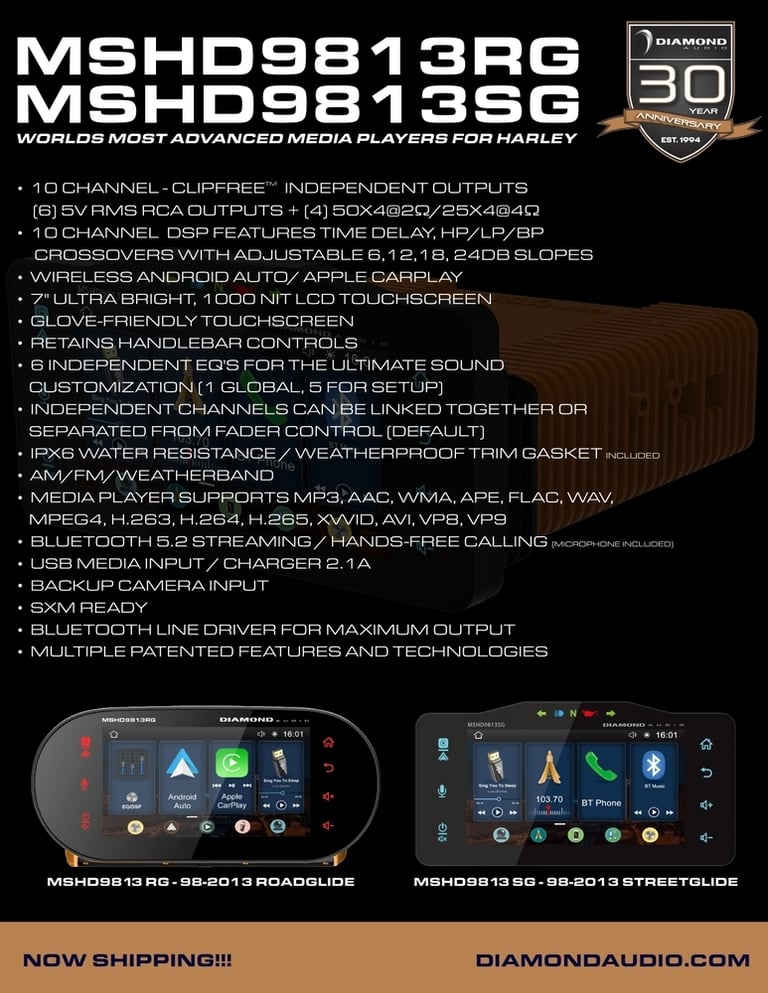

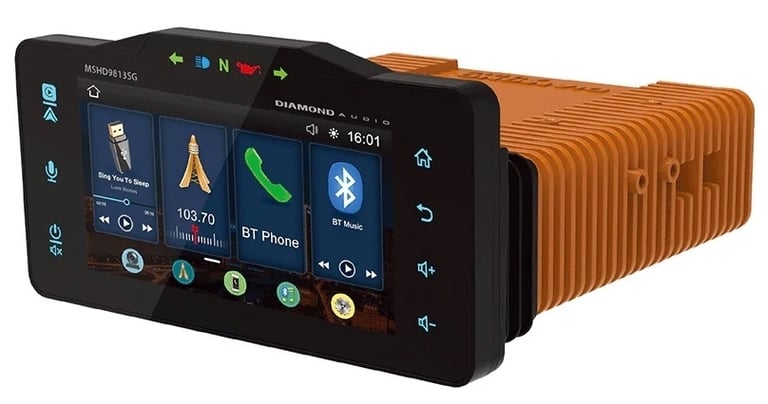

• Custom Fit In-Dash Bluetooth Digital Multimedia Receiver
• 7" Capacitive Touchscreen Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 28 watts x 4 channel
• Bluetooth hands-free calling and audio streaming

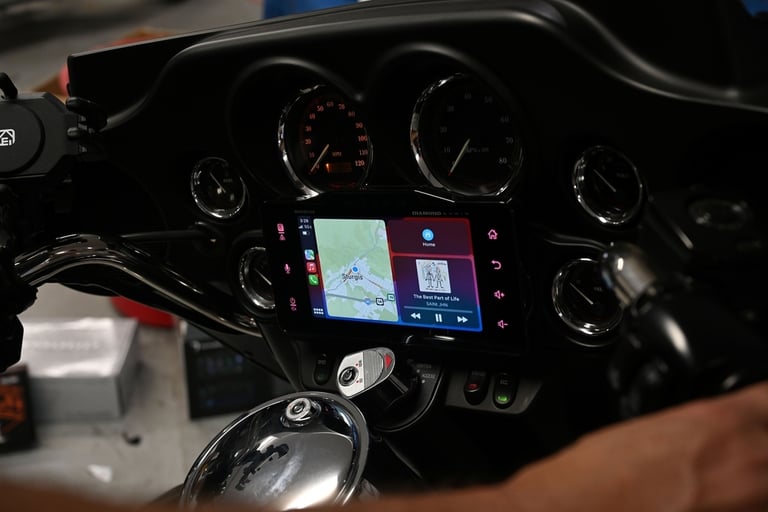

• Upgrade for 1998-2013 Harley-Davidson® Street Glide, Electra Glide, & Ultra’s
• Adjustable RGB Color Touch-Sensitive Front Keys
• Includes Pre-Wired Plug-n-Play Harness
• Authorized Internet Dealer
• 2 Year Manufacturer's Warranty
• MFR #: MSHD9813SG

Smartphone Features

• Apple CarPlay and Android Auto compatible
• Display and control music, and other apps with iPhone and Android
• Pandora and Spotify capable
• Siri Eyes Free control for select iPhones/Voice assistant button for Siri or Google Assistant

Playback and Audio Features

• MP3 | WMA | WAV | AAC | FLAC Audio Playback
• MP4 | MPG and WMV Video Playback
• AM/FM tuner with 12FM/10AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)

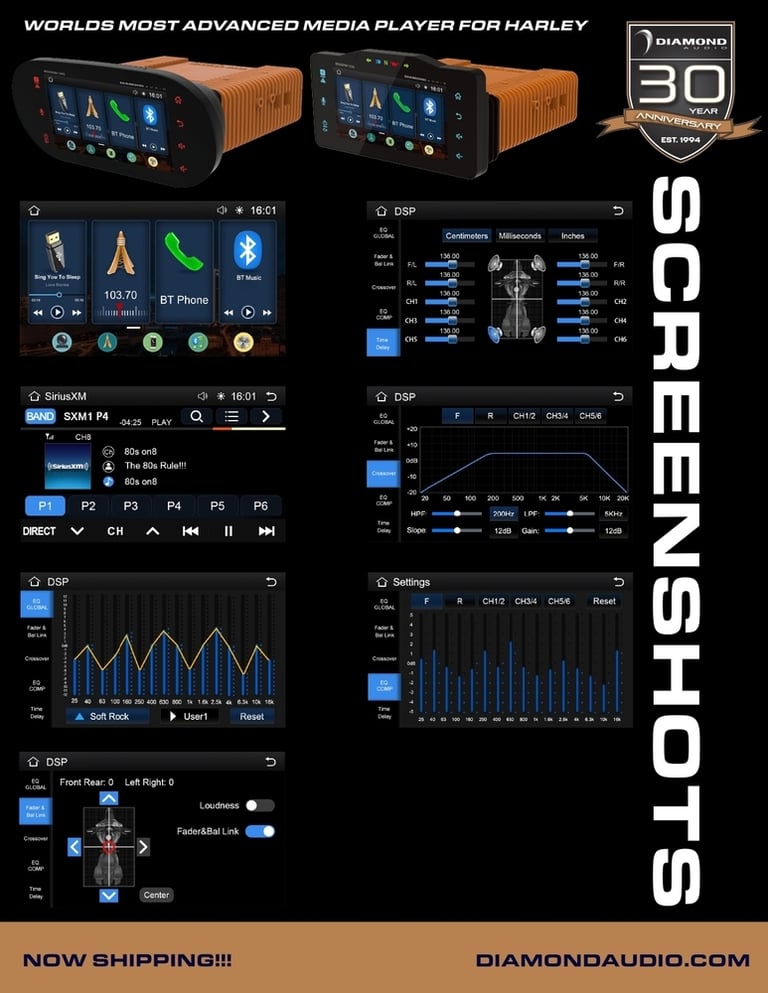

• 13 band parametric EQ

Expandability Options

• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately

Audio/Video Inputs and Outputs

• 3 sets of 4 volts preamp outputs (front, rear, and subwoofer)
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes a external wired/built-in microphone for clear, convenient, distortion-free talking

Product Details:

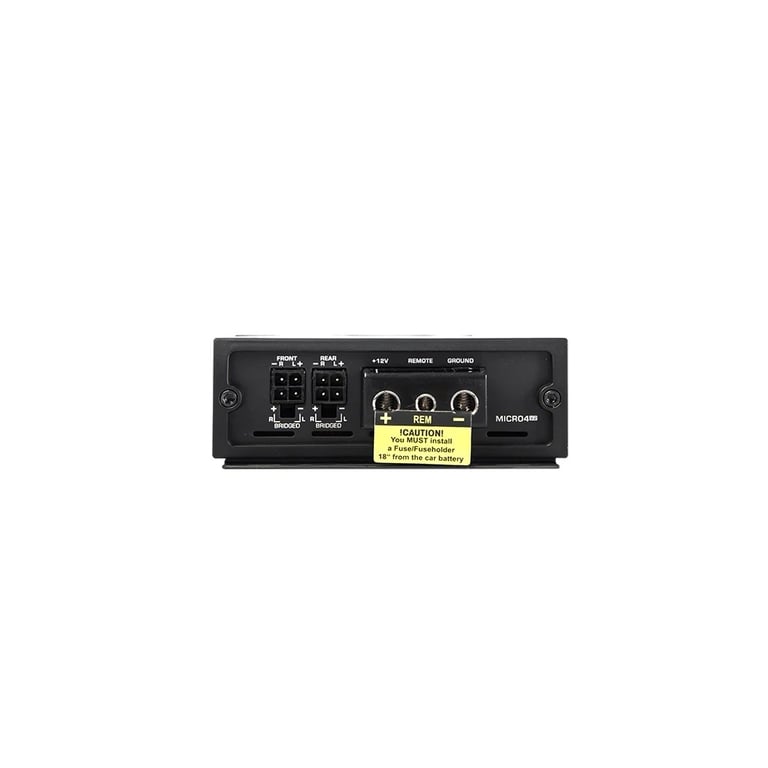

• Micro Series Class D 2 ohm Stable 4-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 80 watts x 4 channel
• 2 ohm: 150 watts x 4 channel
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS power output: 600 watts
• LED Power/Protect Light
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
• Selectable turn-on mode (Remote, DC Offset, Signal Sensing)
• Advanced rollback and thermal protection
• Full range Class D IR chipset
• DirectFET power MOSFET output stage
• SMD technology on 4-layer glass PC board
• ICAD circuit provides superior overload protection
• Variable 12dB crossovers
• Ultra-compact and versatile
• Bluetooth receiver enabled for Diamond Audio Datura/12 Bluetooth receivers only
• Input sensitivity: 200 mV - 10 volts
• Frequency Response: 20 - 30000 Hz
• Total Harmonic Distortion (THD): 0.5%
• Variable high-pass filter: 40 - 400 Hz
• Variable low-pass filter: 40 - 400 Hz
• Variable Bass Boost: 0 - 12 dB
• Fuse Rating: 40A
• 8 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 9.7" L x 4.0" W x 1.46" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: MICRO4V2

Product Details:

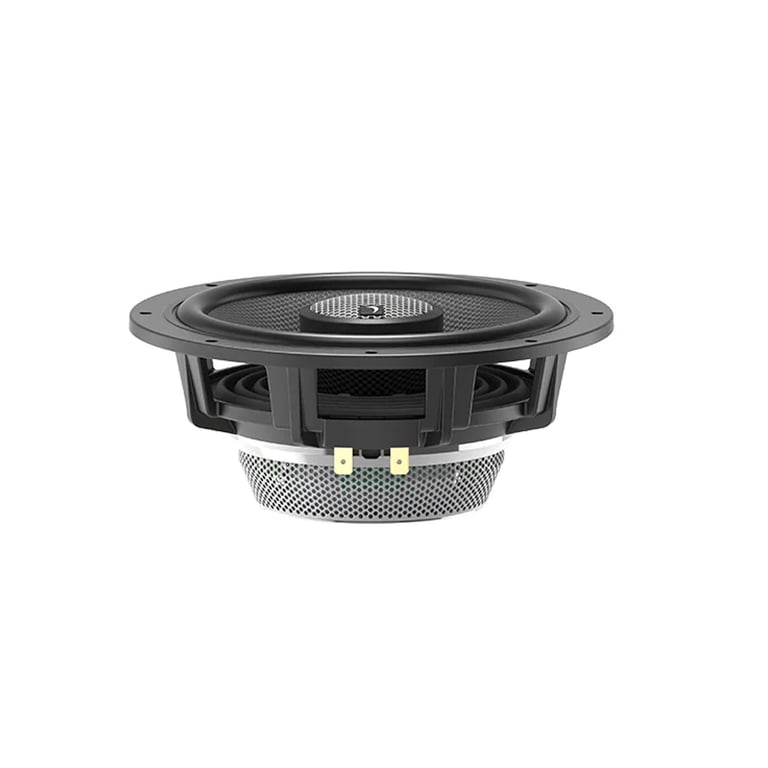

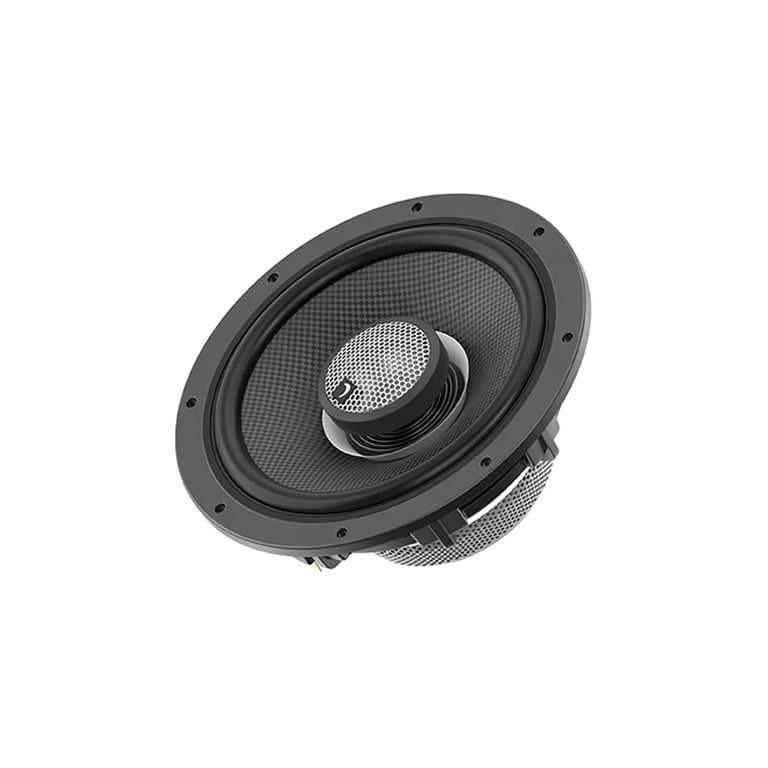

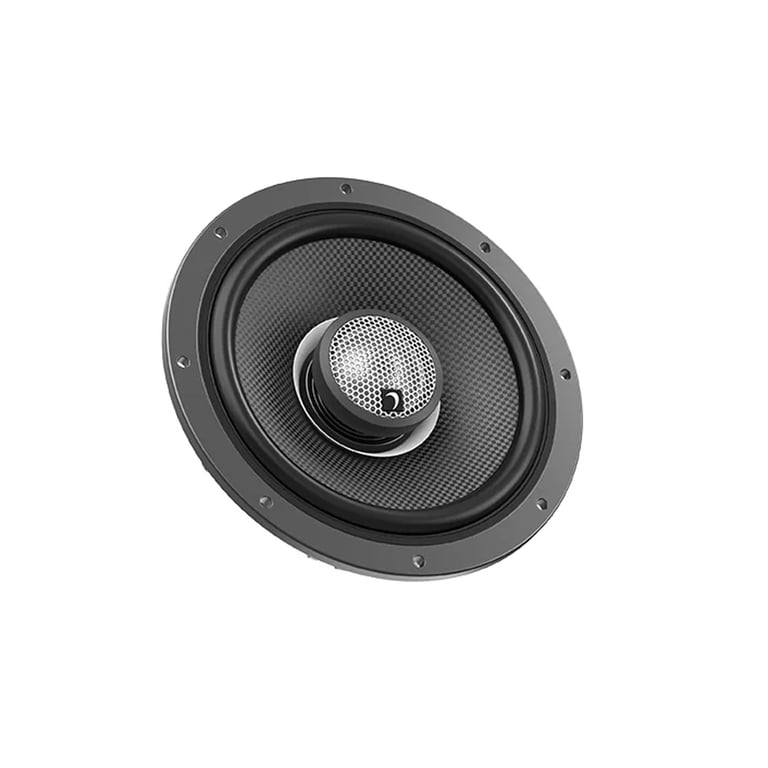

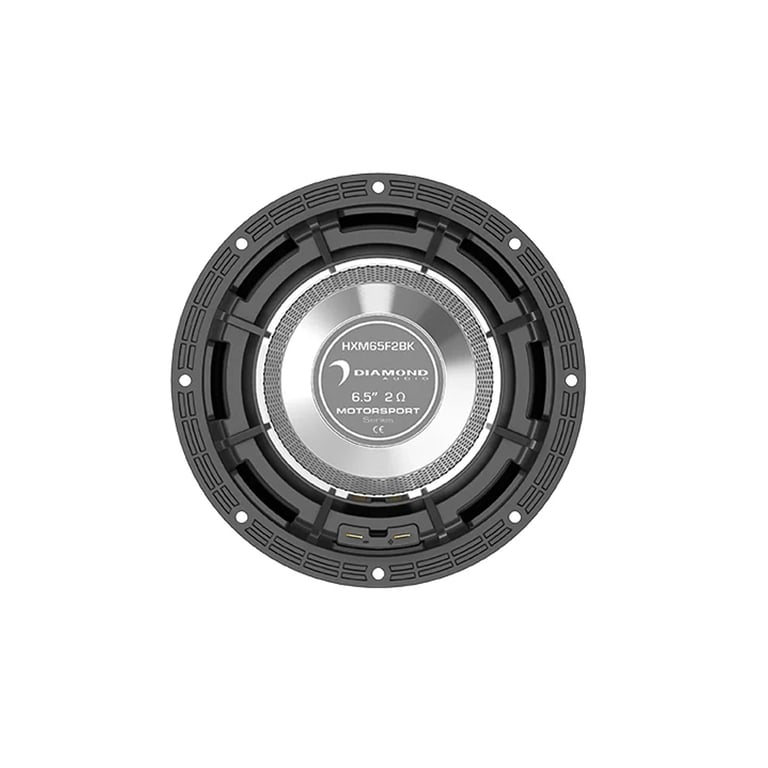

• 6-1/2" HXMF Series 2-way Coaxial Marine Speakers
• Power Handling:
• Peak: 750 watts per pair / 375 watts each
• RMS: 250 watts per pair / 125 watts each
• Carbon Fiber cone material
• Rubber speaker surround
• 1-1/2" Titanium Dome Tweeters
• 1.5" High temperature voice coil
• Ultralight neodymium magnet motor structure
• Motor structure includes max xmax suspension
• Flush or back mount design
• Water spray and salt water resistant, 100% UV stable
• Light weight injection molded composite basket
• Top-mount Depth: 2.51"
• Cutout Dimensions: 5.43"
• Impedance: 2 ohm
• Frequency Response: 110 - 20000 Hz
• Sensitivity: 95 dB
• Authorized Internet Dealer
• MFR #: HXM65F2BK
• 1-year Manufacturer's Warranty



Priced Per Pair

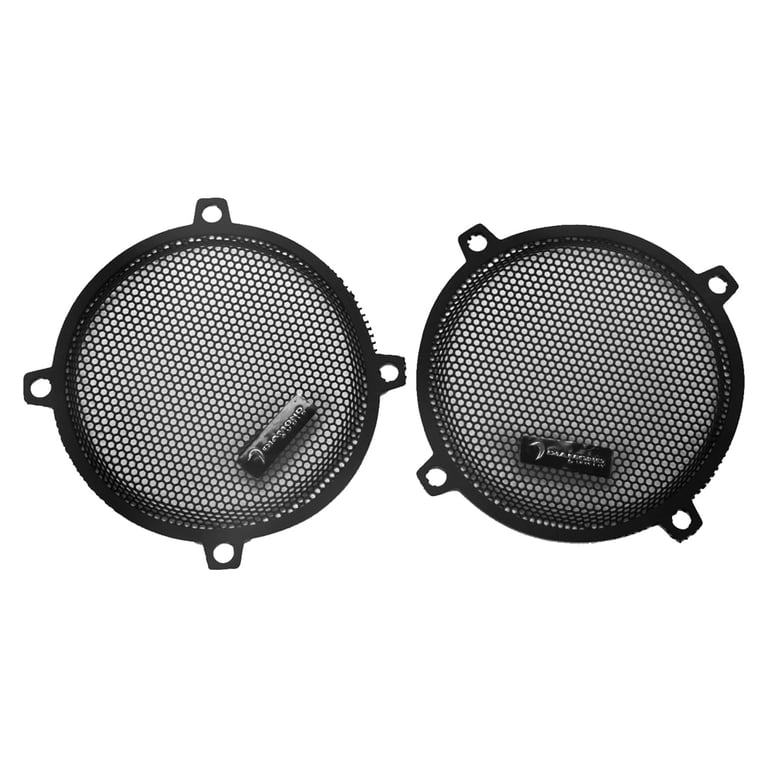

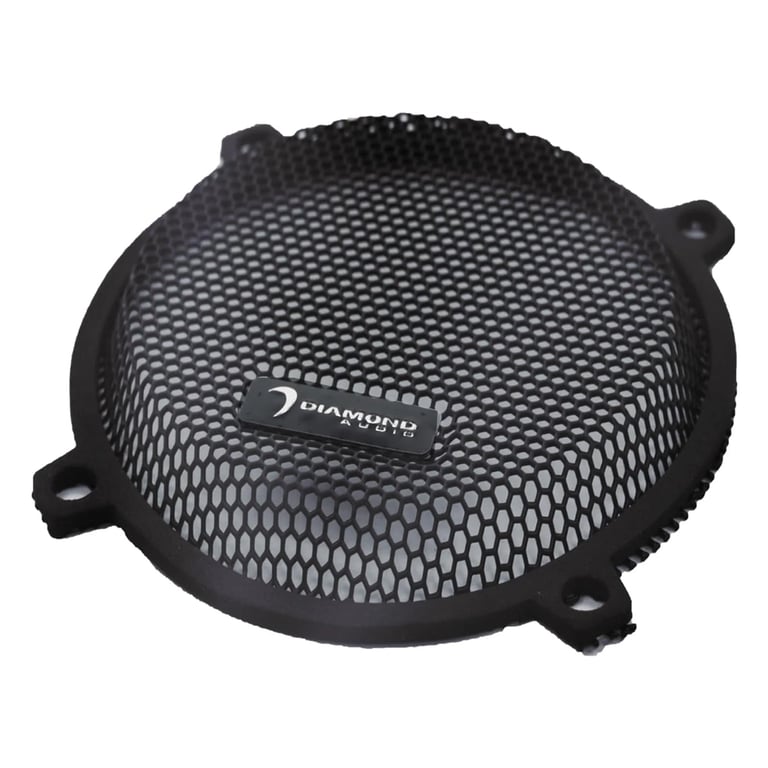

Product Features:

• Compatible with select 2006-2013 FLHX Street Glide and FLHTXXX Street Glide Trike and FLHXI Street Glide
• Designed for fairing-mounted speakers (speakers not included)
• Protects speakers against road, debris, dust, and environmental wear
• Made with OEM quality heavy-duty metal mesh
• Embossed Diamond Audio logo for custom and sleek look
• Easy to install, direct fit, and no additional modifications required
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Priced Per Pair

Product Details:

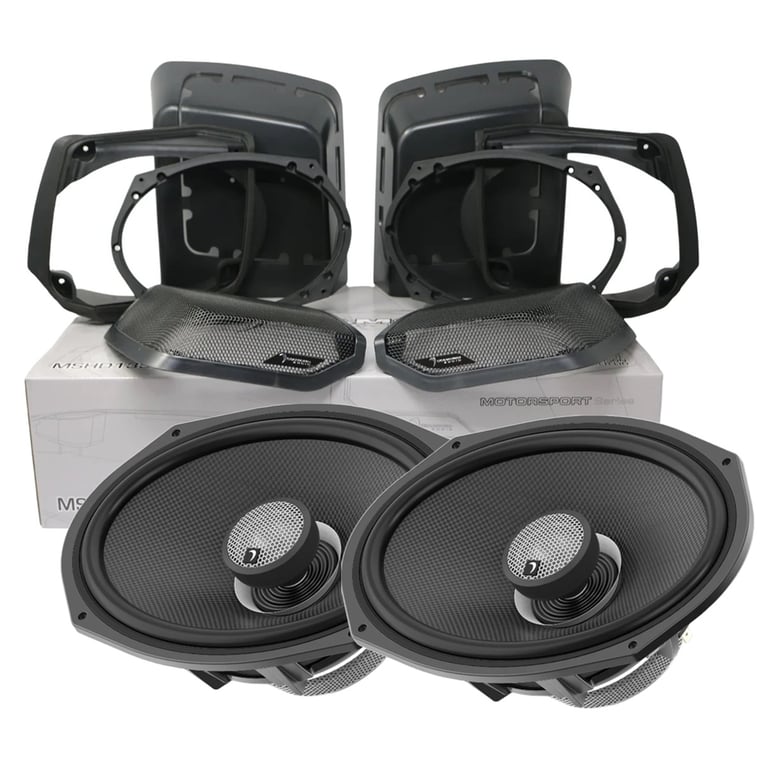

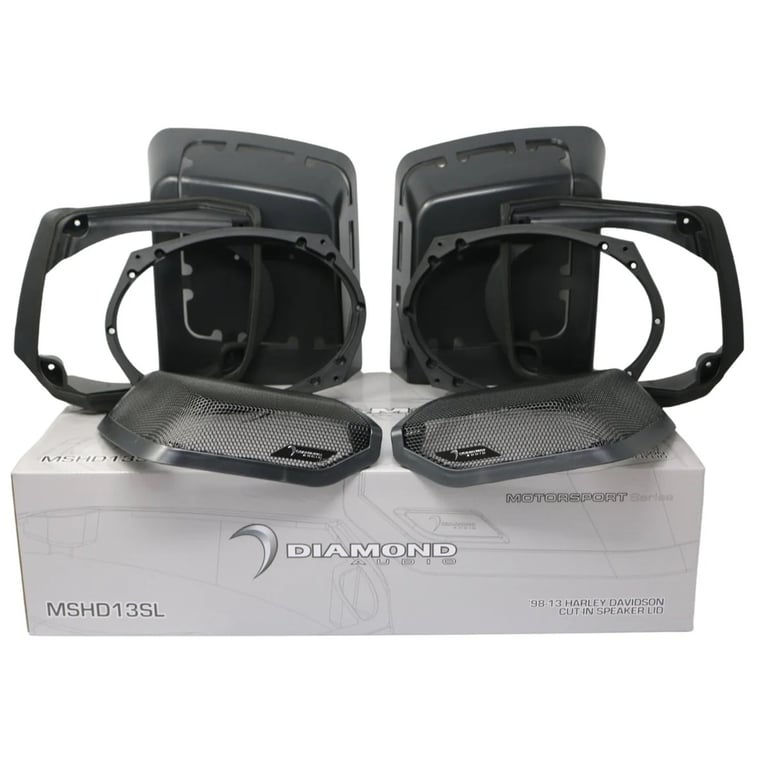

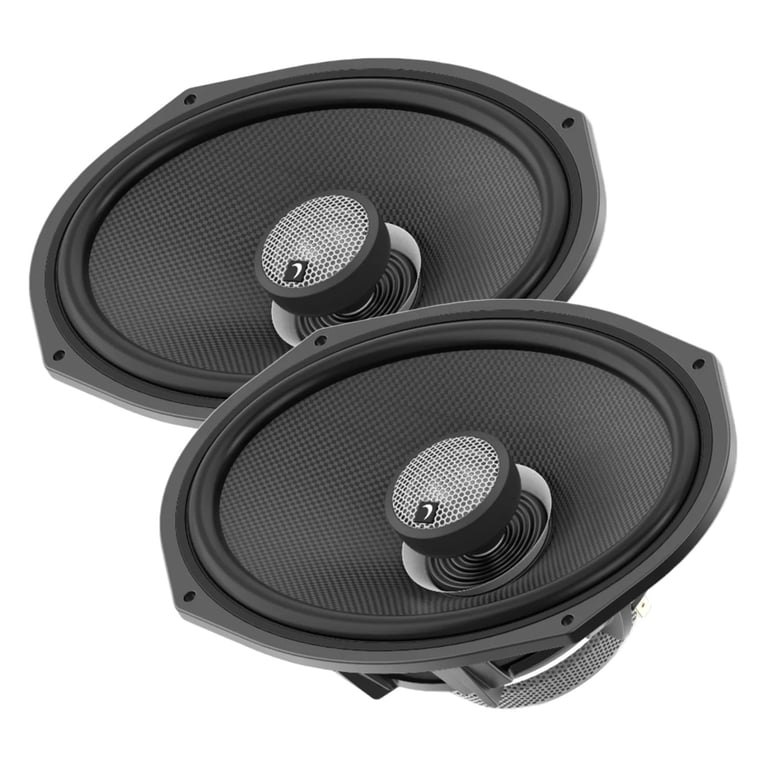

• 6x9" HXMF Series 2 Way Coaxial Harley Davidson Cut-in Speaker Lid Kit
• Loaded with two Diamond Audio HXM69F2 speakers
• Compatible with select 1998-2013 vehicles from Harley Davidson
• Power Handling:
• Peak: 500 watts per pair / 250 watts each
• RMS: 250 watts per pair / 125 watts each
• Injection Molded Polypropylene with UV Protection cone material
• UV-Resistant Rubber speaker surround
• 1" Titanium Dome tweeters
• Neodymium magnet motor structure
• Easy install flush mount design
• 100% UV stable, water spray, and salt water resistant
• Ultra small neodymium motor structure with Xmax suspension
• High temperature injection molded composite basket
• Integrated dream RGB LED lighting
• LED remote Diamond Audio DALEDLC (sold separately)
• Top-mount Depth: 2.56"
• Cutout Dimensions: 5.63"
• Impedance: 2-ohm
• Speaker grilles (optional, sold separately):
• Brushed aluminum black: Diamond Audio HXM65FGB
• Brushed aluminum white: Diamond Audio HXM65FGW
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Details:

• 8 gauge Complete Power Amplifier Installation Kit
• Designed specifically for motorcycle audio systems up to
• Premium power and ground wire provides optimal power transfer
• Made from OFC (100% Oxygen-Free Copper)
• Complete power kit for fairing mounted amplifier on any Harley Davidson or bikes
• Easy connection of ring terminals to battery
• Terminals are Nickel for excellent signal transfer
• ATC Fuse holder offers ideal protection for powered systems
• True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Package Includes:

1. 6 feet of 8 gauge red power cable
2. 5 feet of 8 gauge black ground cable
3. 1 feet of 18 gauge blue remote turn-on wire
4. 3 feet braided loom to cover wire from battery to fairing
5. (1) 8 gauge in-line ATC fuse holder
6. (1) 60A ATC maxi fuse
7. (1) 8 gauge red ring terminal installed
8. (1) 8 gauge black ring terminal installed

Product Features:

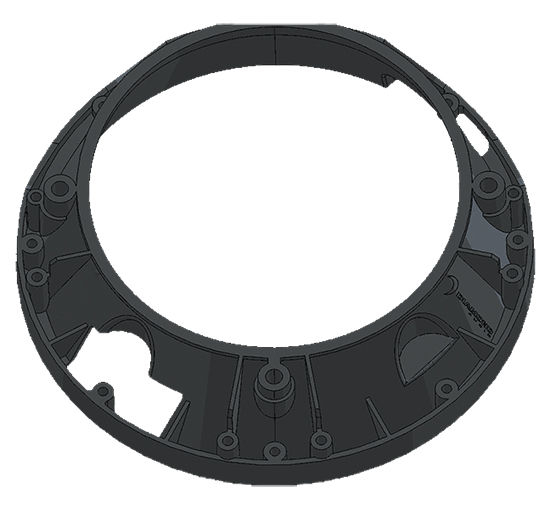

• For the installation of 6.5" aftermarket speakers
• Precision-engineered speaker adapter ring kit
• Provides secure mounting solution, ensures proper alignment and stability
• Perfect for custom motorcycle audio builds or amplifier upgrades
• Includes (2) speaker adapter plates
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Applications:

• 1998 - 2009 Harley Davidson FLHT Electra Glide Standard
• 1998 - 2013 Harley Davidson FLHTC Electra Glide Classic
• 1998 - 2006 Harley Davidson FLHTCI Electra Glide Classic
• 2003 - 2006 Harley Davidson FLHTI Electra Glide Standard
• 2006 - 2013 Harley Davidson FLHXI Street Glide
