Autotek ATK2/3X

3-Way Active Crossover Bass Remote and 4-Band EQ

Autotek
Shop all Autotek
highlight-star-icon

• Active Crossover with Remote Bass Control
• Infinite Asymetrical Electronic Crossover Design
• Quasi-Parametric EQ with 45Hz Bass Boost Circuitry
• 2nd Order Butterworth Hi-Pass Filter
• Chrome Case

Learn more about the atk23x

We apologize

This item has been discontinued


Loading...
NSP525 main

NVX NSP525

240W Peak (160W RMS) 5.25" N-Series 2 Way Coaxial Car Speakers

27
-16.67%

$79.99

List price $95.99

Description


Autotek brand icon

Authorized dealer

General Features:

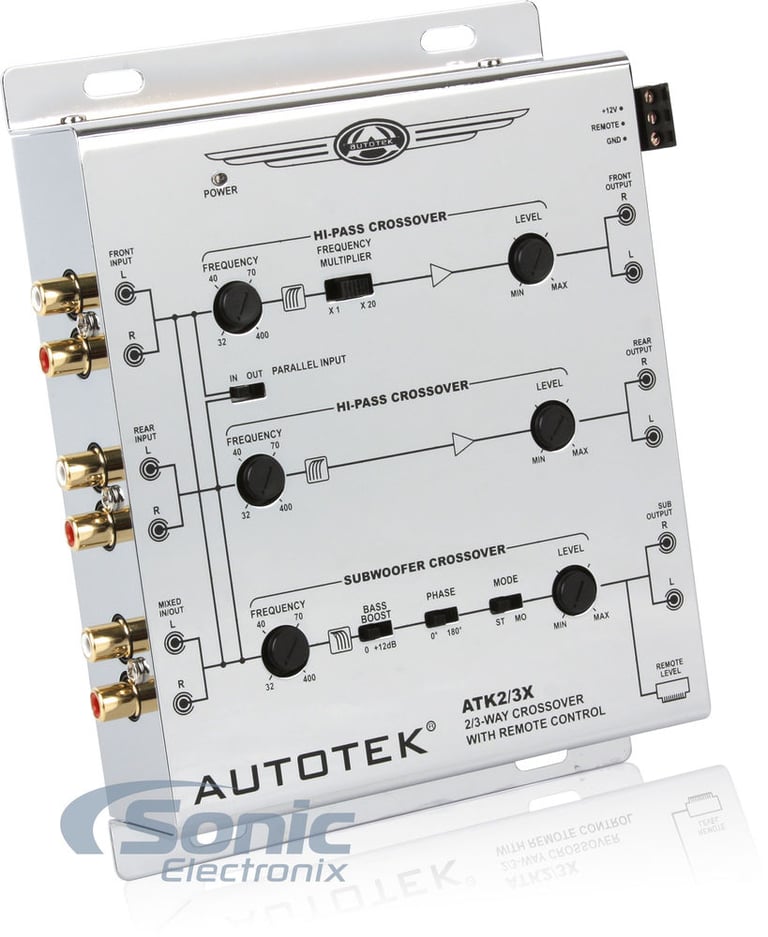

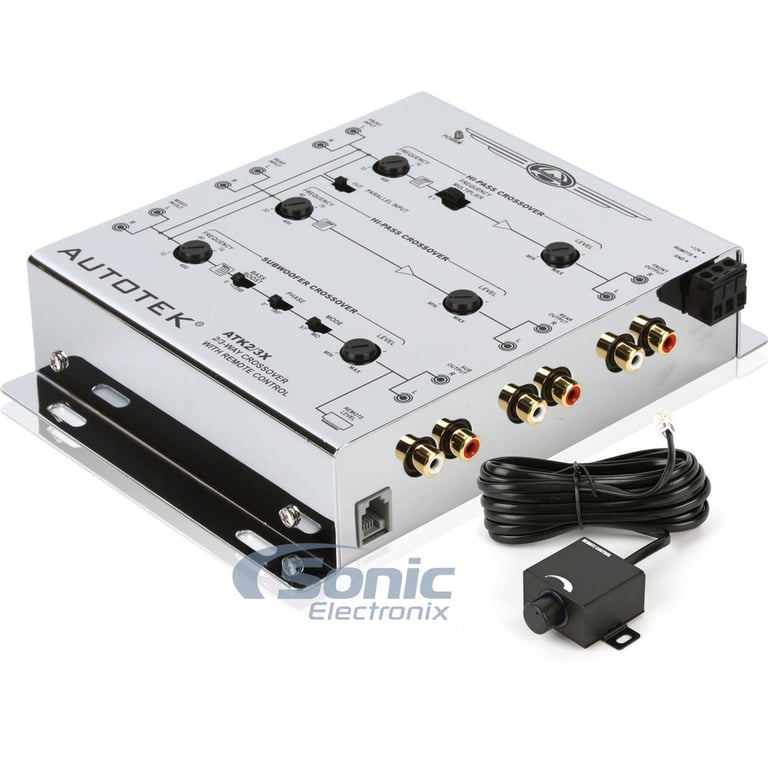

  • Active Crossover with Remote Bass Control
  • Infinite asymetrical electronic crossover design
  • 2-way or 3-way crossover system
  • Designed for 2 channel and 4 channel inputs
  • Subwoofer-input receivers with sub-outputs
  • Blue LED illumination
  • Low THD rating
  • Frequency multiplier
  • Rear input switch

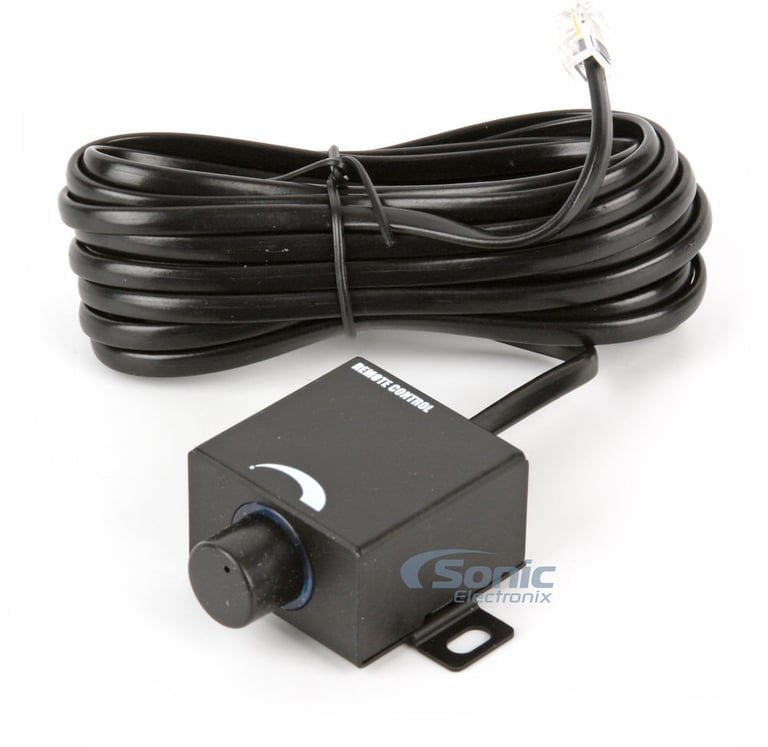

  • 0-12 db Bass boost with the bass remote
  • Individual level adjustments for front, rear, and sub channels
  • 2nd Order Butterworth Hi-Pass filter for both front and rear channel
  • Full-range cascade output
  • Adjustable output level
  • Perfect for Mono or Stereo woofers
  • 180° Phase-Shift Switch
  • Maximum output: 8.5-Volts RMS
  • Quasi-Parametric EQ with 45Hz Bass Boost circuitry
  • Gold plated RCA contacts for optimal signal transfer
  • Chrome plated chassis looks great for all installations
  • DC/DC Regulated switching power supply
  • Dimensions: 7-3/4"D x 6-1/2"W x 1-3/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

AVH-2550NEX main

Pioneer AVH-2550NEX

6.8" Double DIN Touchscreen DVD Receiver with Bluetooth, Apple CarPlay, and Android Auto (SiriusXM Ready)

-13.33%

$650.00

List price $750.00

BE7ACP.XC main

Boss Elite BE7ACP.XC

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and Backup Camera (SiriusXM Ready)

-16.67%

$329.99

List price $395.99

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95


Best selling similar products

PNW-XN3 small

AudioControl PNW-XN3

• 3-way Passive Crossover Network
• Designed to expand a 2-way component system into a 3-way setup
• Ideal for adding a midrange driver to your 2-way component system
• Includes woofer, midrange and tweeter outputs
• Compatible with AudioControl PNW and Altitude Series speakers

(2)

$159.00

List price $179.00

XM3 small

DS18 XM3

• 3-Way active crossover with sub-level control
• Mixed input and output
• Level output knob with individual output
• Features front and rear high-pass filters
• Includes remote subwoofer level control
• Stereo or mono subwoofer mode selector

$124.95

List price $122.99

XM5 small

DS18 XM5

• 5-Way high-voltage active crossover
• (2) front and (2) rear/sub inputs
• High/mid, high/mid/low, and mid/low outputs
• Features clip indicators

$239.95

List price $287.99

HFXR small

Hifonics HFXR

• 2-Way/3-Way Electronic Crossover
• Bass boost (0-12dB @ 45Hz)
• Quasi-Parametric EQ
• 180-Degree Phase-Shift Switch
• Front/Rear Channel Frequency
• Front and Rear Adjustments
• RCA Pre-Amp Output

(17)

$59.99

List price $99.99

XOHV small

DS18 XOHV

• 2-Channel high-voltage external pre-amplifier with crossover
• Perfect for high-voltage amplifiers
• Selectable bass boost frequency
• Allows match of 2 or more amplifiers with same audio setting

$95.95

List price $115.99

Specifications & Details


Crossover Specifications
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
32 - 400 Hz
Low-Pass Crossover Frequency
32 - 400 Hz
Built-in Bass Reconstruction
No
Display Color
Blue
Max Output Level
8.5 volts
THD (Total Harmonic Distortion)
.02%
Signal-to-Noise Ratio
90 dB
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ATK2/3X

Weight:

2.65lbs

Internal SKU:

atk23x

Internal Product ID:

23086

Customer Ratings & Reviews


Autotek ATK2/3X thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Pump up the bass !! Supurb Sound quality

The Autotek ATK2/3 is a perfect sound processer if you want increase your distortion free bass ! It will at least double your bass!! It does not increase the over all volume much but the sound output is phenominal ..The definition of the separate frequencies is very profound . If you want to take your sound system to the next level and increase your bass output , this is a MUST have !! It will be the best 80 bucks you ever spent . I was astounded by the amount of crystal clear bass this thing put out . The great thing about this unit it has it has RCA jacks for front rear and sub inputs and outputs which is far superior then only having one input that is separated internally for the 3 outputs . I strongly suggest this product for any audio application . I have been into audio systems for over 37 years , so I do have a little knowledge !! Buy one and thank me later .

By Freddy Krueger on June 22, 2015

37 found this helpful


good deal

Well i recomend this item because it supply the sound realy good better than other crossover that are more expensive in money wise and they do not work better than Autotek.

By carlos on September 14, 2011

23 found this helpful
