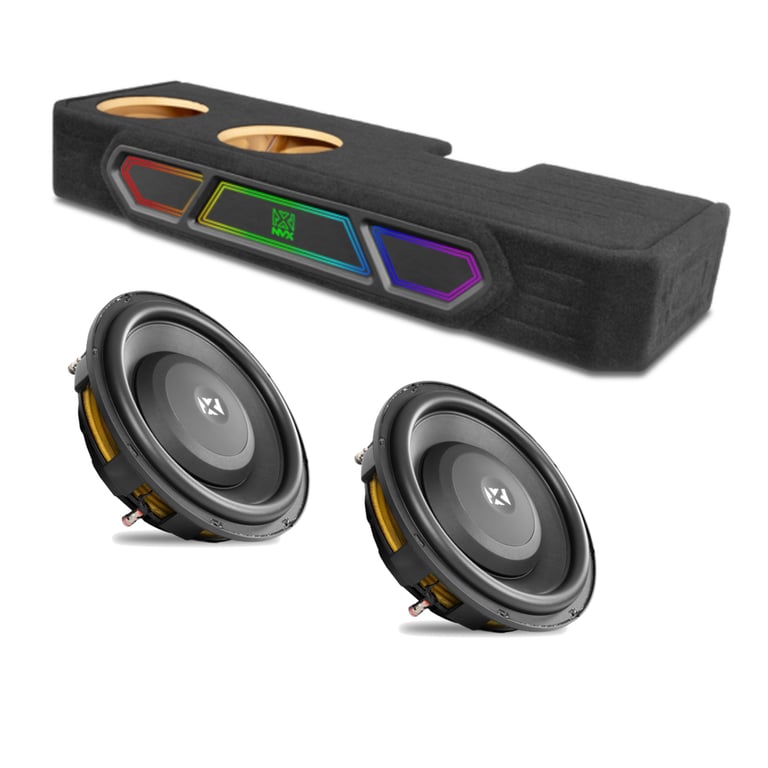

NVX PBK-RAM-19CC-S210 - 2019-2024 Ram 1500 - Complete Bass Package

Product Details:

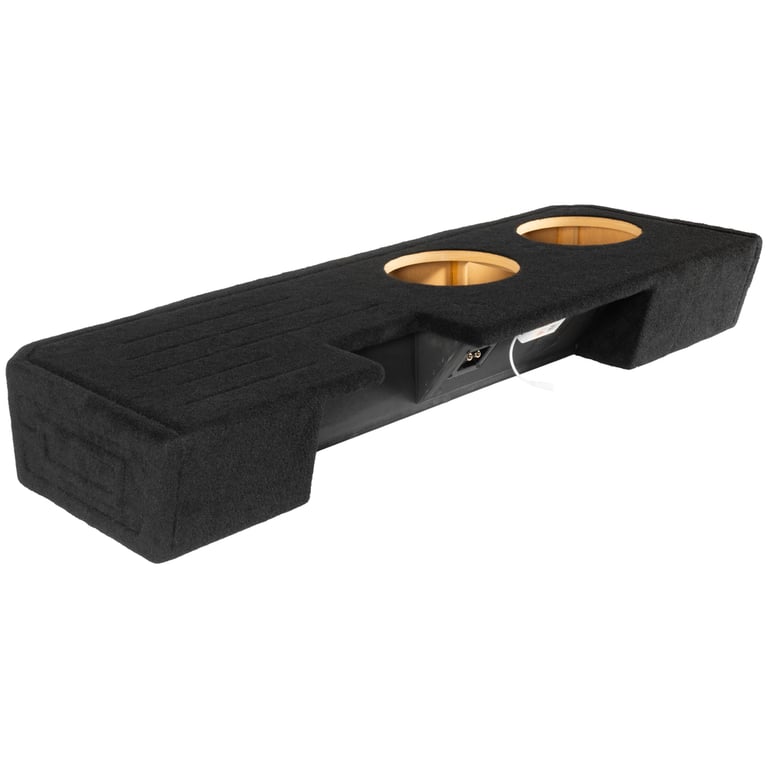

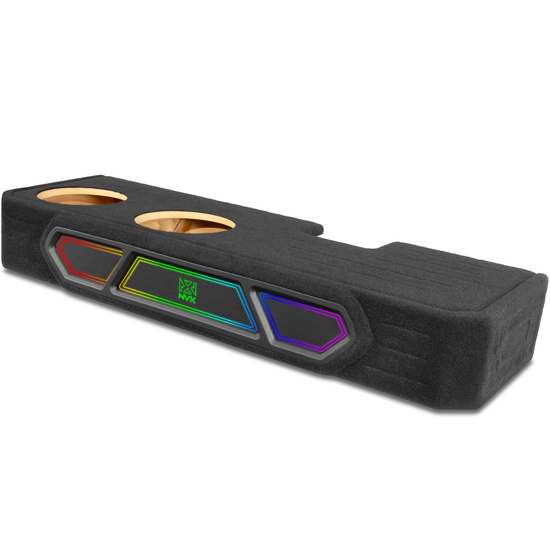

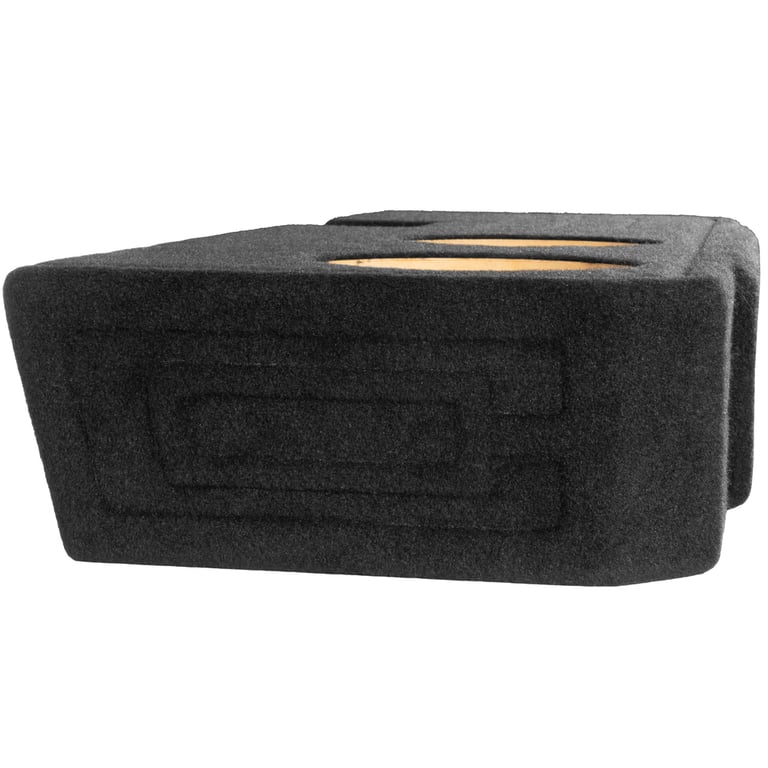

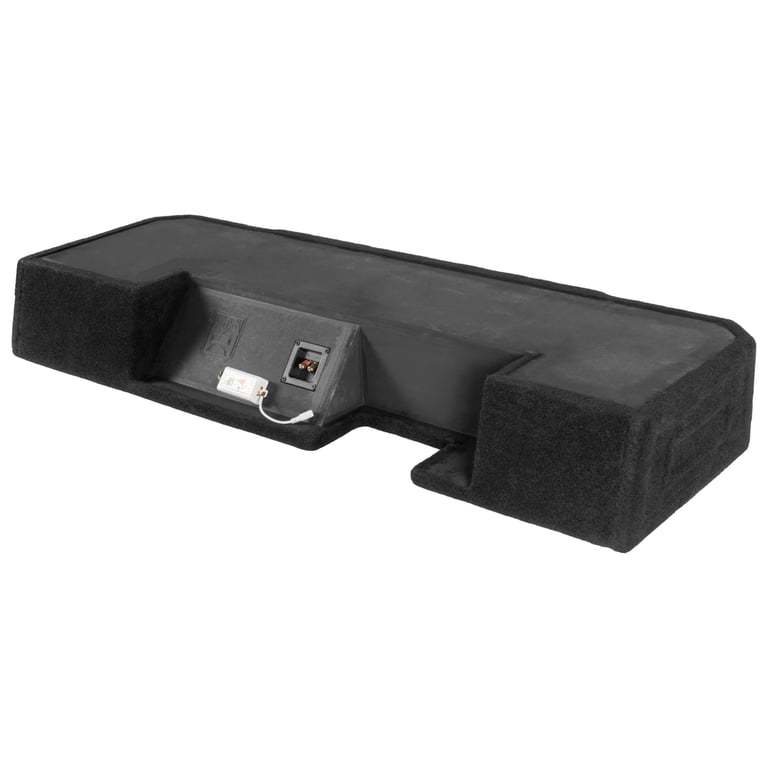

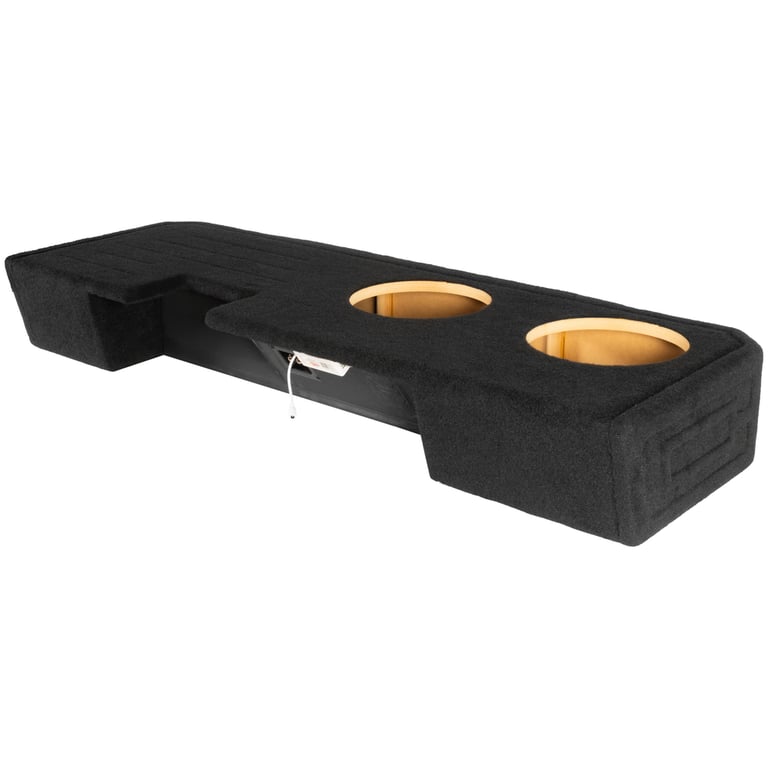

• Custom Fit Loaded Dual 10" BOOST Sealed Truck Enclosure
• Compatible with select 2019-2024 1500

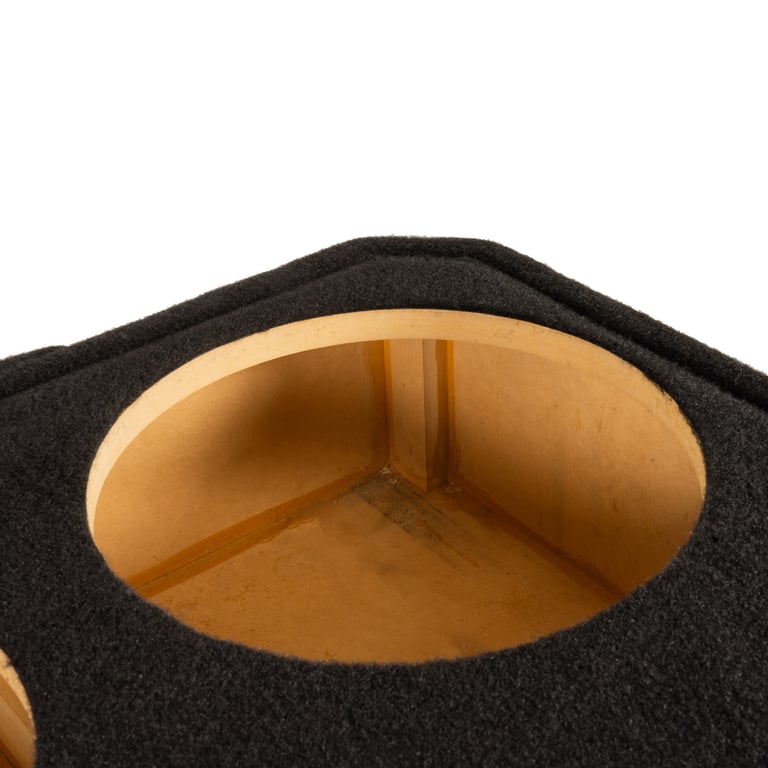

• Durable 3/4" Medium Density Fiberboard (MDF) construction
• Precision-engineered using state-of-the-art CNC technology
• Meticulously hand-assembled to ensure the highest quality
• Finished with premium carpet and sleek vinyl insert
• Fits seamlessly under the rear seat of your truck

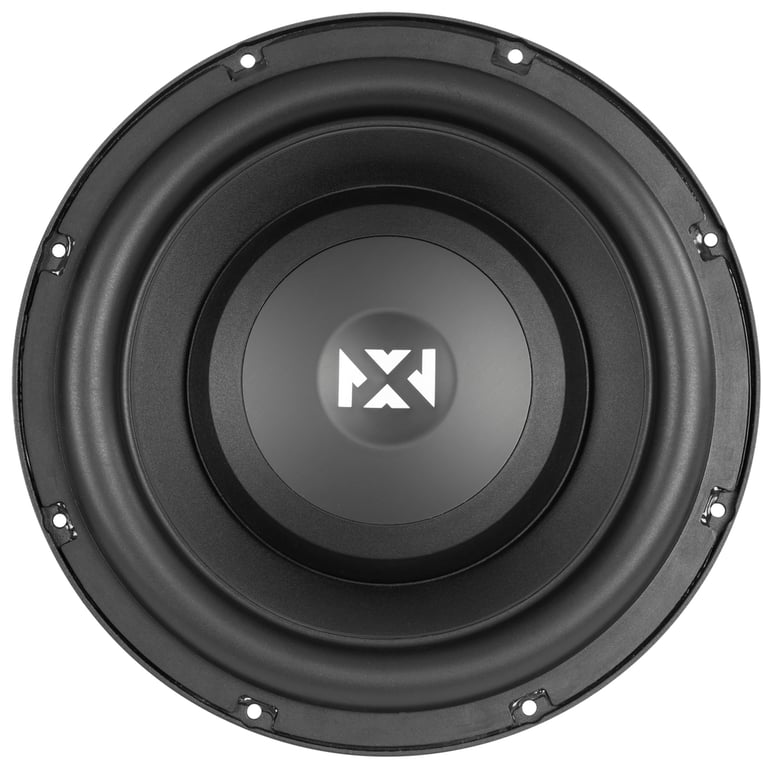

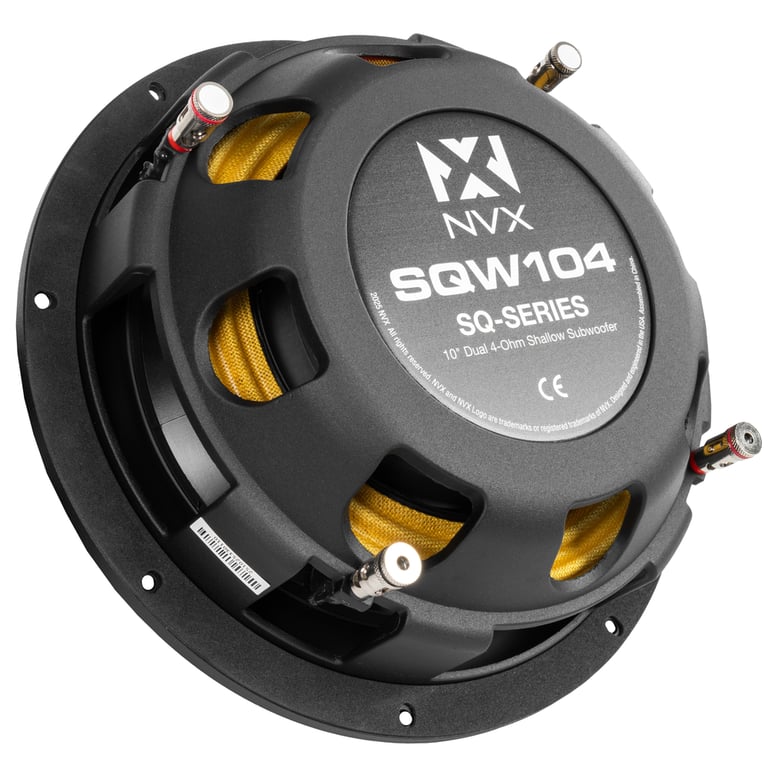

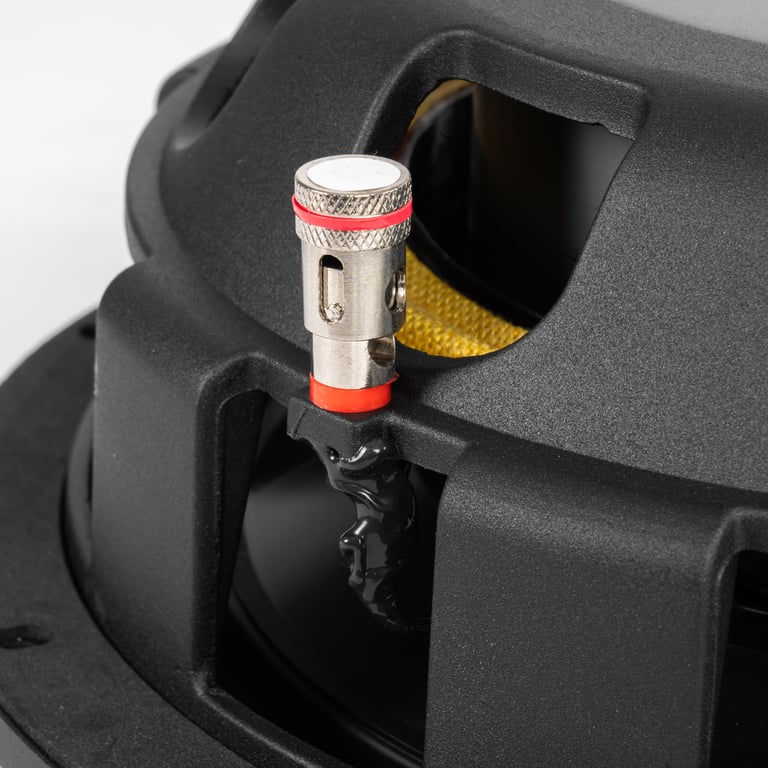

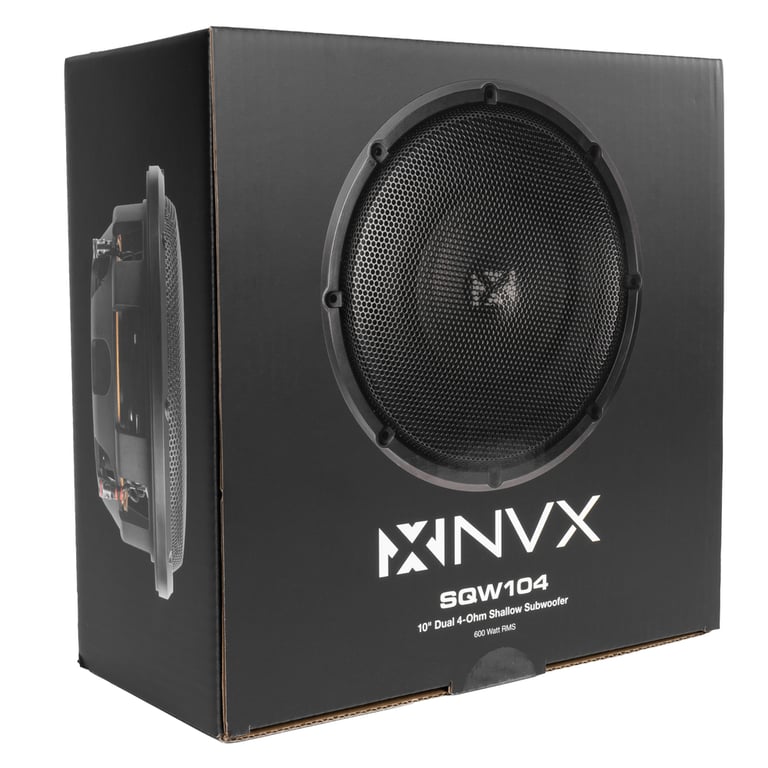

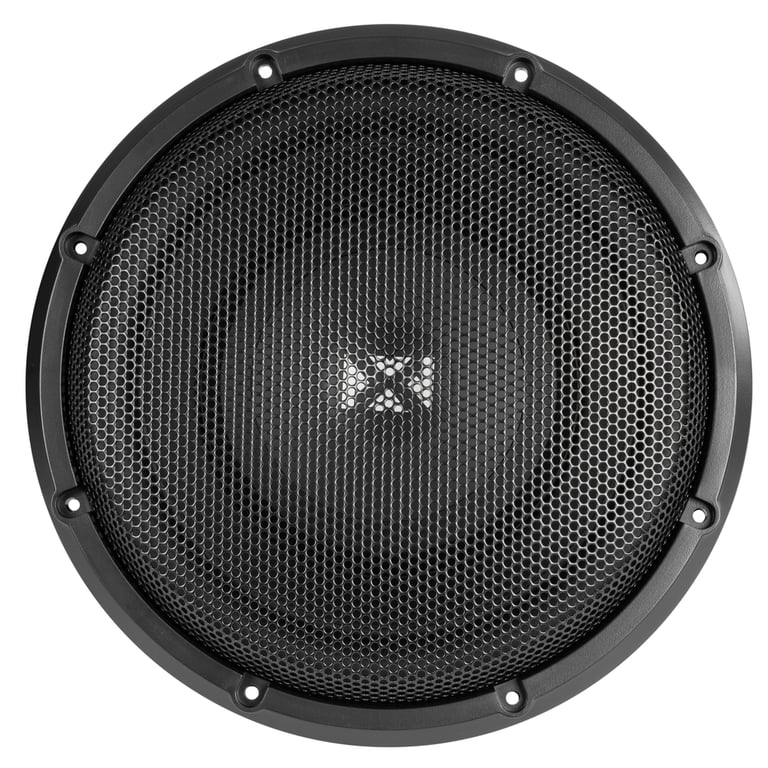

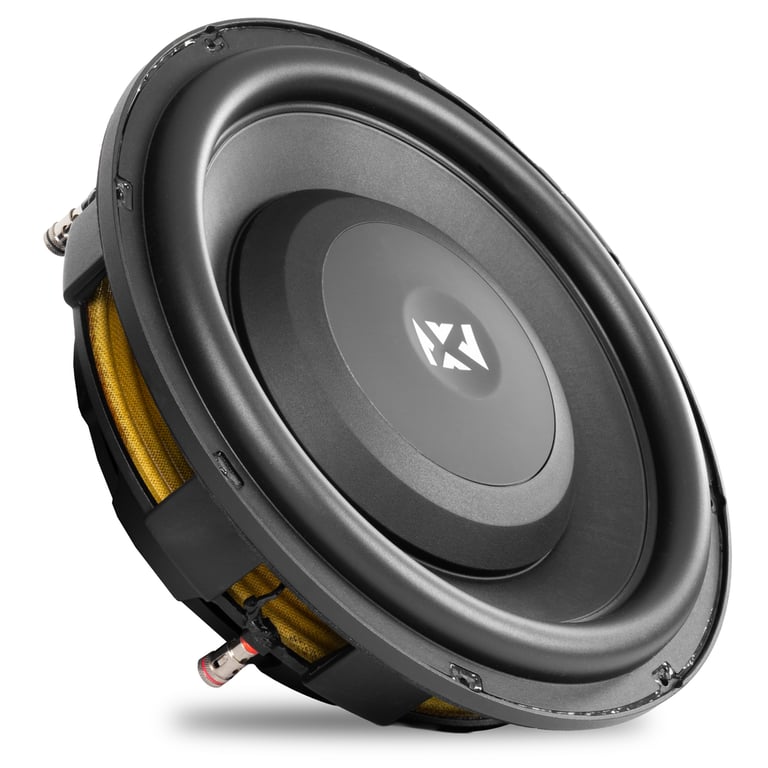

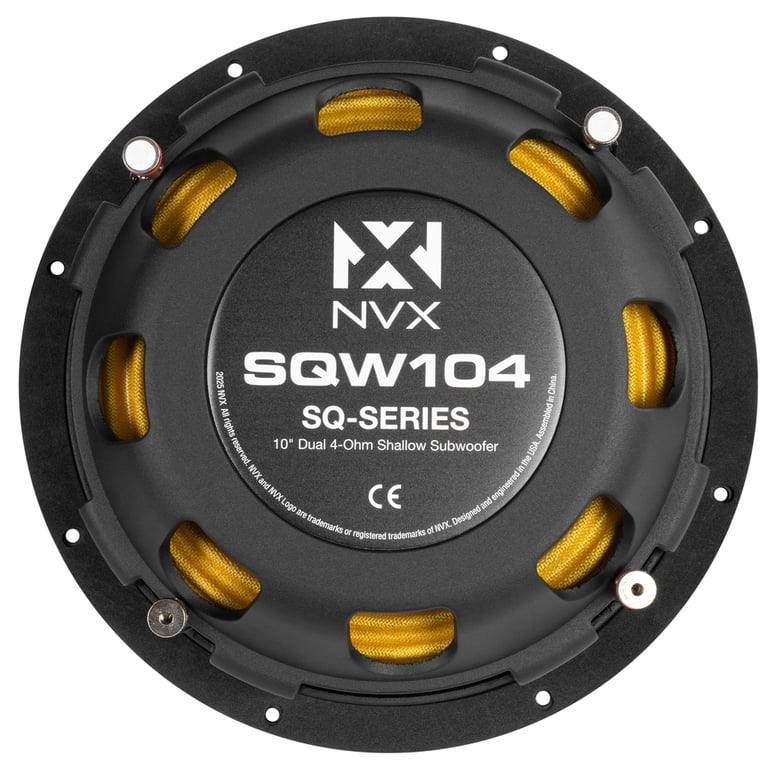

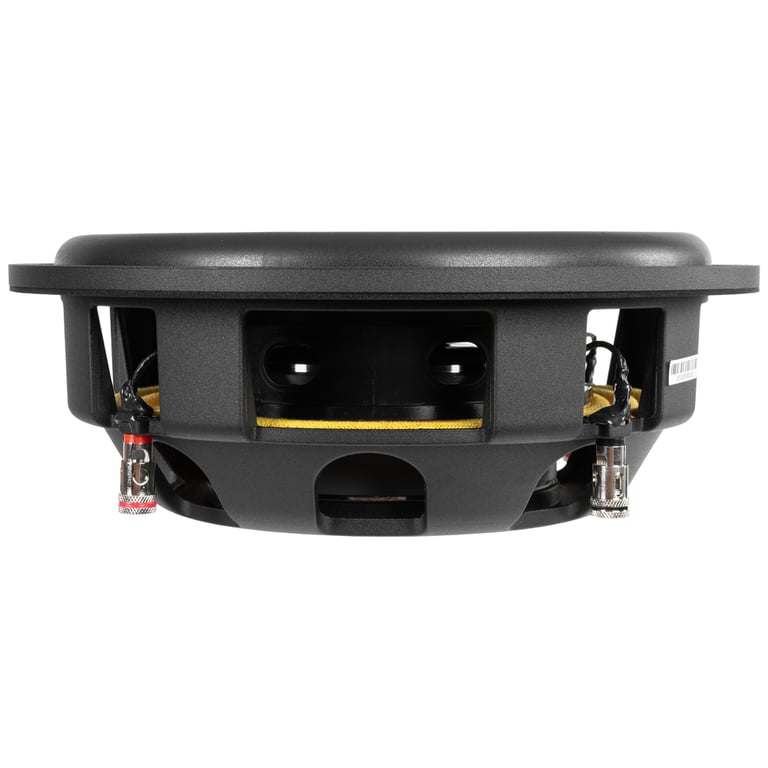

• Loaded with two 10" NVX SQW104 subwoofer
• Power Handling:
• Peak: 1200 watts each
• RMS: 600 watts each
• Polypropylene subwoofer cone material
• Rubber subwoofer surround material
• Custom tooled die-cast aluminum basket
• 1.5" High temperature copper voice coil
• 74 oz. Single stacked ferrite magnet motor structure

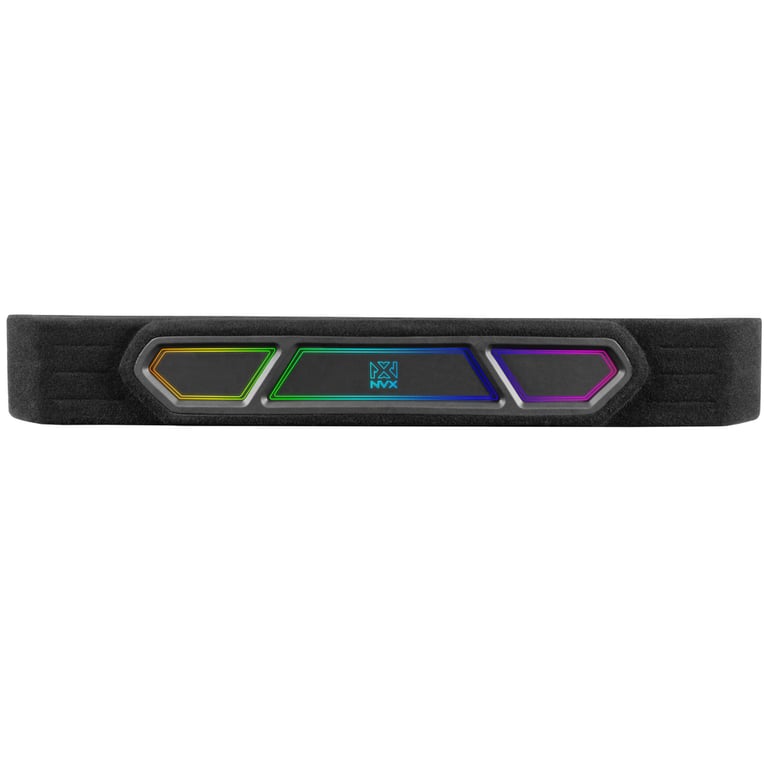

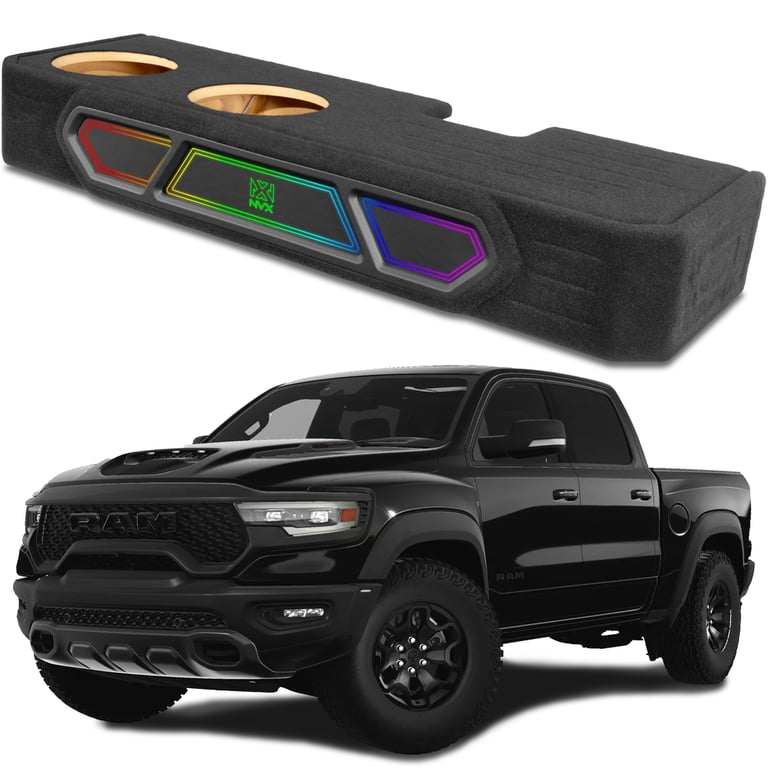

• Illuminated etched plexiglass with RGB LED lighting

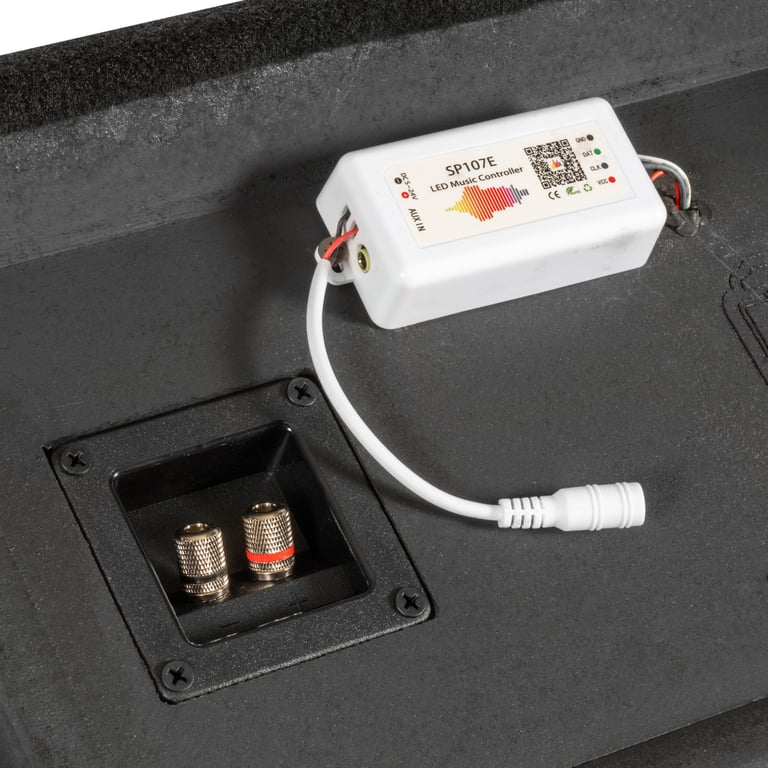

• Bluetooth app controller for customizable lighting effects
• 30 Dynamic LED lights colors and speed automatically sync with the music
• 180 dynamic color-changing modes or static solid colors
• Unloaded enclosure also available here
• Final Impedance: 1-ohm
• Frequency Response: 25 - 500 Hz
• Sensitivity: 83 dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Details:

• XQ Series SQ Class D 1 ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohm: 500 watts x 1 channel
• 2 ohm: 800 watts x 1 channel
• 1 ohm: 1200 watts x 1 channel
• Total RMS power output: 1200 watts
• LED Indicators: Power, Protect, Clip, and X-Boost lights
• Includes a Wired Bass Level Remote Control
• Speaker-Level (High-Level) Inputs (Requires adapter like the Kicker KISL)
• Tiffany-Style RCA Pre-Amp Inputs and Outputs
• Signal-Sensing Remote Turn-On: Supports Remote, DC Offset, and Audio activation
• 4-Way Protection Circuitry: Thermal, overload, speaker short, and DC offset protection
• X-Boost Circuitry: Enhances bass response and compensates for bass roll-off
• Maximum Input Level Control: Features LED optimization and clip indicators
• Input sensitivity: 0.2 - 10 volts
• Frequency Response: 10 - 400 Hz
• Total Harmonic Distortion (THD): 0.1%
• Signal to Noise Ratio: >96 dB
• Variable low-pass filter: 50 - 250 Hz, 24 dB/octave (Metal Shaft with 41 Click Positions)
• Subsonic filter: 10 - 55 Hz, 24 dB/octave
• Variable Bass Boost: 0 - 18 dB @ 45 Hz
• Adjustable Phase Control: 0° to 180°
• Fuse Rating: 120A
• 4 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 13.16" L x 6.85" W x 1.89" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: XQA12001

Product Details:

• 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 1500 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant
• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire
4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 4 Gauge Nickel Plated spade terminals
9. Four 18 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Four 16 Gauge quick disconnect
12. Five 16 Gauge Nickel Plated spade terminals
13. Two Heat Shrink tubes with the NVX logo
14. Ten 6" Black zip ties
