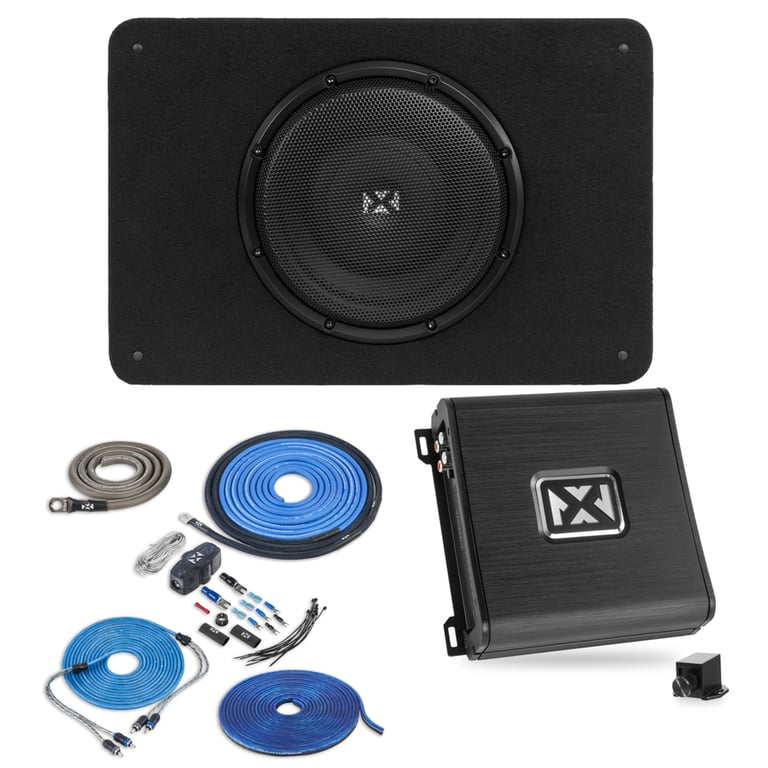

NVX 10" Loaded Enclosure (BXSQ110) + Monoblock Amplifier + Amp Kit

Product Details:

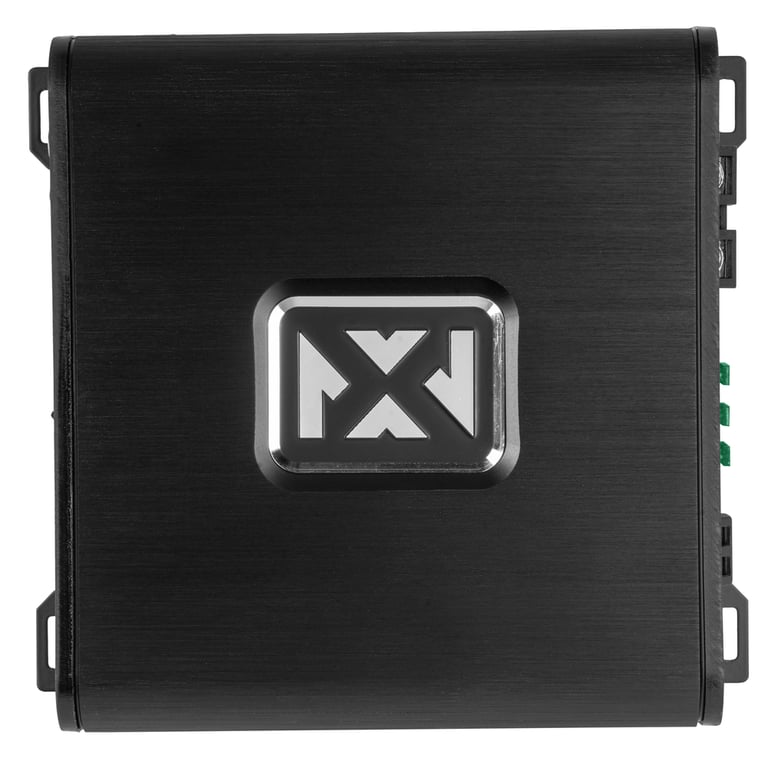

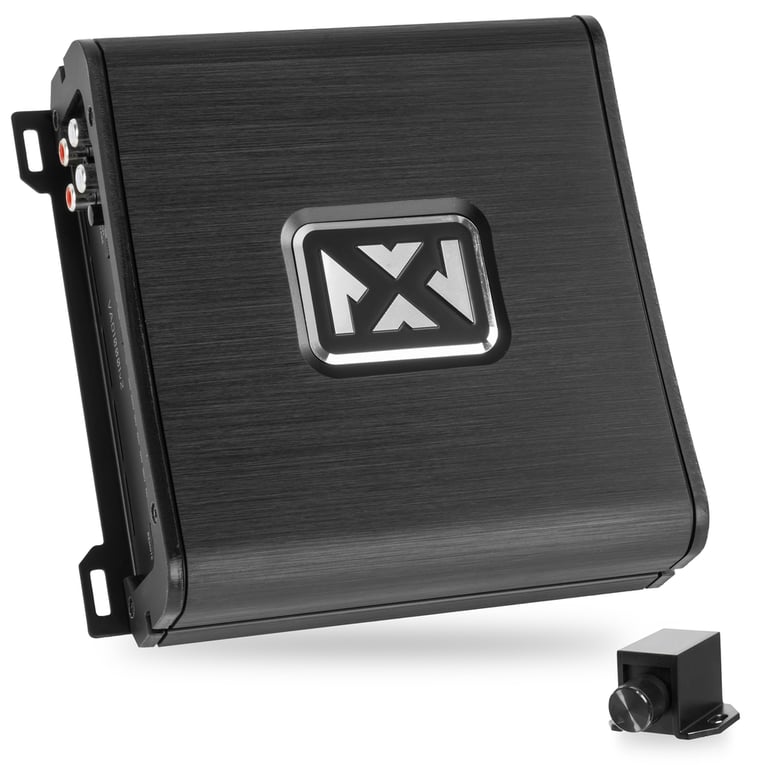

• Marine Certified V Series Class D 1 ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohm: 420 watts x 1 channel
• 2 ohm: 760 watts x 1 channel
• 1 ohm: 1000 watts x 1 channel
• Total RMS power output: 1000 watts
• Conformal Coated Marine Grade Circuit Board

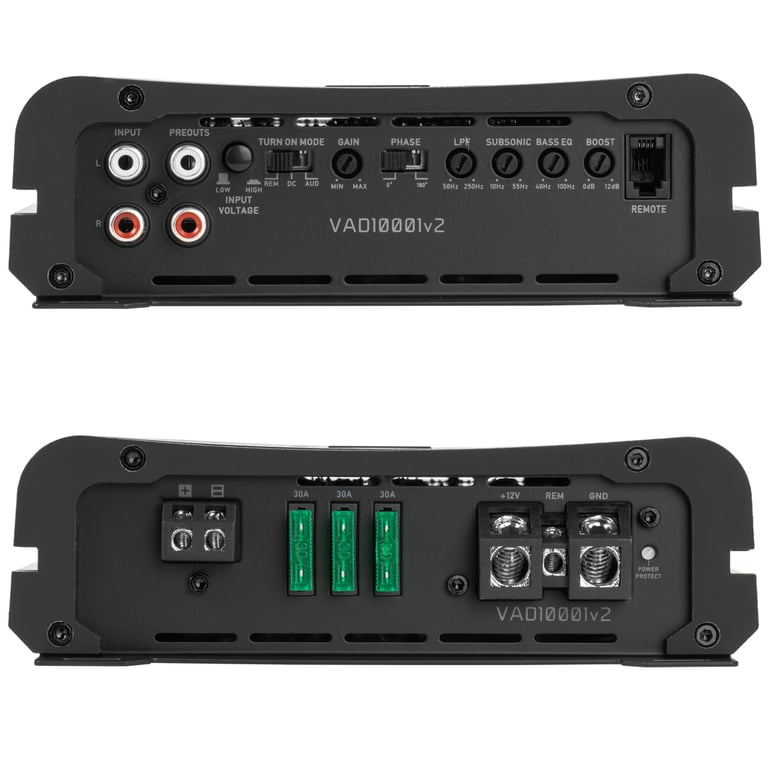

• LED Indicators: Power and Protect lights
• Platinum-plated Power and Speaker terminals

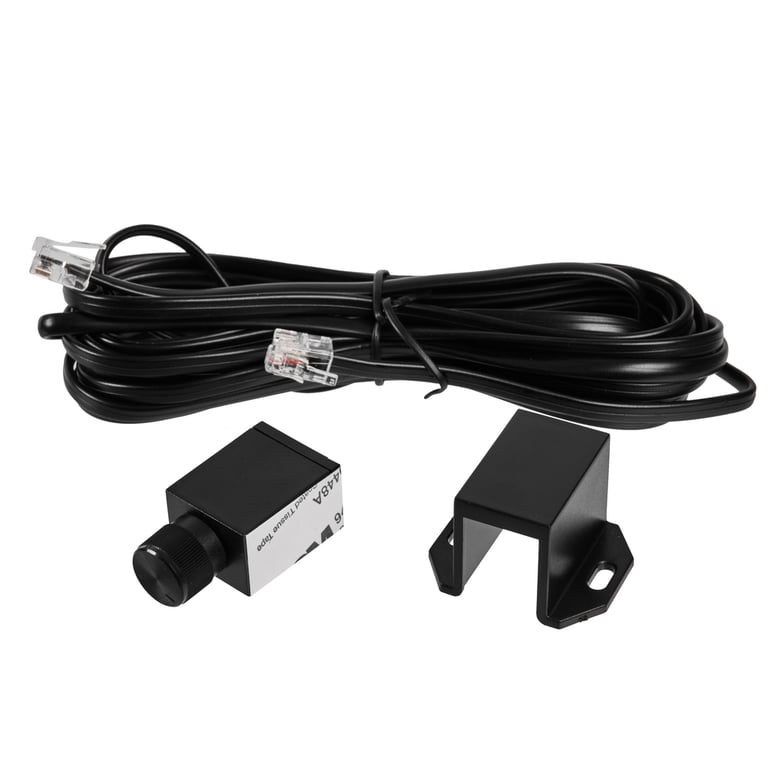

• Includes a Wired Bass Level Remote Control
• Balanced differential inputs eliminate noise picked up by signal cables
• Speaker-Level (High-Level) Inputs (Requires adapter like the Kicker KISL)
• RCA Pre-Amp Outputs
• Signal-Sensing Remote Turn-On: Supports Remote, DC Offset, and Audio activation
• 4-Way Protection Circuitry: Thermal, overload, speaker short, and DC offset protection
• Input sensitivity: 0.2 - 18 volts
• Frequency Response: 20 - 250 Hz
• Total Harmonic Distortion (THD): 0.3%
• Signal to Noise Ratio: >85 dB
• Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
• Subsonic filter: 10 - 55 Hz, 24 dB/octave
• Variable Bass Boost: 0 - 12 dB @ 45 Hz
• Phase Control: 0° to 180° Switch
• Fuse Rating: 90A
• 4 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 7.16" L x 6.81" W x 2.05" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: VAD10001v2

Product Details:

• 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 1500 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant
• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

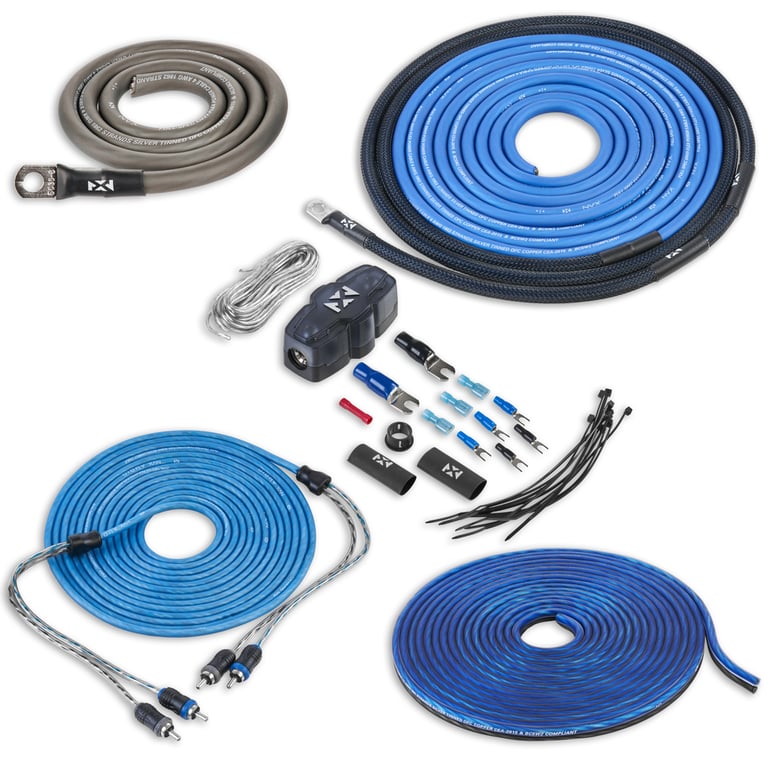

Kit includes:

1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire
4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 4 Gauge Nickel Plated spade terminals
9. Four 18 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Four 16 Gauge quick disconnect
12. Five 16 Gauge Nickel Plated spade terminals
13. Two Heat Shrink tubes with the NVX logo
14. Ten 6" Black zip ties

General Features:

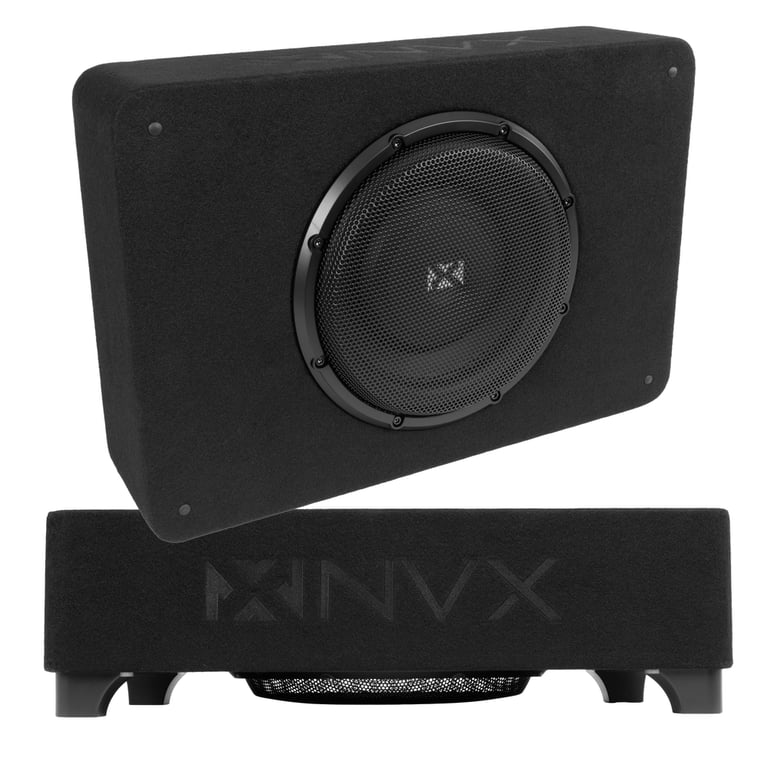

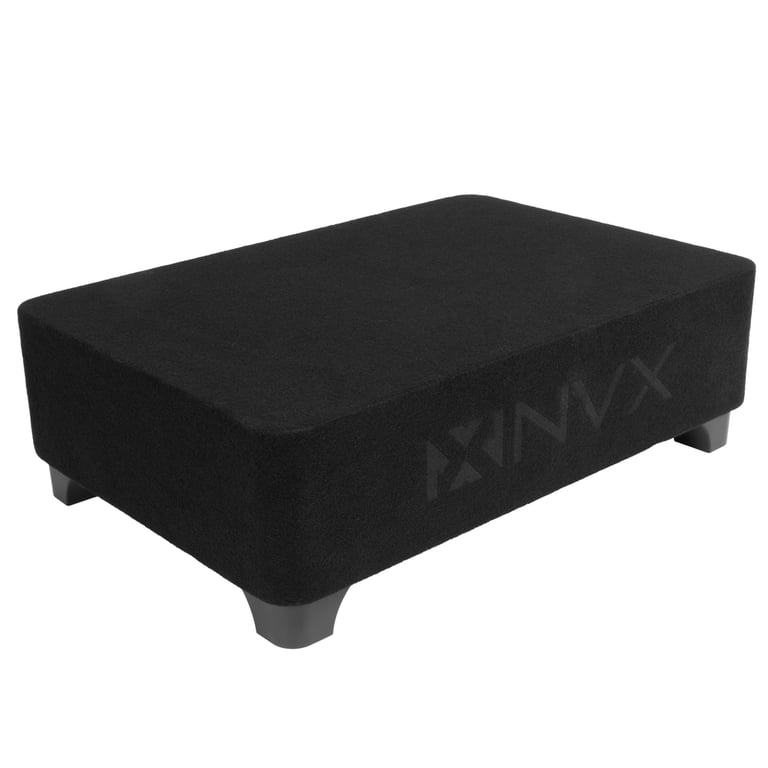

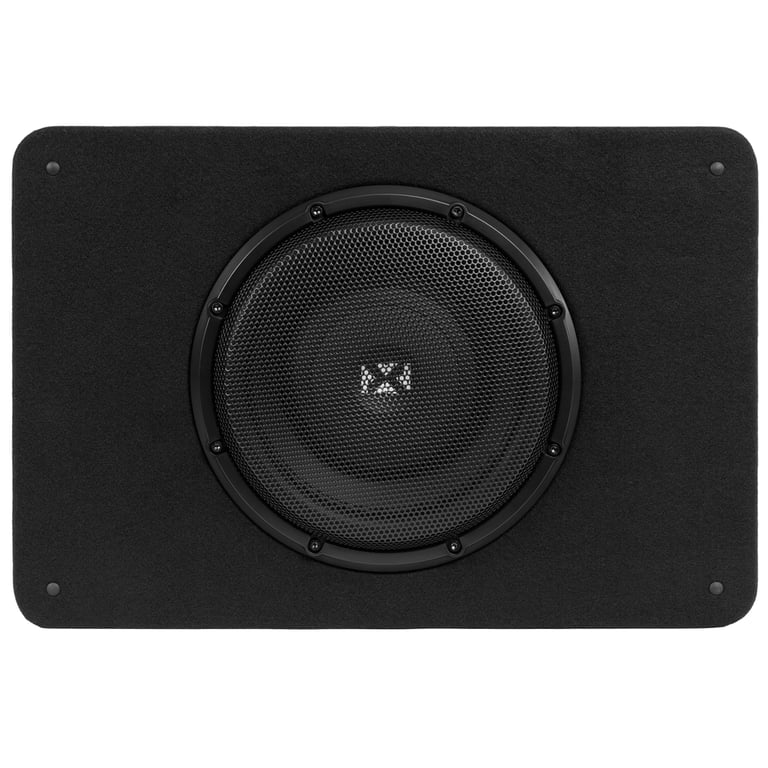

• Single 10" SQ Series Sealed Loaded Subwoofer Enclosure
• Power Handling: 1200W Peak / 600W RMS
• Pre-installed Black Metal Grille
• Precision-engineered CNC Ported MDF Enclosure

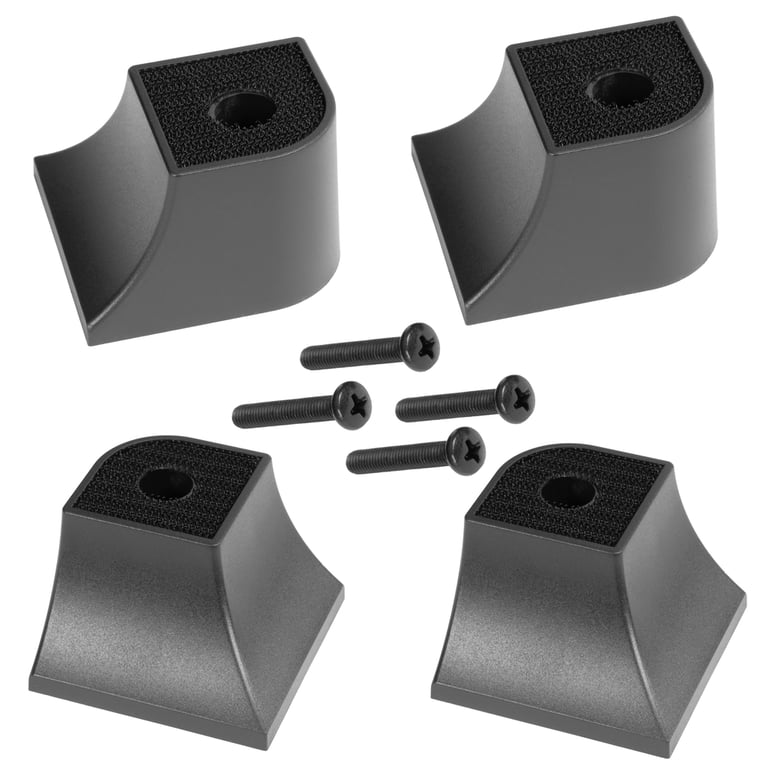

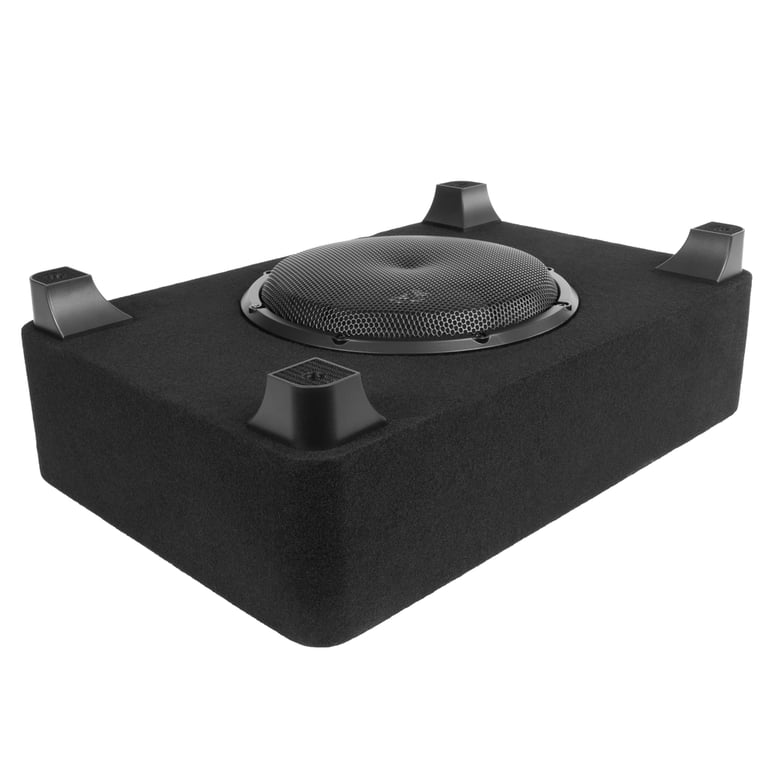

• Designed for Upward- or Downward-Firing Applications
• Final Impedance: 2 Ohm
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Subwoofer Features:

• 10" Dual Voice Coil 4-Ohm Subwoofer
• Polypropylene Cone
• Durable Rubber Surround
• 1.5" High-Temperature Voice Coil
• Ferrite Magnet Motor Structure
• Frequency Response: 25 – 500 Hz
• Resonance Frequency (Fs): 34 Hz
• Sensitivity: 83 dB

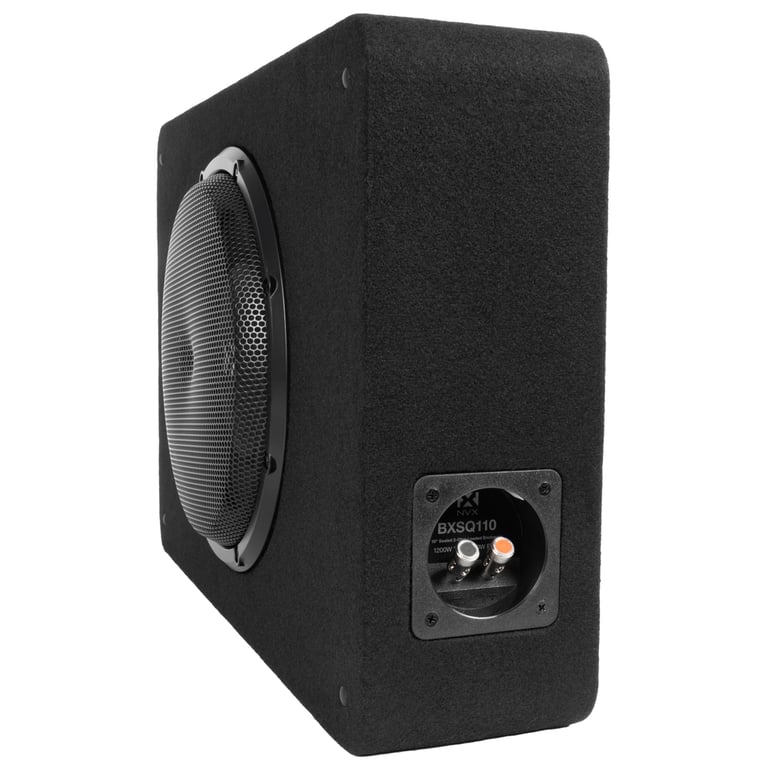

Enclosure Features:

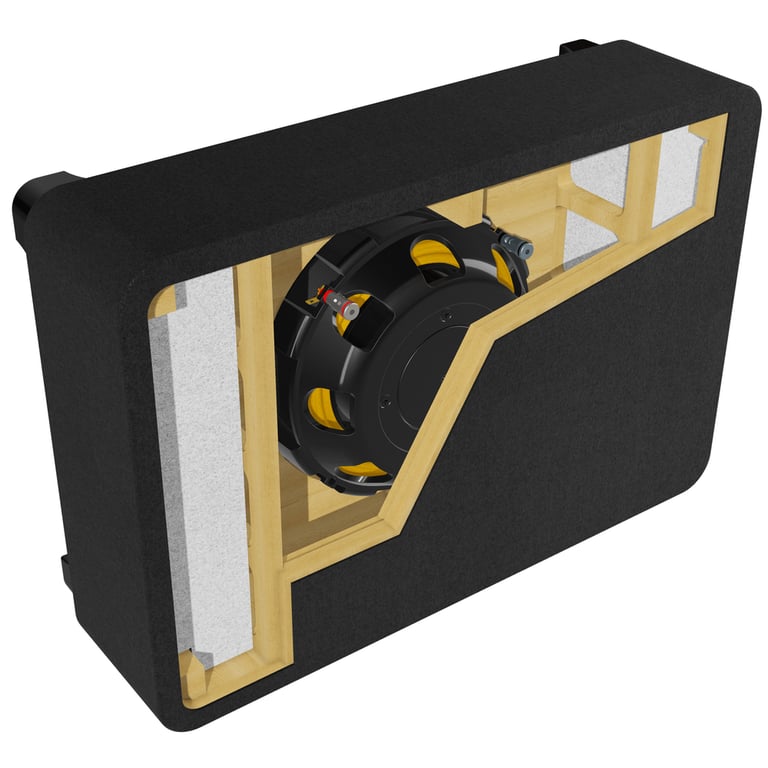

• Preloaded Single 10" Sealed Enclosure
• 3/4" MDF (Medium Density Fiberboard) Construction
• Black Carpet Finish with Black NVX Stitched Logo
• Spring-Loaded Push Terminals
• Enclosure Dimensions: 20.75" L x 4.92" W x 14.05" H
