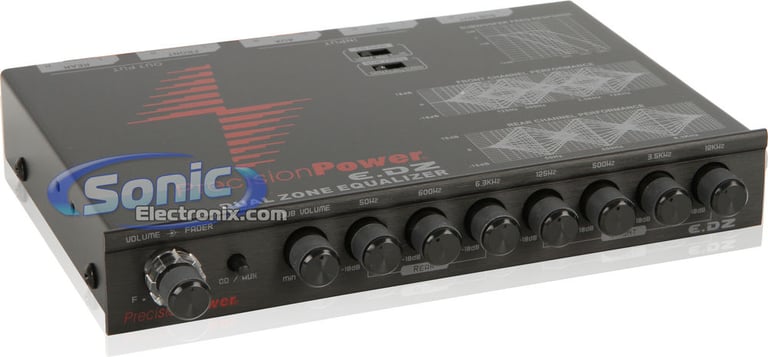

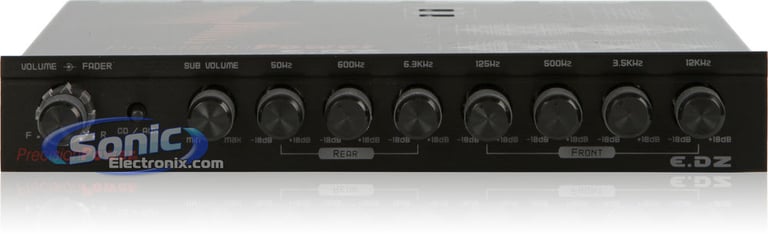

Precision Power PPI E.DZ

7-Band Dual Zone Graphic Equalizer with Auxiliary Input and Independent Subwoofer Control

Product videos
highlight-star-icon

• PrecisionPower 7-Band Dual Zone Graphic Equalizer
• Auxiliary Input
• low-Pass Filter
• Red Backlit Control Knobs
• Fader Control
• Independent Subwoofer Level Control

Learn more about the edz

We apologize

This item has been discontinued


Loading...

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Product Highlights


• PrecisionPower 7-Band Dual Zone Graphic Equalizer
• Auxiliary Input
• low-Pass Filter
• Red Backlit Control Knobs
• Fader Control
• Independent Subwoofer Level Control

Description


Precision Power brand icon

Authorized dealer

E.DZ Features:
  • 7-Band Dual Zone Equalizer
  • Customizes and tunes the audio signals
  • 20dB Headroom switching power supply
  • Built-in low noise Bi-FET Op-amps
  • Dual selectable balanced RCA inputs
  • Adjustable gain input are the RCA inputs
  • Full range of equalization supported with the front, rear, and subwoofer RCA outputs
  • Four 18 dB front channel bands: 125, 500, 3500, 12000 Hz
  • Three 18 dB rear channel bands: 50, 600, 6300 Hz
  • Independent subwoofer level control for low frequencies
  • On-board low-pass filter is selectable: 32, 64, 128 Hz
  • Fader control
  • Red backlit control knobs are easy to see and match select interior lights
  • Includes a separate auxiliary input for playback of portable media devices
  • Auxiliary switch on the front of the equalizer
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
E.DZ Specifications:
  • Front channel bands (@ 18 dB): 125, 500, 3500, 12000 Hz
  • Rear channel bands(@ 18 dB): 50, 600, 6300 Hz
  • Boost/Cut: 18 dB
  • Signal-to-Noise Ratio: 115dB
  • Frequency Response: 10-15,000 Hz
  • Maximum output voltage:8V RMS
  • THD: 0.05%
  • Input Sensitivity: 150 mV
  • Headroom: 20 dB
  • Input Impedance: 10,000 ohm
  • Stereo Separation: 82 dB
  • Operating Voltage: 11-15V Negative ground
  • Output Impedance: 50,000 ohm
  • Selectable low-filter: 32, 64, 128 Hz
  • Dimensions: 4-1/2"D x 7"W x 1"H

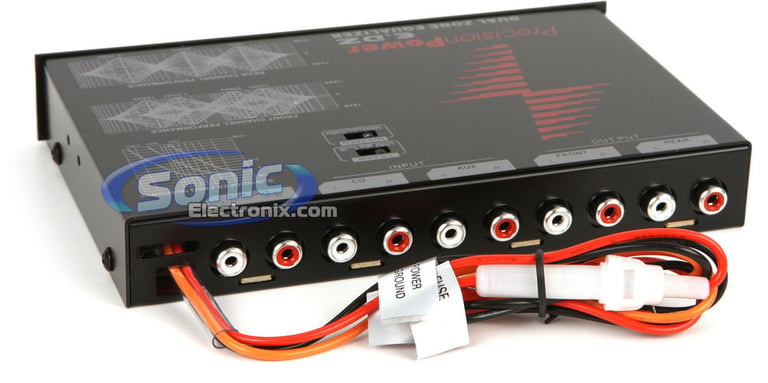

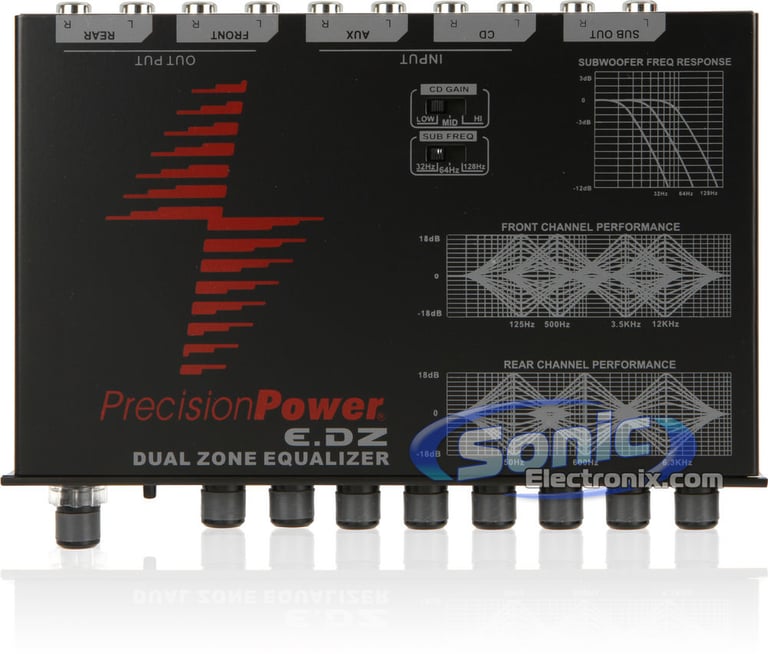

Connections:
  • 3 RCA Composite outputs (Front, Rear, and Subwoofer)
  • 2 RCA Composite inputs (CD and AUX)
