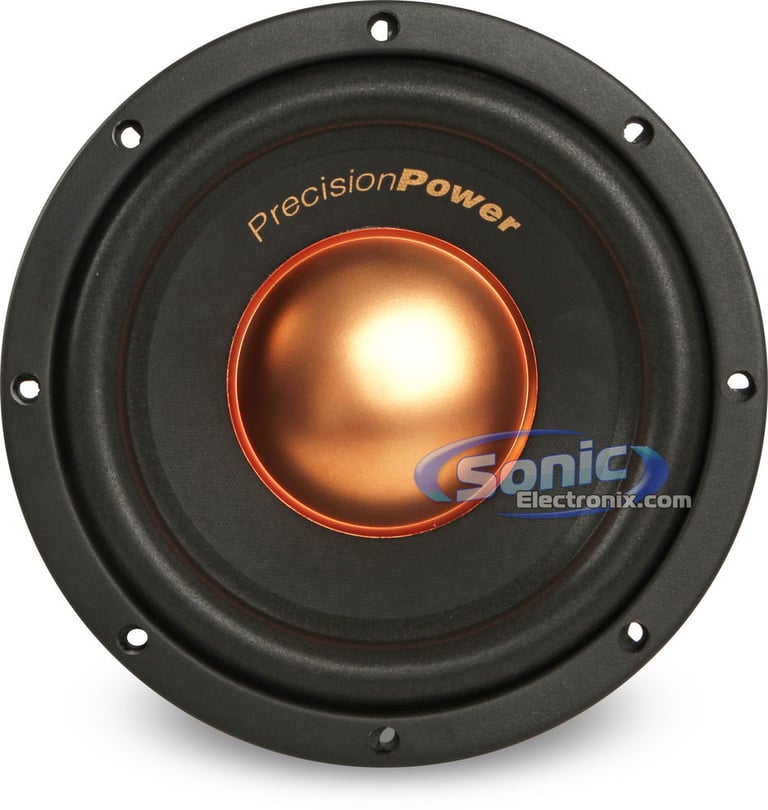

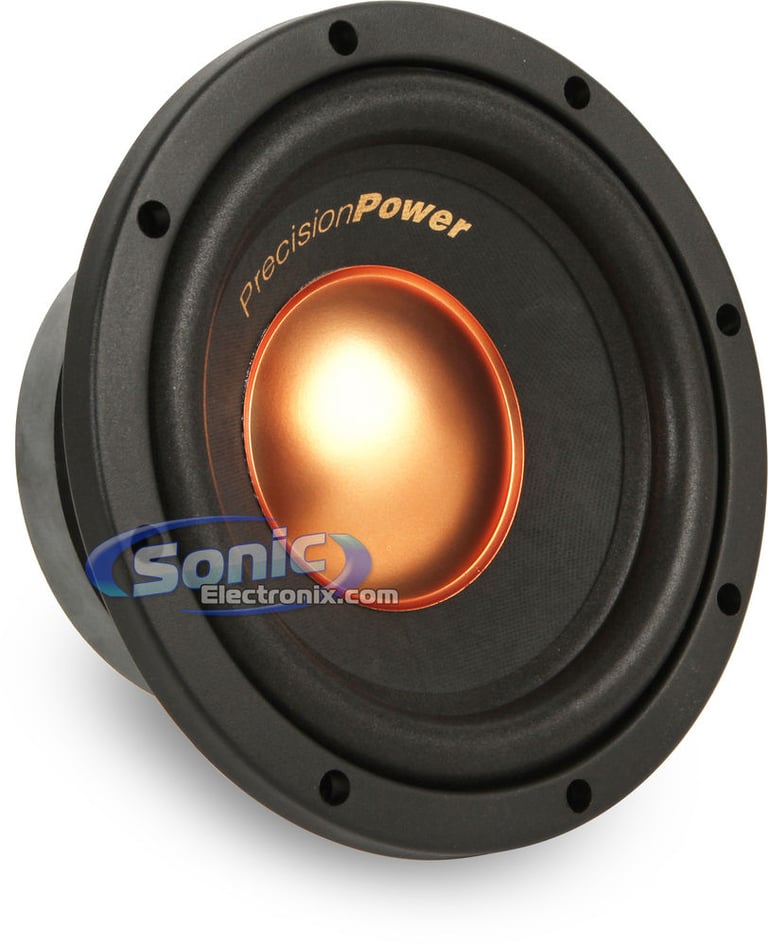

Precision Power PPI A.8SQ

8" Dual 4 ohm Art Collection Subwoofer

Product videos
highlight-star-icon

• 360W Peak
• 180 RMS
• Dual 4 Ohm
• Non Pressed Paper Cone
• Reinforced Foam Surround
• Kapton VC Former

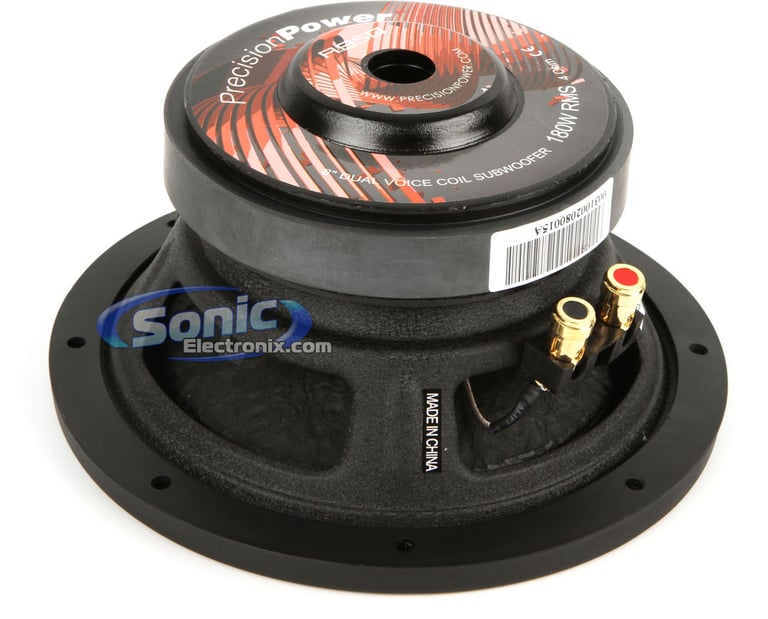

• Gold Plated Compression Terminals

Learn more about the a8sq

We apologize

This item has been discontinued


Loading...
SWRHN-62L main

Crux SWRHN-62L Wiring Interface

Install new car stereo and retains steering wheel audio controls and other factory features in select 2008-2015 vehicles from Honda, Acura

2
-35.71%

$89.10

List price $138.60

Limited time!
CS-DF620 main

JVC CS-DF620

600W Peak (50W RMS) 6.5" DRVN DF Series 2-Way 4-ohm Shallow-Mount Coaxial Car Speakers

4
-39.08%

$38.99

List price $64.00

JVC KD-X280BT

Single DIN Digital Media Receiver with Bluetooth

2
-15.50%

$109.00

List price $129.00

Product Highlights


• 360W Peak
• 180 RMS
• Dual 4 Ohm
• Non Pressed Paper Cone
• Reinforced Foam Surround
• Kapton VC Former
• Gold Plated Compression Terminals

Description


Precision Power brand icon

Authorized dealer

  • 8" Dual 4 Ohm Art Collection Series Subwoofer
  • Power Handling:
    • Peak: 360 watts
    • RMS: 180 watts
  • Impedance: Dual 4 ohm
  • Non pressed paper cone ensure maximum woofer efficiency
  • Reinforced foam surround absorbs distortions
  • Injection molded poly/mica dust cap
  • Rubber gasket
  • Gold plated compression terminals
  • Kapton VC former
  • Conex spider provides clean and balanced sound quality
  • Vented pole piece provides additional cooling of the motor
  • 2" 4 layer voice coil
  • Mounting depth: 4"
  • Cut out diameter: 7-3/8"
  • Sensitivity: 83 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Precision Power PPI A.8SQ Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Precision Power PPI A.8SQ Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Precision Power PPI A.8SQ Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Precision Power PPI A.8SQ Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95


Best selling similar products

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

47KBRW8 small

Kicker 47KBRW8 ReFLEX™

• 8" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

(1)

$49.99

List price $59.99

DB-SA2508 D1 small

Deaf Bonce Apocalypse DB-SA2508 D1

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 5.22"
• Sensitivity: 84.7 dB

(1)

$229.90

List price $229.90

VCW84v3 small

NVX VCW84 Version 3 (VCW84v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(15)

$169.99

List price $203.99

8W3V3-4 small

JL Audio 8W3V3-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.63"
• Sensitivity: 83.24 dB

(45)

$349.99

List price $349.99

L7S82 small

Kicker L7S82 (44L7S82)

• Peak Power: 900 watts
• RMS Power: 450 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 4-3/4"
• Sensitivity: 82.37 dB

(1)

$175.96

List price $239.99

SPK-8S4 small

AudioControl SPK-8S4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 4.291"
• Sensitivity: 81.9876 dB

(1)

$179.00

List price $229.00

KAPPA 83WDSSI small

Infinity Kappa 83WDSSI (INFSUBKA83WDSSIAM)

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 5.42"
• Sensitivity: 91 dB

(2)

$149.95

List price $289.95

8W1v3-4 small

JL Audio 8W1v3-4


• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 3.86"
• Sensitivity: 84.8 dB

(10)

$199.99

List price $199.99

CWRT84 small

Kicker CWRT84 (48CWRT84)

• Peak Power: 600 watts
• RMS Power: 300 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 2-11/16"
• Sensitivity: 81.8 dB

(4)

$151.96

List price $209.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
8"
Peak Power Handling
360 watts
RMS Power Handling
180 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
83 dB
Xmax (millimeters)
6.25 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Gold
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.4 cubic feet
Maximum Sealed Box Volume
0.8 cubic feet
Minimum Ported Box Volume
0.5 cubic feet
Maximum Ported Box Volume
1.00 cubic feet
Top-Mount Depth (Mounting Depth)
4"
Cutout Diameter
7-3/8"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
37.7 Hz
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

A.8SQ

Weight:

9.50lbs

Internal SKU:

a8sq

Internal Product ID:

23674

Product and How-to Videos


Customer Ratings & Reviews


Precision Power PPI A.8SQ thumbnail image

5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
4.8
Features
4.8
Design
5
Usability
4.8

Customer Reviews

Sort by:

Loading...

Good all-around subowofer

I purchased these two on a whim despite not having any reviews. They had the best specs in this size while having a required 4" (or less) mounting depth. Put them in 0.5" cubic foot sealed enclosure each, powered with approximately 200w RMS per channel.

They handle the power well, and get low and loud. The sound is a tad boomy and I can hear them reach their mechanical limits when pushed very hard which suggest these prefer a smaller sealed box perhaps 0.3-0.4cf.

The sound quality is respectable, these work well with most every style of music I listen to. SPL-wise, they're pretty comparable to higher end 8" subs I've heard. With two at their rated power, I would say they're as loud as a good 12" sub, though that is subjective.

There's really nothing bad to say about these woofers. If I had to pick something, it would be the use of foam surrounds instead of rubber. On the flip side, there's nothing that really stands out and says "BUY ME" either.. They do look cool though. Had mounting depth not been a concern, I would have gone with with a more established brand such as Boston or Infinity, as they are very close in price.

By adelphia83 on December 5, 2010

23 found this helpful


Awesome.

I've had two of these wired at 1Ohm in vented enclosure built to PPI's specs powered by a PPI S550.1D fed by a Clarion MCD360. They are accurate and have a great low end. They were a little difficult for me to tune in, probably due to my ability more than the application. Can't beat the price. Punch is great, bottom end is too. Wonder if they would be better in a sealed enclosure sometimes, may have to build one and see. For the money they are fantastic and I wouldn't hesitate to buy them. I may buy a couple more while they are still available.

By michael on April 7, 2014

19 found this helpful


Unique High Quality Driver

Neat little driver. Check out the specs. 1 cu enclosure achieves sub 30HZ results. Specs say the basket is steel but.... Doesnt feel or sound like steel. More like a carbon composite. Great performance for an 8" subwoofer.

By quixxxand on May 17, 2013

19 found this helpful


Worth It!!!!!!

Nice old school look and feel. Not alot plastic and chrome that does nothing but take up box voulme and introduce un-natural ringing in the sound. The voice coil seem close to the magnet and seems to be efficent. Little power produces lots of sound. I have hammered mine and they keep going.

By Watts on September 21, 2012

19 found this helpful




99-9011 small

Metra 99-9011 Dash Kit

Install a new Single-Din or Double-DIN car stereo in select 2005-2019 vehicles from Volkswagen

(7)

$25.99

List price $48.99

RAM-B-166-UN10U small

RAM Mount Universal Tablet Cradle (RAM-B-166-UN10U)

Custom fit mount for 5" phone or tablet with twist lock suction cup base

$53.49

List price $59.99

13TW5v2-4 small

JL Audio 13TW5v2-4

600W RMS 13.5" TW5v2 Series Single 4-ohm Shallow Car Subwoofer

(5)

$929.99

List price $929.99

VX3022 small

Jensen VX3022

Double DIN Bluetooth In-Dash DVD/CD/AM/FM Car Stereo w/ 6.2" high resolution TFT touchscreen, App Connectivity for iPhone, Android & BlackBerry, and front USB/3.5mm Inputs

(4)

$179.99

List price $229.99

VM9214BT small

Jensen VM9214BT

Single DIN 7" TFT-LCD Touchscreen Monitor with DVD/CD/MP3/WMA Player, w/ Bluetooth, USB and Aux-In

(1)

$239.99

List price $389.99

99-7353CH small

Metra 99-7353CH Dash Kit

Install a new Single-DIN car stereo in select 2012-2015 Rio (Charcoal)

(2)

$52.99

List price $58.99

PMA2150A small

Alphasonik PMA2150A

$219.99

List price $299.99

BC-BFKC small

Metra BC-BFKC

Front Fork LED Accent Lights for

$224.99

List price $249.99

XPs small

Encore Replacement Remote Transmitter for the XP Car Alarm (Model: XPs)

XPs Is a replacement or additional remote for the XP car alarm security system

$16.99

List price $34.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2009 Honda Pilot

2002 Acura RL

1980 Cadillac Eldorado

2023 Dodge Durango

2003 Cadillac Escalade

2002 Mitsubishi Eclipse

2025 Ford Bronco

1976 Cadillac Eldorado

2012 Mitsubishi Eclipse Spyder

2015 Mazda 6

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
