See all parts that fit your 2019 Escalade

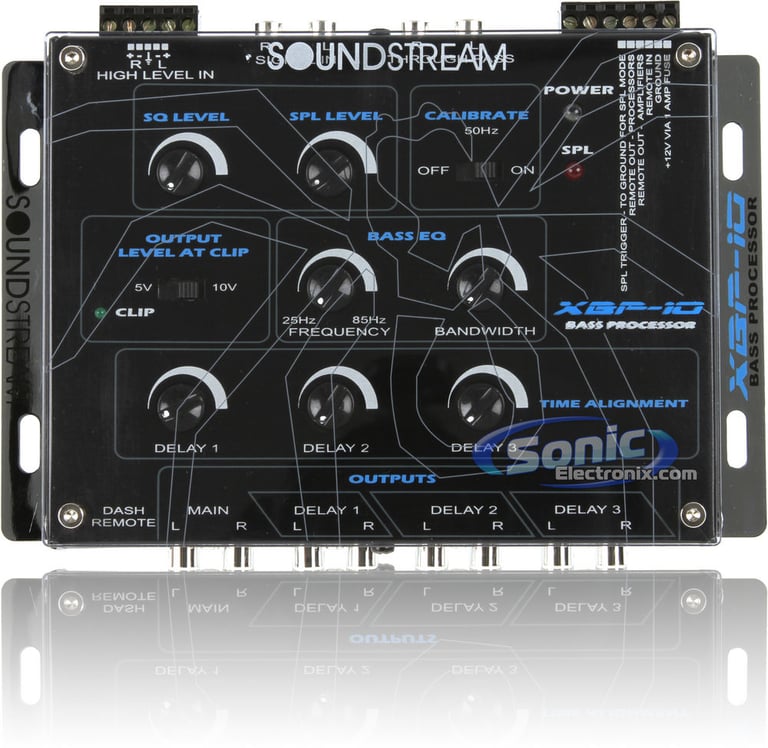

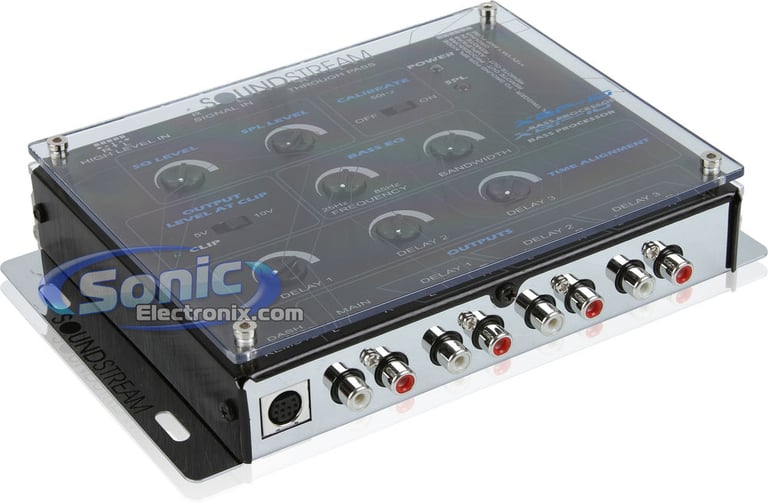

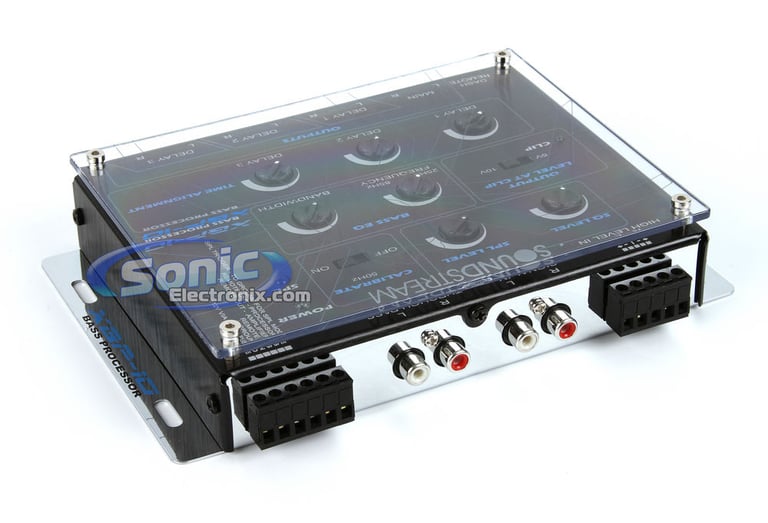

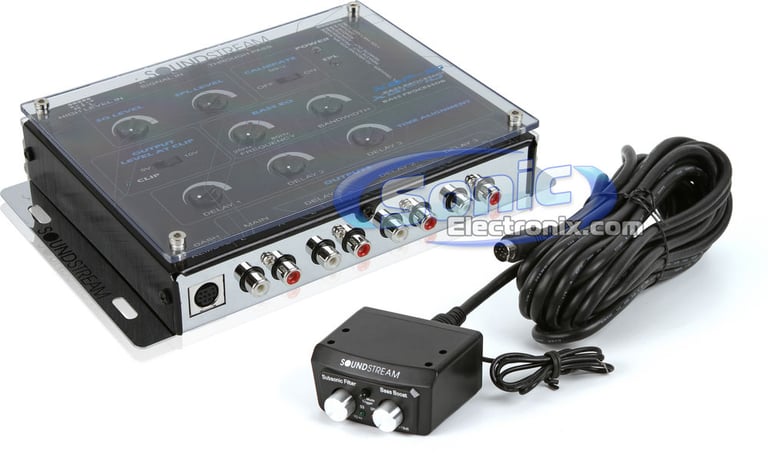

Soundstream XBP-10

SPL Competition Signal Processor with Dash Remote Control and Variable EQ

Product videos
highlight-star-icon

SPL Competition Signal Processor • 2 Separate Signal Paths • 4 Pairs of Outputs • Variable EQ • Voltage Switch • Tone Generator • Includes a Dash Mountable Remote Control • Variable Bass Equalizer

Learn more about the xbp10

We apologize

This item has been discontinued


Loading...
AP4-GM61 main

PAC AmpPRO 4 AP4-GM61

AmpPro for Select GM Vehicles with 20-pin and 8-pin Connectors (MOST50) Audio Output Interface

1
-12.75%

$479.00

List price $549.00

XQS3 main

NVX XQS3

200W Peak (100W RMS) 3.5" X-Series Midrange Speakers with Carbon Fiber Cones

7
-30.56%

$99.99

List price $143.99

Product Highlights


SPL Competition Signal Processor • 2 Separate Signal Paths • 4 Pairs of Outputs • Variable EQ • Voltage Switch • Tone Generator • Includes a Dash Mountable Remote Control • Variable Bass Equalizer

Description


Soundstream brand icon

Authorized dealer

Product Features:
  • SPL Competition Signal Processor
  • 2 Separate signal paths for sound quality and sound pressure level
  • Individual level control for each signal path
  • Variable EQ allows great sound adjustment
  • Voltage switch changes from 5V to 10V signal voltage
  • Tone generator @ 50 Hz for tuning
  • Variable 25-85 Hz bass equalizer
  • 4 Pairs of outputs (1 Main and 3 variable delay for time alignment of subwoofers)
  • Pass through outputs
  • Turn on/off delay for the elimination of system "pops"
  • High level inputs make OEM integration simple
  • Clipping switch at 5V and 10V

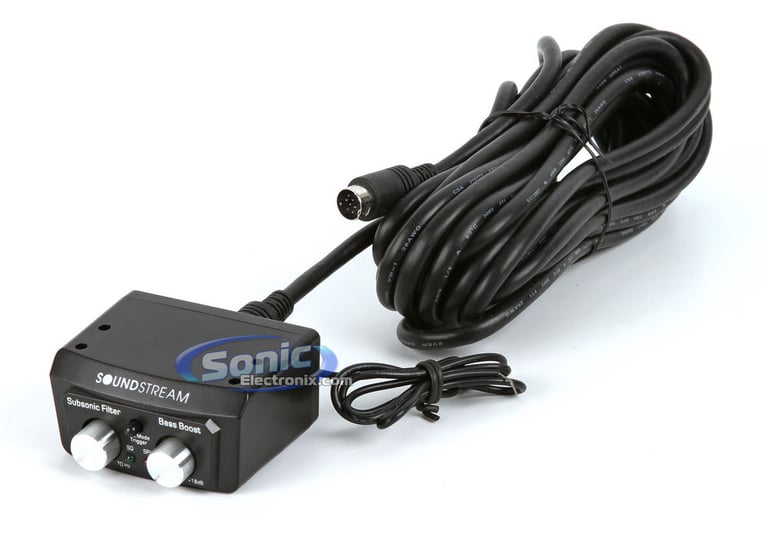

  • Includes a dash mountable remote control
  • Dash remote has boost level, subsonic filter, and SQ-to-SPL signal path switch
  • Plexi-glass cover

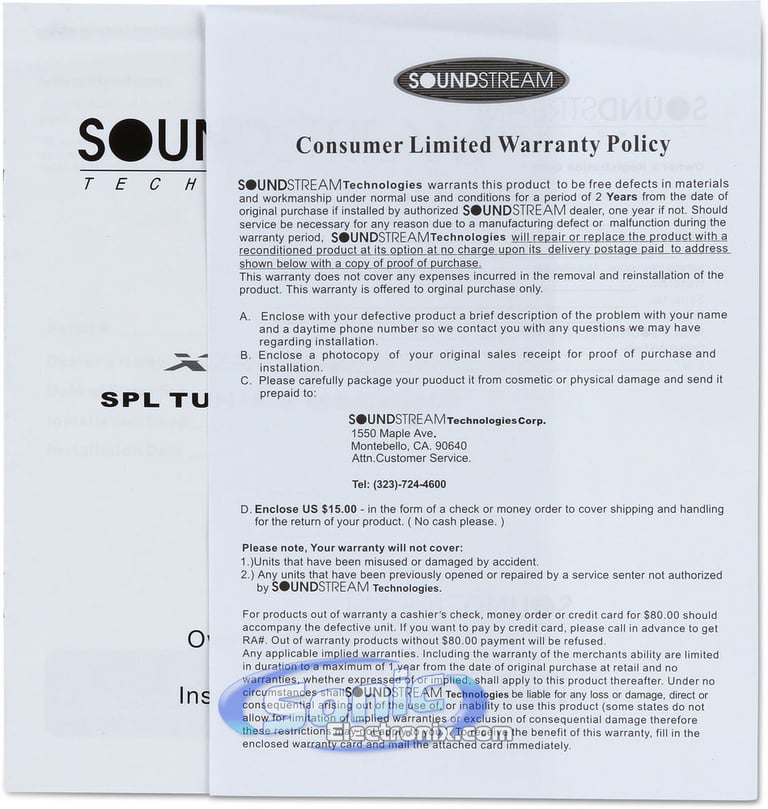

  • 1-year Manufacturer's warranty
Product Specifications:
  • Maximum Input Level: 15 V RMS
  • Maximum Output Level: 13.5 V Peak
  • Frequency Response: 10-100,000
  • Bass EQ Frequency: 25-85 Hz
  • Total Harmonic Distortion (THD): 0.003%
  • Signal-to-Noise Ratio: 130 dB
  • Balanced input noise rejection: >60 dB
  • Input Impedance: 10,000 ohm
  • Output Impedance: 150 Ohm
  • Power Supply: High headroom PWM
  • Power Draw: 150 mA
  • Recommended Fuse Rating: 1A
