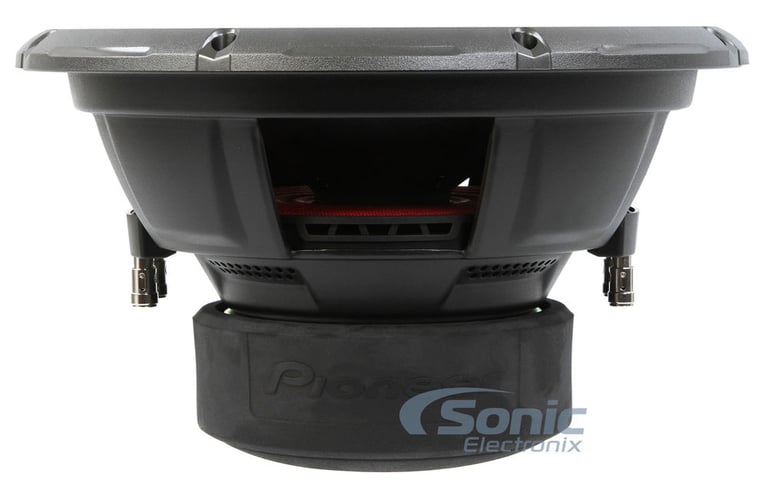

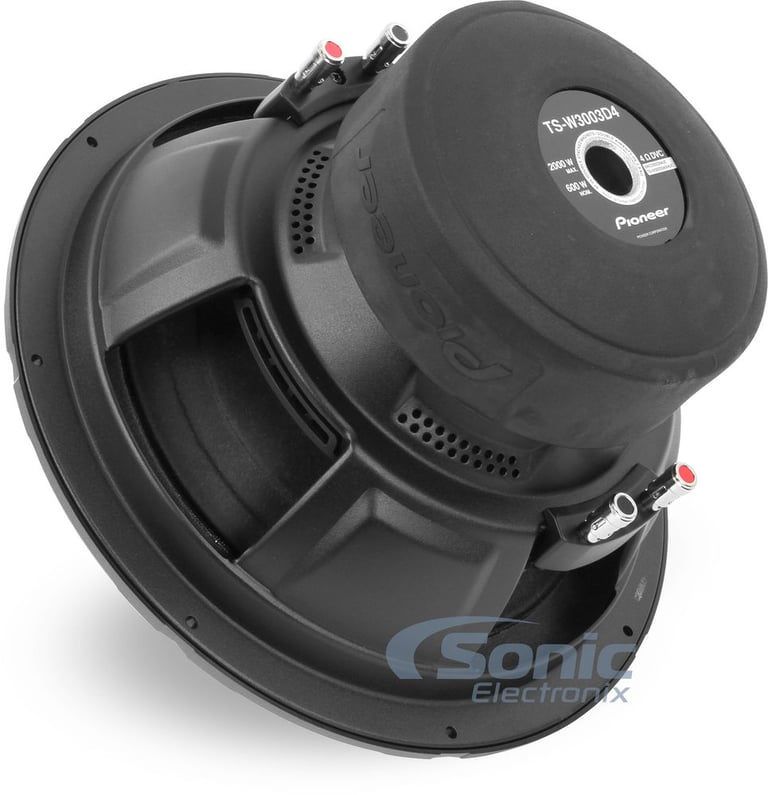

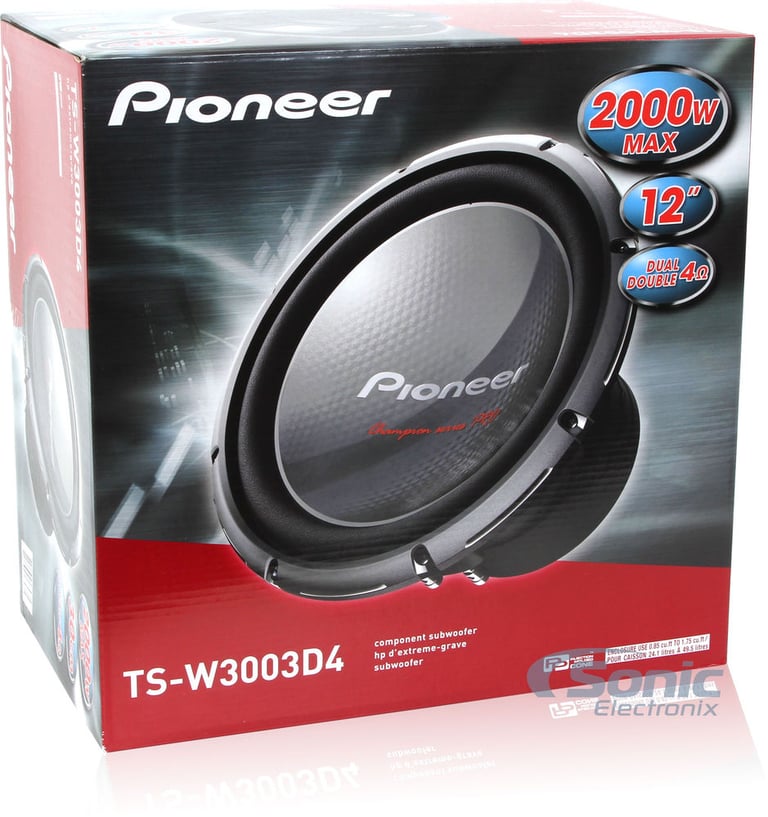

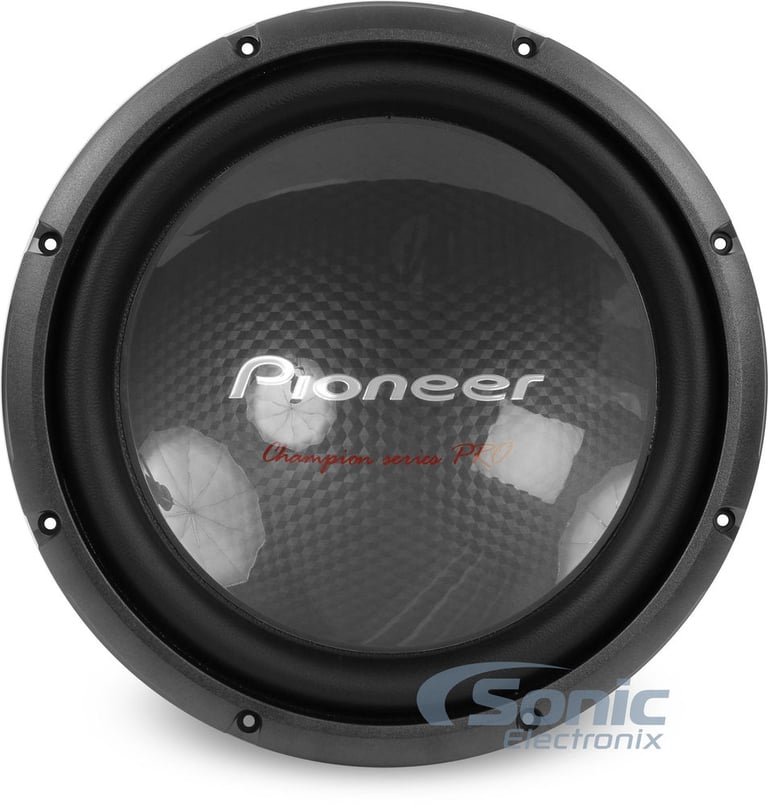

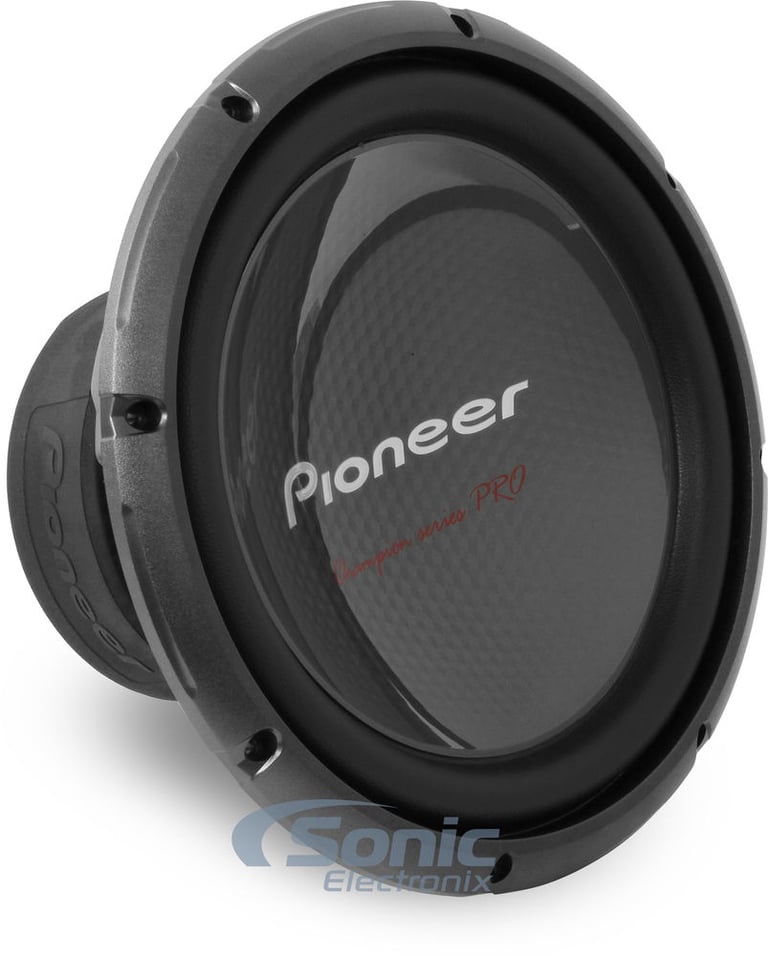

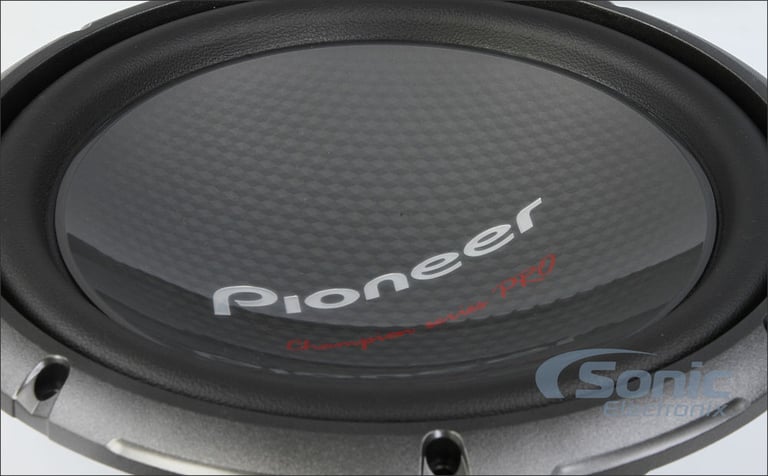

12" Pioneer TS-W3003D4 600W RMS

600W 12" Champion Pro Series Dual 4 ohm Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• 2000W Max
• 600W RMS
• IMPP Composite Seamless Woofer Cone
• Dual-Layer Elastic Polymer Surround
• Larger Magnet Combined With Dual Spider Design
• Frequency Response: 20-80 Hz
• Sensitivity: 96 dB

Learn more about the tsw3003d4

We apologize

This item has been discontinued


Loading...
TOYLB3 main

GROM Audio TOYLB3 Lexus Bluetooth Streaming Kit (GROM-BT3-LEX)

Add Bluetooth Hands Free Calling and Music Streaming to Select 2001-2004 Lexus Factory Radios

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
TWPZ main

DS18 TWPZ

80W Peak (40W RMS) 1" Slim Dome Super Tweeters

6
H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

460BRGB main

Boss Elite 460BRGB

Single DIN Digital Media Receiver with Bluetooth (Black)

8

Product Highlights


• 2000W Max
• 600W RMS
• IMPP Composite Seamless Woofer Cone
• Dual-Layer Elastic Polymer Surround
• Larger Magnet Combined With Dual Spider Design
• Frequency Response: 20-80 Hz
• Sensitivity: 96 dB

Description


Pioneer brand icon

Authorized dealer





General Features:

  • 12" Champion Series Pro Subwoofer
  • Power Handling:
    • Peak: 2000 watts
    • RMS: 600 watts
  • Recommended power range: 300 - 600 watts RMS
  • Impedance: Dual 4 Ohm
  • IMPP composite seamless woofer cone
  • Dual-layer elastic polymer surround
  • Spring-loaded speaker terminal posts
  • Perfect for a ported or sealed enclosure
  • Features larger magnet combined with a dual spider design
  • Frequency Response: 20-80 Hz
  • Top-mount depth: 6.90"
  • Cut-Out Dimensions: 11.10"
  • Sensitivity: 96 dB
  • 1-year Sonic Electronix Warranty
  • Also found as: TSW-3003D4, TSW 3003D4

Product history:

Pioneer TS-W3003D4 thumbnail
(newest, current model)
Pioneer TS-W3002D4 thumbnail
(previous model, replaced by 12" Pioneer TS-W3003D4 600W RMS)
Pioneer TS-W3001D4 thumbnail
(previous model, replaced by Pioneer TS-W3002D4)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 12" Pioneer TS-W3003D4 600W RMS Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 12" Pioneer TS-W3003D4 600W RMS Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 12" Pioneer TS-W3003D4 600W RMS Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 12" Pioneer TS-W3003D4 600W RMS Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

Specifications & Details


Subwoofer Specifications
Series
Champion PRO Series
Subwoofer Size
12"
Peak Power Handling
2000 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 80 Hz
Sensitivity
96 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene Composite
Woofer Surround
Elastic Polymer
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.85 cubic feet
Optimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
1.75 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Optimum Ported Box Volume
1.50 cubic feet
Maximum Ported Box Volume
2.00 cubic feet
Top-Mount Depth (Mounting Depth)
6.90"
Cutout Diameter
11.10"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
35 Hz
Equivalent Compliance (Vas)
34.6 liters
Total Speaker Q Value (Qts)
0.59
Electrical Q Value (Qes)
0.62
Mechanical Q Value (Qms)
11.50
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W3003D4

Weight:

19.50lbs

Internal SKU:

tsw3003d4

Internal Product ID:

74610

Product and How-to Videos


  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


12

5 star
83%
4 star
14%
3 star
1%
2 star
0%
1 star
2%



Durability
4.8
Value
4.9
Features
4.8
Design
4.8
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Nostril Vibration

I blew my Memphis MClass 12 running 300 watts at 4 ohms with an Alpine MVR500 ( great amp). This website had THE BEST price on this Pioneer sub after doing a week of homework. You will not find another sub within $200 of this one that as high a sensitivity (96 bd) & this much Xmax (13mm). I put this into my same sealed box (1.25 sq ft) & I bangs!! It's super clean but still makes your nostrils vibrate, which the Memphis never did. I'm running it @ 2 ohm @ 540 rms. Next I will be putting in a larger ported box. Nobody around here believes it's only 1 12 my RSX. I nearly bought a sundown audio 12, but after much homework comparing the specs, this was the sub for me & I'm beyond impressed!!! You won't be disappointed with this sub or with Sonicelectronix! They got it here in 2 days as promised.

By Jesse on July 6, 2014

111 found this helpful


Amazing subwoofers

I purchased two of these subs to replace my single pioneer ts-w3002d2 with hopes of having louder and clearer bass reproduction without having to upgrade electricals(my cars year makes it expensive to upgrade) and i was definately pleased. I have them both wired at 2 ohms to my pioneer amp pushing the 600 Rms to both and they hit hard, loud and clear. I would highly recommend these subs to anyone wanting inexpensive, high quality sound without needing a high powered amp.

By Elliott on December 8, 2014

101 found this helpful


Great investment!

I wish I would have found them sooner.These Speakers are some serious quakers.

By Stoney Coleone Capone on October 25, 2014

101 found this helpful


OMG.

These things pound hard more than worth the money! buy these now

By Logan on June 6, 2014

97 found this helpful


Great sub

This is a great sub just one of these knocks hard and I have the bass boost half way! you can't beat the price for the quality of this pioneer!

By Marco on February 10, 2015

96 found this helpful


Impressive for the money !

I bought two of these for my Ford ranger extra cab, and built a ported box five cubic feet net, not including port volume. Each sub has its own port tuned to 33hz and 16 sq in port area. I have a Massive Audio N4 loaded to 1 ohm, which is putting out 1444 watts at 13.5 volts, with box rise the subs won't get that much power. About a month of playing they are starting to sound better now that that dual spiders are breaking in. Needless to say the bass is incredible ! Flexing the back of the cab quite a bit. These pioneer subs "suspension" is in my opinion more durable than the new alpine type r sub which has a single spider. My last type r spider separated from the cone completely and then failed. Sorry alpine.

By Ranger on October 28, 2014

98 found this helpful


These are awesome!

I upgraded from 2 ts-w310d4s to a pair of these. The 310s are a great sub for getting loud with minimal power required. I A/B swapped the 310s to these with the same box/ amp. The 3003s obviously draw a little harder on electrical, but without being broke-in yet, they are as loud as the 310s that have over 150 hours on them. They move the windshield a bit more than the 310s already, after a very short 4-hour break-in. The build quality is literally "impressive". You would be hard-pressed to find build quality like this under $120-150. I have seen $200-plus subs that aren't built this nice. They sound smooth and have a nice curve with a moderate-sized enclosure.

These AND the 310s are excellent products for their price. I recommend these if you have over 500W of clamped, daily power per sub, but if you have under 500W a sub, def go with the 310s. Also go with the 310s if you have a puny electrical system, and don't see yourself upgrading it, as the 3003s will draw a considerable amount. The 310s will shine under 500W per sub.

By Satisfied customer on May 9, 2014

92 found this helpful


They are worth it

These speakers are the truth I have 2 with a hifonics 1200 watt super d class ample in a grand am and it sound great

By lileast on March 17, 2014

94 found this helpful


Great sounding woofer

Set this woofer up at 2 ohms in a ported Belva box with an SSL 1500 watt mono amp. The woofer sounds amazing with very smooth and deep bass. Very efficient woofer as the amp's gain and bass boost are set at 1/4 . Definitely would recommend.

By Bob_H on December 15, 2014

92 found this helpful


Awesome product

I ordered 2 and they're great. Have them in a ported box wired at 800 watts and they bump. Would 100% recommend these to someone else.

By Ryan on August 11, 2014

91 found this helpful




BULLET AZZURRO small

Aerial7 Bullet (Azzurro)

In-Ear Bullet Series Multi-Device Stereo Earbuds

(1)

$10.99

List price $20.00

No picture

Valor SDN-908W

In-Dash 7" TFT-LCD Touchscreen Monitor with Built-in Navigation, Bluetooth, iPod Control and SD/USB Input

(4)

$549.99

List price $699.99

CVEM79ORG small

Coby CVEM79ORG High-Performance Isolation In-Ear Stereo Headphones (Orange)

Orange High-Performance Sound Isolation Stereo Earphones

$13.99

List price $14.99

09EB141S small

Kicker EB141S (Silver EB141 - 09EB141S)

Silver, Advanced Full-Range Earbuds (Monitors/In-Ear Headphones) w/ Comply Foam Tips (EB141 09EB141)

(1)

$34.99

List price $59.95

CVEM79PUR small

Coby CVEM79PUR High-Performance Isolation In-Ear Stereo Headphones (Purple)

Purple High-Performance Sound Isolation Stereo Earphones

$11.95

List price $14.99

ERCA17 small

e2 ERCA17 by Scosche

17 ft. 2-Channel Twisted Hex RCA Interconnect Audio Signal Cables

(22)

$8.99

List price $24.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 Lexus ES330

2001 Cadillac DeVille

1985 Audi Quattro

2016 Ford Transit Connect

2012 Audi A5

1985 Volvo 244

2020 Kia Stinger

2003 Cadillac DeVille

1981 Audi Coupe

2004 Maserati Spyder

Vehicle
Store
Delete

1998 Harley Davidson FLTR/I Road Glide

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
