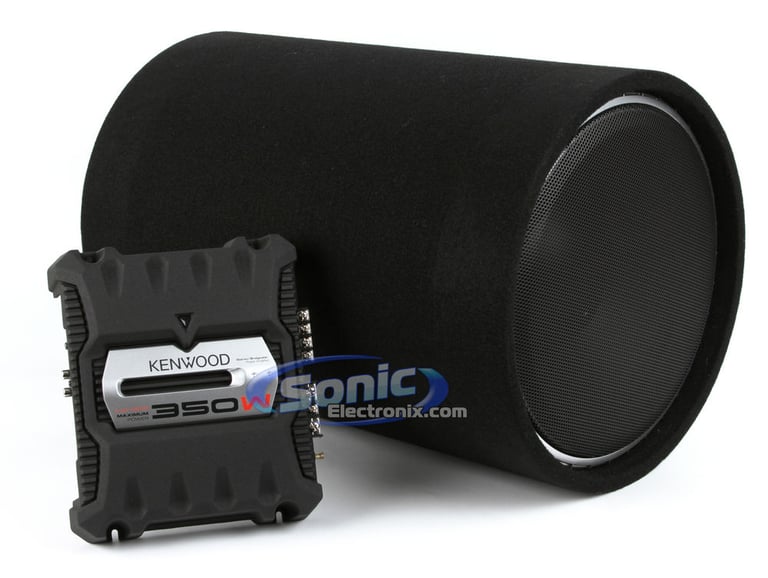

Kenwood P-W12TB (KSC-W1200T + KAC-5204)

12" Single 4 ohm Bass Tube with 350W Max, 2-Channel Amplifier

Kenwood
Shop all Kenwood
highlight-star-icon

12" Amplified Loaded Enclosure System • Single 4 ohm • 1200 Watts Max • 200 Watts RMS • Polypropylene Cone Woofer • Includes a 2-Channel Class A/B Car Amplifier • Includes Mounting Brackets and Straps

Learn more about the pw12tb

We apologize

This item has been discontinued


Loading...
40-HD10 main

Metra 40-HD10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2005-2024 vehicles from Honda, Mazda, Acura

29
-15.40%

$10.99

List price $12.99

RVCMZ-72 main

Crux RVCMZ-72

Rear-view integration with/ camera for select 2007-2015 vehicles from Mazda

-35.71%

$121.50

List price $189.00

70-7903 main

Metra 70-7903 Wiring Harness

Install a new car stereo in select 2001-2021 vehicles from Mazda, Fiat

18
AXBUCH-MZ main

Axxess AXBUCH-MZ

Install a New Car Stereo and Add or Retain Backup Camera in select 2006-2015 vehicles from Mazda

-13.34%

$12.99

List price $14.99

95-7522B main

Metra 95-7522B Dash Kit

Install a new Double-DIN car stereo in select 2013-2016 CX-5 and 6 (Matte Black)

-12.50%

$27.99

List price $31.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

Description


Kenwood brand icon

Authorized dealer

Enclosed Subwoofer Features:

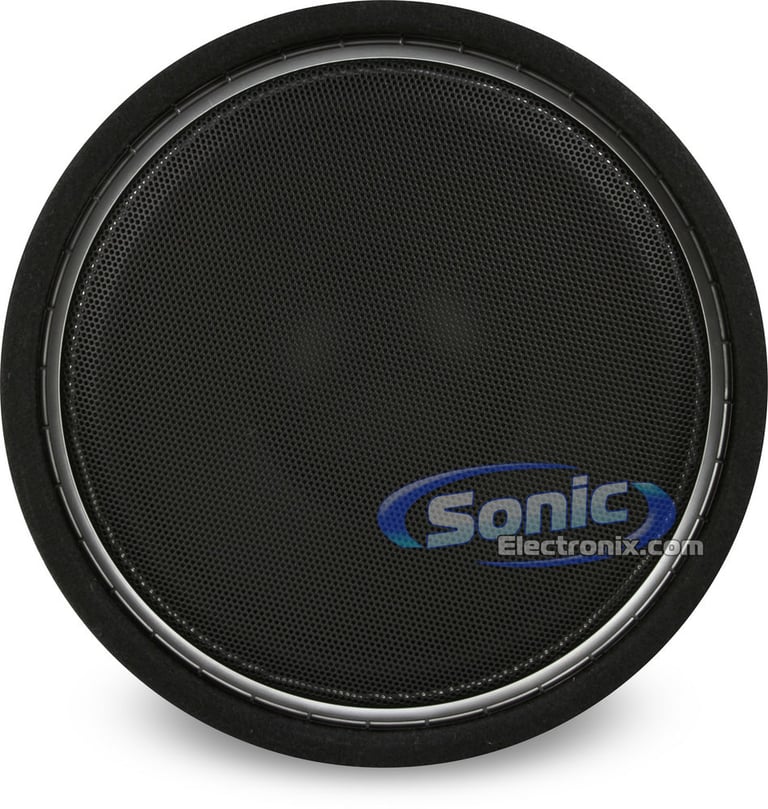

  • 12" Single 4 ohm Loaded Bass Tube
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 200 watts
  • Impedance: 4 ohm
  • Polypropylene cone woofer
  • Rubber surround

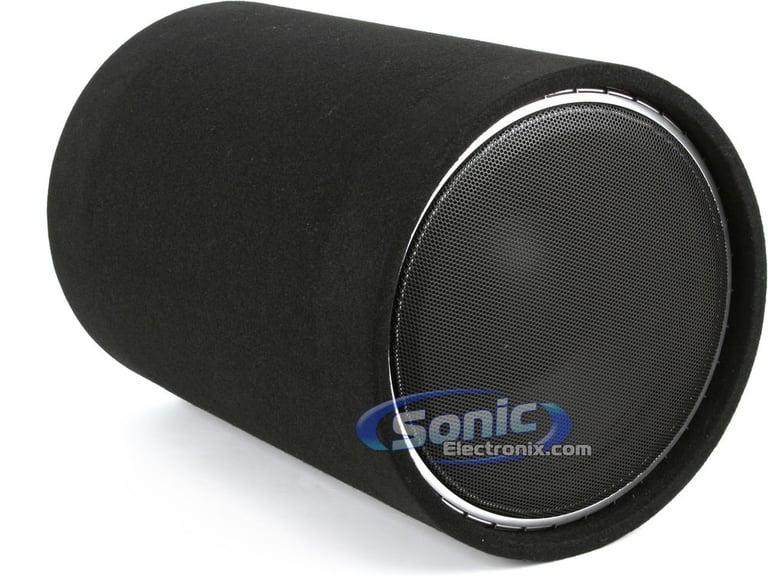

  • Pre-enclosed in a black carpeted tube

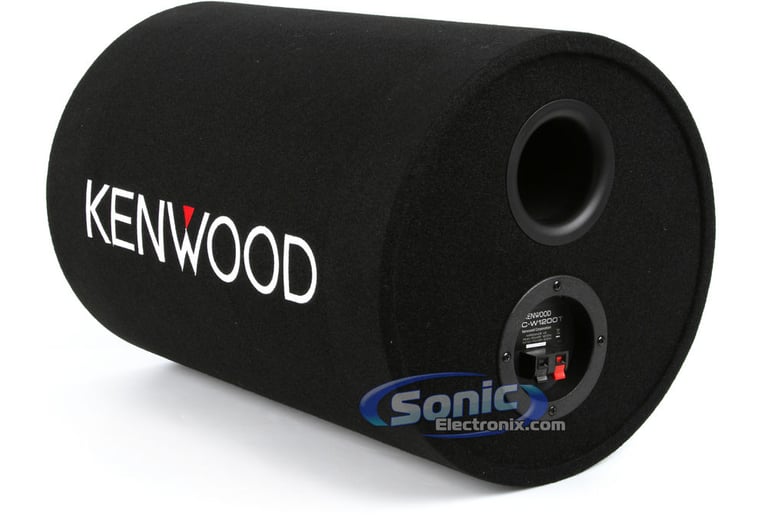

  • Ported cylinder design

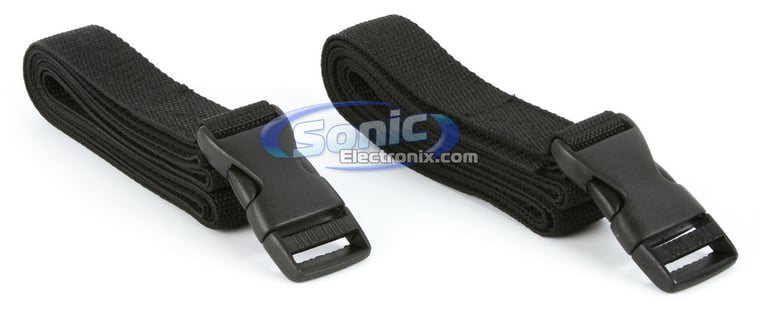

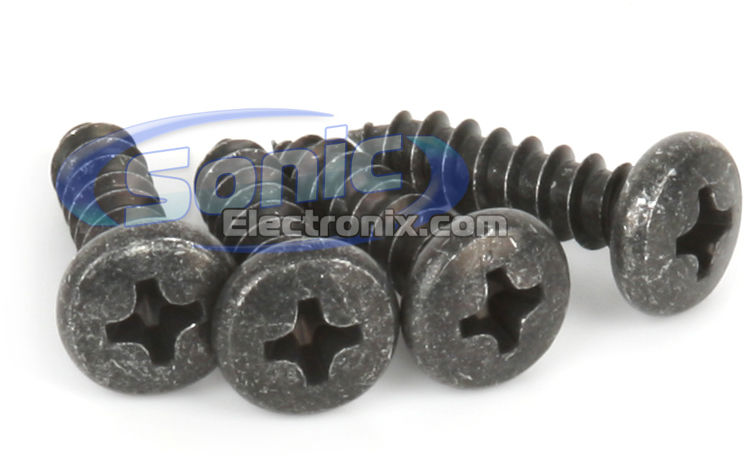

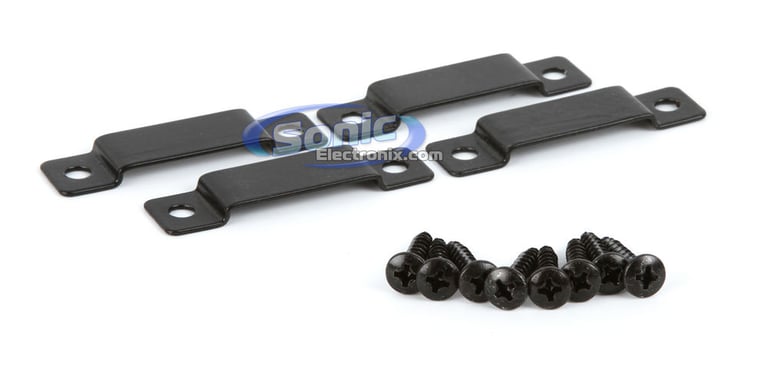

  • Includes mounting brackets and straps
  • Frequency response: 40-800 Hz
  • Sensitivity: 88 dB
  • Built-in inner duct ring

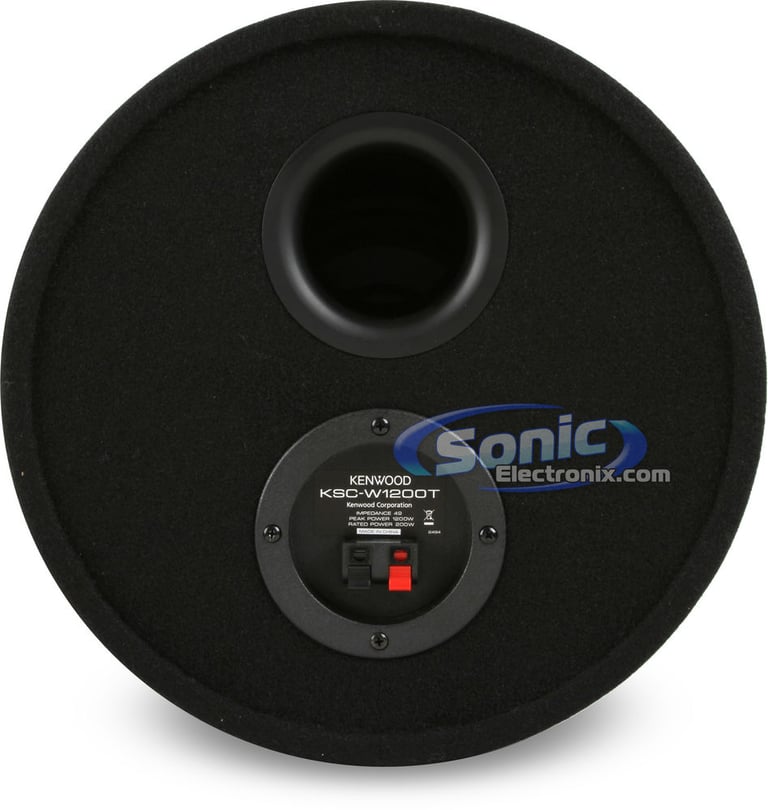

  • Spring clip speaker terminals
  • Compact size for installation in any car
  • Dimensions: 19-3/4"D x 13-7/16"W x 13-7/16"H
  • 1-year Sonic Electronix warranty
Amplifier Features:

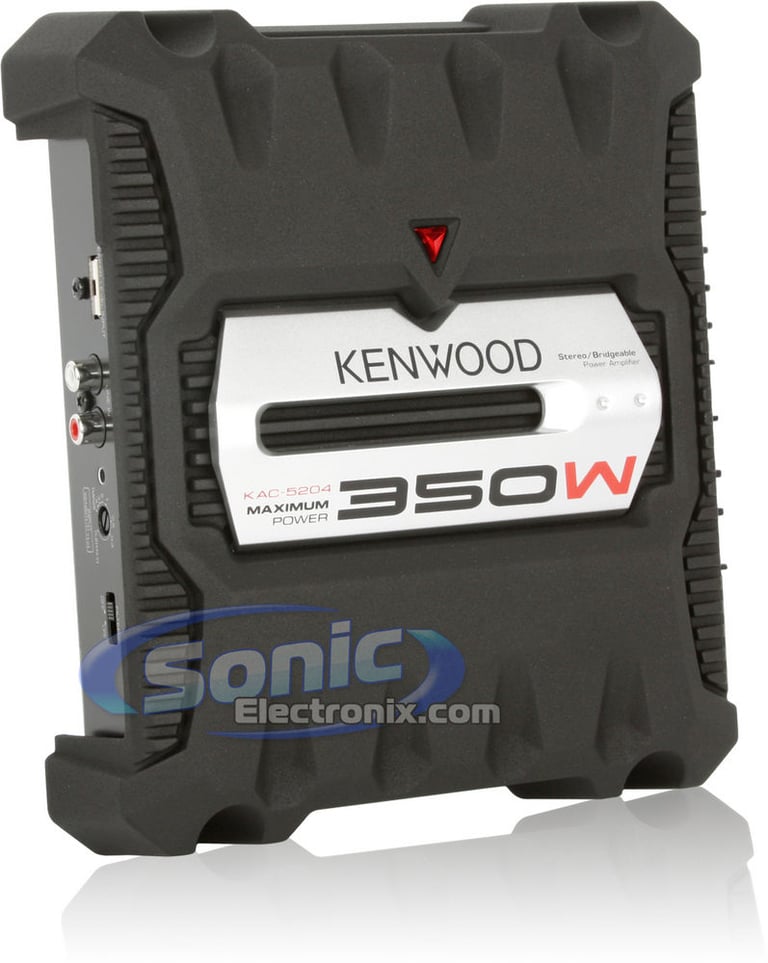

  • 2-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 2 chan.
    • 2 ohm: 75 watts x 2 chan.
    • Bridged, 4 ohm: 150 watts x 1 chan.
  • Max power output: 175 watts x 2 chan.
  • MOSFET switching power supply
  • LED power indicator

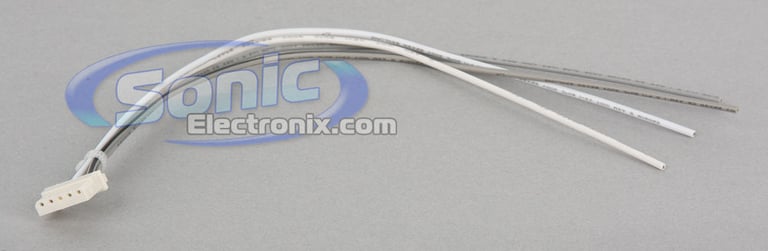

  • Speaker-level inputs
  • Short circuit, DC offset, overload, and thermal protection circuitry
  • Aluminum die cast heat sink
  • Built-in cooling fan

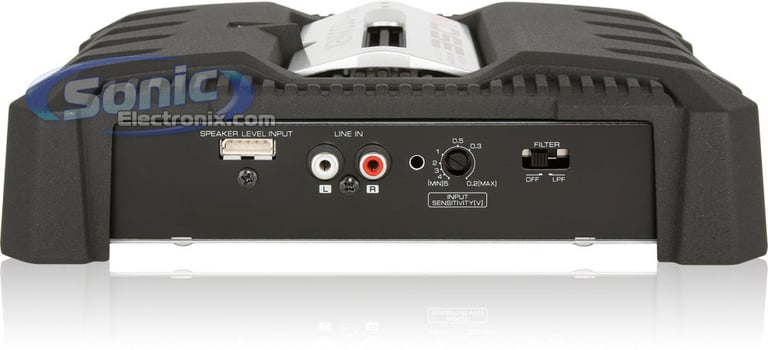

  • Gold-plated RCA level inputs

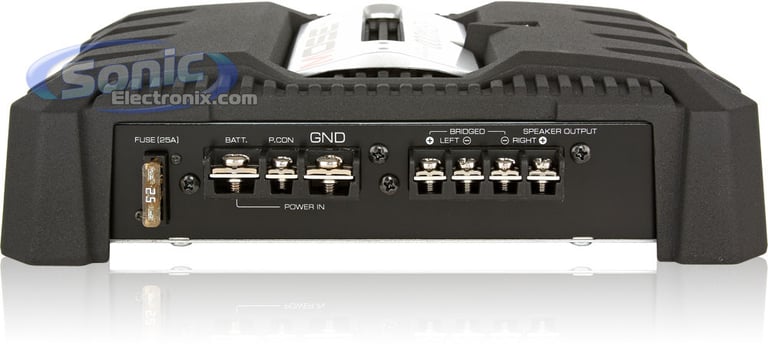

  • Gold-plated screw terminals
  • Fixed low-pass filter (80 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 5-50,000 Hz
  • Dimensions: 7-13/16"W x 2-5/16"H x 9-1/16"D
  • 8-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • 1-year Sonic Electronix warranty

Read more about the Kenwood P-W12TB in our blog!


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(82)

$279.99

List price $323.99

C1500C-07A small

MTX C1500C-07A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
60 watts x 2 channel
RMS Power @ 2 ohms
75 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
150 watts x 1 channel
Peak Power Output
175 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Maximum Input Gauge Size
8 AWG
THD at Rated RMS Power
0.8%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Full (AP)
Low-Pass Crossover Frequency
80 Hz
Signal-to-Noise Ratio
95 dB
Remote bass/level controller
No
Fuse Rating
25A x 1
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
200 watts
Total RMS Power Handling
200 watts
Peak Power Handling
1200 watts
Total Peak Power Handling
1200 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
88 dB
Frequency Response
40 - 800 Hz
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Tube/Cylinder
Height
13-7/16"
Width
13-7/16"
Depth
19-3/4"
Number of Terminals
1
Terminal Type
Spring clips
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

P-W12TB

Weight:

31.00lbs

Internal SKU:

pw12tb

Internal Product ID:

24090
