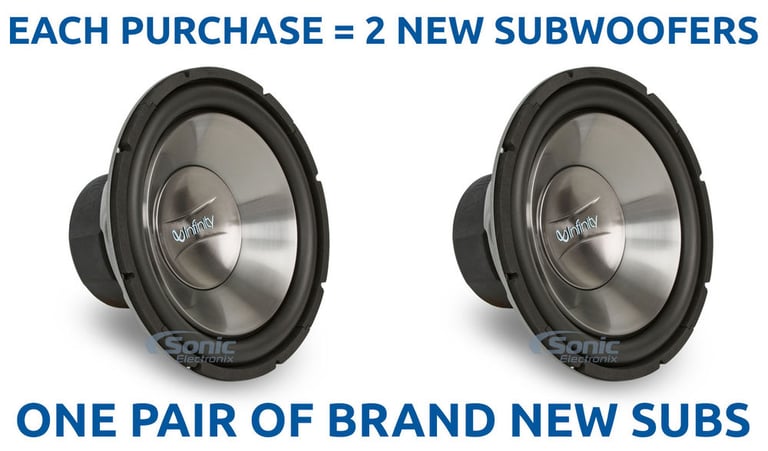

2 Pack of Infinity Reference 1260W

Pair of 12" Single 4 ohm Reference Series Car Subwoofers

Infinity
Shop all Infinity
Product videos
highlight-star-icon

Two 12" Single 4 Ohm Reference Series Subwoofer • 300 Watts RMS • 1200 Watts Max • High-Gloss Polypropylene Woofer • Large-Roll Rubber Surround • 2" Voice Coil • Vented Pole Pieces • Progressive Spider

Learn more about the 2subs_1260w

We apologize

This item has been discontinued


Loading...
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

CF-350mt main

JL Audio CF-350mt

70W RMS 3.5" CF Series Custom-Fit Midrange 4-ohm Tweeters

4
No picture

Jensen JS35K

150W Peak (50W RMS) 3.5" Apex Series 2-Way Coaxial 4-ohm Car Speakers

Club 34F main

JBL Club 34F (JBLSPKCB34F)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

4
-27.29%

$79.95

List price $109.95

Limited time!
P1V2-25 main

Rockford Fosgate Punch P1V2-25

300W Peak (150W RMS) 2.5" Punch P1 Series 3 Way Coaxial 4-ohm Speakers

-25.93%

$159.99

List price $215.99

Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

16
-30.71%

$51.96

List price $74.99

CF-275mt main

JL Audio CF-275mt

60W RMS 2.75" CF Series Custom-Fit Midrange 4-ohm Tweeters

12
V3 main

Cerwin-Vega V3

360W Peak (120W RMS) 3" Vega Series 2025 Edition 2-Way Coaxial 4-ohm Speakers

Product Highlights


Two 12" Single 4 Ohm Reference Series Subwoofer • 300 Watts RMS • 1200 Watts Max • High-Gloss Polypropylene Woofer • Large-Roll Rubber Surround • 2" Voice Coil • Vented Pole Pieces • Progressive Spider

Description


Infinity brand icon

Authorized dealer

To Infinity, and Beyond Your Normal Woofer

Some think of the 10 inch subwoofer as a compromise of power handling, sensitivity, space and performance. In most cases, this would be true; however this Infinity makes no compromises when it comes to sound quality and crisp bass.

Infinity's product quality and excellence stem from their passion for music. This fact is evident in each of their lines, with no exception to their Reference Series subwoofers. Whether you listen to rock, hip-hop, jazz, country or anything else, these woofers will shine through with every note. High-gloss polypropylene woofer cone is lightweight which assures maximum efficiency which produces high output with modest amplifier power. This in no way means the Reference woofers don't have a sound quality side, far from it. Sound quality is the name of Infinity's game, and every beat will be smooth, crisp, and hard hitting. The large-roll rubber surround absorbs distortions that travel through the cone, ensuring clean bass response. Vented polepieces help cool the motor structure which allows for an increase in power handling. Engineering at Infinity is state-of-the-art and a great deal of computer aided design software is used to devise their products. This commitment shows in all of their product lines, and with such a good reference, it's a no brainer.

Infinity Reference 1260W

300W 12" Reference Series Single 4 ohm Subwoofer
Quantity: 2

General Features:

  • 12" Single 4 Ohm Reference Series Subwoofer
  • Power Handling:
    • Peak: 2400 watts per pair / 1200 watts each
    • RMS: 600 watts per pair / 300 watts each
  • Impedance: Single 4 Ohm

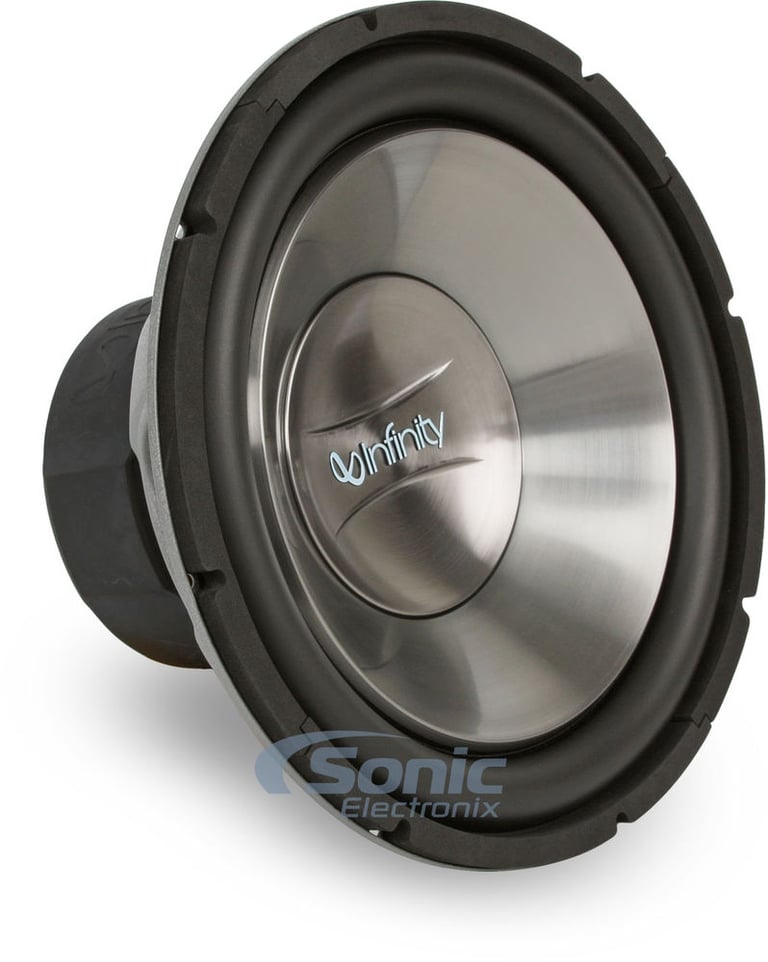

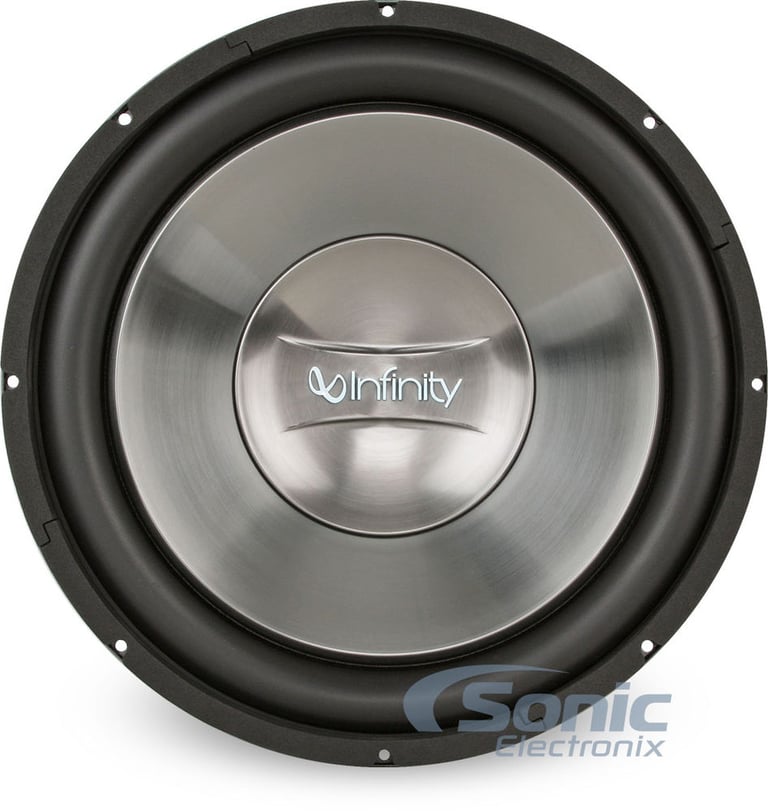

  • High-gloss polypropylene woofer cone ensures maximum woofer efficiency
  • Large-roll rubber surround absorbs distortions

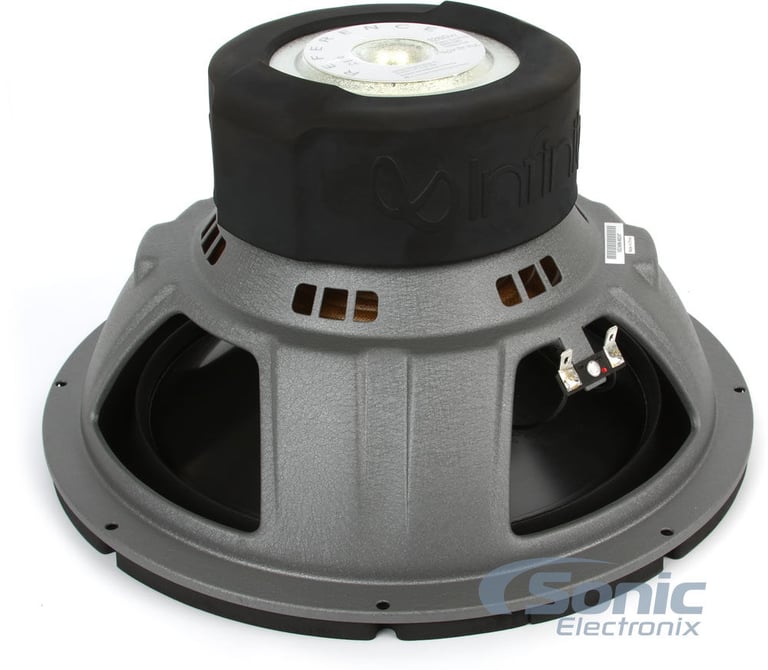

  • Vented pole pieces provide additional cooling of the motor
  • Progressive spider provides better control at excursion limits
  • 2" Voice coil
  • Also found as: REF1260W
  • Frequency response: 23-400 Hz
  • Sensitivity: 91 dB
  • Mounting Depth: 6-3/8"
  • Cutout Diameter: 11-1/16"
  • Authorized Internet Dealer
  • 1 year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 2 Pack of Infinity Reference 1260W Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 2 Pack of Infinity Reference 1260W Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 2 Pack of Infinity Reference 1260W Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 2 Pack of Infinity Reference 1260W Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
Reference Series
Subwoofer Size
12"
Peak Power Handling
1200 watts
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
23 - 400 Hz
Sensitivity
93 dB
Xmax (millimeters)
13 mm
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
2.0 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
6-3/8"
Cutout Diameter
11-1/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
23.50 Hz
Equivalent Compliance (Vas)
82.96 liters
Total Speaker Q Value (Qts)
.39
Electrical Q Value (Qes)
.41
Electrical Resistance of Voice Coil (Re)
3.59 ohm
Mechanical Q Value (Qms)
6.99
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

1260w-2-PACK

Weight:

32.00lbs

Internal SKU:

2subs_1260w

Internal Product ID:

24858

Product and How-to Videos


  • Harman International: The Pursuit of Great Sound
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


2 Pack of Infinity Reference 1260W thumbnail image

5 star
72%
4 star
22%
3 star
4%
2 star
2%
1 star
0%



Durability
4.5
Value
4.9
Features
4.4
Design
4.5
Usability
4.8

Customer Reviews

Sort by:

Loading...

Knocks

The following review is for 1260w, which is a part of the bundle you are viewing.

I only have one of these in as of now but will be getting another one. Knocks hard just for one sub.

By Devin on November 1, 2014

50 found this helpful


Great slam for the buck

The following review is for 1260w, which is a part of the bundle you are viewing.

Put two of these 12's into a Ground-Shaker box, with two 1.65 cu ft chambers and added 2 ports to each chamber, 1-1/2" X 9" long to tune to approx 25 Hz. Using a subsonic filter set at 20Hz and powering with a 550W Alpine Class D amp. After loosening up the speakers for a few weeks, I have to say I'm impressed with the general sound quality of these drivers. These gotta be the value of the year! Harman may have cut some corners as far as using a stamped basket and where they are manufactured, but these drivers really do the job. I first tried them sealed, but ported is much better with these provided you have a large enough enclosure and use a subsonic filter. They are also relatively efficient and the fs/Q allows you use sealed or ported successfully.

By Todd_MKE on February 11, 2014

51 found this helpful


Best sub for the money!

The following review is for 1260w, which is a part of the bundle you are viewing.

This thing kicks and kicks hard! I have it installed in a 4th order bandpass box in my home theatre system and it shakes the house! Well worth the low cost!

By Judge on September 29, 2013

48 found this helpful


Pretty good, espcially for the price.

The following review is for 1260w, which is a part of the bundle you are viewing.

Picked up this sub for $60 off here and tossed it in a sealed enclosure built to specs to get me by. I have it being fed rated power, well, set my gain for 34.6VAC with a -3dB test tone. After that, I played the sub at low volume levels for a couple weeks, probably around 15Hrs. After that, I dialed up the sub volume. Single sub fills in the lows fairly well and sounds clean when not pushed hard. On some of my more bass heavy music and when volume levels reach the levels used when setting the gain, the sub's sound seems to get colored to some extent. It's by no means an SPL sub and it shows, but it for low to moderate levels, it does do quite well.

Initial plan was to install the sub in a JL HO enclosure, as it may be better suited for ported applications, but it really wasn't the sub I wanted to use for such. I bought it for that though and changed my mind last minute. I would like to believe the sub would perform better still in a proper ported enclosure, but I'll likely never know.

I'm probably going to be switching to a SQ HDS300 as I initially planned, now that they are back in stock.

Still, this Infinity was worth the price IMO, just not all I was looking for from a sub.

As for ratings, I'll give it a 4 overall. For value, it's difficult to beat, IMO. Aesthetics could use a little work perhaps, but looks mean little, I don't believe many watch their subs play after all. I've owned Infinity in the past and have good longevity from their products, if treated properly, I would like to believe same could be said of this product. Features? Well it's sub, so lets see. Polypropylene cone with a rubber surround. Not bad I guess. Included foam gasket, nice addition. 13mm Xmax, not too impressive by any means. SVC 4 ohm, easy to wire up. So, features are average. Ease of use, the terminals could have been better, but it's easy enough to wire up and use.

By Brandon on May 13, 2014

47 found this helpful


Incredible value and performance.

The following review is for 1260w, which is a part of the bundle you are viewing.

I went back and forth debating these against the kicker 07 cvrs. Kickers do hit and so do these. I just installed and they are amazing. They have such good quality and deliver bass tightly and accurately. Although they may not destroy your trunk like kickers these subs sound better and are a great value. Get these you will not be dissapointed.

By Josh on March 10, 2013

50 found this helpful


Excellent

The following review is for 1260w, which is a part of the bundle you are viewing.

This sub is excellent.
The bass is so clear that I just can't belive it , I like a very deep bass, not boomy, very low HZ and this guy delivers.
I had a sealed box according to specs and I added some Poly fill to make it sound even better smoother.
I building home tower speakers (5 ft tall) with subwoofer incorporated, so you can imagine two of these at the same time. my whole room vibrates.
Very importan that you "tame" them before you push them full power, at least two weeks everyday, the sounds gets better and better.
They look a lot better in person.
Sonic price is incredible, thank you.

By vidaldm on August 8, 2014

47 found this helpful


Can't go wrong with this sub!!!!

The following review is for 1260w, which is a part of the bundle you are viewing.

I upgraded from the Pioneer tsw310s4 12" sub. This Infinity rocks so much harder and hits way lower. I have yet after 30 days to have a complaint about this sub. I was blowing the Pioneers after about 10 hrs of use. This sub has not blown and continues to pound hard. Nothing negative to say: only positives. Order this sub and you will not be disappointed. This sub is way under rated as I am putting 580w of PPI power to it and it takes all you can throw at it.

By ken on November 6, 2013

47 found this helpful


Very good subwoofer!

The following review is for 1260w, which is a part of the bundle you are viewing.

I would give these subs a 10 of 10 for the price. The build quality of the Infinity 1260w is superb, and this speaker has everything you need. Spider cooling, Vented pole piece and a rubber surround that will never go bad! It hits the lowest of lows and is decent in the higher hz. I would recommend this subwoofer to ANYONE on a budget, it even outperforms subs that aRE OVER TWICE ITS PRICE! I have 16 of these pounding like a competition...seriously I get lotssa noise complaints from just hooking it up and testing them out! I run 500 solid watts to them and they never look like they struggle at all...

By Hazy on April 26, 2014

45 found this helpful


These bad boys slam.

The following review is for 1260w, which is a part of the bundle you are viewing.

I wrote a review before on these subwoofers back when i had a junkie power acoustic amp. I now have a hifonics 1000w gladiator amp and these puppies slam in my mustang. i have 2 12s in a small dual ported box and these things are boomy. I've broken my rear view mirror off with these bad boys. I barely can turn my volume past 25 without it destroying my car and the value goes up to 50! people always know when i arrive at there house. I love it lol i do however want to try a sealed box out and see how they sound. I highy recommand these subwoofers, for the price you can't find a better deal.

By Boomstang99 on April 11, 2013

44 found this helpful


Awesome sound

The following review is for 1260w, which is a part of the bundle you are viewing.

ive got 2 of these in a bandpass box, with a 1200 watt crunch ground and pound amp. I've had so many compliments and people asking what i've got and where did i get them. if you use these suckers right youll have people who paid over $400 for their subs, asking about yours and how much you paid, and then theyll be jealous because your $60 subs just kicked the crap out of thier $200 subs.

By Love of Infinity on April 1, 2013

43 found this helpful




iSP120BLU small

iLuv iSP120BLU (Blue)

Street Beat Series iPhone/iPod Portable Outdoor Speaker Case (Blue)

$11.99

List price $29.99

Y-250P small

Thrustmaster Y-250P - Blue/Black

PC and PS3 Gaming Headset with Detachable and Adjustable Microphone and Ultra Soft Ear Pads

$54.99

List price $89.99

n260-9324 small

Naztech n260 White (9324)

Bluetooth Headset with Noise Canceling Microphone

$14.99

List price $79.99

CA158XS small

XO Vision Express CA158XS (SILVER)

2.0 Farad Digital Capacitor

$29.99

List price $89.99

SRV250 small

Clarion SRV250- OPEN BOX

75W 6.75" Subwoofer Loaded in a Powered Amplified Low Profile Enclosure

$109.95

List price $349.99

1262w-2-PACK small

2 Pack of Infinity Reference 1262W

Pair of 12" Dual 4 ohm Reference Series Car Subwoofers

(62)

$129.00

List price $259.90

JBE06 small

Jawbone (JBE06) - Blue Wave

Portable Jambox Speakerphone Speaker System w/ Wireless Bluetooth Connection (Retail Packaging)

$199.00

List price $199.00

JBG03BD small

Aliph Jawbone Icon Hero Black

Universal Hands-Free Bluetooth Headset with MyTALK Platform Capability (JBG03BD)

$89.99

List price $99.99

HD 800 small

Sennheiser HD 800 (HD800)

Flagship Award Winning, Open-Air, Audiophile-grade, Hi-fi Professional Stereo Headphones 24-bit 192 kHz USB DAC and Headphone Amplifier for Mac and PC

(4)

$979.00

List price $1599.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 Audi A4 Quattro

1981 Mercury Lynx

2010 MINI Cooper

2016 Ford Transit Connect

2013 Lexus LS460

2004 Hummer H2

2015 BMW M3

1981 Audi Coupe

2010 Kia Forte

2011 Scion xD

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
