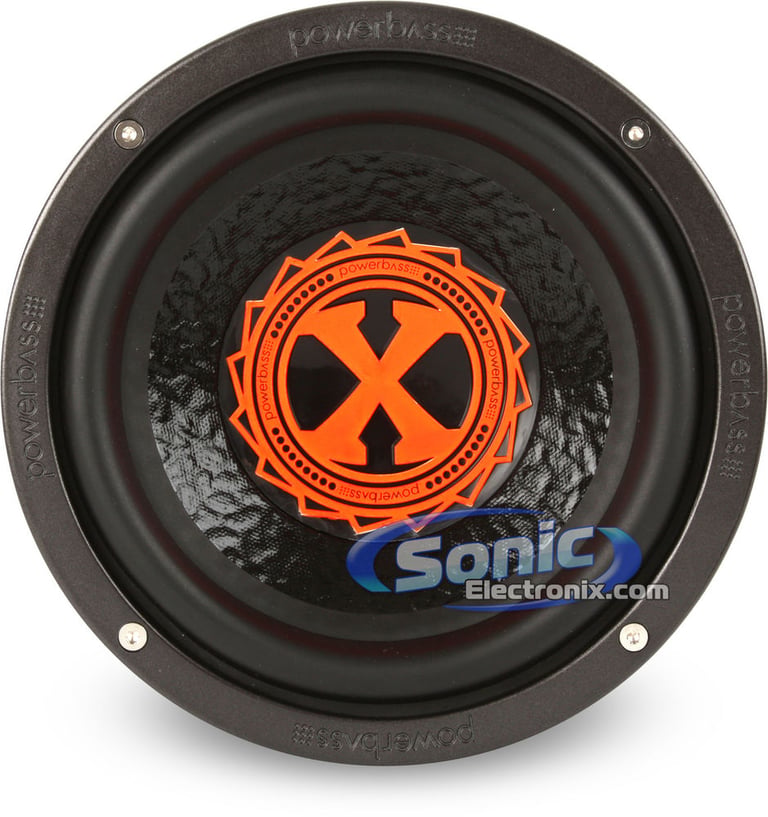

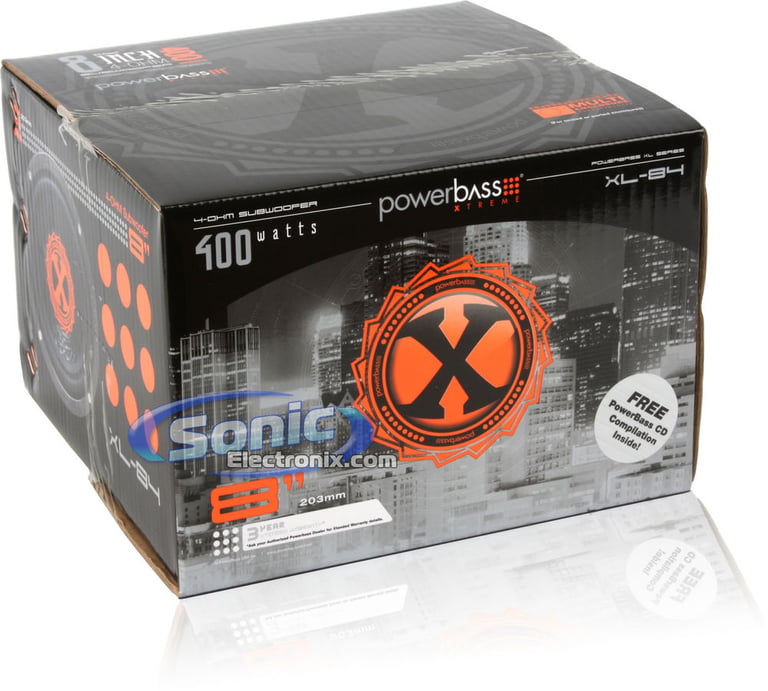

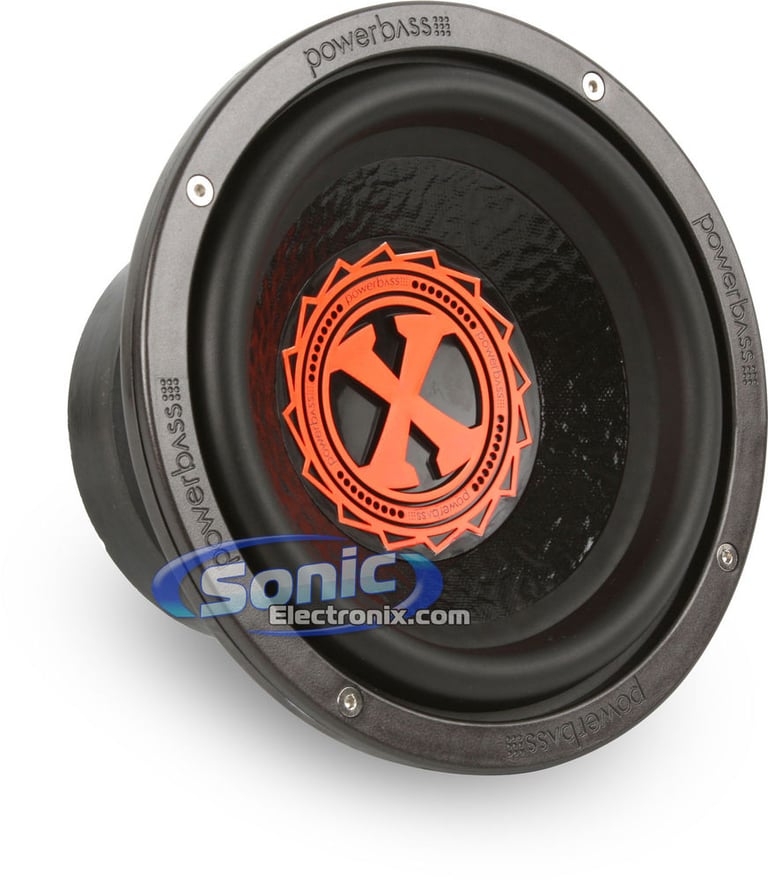

PowerBass Xtreme XL-84

8" Single 4 ohm XL Series Car Subwoofer

PowerBass
Shop all PowerBass
Product videos
highlight-star-icon

8" Xtreme XL Series Car Subwoofer • Single 4 ohm • 400 Watts Max • 200 Watts RMS • 4-Layer, Non-Pressed Paper Cone • High-Roll Santoprene Surround • 116 oz. Motor Structure • Made for Sealed and Ported Enclosures

Learn more about the xl84

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
40-VW10 main

Metra 40-VW10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

22
-33.36%

$7.99

List price $11.99

82-9010 main

Metra Kit 82-9010

6.5" to 6.75" Speaker Mounting Adapters for select 2004-2023 vehicles from Audi, Volkswagen

-41.19%

$19.99

List price $33.99

72-9002 main

Metra 72-9002

Install New Speakers in select 1994-2024 vehicles from Audi, Mercedes-Benz, Chevrolet

5
-26.68%

$10.99

List price $14.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

Limited time!
CAR723W main

Jensen CAR723W

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

18
-11.11%

$239.99

List price $269.99

Limited time!
C2-650X main

JL Audio C2-650x

120W RMS 6.5" C2 Series 2-Way Coaxial 4-ohm Car Speakers

31
-17.86%

$229.99

List price $279.99

XBAF525 main

NVX XBAF525

Universal 5.25" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

9
-15.01%

$16.99

List price $19.99

Limited time!
C2-525 main

JL Audio C2-525

120W RMS 5.25" C2 Series 2-Way 4-ohm Component Speaker System

9
-22.73%

$254.99

List price $329.99

GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

38
-34.45%

$117.99

List price $180.00

Limited time!

JBL STAGE1 62

800W Peak (100W RMS) 6.5" Stage1 Series 2 Way Coaxial 4-ohm Speakers

1
-44.47%

$49.95

List price $89.95

Product Highlights


8" Xtreme XL Series Car Subwoofer • Single 4 ohm • 400 Watts Max • 200 Watts RMS • 4-Layer, Non-Pressed Paper Cone • High-Roll Santoprene Surround • 116 oz. Motor Structure • Made for Sealed and Ported Enclosures

Description


PowerBass brand icon

Authorized dealer

High-Grade Materials

The PowerBass Xtreme XL-84 subwoofer is made with cutting edge materials that improve the sound quality of the subwoofer, as well as lengthen the life of it. On the surface, PowerBass uses a proprietary 4-layer, non-pressed paper cone with a Dynamic Damping Coating (DDC) for deeper bass without distortion. Attached to the cone is a high-roll santoprene surround which increases the cone area and excursion, while retaining exceptional linear stability. Inside the car subwoofer is a Pure EIW wire voice coil attached to a vented BASV voice coil former. Combined these result in high energy transfer and optimal performance.

Product Features:
  • 8" Xtreme XL Series Single 4 ohm Subwoofer
  • Power Handling:
    • Peak: 400 watts
    • RMS: 200 watts
  • Impedance: Single 4 ohm
  • 4-Layer, non-pressed paper cone with Dynamic Damping Coating (DDC) finish

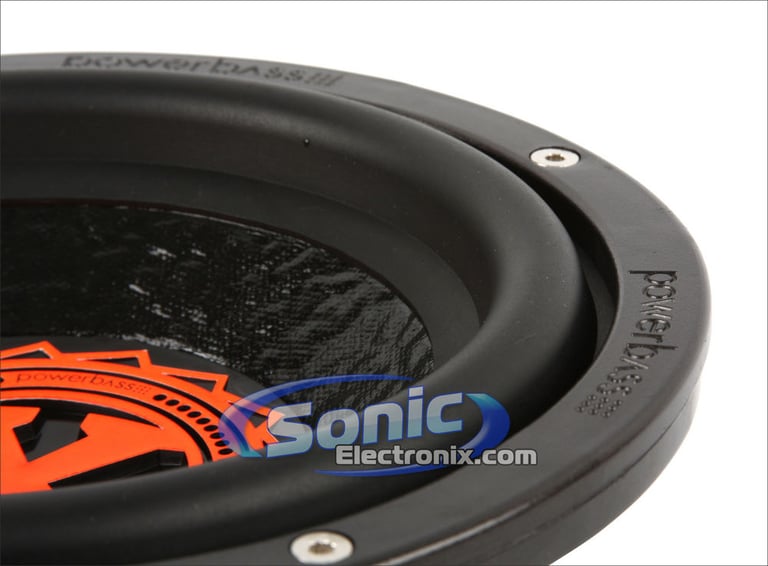

  • High-roll Santoprene surround
  • Composite polycarbonate/glass fiber basket is rigid and stable
  • Chrome push terminals guarantee optimal power transfer
  • Designed for use in both sealed and ported enclosures
  • Voice coils made with pure EIW wire for high energy transfer
  • 1.5" Vented BASV voice coil former

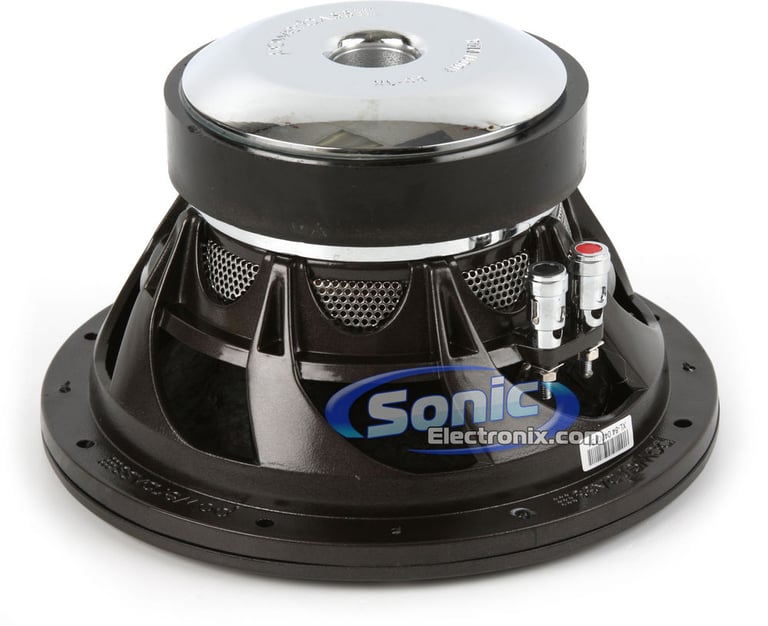

  • Xtra large 116 oz. motor structure with double stacked magnets
  • Frequency response: 36-500 Hz
  • Sensitivity: 89 dB
  • Mounting Depth: 4-1/2"
  • Also found as: Power Bass Xtreme XL 84D
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 PowerBass Xtreme XL-84 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 PowerBass Xtreme XL-84 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 PowerBass Xtreme XL-84 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 PowerBass Xtreme XL-84 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

47KBRW8 small

Kicker 47KBRW8 ReFLEX™

• 8" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

(1)

$49.99

List price $59.99

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

R2-W8D2 small

Alpine R2-W8D2

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.6 dB

$239.95

List price $360.00

R2-W8D4 small

Alpine R2-W8D4

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 4 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.7 dB

$239.95

List price $360.00

SW-EV68D2 small

Sundown Audio E8 v.6 D2 8" (E8V6D2)

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 2 ohm
• Pressed Paper Cone
• Pressed Foam Surround
• Mount depth: 4.98"
• Sensitivity: 82.4 dB

$169.99

List price $203.99

VCW84v3 small

NVX VCW84 Version 3 (VCW84v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(15)

$169.99

List price $203.99

L7S82 small

Kicker L7S82 (44L7S82)

• Peak Power: 900 watts
• RMS Power: 450 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 4-3/4"
• Sensitivity: 82.37 dB

(1)

$175.96

List price $239.99

8W3V3-4 small

JL Audio 8W3V3-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.63"
• Sensitivity: 83.24 dB

(45)

$349.99

List price $349.99

DES84 small

Diamond Audio DES84

• Peak Power: 500 watts
• RMS Power: 250 watts
• Fiber-Reinforced High Strength Paper Cone
• Impedance: Dual 4 ohm
• Sensitivity: 82.1 dB

$239.99

List price $219.99

8W1v3-4 small

JL Audio 8W1v3-4


• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 3.86"
• Sensitivity: 84.8 dB

(10)

$199.99

List price $199.99

Specifications & Details


Subwoofer Specifications
Series
XL Series
Subwoofer Size
8"
Peak Power Handling
400 watts
RMS Power Handling
200 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
36 - 500 Hz
Sensitivity
89 dB
Xmax (millimeters)
6 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Orange
Woofer Composition
Non-Pressed Paper
Woofer Surround
Santoprene Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.25 cubic feet
Maximum Sealed Box Volume
0.25 cubic feet
Minimum Ported Box Volume
0.76 cubic feet
Maximum Ported Box Volume
0.76 cubic feet
Top-Mount Depth (Mounting Depth)
4-1/2"
Cutout Diameter
7-1/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XL-84

Weight:

8.00lbs

Internal SKU:

xl84

Internal Product ID:

26939
