PowerBass Xtreme XL-124D

12" Dual 4 ohm XL Series Subwoofer

PowerBass
Shop all PowerBass
Product videos
highlight-star-icon

12" Xtreme XL Series Car Subwoofer • Dual 4 ohm • 800 Watts Max • 400 Watts RMS • 4-Layer, Non-Pressed Paper Cone • High-Roll Santoprene Surround • 186 oz. Motor Structure • Made for Sealed and Ported Enclosures

Learn more about the xl124d

We apologize

This item has been discontinued


Loading...
TMS6RG main

Rockford Fosgate TMS6RG

300W Peak (150W) 6.5" 2 Way Coaxial Full Range 4-ohm Motorcycle Fairing Speakers for select 1998-2013 vehicles from Harley Davidson

1

Product Highlights


12" Xtreme XL Series Car Subwoofer • Dual 4 ohm • 800 Watts Max • 400 Watts RMS • 4-Layer, Non-Pressed Paper Cone • High-Roll Santoprene Surround • 186 oz. Motor Structure • Made for Sealed and Ported Enclosures

Description


PowerBass brand icon

Authorized dealer

High-Grade Materials

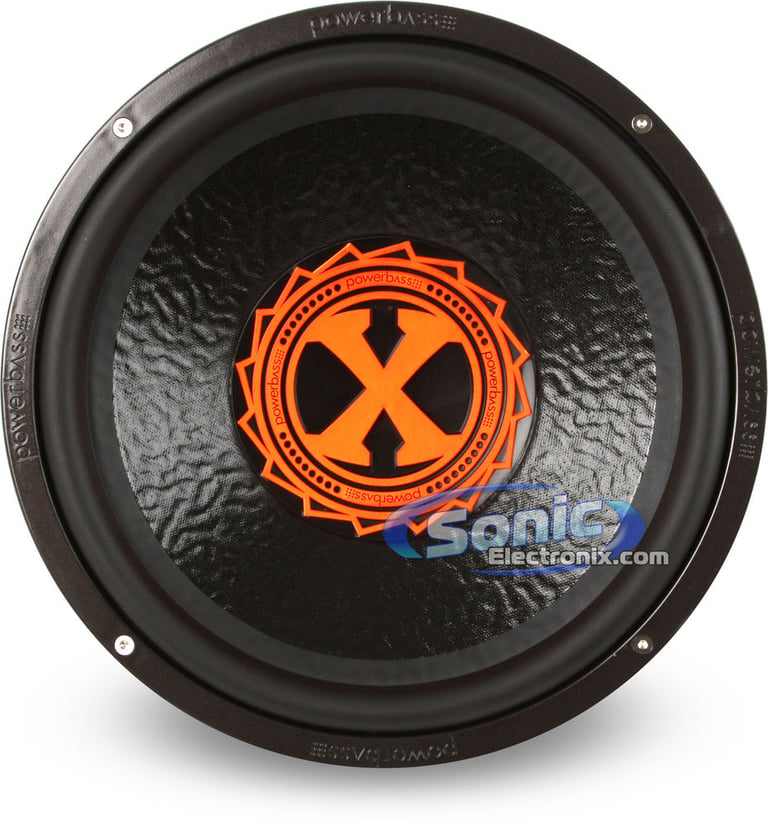

The PowerBass Xtreme XL-124D subwoofer is made with cutting edge materials that improve the sound quality of the subwoofer, as well as lengthen the life of it. On the surface, PowerBass uses a proprietary 4-layer, non-pressed paper cone with a Dynamic Damping Coating (DDC) for deeper bass without distortion. Attached to the cone is a high-roll santoprene surround which increases the cone area and excursion, while retaining exceptional linear stability. Inside the car subwoofer is a Pure EIW wire voice coil attached to a vented BASV voice coil former. Combined these result in high energy transfer and optimal performance.

Product Features:
  • 12" Xtreme XL Series Dual 4 ohm Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Impedance: Dual 4 ohm
  • 4-Layer, non-pressed paper cone with Dynamic Damping Coating (DDC) finish

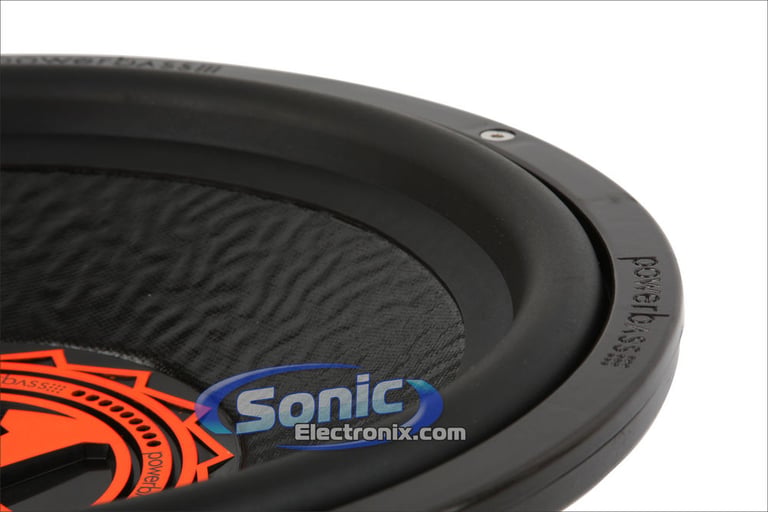

  • High-roll Santoprene surround
  • Composite polycarbonate/glass fiber basket is rigid and stable
  • Chrome push terminals guarantee optimal power transfer
  • Designed for use in both sealed and ported enclosures
  • Voice coils made with pure EIW wire for high energy transfer
  • 2" Vented BASV voice coil former

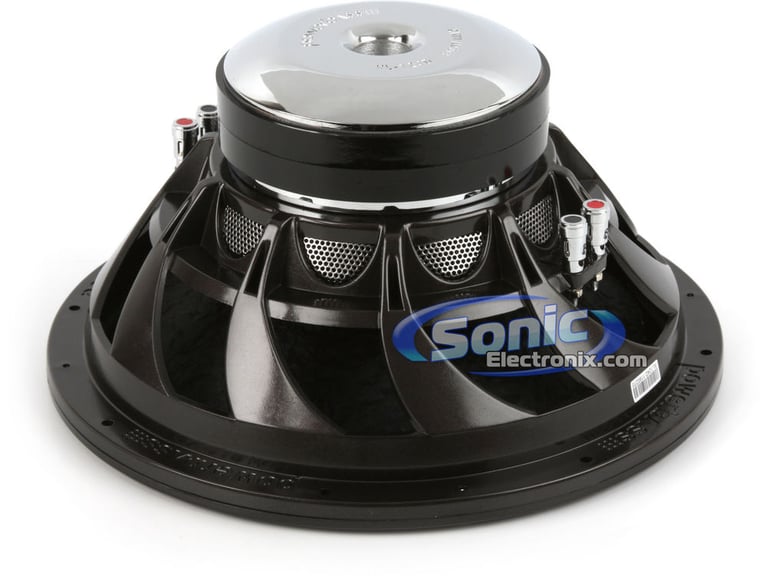

  • Xtra large 186 oz. motor structure with double stacked magnets
  • Frequency response: 26-450 Hz
  • Sensitivity: 92 dB
  • Mounting Depth: 5-1/2"
  • Also found as: Power Bass Xtreme XL 124D
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 PowerBass Xtreme XL-124D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 PowerBass Xtreme XL-124D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 PowerBass Xtreme XL-124D Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 PowerBass Xtreme XL-124D Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
HD13.SBWR main

Precision Power HD13.SBWR

300W RMS Loaded Single 10" Amplified Sealed Saddlebag Enclosure for select 1998-2013 vehicles from Harley Davidson (Brake Side)

2
-20.00%

$999.99

List price $1249.99

RPMPODVM65 main

Cerwin-Vega RPMPODVM65

500W Peak (120W RMS) 6.5" RPM Stroker Series Speaker Kick Pods for Harley-Davidson Motorcycles

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12W3v3-4 small

JL Audio 12W3v3-4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 6.65"
• Sensitivity: 87.15 dB

(65)

$469.99

List price $469.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
26 - 450 Hz
Sensitivity
92 dB
Xmax (millimeters)
8.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Orange
Woofer Composition
Non-Pressed Paper
Woofer Surround
Santoprene Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1 cubic feet
Maximum Sealed Box Volume
1 cubic feet
Minimum Ported Box Volume
2 cubic feet
Maximum Ported Box Volume
2 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/2"
Cutout Diameter
11"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XL-124D

Weight:

14.50lbs

Internal SKU:

xl124d

Internal Product ID:

26943
