JL Audio C3-650cw (Priced Individually) (Open Box)

225W 6.5" Evolution C3 Series Convertible Midbass Woofer

JL Audio
Shop all JL Audio
highlight-star-icon

• Peak Power: 225W
• RMS Power: 75W
• Convertible Component Woofer
• Mineral Filled Polypropylene Cone
• Rubber Surrounds
• Injection Molded Polymer Woofer Frames

Learn more about the LS-c3650cw-OB

We apologize

This item has been discontinued

Description


JL Audio brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

JL Audio Evolution® C3 Series Component Woofer

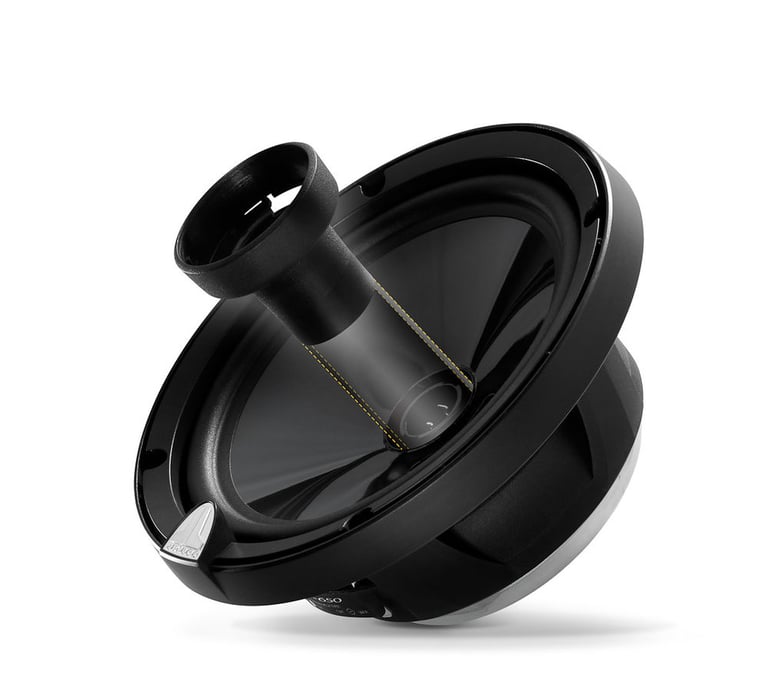

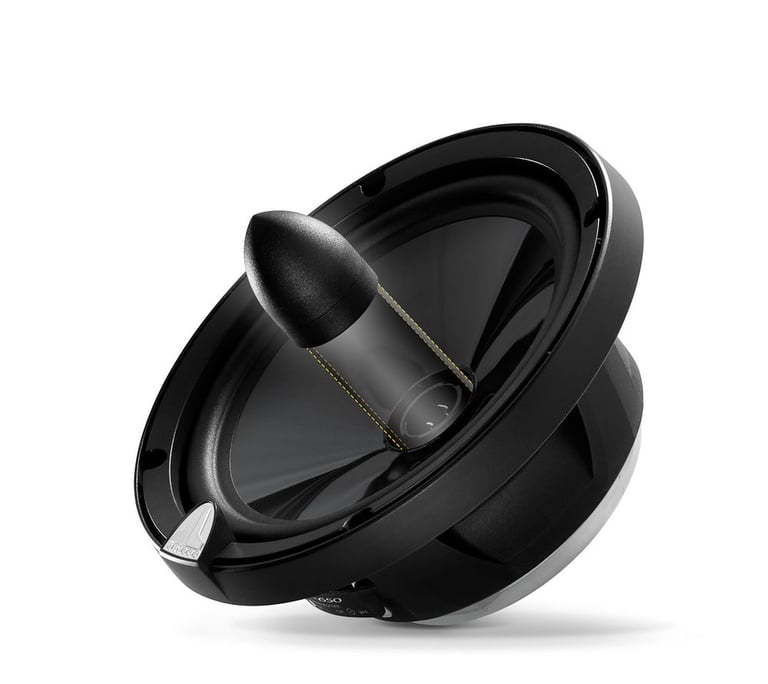

With the Evolution® C3 Convertible Systems, the same product can be deployed in either a Component or Coaxial configuration (tweeter needed, not included), delivering outstanding audio quality in each application. Long woofer excursion capability with DMA-optimized performance delivers superb mid-bass and clean mid-range output. The woofer houses a beefy 1.2-inch voice coil that generates a stunning mid-bass output without sacrificing mid-range fidelity. In addition, the woofer offers a mineral-filled polypropylene cone, a rubber surround, and an injection-molded polymer basket.

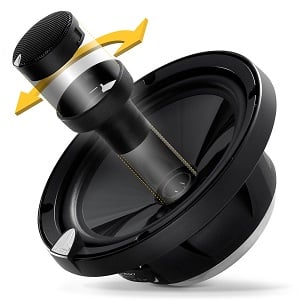

JL Audio Linearity and Control

JL Audio Linearity and Control

DMA is JL Audio's proprietary Dynamic Motor Analysis system and is aimed at improving dynamic motor behavior. As a result of DMA optimization, Evolution C3 motors remain linear in motor force over an extreme range of excursion and also maintain a highly stable fixed magnetic field in the gap over a wide power range. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate low end. Its main catalyst is the driver's robust 1.2-inch voice coil, that allows extreme linear excursion, phenomenal power handling and control, control, control.


Product Features:







  • Item Condition: Like New, Open Box, Complete
    Not Refurbished
  • 6.5" Evolution C3 Series Convertible Component Woofer
  • Power Handling:
    • Peak: 225 watts
    • RMS: 75 watts
  • Recommended Power Range: 25 - 150 watts per channel
  • Mineral-Filled Polypropylene Cone
  • Butyl Rubber Surround
  • Injection-molded Polymer Basket
  • 1.20" Voice Coil on Kapton® Former
  • Low-Profile, Symmetrical Roll Spider
  • Ferrite Woofer Magnet
  • Elevated Frame Cooling
  • Convertible Drivers: Coaxial or Component
  • Dynamic Motor Analysis (DMA) Optimized Motor

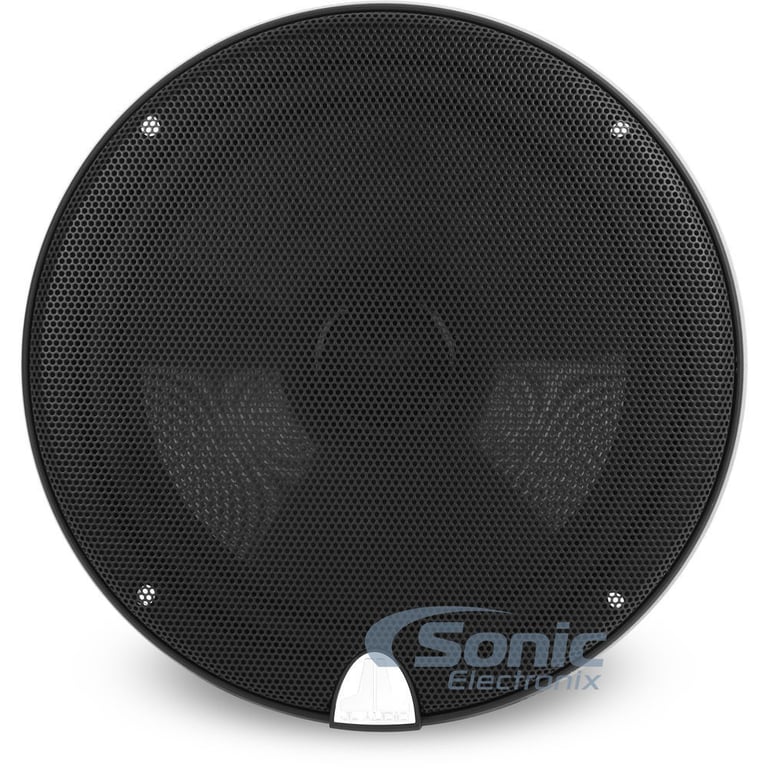

  • Black steel mesh grille with an electroformed JL Audio logo Included
  • Top-mount depth: 2.55"
  • Cutout Dimensions: 5.56"
  • Nominal Impedance: 4 ohm
  • Efficiency: 90.0 dB @ 1 watt / 1 meter
  • Frequency Response: 48 Hz - 5 KHz ± 3 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually.

Check out the JL Audio C3-650 Owner's Manual

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Specifications & Details


Speaker Specifications
Series
C3 Series
Priced Per
Each Speaker
Number of Speakers
1
Speaker Size
6-1/2"
Design
Subwoofer
Tweeter Design
N/A
Tweeter Size
N/A
Tweeter Composition
N/A
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Butyl Rubber
Peak Power Handling
225 watts
RMS Power Handling
75 watts
Sensitivity
90.0 dB
Frequency Response
48 - 5,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2.55"
Cutout Dimensions
5.56"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

LS-C3-650CW-OB

Weight:

2.80lbs

Internal SKU:

LS-c3650cw-OB

Internal Product ID:

117477
