General Features:

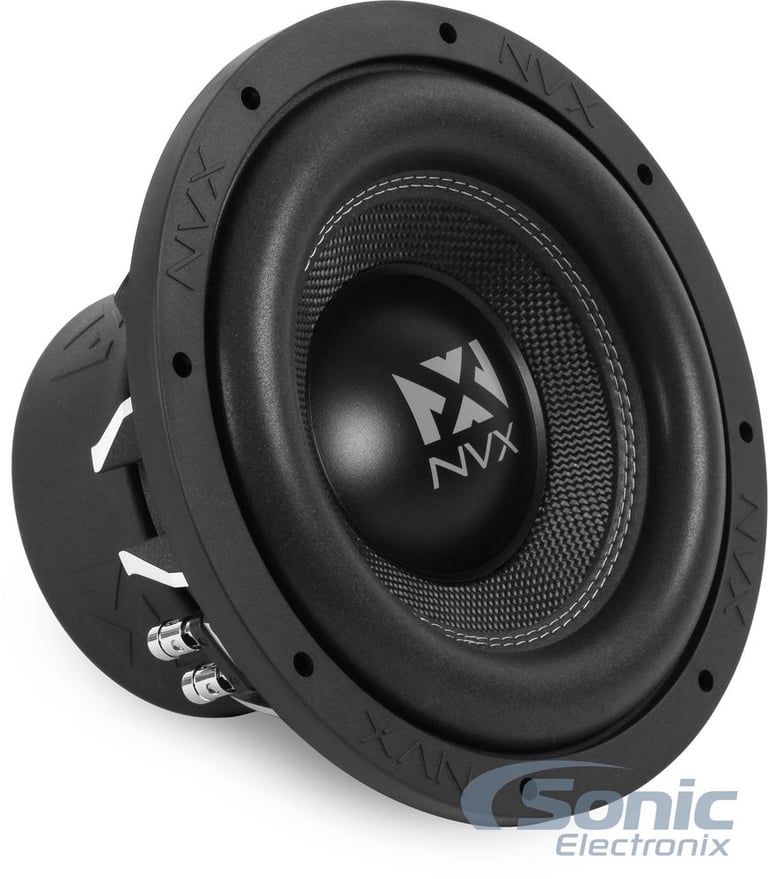

- 10" Dual 4-ohm VC-Series Car Subwoofer
- Power Handling:
- RMS Power Range: 600 - 750 watts per driver
- RMS Power Range: 200 - 1500 watts per pair
- Impedance: Dual 4 ohm
- 1 Ohm Final Load, when wired in Parallel

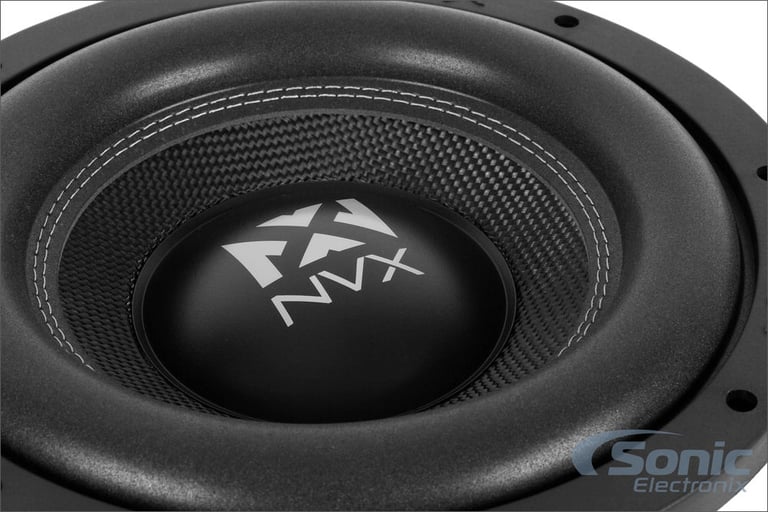

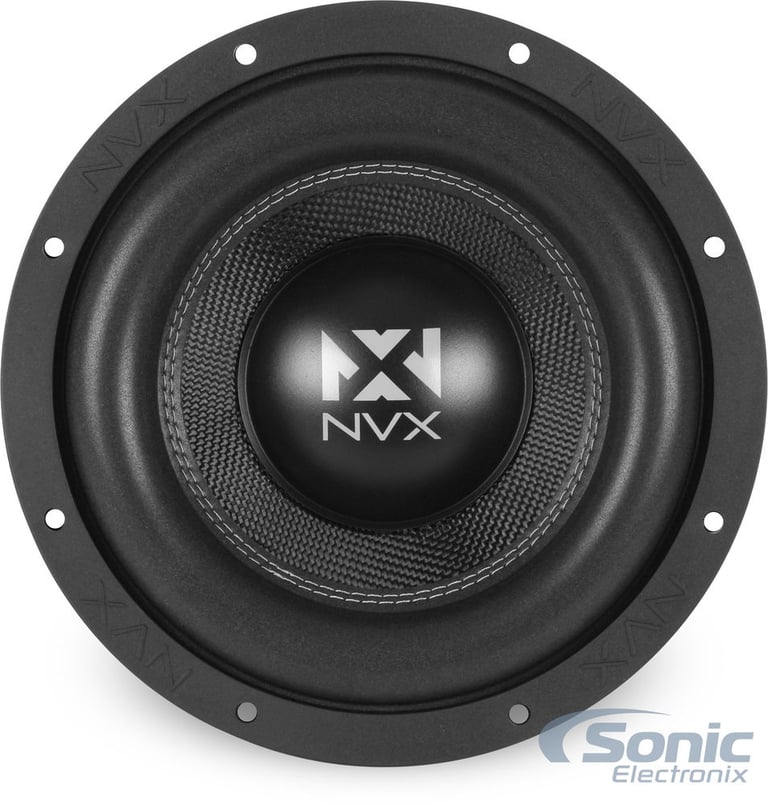

- Pressed paper cone with woven fiber top
- Custom High Roll Foam Surround with Nylon Stitching

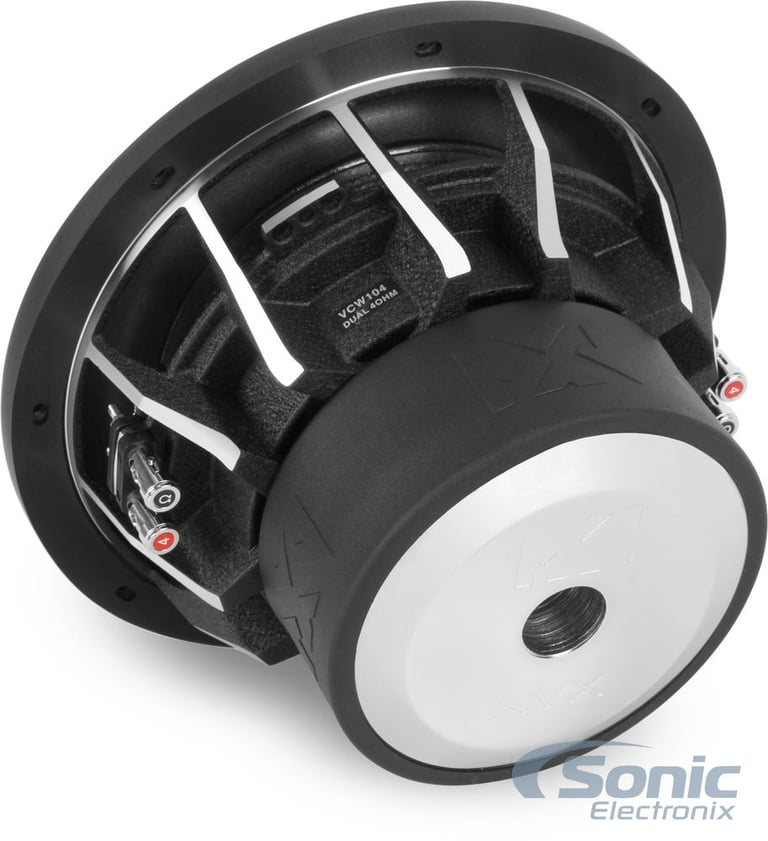

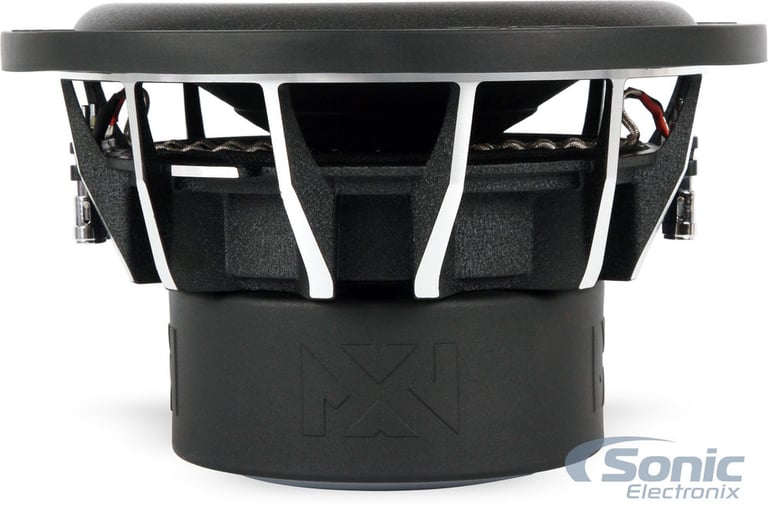

- Heavy Duty Die Cast aluminum basket for maximum rigidity
- Dual Poly-Cotton Spiders
- 2.5" High Temperature Aluminum Voice coil
- 127oz. Triple stacked Ferite magnet motor structure with protective rubber boot
- Frequency response: 20-220 Hz
- Resonance Frequency (Fs): 31 Hz
- Optimal sealed box volume: .65 cubic feet
- Optimal ported box volume: 1.0 cubic feet
- Top-mount depth: 6"
- Sensitivity: 83dB
- NVX VCW10GR protective subwoofer grill available (Sold Separately)
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
|
General Features

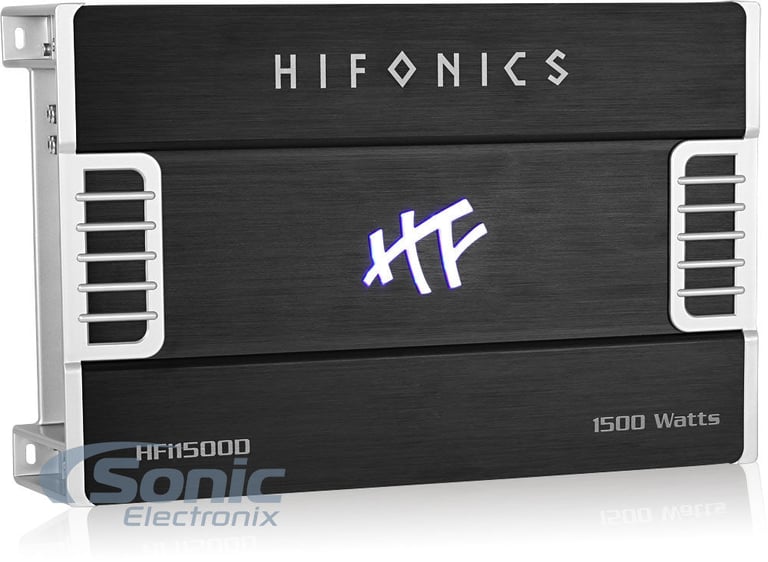

- HFi Series Single Channel Monoblock Class D Car Amplifier
- RMS Power Rating:
- 4 ohm: 500 watts x 1 chan.
- 2 ohm: 1000 watts x 1 chan.
- 1 ohm: 1500 watts x 1 chan.
- Pulse Width Modulated MOSFET power supply

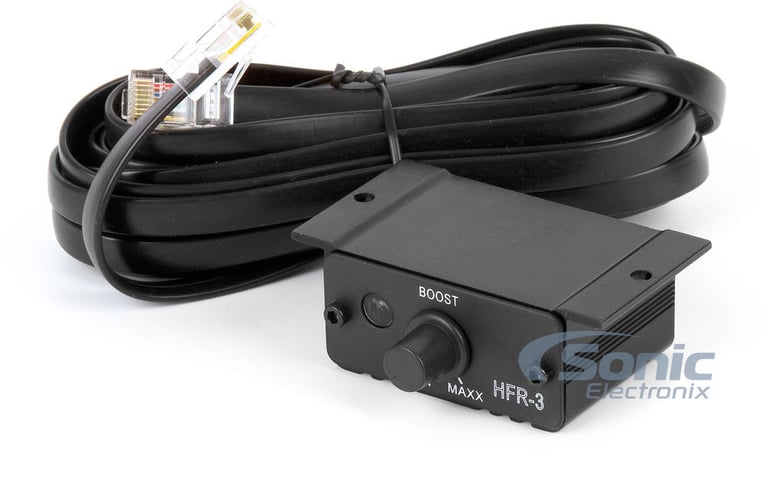

- Wired remote bass level control included
- LED power (green) and protect (red) indicators
- Preamp RCA outputs to daisy chain multiple amps
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Dual speaker terminals simplify the hookup of multiple speakers
- Heavy duty aluminum alloy heat-sink
- Input sensitivity: 200mV - 6V
- Frequency Response: 15 - 250 Hz
- Total Harmonic Distortion & Noise: <0.05
- Signal to Noise Ration: >95 dB
- Damping Factor: >200

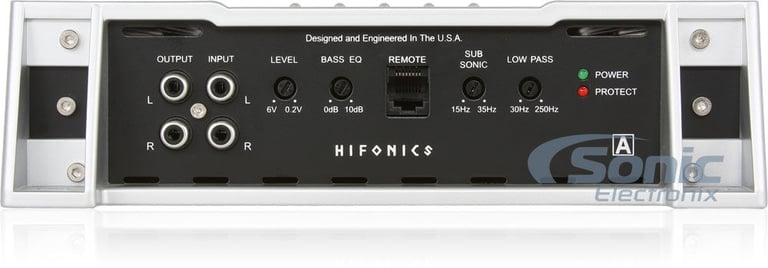

- Variable low-pass filter: 30 - 250 Hz, 24 dB/octave
- Subsonic filter: 15 - 35 Hz
- Variable Bass Boost: 0 to +10 dB bass boost at 45 Hz

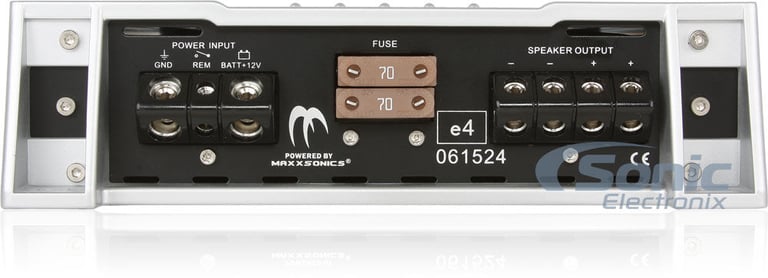

- Fuse Rating: 70 A x 2
- 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
- Dimensions: 8.82"W x 14.65"L x 2.4"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
