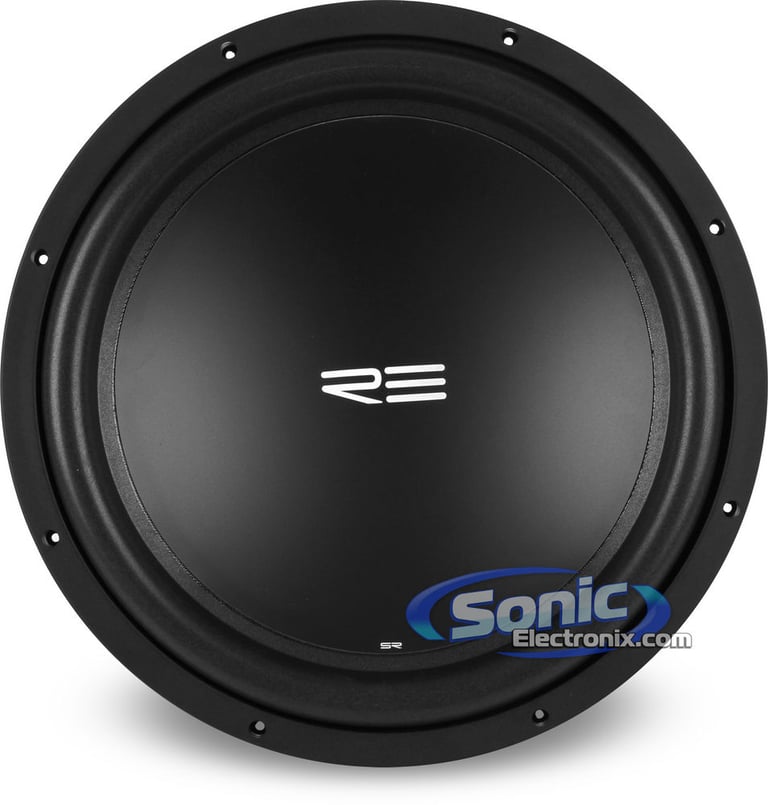

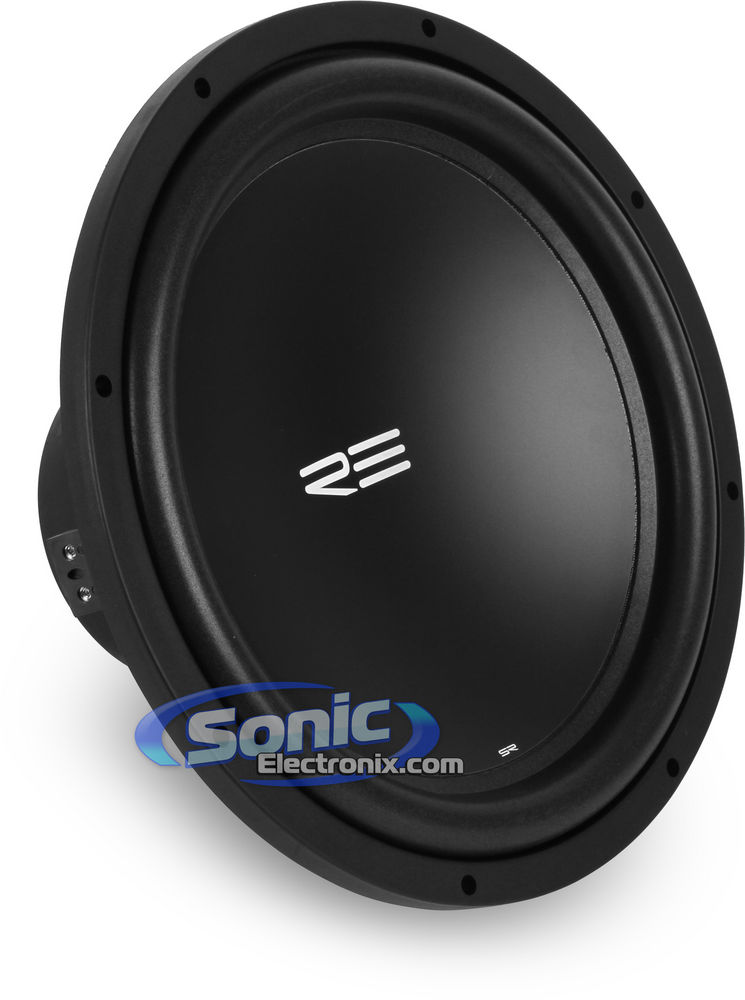

RE Audio SRX15D2

300W 15" SRX Series Dual 2 ohm Subwoofer

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• RMS Power: 300W
• Dual 2 Ohm
• Kraft Pulp Cone
• Rubber Surround
• FEA Optimized Motor Structure
• 4-Layer Voice Coil
• Double Stacked Magnet

Learn more about the srx15d2

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-21.44%

$109.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Reference 6530CX main

Infinity Reference REF-6530cx (REF6530CXAM)

540W Peak (180W RMS) 6.5" Reference Series 2 Way 3-ohm Component Speaker System

14
-56.40%

$108.99

List price $249.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

Product Highlights


• RMS Power: 300W
• Dual 2 Ohm
• Kraft Pulp Cone
• Rubber Surround
• FEA Optimized Motor Structure
• 4-Layer Voice Coil
• Double Stacked Magnet

Description


RE Audio brand icon

Authorized dealer

Monster Performance

Get big bass with the RE Audio SRX series of car subwoofers.! Easily expect monster performance and deep bass from these quality drivers. The SRX series has twice the power handling and improved audio output over the RE Audio REX series. The striking cosmetics complete the look of the subwoofer, while ensuring that high quality sound is produced. Once mounted, the kraft pulp cone and rubber surround will be visible for all to see. Underneath the cone is a 4-layer copper voice coil, a FEA optimized motor structure, double stacked magnets that all work together to keep the subwoofer linear and sounding great. The RMS of the SRX series is an affordable 300 watts and is perfect for those just starting their car audio system or the long time car audio enthusiast. Like all of the RE Audio subwoofers, they are capable of accepting much more power then the recommended RMS. For excellent performance for a great price, check out the RE Audio SRX car subwoofers

Subwoofer Features:
  • 15" Dual 2 ohm SRX Series Subwoofer
  • Power Handling:
    • RMS: 300 watts
  • Impedance: Dual 2 ohm
  • Kraft pulp woofer cone
  • Rubber surround
  • Pressed steel basket
  • FEA optimized motor structure
  • Linear spiders
  • Foam gasket
  • 4-Layer copper voice coil
  • Double stacked magnets
  • Also available in dual 4 ohm: RE Audio SRX15D4
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
SRX 10" T/S Parameters:
  • Electrical Q Value (Qes): 0.45
  • Mechanical Q Value (Qms): 4.87
  • Total Speaker Q Value (Qts): 0.41
  • Free Air Resonance (Fs): 23 Hz
  • Equivalent Compliance (Vas): 203 liters
  • One-Way, Linear Excursion (Xmax): 18 mm
  • Efficiency (SPL 1W/1m): 87.6 dB SPL
  • Effective Piston Area (Sd): 810 cm2
  • DC Resistance (Re): 1.8 ohm
  • Nominal Impedance (Znom): Dual 2 ohm
  • Thermal Power Handling (Pe): 300 W
  • Force Factor (Bl): 14.35

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio SRX15D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio SRX15D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio SRX15D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 RE Audio SRX15D2 Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

YSW152 small

NVX YSW152

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

P3D4-15 small

Rockford Fosgate Punch P3 P3D4-15

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Sensitivity: 86 dB

(54)

$309.99

List price $339.99

P3D2-15 small

Rockford Fosgate Punch P3 P3D2-15

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 2 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Mount depth: 7.58"
• Sensitivity: 86 dB

(27)

$309.99

List price $339.99

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

SW-M15D1 small

Sundown Audio M-15 D1 15" (M15D1)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 12.06"
• Sensitivity: 83.024 dB

(1)

$659.99

List price $791.99

Specifications & Details


Subwoofer Specifications
Series
SRX Series
Subwoofer Size
15"
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Xmax (millimeters)
18 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kraft Pulp
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.5 cubic feet
Maximum Sealed Box Volume
2.0 cubic feet
Minimum Ported Box Volume
2.5 cubic feet
Maximum Ported Box Volume
3.0 cubic feet
Top-Mount Depth (Mounting Depth)
8"
Cutout Diameter
14"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SRX15D2

Weight:

16.50lbs

Internal SKU:

srx15d2

Internal Product ID:

27307

Product and How-to Videos


  • RE Audio 12" SRX Subwoofer Bass Demo | SRX12D4 in a Custom Ported Box
  • RE Audio New Product Line Overview | CES 2015
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
