RE Audio SEX15D4

600W 15" SE-X Series Dual 4 ohm Subwoofer

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• RMS Power: 600W
• Dual 4 ohm
• Rubatek Foam Surround
• Dual Composite 2-Piece Cone
• Tork-Tite Terminals
• Progressive Spiders
• Triple Stacked Magnets

Learn more about the sex15d4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

sexv215d4 thumbnail

RE Audio SEXv2-15D4 (SEX v2 15D4)

OUR PRICE: $149.99

View item

Loading...
72-4568 main

Metra 72-4568

Install New Speakers in select 1990-2021 vehicles from Chevrolet, GMC, Buick

120
-33.36%

$9.99

List price $14.99

SAC656 main

Scosche SAC656

Add 5-1/4" or 6-1/2" Speakers to Factory 7" Mounting Locations

50
-6.69%

$13.95

List price $14.95

DKGM-15 main

Crux DKGM-15

Stereo Replacement Interface with Steering Wheel Control Retention, Video Switcher, and Double DIN Dash Kit for select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

19
-35.71%

$162.00

List price $252.00

DKGM-48D main

Crux DKGM-48D Stereo Replacement Interface

Stereo Replacement Interface with Steering Wheel Control Retention and Double DIN Dash Kit for select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

1
-35.71%

$132.30

List price $205.80

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

VSP65 main

NVX VSP65

600W Peak (200W RMS) 6.5" V-Series 2 Way Coaxial Car Speakers

64
-15.39%

$109.99

List price $129.99

VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-15.39%

$109.99

List price $129.99

P1650 main

Rockford Fosgate Punch P1 P1650

220W Peak (110W RMS) 6.5" Punch P1 Series 2 Way Coaxial 4-ohm Speakers

61

Product Highlights


• RMS Power: 600W
• Dual 4 ohm
• Rubatek Foam Surround
• Dual Composite 2-Piece Cone
• Tork-Tite Terminals
• Progressive Spiders
• Triple Stacked Magnets

Description


RE Audio brand icon

Authorized dealer

RE Audio SEX Subwoofers

RE Audio’s SEX Line of subwoofers redefines high performance and value. These subwoofers are placed in the middle of RE Audio’s full line-up, and can handle high power output around 600 watts RMS! These SEX Subwoofers are the perfect addition to any trunk!

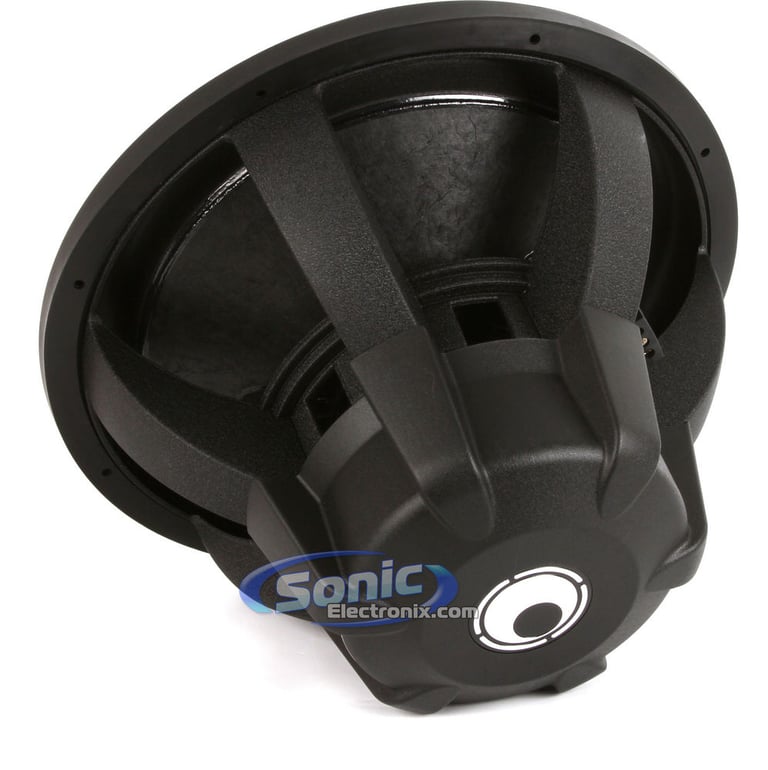

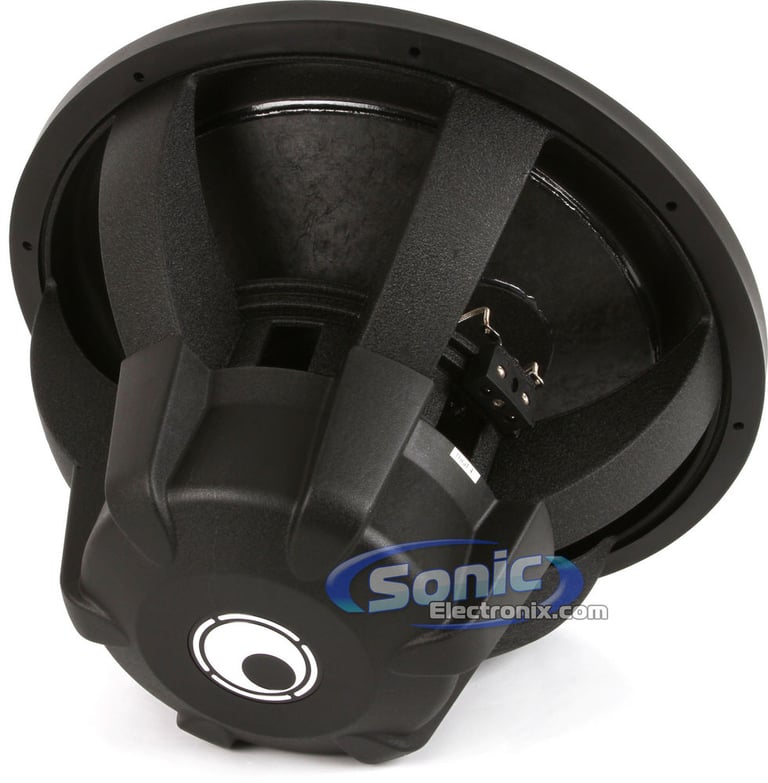

These impressive subwoofers are built into a cast aluminum basket, and their triple stacked magnet drivers work off of a 3” 4-layer aluminum voice coil. This allows for quick bass response, and clearly outputs for deep bass in the lower frequency range. With an FEA optimized motor structure, the SEX subwoofer lineup maintains tight bass response and allows the subwoofer full control over all types of music.

Each one of these RE Audio SEX Subwoofer can handle 600 watts RMS of continuous power, no matter the size! These competitively priced subwoofers are an excellent complement to any audio system, and will provide you with that clean, hard hitting bass you’re looking for.

Subwoofer Features:

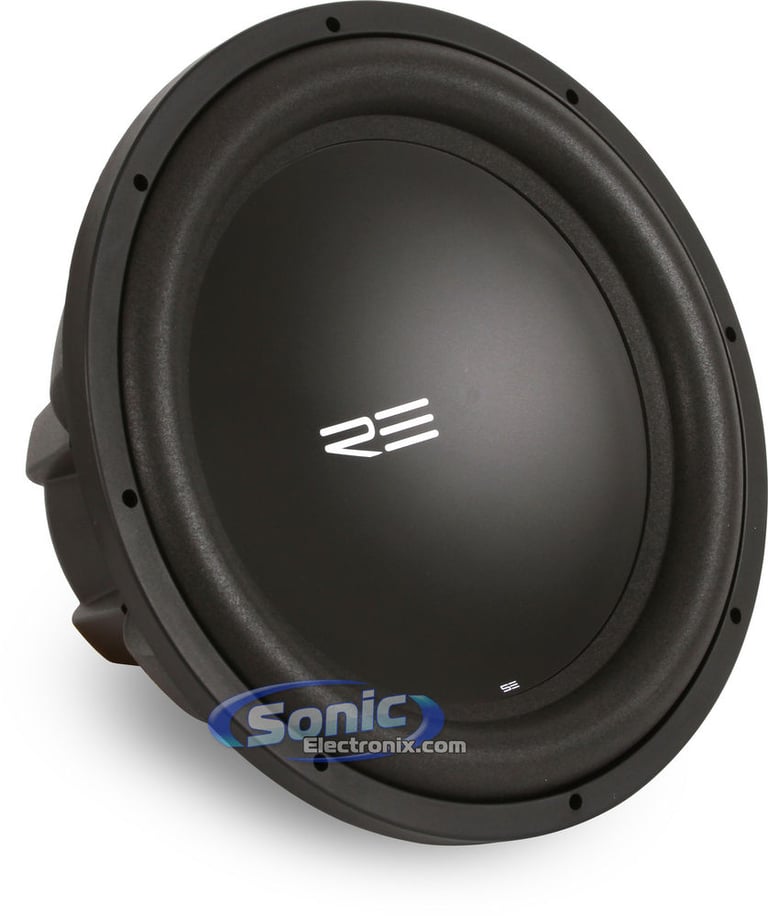

  • 15" Dual 4 ohm SEX Series Car Subwoofer
  • Power Handling:
    • RMS: 600 watts
  • Impedance: Dual 4 ohm

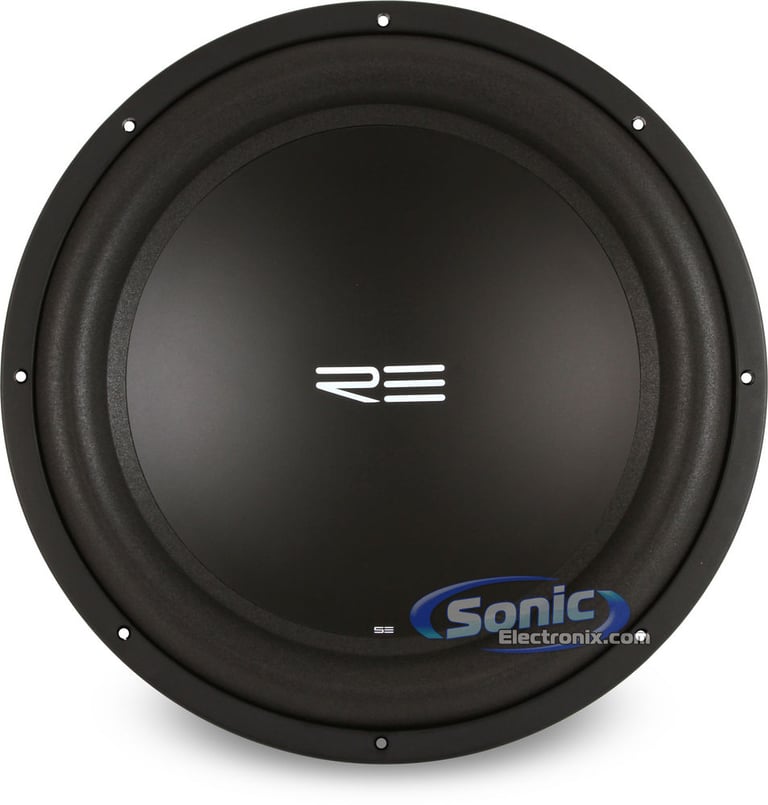

  • Dual composite 2-piece cone
  • Rubatek foam surround
  • FEA Optimized motor structure
  • Progressive spiders
  • Wrap around rubber gasket

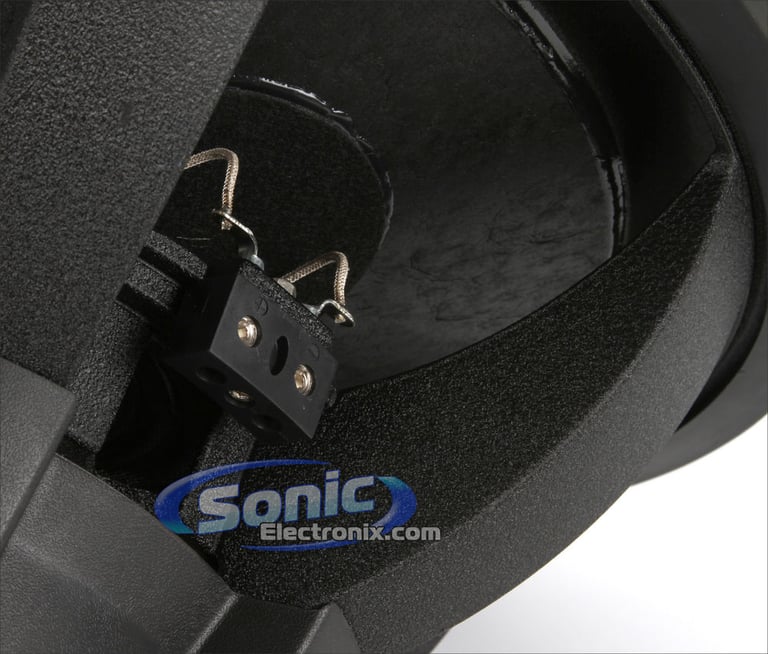

  • Tork-Tite terminals
  • 3" 4-Layer voice coil
  • Triple stacked magnets
  • Also available in a Dual 2 ohm: RE Audio SEX15D2
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
SEX 15" T/S Parameters:
  • Electrical Q Value (Qes): 0.55
  • Mechanical Q Value (Qms): 4.3
  • Total Speaker Q Value (Qts): 0.49
  • Free Air Resonance (Fs): 22 Hz
  • Equivalent Compliance (Vas): 209 liters
  • One-Way, Linear Excursion (Xmax): 18 mm
  • Efficiency (SPL 1W/1m): 88 dB SPL
  • Effective Piston Area (Sd): 810 cm2
  • DC Resistance (Re): 2.8 ohm
  • Nominal Impedance (Znom): Dual 4 ohm
  • Thermal Power Handling (Pe): 600 W
  • Force Factor (Bl): 17.7

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

RE Audio SEXv2-15D4 thumbnail
(newest, current model)
RE Audio SEX15D4 thumbnail
(previous model, replaced by RE Audio SEXv2-15D4 (SEX v2 15D4))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio SEX15D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio SEX15D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio SEX15D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 RE Audio SEX15D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

YSW154 small

NVX YSW154

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

49L7X152 small

Kicker L7X152 (49L7X152)

• RMS Power: 1000 - 2000 watts
• Impedance: Dual 2 ohm
• Double-pressed pulp Cone
• UV-resistant Santoprene Surround
• Mount depth: 11-9/16"

(2)

$799.99

List price $899.99

Specifications & Details


Subwoofer Specifications
Series
SEX Series
Subwoofer Size
15"
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Sensitivity
88 dB
Xmax (millimeters)
18 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Dual Composite 2-Piece Cone
Woofer Surround
Rubatek Foam
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.5 cubic feet
Maximum Sealed Box Volume
2.0 cubic feet
Minimum Ported Box Volume
3.0 cubic feet
Maximum Ported Box Volume
4.0 cubic feet
Top-Mount Depth (Mounting Depth)
8-1/2"
Cutout Diameter
14"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
22 Hz
Equivalent Compliance (Vas)
209 liters
Total Speaker Q Value (Qts)
0.49
Electrical Q Value (Qes)
0.55
Electrical Resistance of Voice Coil (Re)
2.8 ohm
Mechanical Q Value (Qms)
4.3
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SEX15D4

Weight:

26.00lbs

Internal SKU:

sex15d4

Internal Product ID:

27309

Product and How-to Videos


  • RE Audio New Product Line Overview | CES 2015
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


RE Audio SEX15D4 thumbnail image

5 star
84%
4 star
13%
3 star
3%
2 star
0%
1 star
0%



Durability
4.7
Value
4.9
Features
4.6
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

se/x v2 d4

The following review is for SEXv2-15D4, which is a part of the bundle you are viewing.

2 d4's paralled , sealed 1.5cu per, off an re 45kv.1(1500x1@1ohm)....all around solid woofer...only been 2 weeks with gains at halves or ever so slightly less, but still sound tight/smooth no shenanigans so far...

By mac292 on April 29, 2014

51 found this helpful


Great sub

The following review is for SEXv2-15D4, which is a part of the bundle you are viewing.

I have one of these in a 5 ft box and my whole car shakes....thinking of adding dynomat.

By Robert on August 8, 2014

48 found this helpful


Great value for money

On a tight budget, so I did my research and went with one 15D4 on a Hifonics GLX 1001.1 at 750ish watts RMS @ 2ohms in my hatchback.

Very pleased with the accuracy and tone of this sub in a 52 litre sealed rear-facing setup. "Bass, I love you" will flap a shirt in my drivers window, musical enough to please me and my wife while listening to classical music, great accuracy. Great for Jazz, classical, house, dubstep, electro, you name it.

This sub represents excellent value for money and I'd be buying another one or three if space wasn't an issue (^ ^)

By Adam on December 26, 2012

38 found this helpful


good product

I bought this sub to put in my fiance's 05 Xterra, hooked up to a hiphonics hfi1000.1d 750rms @ 2ohm on a stock battery and alternator. The sub is very responsive, and hits hard. Very good for a budget build but I think I will buy the sxx model next time.

By Nathan on December 14, 2011

35 found this helpful


love it

Have it at 500rms. Could take 650 700 daily. With your gain set right.

By alex on June 19, 2012

34 found this helpful


Awesome sub!!!

Had it for two weeks and love it. Ran my Rockford Fosgate P600.1bd at 2 ohms 600 watts from the get go and no issues. People think that you need to "break them in". I didn't and no probs. Slams like crazy in a 4 cubic ft. box at 34hz. Had to build the box in my trunk though, but you'll have that with a Mustang GT. I will be getting the Hifonics BRX1100.1 soon so we'll see if this thing can handle 800 watts at 2 ohms!!!

By Robert on March 4, 2014

34 found this helpful


WOAH. BASS.

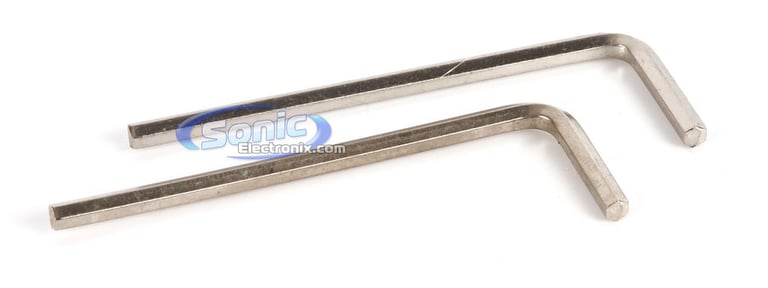

I just installed two of these bad boys in the trunk of my Altima. These things scream. Loud, clear, crisp. Those three adjectives perfectly describe these subwoofers! But what they don't tell you is what else comes in the box. Not one, but TWO allan keys. TWO. These TWO allan keys make installs a breeze. With their chrome finish, you will not find better allan keys at your local Home Depot.

By Eric on January 3, 2014

34 found this helpful


Loving the Output

Have this running off of 600 watts in a 2 cubic foot sealed enclosure right now, and it definitely hammers. Nice sturdy built driver, tons of linear excursion, good output, perhaps down the road when I have more money I will be building a nice ported enclosure for it but for now, it more that meets and exceeds my expectations.

By Nigel on May 31, 2013

34 found this helpful


RE THE BEAST

I agree this is a bad subwoofer i have 4 of them in a 2001 Impala and it has my car banging... I would recommend these subs to anyone who loves deep bass an good sound quality at the same time

By Demeitric on March 6, 2011

33 found this helpful


Un Real Output in Proper AirSpace

If you want to do "hair tricks" just buy two of these sub's, Build a 12 cubic foot rectangle box with one port about 8 inches wide and 20 inches tall 14. 5 deep Use the RE AUDIO BOX CALCULATOR .Then add your speakers and you will end up with just over 8 cubic feet of airspace tuned at 32hz witch I promise Is what you want!!! Add at least 1200 watts rms and make sure your electrical system is up to par..I;E correct wire size/big 3 upgrade and second battery,alternator upgrade..Pick any two of those at least then sit back and enjoy the sound of your truck or car trying to peel sheet metal of and your windshield making sounds that you thought glass could not make and be happy..You just purchased the best subwoofer for the money that can be found on planet Earth...

By Brandon on January 20, 2014

33 found this helpful




LA1870 small

Legacy LA1870 Red Series

(3)

$134.99

List price $289.99

ICBM-890 small

Performance Teknique ICBM-890

$109.99

List price $249.99

V8EQ small

Visonik V8EQ

4-Band Parametric Equalizer with Subwoofer Output

(1)

$49.99

List price $229.99

HD6002 small

Scosche EFX HD6002

900W Max, 2-Channel Amplifier

$109.99

List price $269.99

No picture

Visonik V204XT Factory Refurbished

400 watts, 4-Channel Amplifier

$44.99

List price $129.99

ICBM-9530 small

Performance Teknique ICBM-9530

$199.99

List price $439.99

ICBM-9520 small

Performance Teknique ICBM-9520

$129.99

List price $399.99

V718XD small

Visonik V718XD MonoBlock Class X / D

(1)

$249.99

List price $499.99

V800XD small

Visonik V800XD Digital Class X ( Class D )

(1)

$239.99

List price $699.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2003 GMC Yukon

1980 Cadillac Eldorado

2012 Mitsubishi Eclipse Spyder

2025 Ford Bronco

2001 Suzuki Esteem

2012 Subaru Outback

2016 Kia Sorento

1997 Saab 9000

2017 Audi A7 Quattro

2001 Dodge Durango

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
