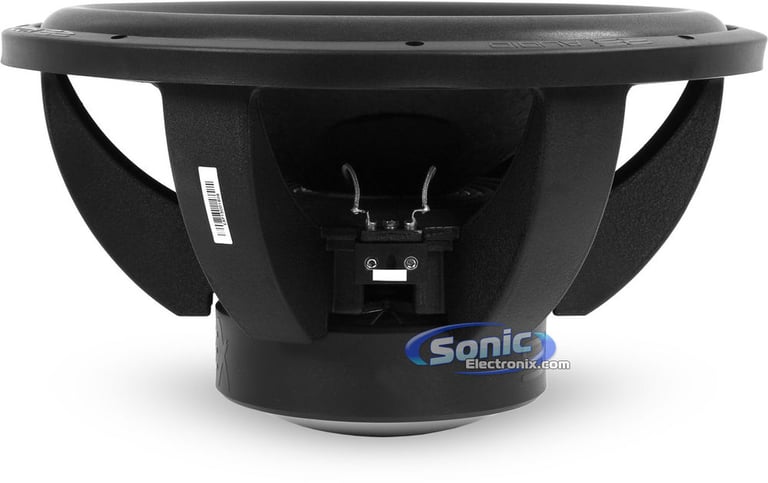

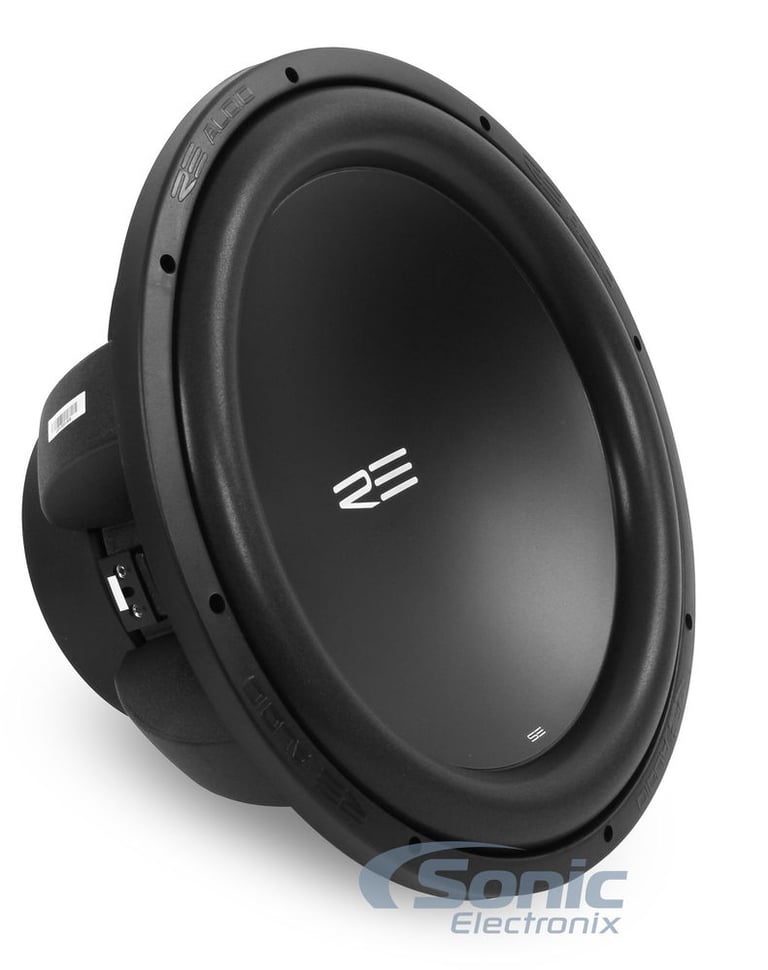

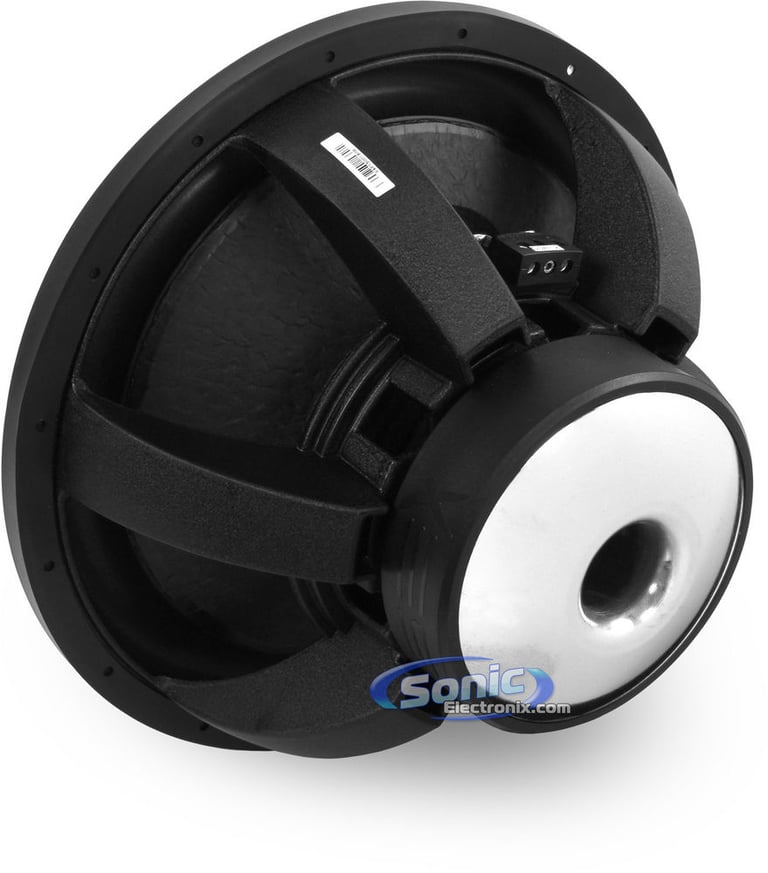

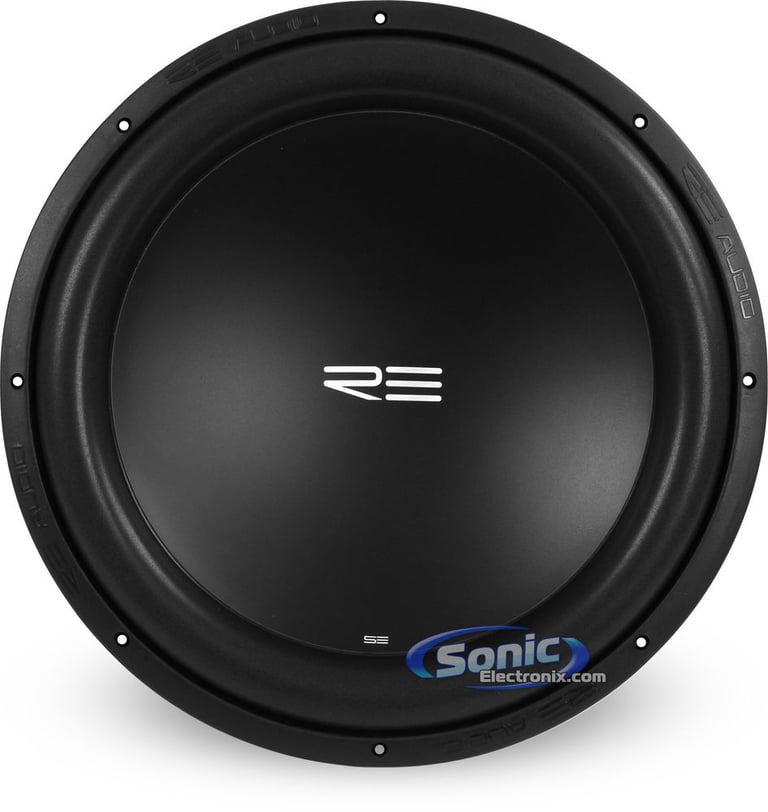

RE Audio SEXv2-15D4 (SEX v2 15D4)

750W 15" SE-X v2 Series Dual 4 ohm Subwoofer

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• RMS Power: 750W
• Dual 4 ohm
• Rubatek Foam Surround
• Dual Composite 2-Piece Cone
• Tork-Tite Terminals
• Progressive Spiders
• Double Stacked Magnets

Learn more about the sexv215d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Limited time!
C2-650X main

JL Audio C2-650x

120W RMS 6.5" C2 Series 2-Way Coaxial 4-ohm Car Speakers

26
-17.86%

$229.99

List price $279.99

H746 main

Cerwin-Vega H746

550W Peak (80W RMS) 4x6" HED Series 2-Way Coaxial 4-ohm Speakers

9
Limited time!
TS-G4620S main

Pioneer TS-G4620S

400W Peak (60W RMS) 4x6" G-Series 2-way 4-ohm Coaxial Car Speakers

6
-41.25%

$38.19

List price $65.00

NVX Empty BOOST Box - 1996-2006 Chevy Silverado, GMC Sierra - VE-GM-SLVECG1-D10S

For select 1999-2006 vehicles from GMC, Chevrolet Extended Cab Trucks - Dual 10" Empty BOOST Down Firing Sealed Truck Enclosure

1
-21.88%

$149.99

List price $191.99

Product Highlights


• RMS Power: 750W
• Dual 4 ohm
• Rubatek Foam Surround
• Dual Composite 2-Piece Cone
• Tork-Tite Terminals
• Progressive Spiders
• Double Stacked Magnets

Description


RE Audio brand icon

Authorized dealer

SEX Subwoofer Series

The SEX v2 SERIES is an improvement in every way over RE Audio's most popular and best selling subwoofer series. The SEX v2 SERIES offers increased power handling, excursion as well as higher efficiency over the original SEX series. The SEX v2 SERIES touts a totally new look with its completely redesigned motor and magnetic assembly.

Subwoofer Features:

  • 15" Dual 4 ohm SEX v2 Series Car Subwoofer
  • Power Handling:
    • RMS: 750 watts
  • Impedance: Dual 4 ohm
  • Dual composite 2-piece cone
  • Rubatek foam surround
  • FEA Optimized motor structure
  • Progressive spiders
  • Wrap around rubber gasket
  • Tork-Tite terminals
  • 3" 4-Layer voice coil
  • Double stacked magnets
  • Cast aluminum basket
  • One-way, Linear Excursion (Xmax): 21 mm
  • Efficiency (SPL): 84.4 dB
  • Mounting Depth: 7-7/8"
  • Also available in a Dual 2 ohm: RE Audio SEXv2-15D2
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Need the Perfect Subwoofer Enclosure?

Check out the RE Audio SEXv2-15D4 Subwoofer Enclosure Guide

Product history:

RE Audio SEXv2-15D4 thumbnail
(newest, current model)
RE Audio SEX15D4 thumbnail
(previous model, replaced by RE Audio SEXv2-15D4 (SEX v2 15D4))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio SEXv2-15D4 (SEX v2 15D4) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio SEXv2-15D4 (SEX v2 15D4) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio SEXv2-15D4 (SEX v2 15D4) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 RE Audio SEXv2-15D4 (SEX v2 15D4) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
LVE-GM-SLVECG1-D10S main

NVX BOOST Box - 1999-2006 Chevrolet Silverado, GMC Sierra - LVE-GM-SLVECG1-D10S

For select 1999-2006 Silverado 2500 HD / 1500 / 2500 / 3500 and Sierra 2500 / 3500 / 1500 / 2500 HD and SIerra 2500 HD Extended Cab - Dual 10" 700W RMS Loaded Down Firing BOOST Sealed Truck Enclosure

-18.98%

$349.99

List price $431.99

LVE-GM-SLVECG1-D12S main

NVX BOOST Box - 1999-2006 Chevrolet Silverado, GMC Sierra - LVE-GM-SLVECG1-D12S

For select 1999-2006 vehicles from GMC, Chevrolet Extended Cab - Dual 12" 800W RMS Loaded Down Firing BOOST Sealed Truck Enclosure

-18.86%

$369.99

List price $455.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

52L7XS151 small

Kicker L7XS151 (52L7XS151)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 11-9/16"

$1499.99

List price $1599.99

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

P3D2-15 small

Rockford Fosgate Punch P3 P3D2-15

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 2 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Mount depth: 7.58"
• Sensitivity: 86 dB

(17)

$309.99

List price $339.99

SW-M15D1 small

Sundown Audio M-15 D1 15" (M15D1)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 12.06"
• Sensitivity: 83.024 dB

(1)

$659.99

List price $791.99

Specifications & Details


Subwoofer Specifications
Series
SEX v2 Series
Subwoofer Size
15"
RMS Power Handling
750 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Sensitivity
84.4 dB
Xmax (millimeters)
21 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Dual Composite 2-Piece
Woofer Surround
Rubatek Foam
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.5 cubic feet
Optimum Sealed Box Volume
2.0 cubic feet
Minimum Ported Box Volume
3.0 cubic feet
Optimum Ported Box Volume
4.0 cubic feet
Top-Mount Depth (Mounting Depth)
7-7/8"
Cutout Diameter
14"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SEXv2-15D4

Weight:

26.00lbs

Internal SKU:

sexv215d4

Internal Product ID:

68088

Product and How-to Videos


  • RE Audio SEX V2 Car Subwoofers | CES 2013
  • RE Audio New Product Line Overview | CES 2015
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


RE Audio SEXv2-15D4 (SEX v2 15D4) thumbnail image

5 star
88%
4 star
13%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.8
Features
4.7
Design
4.8
Usability
4.7

Customer Reviews

Sort by:

Loading...

se/x v2 d4

2 d4's paralled , sealed 1.5cu per, off an re 45kv.1(1500x1@1ohm)....all around solid woofer...only been 2 weeks with gains at halves or ever so slightly less, but still sound tight/smooth no shenanigans so far...

By mac292 on April 29, 2014

51 found this helpful


Great sub

I have one of these in a 5 ft box and my whole car shakes....thinking of adding dynomat.

By Robert on August 8, 2014

48 found this helpful


awesome

Definitely recommend these subs...they hit hard paired with a massive audio n4 flexes the windshield. Sq is good also.

By chris on May 15, 2015

23 found this helpful


Great product

This is a great entry level speaker or a great all round speaker I have two in a 14 cubic foot box with 2 planet audio 3000s and they are beating my blazer apart

By Oldswade on July 20, 2015

16 found this helpful


J woods RE

I have to make a box still coming soon as I seen on you tube looks like these subs pound for the money ...send me another e mail in a couple weeks be glad to post I pumped hope they pound my tahoe down. :-)

By jason on July 2, 2016

13 found this helpful


Bangin' subs for the price!

I've got a pair of these in 3.5 cu. ft. per sub tuned to 42 hz and the sound great!

By Puresound1 on February 1, 2017 Checkmark Icon Verified purchase

12 found this helpful


Very Underrated!

Wow, great subs have 4 walled off in my silverado , in a 16Cuft box, tuned to 34Hz. When I first installed them the box was tuned to 28Hz and I was very disappointed, they weren't louder than my 10 year old type R's, to the point that I was going to sell them, than I read the manual and it said tune the box to 34-35Hz so I did, what a difference SPL went way up, SQ went way up, and so did the power handling alot, right now they are getting pushed by 2 twistedsounds 2.8K's strapped together, and they take it! each of the amps DYNO'd at over 3800 watts CERTIFIED!!! I have to be careful with the subs because I can make them stink at will, and have the gains set a little under 3/8", but they are still pushing over 5200 Watts(clamped) to the 4, Anybody that says these subs SUCK, doesnt have them in the right box https://www.youtube.com/watch?v=9G1Y0XUPOuM https://www.youtube.com/watch?v=Mv2eHAr_4y0

By Adam on October 3, 2016 Checkmark Icon Verified purchase

11 found this helpful


Great woofer

This was built in side a seald enclosure out of fiber glass in a convertible. The sq is amazing. Hands down great woofer. 2 cubes sealed .

By Cali on February 1, 2016

11 found this helpful




SB-T-TACACG3/10TW3 small

JL Audio Stealthbox® SB-T-TACACG3/10TW3

Custom-Fit Loaded 10" Subwoofer Enclosure for select 2015-2023 Tacoma

$1199.99

List price $1199.99

SB-T-TUNDB3/10TW3/BK small

JL Audio Stealthbox® SB-T-TUNDB3/10TW3/BK

Custom fit subwoofer enclosure forselect 2007-2021 Tundra (Black)

$1799.99

List price $1799.99

SB-J-JK2DR/10W1v3/BK small

JL Audio Stealthbox® SB-J-JK2DR/10W1v3/BK

Custom fit subwoofer enclosure for select 2007-2017 Wrangler (Black)

$1399.99

List price $1399.99

VPRO65BM_X2_ACC_KIT small

NVX 6.5" Coaxial Speakers with Installation Kit

Includes NVX 6.5" V-Series Coaxial Speakers, Baffle, Premium Sound Damping, Rubber Roller, Installer's Panel Removal Kit

(338)

$124.04

List price $231.69

SB-J-WRUD/10TW1-4 small

JL Audio Stealthbox® SB-J-WRUD/10TW1/BK_DRIVER

Custom fit subwoofer enclosure for select 2007-2018 Wrangler Unlimited and Wrangler Unlimited (JK) for Driver Side (Black)

(1)

$1149.99

List price $1149.99

RSRAM72_MOBILE2W small

Remote Start for 2018-2024 RAM, Dodge, Jeep, Chrysler Key or Push-to-Start

Easy DIY Remote Starter Kit with Key-to-Start and Push-to-Start, Takes less than 1 hour to install w/ Remote Start Smartphone App Upgrade with Keyless Entry and GPS

$449.98

List price $529.98

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2001 Ford Taurus

2002 GMC Sierra 2500

2025 Toyota Highlander

2016 Subaru Crosstrek

2010 Audi A5

1997 Dodge Ram 1500

2014 Cadillac SRX

2006 Lincoln LS

2008 MINI Cooper

2013 Mazda CX-5

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
