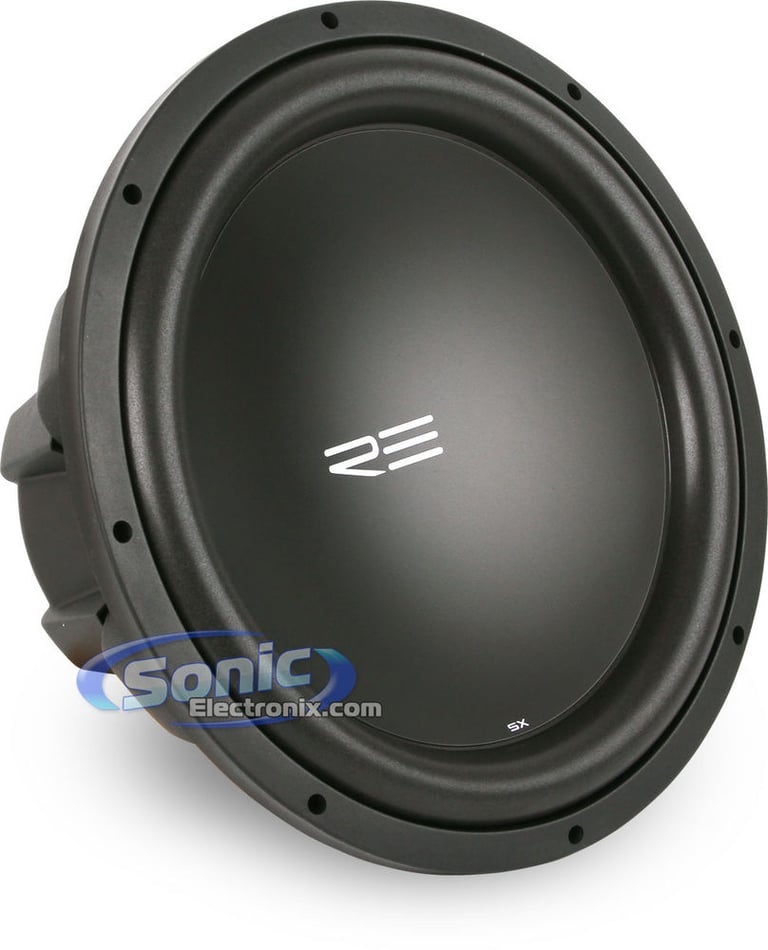

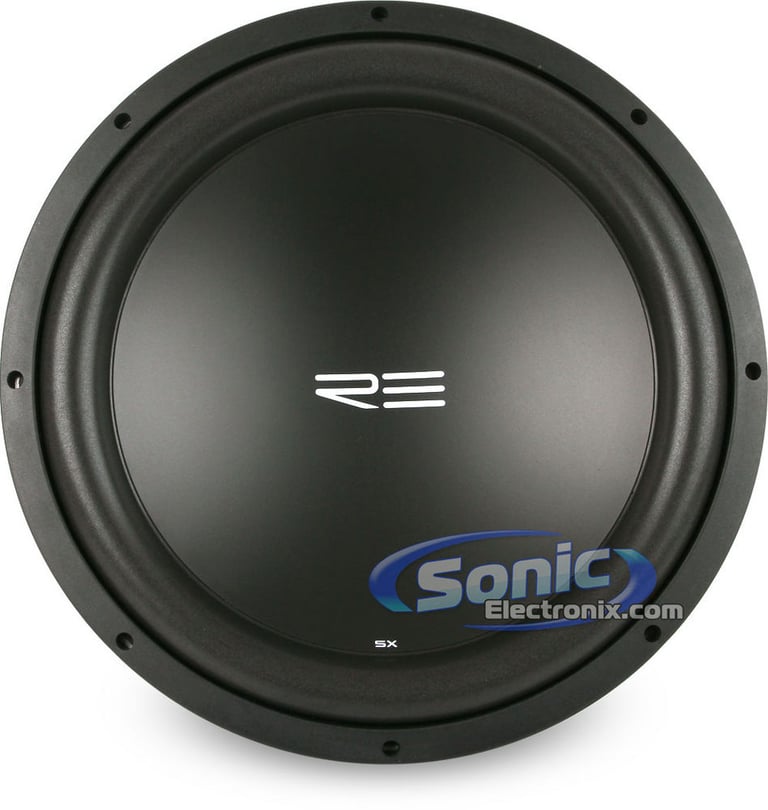

RE Audio SXX15D4

1000W 15" SXX Series Dual 4 ohm Subwoofer

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• RMS Power: 1000W
• Dual 4 ohm
• Rubatek Foam Surround
• Dual Composite 2-Piece Cone

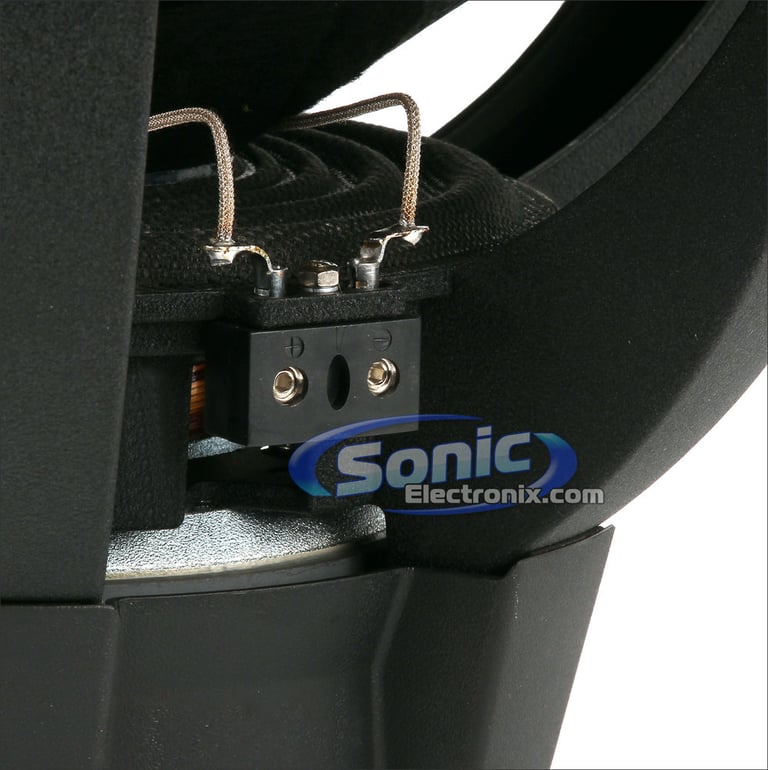

• Tork-Tite Terminals
• Progressive Spiders
• Triple Stacked Magnets

Learn more about the sxx15d4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

sxxv215d4 thumbnail

RE Audio SXX v2 15D4 (SXX15D4)

OUR PRICE: $267.99

View item

Loading...
HKSB110 main

American International HKSB110

6.5" or 6.75" Speaker Mounting Adapters for select 2006-2021 vehicles from Hyundai, Kia

11
-51.31%

$18.99

List price $39.00

KAAB main

Scosche KAAB Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2007-2025 vehicles from Hyundai, Kia, Genesis

11
-10.96%

$6.99

List price $7.85

72-7300 main

Metra 72-7300

Install New Speakers in select 1998-2021 vehicles from Hyundai, Kia, Toyota

8
-33.36%

$9.99

List price $14.99

70-7304 main

Metra 70-7304 Wiring Harness

Install a New Car Stereo in select 2010-2021 vehicles from Kia, Hyundai

14
-42.44%

$18.99

List price $32.99

95-7345B main

Metra 95-7345B Dash Kit

Install a new Double-DIN car stereo in select 2011-2013 Optima (Matte Black)

3
-48.50%

$16.99

List price $32.99

40-KI10 main

Metra 40-KI10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2007-2025 vehicles from Hyundai, Kia, Genesis

1
-41.20%

$9.99

List price $16.99

SWRHK-65E main

Crux SWRHK-65E Wiring Interface

Install new car stereo and retains steering wheel audio controls and other factory features in select 2010-2016 vehicles from Hyundai, Kia

3
-35.71%

$85.05

List price $132.30

HRN-HRR-HK2 main

iDataLink Maestro HRN-HRR-HK2

Install a New Car Stereo in

-30.00%

$139.99

List price $199.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

116
-37.15%

$21.99

List price $34.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Product Highlights


• RMS Power: 1000W
• Dual 4 ohm
• Rubatek Foam Surround
• Dual Composite 2-Piece Cone
• Tork-Tite Terminals
• Progressive Spiders
• Triple Stacked Magnets

Description


RE Audio brand icon

Authorized dealer

RE Audio SXX Subwoofers

RE Audio raises the bar for high output with the SXX line of their competition grade, high excursion subwoofers. With an impressive power handling rating of 1000 Watts RMS – this subwoofer shows you it’s meant for those serious about quality bass.

Every single component of this subwoofer has been crafted with precision in mind to obtain full, impactful bass. From its 3” eight layer aluminum flat voice coil, to its triple stacked magnets this high powered subwoofer will output with fine clarity.

The entire SXX line of subwoofers can handle an impressive 1000 watts of RMS continuous power, no matter the size! With its large Rubatek Foam surround and FEA optimized motor structure; this woofer can handle large amounts of power, while maintaining durability. The RE Audio SXX Subwoofers series is certainly one subwoofer manufactured with hi-fidelity audio in mind.

Subwoofer Features:
  • 15" Dual 4 ohm SXX Series Car Subwoofer
  • Power Handling:
    • RMS: 1000 watts
  • Impedance: Dual 4 ohm
  • Dual composite 2-piece cone

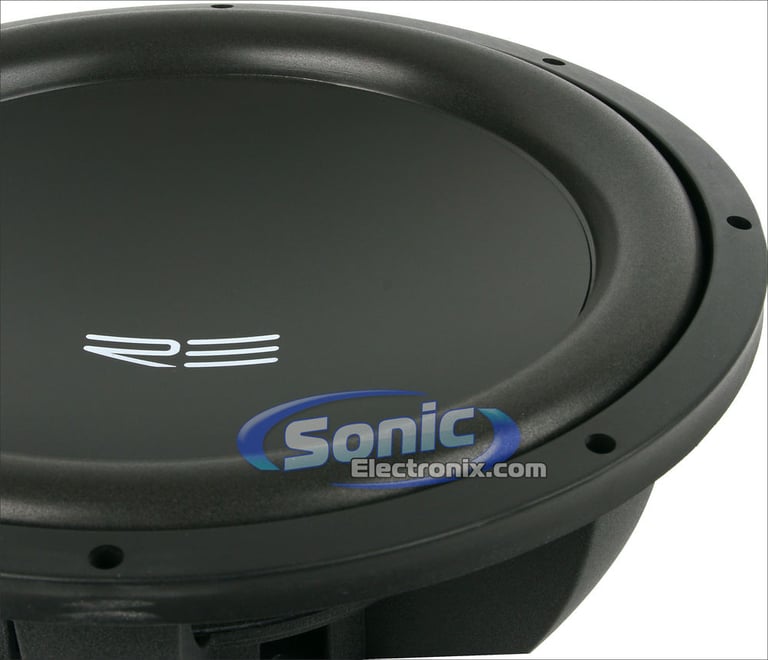

  • Rubatek foam surround
  • FEA Optimized motor structure
  • Progressive spiders
  • Wrap around rubber gasket

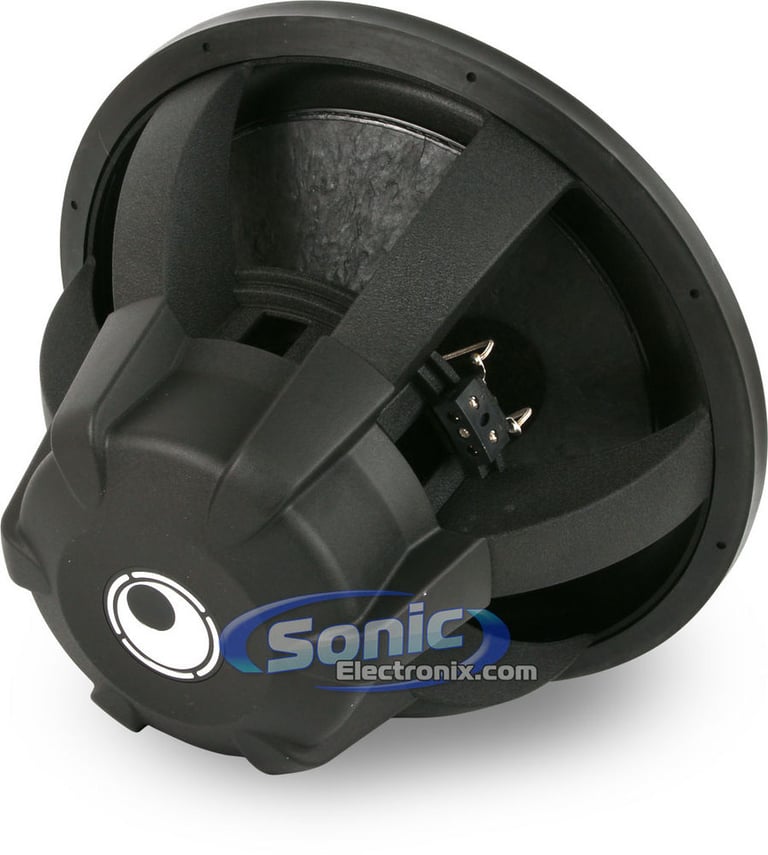

  • Tork-Tite terminals
  • 3" 8-Layer voice coil

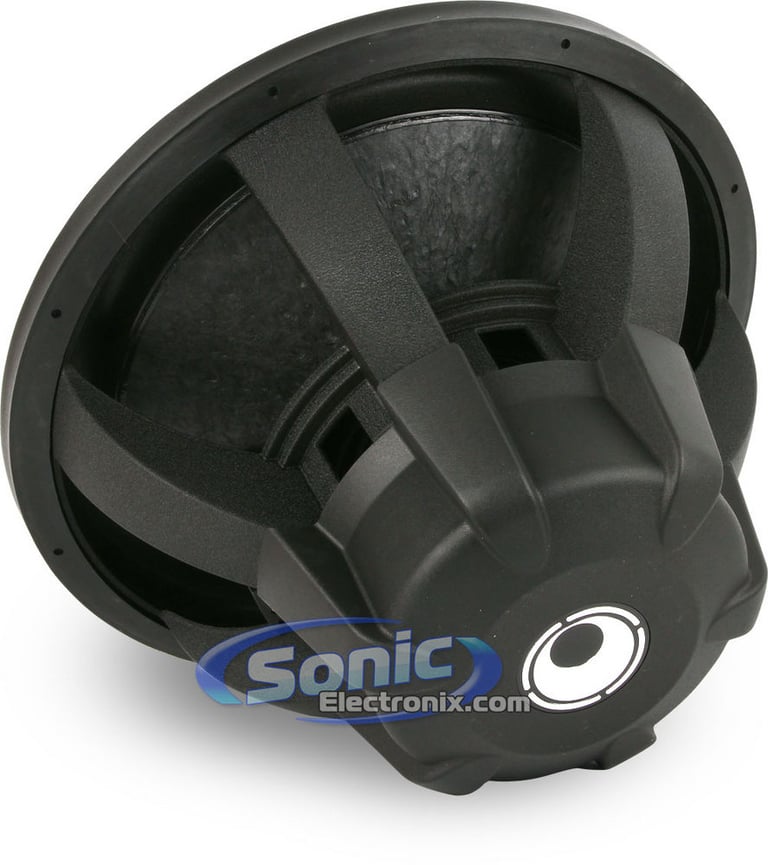

  • Cast aluminum basket
  • Triple stacked magnets
  • Designed specifically for ported/vented enclosures
  • Also available in a Dual 2 ohm: RE Audio SXX15D2
  • Proudly made in the USA
  • Also found as: sxx 15, sxx15, sxx 15d4, sxx-15, sxx-15d4
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
SXX 15" T/S Parameters:
  • Electrical Q Value (Qes): 0.38
  • Mechanical Q Value (Qms): 4.7
  • Total Speaker Q Value (Qts): 0.38
  • Free Air Resonance (Fs): 27.8 Hz
  • Equivalent Compliance (Vas): 126.3 liters
  • One-Way, Linear Excursion (Xmax): 22 mm
  • Efficiency (SPL 1W/1m): 90.4 dB SPL
  • Effective Piston Area (Sd): 810 cm2
  • DC Resistance (Re): 1.9 ohm
  • Nominal Impedance (Znom): Dual 4 ohm
  • Thermal Power Handling (Pe): 1000 W
  • Force Factor (Bl): 21

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

RE Audio SXXv2-15D4 thumbnail
(newest, current model)
RE Audio SXX15D4 thumbnail
(previous model, replaced by RE Audio SXX v2 15D4 (SXX15D4))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio SXX15D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio SXX15D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio SXX15D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 RE Audio SXX15D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BE-KIAOPTG3-VSW104 main

NVX BE-KIAOPTG3-VSW102 BOOST Box

Custom Fit 500W RMS 10" Loaded BOOST Subwoofer Enclosure for 2011-2015 Kia Optima

1
-45.69%

$169.99

List price $312.99

PBK-BE-KIAOPTG3-VS102 main

NVX PBK-BE-KIAOPTG3-VS102 - 2011-2015 Kia Optima - Complete Bass Package

For select 2011-2016 Optima and Optima Hybrid - 10" 500W RMS Complete Amplified Subwoofer Bass Package Solution

89
-34.28%

$511.96

List price $778.96

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

52L7XS151 small

Kicker L7XS151 (52L7XS151)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 11-9/16"

$1499.99

List price $1599.99

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

P3D2-15 small

Rockford Fosgate Punch P3 P3D2-15

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 2 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Mount depth: 7.58"
• Sensitivity: 86 dB

(17)

$309.99

List price $339.99

Specifications & Details


Subwoofer Specifications
Series
SXX Series
Subwoofer Size
15"
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Sensitivity
90.4 dB
Xmax (millimeters)
22 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Dual Composite 2-Piece Cone
Woofer Surround
Rubatek Foam
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Minimum Ported Box Volume
3.0 cubic feet
Maximum Ported Box Volume
4.0 cubic feet
Top-Mount Depth (Mounting Depth)
8-1/2"
Cutout Diameter
14"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
27.8 Hz
Equivalent Compliance (Vas)
126.3 liters
Total Speaker Q Value (Qts)
0.38
Electrical Q Value (Qes)
0.38
Electrical Resistance of Voice Coil (Re)
1.9 ohm
Mechanical Q Value (Qms)
4.7
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SXX15D4

Weight:

29.50lbs

Internal SKU:

sxx15d4

Internal Product ID:

27319

Product and How-to Videos


  • RE Audio New Product Line Overview | CES 2015
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


RE Audio SXX15D4 thumbnail image

5 star
85%
4 star
15%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.7
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great Product

The following review is for SXXv2-15D4, which is a part of the bundle you are viewing.

I have two of these and I absolutely love them! I recommend them to anyone whos looking for great SQ and great SPL for a daily driver.

By Michael on January 13, 2014

48 found this helpful


great sub

The following review is for SXXv2-15D4, which is a part of the bundle you are viewing.

This is the best sub I've ever owned, hits really hard and clear.

By alex on February 10, 2014

34 found this helpful


RE Audio SXXv2-15d4

The following review is for SXXv2-15D4, which is a part of the bundle you are viewing.

Haven't installed them yet, but when I finish the box ill update my review. Just wanted to review sonic electronix customer service and shipping. When I ordered these subs they only had one in stock so I bought that one and waited 2 days for the other one to come in. They got the other in on Wednesday and I received my subs Thursday talk about fast shipping! will definitely recommend to others!!!!!

By BigGains on October 24, 2013

34 found this helpful


made her go def

I'm not sure if i have tha d2 or d4 but i had 2 of them in my cadillac and they was beast but i recently got a 84 box caprice and i squeezed them in tha trunk with a 5500 watt power acoustic amp and yesterday me and my girlfriend was riding listening to gucci mane and she turned it down and said she couldnt hear and her head and brain was kinda hurting and the amp is only a quarter way up with subs wired at 2 ohms the only problem i have now is to figure out how to keep trunk from banging off i would recommend these subs to and bass head but on sxx and higher none of tha cheapos

By Dustin on March 21, 2011

32 found this helpful


Almost made this girl puke!

I have 2 wired to down to one ohm on a Rockford T2000.1bd and omg its crazzzy. This girl was in my car and i was slapping some Jeezy and she turns it down and goes "I think I'm going to puke" lol. I was so happy to hear her say that lol.

By Gou on February 28, 2011

31 found this helpful


beast of a sub

Got two of these with a bzr2100 hifonics amp. let me just tell ya, loud,clear,smooth bass. Personally would take these over 2 l7 15s i love kicker been around them my whole life, seen kicker subs go thru hell and still bang, but if you want clear bass go with these. These subs WILL NOT let ya down, plus l7s 15 dont compare to these took a chance by getting them because im a kicker guy but boy was i happy with my decision. GET EM

By Crazylegs on September 3, 2010

30 found this helpful


Better than L7

These subs are true beasts. I purchased 2 of them about 3 months ago. I bought a custom box for them and MANE do these subs really breath. Best pair of subs I ever owned, and I shop for nothing but the best. These subs will blast Kicker L7 to sleep. I am powering them with a hifonics brutus 2400.

By BlakMag on February 16, 2011

26 found this helpful


Great Subs!!

I bought 2 of these and am running them in a ported box. All I can say is WOW!! these subs flat hammer! i am driving them with a PPI S2000d and the subs have no issue at all taking everything the amp can throw at them..
Incredible sound quality and VERY loud!! My only real complaint is the fact this series of sub cant be run in a sealed box. Other than that, the finest subs i have ever owned!!

By Ritch on July 26, 2012

25 found this helpful


RE the ultimate sub

Best sub I have ever owned. Once you go RE you won't go back to anything else!

By JJ on October 20, 2011

24 found this helpful


Amazing Product!

RE is absolutely amazing. I currently have two of these wired down to 1 ohm on a 2400 RMS Hifonics amp, and they take it with ease. I would recommend these subs for anyone who is looking for an extremely loud daily driver, or even as entry level competition subs.

By DJ on July 5, 2011

26 found this helpful




AP-X69A small

Deaf Bonce Apocalypse AP-X69A

800W Peak (400W RMS) 6x9" Apocalypse Series 2 Way Coaxial 4-ohm Speakers

(3)

$159.90

List price $159.90

DFC1X small

SoundKase DFC1X

Soft-Sided Nylon Receiver Faceplate Case

(14)

$8.99

List price $9.99

06VCVX122 small

Kicker 06VCVX122 / VCVX12 2 ohms

Single 12" CompVX Subwoofer Loaded in a Vented Enclosure (2 ohms Final Impedance) 06VCVX12 / VCVX122

(2)

$229.99

List price $499.99

3474B001 small

Canon PowerShot A480 (Silver)

Compact and Colorful 10 Megapixel Digital Camera with 3.3X Optical Zoom and a 2.5" LCD

$119.99

List price $129.99

XD-PCS4-2B small

JL Audio XD-PCS4-2B 4 Gauge Dual Amplifier Kit

4 AWG Premium Series Dual Amplifier Power Installation Kit

(2)

$299.99

List price $299.99

AHDH-HD1 small

Axxess AHDH-HD1

HD Interface Harness for Select 1998-2005 Acura/Honda Vehicles

$9.99

List price $14.99

X1000D small

MTX Audio XThunder X1000D

3000W Max, Class D Monoblock X Thunder Amplifier (Same amp as 1000XD)

(6)

$229.99

List price $549.99

TS-A1671R small

Pioneer TS-A1671R

6-1/2" / 6-3/4" 3-way Speakers

(14)

$49.95

List price $89.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 Kia Optima

2022 Toyota Highlander

2017 Toyota 4Runner

1995 Isuzu Trooper

2000 Land Rover Discovery

1998 Mercedes-Benz E-Class

2000 Honda S2000

2018 Toyota Prius Prime

2022 Chevrolet Corvette

2019 Ford Explorer

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
