RE Audio XXX12D2

2000W 12" XXX Series Dual 2 ohm Subwoofer

RE Audio
Shop all RE Audio
Product videos

• RMS Power: 2000W
• Rubber Surround
• Dual Composite 2-Piece Cone
• Tork-Tite Terminals
• Dual Progressive Spiders
• Triple Stacked Magnets
• Flat Wire Voice Coil
• Venting System

Learn more about the xxx12d2

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

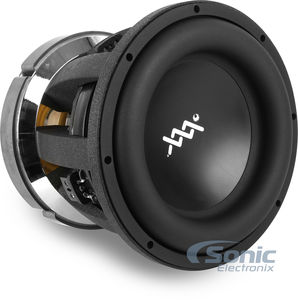

xxx12v2d2 thumbnail

RE Audio XXX-12D2 v2 (XXX12v2D2)

OUR PRICE: $534.99

View item

Product Highlights

• RMS Power: 2000W
• Rubber Surround
• Dual Composite 2-Piece Cone
• Tork-Tite Terminals
• Dual Progressive Spiders
• Triple Stacked Magnets
• Flat Wire Voice Coil
• Venting System


RE Audio

Authorized dealer

Built for Brutality

You’ve stumbled upon RE Audio’s XXX Subwoofer. Don’t be afraid. This subwoofer is built for brutality, but capable of so much more. This subwoofer competes with any high output SPL based subwoofer, but is capable of outputting amazing sound quality as well.

RE Audio knew this subwoofer was meant for those serious about the bass in their vehicles, and manufactured this subwoofer accordingly. With such a gigantic magnet, a new venting system had to be engineered; this Vented Magnet System (or VMS) allows the subwoofer to output amazing levels of power without getting too hot.

RE Audio’s XXX Subwoofer may intimidate some, however after getting to know the XXX Subwoofer, it has a kind side as well. One part of the RE Audio XXX Subwoofer completely boasts pure, unrivaled power handling, engineered primarily for excess. Another side of the XXX may surprise some, the subwoofer also sounds extremely clean and tightly responsive. RE Audio XXX Subwoofers are proudly manufactured in the USA, RE Audio truly cares about fine crafting their flagship subwoofers.

Subwoofer Features:
  • 12" Dual 2 ohm XXX Series Car Subwoofer
  • Power Handling:
    • RMS: 2000 watts
  • Impedance: Dual 2 ohm
  • Kevlar reinforced kraft pulp, dual composite 2-piece cone
  • Rubber surround
  • Integrated tinsel leads
  • FEA Optimized motor structure
  • Dual progressive spiders
  • Integrated gasket
  • Tork-Tite terminals
  • 3" 4-Layer aluminum flat wire voice coil
  • Split coil design
  • VMS Vented magnet system
  • Cast aluminum basket
  • Triple stacked magnets
  • Designed specifically for sealed or ported enclosures
  • Mounting Depth: 12-3/4"
  • Mounting Hole Diameter: 11-1/2"
  • Proudly made in the USA
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
XXX 12" T/S Parameters:
  • Electrical Q Value (Qes): 0.46
  • Mechanical Q Value (Qms): 3.29
  • Total Speaker Q Value (Qts): 0.404
  • Free Air Resonance (Fs): 21 Hz
  • Equivalent Compliance (Vas): 74 liters
  • One-Way, Linear Excursion (Xmax): 54 mm
  • Efficiency (SPL 1W/1m): 83.76 dB SPL
  • Effective Piston Area (Sd): 480 cm2
  • DC Resistance (Re): 4.2 ohm
  • Nominal Impedance (Znom): Dual 2 ohm
  • Thermal Power Handling (Pe): 2000 W
  • Force Factor (Bl): 18.16

Need the Perfect Subwoofer Enclosure?

Check out the RE Audio XXX12D2 Subwoofer Enclosure Guide

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

RE Audio XXX12D2 V2 thumbnail
(newest, current model)
RE Audio XXX12D2 thumbnail
(previous model, replaced by RE Audio XXX-12D2 v2 (XXX12v2D2))

Subwoofer Wiring Guide

Wiring Guide to Wire 1 RE Audio XXX12D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio XXX12D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio XXX12D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 RE Audio XXX12D2 Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details

Subwoofer Specifications
XXX Series
Subwoofer Size
RMS Power Handling
2000 watts
Voice Coil(s)
Impedance (Per Voice Coil)
2 ohms
Voice Coil Diameter
83.7 dB
Xmax (millimeters)
54 mm
Subwoofer Design
Round / Circle
Main Cone Color
Woofer Composition
Kevlar reinforced kraft pulp, dual composite 2-piece cone
Woofer Surround
Magnet Structure
Triple Stacked
Subwoofer Grille
Re-Cone Kit Available
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Minimum Sealed Box Volume
0.85 cubic feet
Maximum Sealed Box Volume
1.1 cubic feet
Minimum Ported Box Volume
1.7 cubic feet
Maximum Ported Box Volume
2.2 cubic feet
Top-Mount Depth (Mounting Depth)
Cutout Diameter
Shallow Mount Installation
Electromechanical Parameters
Free-Air Resonance (Fs)
21 Hz
Equivalent Compliance (Vas)
74 liters
Total Speaker Q Value (Qts)
Electrical Q Value (Qes)
Electrical Resistance of Voice Coil (Re)
4.2 ohms
Mechanical Q Value (Qms)
