VIBE Audio Black Air 12 V1 (BA12)

12" Dual 2 ohm Black Air Series Car Subwoofer

VIBE
Shop all VIBE
Product videos
highlight-star-icon

12" Black Air Series Subwoofer • Dual 2 ohm • 1600 Watts Max • 550 Watts RMS • Polyglass Cone • Multi-Roll Rubber Surround • Dual Spider Assembly • FEMM Motor and FEA Cone • Screw Input Terminals

Learn more about the ba12v1

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

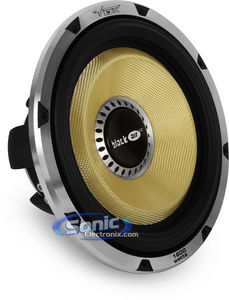

ba12v4 thumbnail

VIBE Audio Black Air 12 V4 (BA12-V4)

OUR PRICE: $69.95

View item

Loading...
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

JS35K main

Jensen JS35K

150W Peak (50W RMS) 3.5" Apex Series 2-Way Coaxial 4-ohm Car Speakers

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

CF-350mt main

JL Audio CF-350mt

70W RMS 3.5" CF Series Custom-Fit Midrange 4-ohm Tweeters

4

Product Highlights


12" Black Air Series Subwoofer • Dual 2 ohm • 1600 Watts Max • 550 Watts RMS • Polyglass Cone • Multi-Roll Rubber Surround • Dual Spider Assembly • FEMM Motor and FEA Cone • Screw Input Terminals

Description


VIBE brand icon

Authorized dealer

Bringing style, performance, and value across the Atlantic Ocean, Vibe Audio introduced their Black Air car subwoofers. Along the line-up of Vibe subwoofers, the Black Air series falls right in the middle as a perfect combination of value and performance. The solid alloy torsion basket that is found on many of the Vibe Audio is also found on this subwoofer. This adds strength and support for all the moving parts of the woofer’s motor structure. Among other components, the double spider construction and the single Y35 ferrite magnet help keep the woofer motion linear and the bass smooth. Made from stiff poly-glass, the bright yellow cone not only looks great, but creates bass notes with virtually zero distortion. Connection is made tight and secure with the screw terminals that hold the speaker wire firmly in place. For those looking for clean, affordable bass, the VIBE Audio Black Air 12 is a brilliant solution.

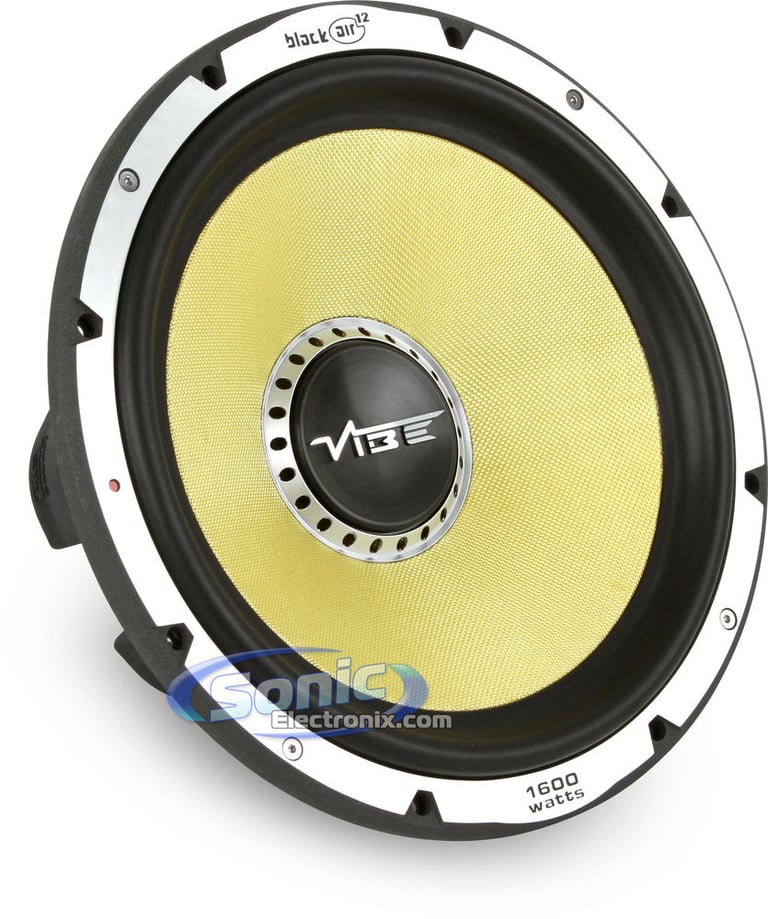

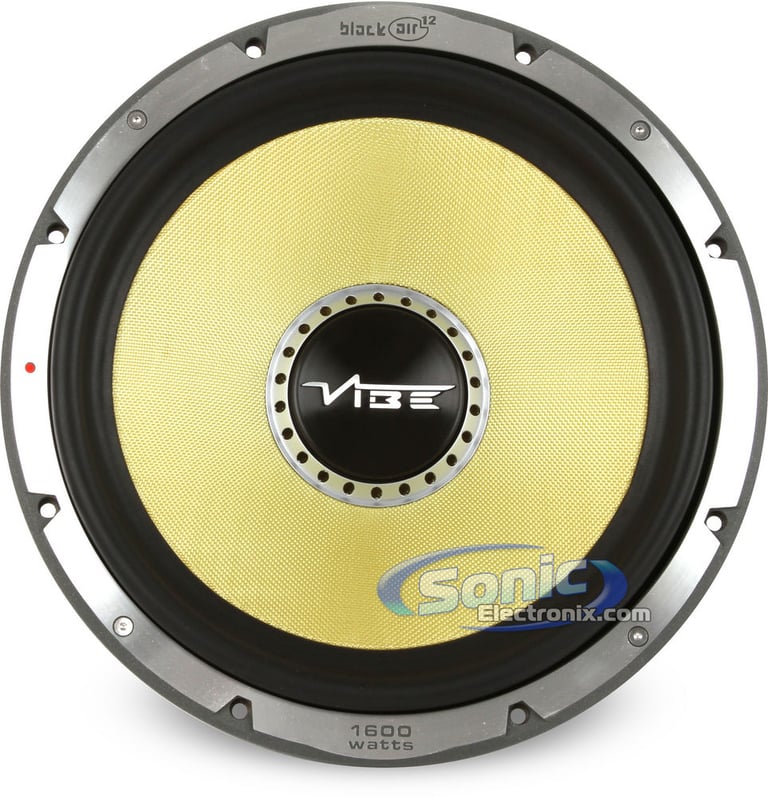

  • 12" Dual 2 ohm Black Air Series Subwoofer
  • Power Handling:
    • Peak: 1600 watts
    • RMS: 550 watts
    • Minimum: 275 watts
  • Impedance: Dual 2 ohm

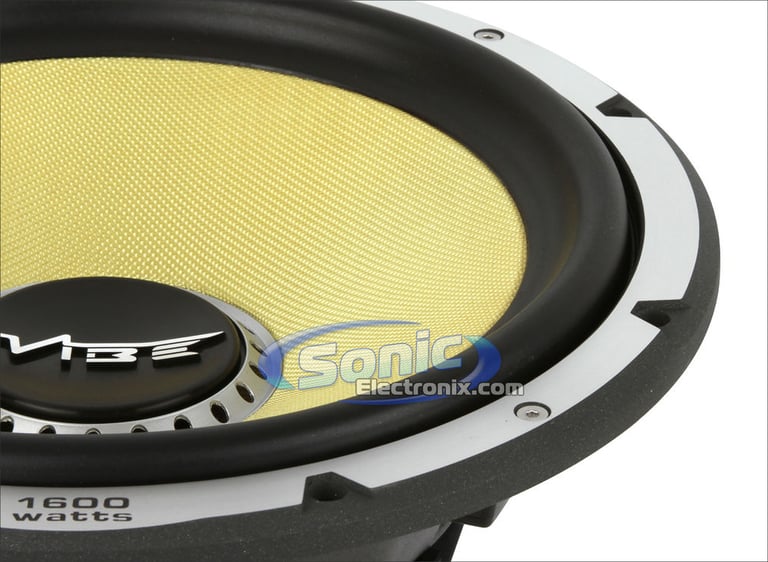

  • Polyglass cone made from a combination of polypropylene and fiberglass
  • Multi-roll rubber surround achieves better linearity throughout the subwoofers excursion range
  • Dual Voice Coils (DVC) offers multiple impedance options
  • Unique cone support is specially designed for rigidity without excessive weight
  • Dual spider assists with the control and stability of the cone, as well as higher power handling
  • FEMM Motor provides low distortion and linear flux saturation
  • FEA Cone is designed using Finite Element Analysis (FEA) to ensure maximum rigidity to weight

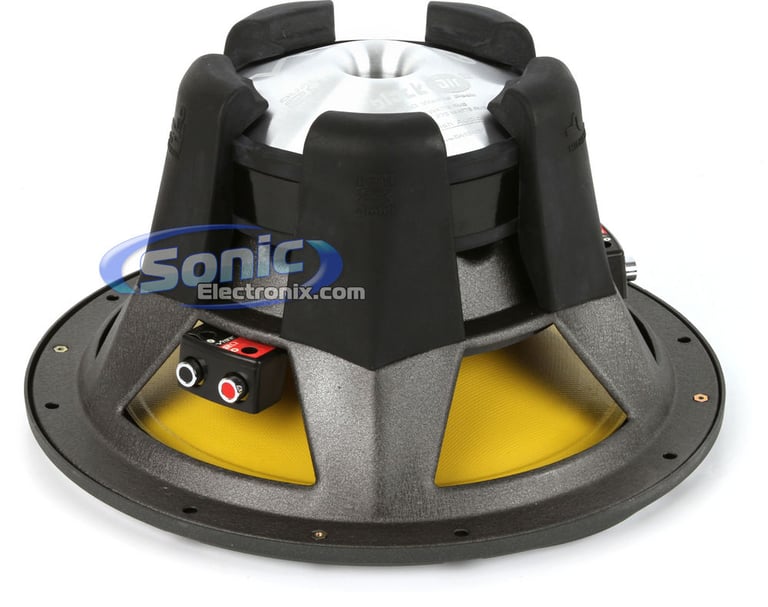

  • Alloy torsion basket provides rigidity and support for motor and moving parts
  • Removable rubber boot for greater magnet protection
  • Aluminum alloy gasket is made from high quality machined aluminum

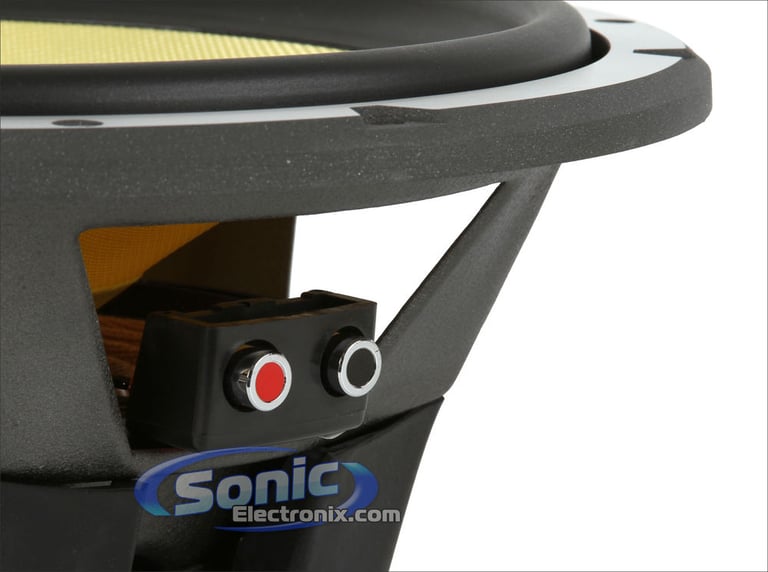

  • Screw input terminals allow for heavier gauge speaker wire to be connected to the voice coil
  • 2" Aluminum 4-layer voice coil
  • Single 60 oz. ferrite magnet
  • Mounting depth: 6-3/4"
  • Mounting diameter: 11-1/4"
  • Frequency response: 25-1,500 Hz
  • Sensitivity: 89 dB
  • Also found as: ba-12
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

VIBE BA12-V4 thumbnail
(newest, current model)
VIBE BA12-V1 thumbnail
(previous model, replaced by VIBE Audio Black Air 12 V4 (BA12-V4))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 VIBE Audio Black Air 12 V1 (BA12) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 VIBE Audio Black Air 12 V1 (BA12) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 VIBE Audio Black Air 12 V1 (BA12) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 VIBE Audio Black Air 12 V1 (BA12) Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
Black Air Series
Subwoofer Size
12"
Peak Power Handling
1600 watts
RMS Power Handling
550 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
25 - 1,500 Hz
Sensitivity
89 dB
Xmax (millimeters)
16 mm
Subwoofer Design
Round / Circle
Main Cone Color
Yellow
Woofer Composition
Polyglass
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.5 cubic feet
Maximum Sealed Box Volume
2.0 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Maximum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
6-3/4"
Cutout Diameter
11-1/4"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BA12-V1

Weight:

17.00lbs

Internal SKU:

ba12v1

Internal Product ID:

28069
