See all parts that fit your 2008 Explorer

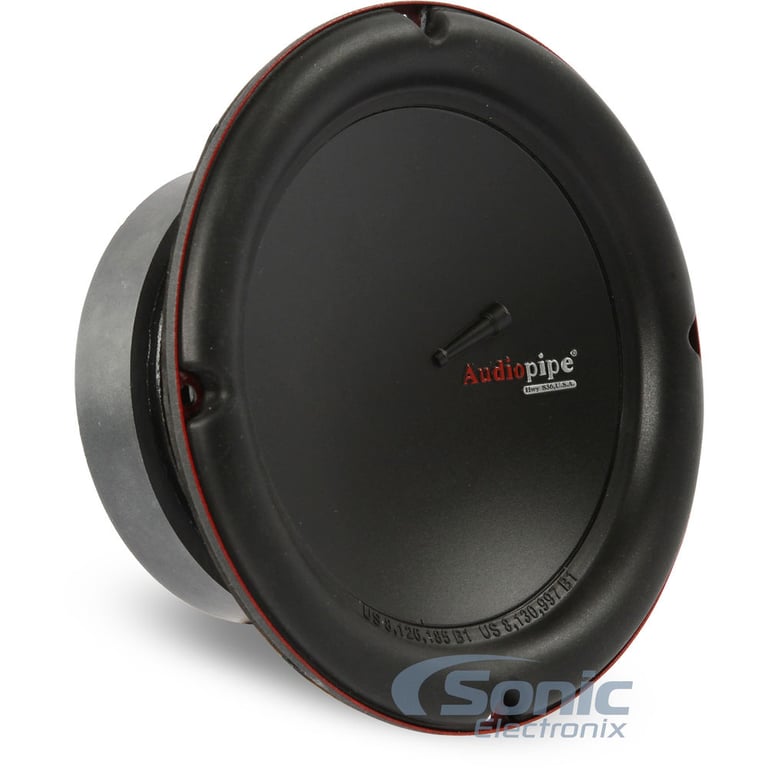

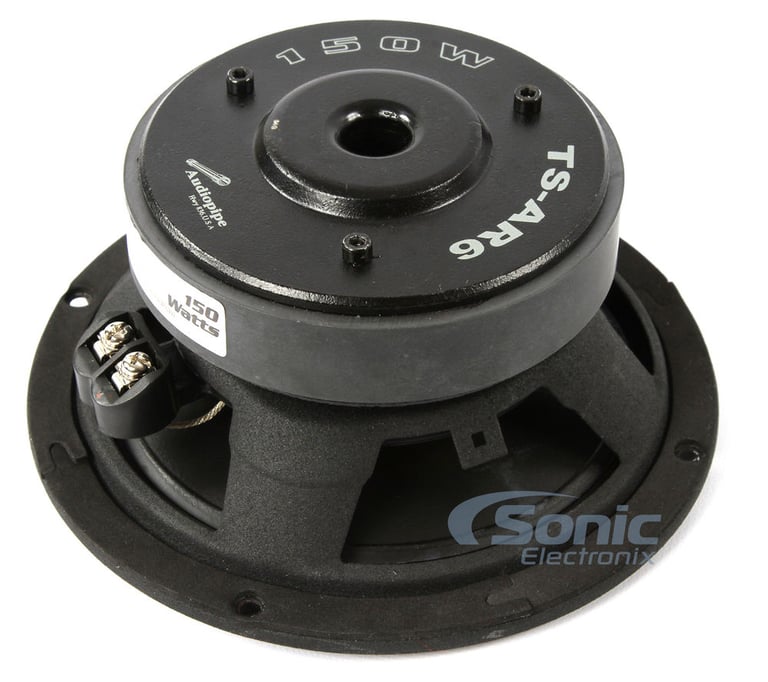

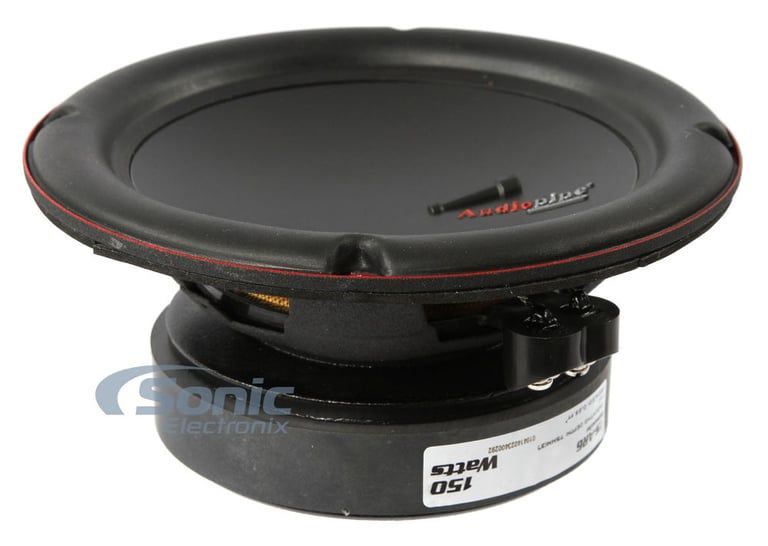

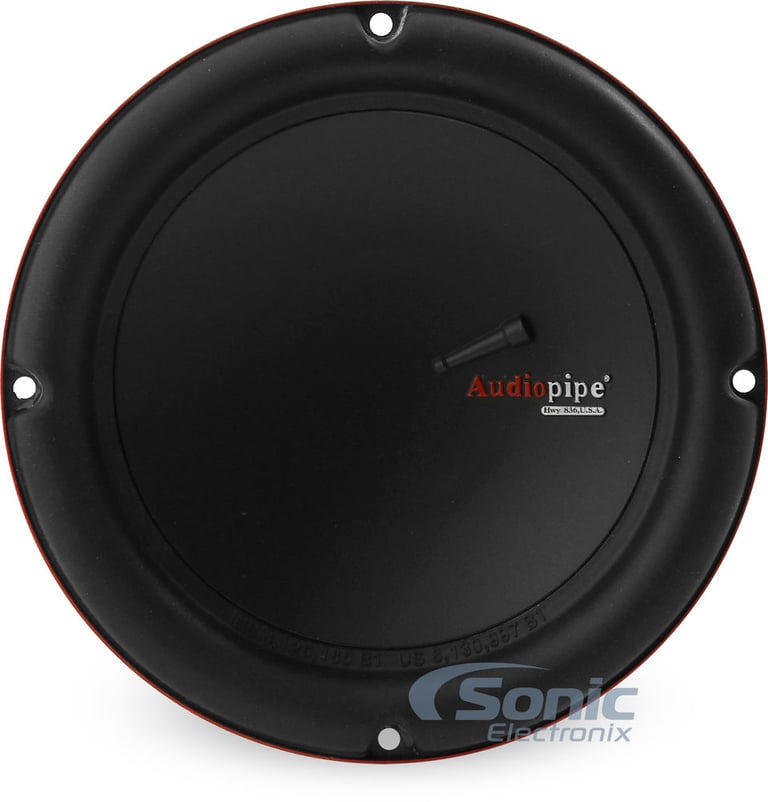

Audiopipe TS-AR6

150W Peak (75W RMS) 6" EXT Series Single 4-Ohm Subwoofer (TSAR6)

Product videos
highlight-star-icon

• 6"/6.5" EXT Series Subwoofer
• Single 4 Ohm
• 150 Watts Max
• 75 Watts RMS
• One Piece Polypropylene Cone
• Butyl Rubber Surround
• Multi-Connect Terminals
• 25 Oz Magnet
• Powdered Black Paint Steel Basket

Learn more about the tsar6

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

70-5520 main

Metra 70-5520 Wiring Harness

Install a new car stereo in select 2003-2016 vehicles from Ford, Mercury, Lincoln

56
99-5812 main

Metra 99-5812 Dash Kit

Install a new Single-DIN car stereo in select 2004-2016 vehicles from Ford, Lincoln, Mercury

6
-46.68%

$15.99

List price $29.99

FMK540 main

American International FMK540

Single DIN or Double DIN Stereo Dash Kit for select 2004-2016 vehicles from Ford, Lincoln, Mercury

14
-71.82%

$10.99

List price $39.00

SHFD03B main

Scosche SHFD03B

Speaker Harness for select 1998-2019 vehicles from Ford, Mazda, Lincoln

8
-18.50%

$8.99

List price $11.03

MET-FD4 main

Metra MET-FD4

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2005-2014 vehicles from Ford, Lincoln, Mercury

1
-10.00%

$89.99

List price $99.99

Limited time!
CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

8
-11.43%

$309.99

List price $349.99

DPX305MBT main

Kenwood DPX305MBT

Double DIN Digital Media Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

15
-20.50%

$159.00

List price $200.00

VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$99.99

List price $119.99

DMX129BT main

Kenwood DMX129BT

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

4
-26.30%

$199.00

List price $270.00

Product Highlights


• 6"/6.5" EXT Series Subwoofer
• Single 4 Ohm
• 150 Watts Max
• 75 Watts RMS
• One Piece Polypropylene Cone
• Butyl Rubber Surround
• Multi-Connect Terminals
• 25 Oz Magnet
• Powdered Black Paint Steel Basket

Description


Audiopipe brand icon

Authorized dealer

Successfully introducing the TS-V series back in 2003, Audiopipe was one of the first major car audio brands to perfect a one piece cone capable of holding power. Combining performance, reliability and a distinct ability to handle high levels of power, this series has always outlived installer's expectations in every aspect of what a true entry level subwoofer should be.

So what better way to perfect an already perfected product? Audiopipe answers with the EXT subwoofer! Edge Extension Technology allows for the rubber butyl surround to reach the very edge of the basket allowing the cone area to be increased. So what does this mean? More bass same space! The added space allows for all subwoofers incorporating EXT technology to move more air as it cycles through every bass note. This delivers an unbelievable smooth bass response while maximizes the space being used.

Along with the new EXT technology, the TS-AR and TS-VR series have increased the magnet structure by 15% for increased power handling. Audiopipe has implemented these improvements, all while maintaining the entry level pricing structure for both series

General Features:

  • 6" (6-1/2") EXT Series Subwoofer
  • Power Handling:
    • Peak: 150 watts
    • RMS: 75 watts
  • Recommended power range: 30 - 80 watts RMS
  • Impedance: Single 4 ohm
  • One piece polypropylene cone
  • Butyl rubber surround
  • Powdered black paint steel basket
  • Patent Pipe multi-connect terminals
  • 1-1/2" Four-layer single voice coil BASV
  • 25 oz Single magnet structure
  • Frequency response: 60-3,000 Hz
  • Sensitivity: 85 dB
  • Mounting Depth: 3"
  • Also available in a dual voice coil configuration: Audiopipe TS-VR6
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Audiopipe TS-AR6 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Audiopipe TS-AR6 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Audiopipe TS-AR6 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Audiopipe TS-AR6 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

SW-UV16.5D4 small

Sundown Audio U-6.5SW D4 6.5" (U65SWD4)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Pressed Paper Cone
• Double-Stitched Surround
• Mount depth: 5.71"
• Sensitivity: 78.14 dB

(3)

$199.99

List price $239.99

V65DV4 small

Cerwin-Vega V65DV4

• Peak Power: 1500 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Polypropylene Cone
• Santoprene Rubber Surround
• Mount depth: 4.65"
• Sensitivity: 82 dB

$129.99

List price $155.99

V65DV2 small

Cerwin-Vega V65DV2

• Peak Power: 1500 watts
• RMS Power: 500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Polypropylene Cone
• Santoprene Rubber Surround
• Mount depth: 4.65"
• Sensitivity: 80 dB

$129.99

List price $155.99

SW-SA6.5SWD2 small

Sundown Audio SA-6.5 SW D2 6.5" (SA65D2)

• Peak Power: 600 watts
• RMS Power: 300 watts
• Impedance: Dual 2 ohm
• Paper Cone
• Foam Surround
• Mount depth: 3.79"
• Sensitivity: 81.6 dB

$129.99

List price $167.99

6W3V3-4 small

JL Audio 6W3V3-4

• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.25"
• Sensitivity: 80.49 dB

(25)

$319.99

List price $319.99

SWS-6.5X small

Earthquake Sound SWS-6.5X

• Peak Power: 200 watts
• RMS Power: 100 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 1-3/4"
• Sensitivity: 77.3 dB

(9)

$119.99

List price $149.00

CWRT674 small

Kicker CWRT674 (48CWRT674)

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Dual 4 ohm
• UV-Resistant Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 2-3/4"
• Sensitivity: 82.6 dB

(9)

$103.96

List price $149.99

VMAX65D2 small

Cerwin Vega VMAX65D2

• Peak Power: 400 watts
• RMS Power: 200 watts
• Treated Semi-Pressed Pulped Cone
• Impedance: Dual 2 ohm
• Mount depth: 4.25"

$129.99

List price $155.99

SUMMO64XL small

Massive Audio SUMMO64XL

• Peak Power: 400 watts
• RMS Power: 200 watts
• Kevlar Fiber-Enforced Non-Pressed Paper cone
• EROM Foam with red stitching surround
• Impedance: Dual 4 ohm
• Mount depth: 4.37"
• Sensitivity: 85 dB

(20)

$89.99

List price $134.99

VMAX65D4 small

Cerwin-Vega VMAX65D4

• Peak Power: 400 watts
• RMS Power: 200 watts
• Treated Semi-Pressed Pulped Cone
• Treated Foam Surround
• Impedance: Dual 4 ohm
• Mount depth: 4.25"
• Sensitivity: 83.5 dB

$129.99

List price $155.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
6.5"
Peak Power Handling
150 watts
RMS Power Handling
75 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
60 - 3,000 Hz
Sensitivity
85 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Butyl Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.2 cubic feet
Optimum Sealed Box Volume
0.25 cubic feet
Maximum Sealed Box Volume
0.35 cubic feet
Minimum Ported Box Volume
0.6 cubic feet
Optimum Ported Box Volume
0.75 cubic feet
Maximum Ported Box Volume
0.85 cubic feet
Top-Mount Depth (Mounting Depth)
3"
Cutout Diameter
5-5/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TS-AR6

Weight:

6.00lbs

Internal SKU:

tsar6

Internal Product ID:

29029

Product and How-to Videos


Customer Ratings & Reviews


Audiopipe TS-AR6 thumbnail image

5 star
90%
4 star
10%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.9
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great mid-sub

In a word these things are great. I have them hooked up to a REP2-450 Power Acoustik amp and they more than handle the power. They are installed, with no modification, in the back doors of my 04 Vibe. They supplement the Rockford P1 12" and provide the mid bass perfectly. You can't go wrong with these.

By Keith on March 9, 2015

15 found this helpful


great product

Been looking small subs to fit in my back deck. So far so great! Would recommend to other people. Sounds Great!

By Flip on August 3, 2015

9 found this helpful


Great Sub for TJ with some Modification

I replaced the stock subwoffer on my 06 Jeep Wrangler. I only had to break off a few pieces inside the stock sub box. Super easy and great bass. It definitely beats the stock sub and the price is better than the cost of a oem replacement.

By Gerry on June 11, 2017

3 found this helpful


Fantastic little sub

I'm buying more, these things will be going everywhere they can fit, and they can fit everywhere.

By Toddington on September 6, 2015

5 found this helpful


Good little sub

I have not had the chance to test the overall performance as of yet, but it is a good quality little sub woofer. So far I am very pleased, especially considering it is so cheap.

By Cameron on December 16, 2016 Checkmark Icon Verified purchase

1 found this helpful


Works Good

I bought these subs for my Klipsch Pc power speakers.
I the subs with out. I system works great. I like the subs.

By just joe on August 26, 2016

1 found this helpful


Solid 6" sub

I put these in an Audi A4 replacing the factory Bose on the rear deck. Pushed via a JVC 65w@4ohm RMS x2 amp which paired nicely with these subs. Puts out a solid bass without going over board (i.e. 12" car rattlers). Screw down terminals are a nice touch too. I'm very happy with them and they will be my go to if I need to do another car.

By NotDeaf on February 14, 2016

1 found this helpful


Yo

I ordered these to put in the rear deck of an 98 A4 Quattro. They seem like pretty legit little subs. Haven't put them in yet jus due to the fact that we're gonna do a custom mounting point and a custom cabinet for them.

By michael on February 8, 2017 Checkmark Icon Verified purchase


Great little subs

I already had a box to fit 2 6.5th subs and these work perfect for me. Great sound but not overboard.

By kevin on October 25, 2016


Great sub for tight spaces!

Works great on the rear deck of my Miata. Built the box to Audiopipe's specs, and gave it plenty of power, and it sounds great!

By NaMiata on April 18, 2016




SE112m+-GR small

Shure SE112m+ (Gray)

Sound Isolating In-Ear Headphones w/ Apple Compatible Mic and Volume Control

$50.00

List price $79.00

AWIS12J small

Audiobahn AWIS12J

12" Quad 2 ohm Immortal Series Car Subwoofer

(17)

$359.99

List price $629.99

REFERENCEON-EAR-GEN-III_WHITE small

Klipsch Reference On-Ear (Gen-III) White

Reference Series On-Ear Headphones

$59.00

List price $199.00

XIAH-XMC small

Axxess XIAH-XMC

XM Radio cable for XIA-D01/XIA-I01/XIA-EU1

$6.99

List price $19.99

HD-95BG small

Power Acoustik HD-95BG (BEIGE)

2 Universal BEIGE Leather Headrests Loaded with 9.5" TFT-LCD Monitors with Remote

(3)

$289.99

List price $699.99

AW1000Q small

Audiobahn AW1000Q 10" High-Excursion (AW 1000Q)

$79.99

List price $199.99

No picture

Pioneer AVH-X7700BT (Open Box)

Single DIN Bluetooth In-Dash DVD/CD/AM/FM Car Stereo w/ 7" Flip Out Display & Siri Eyes Free Mode

(9)

$290.95

List price $799.99

No picture

Kenwood eXcelon DNX995S Bundle #129 for Select Mazda Vehicles

Includes Double DIN Radio, Vehicle Specific Dash Kit and Wire Harness for Select Mazda Vehicles. Stereo features Android Auto and Apple Carplay

(14)

$764.93

List price $1868.99

No picture

Alpine INE-W977HD Bundle #84 for select Toyota FJ Cruiser Vehicles

Includes Double DIN Radio, Vehicle Specific Dash Kit and Wire Harness for Select Toyota FJ Cruiser Vehicles. Stereo features Apple Carplay and Android Auto

(19)

$1043.93

List price $1710.77

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2008 Ford Explorer

2018 Ford Transit Connect

2019 Audi Q7

2017 Ram 2500

2011 Ram 2500

1986 Chevrolet Nova

2013 Ram 1500

2015 Ford C-Max

1996 Ford Explorer

2001 Toyota Corolla

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
