400W Complete MTX Audio + RE Audio Bass Package

MTX Audio Terminator TN250/1 Amplifier + RE Audio REX12 Sub + 8 Gauge Amp Kit + 12" Vented Enclosure

MTX
Shop all MTX
EXCLUSIVE
Product videos
highlight-star-icon

Bass Package: MTX TN250/1 + RE Audio REX12D4 + 8 GA Kit + Sub Box • 400W Max • CEA-2006 Compliant • Includes Everything You Need To Add Bass To Your Car

Learn more about the LS-tn2501-RB_rex12d4

We apologize

This item has been discontinued


Loading...
HKSB110 main

American International HKSB110

6.5" or 6.75" Speaker Mounting Adapters for select 2006-2021 vehicles from Hyundai, Kia

11
-51.31%

$18.99

List price $39.00

Product Highlights


Bass Package: MTX TN250/1 + RE Audio REX12D4 + 8 GA Kit + Sub Box • 400W Max • CEA-2006 Compliant • Includes Everything You Need To Add Bass To Your Car

Description


MTX brand icon

Authorized dealer

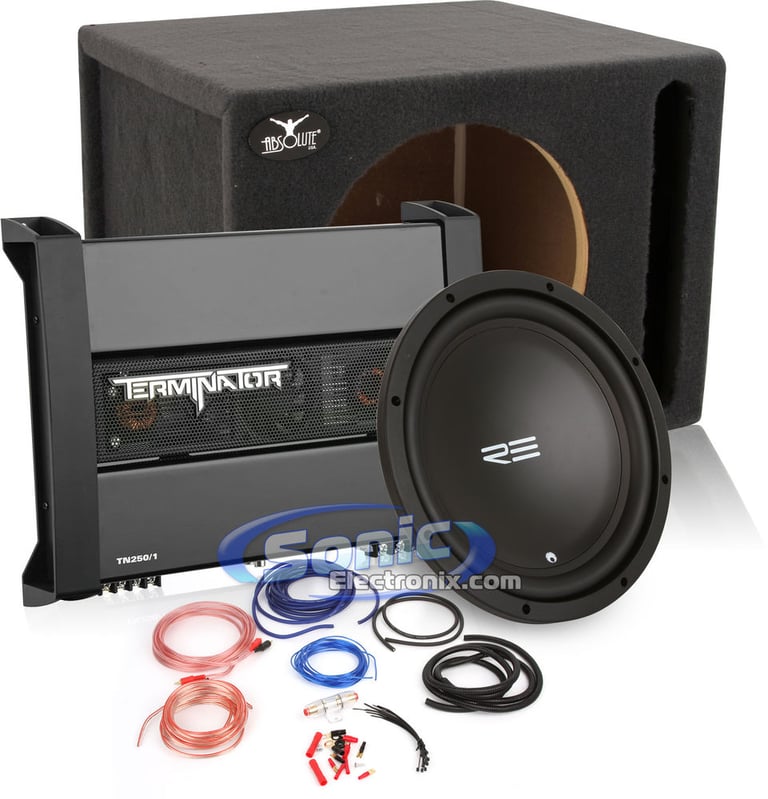

Sonic Electronix Exclusive Bass Package

This combo package includes one RE Audio 12" REX Series subwoofer and a MTX Audio Class D Terminator Series Amplifier. This monoblock amplifier is a perfect match for the 12" subwoofer when wired at 2 ohms. The amplifier is equipped with a built-in cooling fan that protects from overheating and keeps the woofer bumpin for extended periods of time. This exclusive package also includes a vented 12" enclosure and a 8 gauge amplifier kit to make all the necessary power connections. Sonic Electronix is the only place you will find this perfectly matched combo.

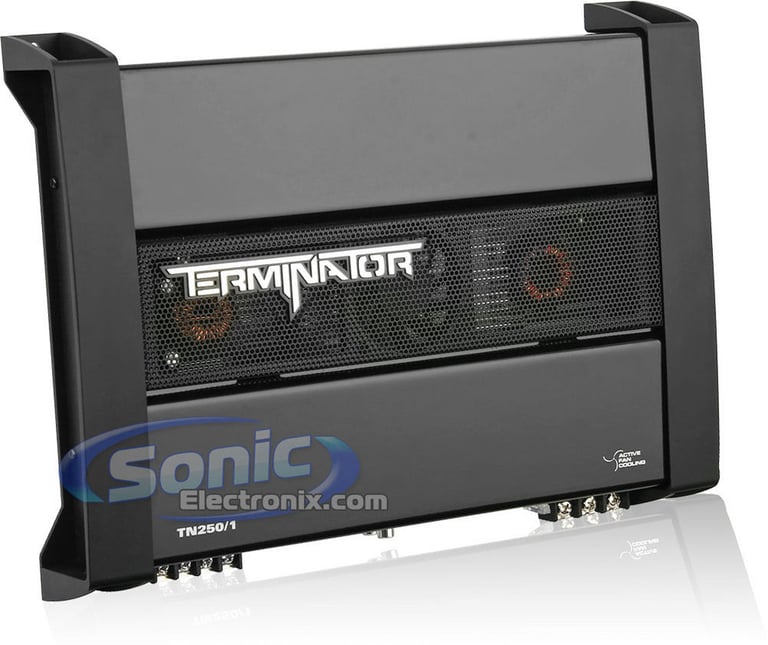

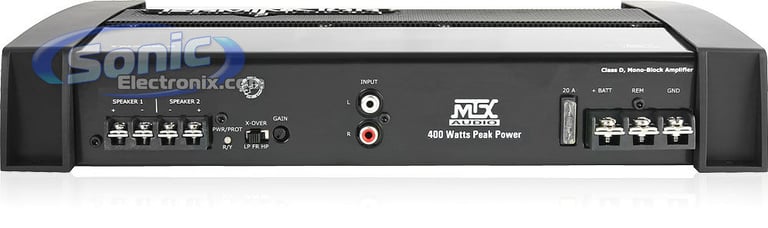

MTX Audio Amplifier Features
  • Terminator Series Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 1 chan.
    • 2 ohm: 200 watts x 1 chan.
  • Max power output: 400 watts x 1 chan.
  • LED power and protection indicators
  • Selectable bass boost (0, 6, 12 dB at 40 Hz)
  • Mono gain control
  • Smart engage auto turn-on circuitry
  • Built-in adaptive cooling fans
  • Fixed low-pass filter (85 Hz, 18 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-85 Hz
  • Dimensions: 13-1/16"L x 10-3/16"W x 2-1/4"H
  • Item Condition: Factory Refurbished
  • 90 Day Manufacturer warranty
  • Authorized Internet Dealer

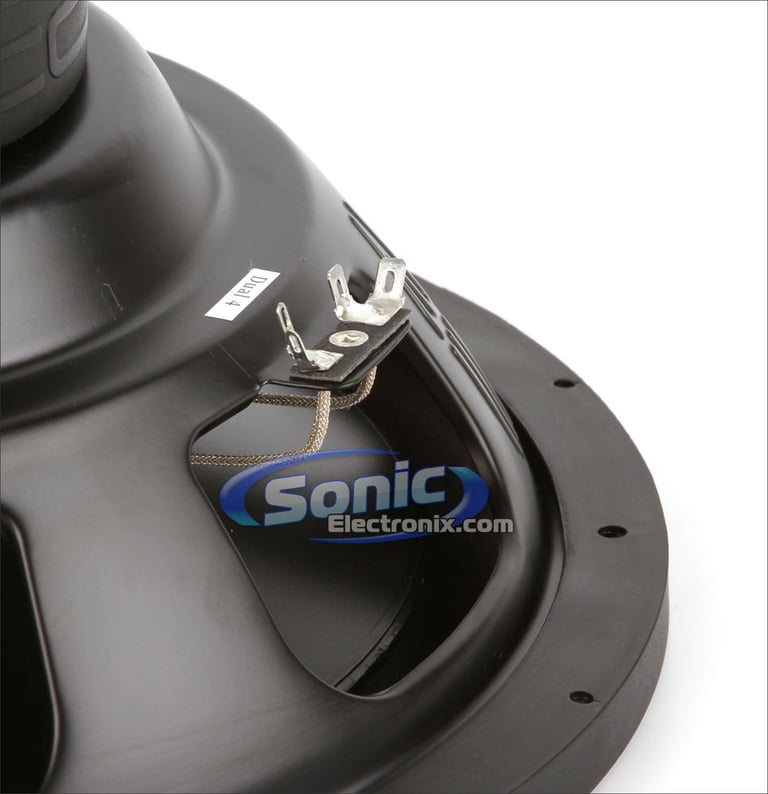

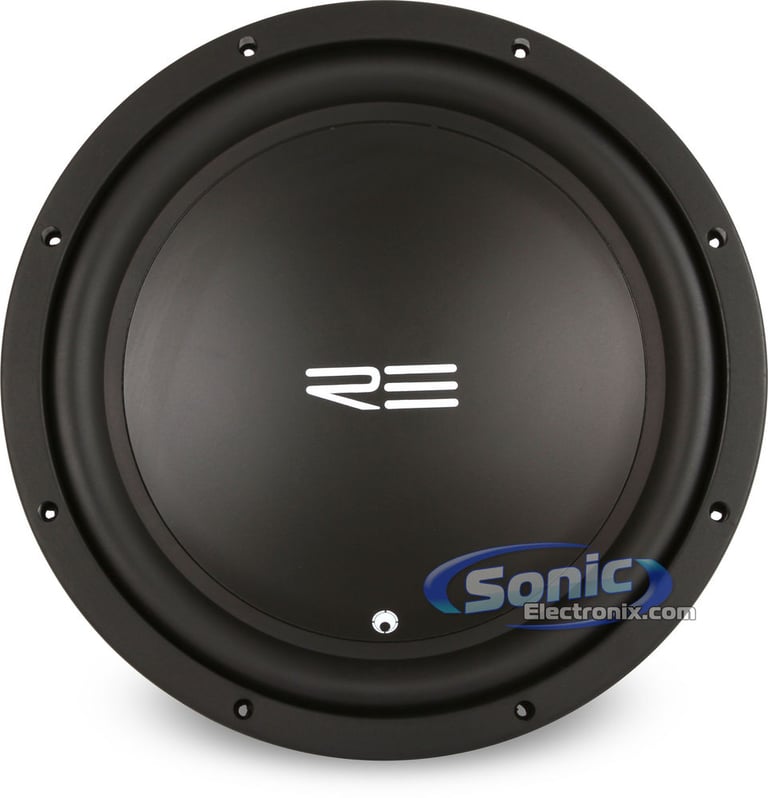

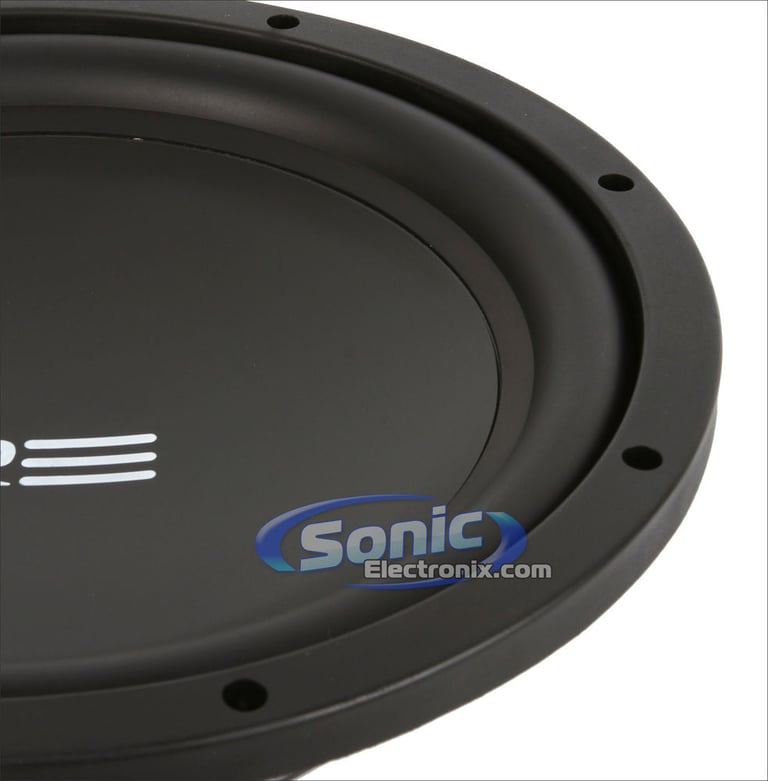

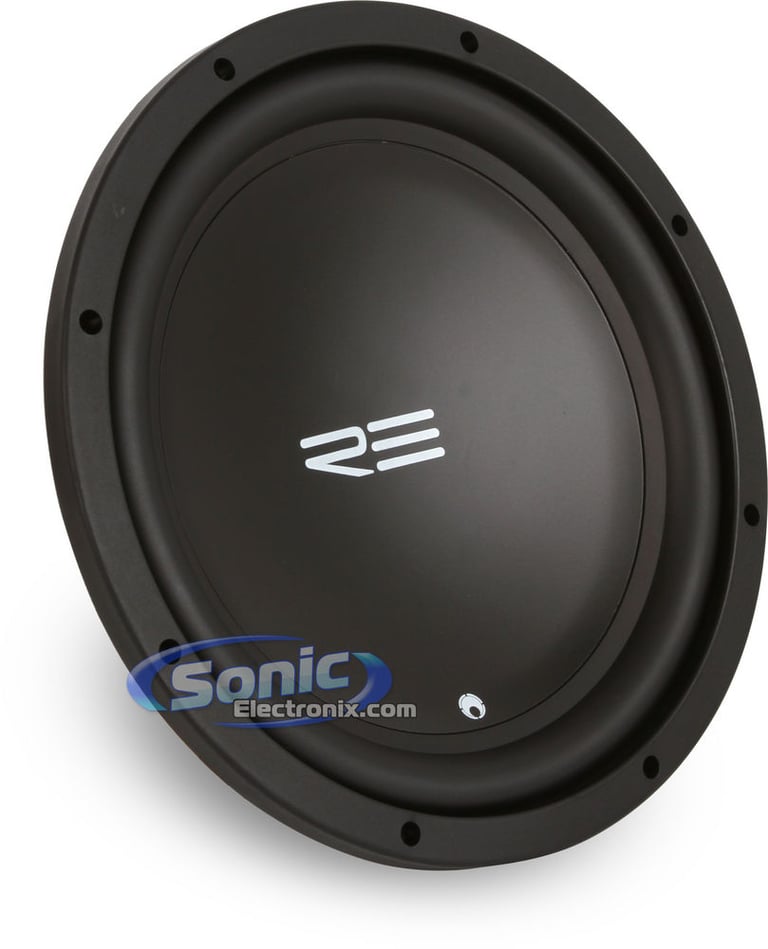

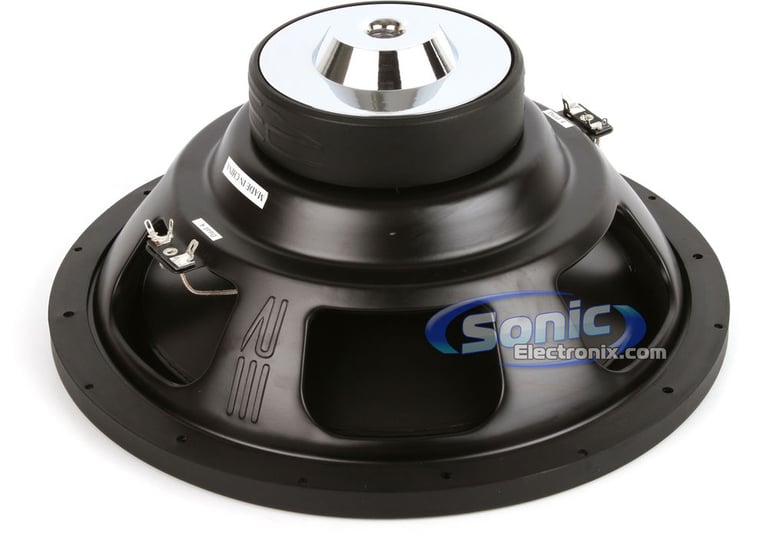

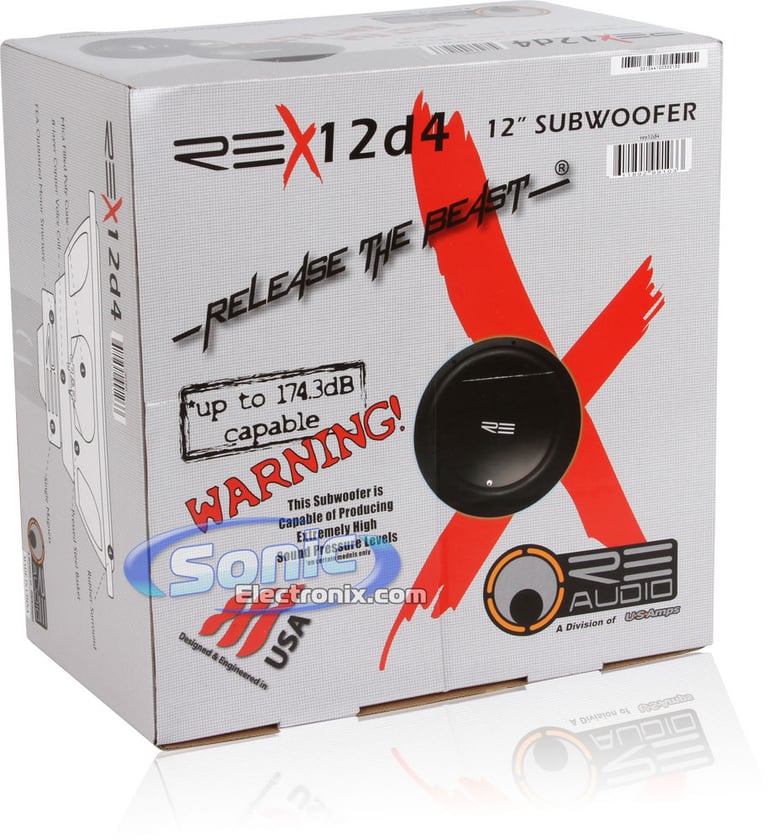

RE Audio Subwoofer Features
  • 12" Dual 4 ohm REX Series Subwoofer
  • Power Handling:
    • RMS: 175 watts
  • Impedance: Dual 4 ohm
  • Mica filled poly cone woofer
  • Santoprene rubber surround
  • Pressed steel basket
  • FEA Optimized motor structure
  • Linear Conex spiders
  • Rubber gasket
  • High temperature 8-layer copper voice coil
  • Powerful, single stacked magnet
  • Sensitivity: 87.3 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

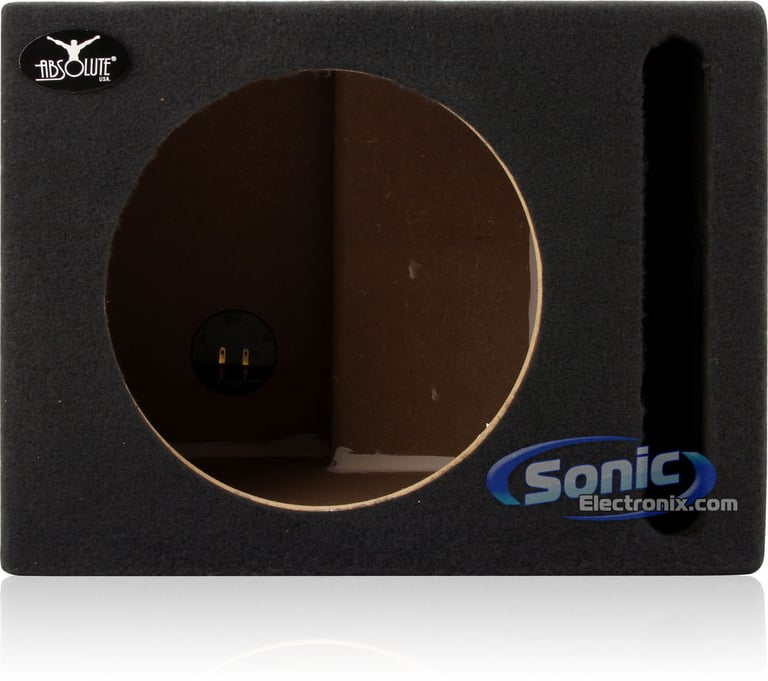

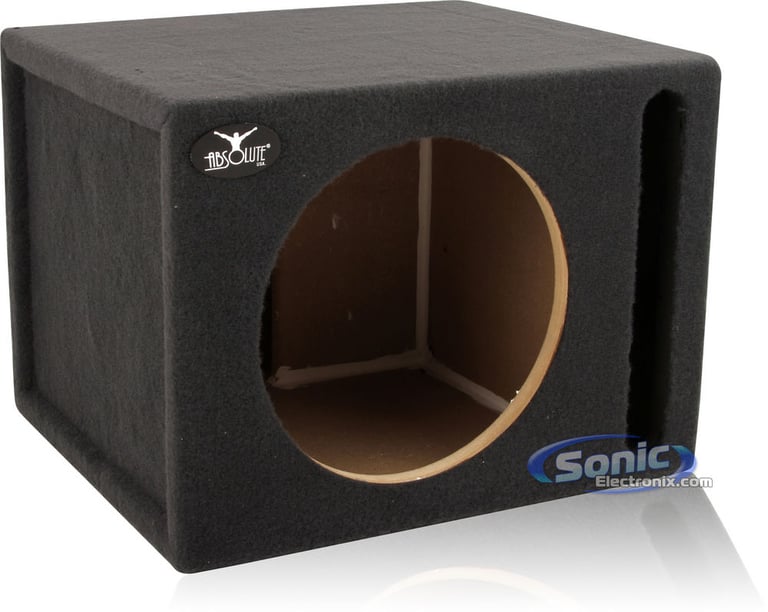

Absolute Subwoofer Enclosure Features
  • Slot Vented 12" Car Subwoofer MDF Enclosure/Box
  • Fits one (single) 12" subwoofer
  • Rugged black carpet

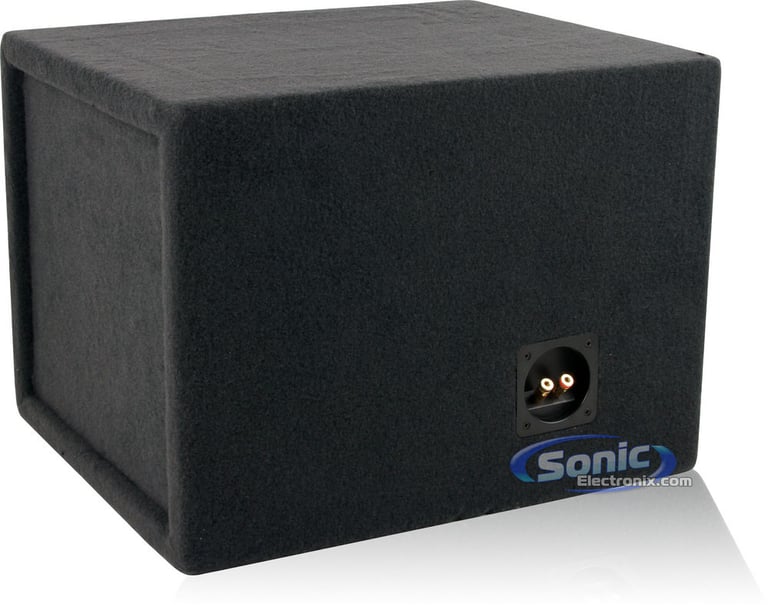

  • Gold plated binding posts
  • Banana clip ready
  • 1 L-shaped vent/port
  • Mounting Depth: 12-3/4"
  • Cutout Diameter: 11"
  • Box Volume: 1.27 cubic feet
  • Total Port Volume: .32 cubic feet
  • Made from 3/4" Medium Density Fiberboard (MDF)
  • Dimensions: 16"D x 19-1/4"W x 14-1/4"H
  • Authorized Internet Dealer

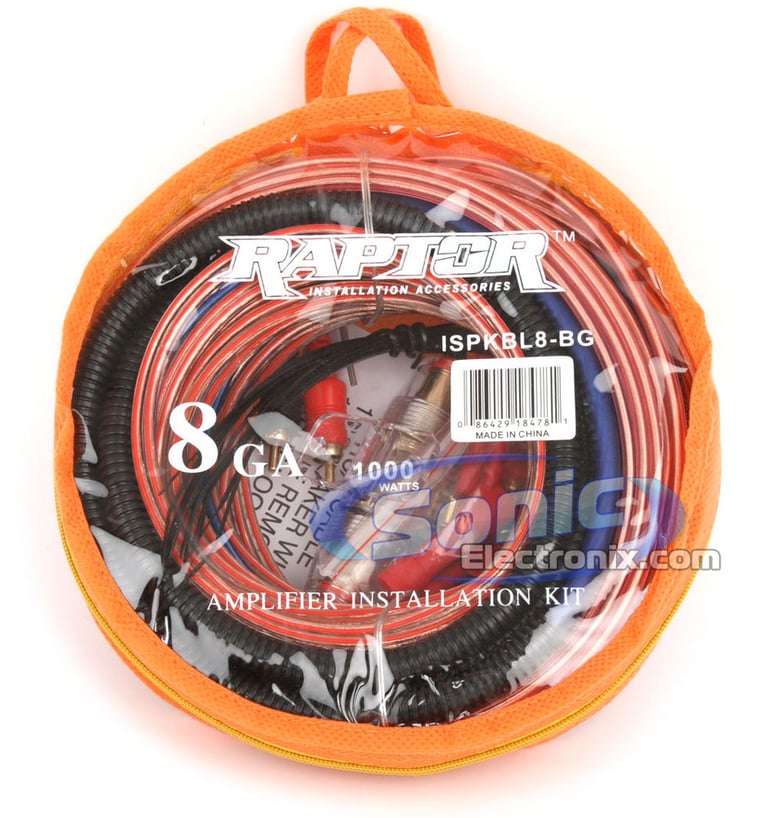

Raptor Amplifier Kit Features
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 8 Gauge (AWG) Power and ground cable for excellent power transfer
  • Designed for systems up to 1000W
  • Comes with everything needed to install an amplifier
  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

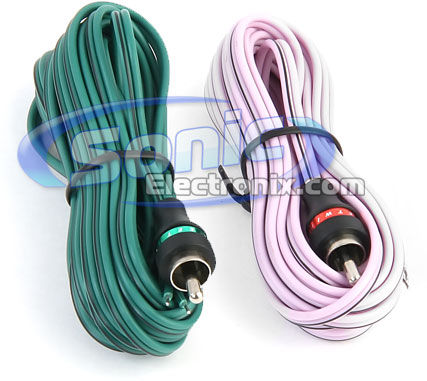

Amp Kit Includes:

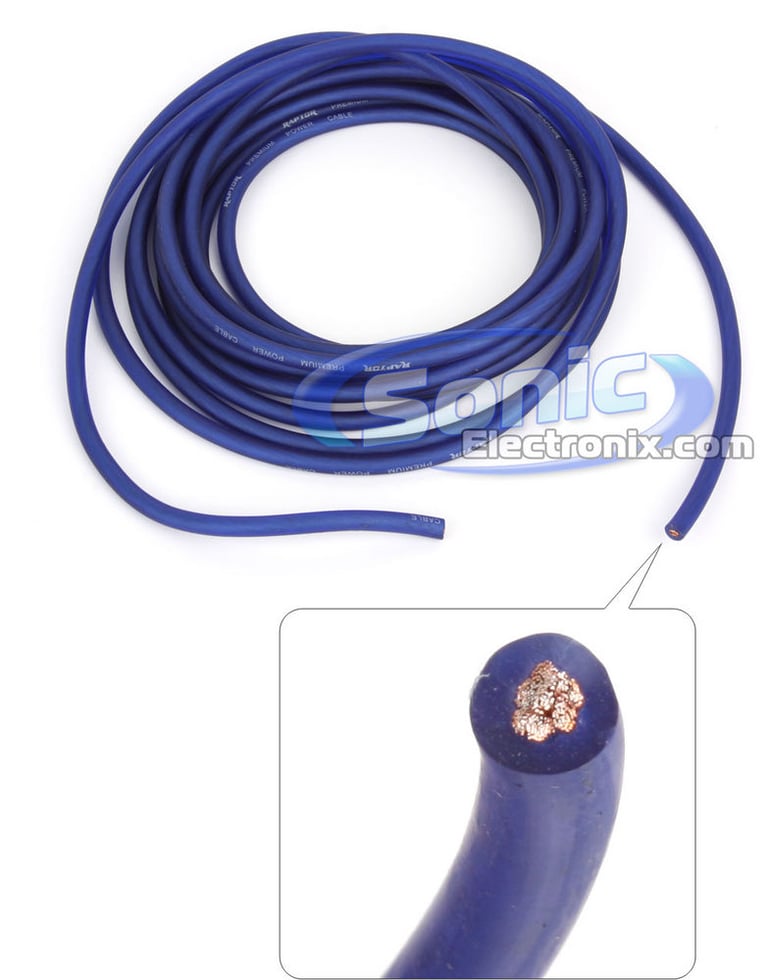

  1. 17 ft. of 8 Gauge blue power cable

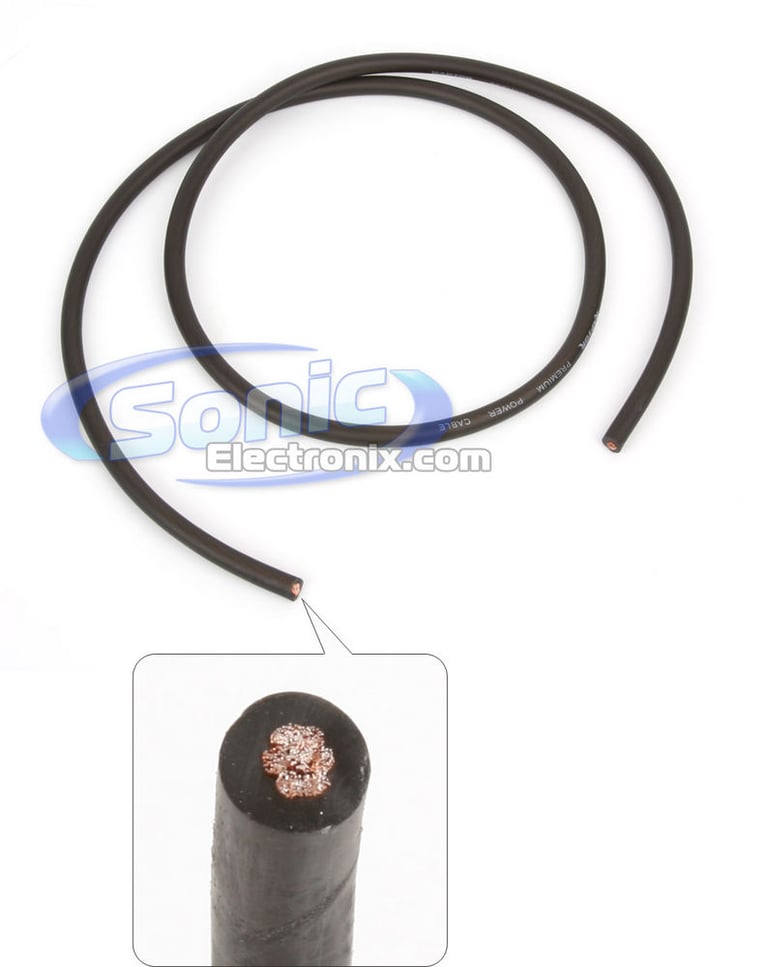

  2. 3 ft. 8 Gauge black ground cable

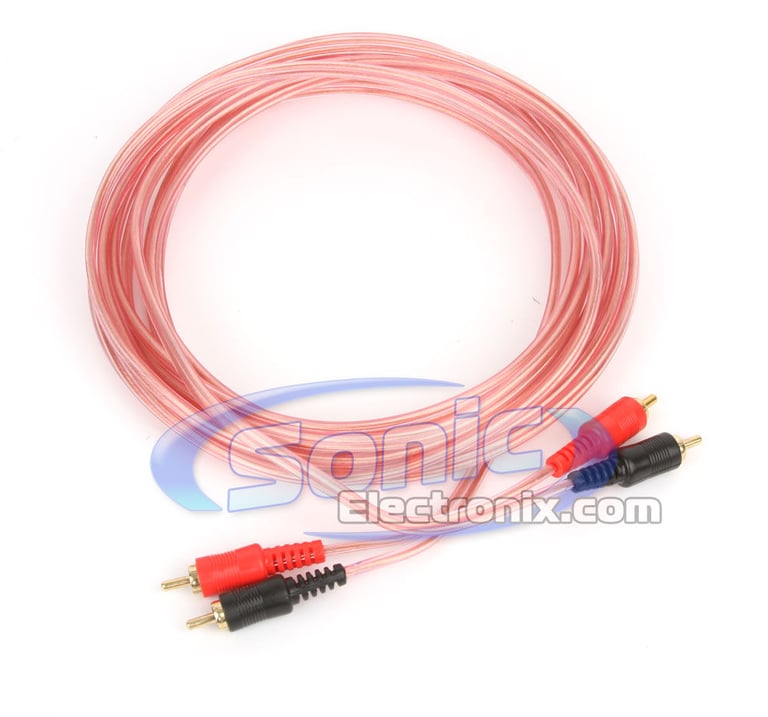

  3. 17 ft. Neon blue series RCA cable

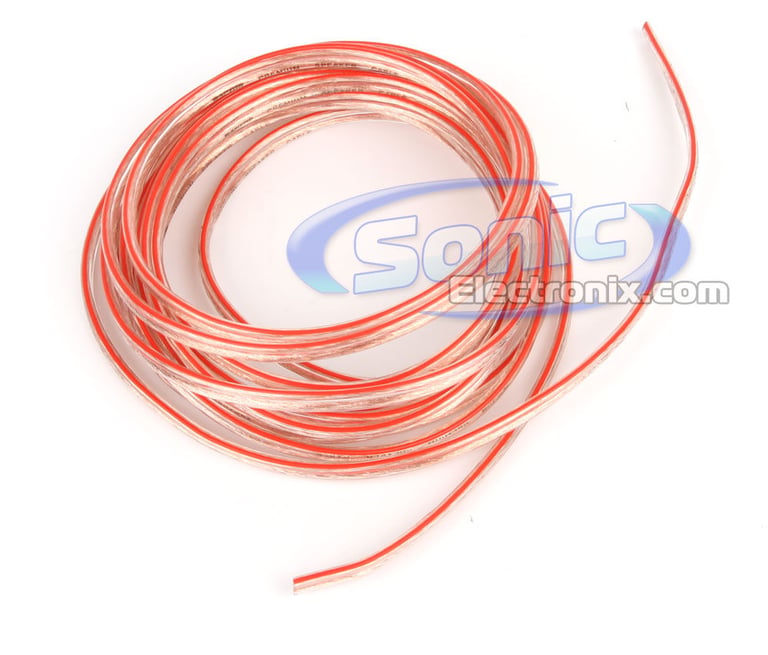

  4. 16 ft. of Premium speaker cable

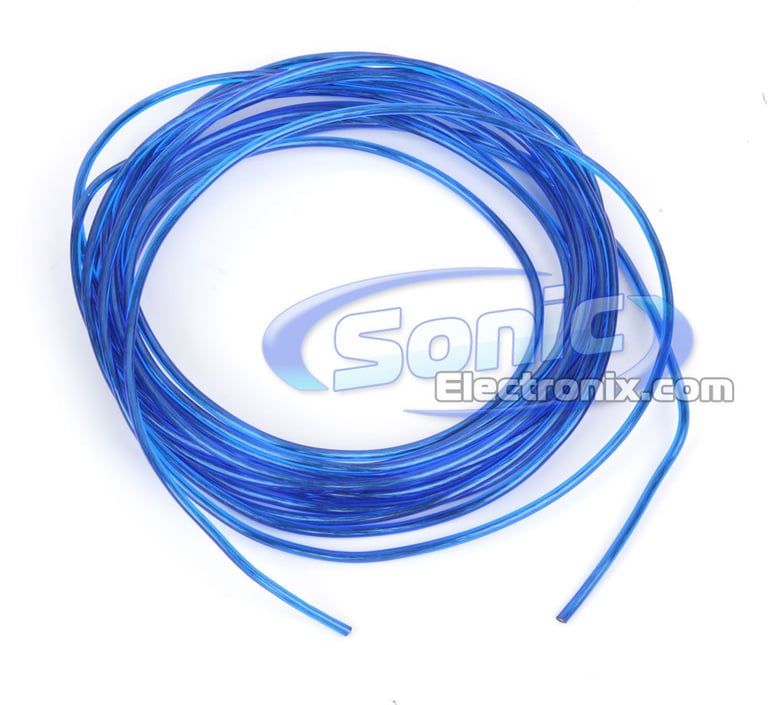

  5. 17 ft. of 18 Gauge blue remote turn-on wire

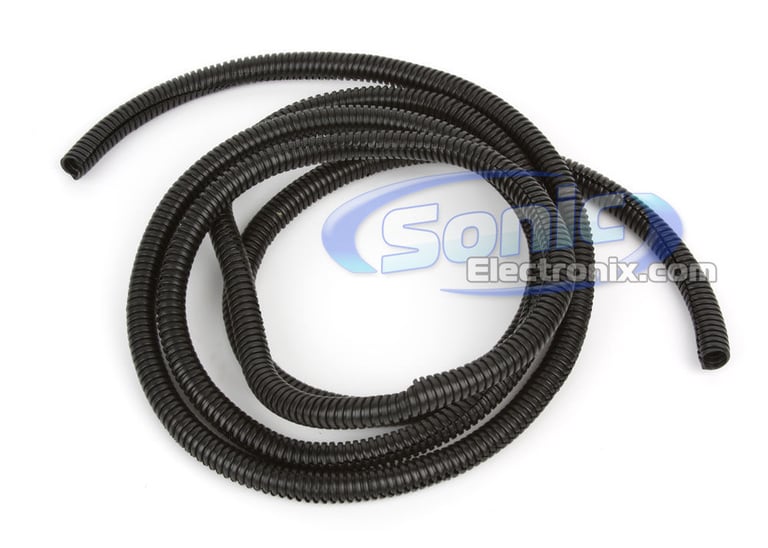

  6. 6 ft. Split loom tubing
  7. 1 AGU Fuse Holder
  8. 50 AMP Fuse

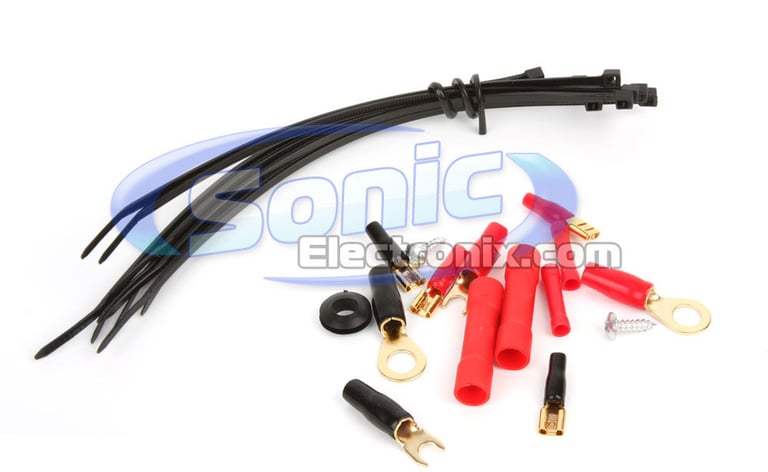

  9. All Necessary Hardware for Installation

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$456.68

List price $593.98

QBSTA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QBSTA & Two Pair 6.5" Speakers

• 11" Spare Tire Subwoofer System
• Built-In Class D Amplifier
• Top-mount amplifier controls
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(260)

$396.93

List price $581.43

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(72)

$279.99

List price $369.98

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(79)

$279.99

List price $369.98

AMPCBA754AM, XFLOC4, BAK84 small

JBL ClubA754 (Club A 754) + Free NVX XFLOC4 Line-Output-Converter + Amp Kit

• Class H Amp Technology
• 4 Ohm Stable Bridged: 200 Watts RMS x 2
• Variable High and Low-Pass Filters
• Variable Crossover
• Full On Board Protection

(68)

$319.95

List price $463.68

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

VSW124V3_NDA15001_XKIT42 small

NVX VSW124v3 + NDA15001 + XKIT42

• Two 12" VSW124v3 VS-Series 600W RMS Subwoofers
• 3000W Peak (1500W RMS) Class D NDA15001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(175)

$569.96

List price $743.96

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
100 watts x 1 channel
RMS Power @ 2 ohms
200 watts x 1 channel
Peak Power Output
400 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
85 Hz
Signal-to-Noise Ratio
73 dB
Bass Boost
Selectable 0, 6, 12 dB
Remote bass/level controller
No
Fuse Rating
25A x 1
CEA-2031 Compliant
Yes
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
175 watts
Woofer Surround
Santoprene Rubber
Woofer Composition
Mica Injected Polypropylene - MIPP
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
87.3 dB
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
14-1/4"
Width
19-1/4"
Depth
16"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

TN250/1-RB_REX12D4

Weight:

53.50lbs

Internal SKU:

LS-tn2501-RB_rex12d4

Internal Product ID:

29412

Product and How-to Videos


  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


400W Complete MTX Audio + RE Audio Bass Package thumbnail image

5 star
62%
4 star
20%
3 star
12%
2 star
0%
1 star
6%



Durability
4.4
Value
4.6
Features
4.2
Design
4.4
Usability
4.5

Customer Reviews

Sort by:

Loading...

Good Product

The following review is for ISPKBL8-BG, which is a part of the bundle you are viewing.

Used this package on my Mazda 6 i Sport and it covered the length of the car fine. Had scrap to splice off onto multiple amps.

By NETech on November 14, 2011

37 found this helpful


Comes with everything you need at a great price!

The following review is for ISPKBL8-BG, which is a part of the bundle you are viewing.

I ordered this kit for my two 12" mtx subs and a one channel amp and it came with all of the wiring necessary to gets my subs bumping

By Luke on August 23, 2010

35 found this helpful


RE Audio REX12

The following review is for REX12D4, which is a part of the bundle you are viewing.

I own two of these subs, being driven by us Amp d 1500 sub amp in my 328i BMW and I get stopped all the time by people wanting to know what subs are hitting that hard and so clear! They are great, don't be afraid to try them. I promise, you want be disappointed!

By WICKED RICK on March 30, 2011

31 found this helpful


Unimpressed

The following review is for REX12D4, which is a part of the bundle you are viewing.

I love RE Audio but these subs actually did not impress me at all. Didn't last long in my set-up. Replaced them with nvx nsw 12s. For the price I guess they are okay. Slacking RE audio, slacking.

By Robert on September 9, 2013

29 found this helpful


amazing subs

The following review is for REX12D4, which is a part of the bundle you are viewing.

i got 2 of these and for they sound amazing..,if your looking for just some bass with a little hit these will do but if your looking for more hit and rattle go with some higher powered subs

By none on June 22, 2012

29 found this helpful


ok

The following review is for REX12D4, which is a part of the bundle you are viewing.

They are not what i expected. They're ok for beginners but I did not like them.

By Jamey on April 7, 2012

29 found this helpful


BLOWN IN ONE DAY

The following review is for REX12D4, which is a part of the bundle you are viewing.

WELL scratch my old review, I hooked up this sub to a rockford amp pushin about 200rms @ 2ohms. It sounded good I was liking it for such a cheap sub. Played music for a half hour and the sucker started smoking and its done for!!!

By BRAD on February 3, 2012

29 found this helpful


decent

The following review is for REX12D4, which is a part of the bundle you are viewing.

sub is great, doesn't need a ton of power but, will take way more than the ratings show. the only con is that the lows aren't 100% of what i was looking for, however the mids are nuts!! all in all, great product

By mike on July 15, 2011

29 found this helpful


A++++

The following review is for REX12D4, which is a part of the bundle you are viewing.

Had this for 6 months now, could not be happier with the quality for this price. Amazing product and great deal.

By jerd on January 3, 2012

28 found this helpful


Very High Quality Sub for low power

The following review is for REX12D4, which is a part of the bundle you are viewing.

Very nice low power sub sounded very good @115 watts 8ohms, I recently rewired it to 2ohms @over 300 watts rms and has no problems taking the power. I would recommend this sub to people who want good full clear bass you can feel, but not if you want shake to the neighborhood.

By Josh on August 3, 2011

28 found this helpful




No picture

Belva BBIC3 (Open Box, Great)

3m (9.8 Ft) 2-Channel RCA Audio Interconnect Cable (CCA)

(1)

$2.79

List price $14.99

RTS10-04_XPA2100 small

500W MTX Audio + Dual Complete Bass Package

MTX Audio RTS10-04 10" Subwoofer + Dual XPA2100 Amplifier + 10SSPF Enclosure + 8 Gauge Amp Kit

(30)

$148.66

List price $374.92

P400X2 small

Rockford Fosgate Punch P400X2

400W RMS Punch Series Class-AB 2-Channel Bridgeable Full-Range Amplifier

(3)

$239.99

List price $419.99

HRN-RR-GM2 small

iDataLink HRN-RR-GM2

Wire Harness To Install New Car Stereo and Retain Steering Wheel Controls And OnStar for select 2011-2020 vehicles from Chevrolet, GMC (ADS-MRR or ADS-MRR2 module also required)

$46.99

List price $61.99

SV-5150 small

Crimestopper SV-5150

170-degree Wide-Angle CCD License Plate Color Camera (SV5150)

(3)

$59.99

List price $149.95

No picture

Belva BMV62W (Open Box, Great)

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

$134.99

List price $269.99

AVH-601EX small

Pioneer AVH-601EX Limited

Double DIN In-Dash DVD Receiver w/ 7" WVGA Display, Bluetooth, SiriusXM Ready and AppRadio

(3)

$289.95

List price $460.00

CAR710W-RB small

Jensen CAR710W (Refurbished)

7" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

(2)

$319.99

List price $349.99

RCX-165 small

Focal RCX-165 (RCX 165)

Auditor Line 6.5” 2-Way Coaxial Speakers

(1)

$104.99

List price $170.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2020 Kia Soul

2010 Volkswagen Beetle

1983 Ford Ranger

2017 Chevrolet Impala

2016 Audi Q3 Quattro

1993 Dodge Caravan

2004 Mazda B3000

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
